NOX & POX controller Speaker : Crystal

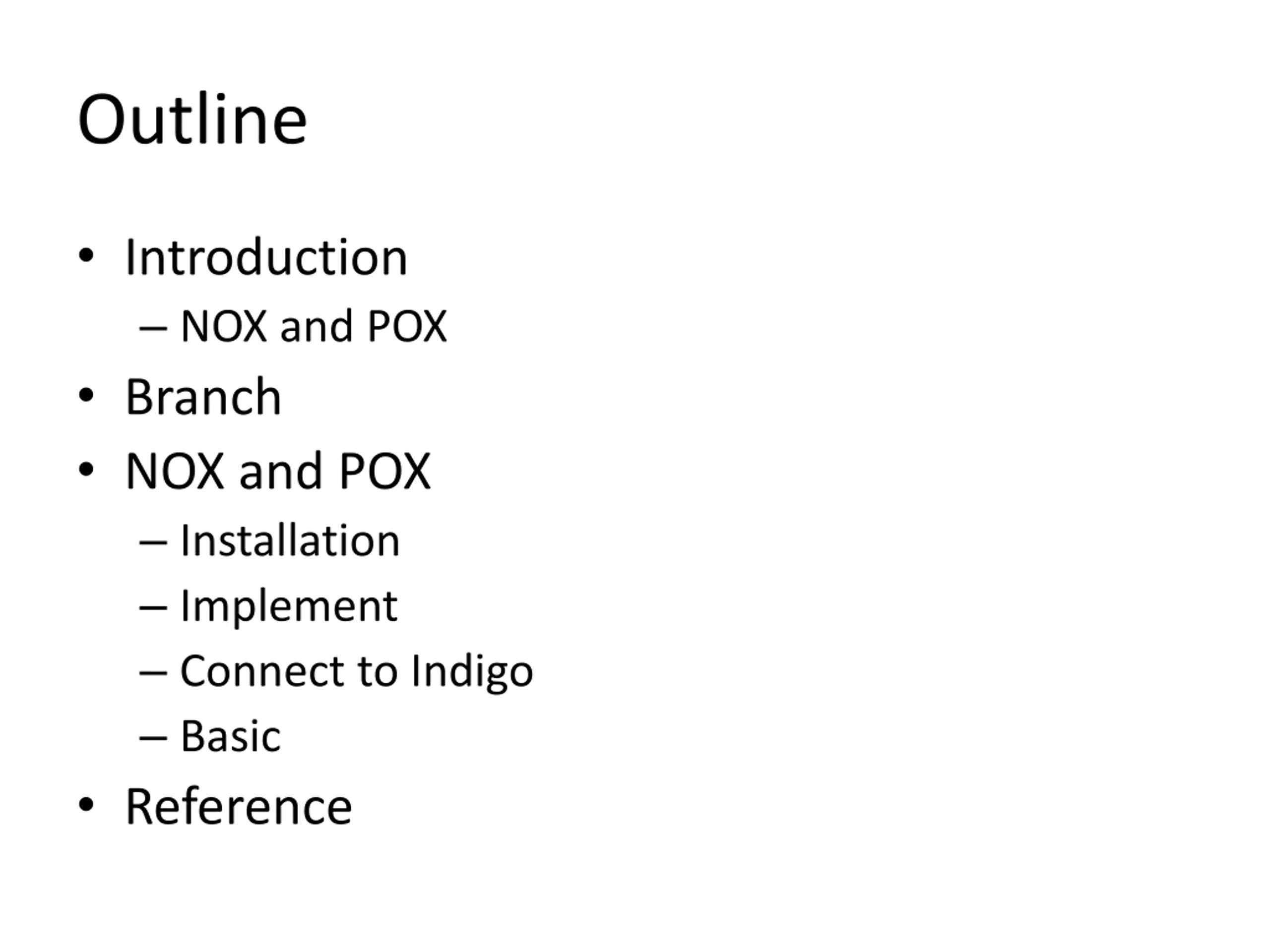

Outline Introduction NOX and POX Branch NOX and POX Installation Implement Connect to Indigo Basic Reference

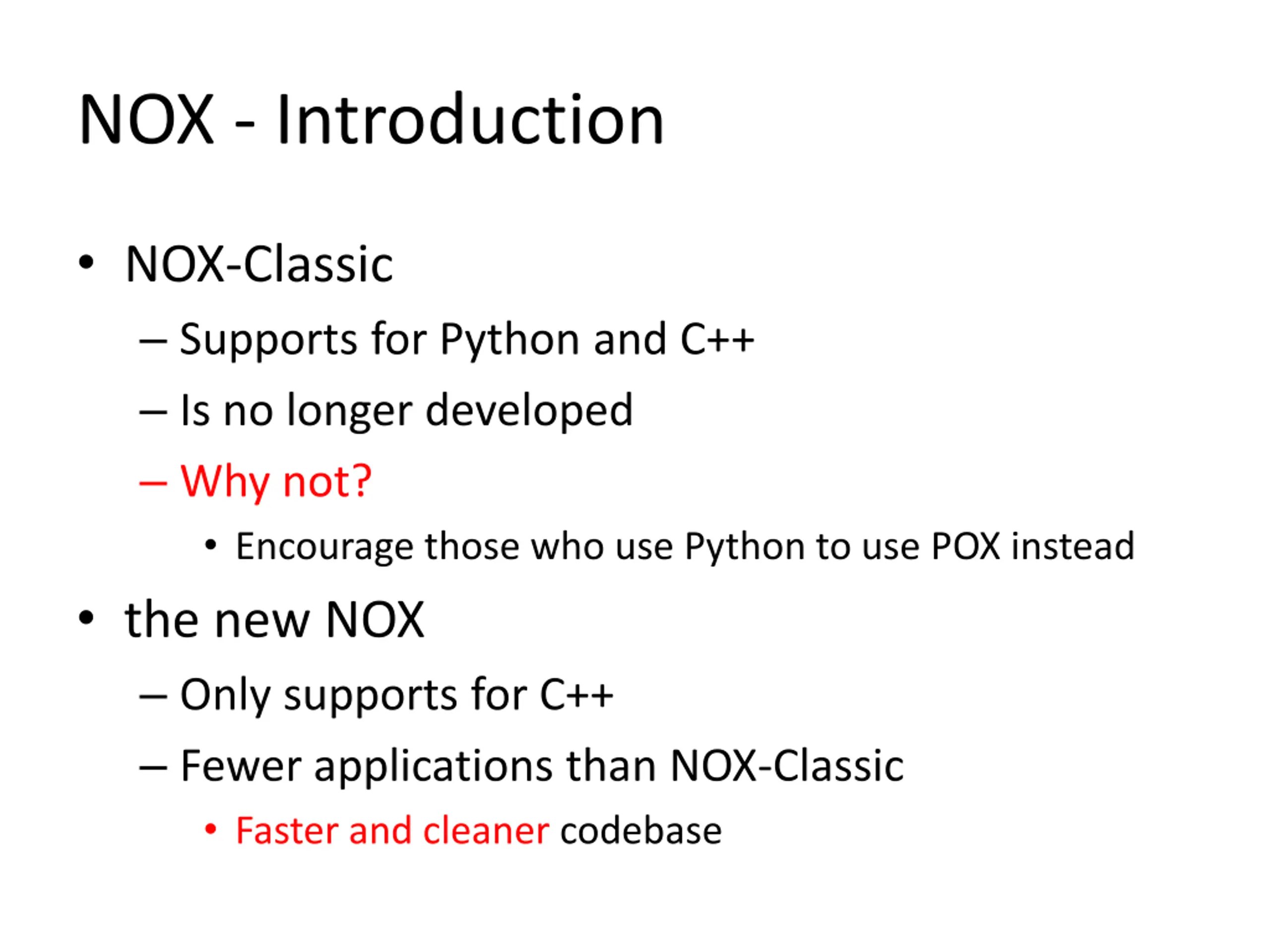

NOX - Introduction NOX-Classic Supports for Python and C++ Is no longer developed Why not? Encourage those who use Python to use POX instead the new NOX Only supports for C++ Fewer applications than NOX-Classic Faster and cleaner codebase

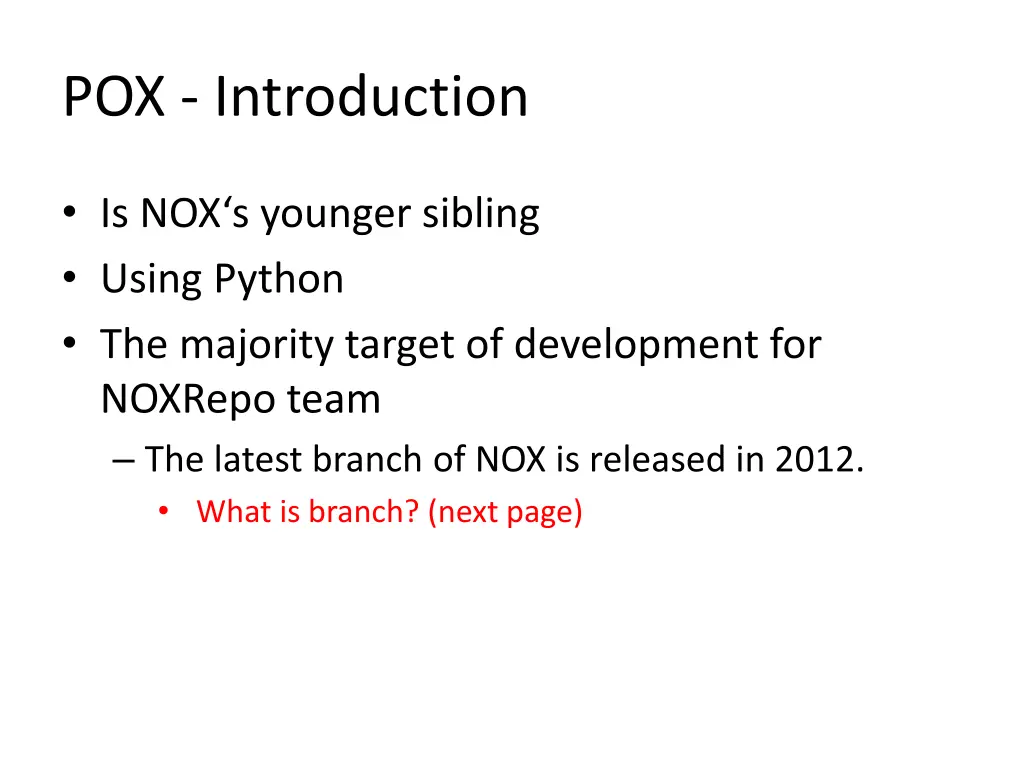

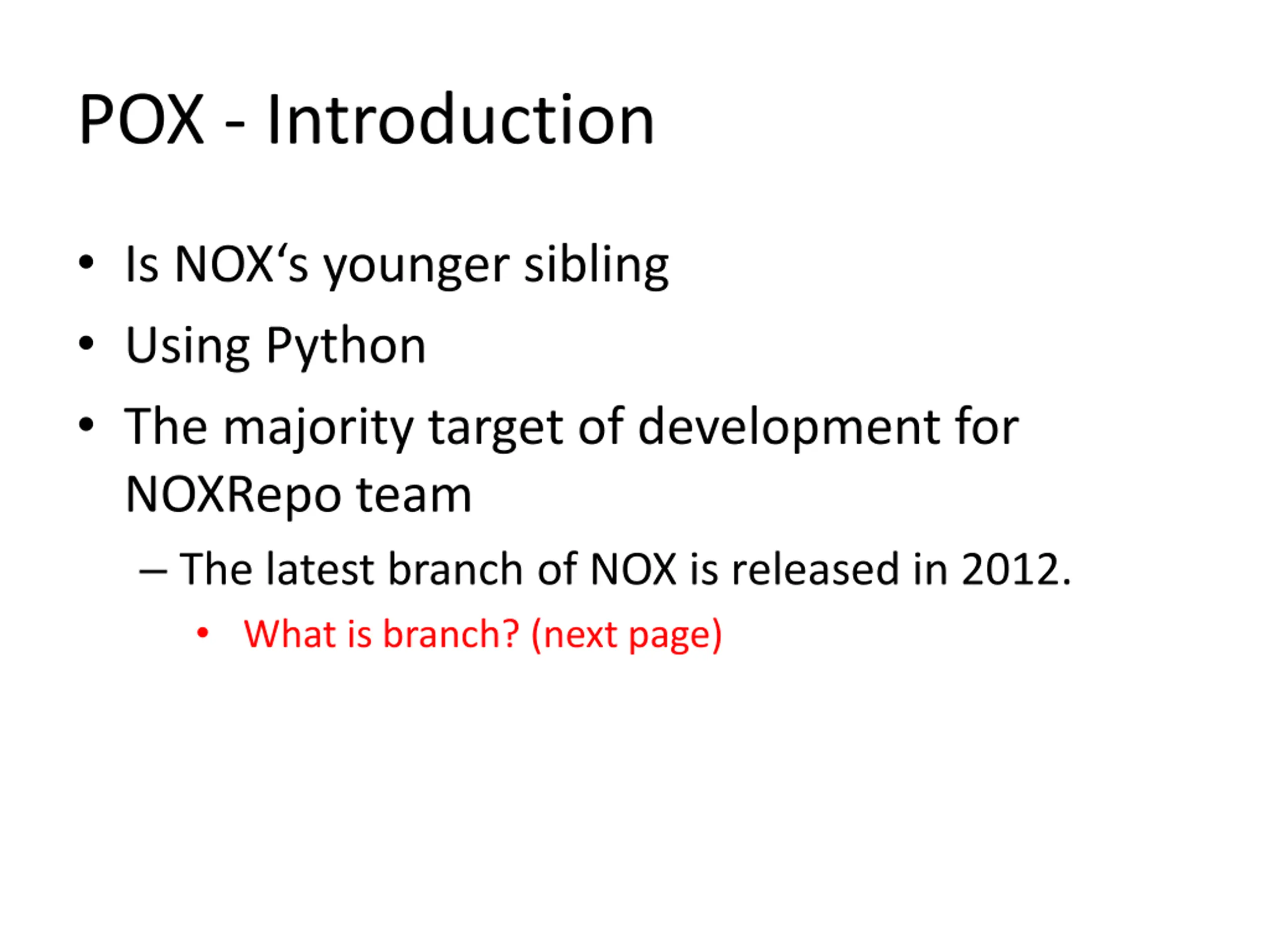

POX - Introduction Is NOX s younger sibling Using Python The majority target of development for NOXRepo team The latest branch of NOX is released in 2012. What is branch? (next page)

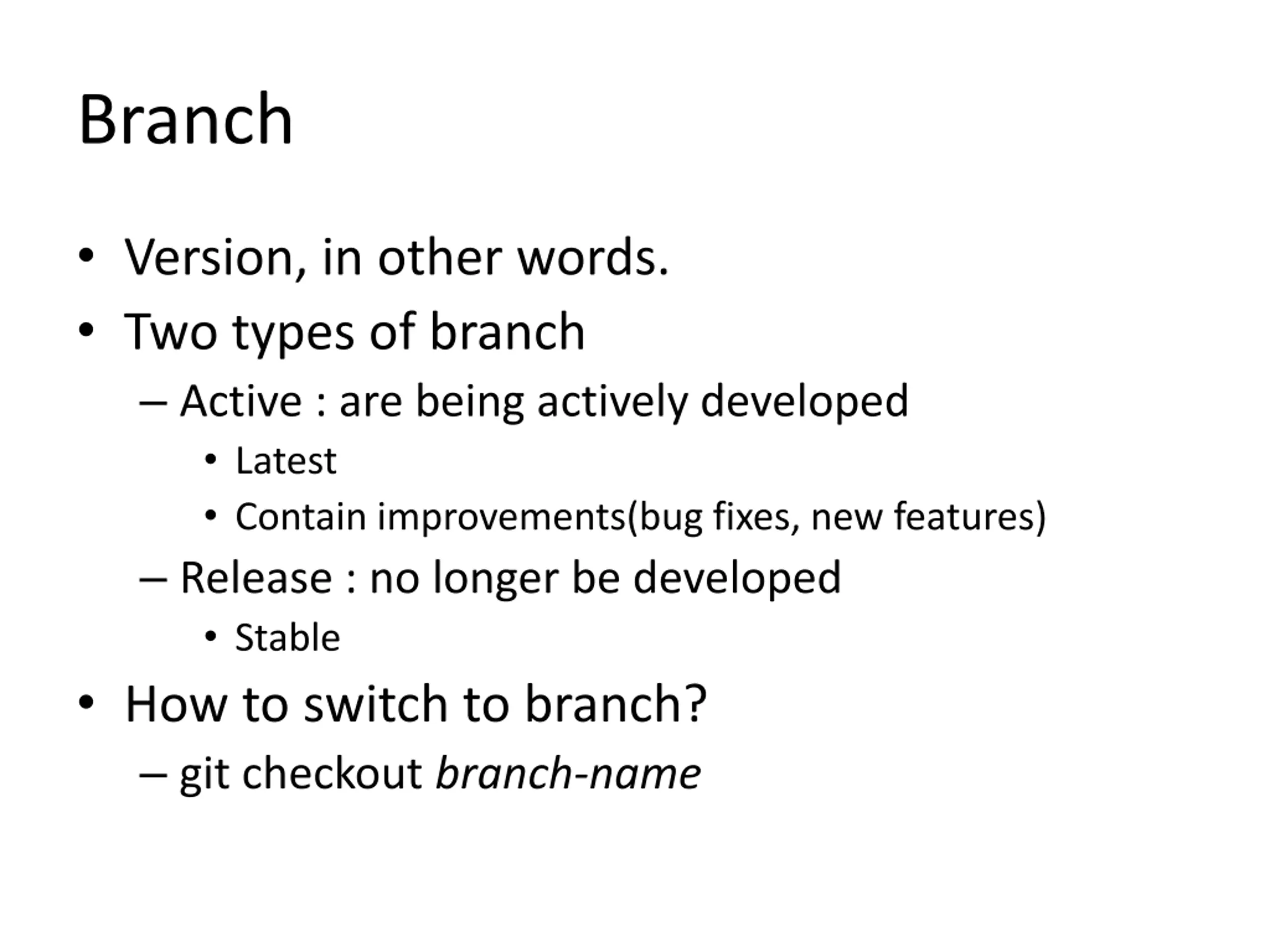

Branch Version, in other words. Two types of branch Active : are being actively developed Latest Contain improvements(bug fixes, new features) Release : no longer be developed Stable How to switch to branch? git checkout branch-name

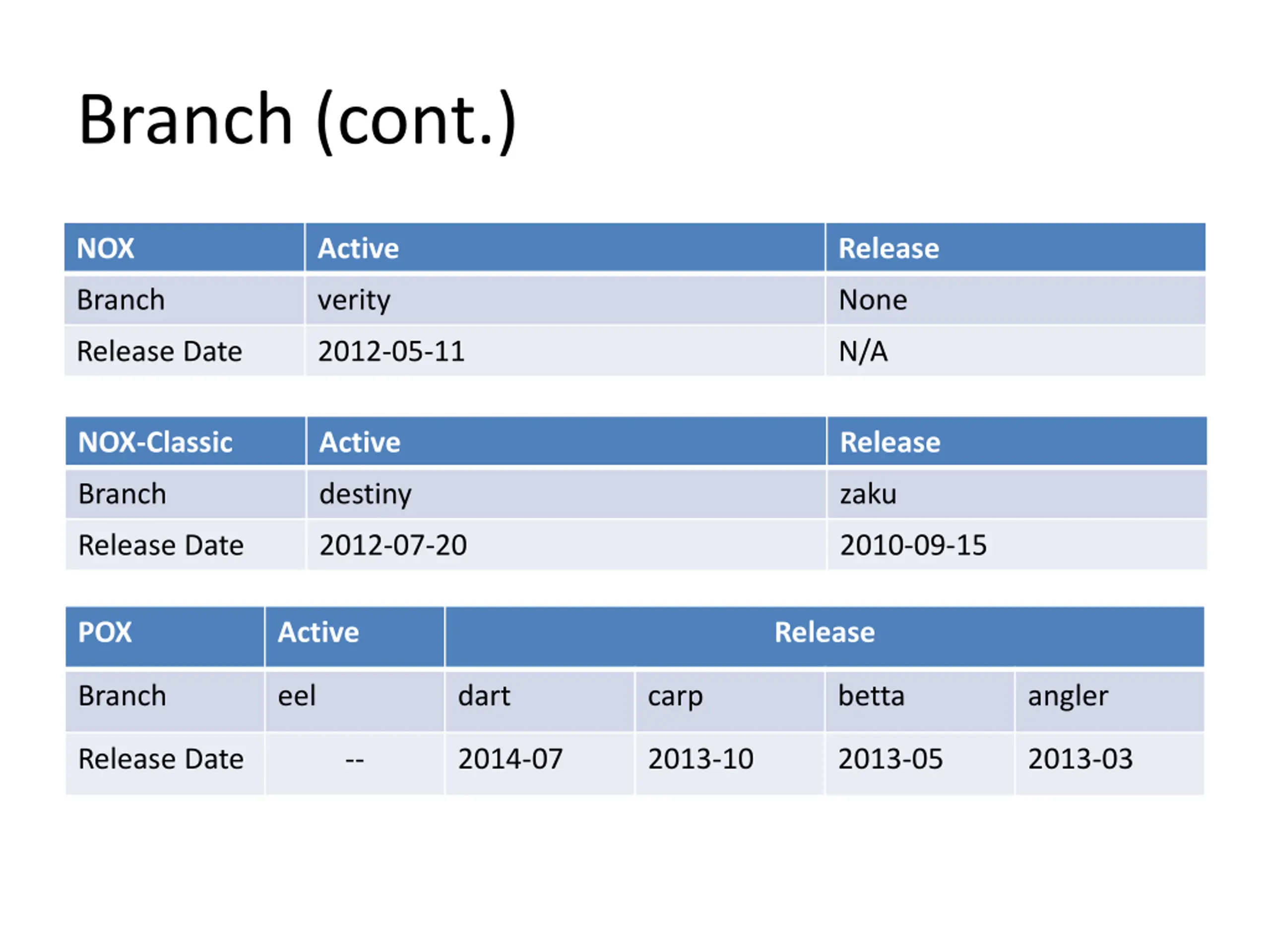

Branch (cont.) NOX Active Release Branch verity None Release Date 2012-05-11 N/A NOX-Classic Active Release Branch destiny zaku Release Date 2012-07-20 2010-09-15 POX Active Release Branch eel dart carp betta angler Release Date -- 2014-07 2013-10 2013-05 2013-03

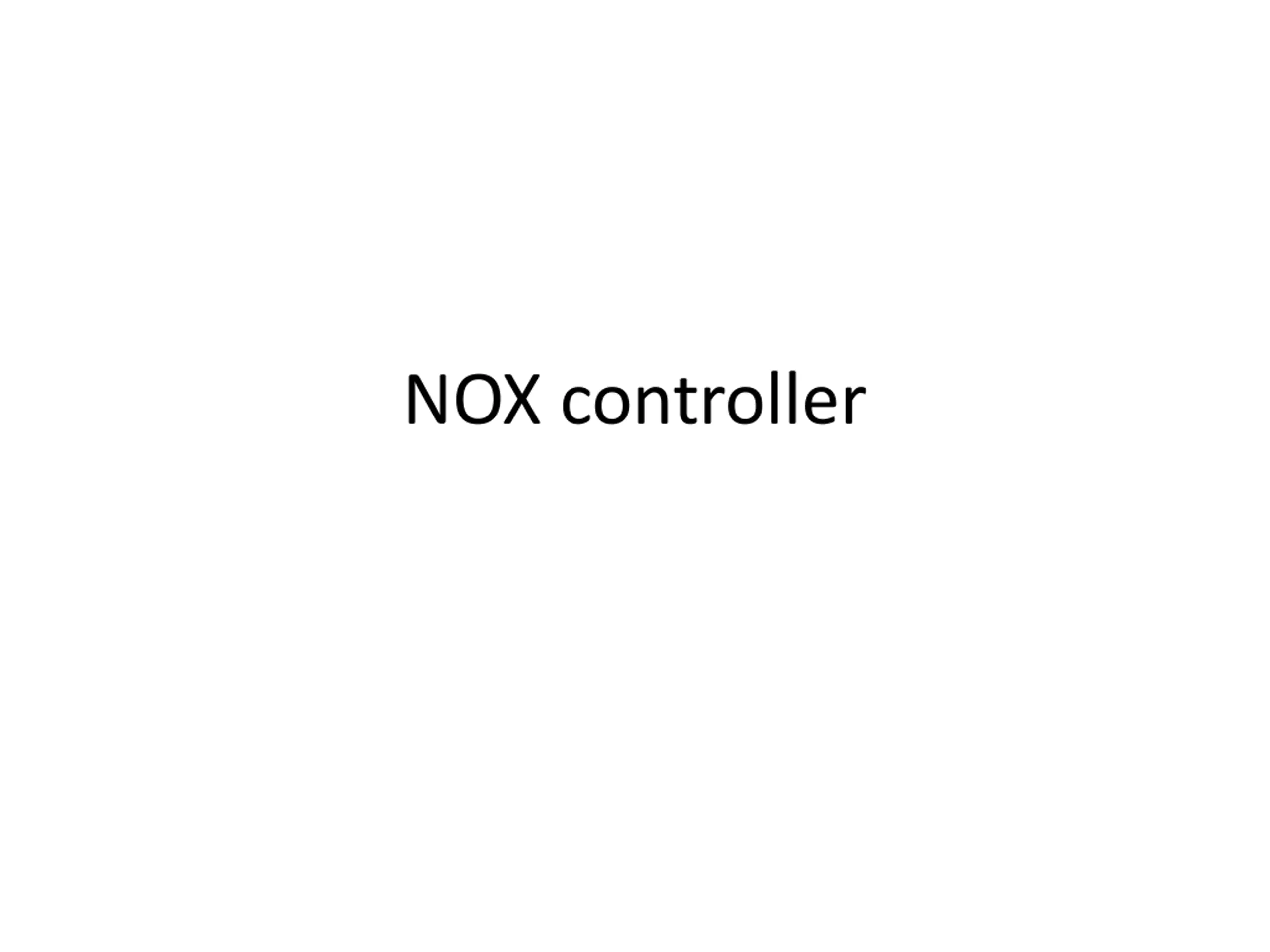

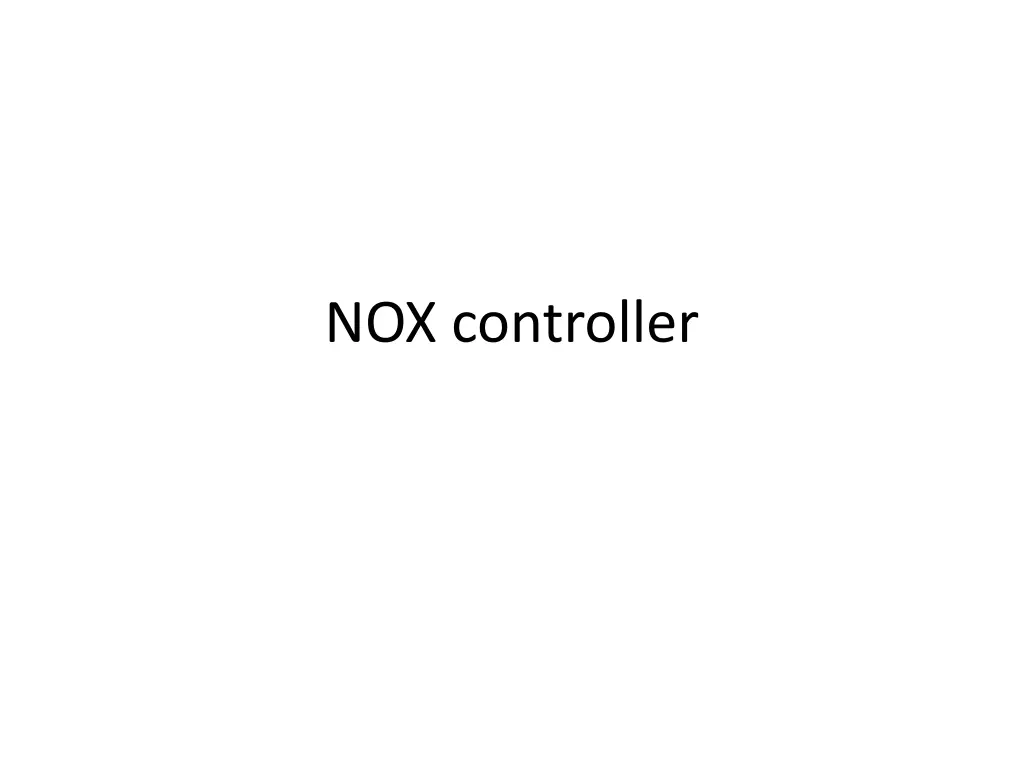

NOX controller

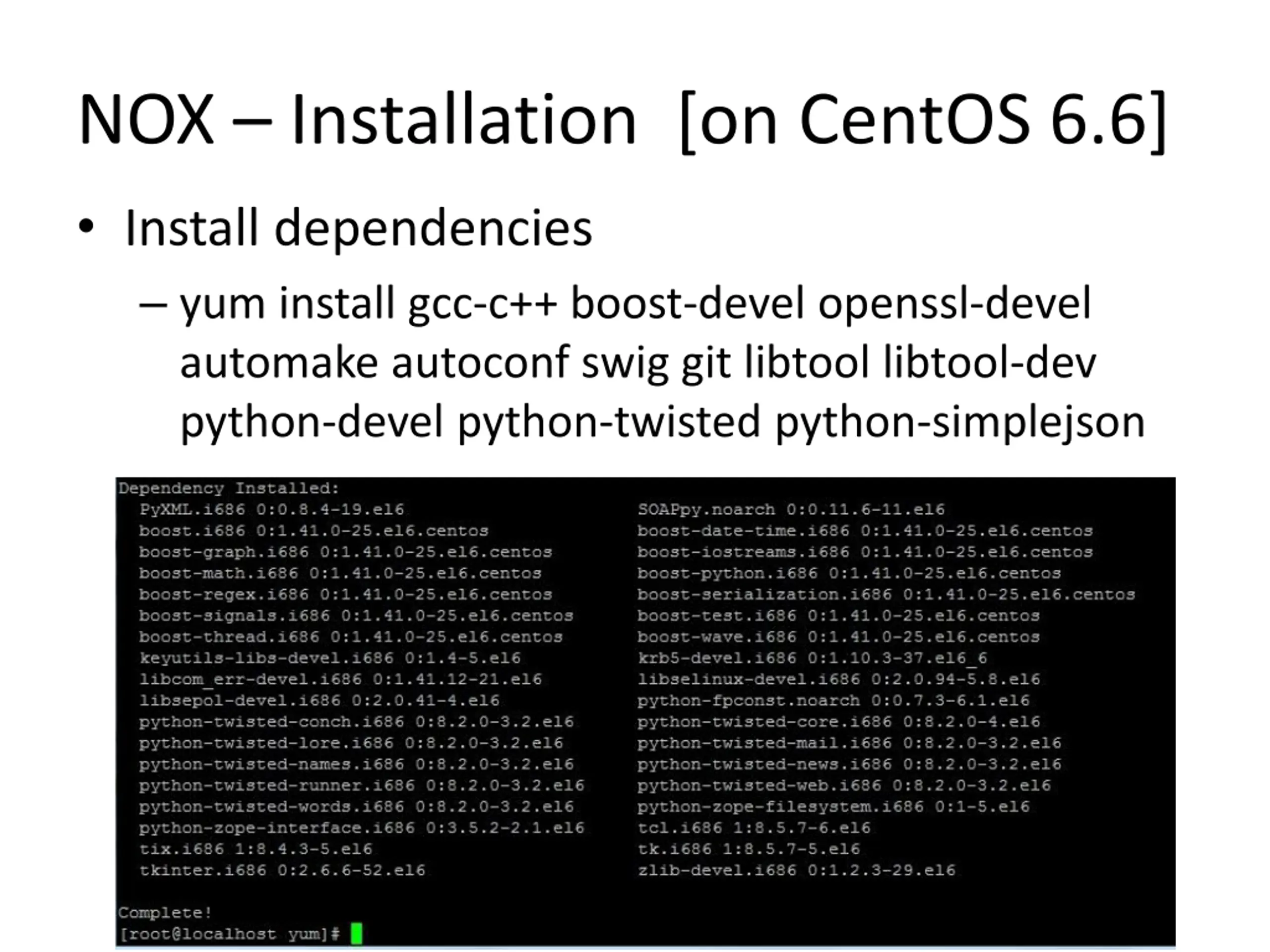

NOX Installation [on CentOS 6.6] Install dependencies yum install gcc-c++ boost-devel openssl-devel automake autoconf swig git libtool libtool-dev python-devel python-twisted python-simplejson

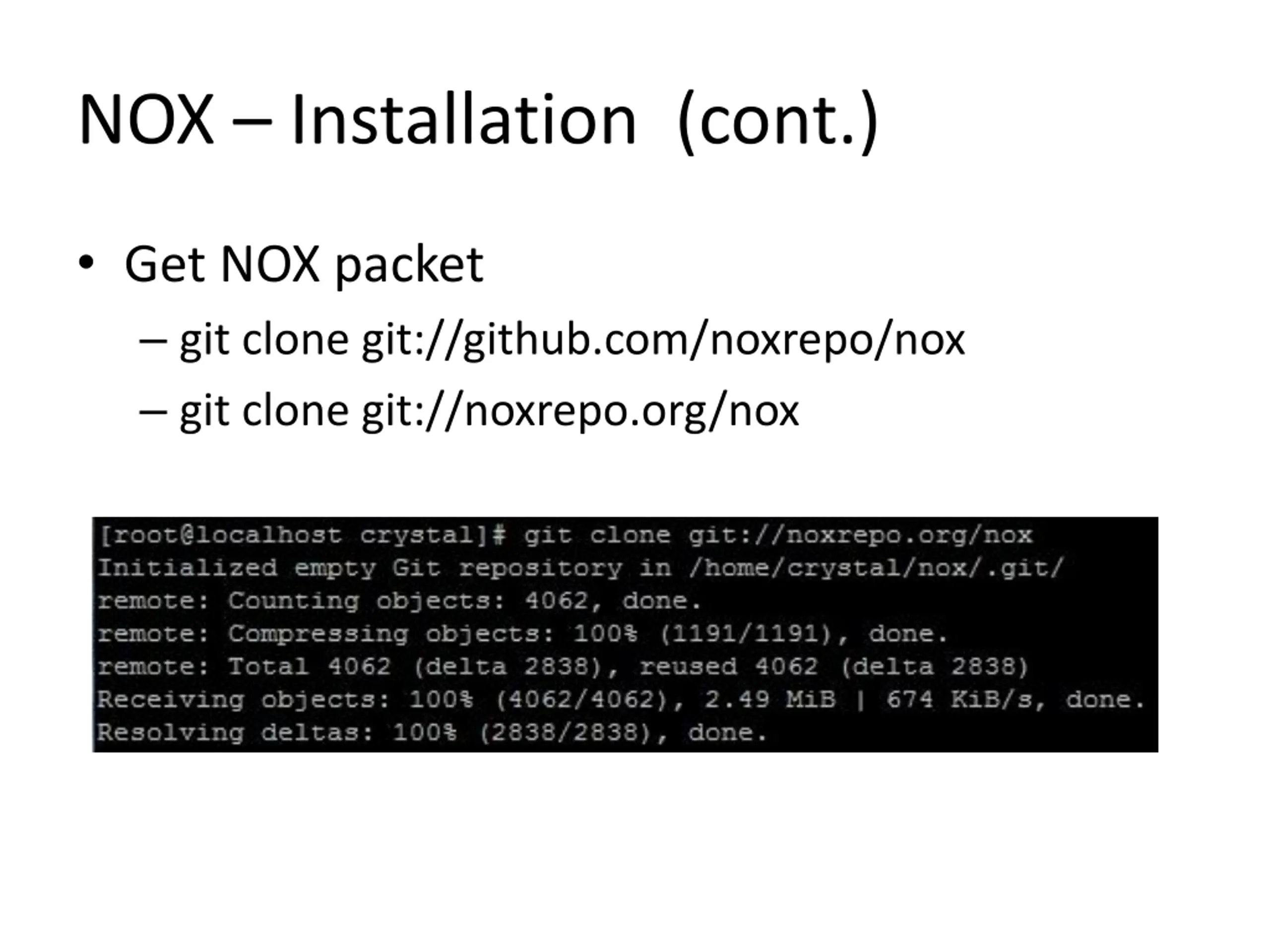

NOX Installation (cont.) Get NOX packet git clone git://github.com/noxrepo/nox git clone git://noxrepo.org/nox

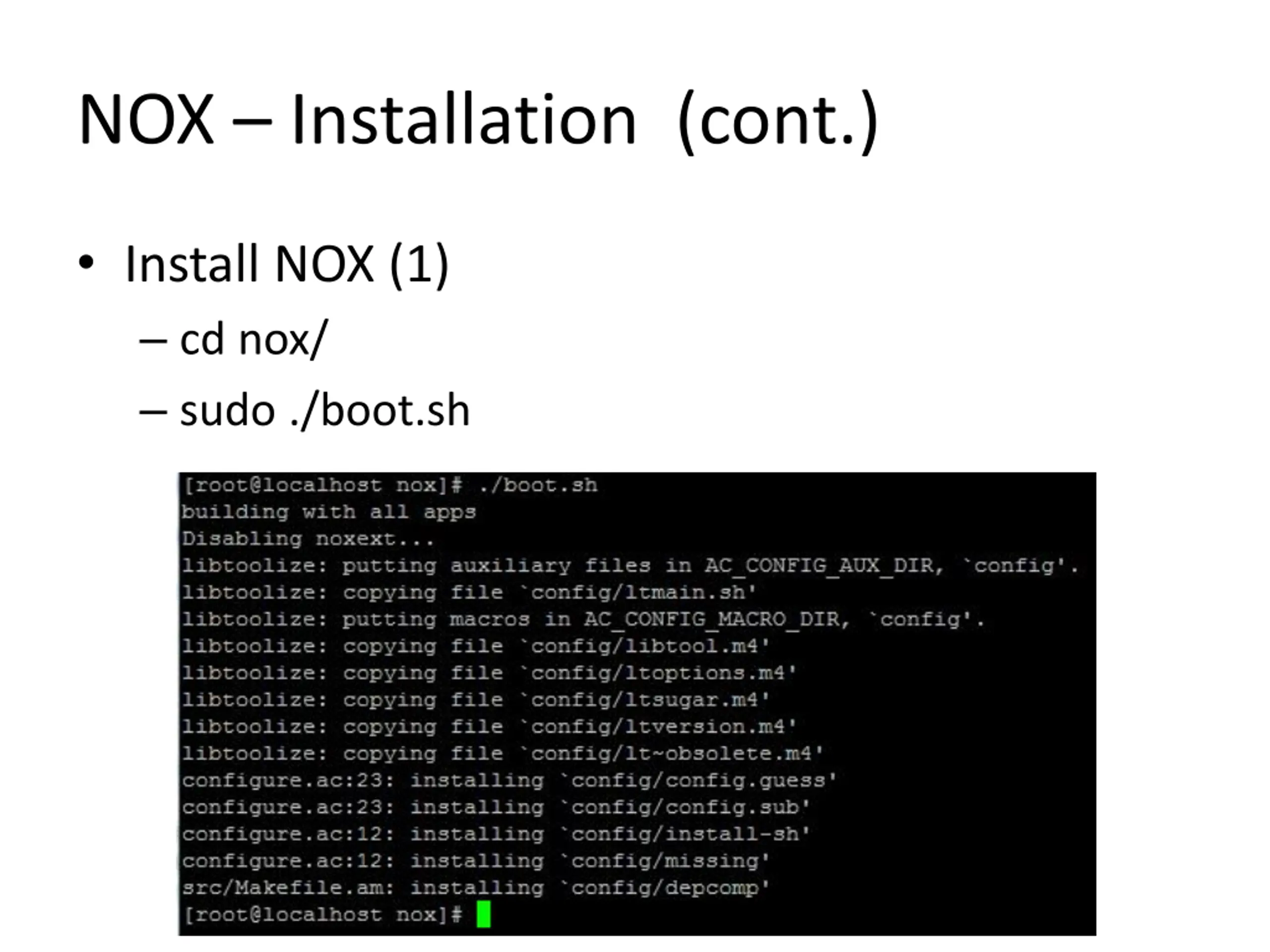

NOX Installation (cont.) Install NOX (1) cd nox/ sudo ./boot.sh

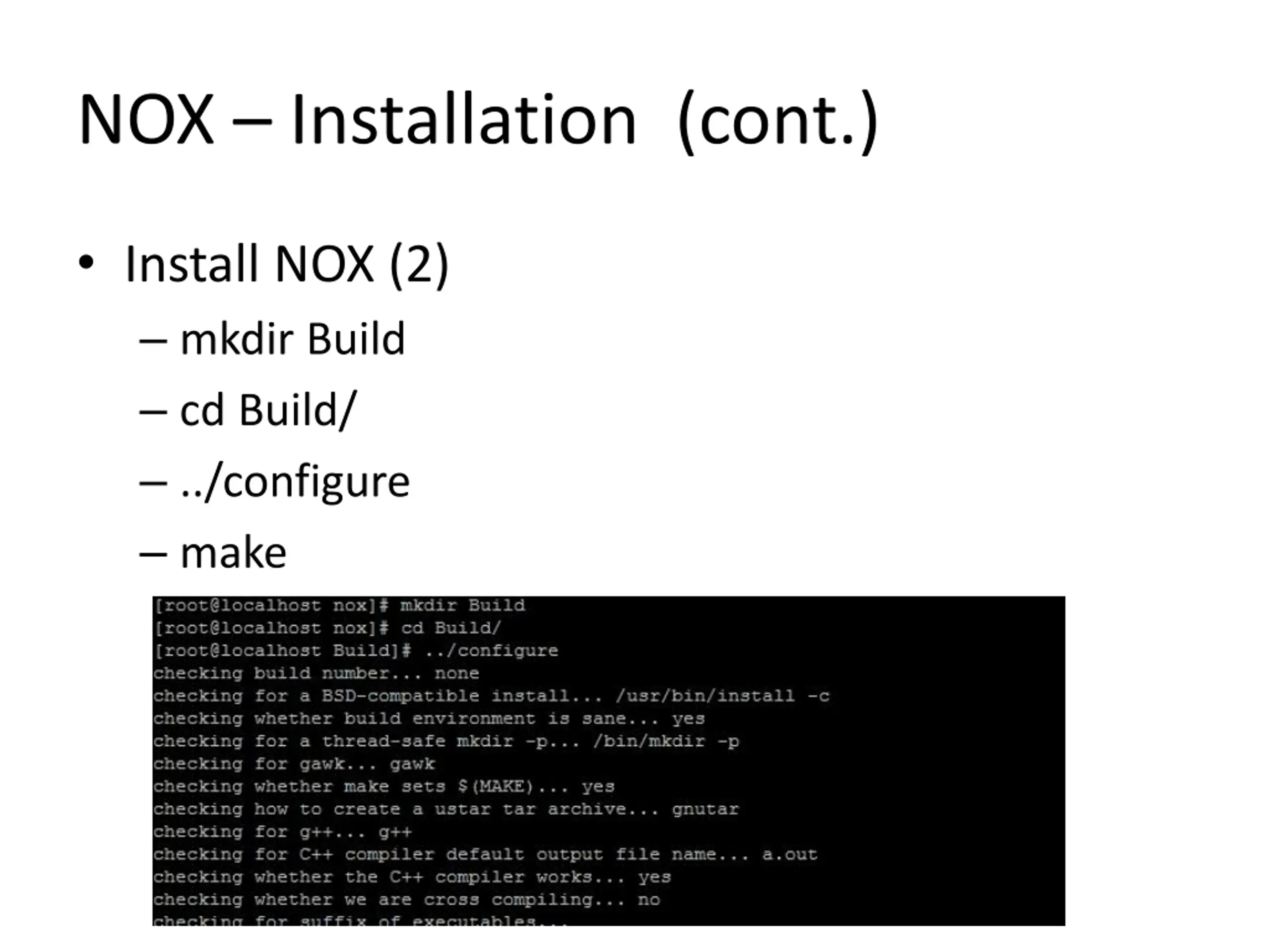

NOX Installation (cont.) Install NOX (2) mkdir Build cd Build/ ../configure make

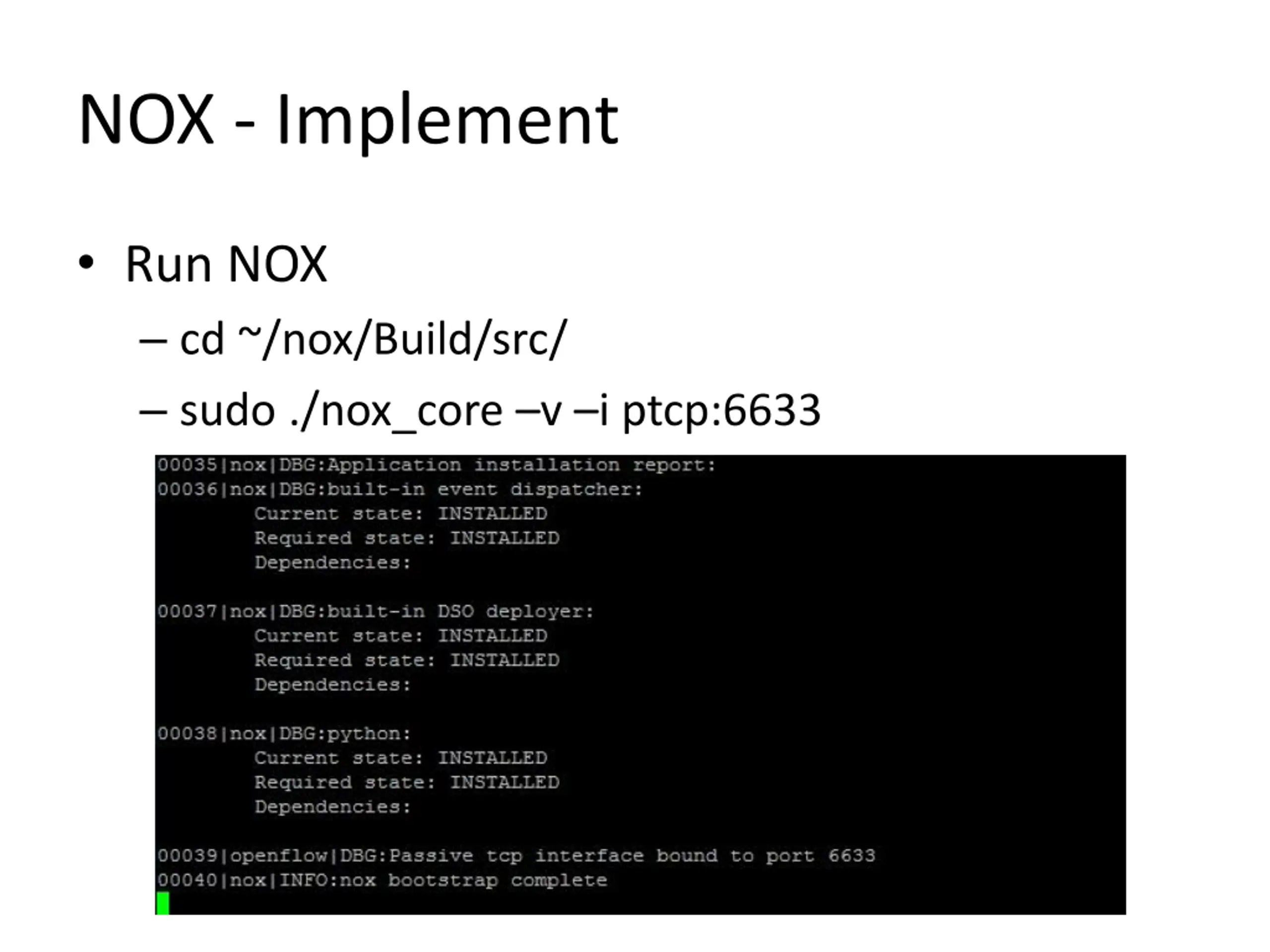

NOX - Implement Run NOX cd ~/nox/Build/src/ sudo ./nox_core v i ptcp:6633

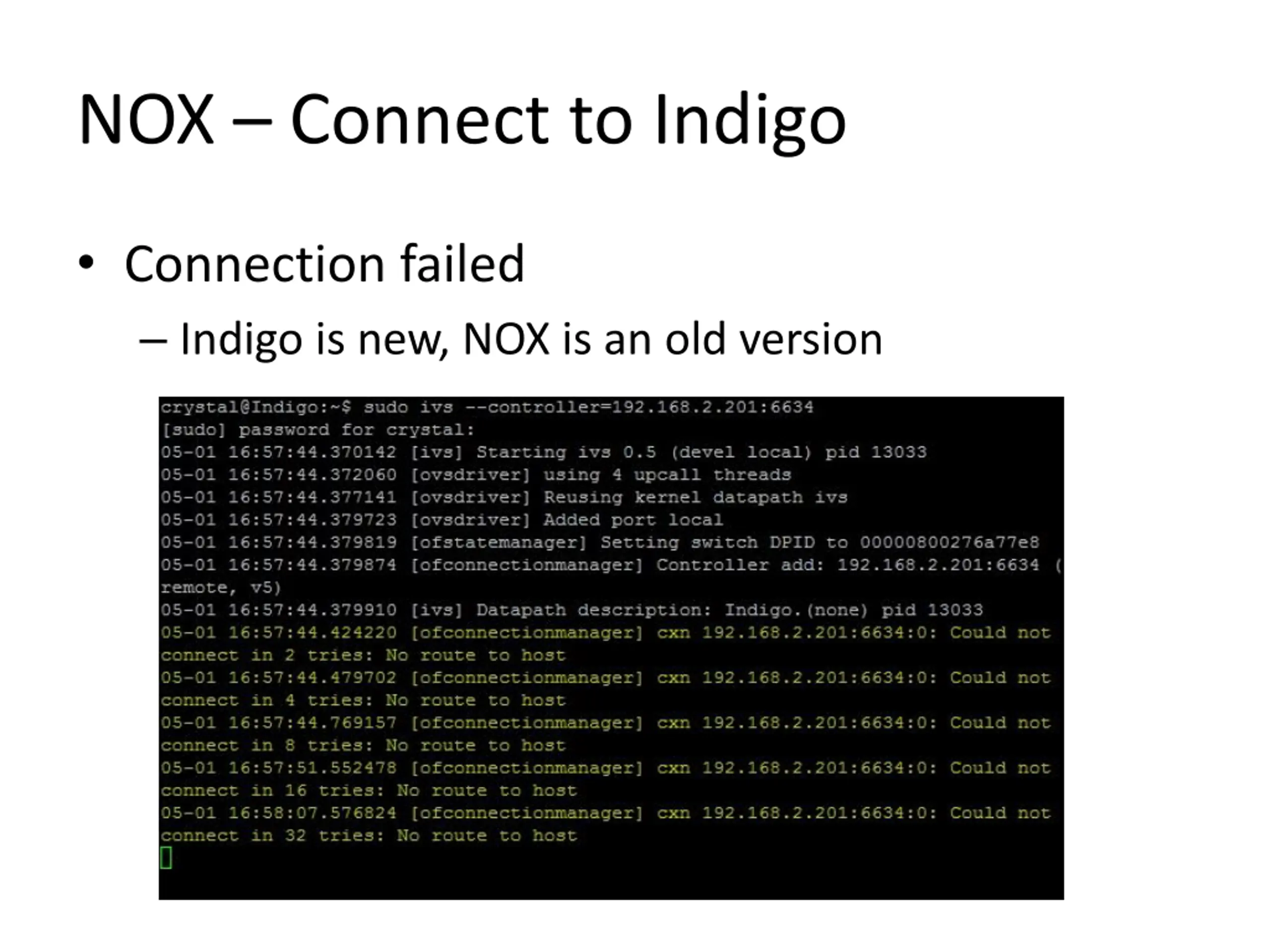

NOX Connect to Indigo Connection failed Indigo is new, NOX is an old version

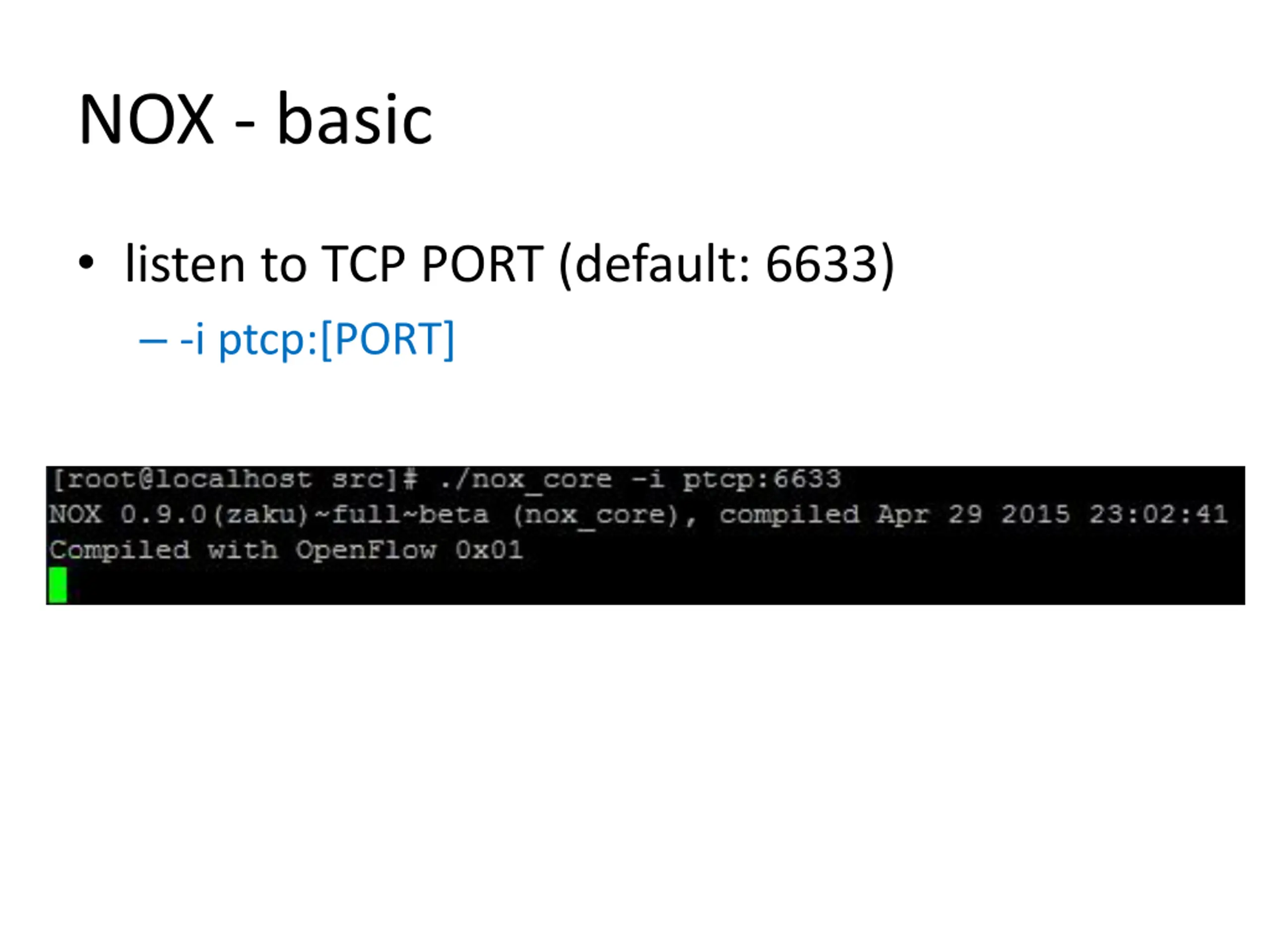

NOX - basic listen to TCP PORT (default: 6633) -i ptcp:[PORT]

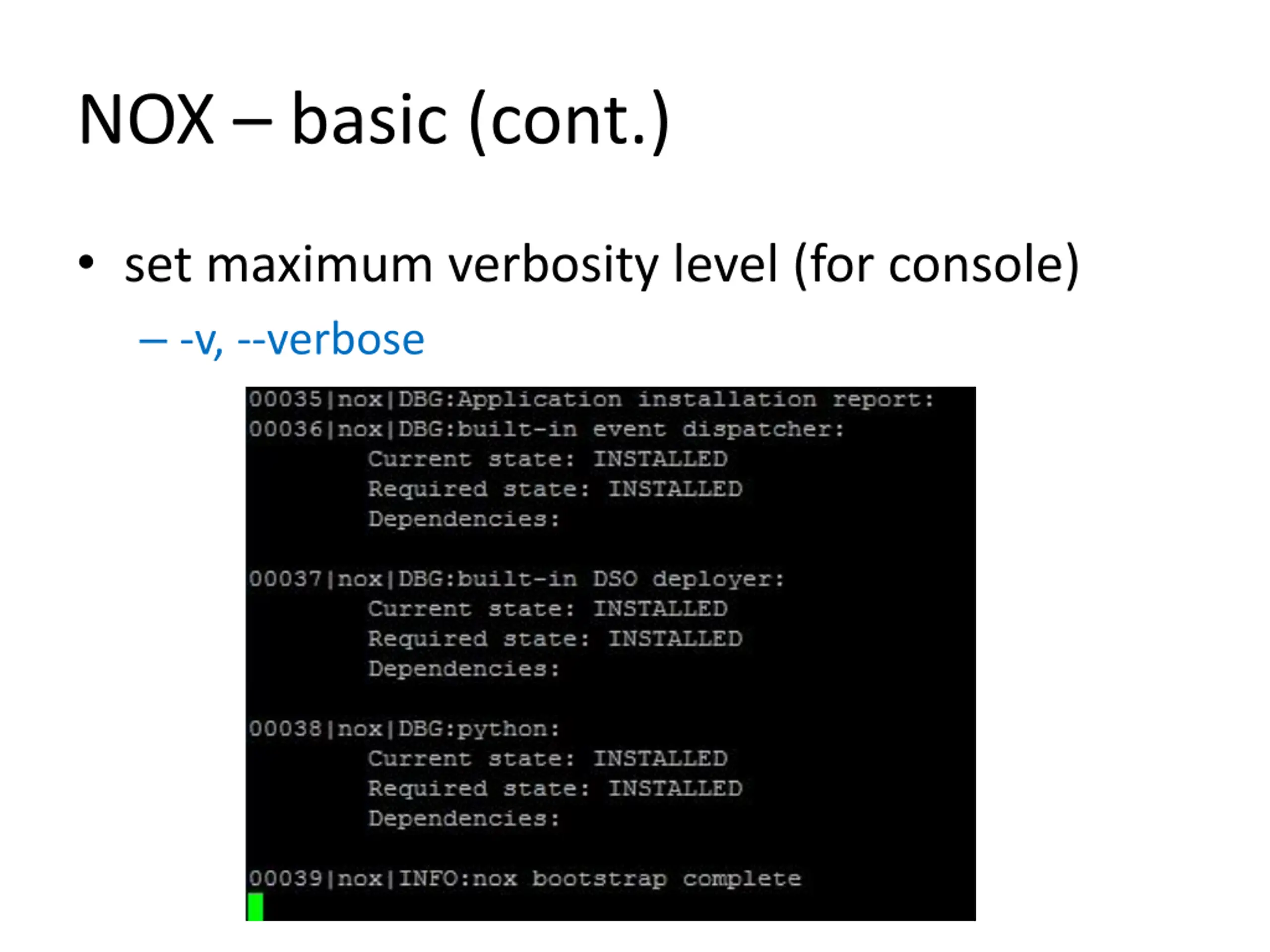

NOX basic (cont.) set maximum verbosity level (for console) -v, --verbose

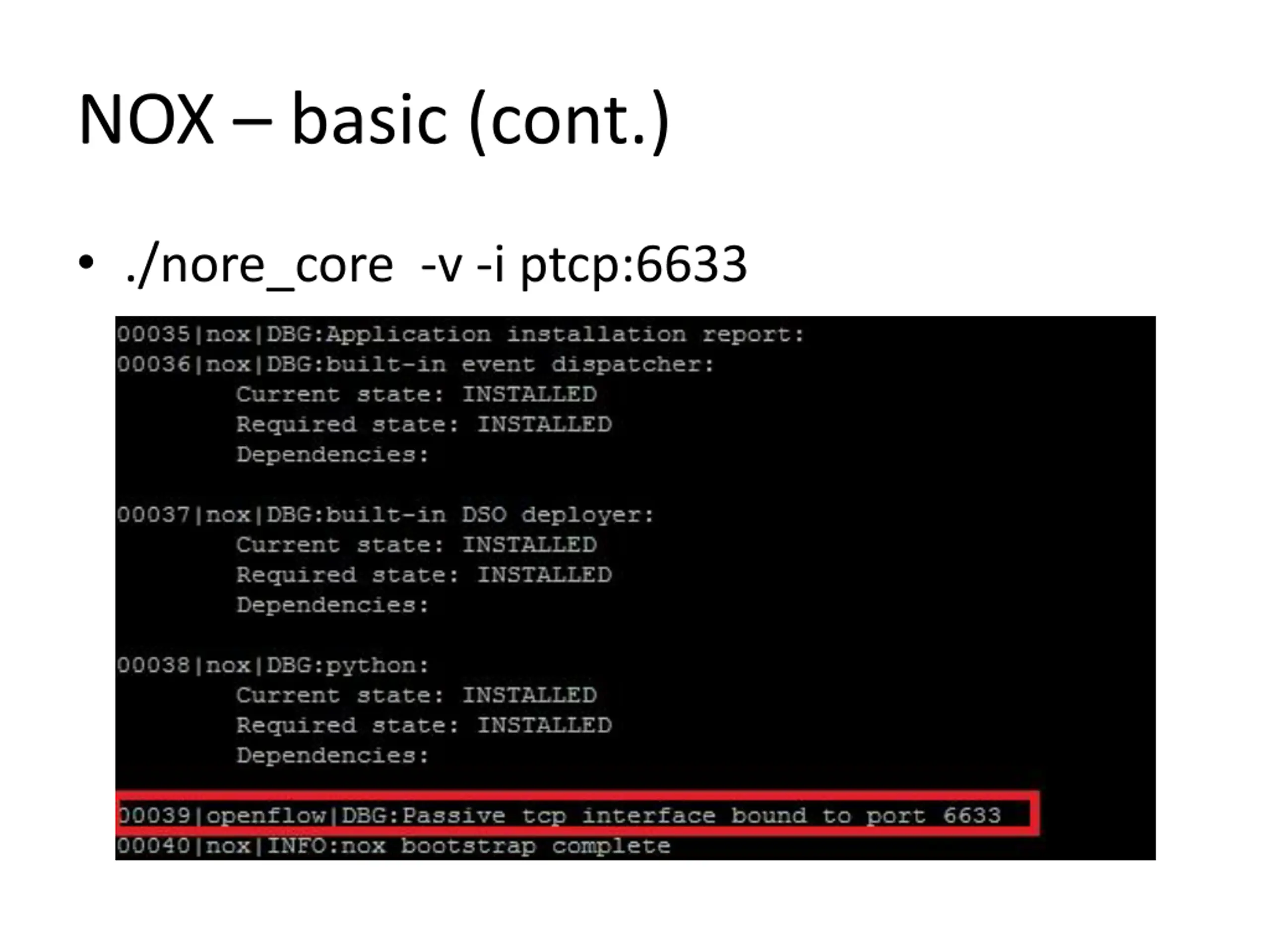

NOX basic (cont.) ./nore_core -v -i ptcp:6633

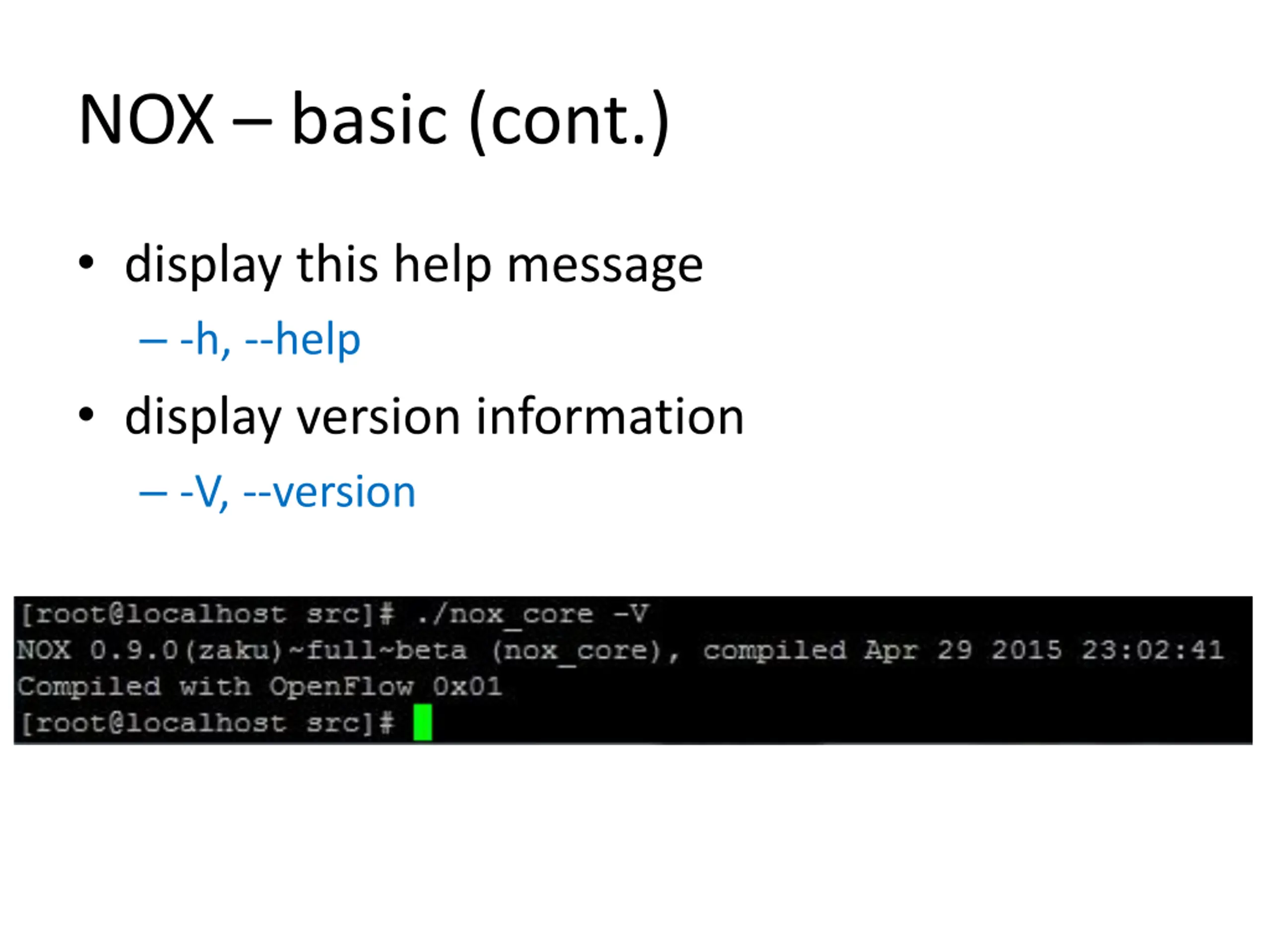

NOX basic (cont.) display this help message -h, --help display version information -V, --version

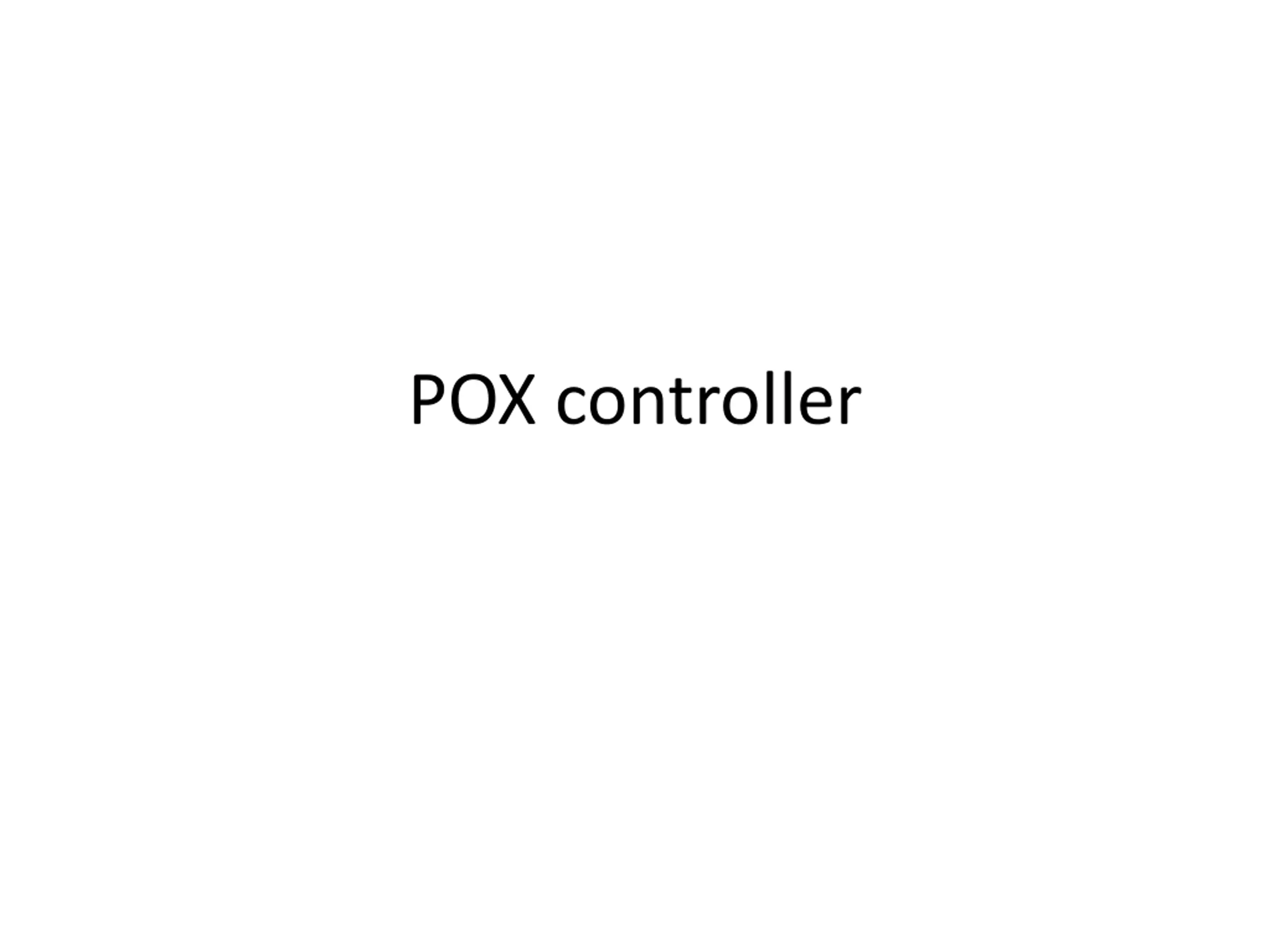

POX controller

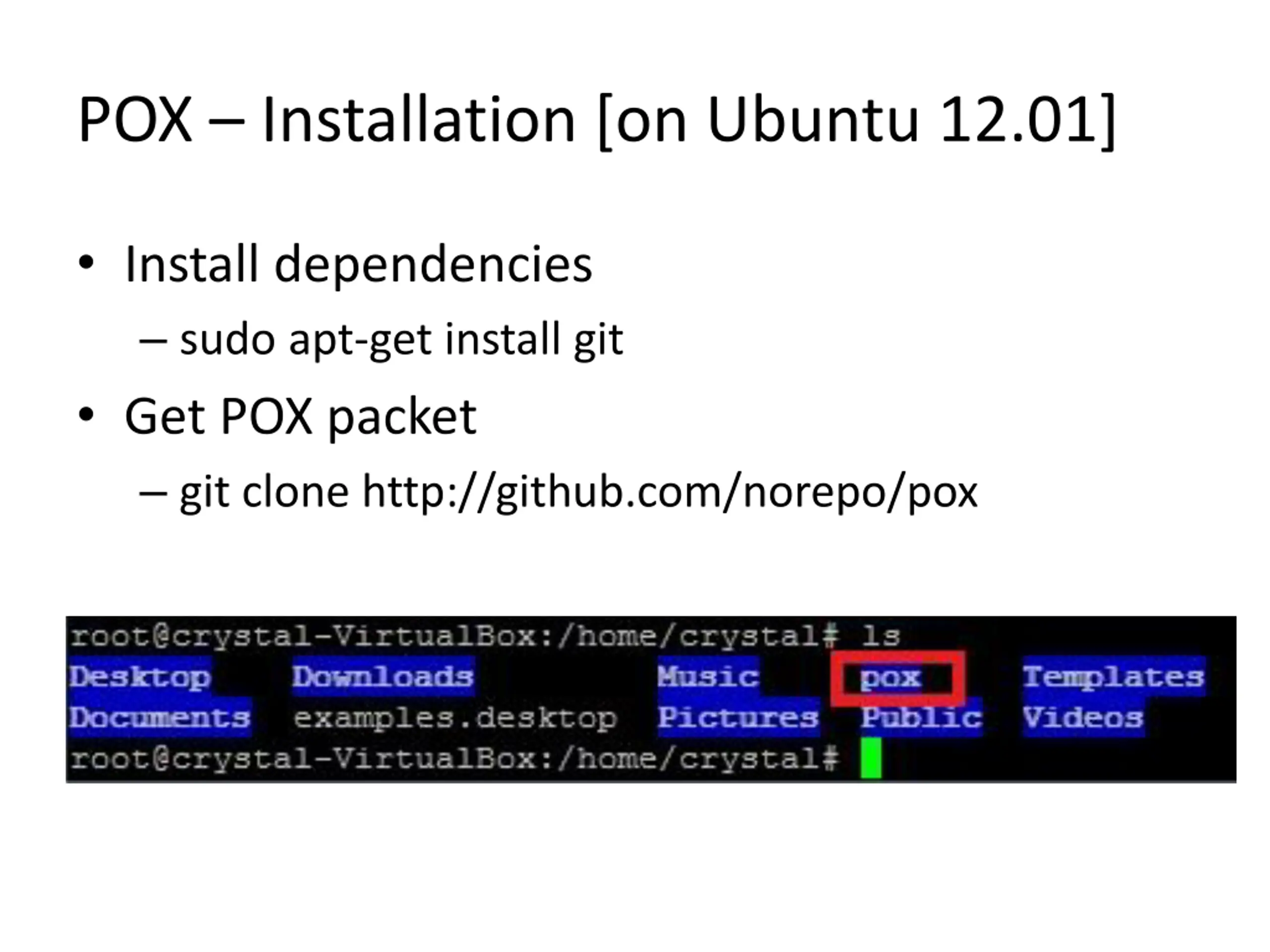

POX Installation [on Ubuntu 12.01] Install dependencies sudo apt-get install git Get POX packet git clone http://github.com/norepo/pox

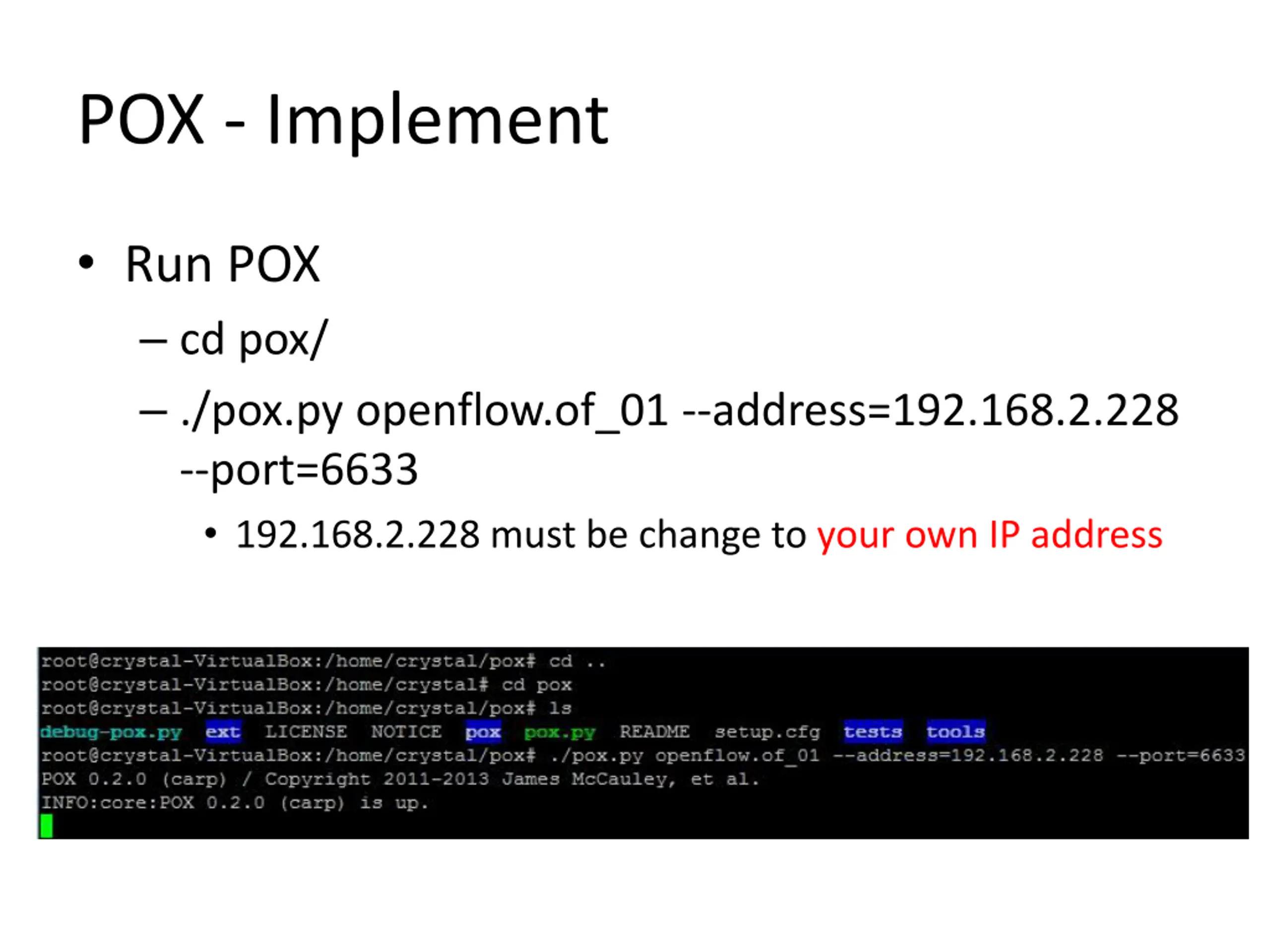

POX - Implement Run POX cd pox/ ./pox.py openflow.of_01 --address=192.168.2.228 --port=6633 192.168.2.228 must be change to your own IP address

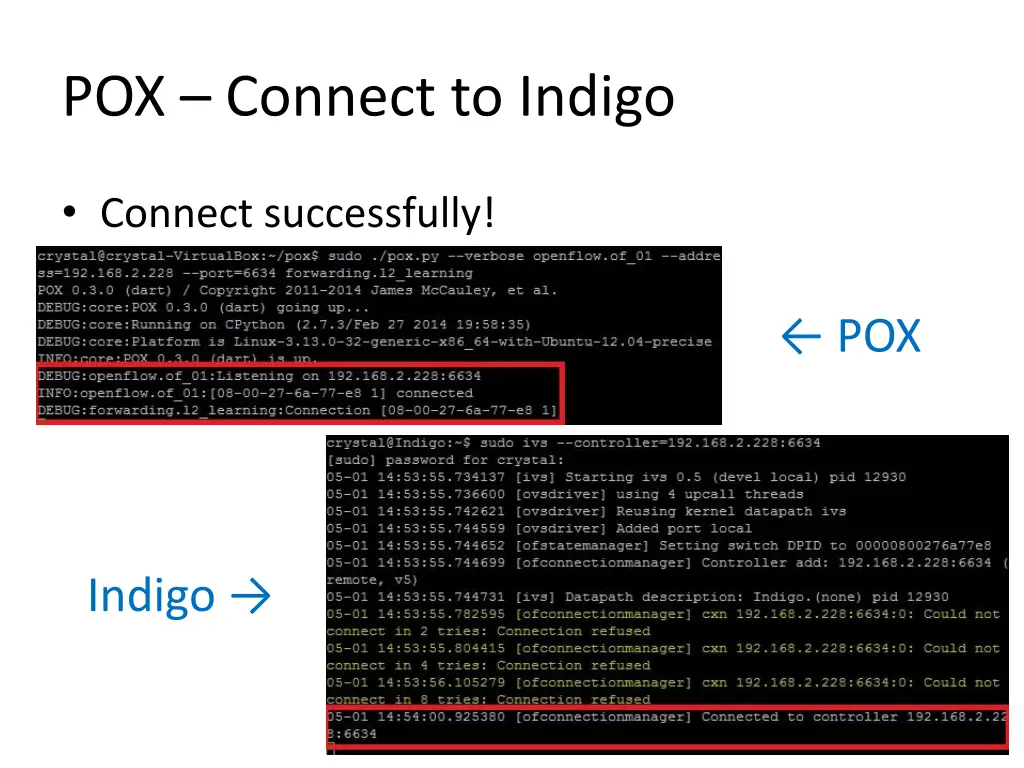

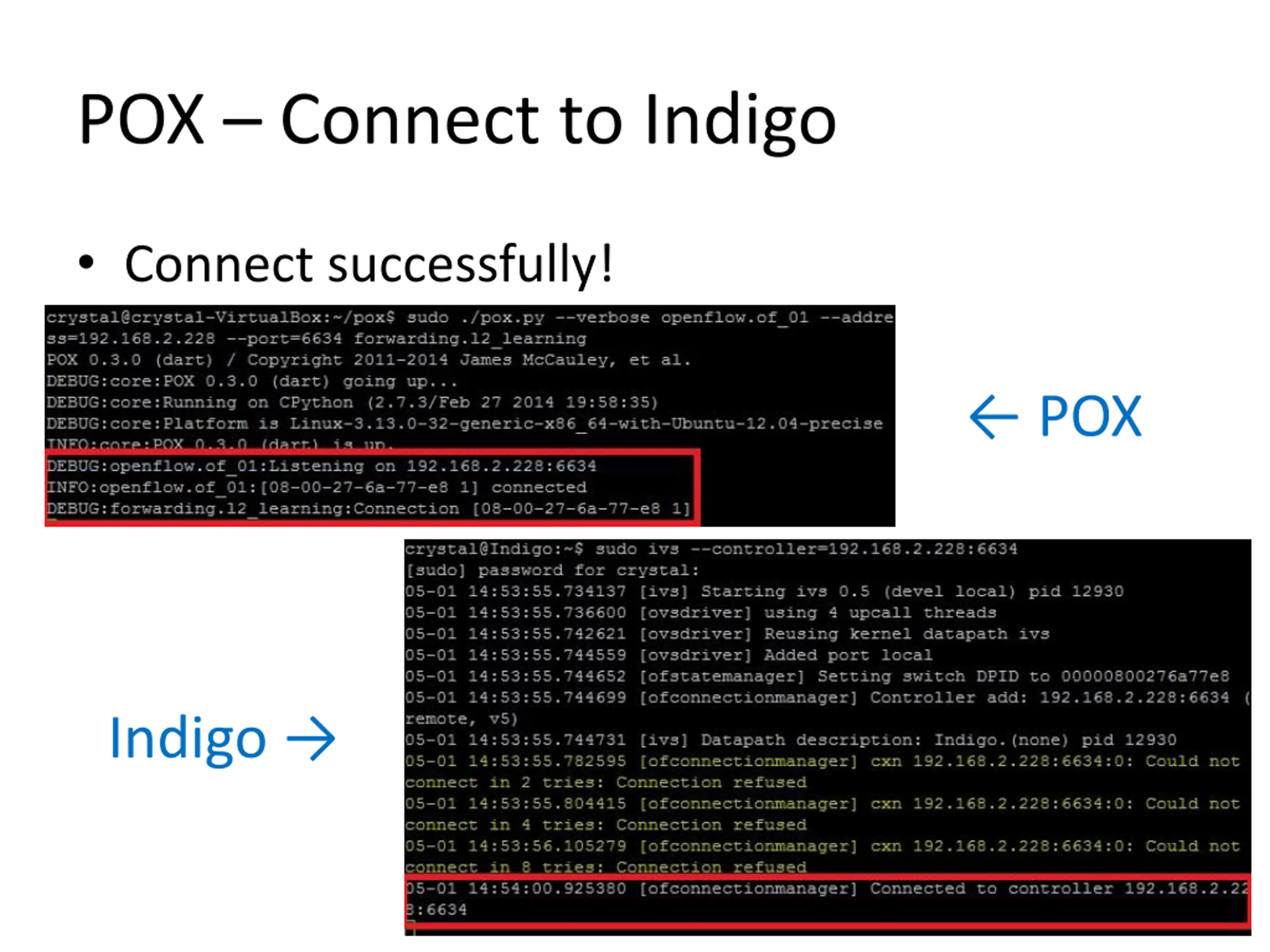

POX Connect to Indigo Connect successfully! POX Indigo

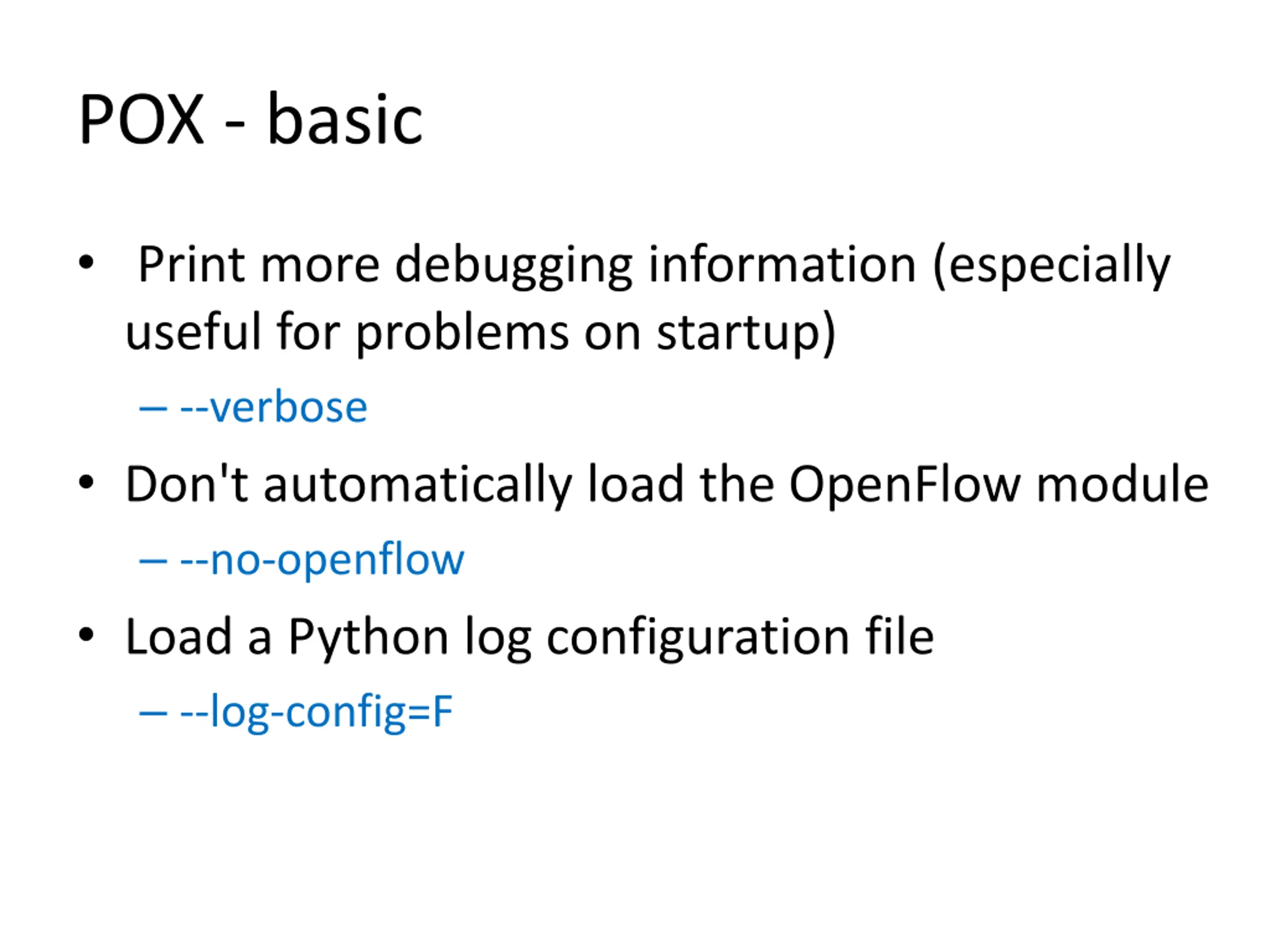

POX - basic Print more debugging information (especially useful for problems on startup) --verbose Don't automatically load the OpenFlow module --no-openflow Load a Python log configuration file --log-config=F

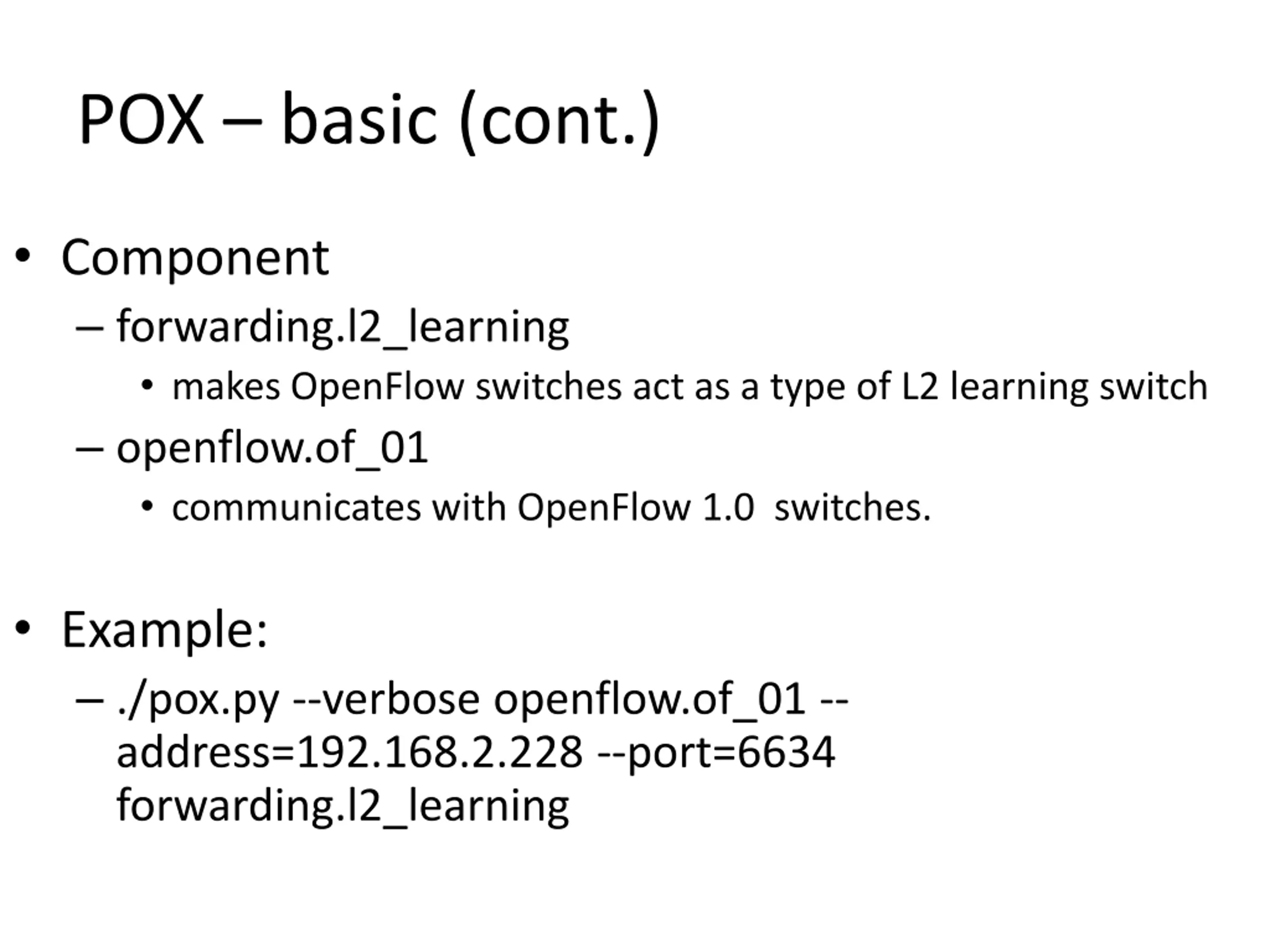

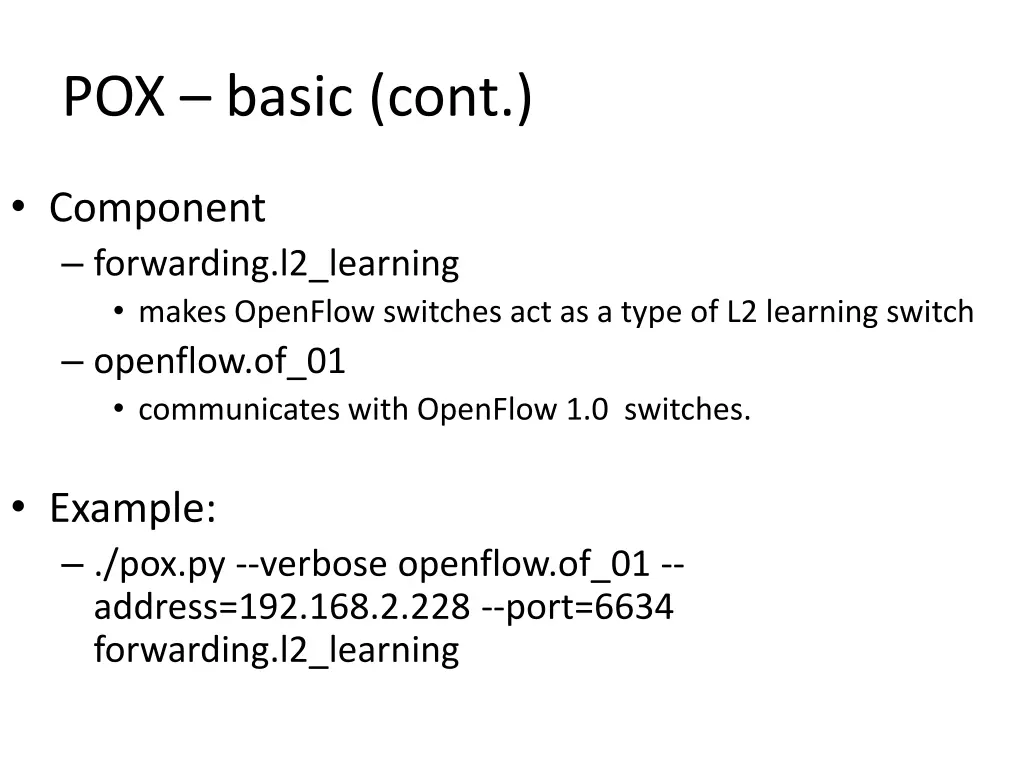

POX basic (cont.) Component forwarding.l2_learning makes OpenFlow switches act as a type of L2 learning switch openflow.of_01 communicates with OpenFlow 1.0 switches. Example: ./pox.py --verbose openflow.of_01 -- address=192.168.2.228 --port=6634 forwarding.l2_learning
