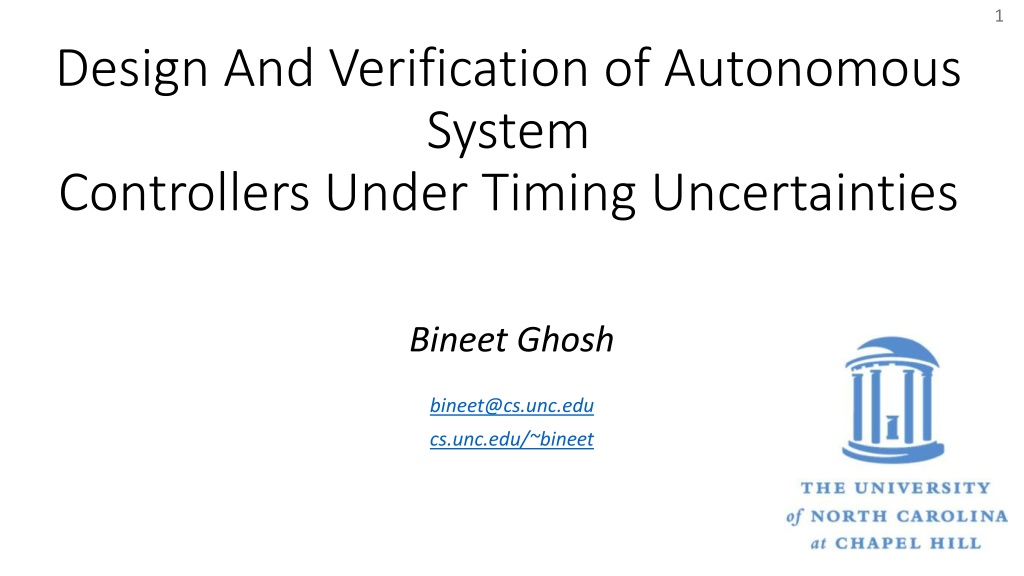

Design and Verification of Autonomous System Controllers
Design And Verification of Autonomous
System
Controllers Under Timing Uncertainties
Bineet Ghosh
1
Quantitative Safety: Robot Maneuvers
2
Robot trying to reach its destination, avoiding obstacles.
Obstacles
Nominal Trajectory:
Planned Path
Implementing Controllers
3
The robot is running multiple jobs on its processor!
Heat Control
Perception
Path Follower
Multiple
Jobs
All jobs cannot always be scheduled—deadline misses!
Responsible for moving the robot along
the planned trajectory.
What if the path follower misses its deadline?
Quantitative Safety: Robot Maneuvers
4
What if the path follower misses some deadlines?
The trajectory can
deviate from the
nominal trajectory!
Quantitative Safety: Robot Maneuvers
5
What if the path follower misses some deadlines?
The trajectory can
deviate from the
nominal trajectory!
Trajectory
under deadline
misses
Quantitative Safety: Robot Maneuvers
6
What if the path follower misses
more
deadlines?
The trajectory can deviate
more
from the nominal
trajectory!
Quantitative Safety: Robot Maneuvers
7
What if the path follower misses
more
deadlines?
The trajectory can deviate
more
from the nominal
trajectory!
And become unsafe!
Quantitative Safety: Robot Maneuvers
8
In Conclusion: Not all
patterns
of deadline misses are
safe
!
Goal:
Detect if a
given
pattern
of
deadline misses is
safe!
Quantitative Safety: Robot Maneuvers
9
Achieve that by….
Maximum
Deviation
Compute
Goal
Computing Deviation: A Naïve Approach
10
•
Given a pattern of deadline misses.
0: Deadline Miss.
1: Deadline Hit (No Miss).
11
•
Given a pattern of deadline misses.
•
Instead:
Compute an over-approximation of the maximum deviation.
Computing Deviation: A Naïve Approach
•
Requires computing
reachable sets
.
•
Disadvantages:
•
Computationally slower (generally).
•
The computed bounds on the maximum deviation are not tight (generally).
12
Computing Deviation: Other Approaches
C. Hobbs,
B. Ghosh
, et al., "Safety Analysis of Embedded Controllers under Implementation Platform Timing Uncertainties," in IEEE
Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2022.
What I Propose…
•
Compute an
upper bound
of the
maximum deviation
under a
pattern
of deadline misses
.
•
Statistical Approach:
guarantees are probabilistic.
•
Advantages
:
•
Computationally faster than non-probabilistic approaches.
•
Tighter bounds on the computed maximum deviation.
13
B. Ghosh
et al., "Statistical Hypothesis Testing of Controller Implementations Under Timing Uncertainties," 2022 IEEE 28th International
Conference on Embedded and Real-Time Computing Systems and Applications (RTCSA).
Best Paper Candidate.
Approach Overview
14
System Model, Initial State
Small number of
random runs
Hypothesis Test
Initial
guess
Yes
Counter
example
No
Hypothesizer
Verifier
Refiner
Refined
Input
Guess the
deviation!
Verify the
guessed
deviation!
Refine the
deviation
Keep refining
and verifying!
Once verified
successfully!
Computed upper
bound on deviation
Designing Schedulers
15
This approach can be further used to design schedulers!
Heat Control
Perception
Path Follower
Schedule
s.t.
none of the
processes violate safety!
Designing Schedulers
16
We propose the following…
Heat Control
Perception
Path Follower
S. Xu,
B. Ghosh
, et al., "Safety-aware Flexible
Schedule Synthesis for Cyber-Physical Systems using
Weakly-Hard Constraints," in
Asia and South Pacific
Design Automation Conference
, 2022.
Using the Proposed Approach
Safe Behavior For All The Processes
Construct an
Automaton
Conclusion
•
Statistical approach to compute maximum deviation under
deadline misses!
•
My approach computes tighter upper bounds with less computation time.
•
Further, using this approach, we can construct schedules that do not
violate safety
•
Future Work:
Complicated deadline miss patterns, and more general
schedules.
17
The open-source prototype tool,
StatDev
, is available at:
github.com/bineet-
coderep/StatJitteryScheduler
Thank You!
Thank You!
37
Scan this QR
code on your
phone
