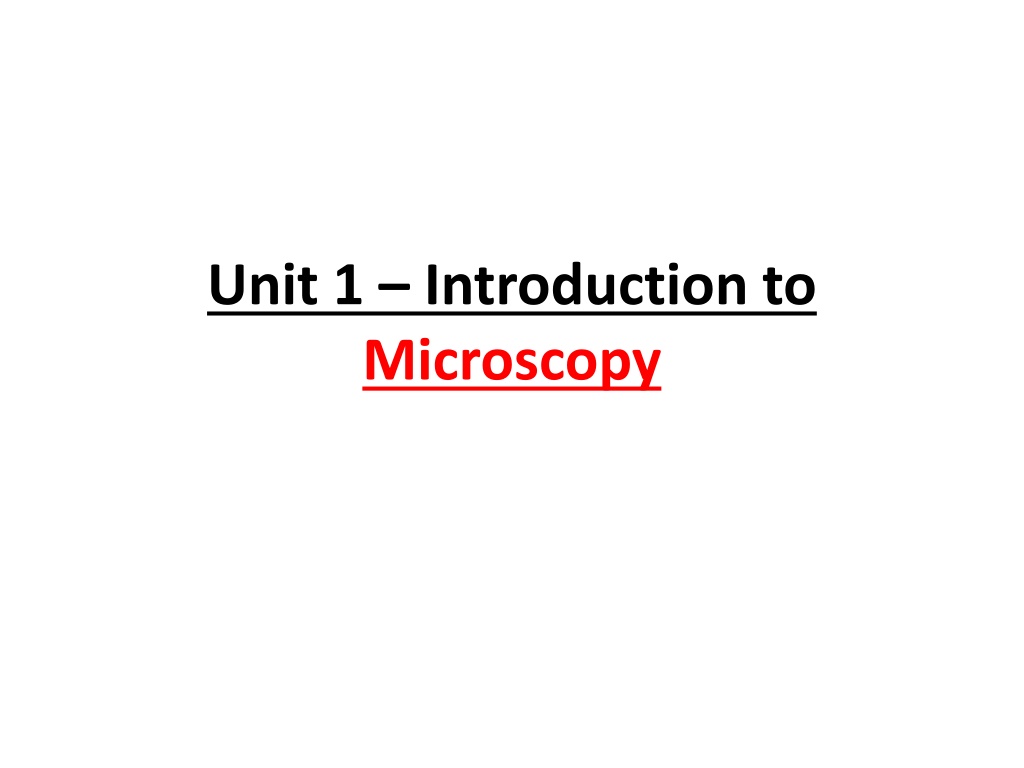

1. Unit 1 Introduction to Microscopy

2. Microscopes Proper Care 1.)Expensive Carry with 2 hands 2.)Keep Glass parts clean! 3.)Never use Coarse adjustment with high Power or Oil Lens 4.)Start and stop with Low Power or Scanning Power

3. Terms 1.)Magnification ability of Microscope to enlarge image of object up to 1000X 3

4. 2.)Resolution ability of Microscope to show detail clearly. 3.)Field of View(FOV) Diameter distance across light spot 4

5. 4.)Micrometer 1000 micrometers in 1mm 5.)Nanometer -1000 nanometers in 1 micrometer Range of our Microscope =1 micrometer to 1000 micrometer. 5

6. Path of Light Bulb Diaphragm(adjusts light) Stage Hole Slide Specimen Cover Slip Objective Lens(Magnifies) Mirrors Eyepiece(Magnifies) Eyeball (Cornea to Lens to Retina to Optic Nerve to Brain) 6

12. Operation of the Microscope 1. Prepare slide 2. Put slide on stage 3. Turn light on 4. Use low power or scan power 1st 5. Use coarse adjustment 6. Use fine adjustment 7. Adjust diaphragm

13. 8. Switch to High Power 9. *Fine Adjust Only 10. Adjust Diaphragm 11. Add Oil Drop 12. Turn to oil power 13. Fine Adjust 14. Adjust Diaphragm

14. Total Magnification (TM) 1. TM = eyepiece mag. X objective lens 2. Scanning Power TM = 10 x 4 = 40X 3. Low Power TM = 10 x 10 = 100X 4. High Power TM = 10 x 40 = 400X 5. Oil Power TM = 10 x 100 = 1000X

16. Types of Microscopes A. Light Microscope 1. Simple microscope one lens *Examples Magnifying glass + Leeuwenhoeks 2. Compound microscope two lenses: Ex. = ours

17. *More stuff about the compound microscope Real Image Created by objective lens Virtual image Image bouncing off mirror through eyepiece lens into the eyeball.

18. High Resolution occurs with shorter (blue) light waves. Since air refracts light, oil between slide and objective increases resolution. .2 Micrometer is the limit that light microscopes can resolve.

20. B. Stereoscopic Dissecting Microscope 1. Better for large and Opaque objects 2. Magnification ranges between 4X 40X 3. Has 2 Oculars (eyepieces) + 3d image 4. Can use reflected or transmitted light 5. real image

21. C. Bright Field Microscope *Most common Example = ours D. Dark Field Microscope - Bright specimen against a black field of view - poor internal details - Objective lens receives reflected light off of specimen

22. E.Phase Contrast Microscope shows great Internal Detail F. Interference Microscope shows great Internal Detail G. Fluorescent Microscope

23. H. Electron Microscope Page 67 1. Create the greatest magnified images with the greatest resolution 2. Very expensive $$$ 3. Cannot view live specimens 4. No colored images 5. Specimens pretreated with dyes 6. No direct observations viewed on a screen or photographed

24. Transmission Electron Microscope (TEM): a) Magnifies up to 1,000,000x b) Specimen Preparation = thin slice (20-100 nm) = staining c) Shows incredible internal detail

25. TEM Micrographs

26. 8. Scanning Electron Microscope (SEM)Produces super 3d image with great external detail a) Magnifies up to 100,000x

27. SEM Micrographs
