Internet Architecture and Networking Principles
undefined
CLARK, David. Designing an Internet. MIT Press.
2018.
Chapter 5
The Architecture of the Internet
1
Arquiteturas de Redes de Computadores (2019.1)
Internet Architecture original goals
Arquiteturas de Redes de Computadores (2019.1)
2
1.
Internet communication must continue despite loss of networks or
gateways.
2.
The Internet must support multiple types of communications service.
3.
The Internet architecture must accommodate a variety of networks.
4.
The Internet architecture must permit distributed management of its
resources.
5.
The Internet architecture must be cost effective.
6.
The Internet architecture must permit host attachment with a low
level of effort.
7.
The resources used in the Internet architecture must be
accountable.
Internet Architecture original goals
Arquiteturas de Redes de Computadores (2019.1)
3
1.
Survivability in the Face of Failure
2.
Types of service
3.
Varieties of networks
4.
Distributed management
5.
Cost effectiveness
6.
Cost of attaching a host
7.
Accountability
Internet Architecture Requirements
1.
Robustness/Resilience
2.
Internetworking
3.
Heterogeneity
4.
Distributed management
5.
Cost
6.
Ease of Attachment
7.
Accountability
1.
Security
2.
Availability and resilience
3.
Economic viability
4.
Better management
5.
Better Meet society’s needs
6.
Longevity
7.
Support for tomorrow’s computing
8.
Exploit tomorrow’s networking
9.
Support tomorrow’s applications
10.
Fit for purpose (it works?)
4
Arquiteturas de Redes de Computadores (2019.1)
1988 List
2008 List
CLARK, David. Designing an Internet. MIT Press.
2018.
Chapter 6
Architecture and Function
5
Arquiteturas de Redes de Computadores (2019.1)
What a Network Does?
Arquiteturas de Redes de Computadores (2019.1)
6
How we describe, in architectural terms, what a
network does?
Range of behavior is defined by the
expressive power
of the packet header.
Per-Hop Behavior (PHB) is not just forwarding.
Framework to describe PHB execution
Arquiteturas de Redes de Computadores (2019.1)
7
Alignment of interests:
aligned or adverse
Relationship between the sender of the packet and the
owner of the element that implements the PHB.
Delivery:
intentional, contingent, topological, or
coerced
How the packet arrives at the element that implements
the PHB?
Parametrization:
explicit or implicit
The packet triggers the execution of a PHB, and the
data in the packet is the input to that PHB.
Pruning the Space of Options
Arquiteturas de Redes de Computadores (2019.1)
8
Aligned
If the sender wants the PHB to be executed, then
intentional delivery and explicit arguments make sense.
Contingent delivery may be suitable in some cases (e.g., the
basic forwarding function), but explicit arguments (e.g., the
address field) still make sense.
Adverse
If the sender does not want the PHB to be
executed (it represents the interests of the receiver, not the
sender), then the receiver cannot expect the sender to
provide any explicit arguments to the PHB. In this case, the
PHB must depend on implicit arguments. Also, the PHB
cannot count on intentional delivery, so coerced delivery is
the best option, with contingent or topological delivery as a
fallback.
Example: NAT boxes
Arquiteturas de Redes de Computadores (2019.1)
9
NAT boxes implement a PHB that is not simple forwarding
but includes rewriting of the source or destination address
field.
Disrupted assumptions:
S
ingle, global address space
No per-flow state in forwarding elements.
NAT boxes are an example of intentional delivery with
explicit parameters (the addresses and port numbers).
If the interests of the end points are aligned, NATs are normally a
small nuisance;
if the interests are not aligned, they provide a measure of
protection, and in that respect fall into the coerced category.
Example: Firewalls
Arquiteturas de Redes de Computadores (2019.1)
10
Are an example of a PHB that is adverse to the
interests of the hostile sender (potential attacker) and
thus must depend on implicit information.
The firewall has the poorly defined task of trying to
distinguish good behavior from bad, based on
whatever hints can be gleaned from the packets.
Sometimes users want the blocking to succeed (when
they are being attacked) and sometimes they want it to
fail (when some third party, such as a conservative
government, is trying to block their access to other sites
on the Internet).
Example: Tunnels and overlay networks
Arquiteturas de Redes de Computadores (2019.1)
11
This PHB causes
the packet to be sent to the destination
address in the outer packet, not the inner packet.
When the packet reaches that destination, a PHB there must
either remove the outer packet or reencapsulate the inner
packet in a new outer packet.
The encapsulated packet is the explicit information used
as input to the end point of the tunnel. Sometimes the
starting point of the tunnel is contingent or topological,
sometimes it is coincident with the sender, and
sometimes it is intentional.
Tussle and Regions
Arquiteturas de Redes de Computadores (2019.1)
12
Different actors within the network (the sender, the
receiver, the ISPs, other third-party participants) have
the right to control certain parts of the network, and
within each such region of the network, the PHBs found
there will be used to further the intentions of that actor.
The design of applications can also shift the balance of
power among the various actors.
but from the point of view of balance of control, I
believe that a network operator should have to offer a
very strong justification for inserting a service into a
communication where neither end point requested or
expected it to be there.
Generality
Arquiteturas de Redes de Computadores (2019.1)
13
The taxonomy of delivery modes, alignment of
interests, and parameter modes applies equally to
both packet-level PHBs and higher-level services.
One could use the term PHB generally to mean any
service element that is inserted into a data flow or
restrict the term to lower-level functions like firewalls
or routers.
Since my goal is to discuss the role of architecture, I
am most concerned with cases where a PHB justifies
adding to the expressive power of the packet.
Architectural Alternatives for
Expressive Power
Arquiteturas de Redes de Computadores (2019.1)
14
Addressing
Increasing the Expressive Power of a Design
Blank “scratch pad” in the packet
Pushdown stack model
A heap
Active networks
Per-Flow State
Signaling and state setup
State initiation bit
Maintaining state in inte
r
mediate elements
In-network state associated with receivers
Addressing
Arquiteturas de Redes de Computadores (2019.1)
15
The current approach of using the IP address both as a
locator
and as an
identifier
was a poor design choice.
Alternative design approach:
Locator:
This field is used as input to the forwarding PHB of
a router.
End-node identifier (EID):
This field is used by each end of
the connection to identify itself to the other end(s).
In-network identifier (INID):
If the EID is private to the end
nodes of a connection, then an architecture might define
some other identifier that can be seen and used by PHBs in
the path from the sender to the receivers, perhaps to
support accounting or authorization for enhanced services.
Increasing the Expressive Power of a
Design
Arquiteturas de Redes de Computadores (2019.1)
16
Other issues
Arquiteturas de Redes de Computadores (2019.1)
17
PHBs and Control of Network Resources
Debugging
Expressive Power and Evolvability
PHBs and Layering
The content explores the architecture and goals of the Internet, focusing on its original objectives, survivability in the face of failure, and evolving requirements. It delves into how networks function, describing behaviors and packet handling. Additionally, it discusses the framework for describing packet handling behavior in networks, emphasizing the alignment of interests between packet senders and implementers.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

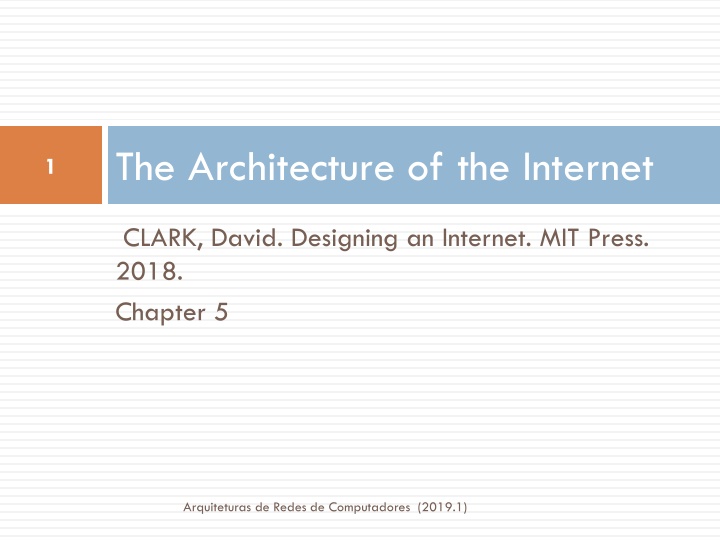

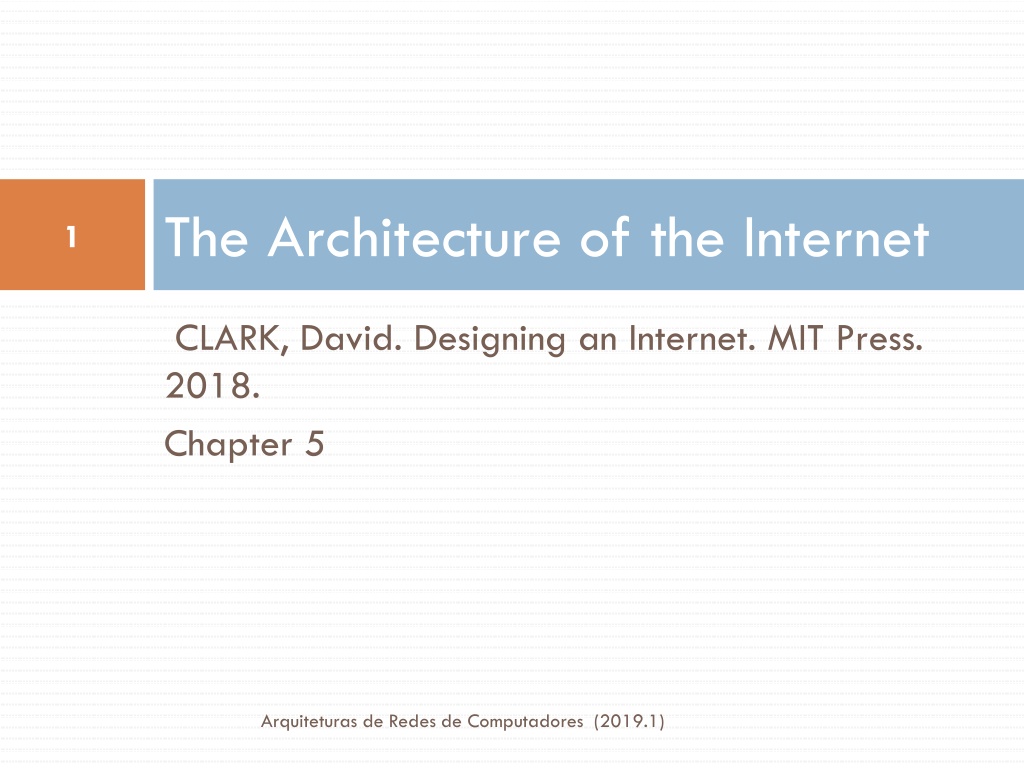

The Architecture of the Internet 1 CLARK, David. Designing an Internet. MIT Press. 2018. Chapter 5 Arquiteturas de Redes de Computadores (2019.1)
