Impact of Transit Oriented Development on Public Transport: Case Cornubia


10 July 2019

Pieter  Onderwater
Pieter.onderwater@hatch.com

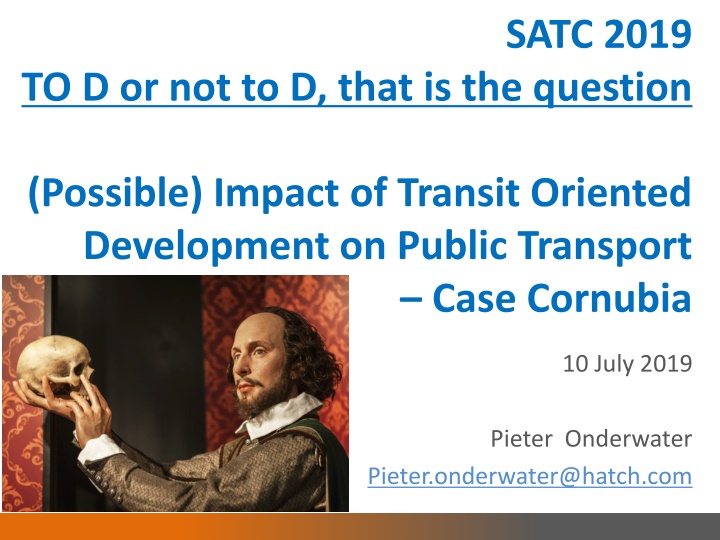

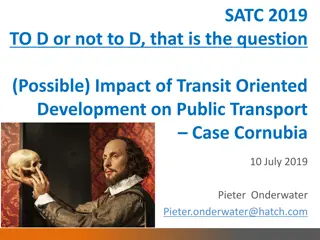

SATC 2019
TO D or not to D, that is the question
(Possible) Impact of Transit Oriented
Development on Public Transport
– Case Cornubia

Education:
1980 – 1988

Technical University Delft: MSc Civil Engineering

Traffic & Transport: PT/Rail Planning
2017 – now

University of Cape Town: PhD on Rail Planning
Work:
1988

– 1989

Swiss Railway Company,
University Delft
1989 – 2001

Goudappel Coffeng T&T Consultancy
1992 – 2006

Municipalities of The Hague and Rotterdam
2006 – 2011

DHV Consultants Rail, the Netherlands
2011 – 2013

SSI / Royal HaskoningDHV, South Africa
2013 – 2018

SMEC, South Africa
2018 – now

Hatch Africa
Lecturing:
2000 – 2010

Deventer, Utrecht techikons, Twente University, the Netherlands
2012 – now

University of Cape Town
2017 – now

University of Namibia

Pieter Onderwater (1962)

Objective of this paper:
1.
Investigate the influence on the PT system, of the main TOD factors:
Improved Public Transport
Density
Mixed-Use
Pedestrian friendly design
(others)
2.
Theoretical Application: Transit Oriented Planning
3.
Case Cornubia Boulevard
Modelling
4.
Lessons learned
TOD and PT support each other
Modelling tools are inadequate

Objective and Methodology

TOD concept originates from 1970/80s (USA)

(Naturally) applied in Europe
Urban development

    Requires
T&T network
Opportunities for planned dev.


Spare capacity T&T network
Attracts new urban dev.



        H
igh quality T&T network

TOD in South Africa, only in last decade
2006 – Wilkinson published on it, at SATC
2011 – National Development Plan
Then – included in (some) local planning policies
Recently – several researchers, SACN, PhD/MSc students

Application of TOD

Influence factors
Cervero (1990s)
 3 D
Southern Africa Cities Network (2010s)
 8 aspects

1.
Improved Public Transport
2.
Density
3.
Diversity = Mixed-Use
4.
Design = Walking network and facilities / Public Realm
   (Cycling)
   (Regulating parking, car use, traffic management)

Influence Factors of TOD

1.
Trip Generation
Work, school, other activities, shopping, social, leisure
2.
Distribution
3.
Modal Split
Walk, Private Transport (Car, Cycle?)
Public Transport (minibus, bus, train)
4.
Assignment
Routes
 PT operations

Individual economic assessment, budgets: money, time, effort.
If quality of transportation system is insufficient, then:
Other mode: Car
 PT (
 cheaper P mode)
 Walk
Different distribution, other (sub-optimal) activity
 closer by
Not make the trip at all
Impacts on Economic and Social activities…

Transportation Assessment
Activity
Traffic
Transport
Travel

0.

Traditional Land Use = segregated activities, low densities

Traditional PT = unscheduled, low Quality Level of Service




–    Often direct services, but in-frequent, slow
–    Long PT trips
–    Small PT units (most efficient)
 still inefficient, expensive

Only attracts Captives
Spend a large proportion of money, time, effort on Transportation…

0. Traditional Planning

0.

Traditional Land Use and PT




1.

Improved PT = IPTN = Trunk and Feeder



+   Some PT improvements: scheduled, frequent, fast (dedicated infra)
–   Still long PT trips, long walking distances from stations / or Feeders
–   Inefficient PT: one-directional, unevenly used, expensive / subsidy

Hardly attracting Choice Users
Walking / Feeder cost too much time, effort

1. Improved Public Transport

1.

Improved PT = IPTN



2.

High Density



+   More improvements on PT service, better used.
–   PT operations still one-directional, and inefficient
–   Still long PT trips, long walking distances from stations

Still not attracting many Choice Users

2. Higher Density

2.

High Density



3.

Mixed-Use Density



+   Closer Origins and Destinations, some at walking distance
+   Shorter PT trips, bi-directional
+   More efficient PT: more evenly used and bi-directional
4.

Design Public Spaces for Pedestrians
+   Right Development Mix: Offices, Facilities, Retail, Leisure
+   Pleasant walking
 attracting Choice Users

3. Mixed-Use

With High Density and Mixed-Use:
 smaller catchment area, for activities to be self-sufficient
 more activities in reach of population = higher accessibility
Origins and Destinations close by, ‘around the corner’
More walking trips, less Car and PT
Also activity / trip-’chains’ in lunch-time or after work (off-peak)
Pedestrian friendly environment
Pleasant place to live, work, play
Attracting additional activities / trips
 also in off-peak
PT and NMT support each other
 more PT use
 modal shift
Road network can’t handle high densities, but (as with PT) mixed
densities make road network more efficient
Also consider mixed-use Parking
More economic / social activities
 higher land value

Additional Benefits of TOD

Cornubia is a new development, north of Durban
Along Improved PT Corridors:
C9 = Umhlanga – Cornubia – Phoenix – Bridge City
C8 = Durban – Umhlanga – Cornubia – Airport
Plus additional Local PT routes
Dense Mixed Design
First developments already had higher densities
 higher in recent plans
First plans were only partly mixed
 Cornubia Boulevard is well mixed

Case Cornubia

Modelling results:
Densification
 Higher Trip Generation
Improved PT
 More PT trips, good Assignment on PT network
Efficient PT system, station design, etc.

Support by Modelling

However, current Transportation Models hardly cater for TOD assessments

1. Fixed Trip Generation

 no impact shown of mixed-use (less trips)

 no results for off-peak

2. Same Distribution function

 based on historic (traditional) planning


 little impact of mixed-use

3. No Modal-Split function

 ‘manual’ fixed impact of improved PT

 policy parameter = wishful thinking

4. Assignment

 OK

Modelling was inadequate

TOD
 more off-peak trips, shorter trips, modal shift, more efficient PT
Impact of TOD elements works differently for Captives and Choice Users






Recent planning for Cornubia Boulevard includes all TOD elements
 OK
Include TOD in more areas in Cornubia, elsewhere (where applicable)
Improve Modelling tools:
1.
Flexible Trip Generation, depending on Quality of transportation, off-peak
2.
Distribution function, based on Accessibility of activities
3.
Modal Split, based on Generalised Costs (money, time, effort)

Conclusions and Recommendations

Trad.

+Impr.PT

+Dense

+Mix

+Design

PT %
 Low Inc

 Mid. Inc

 High Inc

Any other questions ?

Pieter.onderwater@hatch.com







.

Discussion

So, the questions was:

TO D or not to D ?
And the answer is:

TOD !







.

William
Shakespeare – Hamlet (Prince of Denmark) – written 1599-1602
"To be, or not to be" = opening phrase of Act 3, Scene 1.
In the speech, prince Hamlet contemplates death and suicide,
bemoaning the pain and unfairness of life, but acknowledging that the
alternative might be worse.

Know your Classics

Definition (3) of Public Transport (Metro Rule):
It doesn’t really matter where you develop a (high quality) railway line,
in 20 years time it will function…!
Provided it is really high quality !!!
 Rail !  (and maybe BRT ?)
= Transit Oriented Development
Partly planned
 Partly u
nplanned / anticipated

Urban Passenger Rail upgrade (by Railway Company, Government):
New rolling stock, modernised infrastructure, station upgrade
Improved train service
The next step is area development (partly by others):
Local government

 station area upgrade (public)
Railway Property

 precinct development (private and public)
Local government

 precinct development (public facilities)
Private partners

 more urban development (private)

Rail
 Transit Oriented Development

Private developers will step into the TOD market, once they believe in it
 When they can make money:
First Railway Company and Local Municipality have to show they are
serious about rail transport / urban re-generation
Long term vision, plans, budgets, implementation
Then Private Developers will step in…!
Short term profits
 long term return on investment

‘Proof’ of TOD:
Land Value increase near stations
Office Rents / House Prices
Compared to similar areas >1 km
 10 to 30 % higher…! (50 % ?)

TOD and Private Developers
