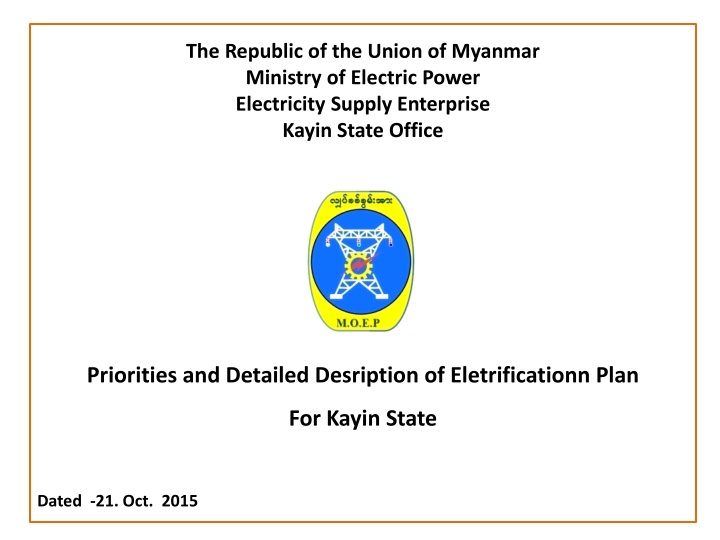

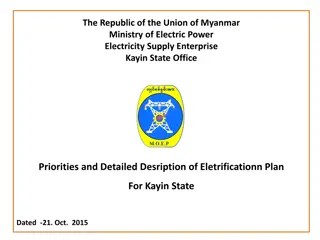

1. The Republic of the Union of Myanmar Ministry of Electric Power Electricity Supply Enterprise Kayin State Office Priorities and Detailed Desription of Eletrificationn Plan For Kayin State Dated -21. Oct. 2015

2. Priority Electrification Project List for Kayin State State Minister of Electric & Industrial for implementation the NEP with World Bank loan that we have planned with priority of the villages lists within 2 miles from existing 11 kV lines. We have submitted to the State Prime Minister and 2

3. The additional electrification statement due to newly extension and replacement 66/11kV & 33/11 kV substation and Related power line for Kayin State To Be Constructed The effective area Estimated Cost (millon kyats) Sr No Township Total Househol d (Nos) Total Populatio n (Nos) Total Vill(ages (Nos) Substation66kV Line 33kV Line (mile) Material cost Instructio n cost Total cost (mile) Hpaan (Mithayaun g) 66/11kV 10 MVA(NEW) 33/11kV 5 MVA(NEW) 1 11 - 33 4009 20526 2457.48 292.18 2749.66 Hlinebwe (Kanni) 2 - 0.5 27 4899 34844 626.35 112.72 739.07 Total 2 11 0.5 60 8908 55370 3083.83 404.9 3488.73 3

4. Electrification Plan for Villages of Kayin State (Within 2 miles from Existing 11kV Distribution Line) To be constructed 11kV Distribution Line 65.4 miles 400V Distribution Line 68.2 miles 11/0.4kV Distribution Transformer 69 Nos Kayin State 7610 No of Villages Household Estimated Costs(Mil Kyats) 67 Nos 2841.8 Hpaan District 7610 No of Villages Household Estimated Costs(Mil Kyats) 67 Nos 2841.8 4

5. Detailed Electrification Plan for Kayin State (Within 2 miles from Existing 11 kV Distribution Line) To be constructed Task by regional Name of Village To be Electr- ified Estima ted cost (Mil Kyates ) Cost for 11 kV Line 11/0.4 kV Transformer No of Hous e Hous e hold Estimate d cost (Mil Kyates) NoDistric Popul ation 400 V Lines (Miles) Const ructio n Cost t Mater i-al Cost Tran sport Cost Materi - al Cost Trans port Cost Const ructio n Cost Mile Total KVA No Total 7439 76103980 1906. 1 935. 7 2841. 8 1 Hpaan 67 65.4 1569 85 251 8620 69 856.4 24.2 55.2 68.2 3059.6 1 7439 76103980 1906. 1 55.2935. 2841. 8 Total 67 65.4 1569 85 251 8620 69 856.4 24.2 68.2 3059.6 1 7 5

6. Detailed Electrification Plan for Hpaan District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Name of Village To be Electr- ified Estima ted cost (Mil Kyates ) No of Hous e Hous e hold Popu latio n Cost for 11 kV Line 11/0.4 kV Transformer NoTown 400 V Lines (Miles ) Estimate d cost (Mil Kyates) Const ructio n Cost Mater - ial Cost Const ructio n Cost ship Mate- rial Cost Tran sport Cost Trans port Cost Mile Total KVA No Total Hline bwe 4685 48182609 38.44919.0 49.97147.2 1116.22 4 5180 39 496.8613.65 31.20541.7 1657.9 3 1 38 28.76 1291.01 5 24 3 1 2754 27921370 650.2 98 35.36104.1 789.83 3440 30 359.5 10.50 24.00394.0 1183.8 3 2 Hpaan 29 27 39.4 1768.63 6 8 0 7439 76103980 251 1906.1 8620 69 856.4 24.2 55.2 935.72841. Total 67 65.4 1569 85 68.2 3059.6 1 8 6

7. The Statement of Fiscal Yearly Budget and Electrified Connnetion for Kayin State State/Region Capital Budget for DRD (mil Kyats) Electrified Connection State/Region Capital Budget for ESE (mil Kyats) ON Grid OFF Grid No Fiscal Year Total Cost for 11 kV Line & 11/0.4 TR Total Cost for 400 V Line Consume r (nos) Consume r (nos) Villages (Nos) Villages (Nos) Total Off Grid 1 2014-2015 Estimate(BE+RE) 1875.603 327.5 2203.10 936.95 44 3080 65 4918 2 2015-2016 Estimate (BE+RE) 3783.55 1509.35 5292.89 1027.6 93 6510 74 5138 32016-2017 Budget stimate (BE+RE) 7577 861 8438 - 148 10360 203 24649 Grand Total 13236.15 2697.85 15934 1964.55 285 19950 342 34705 7

8. Main Materials List Transported to Hpaan District Office Sr Description Qty Remark 1 11/0.4 kV Distribution Transformer 69 Nos Hpa-an District PMO Office 2 10 meter Concrete Pole 2807 Nos Hpa-an District PMO Office A.C.S.R (95 mm2 ) 3 136710 Kg Hpa-an District PMO Office 4 1769 Set Hpa-an District PMO Office 11 kV Disc Insulator with Tension fitting 5 11 kV Pin Insulator with Spindle & Nut 6261 No Hpa-an District PMO Office 6 69 Set Hpa-an District PMO Office 11kV Surge Arrestor, Disconnectors,Fuses 7 Other Materials 1 Lot Hpa-an District PMO Office 8

9. Main Materials List Transported to Hpaan District Office Sr Description Qty Remark 8 66/11kV 10MVA Transformer 1 No Mithayaung Village 9 66/11kV 10MVA Substation Materials 1 Lot Mithayaung Village 10 66kV Line Materials for 11Miles 1 Lot Hpa-an District PMO Office 11 33/11kV 5MVA Transformer 1No Kanni Village 12 33/11kV 5MVA Substation Materials 1 Lot Kanni Village 13 33kV Line Materials for 0.5 Mile 1 Lot Kanni Village 9
