Electrification Plan for Chin State Detailed Description

The Republic of the Union of Myanmar Ministry of Electric Power Electricity Supply Enterprise, in collaboration with local government authorities, has detailed an electrification plan for Chin State. The plan focuses on villages within 2 miles of existing 11 kV lines, prioritizing infrastructure development and cost estimates for various districts like Falam and Mindat. Coordination with township and village committees is integral to the successful implementation of this plan.

• Myanmar
• Electrification Plan
• Chin State
• Infrastructure Development

paik_ek Follow

Uploaded on Sep 18, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

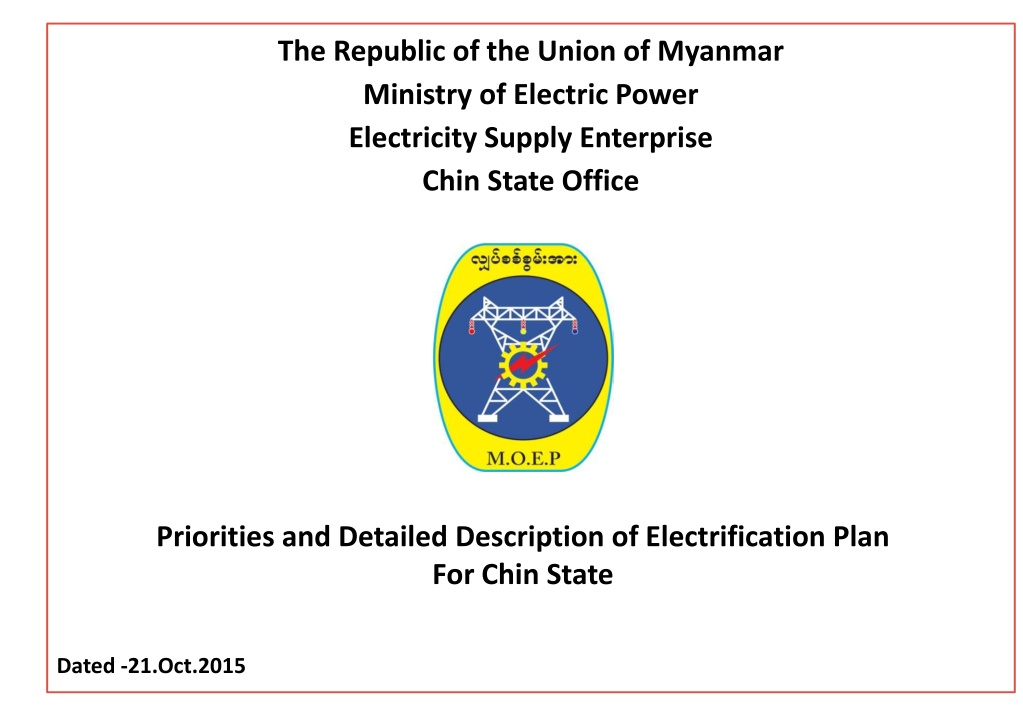

1. The Republic of the Union of Myanmar Ministry of Electric Power Electricity Supply Enterprise Chin State Office Priorities and Detailed Description of Electrification Plan For Chin State Dated -21.Oct.2015

2. Electrification Plan after discussion with local goverment We have submitted to the local government for implementation the the NEP with World Bank Loan that we have planned for priority to the villages lists within 2 miles from existing 11 kV lines. Then we have got the message to cooperate with township management committee. Therefore, we have to coordinate with township management committee and village lighting committee for electrification the villages within 2 miles from existing 11 kV lines. 2

3. Electricfication Plan for Village of Chin State (Within 2 miles from Exiting 11 kV Distribution Line) Chin State (Cikhar) To be Constructed 11 kV Distribution Line miles 400 V Distribution Line miles 11/0.4 kV Distribution Transformer 4 Nos No. of Village - 4 Nos Household - 181 Estimated Cost - 277.67 (Mil kyats) 8 (Tonzang) 2.5 (Teedim) (To Kalay) (Rih Khawdar) (Falam) (To Natchaung) (Hakha) (Thanthlang) Mindat District No. of Village - 3 Nos Household - 109 Estimated Cost - 207.09 (Mil kyats) (To Gangaw) Falam District No. of Village - 1 Nos Household - 72 Estimated Cost - 70.58 (Mil kyats) (Rezuar) (Matupi) (Mindat) (To Kyauhtoo) (Paletwa) (Sami) (To Saw ) (Kanpetlet) 3

4. Detailed Electrification Plan for Chin State (Within 2 miles from Existing 11 kV Distribution Line) To be constructed Task by regional Estimate d cost (Mil Kyates) No of Hous e NoDistric House hold Popu- lation Cost for 11 kV Line 11/0.4 kV Transformer 400V Lines (Miles ) Estimate d Cost (Mil Kyats) k Constr -uction Cost Constru- ction Cost Transpor t Cost Materia l Cost Trans- port Cost mileMaterial Total kVA No Total Cost 2.6 58.08 100 1 11.35 0.80 0.35 12.50 1. Falam 64 72 311 2 47.82 7.66 70.58 1 44.89 7.8 174.24 150 3 29.4 2.4 1.05 32.85 207.09 2 Mindat 109 109 490 6 143.46 22.98 1.5 67.335 10.4 232.32 250 4 40.75 3.2 1.4 45.35 277.67 Total 173 181 801 8 191.28 30.64 2.5 112.225 4

5. Detailed Electrification Plan for Falam District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Estimate d cost (Mil Kyates) Name of Village To be Electrifie d Cost for 11 kV Line 11/0.4 kV Transformer NoTowns No of House House hold Popu- lation 400V Lines (Mile s) Estimated Cost (Mil Kyats) hip Constr - uction Cost Constr- uction Cost Materi al Cost Mate- rials Cost Trans- port Cost Transp- Ort Cost Total kVA No mile Total 2.6 58.08 100 1 11.35 0.80 0.35 12.50 1. Falam La thi 64 72 311 2 47.82 7.66 70.58 1 44.89 2.6 58.08 100 1 11.35 0.80 0.35 12.50 Total 64 72 311 2 47.82 7.66 70.58 1 44.89 5

6. Location Map of Electrification Plan for Falam District (Within 2 miles from Existing 11 kV Distribution Line) La thi Village 11/0.4 kV(100 kVA) 2 miles Parte Village Ngasit vaa mini Hydropower (500kVA) Legend Legend Ngasit vaa mini Hydropower (500kVA) 11 kV Line 11 kV Line (2 Mile) 6 11/0.4 kV TR (100 kVA)

7. Detailed Electrification Plan for Mindat District (Within 2 miles from Existing 11 kV Distribution Line) To be constructed Task by regional Estimate d cost (Mil Kyates) Name of Village To be Electrifie d Town ship No of House House hold Popu lation Cost for 11 kV Line 11/0.4 kV Transformer Estimate d Cost (Mil Kyats) No 400V Lines (Miles) Construc -tion Cost Constru- ction Cost Mater- ials Cost Trans- port Cost Mate rials Cost Transp ort Cost Total kVA No mile Total 10.9 5 1. MindatKyawl 2.6 58.08 50 1 9.80 0.80 0.35 24 24 122 2 47.82 7.66 69.03 0.5 22.445 Taw 10.9 5 2.6 58.08 50 1 9.80 0.80 0.35 Baw(3) 20 20 125 2 47.82 7.66 69.03 0.5 22.445 10.9 5 2.6 58.08 50 1 9.80 0.80 0.35 Pye 65 65 243 2 47.82 7.66 69.03 0.5 22.445 174.2 4 32.8 5 7.8 150 3 29.4 2.4 1.05 Total 109 109 490 6 143.46 22.98 207.09 1.5 67.335 7

8. Location Map of Electrification Plan for Mindat District (Within 2 miles from Existing 11 kV Distribution Line) Legend Baw (3) Village 11/0.4 kV( 50 kVA) 11 kV Line 2 miles 11 kV Line 6 Miles 2 miles 2 miles 11/0.4 kV TR ; 150 kVA Pye Village 11/0.4 kV( 50 kVA) Kyaw Taw Village 11/0.4 kV( 50kVA) 8

9. The Statement of Fiscal Yearly Budget and Electrified Connection for Chin State State/Regio n Capital Budget for DRD (mil Kyats) Electrified Connection State/Region Capital Budget for ESE (mil Kyats) ON Grid Off Grid N o Fiscal Year Total Cost For 11 kV Line & 11/0.4 TR TotalCo st for 400 V Line Vill age (No s) Villag e (Nos) Consumer (Nos) Consumer (Nos) Total Off Grid 1 2014-2015 Estimate (RE+BE) 147.51 62.05 209.56 1149.96 4 344 68 6225 2 2015-2016 Estimate (RE+BE) 275.59 98.65 374.25 430.40 5 152 79 2139 2016-2017 Budget Estimate (RE+BE) 3 1970.53 509.77 2480.3 2977.20 17 1334 516 14886 2364.2 3 Grand Total 1699.03 665.19 4557.56 26 1830 663 23250 9

10. Main Materials List Transported to Falam District Office Sr No Description Quantities Transported Site 1 11/0.4 kV ,100 kVA Transformer 1 No Falam District , PMO Office 2 10 meter Iron Pole 95 Nos Falam District , PMO Office 3 ACSR 95/15 mm-sq 3863 kgs Falam District , PMO Office 4 11 kV Pin Insulator with Sindle 285 Nos Falam District , PMO Office 5 11 kV Disc Insulator with fiting Clamp 60 Sets Falam District , PMO Office Surge Arrestor , Disconnection Switch , Fuse 6 1 Sets Falam District , PMO Office 7 Other Material 1 Lot Falam District , PMO Office 10

11. Main Materials List Transported to Mindat District Office Sr No Description Quantities Transported Site 1 11/0.4 kV ,50 kVA Transformer 3 Nos Mindat District , PMO Office 2 10 meter Iron Pole 285 Nos Mindat District , PMO Office 3 ACSR 95/15 mm-sq 11590 kgs Mindat District , PMO Office 4 11 kV Pin Insulator with Sindle 855 Nos Mindat District , PMO Office 11 kV Disc Insulator with fiting Clamp 5 174 Sets Mindat District , PMO Office Surge Arrestor , Disconnection Switch , Fuse 6 3 Sets Mindat District , PMO Office 7 Other Material 1 Lot Mindat District , PMO Office 11
