EEVDF The New Linux Scheduler Balakumaran Kannan Balakumaran.Kannan@microsoft.com Senior Software Engineer Azure Linux, Microsoft

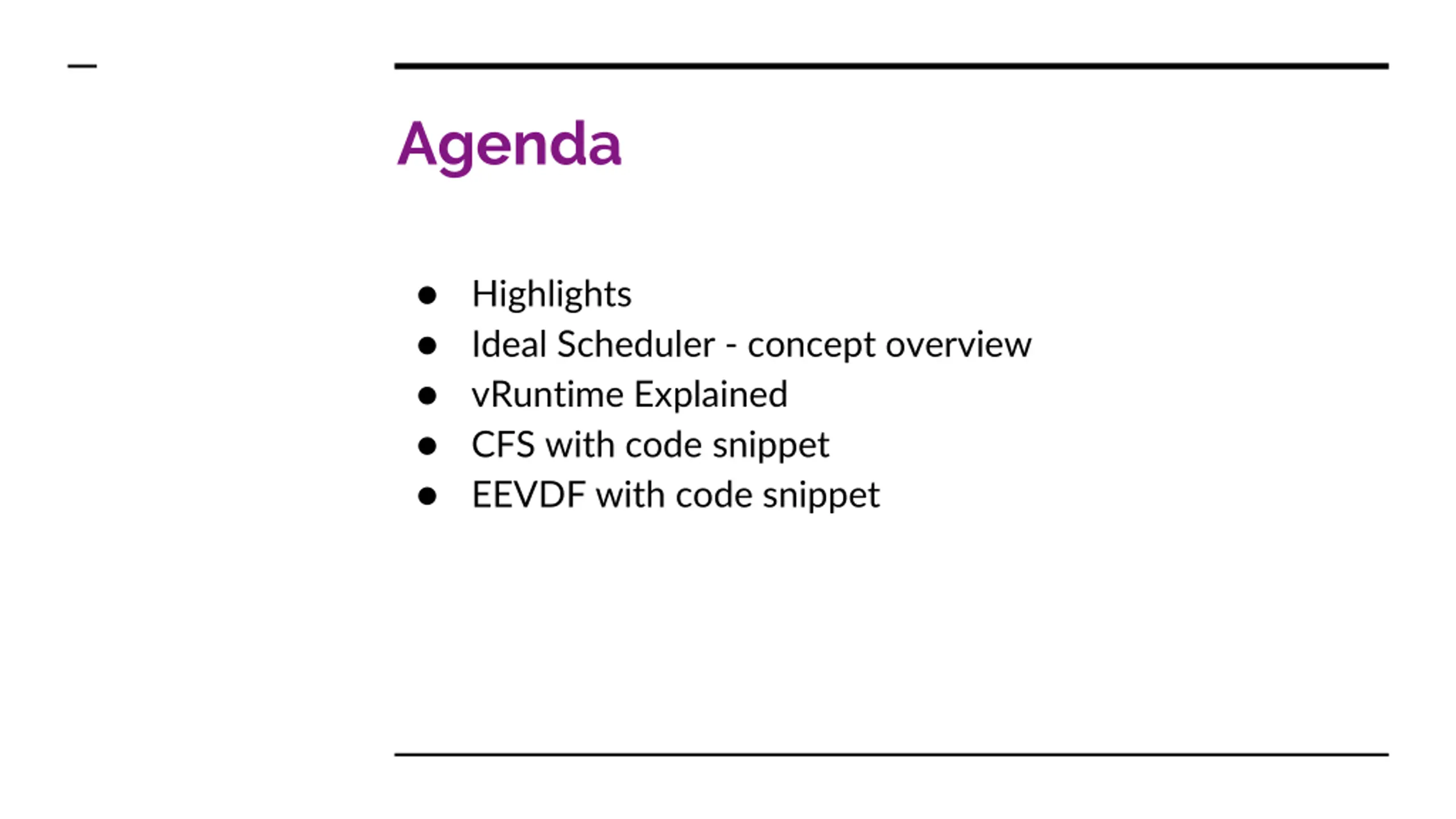

Agenda EEVDF with code snippet Highlights Ideal Scheduler - concept overview vRuntime Explained CFS with code snippet

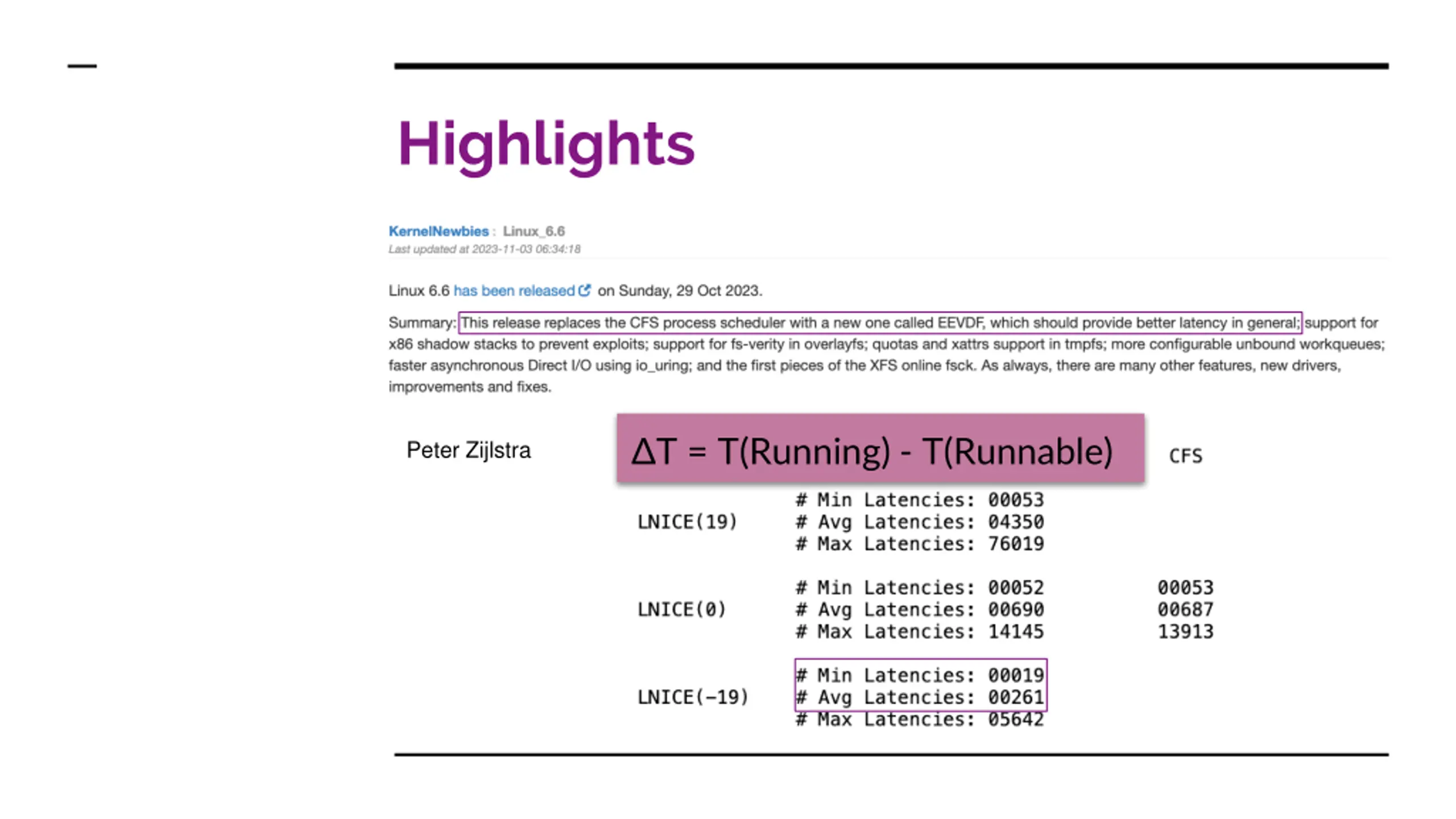

Highlights T = T(Running) - T(Runnable) Peter Zijlstra

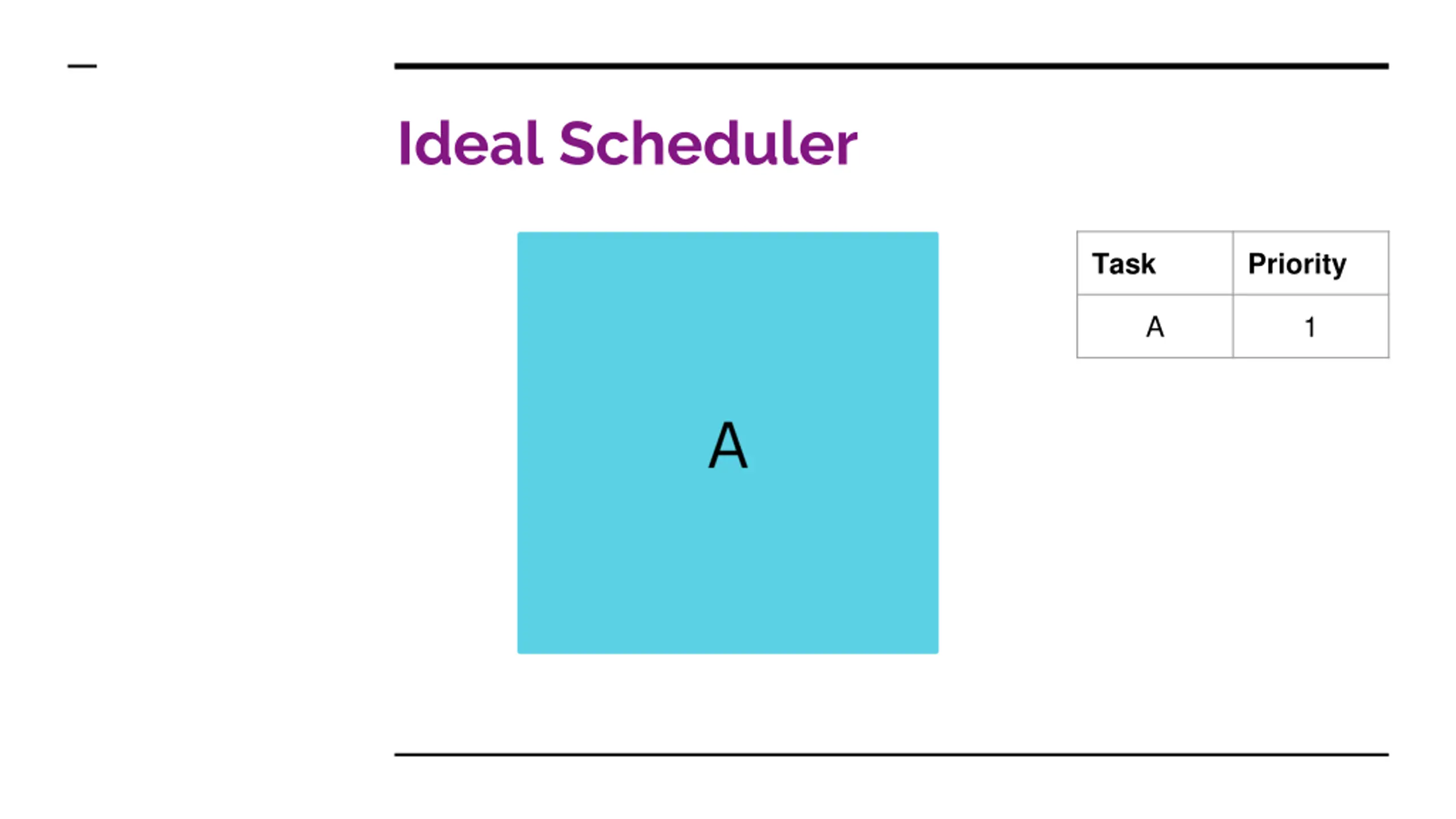

Ideal Scheduler Task Priority A 1

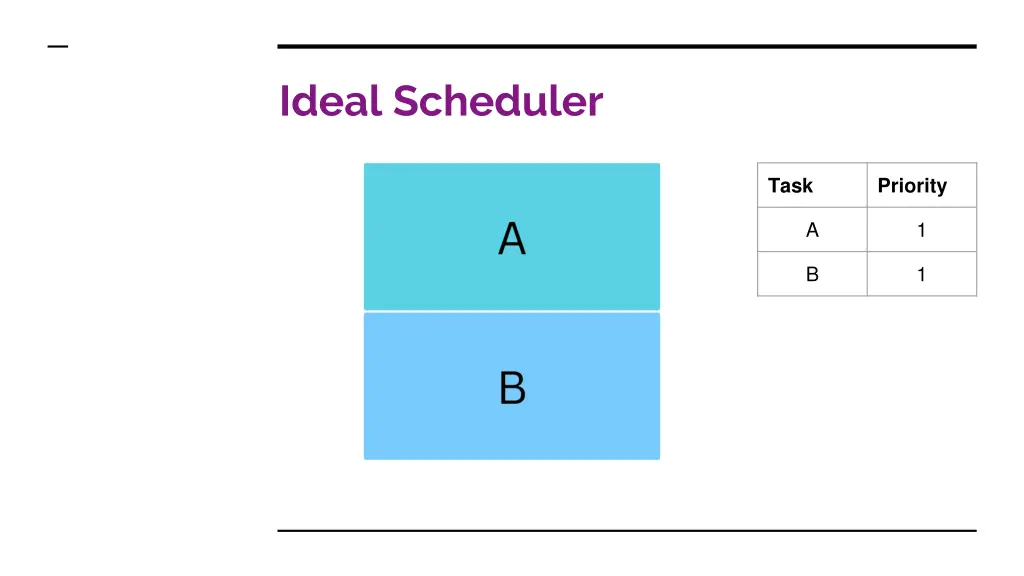

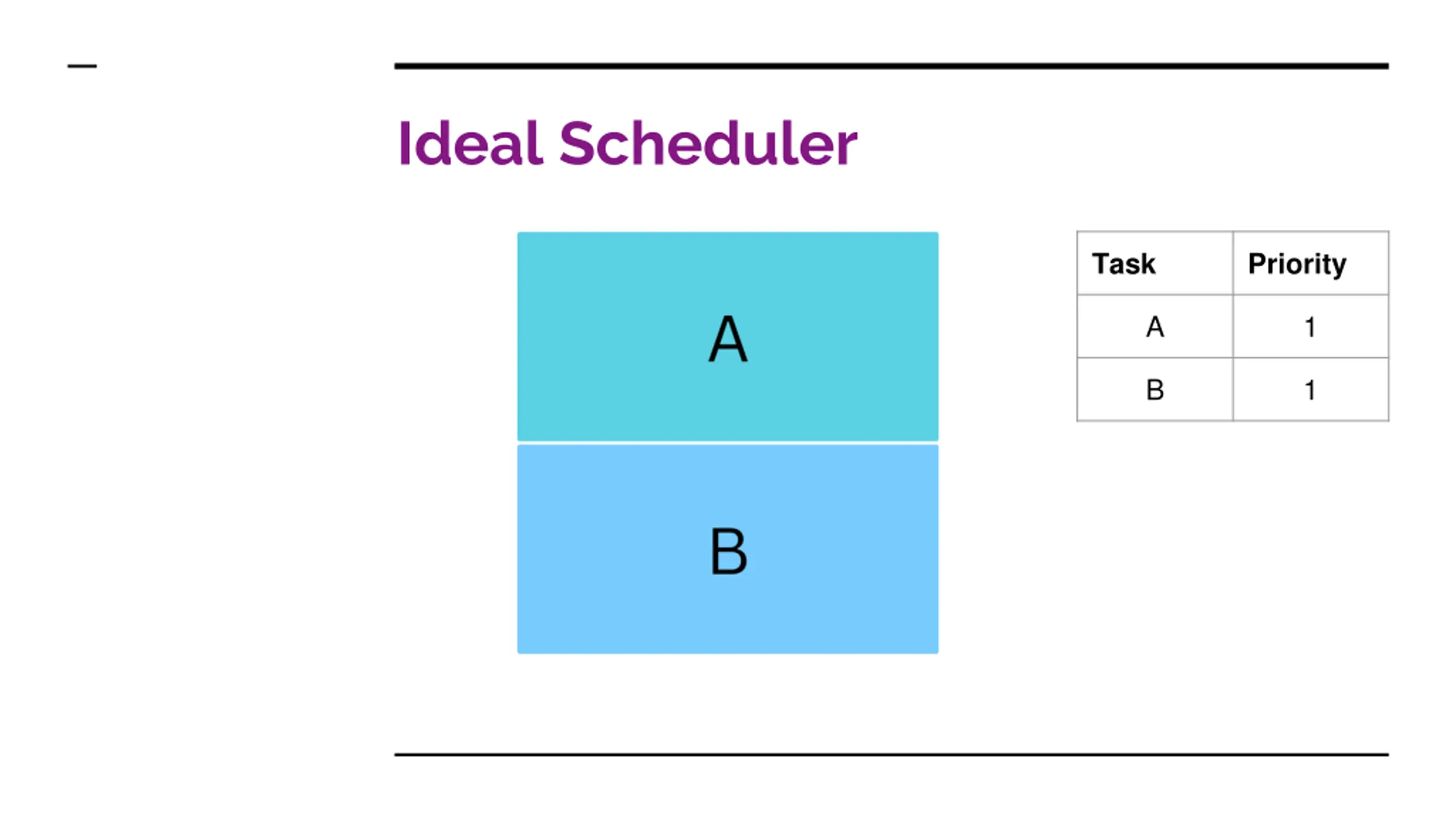

Ideal Scheduler Task Priority A 1 B 1

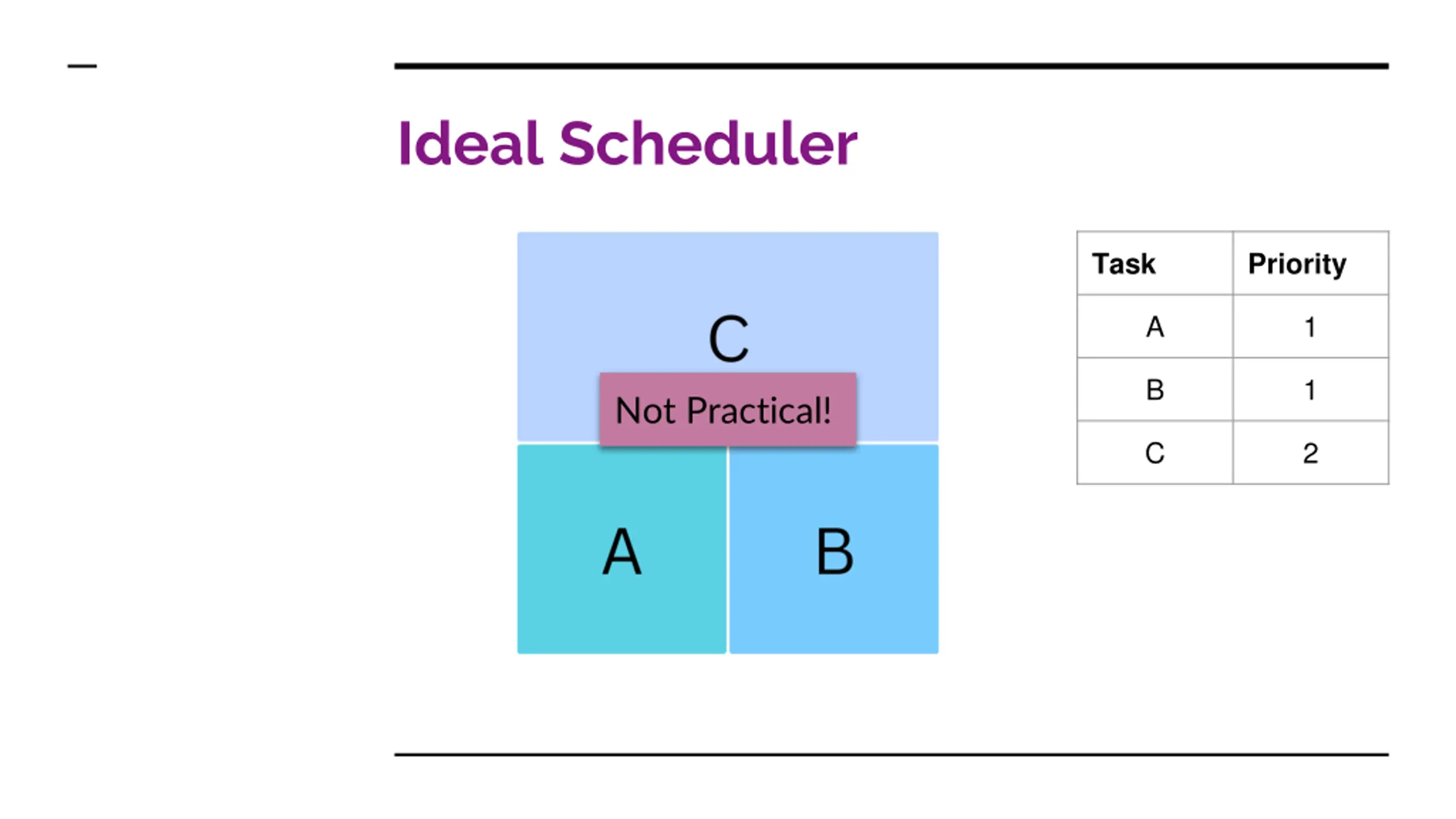

Ideal Scheduler Task Priority A 1 B 1 Not Practical! C 2

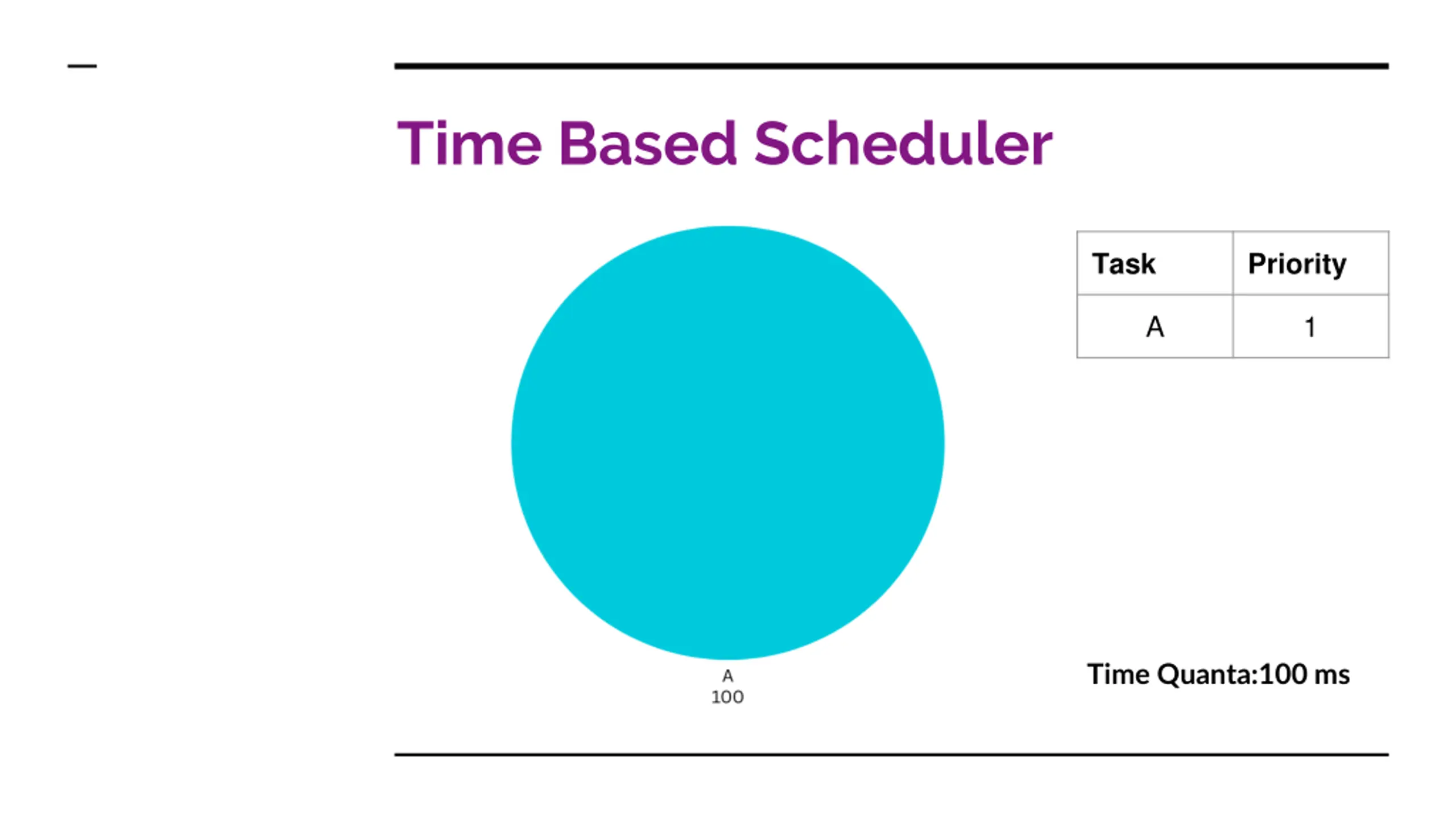

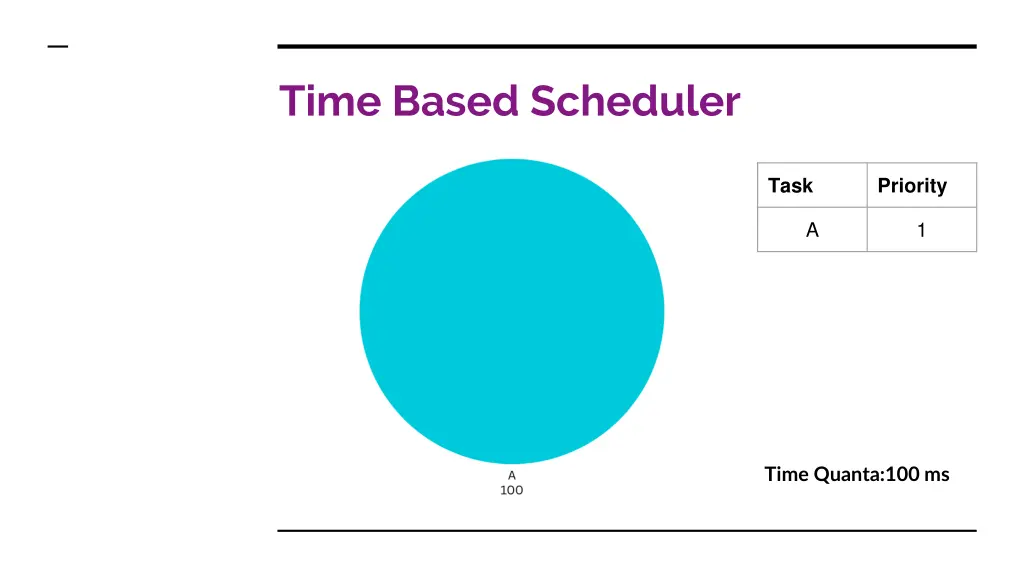

Time Based Scheduler Task Priority A 1 Time Quanta:100 ms

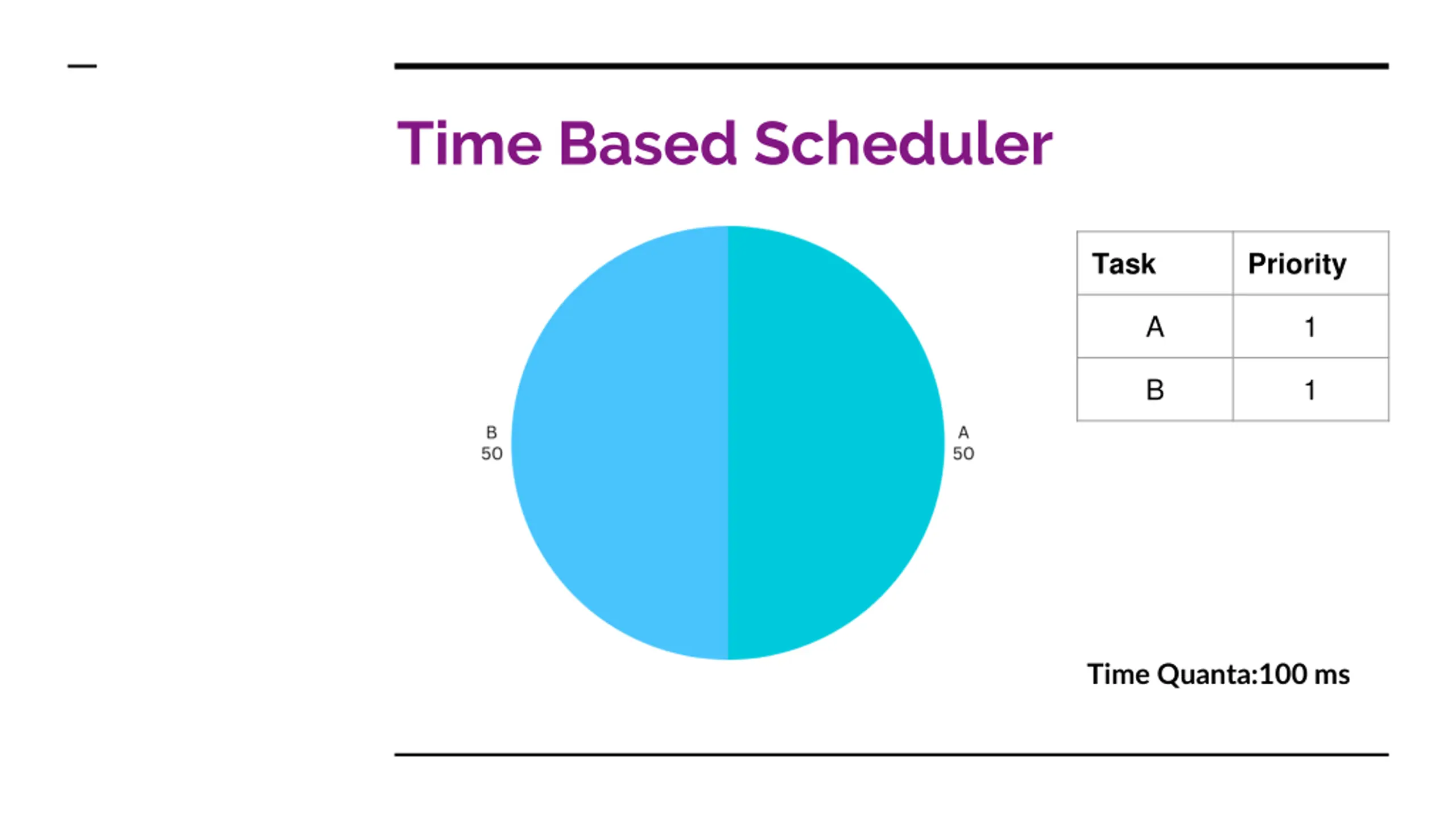

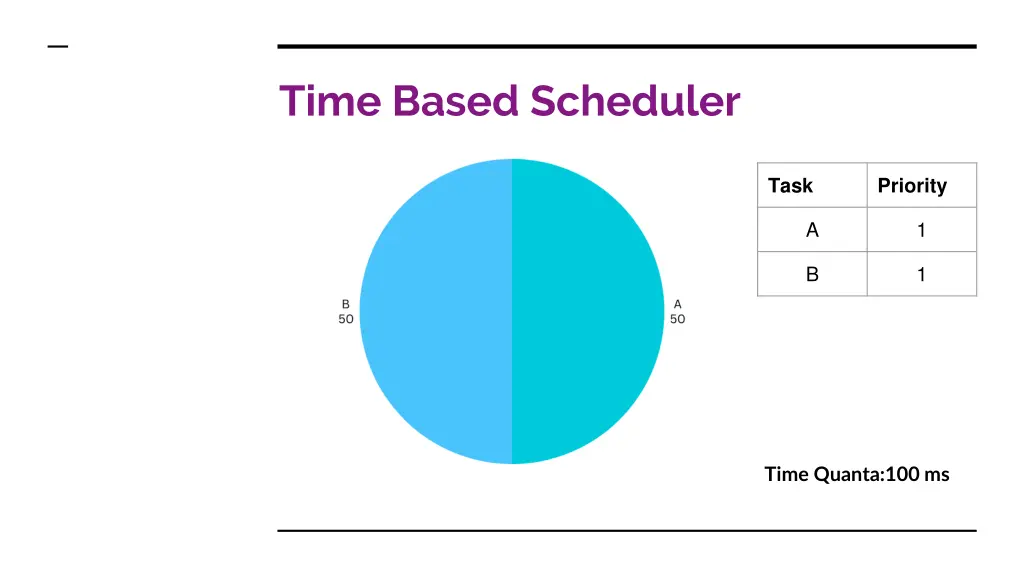

Time Based Scheduler Task Priority A 1 B 1 Time Quanta:100 ms

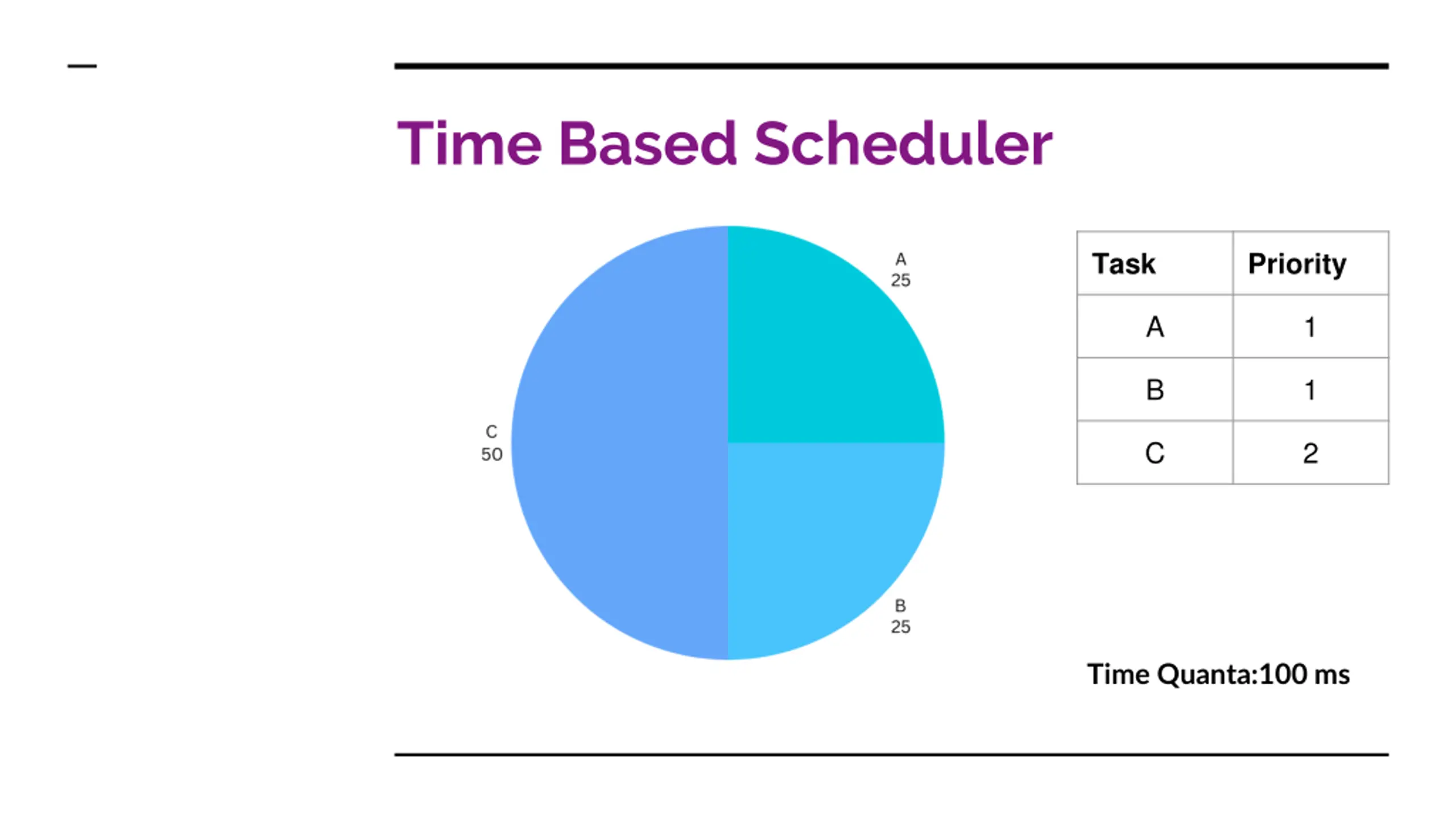

Time Based Scheduler Task Priority A 1 B 1 C 2 Time Quanta:100 ms

vRuntime Explained Instead of slicing the capacity, let s slice the time Problem of not accounting dynamic nature update_curr: for task-x 750 ms Task-1 (500 ms) Task-2 (500 ms) 0 ms Task-1 (0, 1000 ms) vRunTime(x) = delta_exec(x) * weight(nice_0) / weight(x) delta_exec(x) = now() - start_time(x) vRuntime = time x (weight of all tasks) - virtual entity to handle dynamic task addition and deletion vRunTime 1250 ms 0 ms vRunTime (0, 1000ms) Task-1 (0, 1000 ms) 750 ms vRunTime (750, 2000ms) Task-1 (750, 1000ms) Task-2 (0, 1000ms)

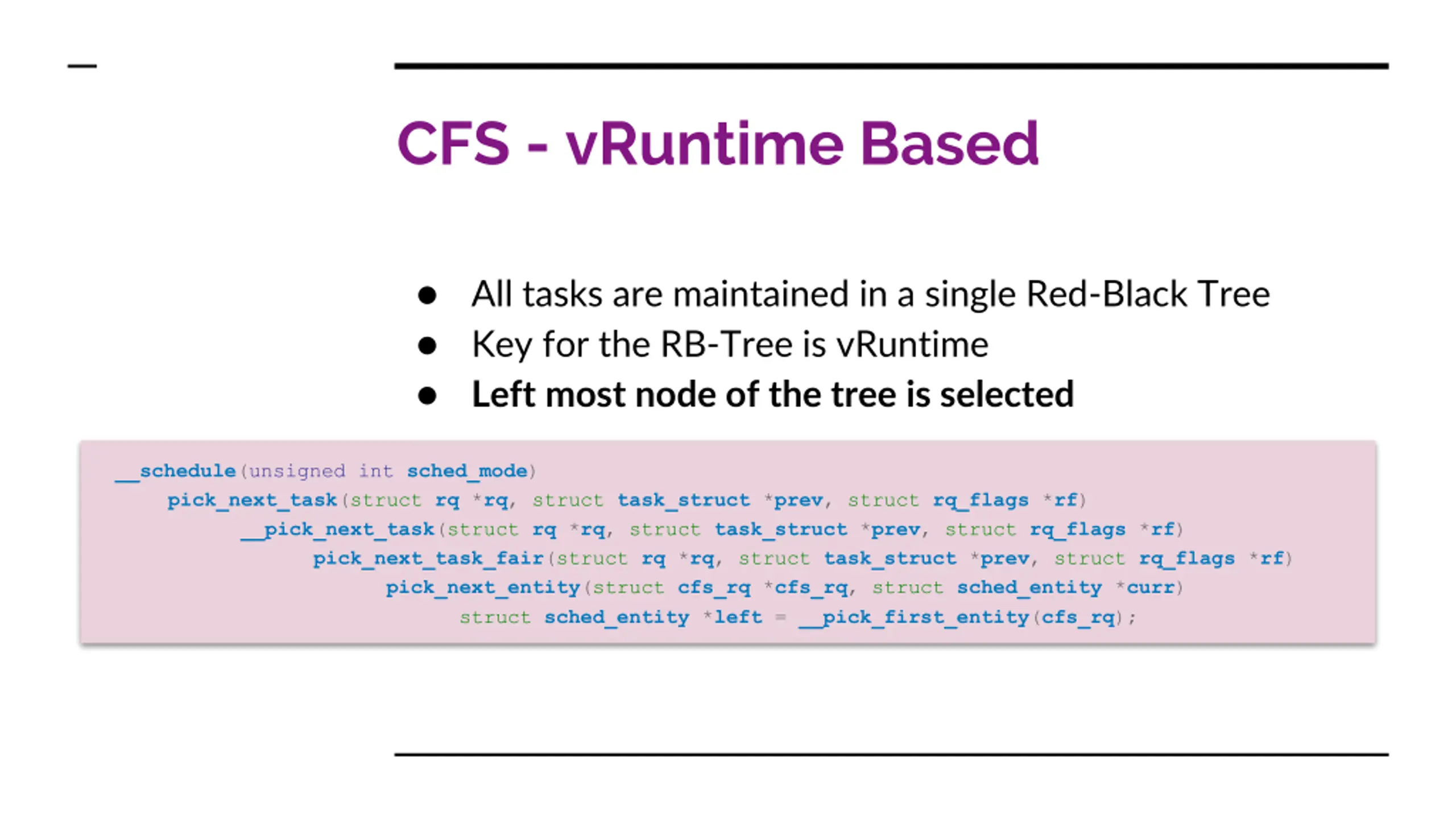

CFS - vRuntime Based All tasks are maintained in a single Red-Black Tree Key for the RB-Tree is vRuntime Left most node of the tree is selected __schedule(unsigned int sched_mode) pick_next_task(struct rq *rq, struct task_struct *prev, struct rq_flags *rf) __pick_next_task(struct rq *rq, struct task_struct *prev, struct rq_flags *rf) pick_next_task_fair(struct rq *rq, struct task_struct *prev, struct rq_flags *rf) pick_next_entity(struct cfs_rq *cfs_rq, struct sched_entity *curr) struct sched_entity *left = __pick_first_entity(cfs_rq);

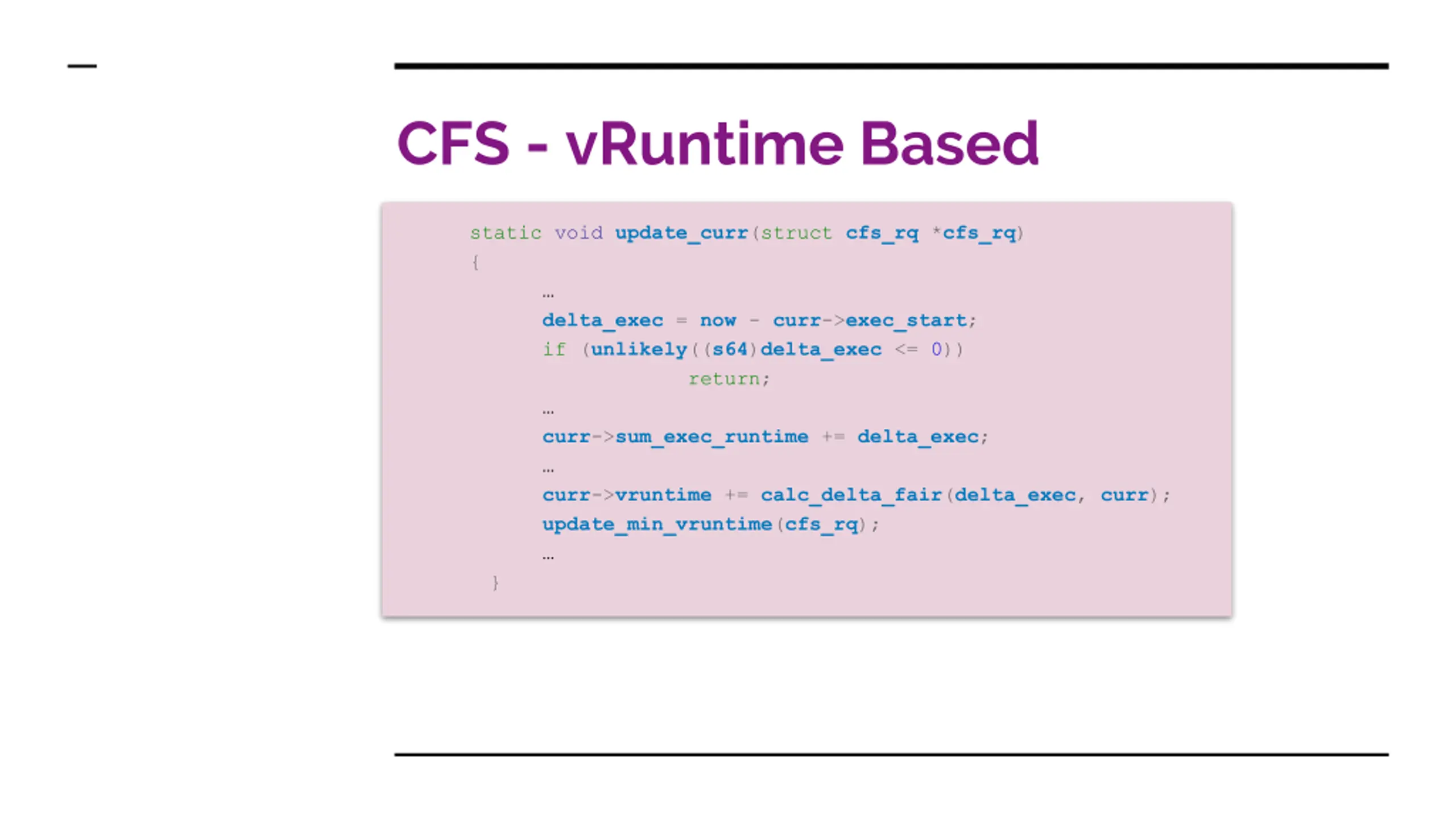

CFS - vRuntime Based static void update_curr(struct cfs_rq *cfs_rq) { delta_exec = now - curr->exec_start; if (unlikely((s64)delta_exec <= 0)) return; curr->sum_exec_runtime += delta_exec; curr->vruntime += calc_delta_fair(delta_exec, curr); update_min_vruntime(cfs_rq); }

Express Latency Needs! Created with CoPilot

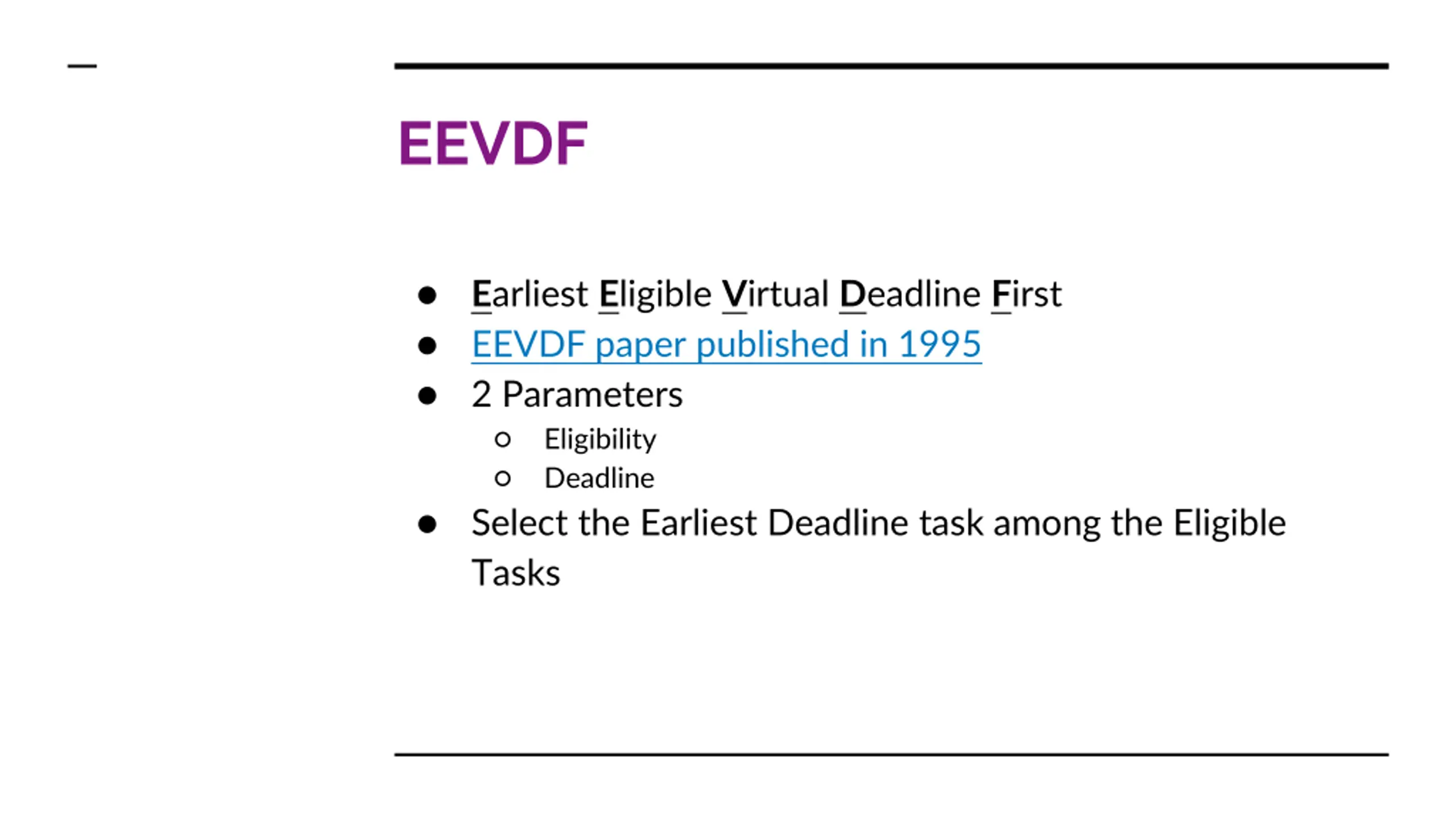

EEVDF Earliest Eligible Virtual Deadline First EEVDF paper published in 1995 2 Parameters Eligibility Deadline Select the Earliest Deadline task among the Eligible Tasks

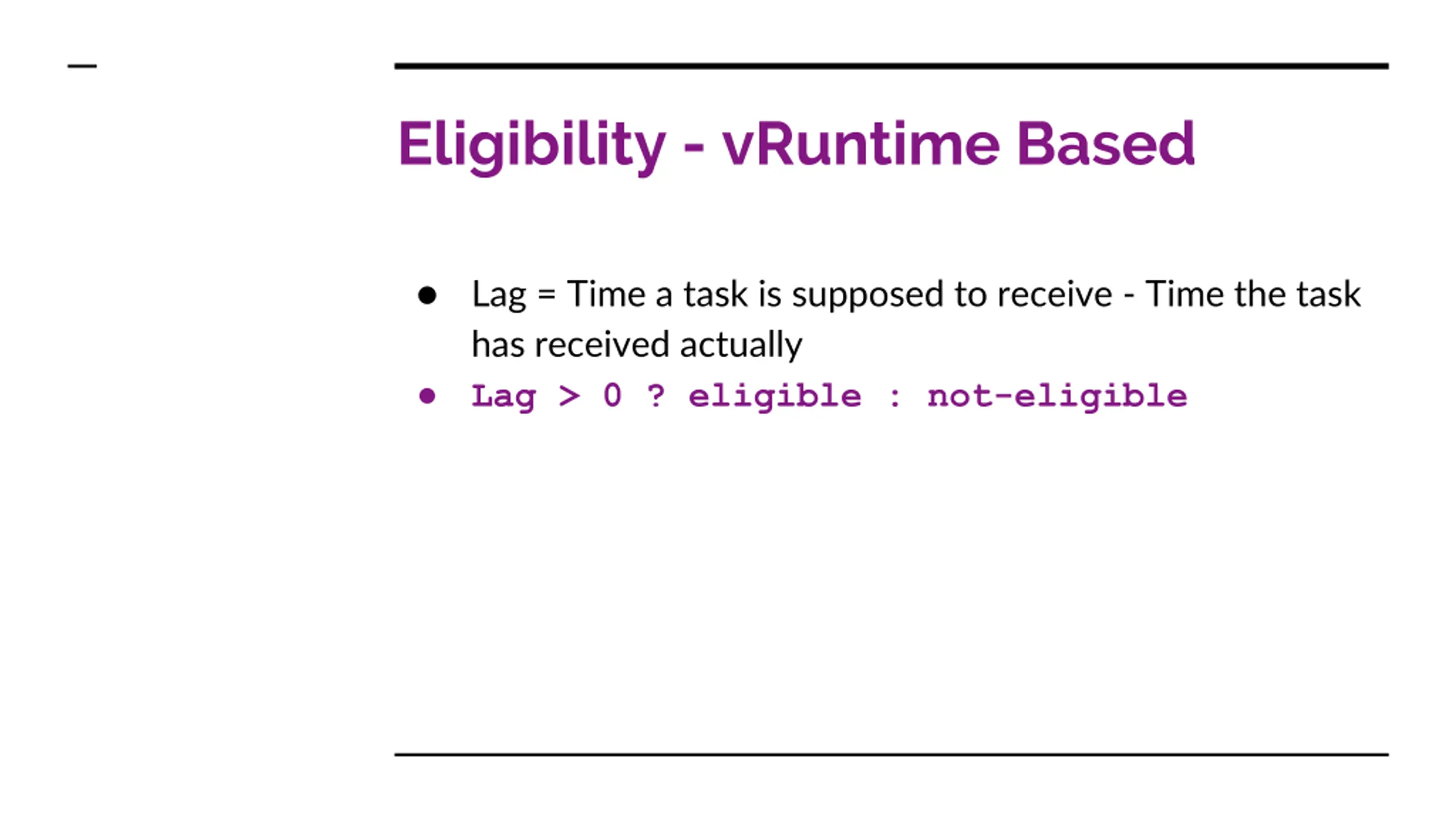

Eligibility - vRuntime Based Lag = Time a task is supposed to receive - Time the task has received actually Lag > 0 ? eligible : not-eligible

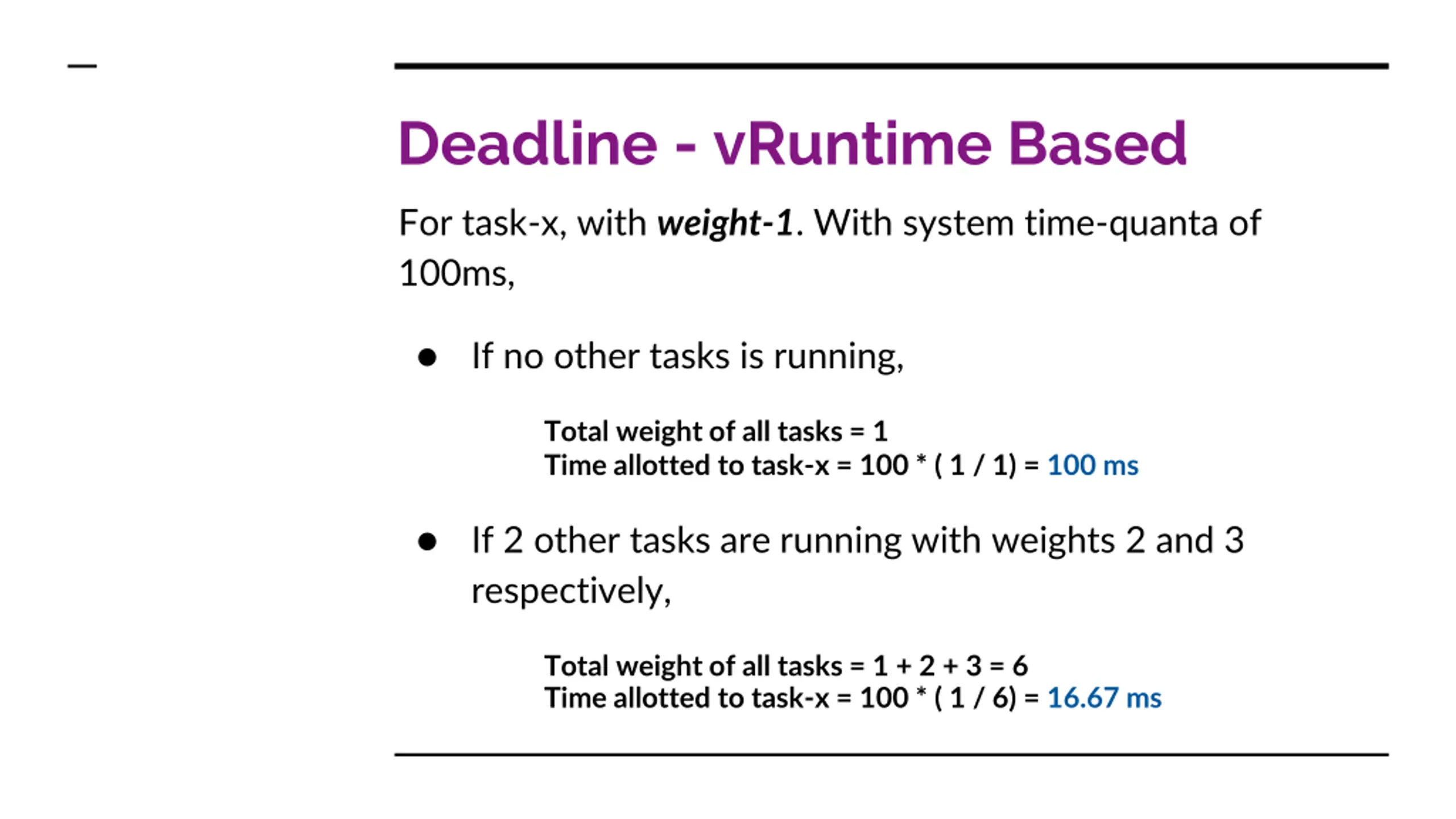

Deadline - vRuntime Based For task-x, with weight-1. With system time-quanta of 100ms, If no other tasks is running, Total weight of all tasks = 1 Time allotted to task-x = 100 * ( 1 / 1) = 100 ms If 2 other tasks are running with weights 2 and 3 respectively, Total weight of all tasks = 1 + 2 + 3 = 6 Time allotted to task-x = 100 * ( 1 / 6) = 16.67 ms

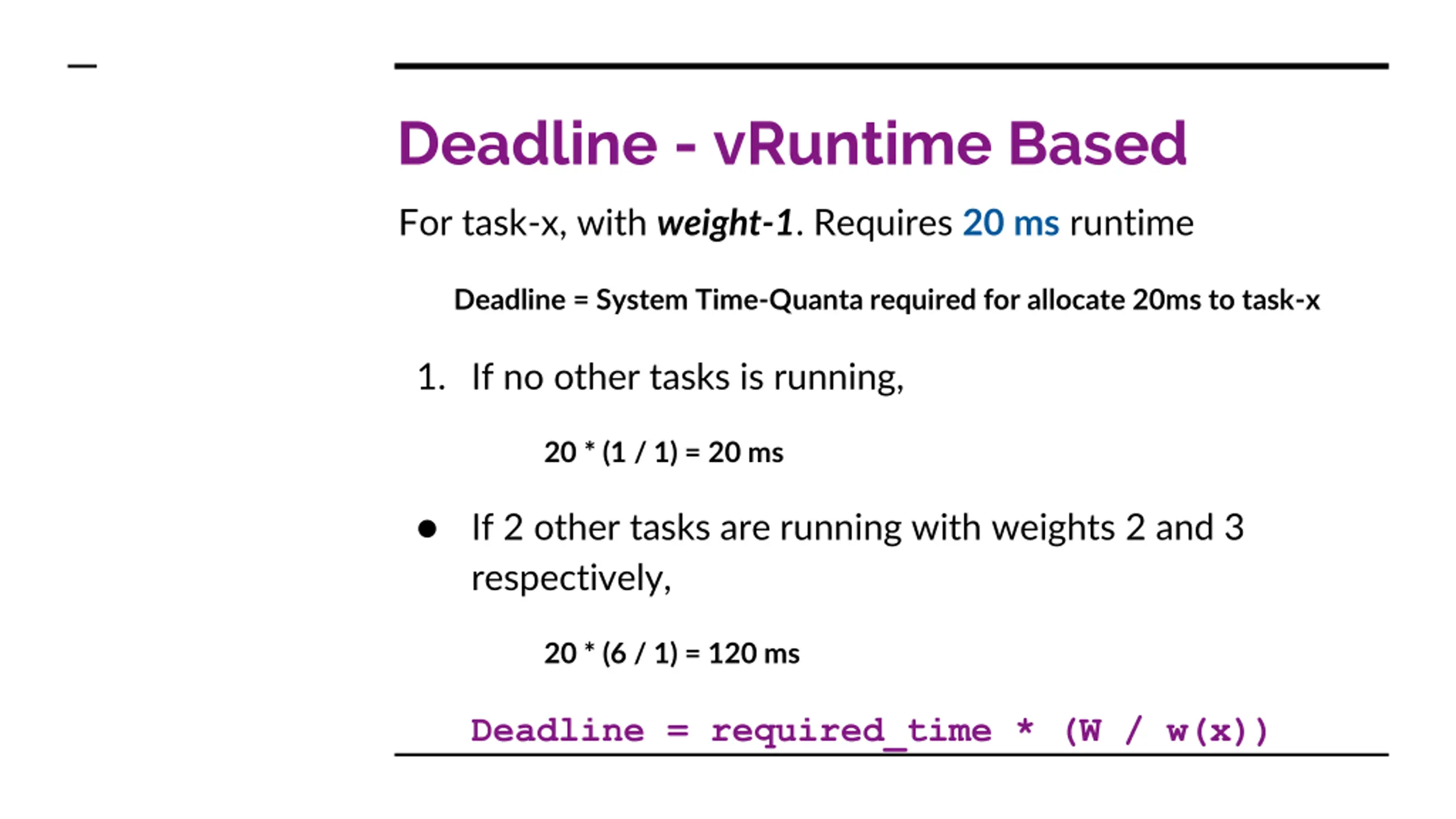

Deadline - vRuntime Based For task-x, with weight-1. Requires 20 ms runtime Deadline = System Time-Quanta required for allocate 20ms to task-x 1. If no other tasks is running, 20 * (1 / 1) = 20 ms If 2 other tasks are running with weights 2 and 3 respectively, 20 * (6 / 1) = 120 ms Deadline = required_time * (W / w(x))

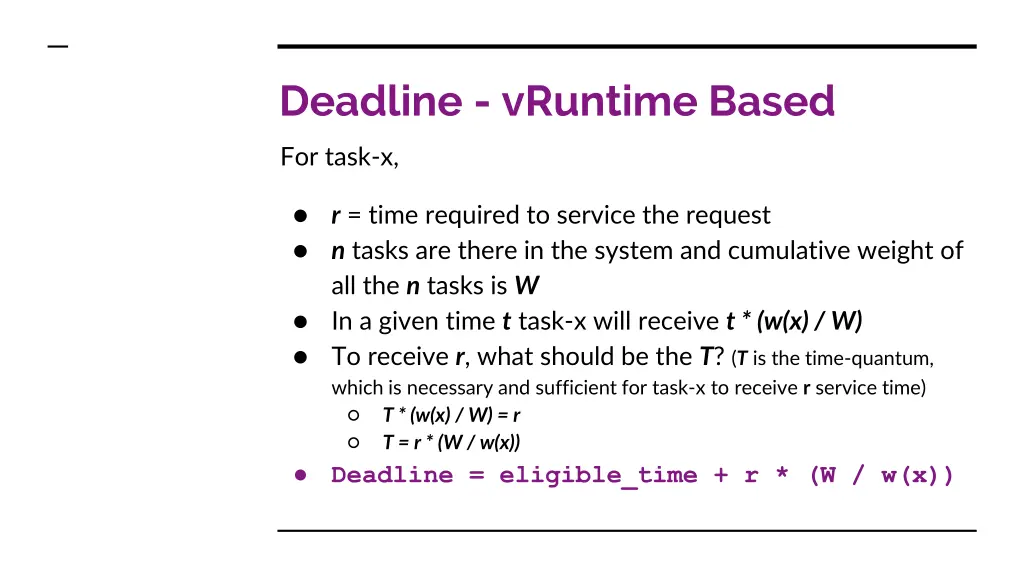

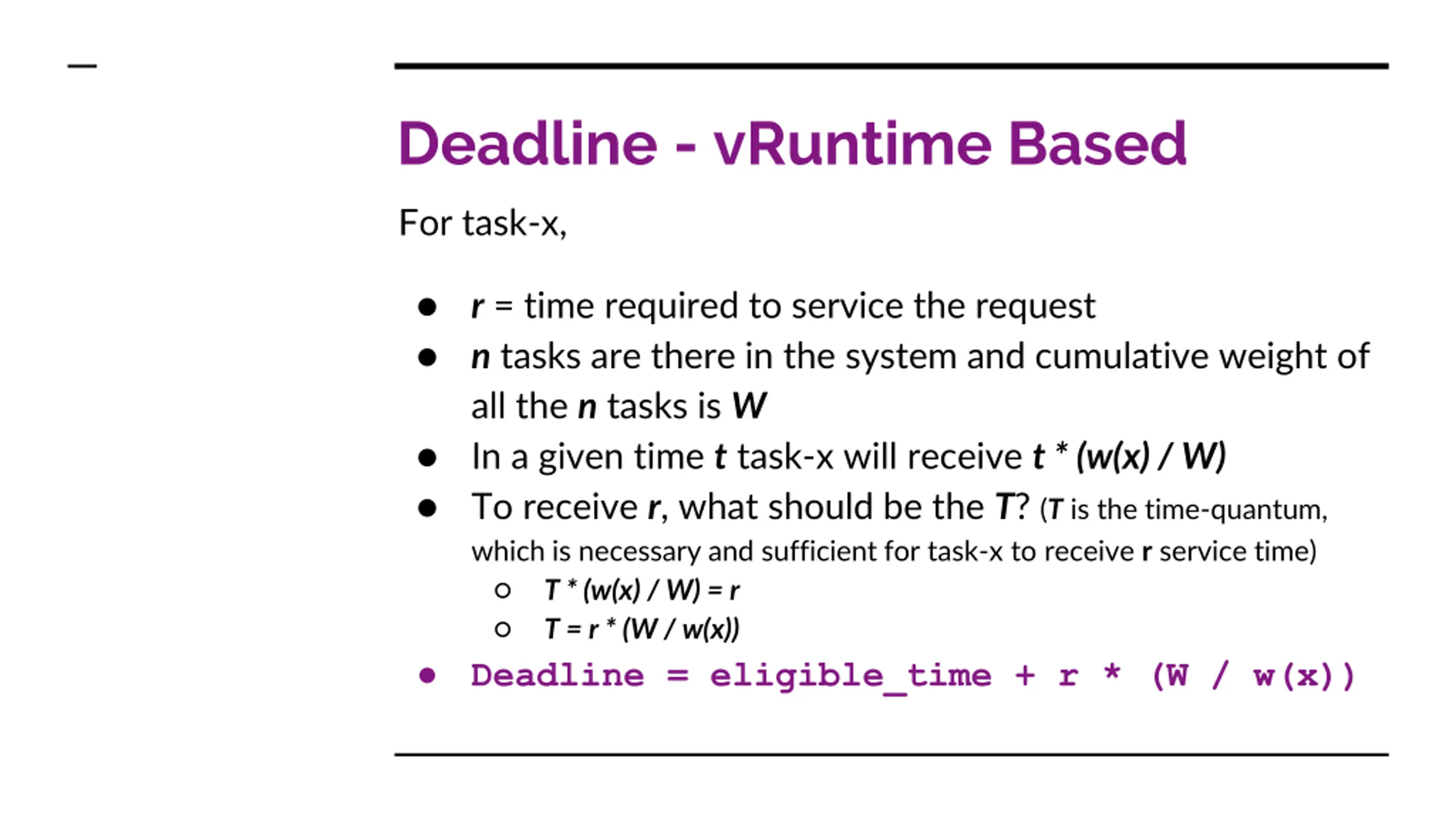

Deadline - vRuntime Based For task-x, r = time required to service the request n tasks are there in the system and cumulative weight of all the n tasks is W In a given time t task-x will receive t * (w(x) / W) To receive r, what should be the T? (T is the time-quantum, which is necessary and sufficient for task-x to receive r service time) T * (w(x) / W) = r T = r * (W / w(x)) Deadline = eligible_time + r * (W / w(x))

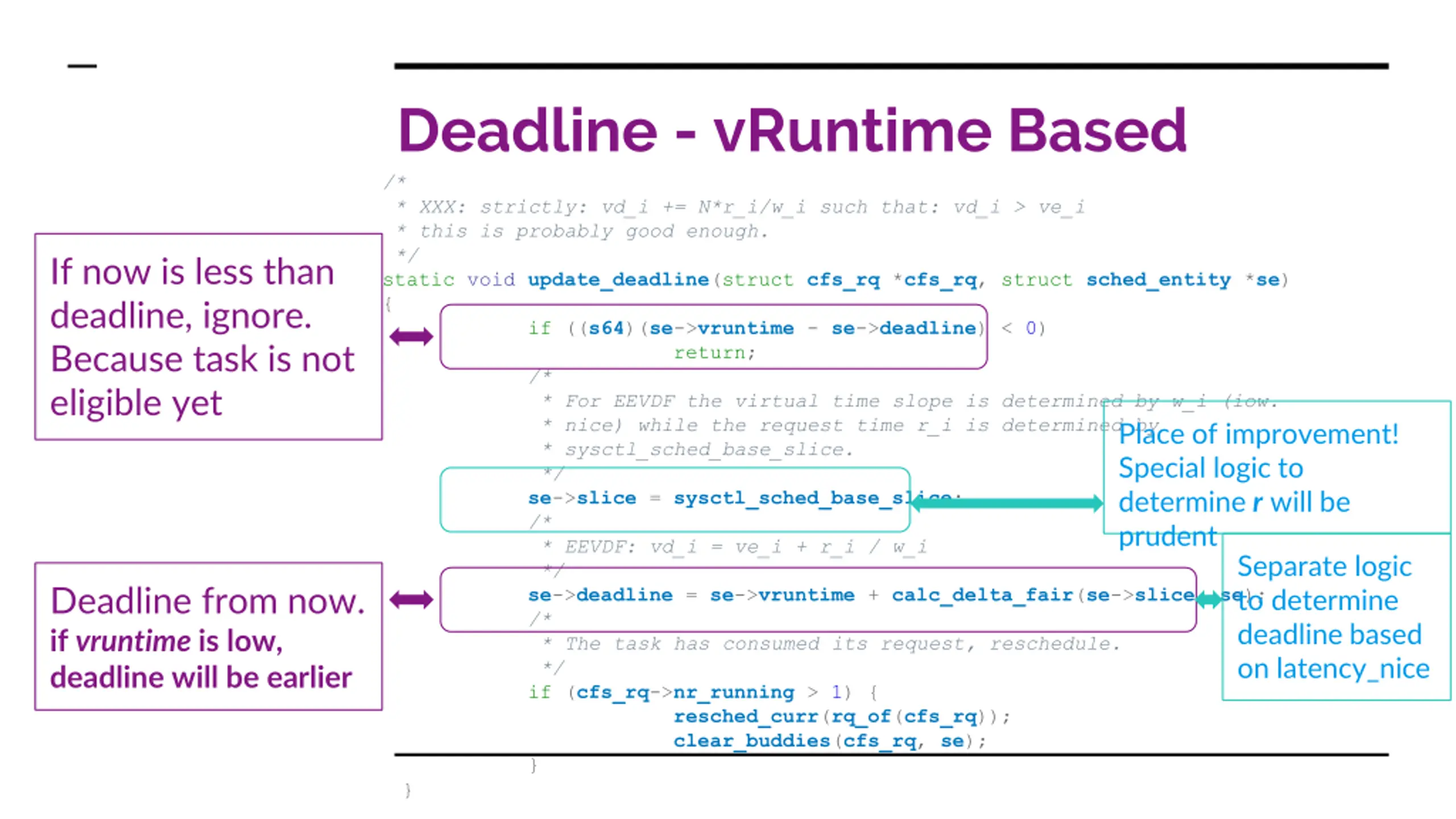

Deadline - vRuntime Based /* * XXX: strictly: vd_i += N*r_i/w_i such that: vd_i > ve_i * this is probably good enough. */ static void update_deadline(struct cfs_rq *cfs_rq, struct sched_entity *se) { if ((s64)(se->vruntime - se->deadline) < 0) return; /* * For EEVDF the virtual time slope is determined by w_i (iow. * nice) while the request time r_i is determined by * sysctl_sched_base_slice. */ se->slice = sysctl_sched_base_slice; /* * EEVDF: vd_i = ve_i + r_i / w_i */ se->deadline = se->vruntime + calc_delta_fair(se->slice, se); /* * The task has consumed its request, reschedule. */ if (cfs_rq->nr_running > 1) { resched_curr(rq_of(cfs_rq)); clear_buddies(cfs_rq, se); } } If now is less than deadline, ignore. Because task is not eligible yet Place of improvement! Special logic to determine r will be prudent Separate logic to determine deadline based on latency_nice Deadline from now. if vruntime is low, deadline will be earlier

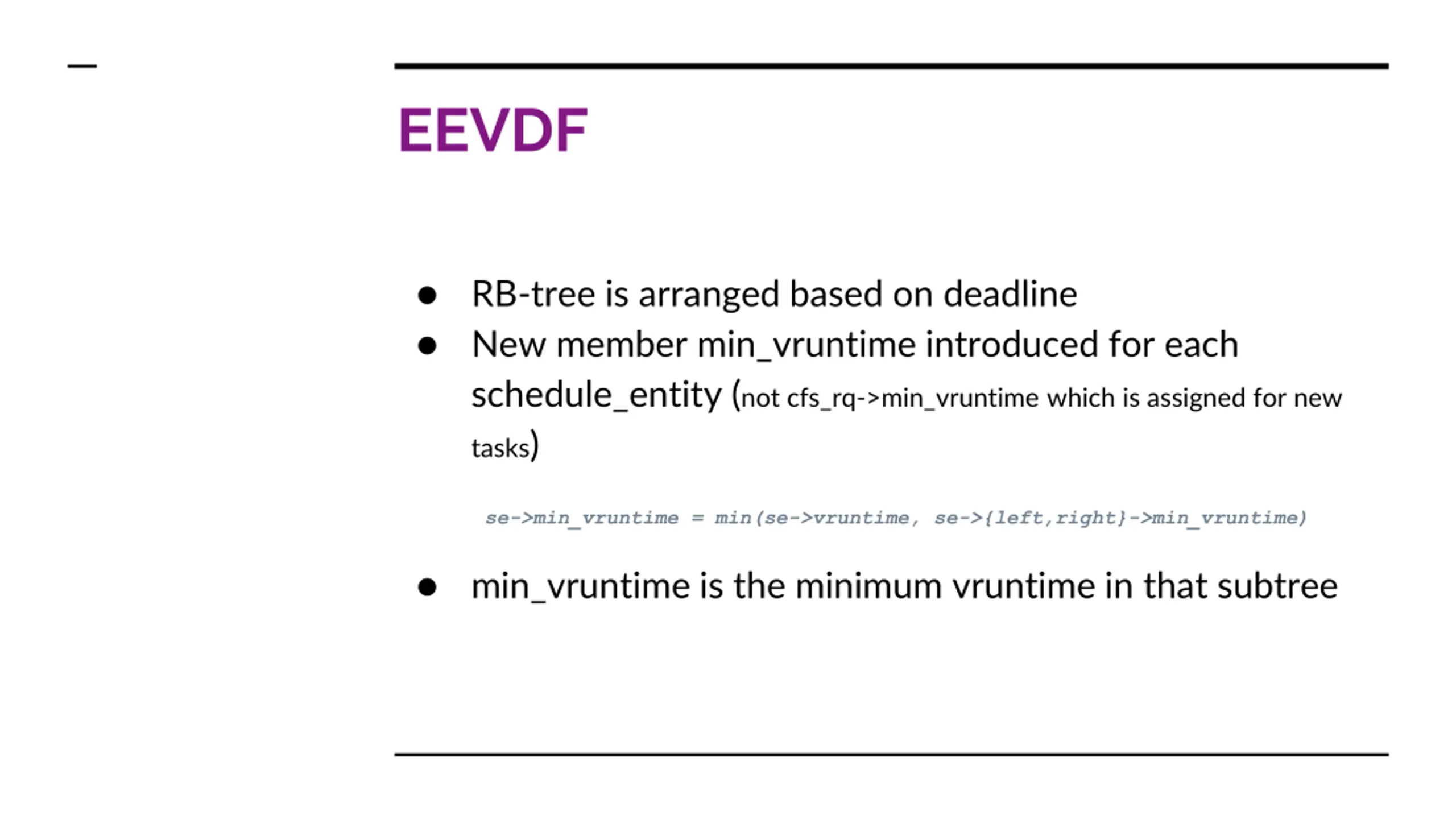

EEVDF RB-tree is arranged based on deadline New member min_vruntime introduced for each schedule_entity (not cfs_rq->min_vruntime which is assigned for new tasks) se->min_vruntime = min(se->vruntime, se->{left,right}->min_vruntime) min_vruntime is the minimum vruntime in that subtree

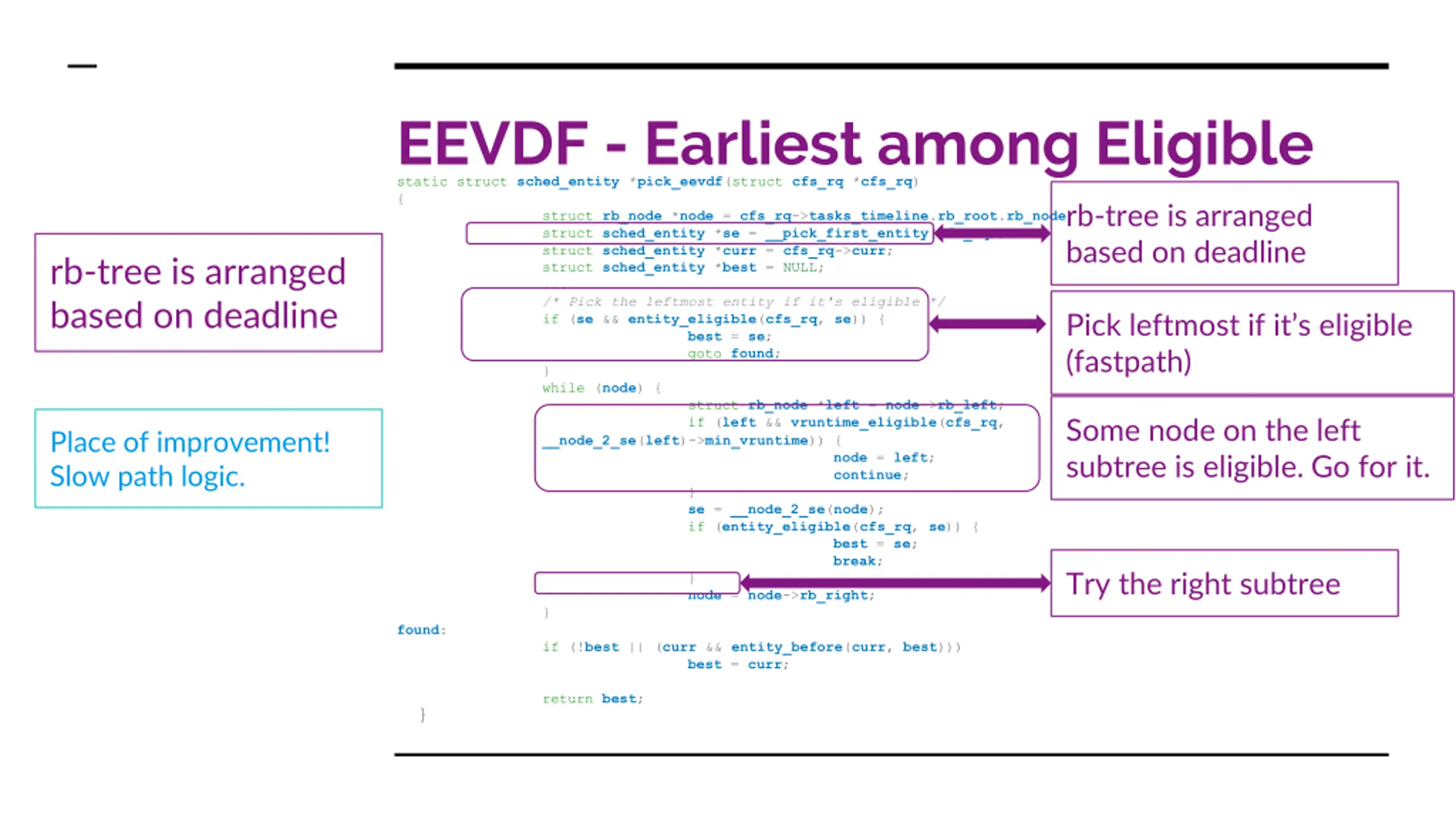

EEVDF - Earliest among Eligible static struct sched_entity *pick_eevdf(struct cfs_rq *cfs_rq) { struct rb_node *node = cfs_rq->tasks_timeline.rb_root.rb_node; struct sched_entity *se = __pick_first_entity(cfs_rq); struct sched_entity *curr = cfs_rq->curr; struct sched_entity *best = NULL; ... /* Pick the leftmost entity if it's eligible */ if (se && entity_eligible(cfs_rq, se)) { best = se; goto found; } while (node) { struct rb_node *left = node->rb_left; if (left && vruntime_eligible(cfs_rq, __node_2_se(left)->min_vruntime)) { node = left; continue; } se = __node_2_se(node); if (entity_eligible(cfs_rq, se)) { best = se; break; } node = node->rb_right; } found: if (!best || (curr && entity_before(curr, best))) best = curr; rb-tree is arranged based on deadline rb-tree is arranged based on deadline Pick leftmost if it s eligible (fastpath) Some node on the left subtree is eligible. Go for it. Place of improvement! Slow path logic. Try the right subtree return best; }
