  1. SPOOKY SHORTEST PATHS David Kauchak CS 140 Fall 2024

  2. Admin Assignment 8 Group 8

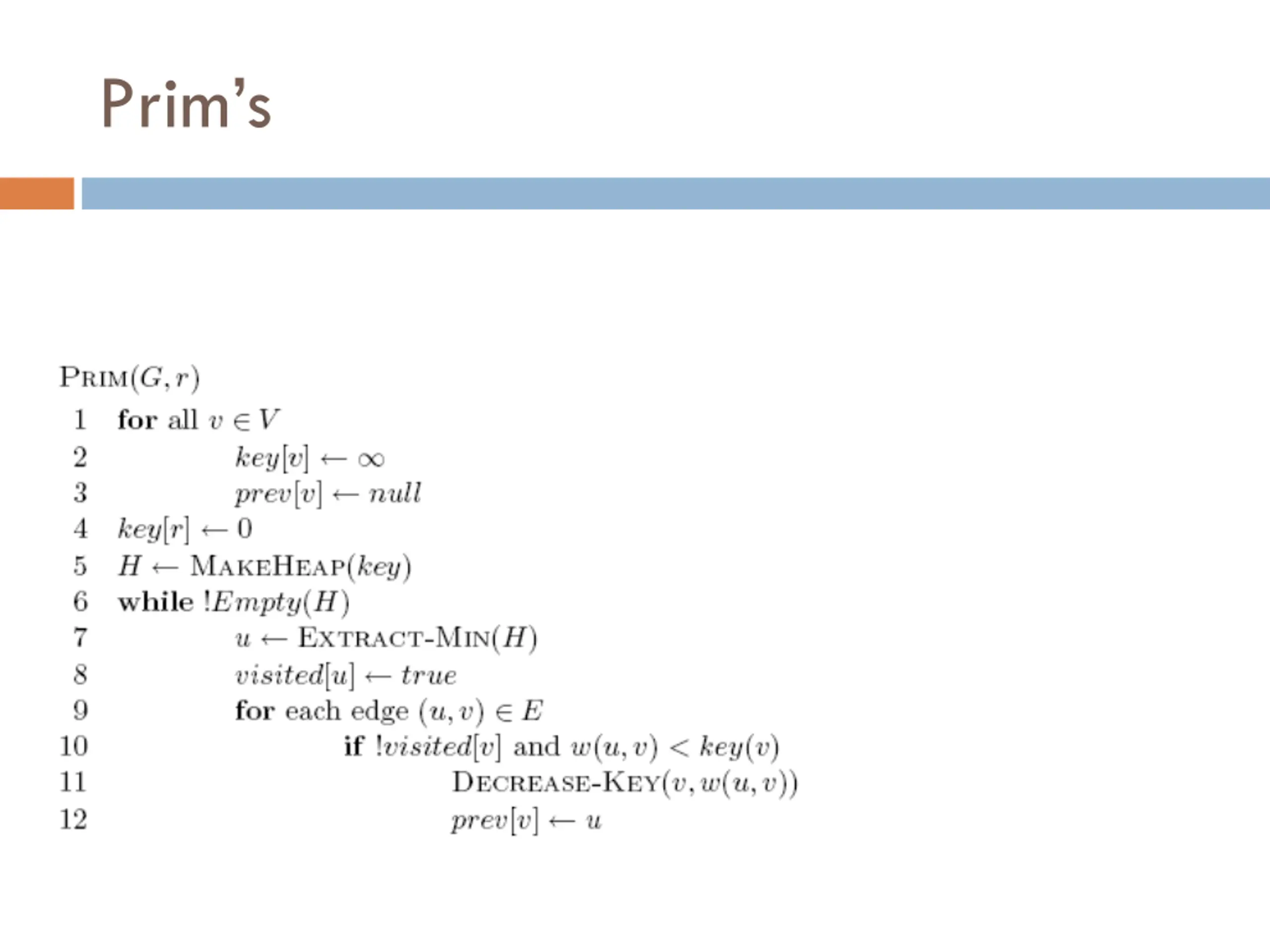

  3. Prims

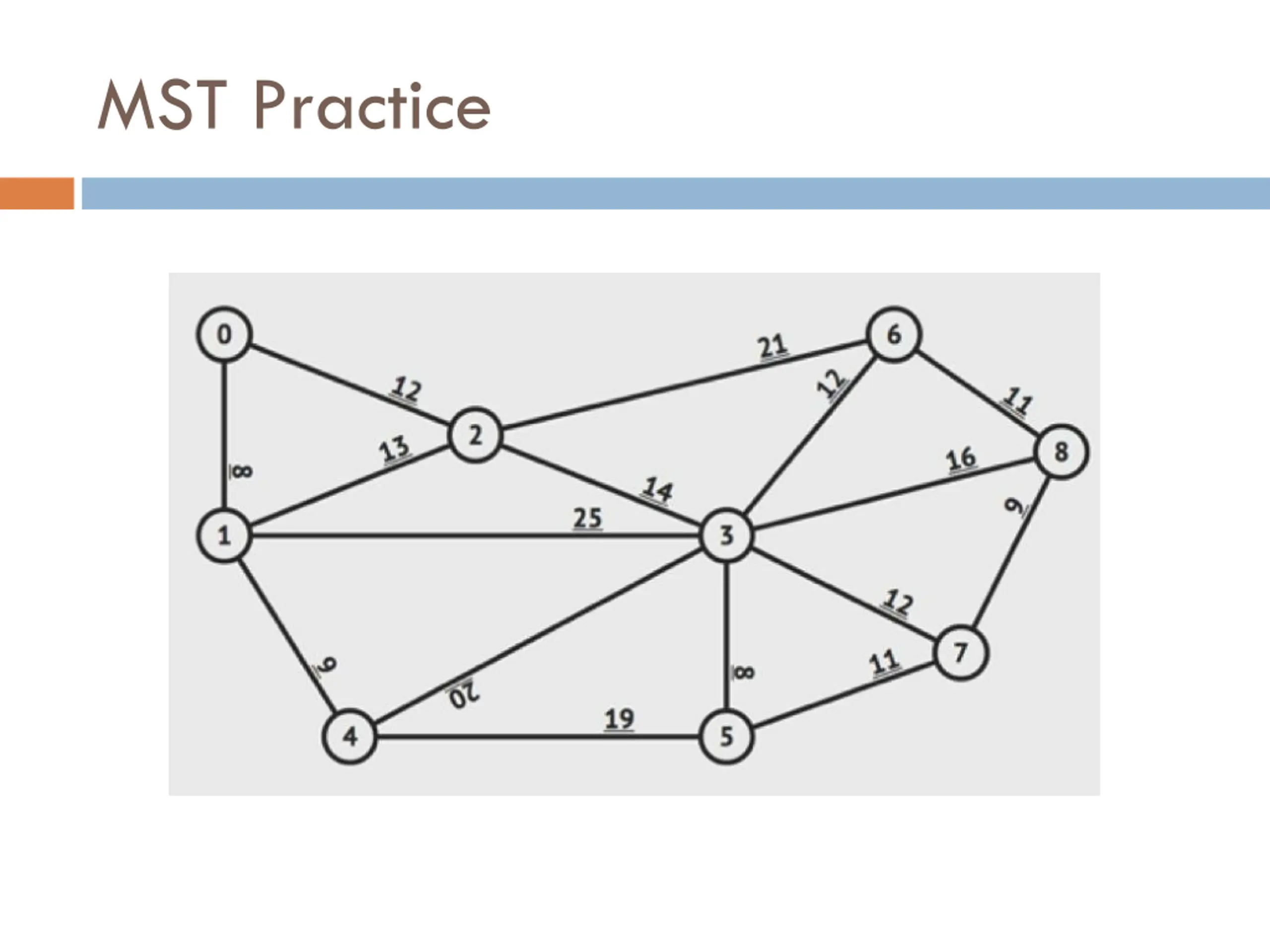

  4. MST Practice

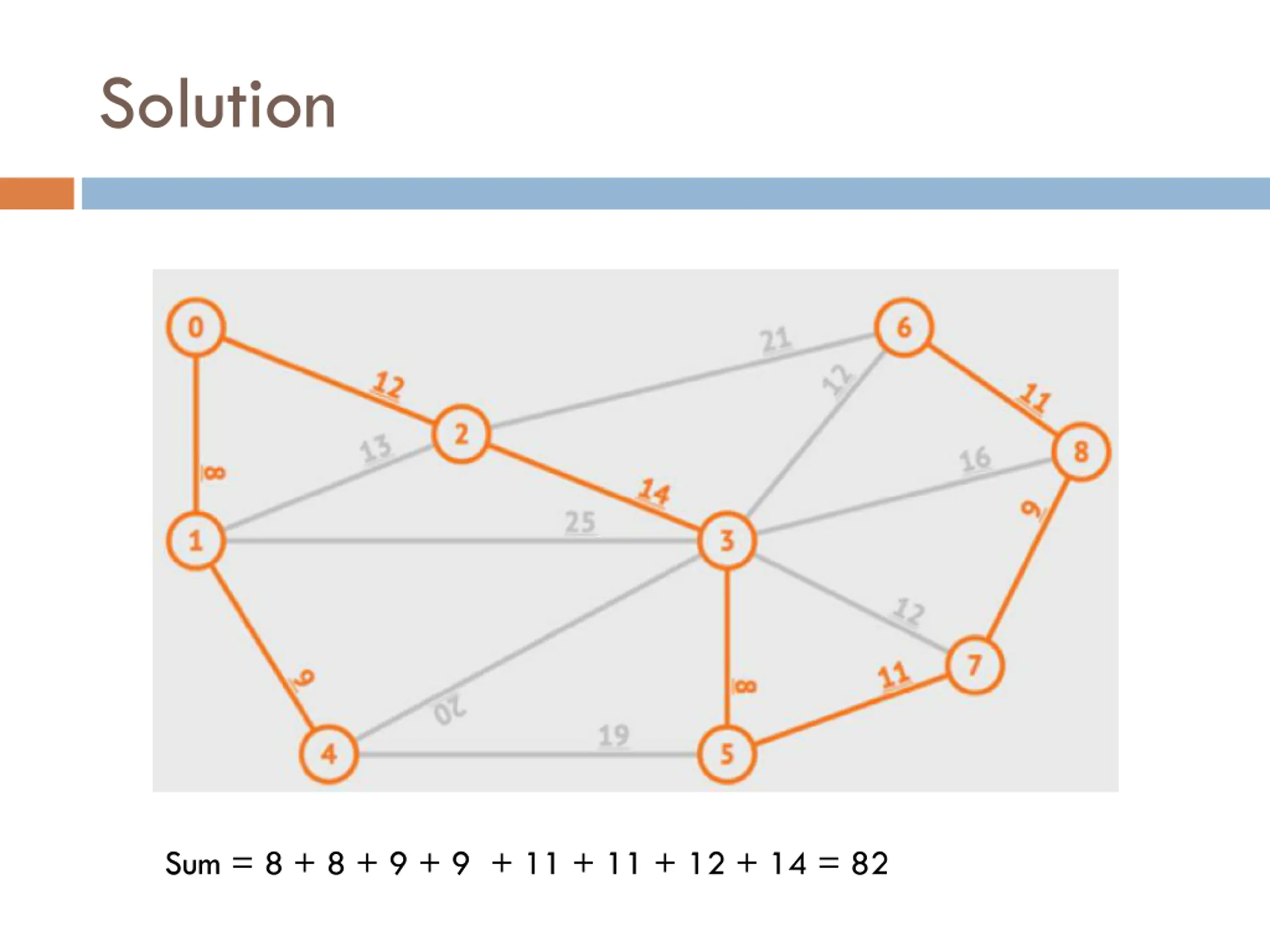

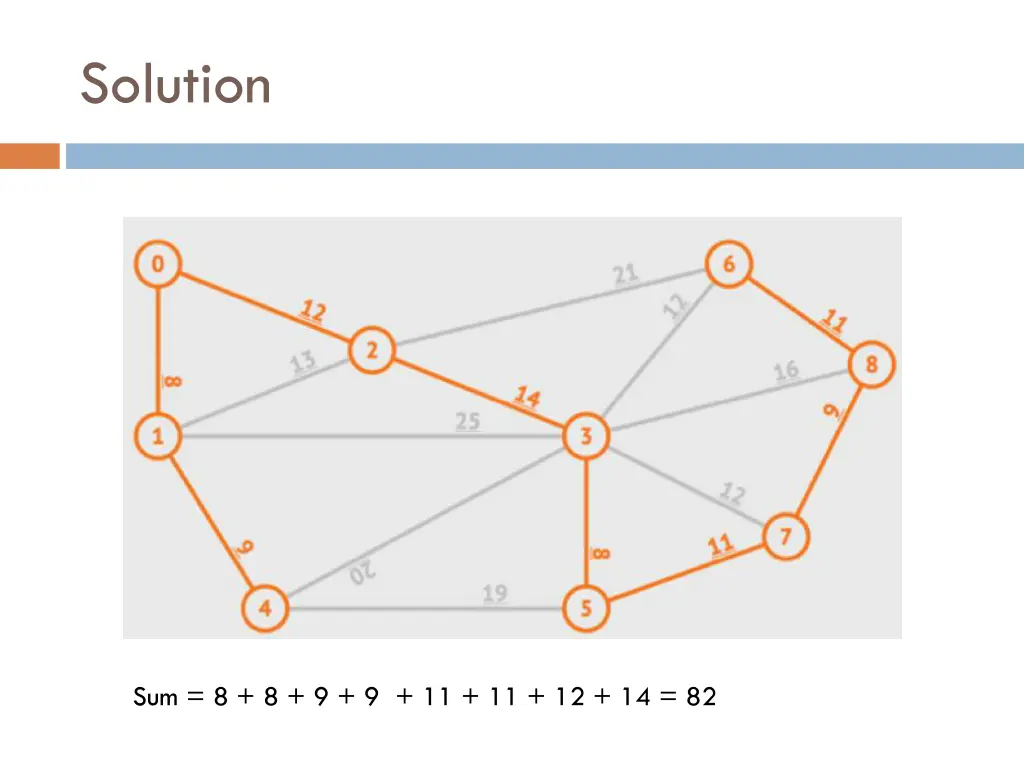

  5. Solution Sum = 8 + 8 + 9 + 9 + 11 + 11 + 12 + 14 = 82

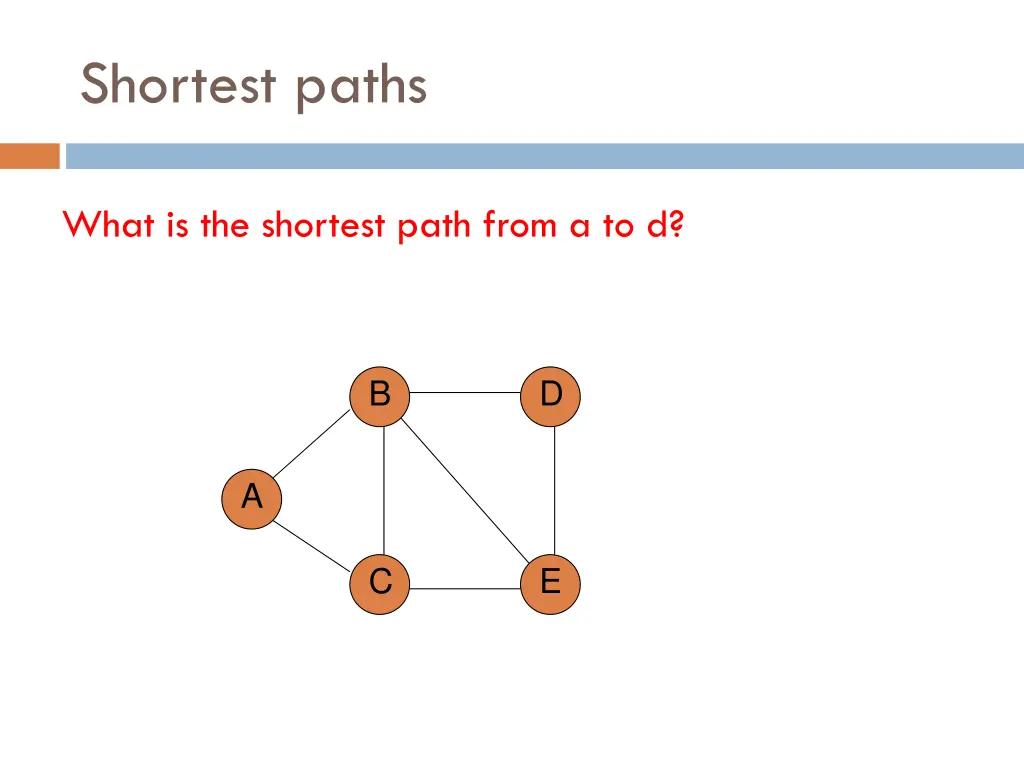

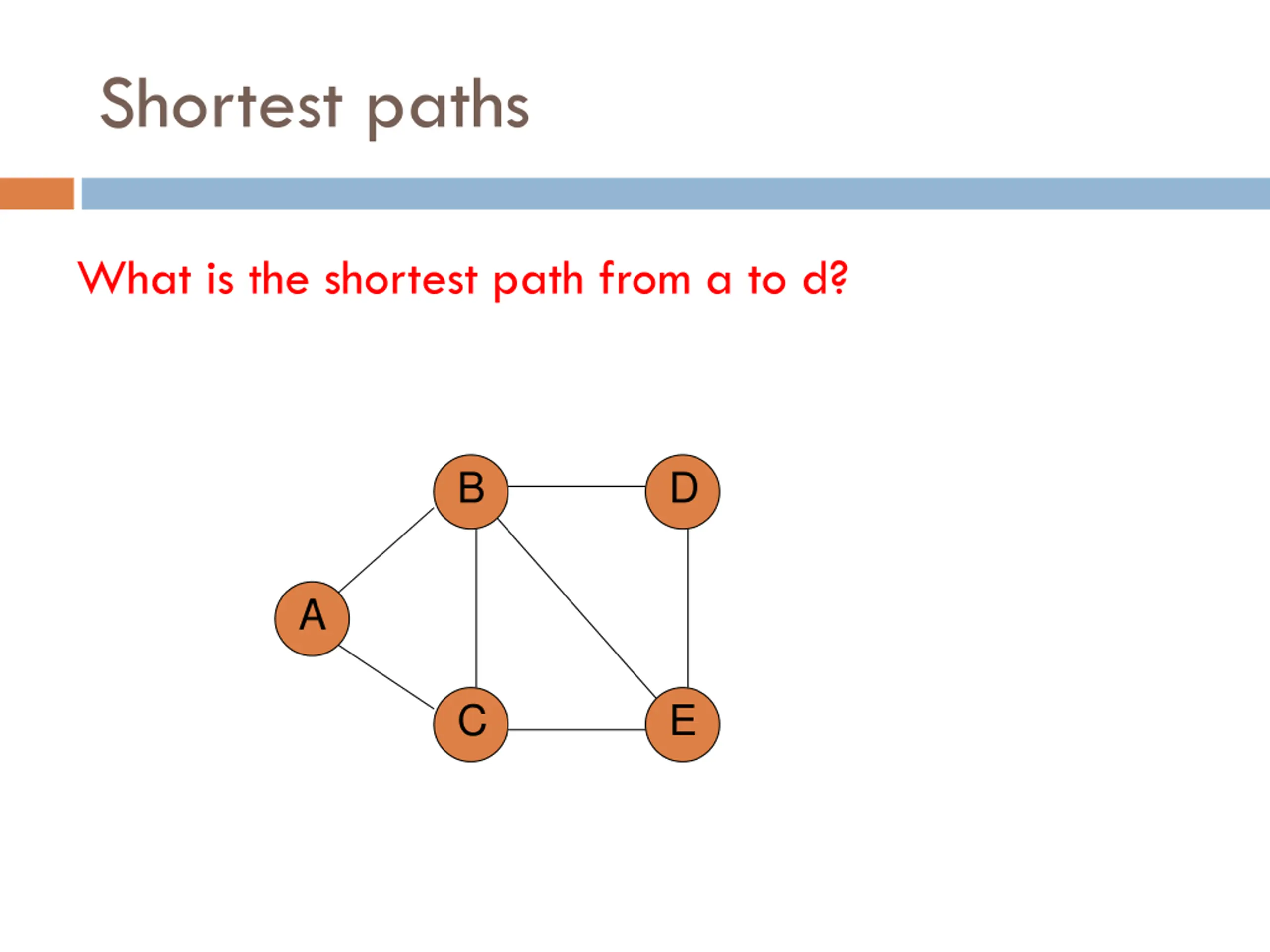

  6. Shortest paths What is the shortest path from a to d? B D A C E

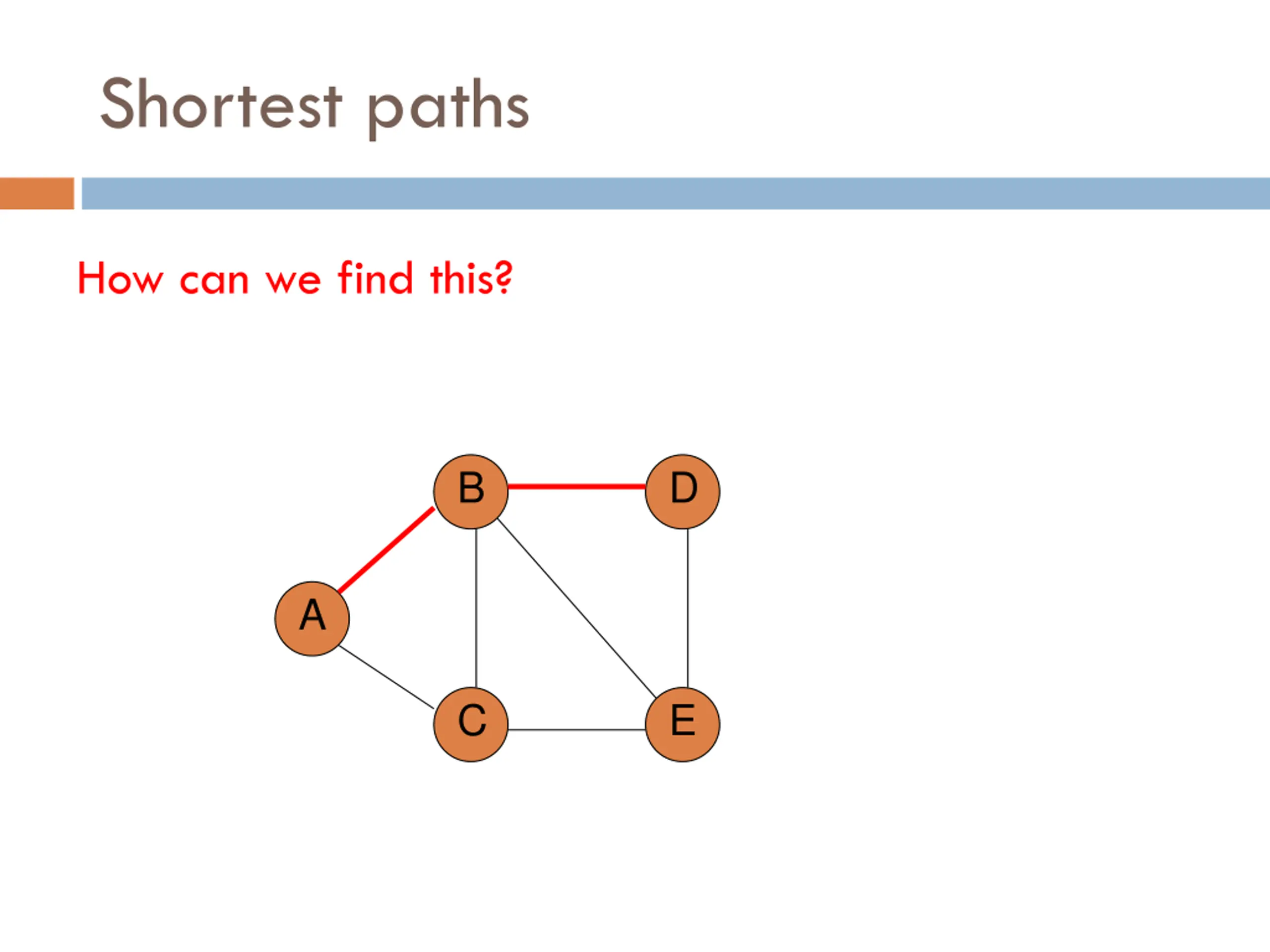

  7. Shortest paths How can we find this? B D A C E

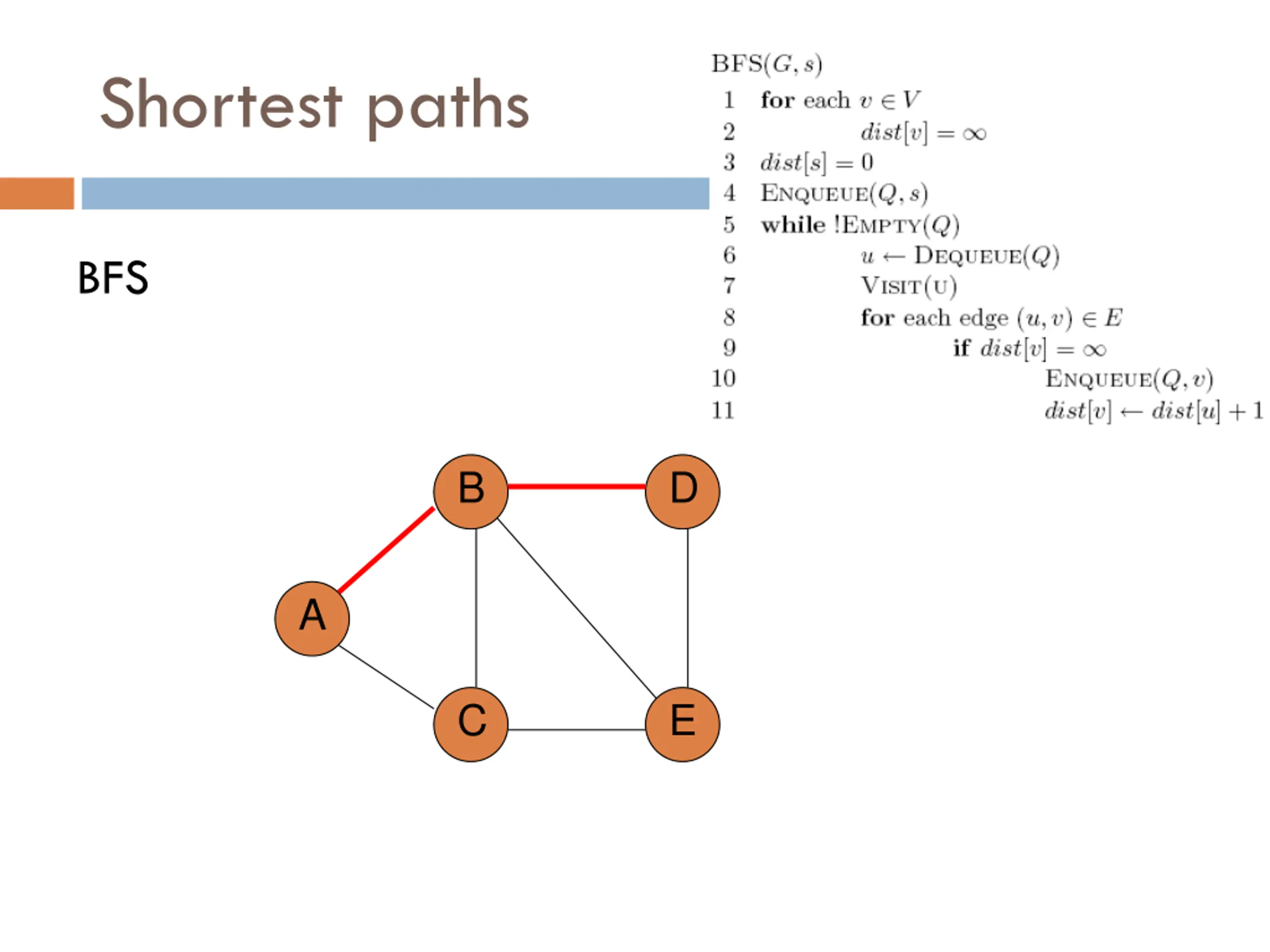

  8. Shortest paths BFS B D A C E

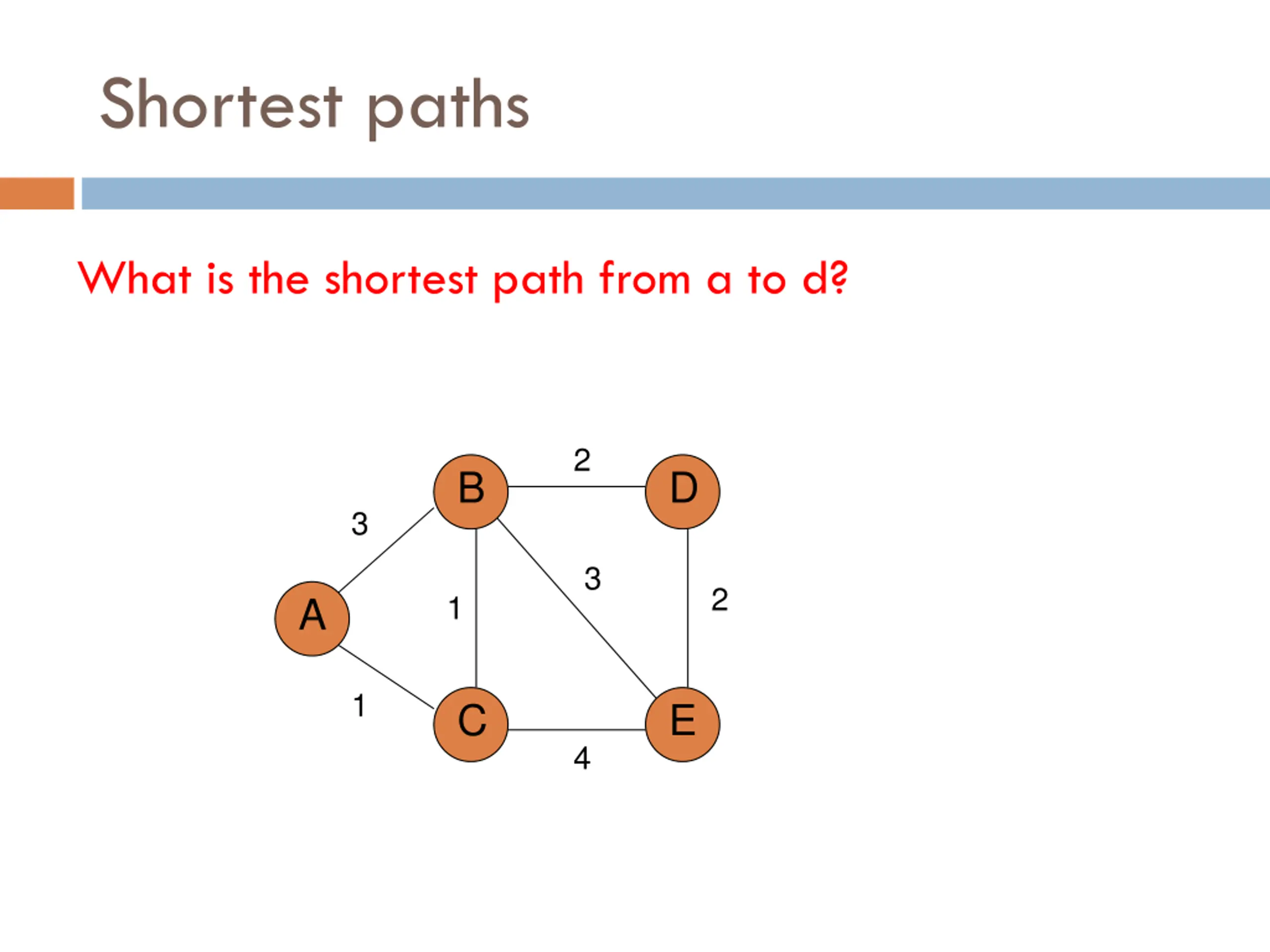

  9. Shortest paths What is the shortest path from a to d? 2 B D 3 3 2 1 A 1 C E 4

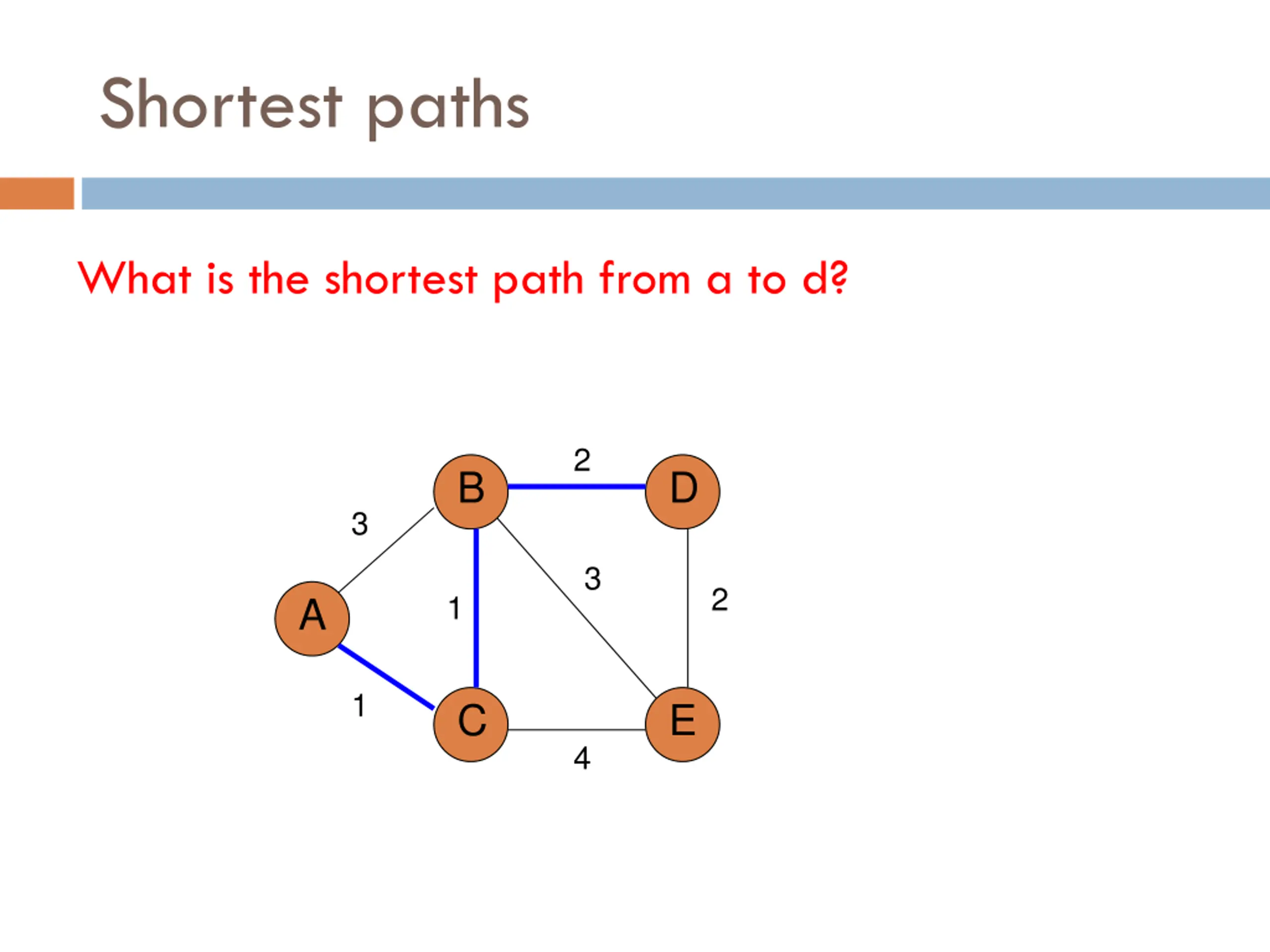

  10. Shortest paths What is the shortest path from a to d? 2 B D 3 3 2 1 A 1 C E 4

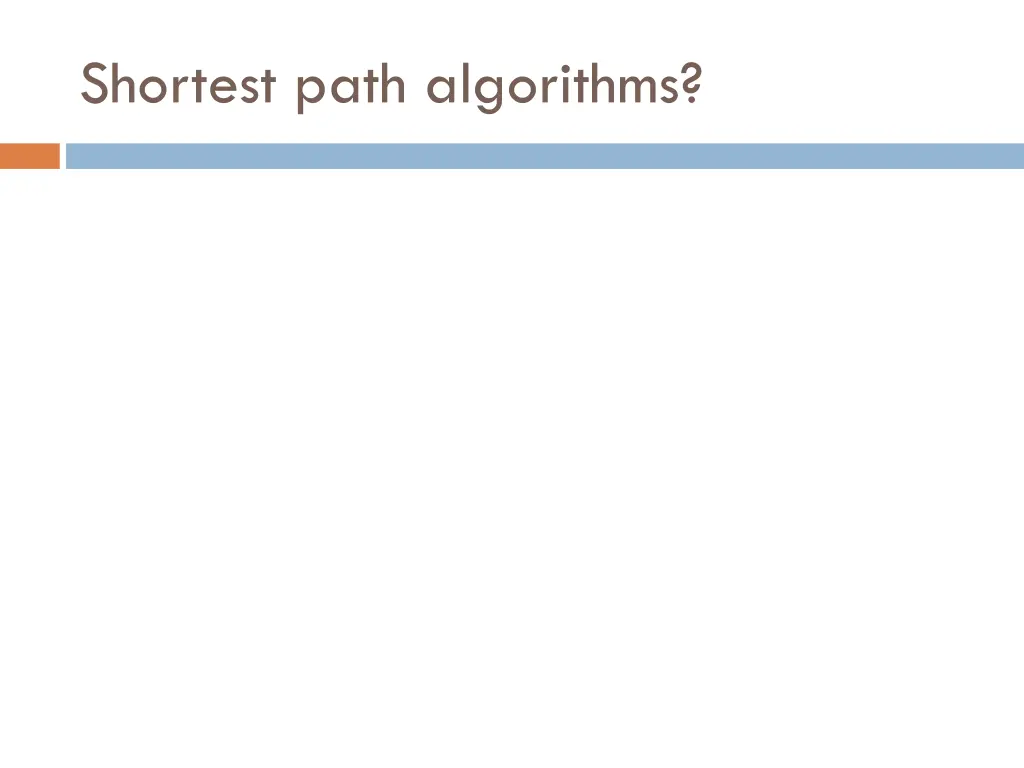

  11. Shortest path algorithms?

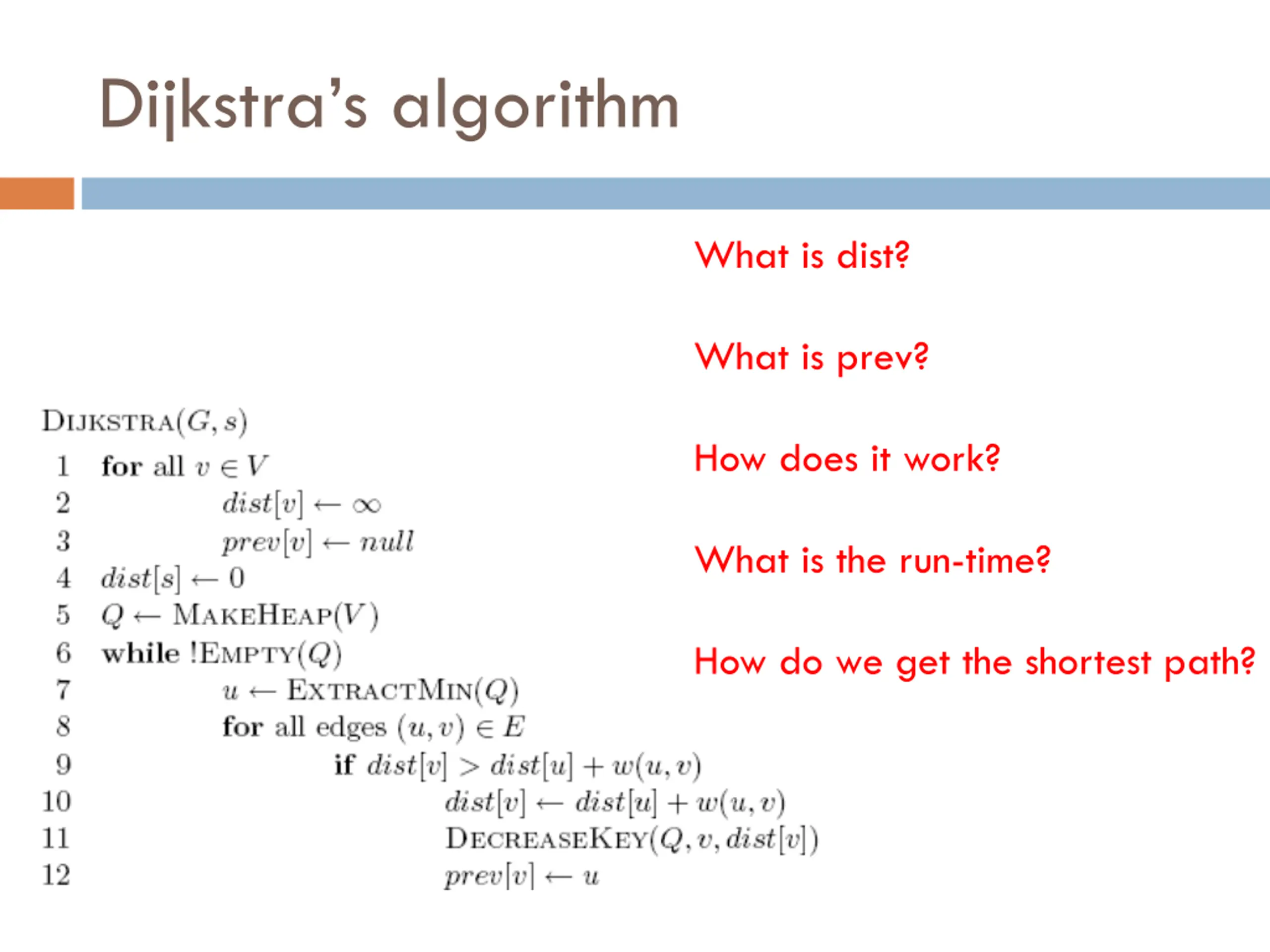

  12. Dijkstras algorithm What is dist? What is prev? How does it work? What is the run-time? How do we get the shortest path?

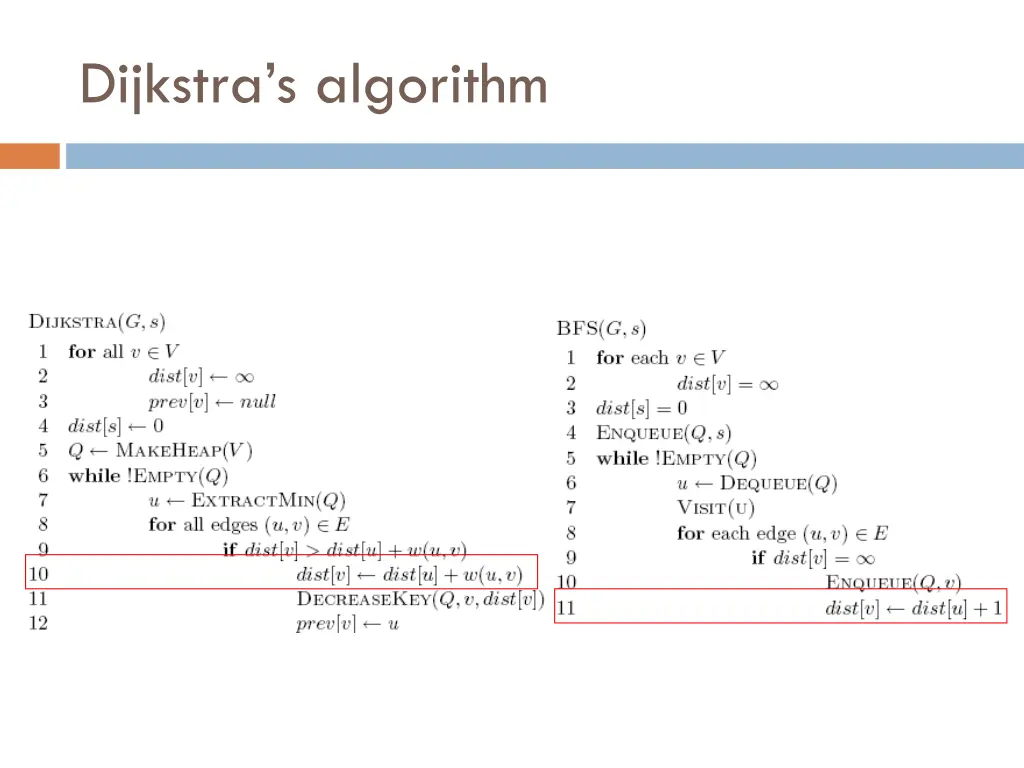

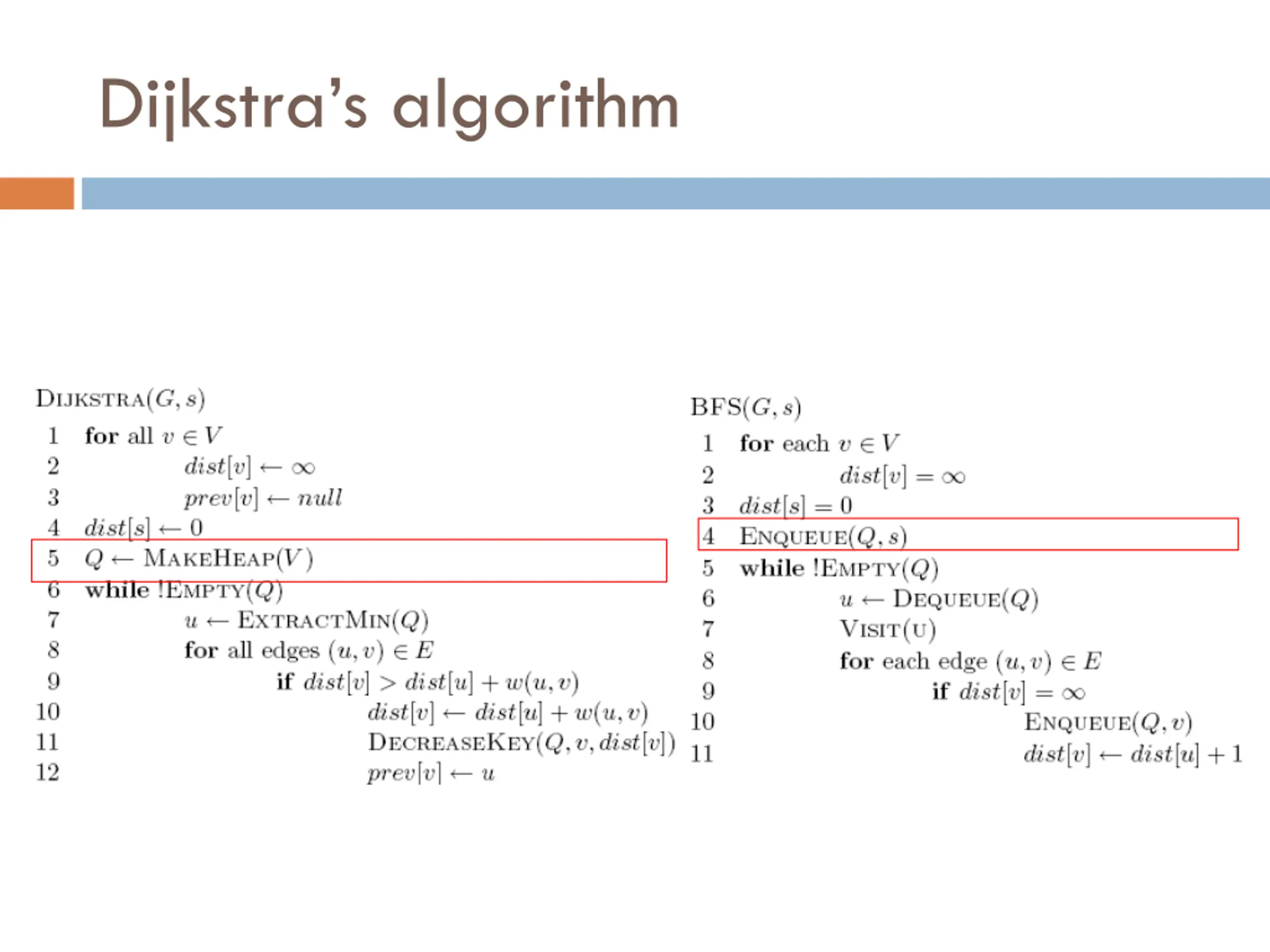

  13. Dijkstras algorithm

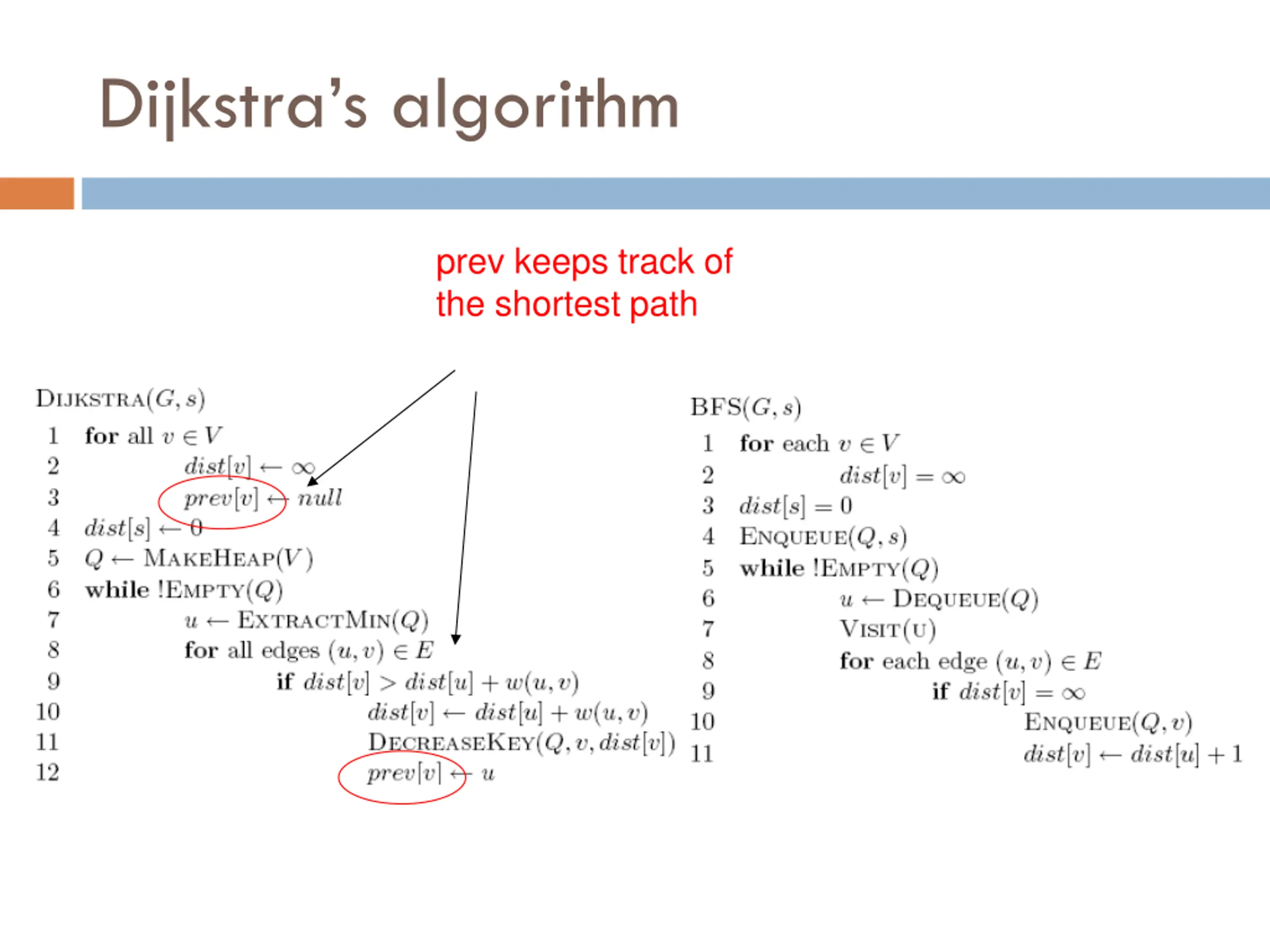

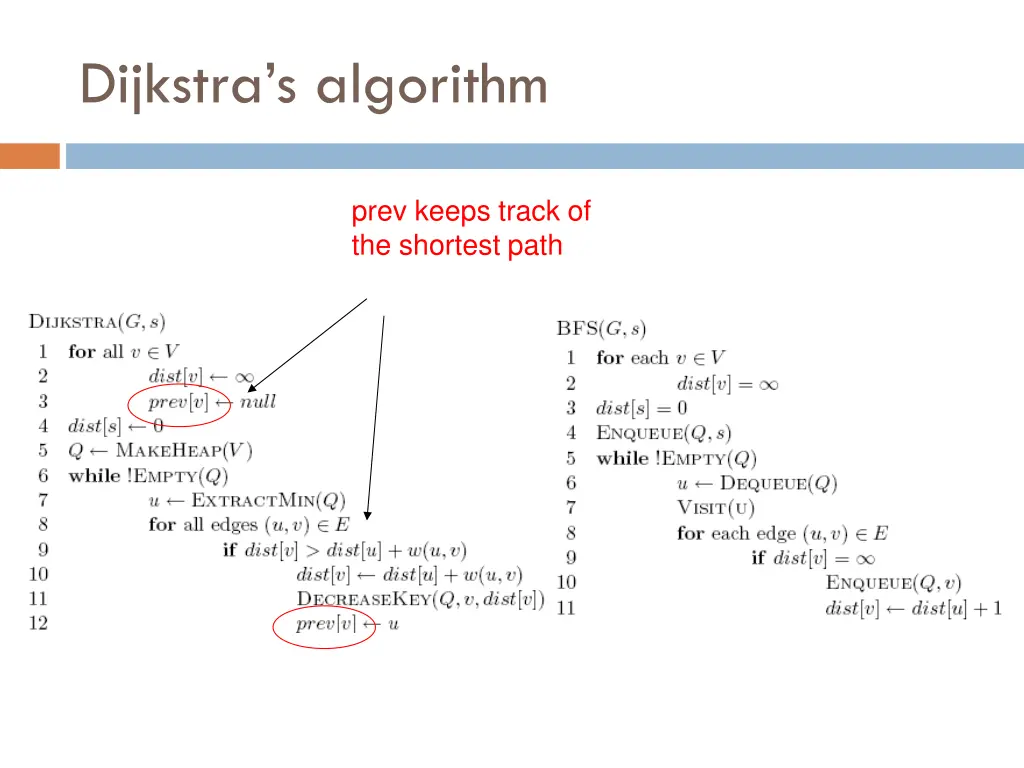

  14. Dijkstras algorithm prev keeps track of the shortest path

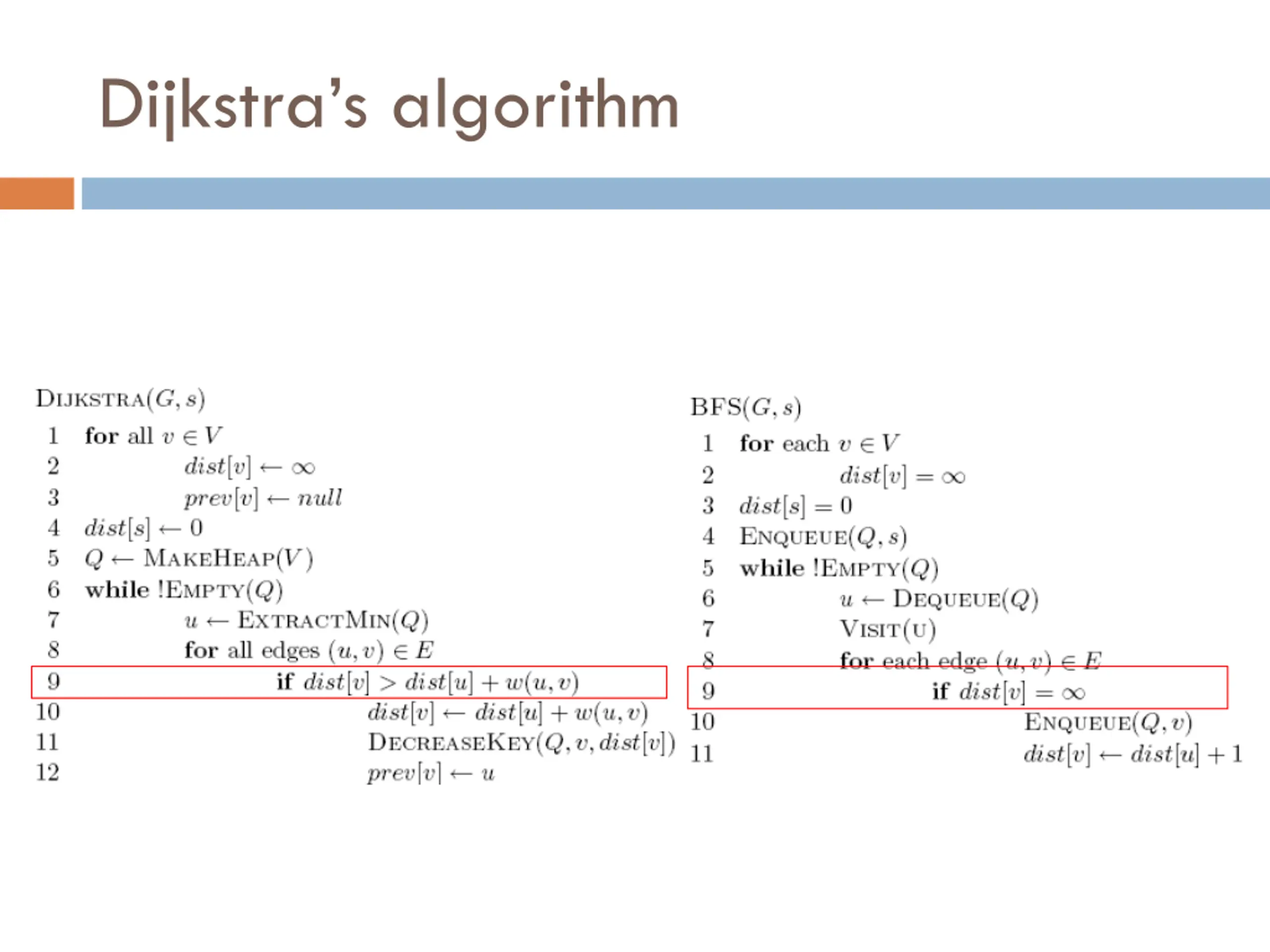

  15. Dijkstras algorithm

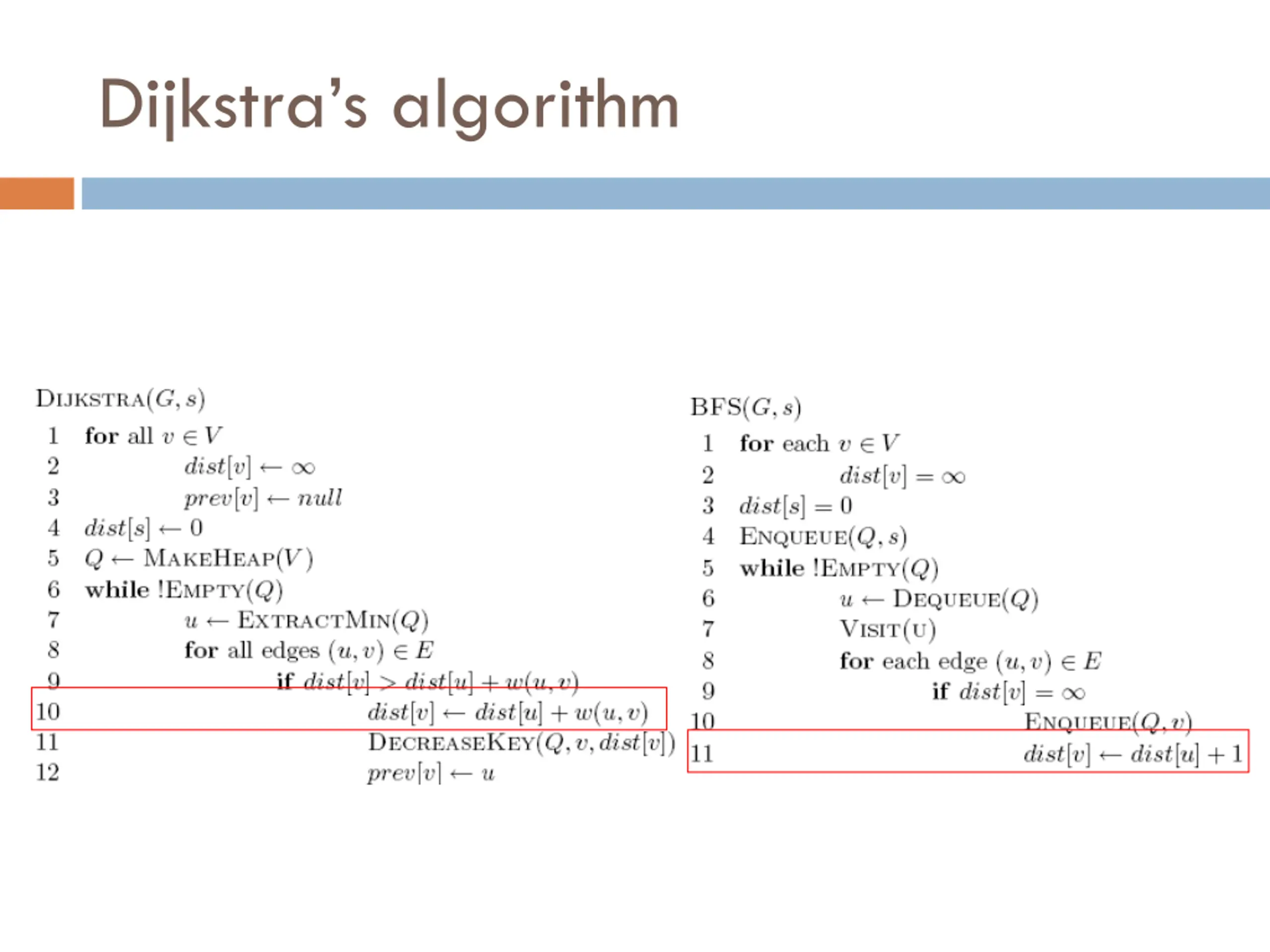

  16. Dijkstras algorithm

  17. Dijkstras algorithm

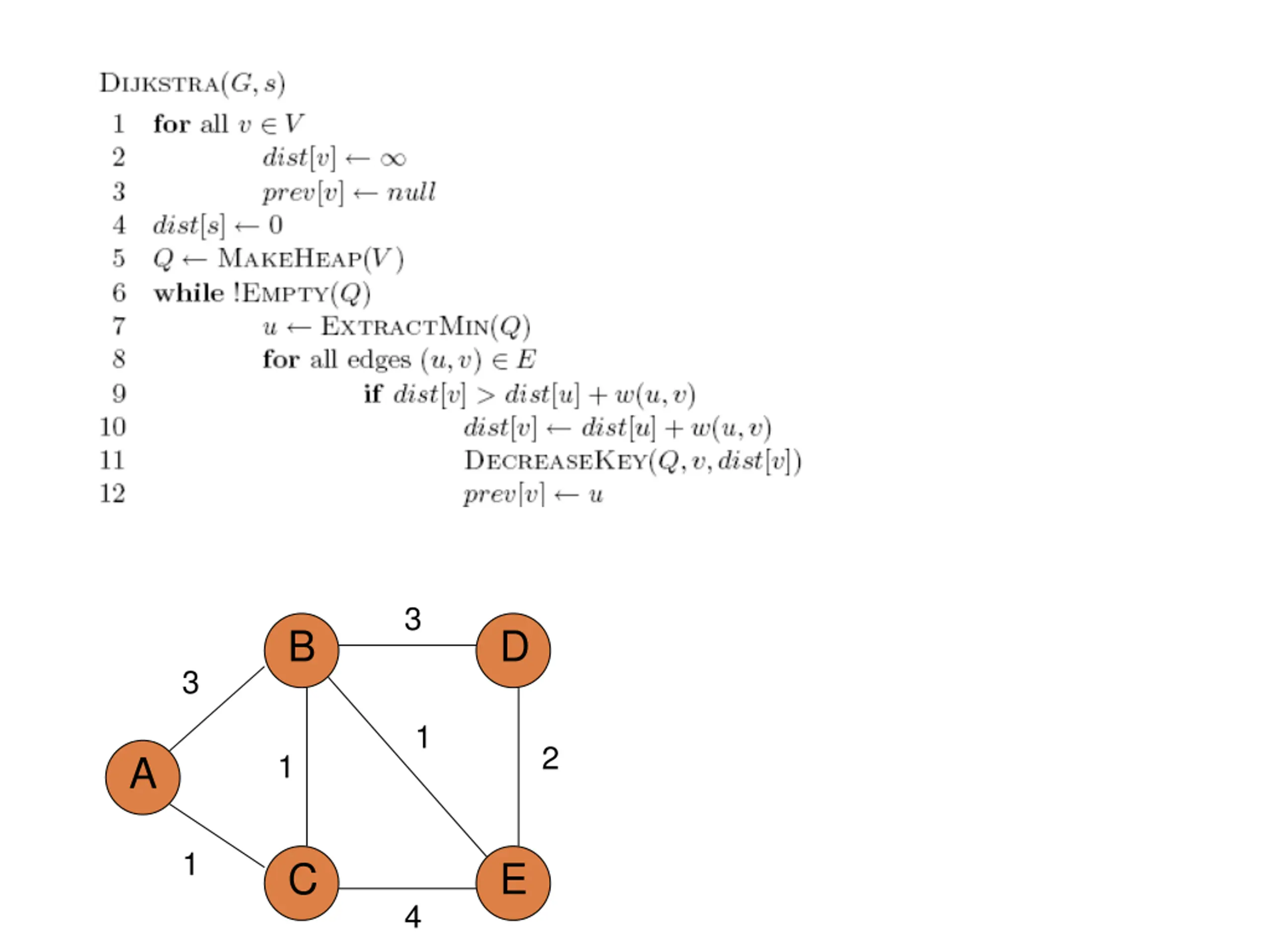

  18. 3 B D 3 1 2 1 A 1 C E 4

  19. 3 B D 3 1 2 1 A 1 C E 4

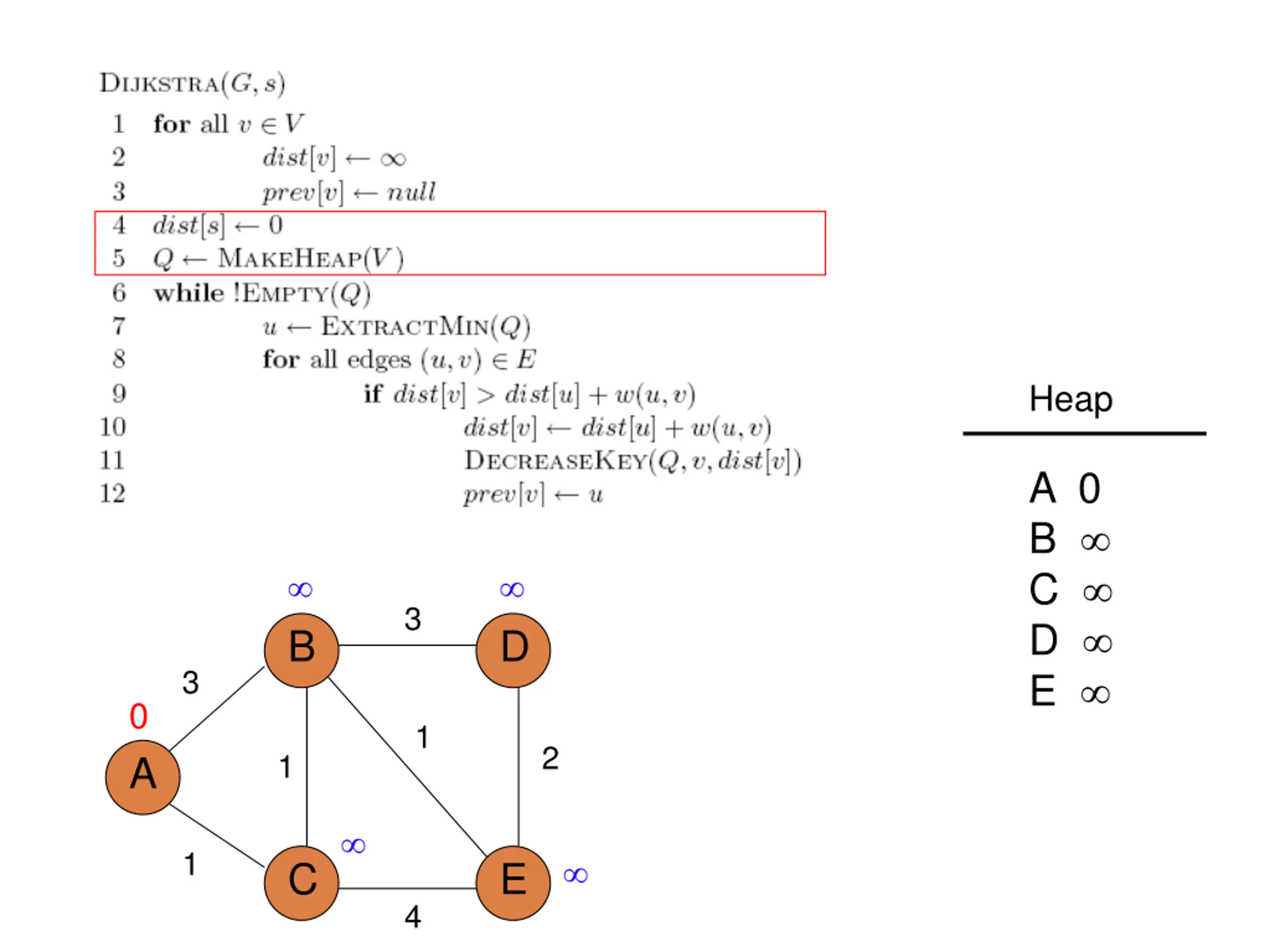

  20. Heap A 0 B C D E 3 B D 3 0 1 2 1 A 1 C E 4

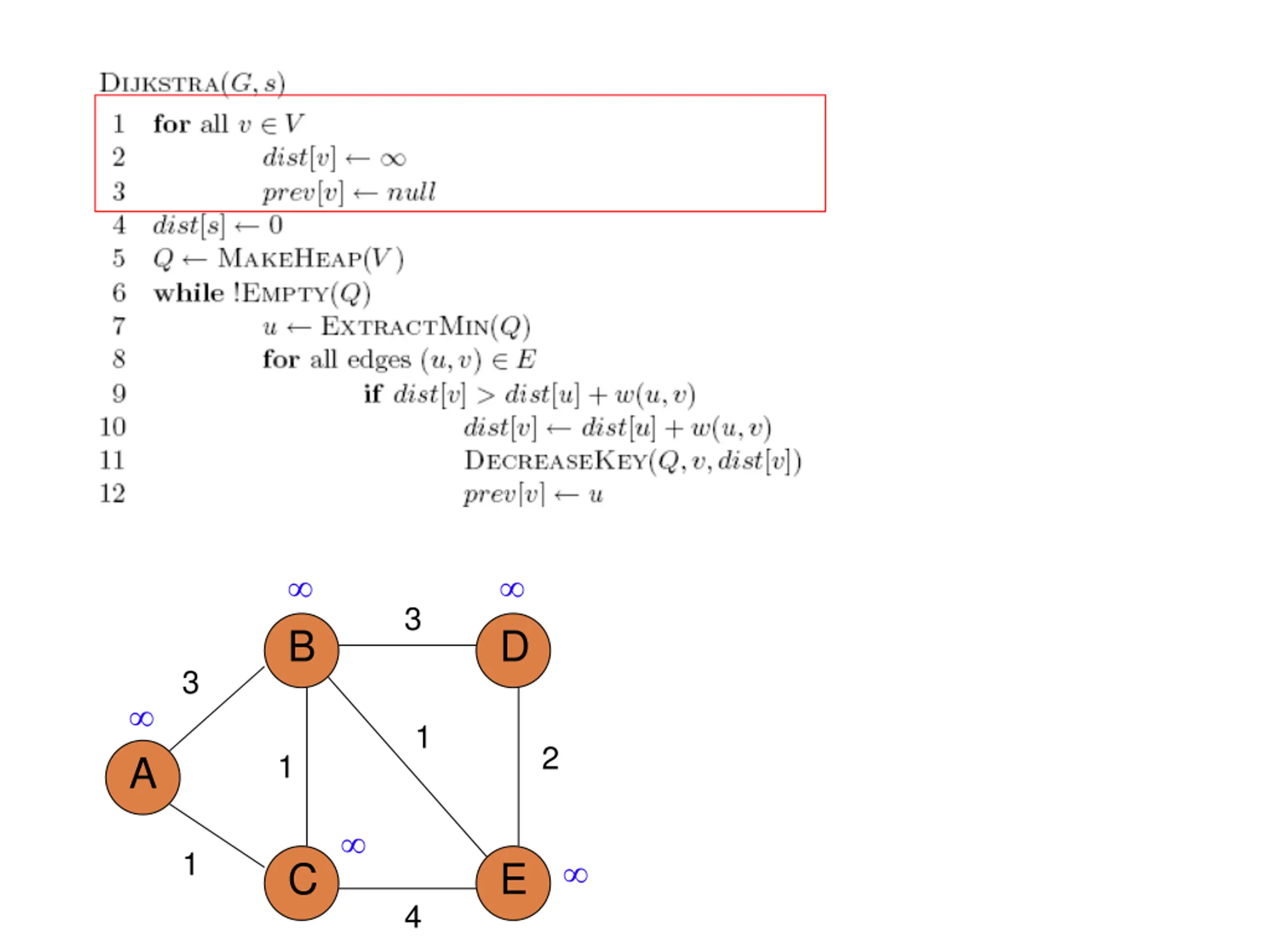

  21. Heap B C D E 3 B D 3 0 1 2 1 A 1 C E 4

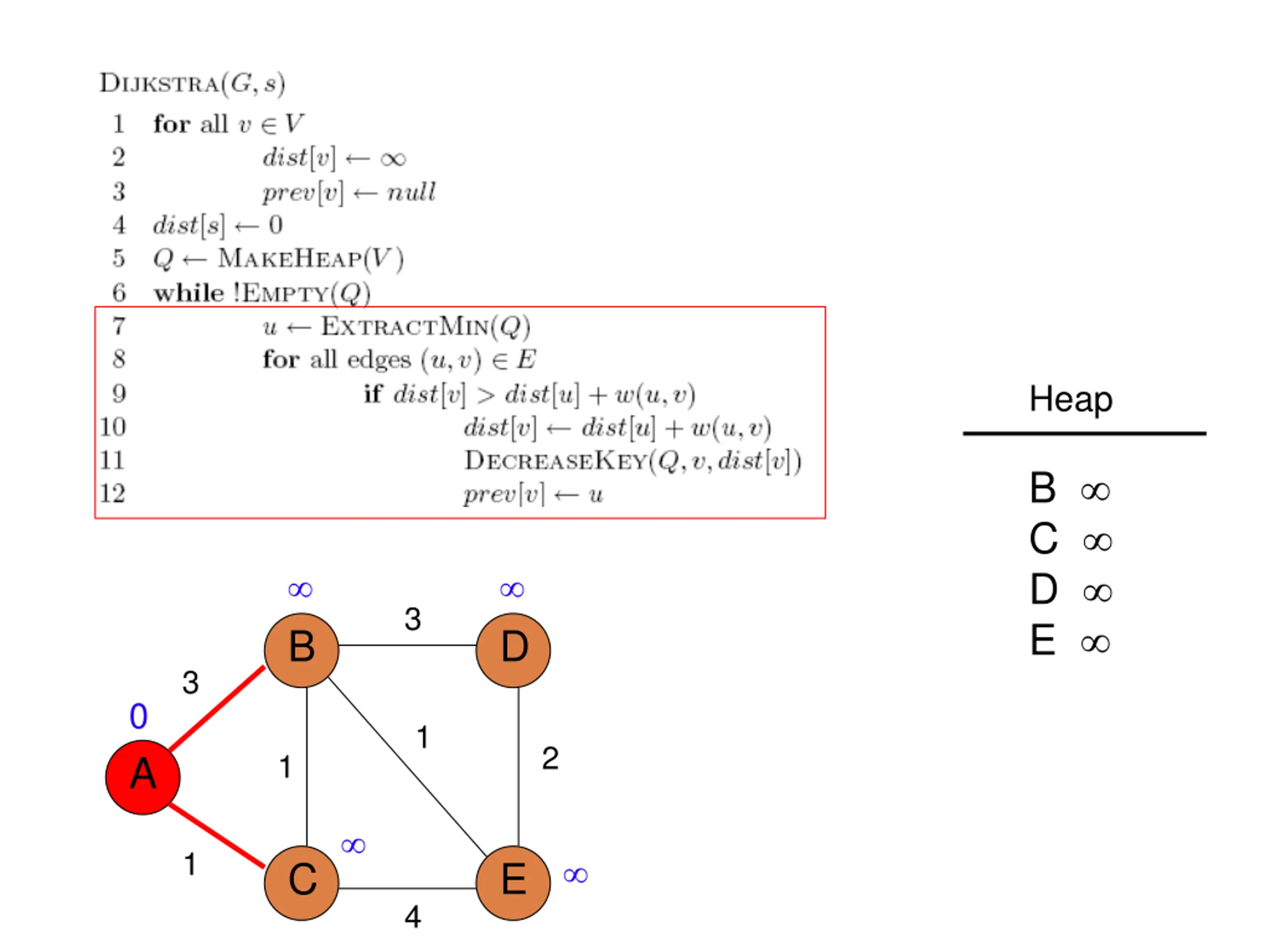

  22. Heap B C D E 3 B D 3 0 1 2 1 A 1 C E 4

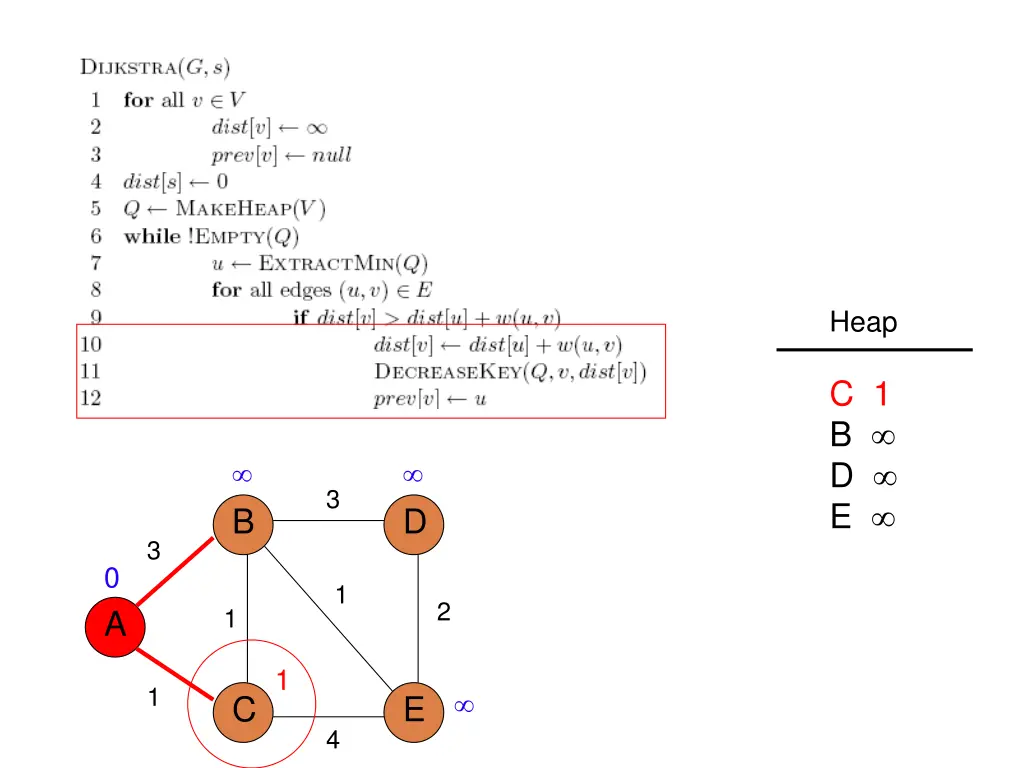

  23. Heap C 1 B D E 3 B D 3 0 1 2 1 A 1 1 C E 4

  24. Heap C 1 B D E 3 B D 3 0 1 2 1 A 1 1 C E 4

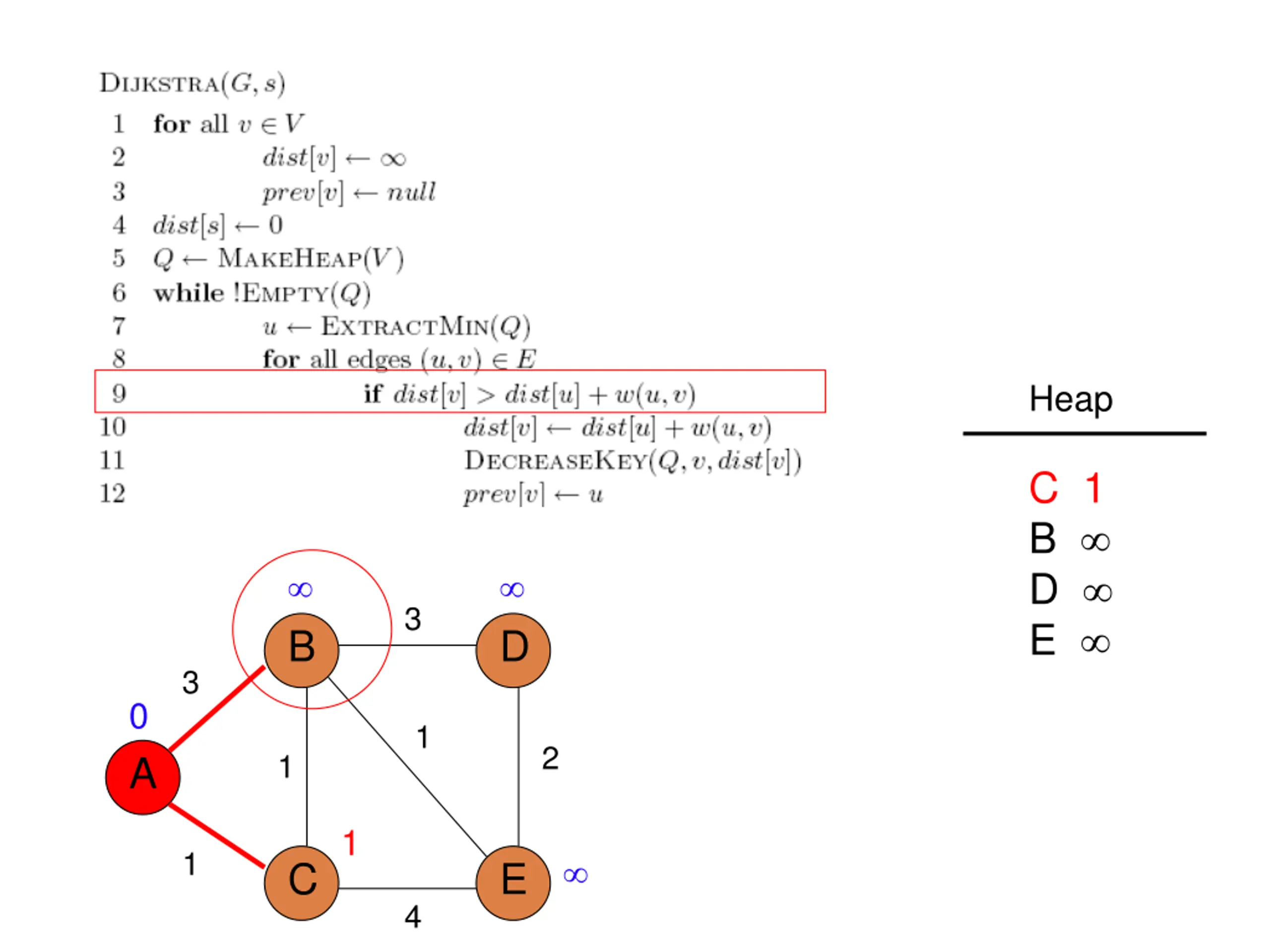

  25. Heap C 1 B 3 D E 3 3 B D 3 0 1 2 1 A 1 1 C E 4

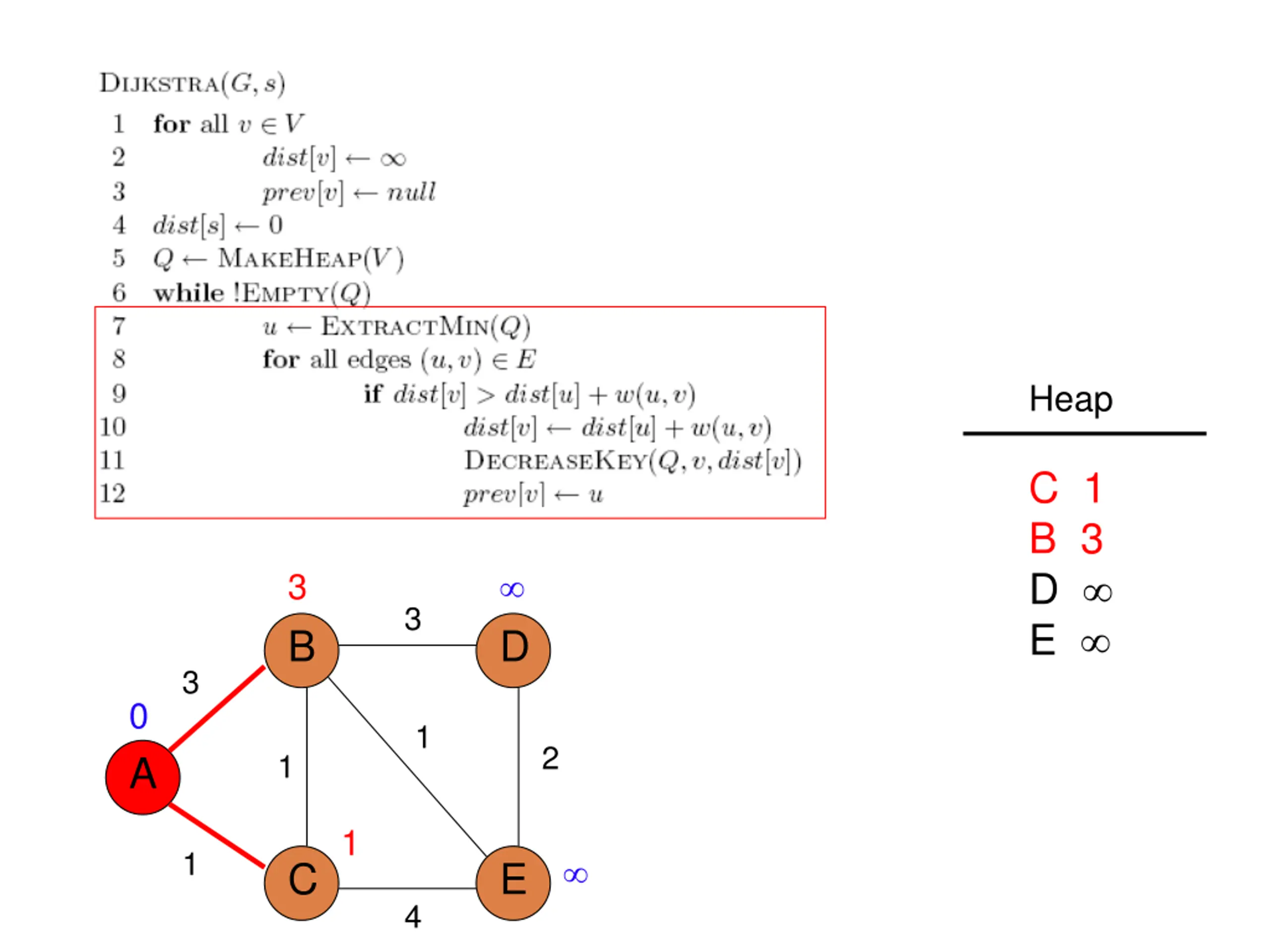

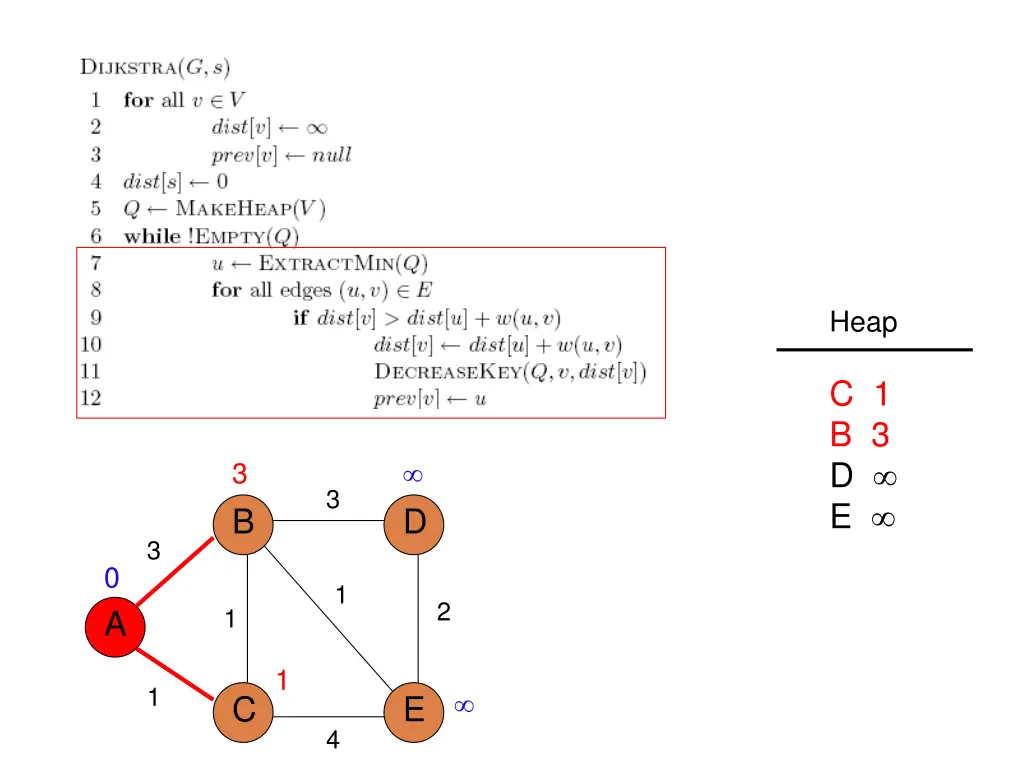

  26. Heap C 1 B 3 D E 3 3 B D 3 0 1 2 1 A 1 1 C E 4

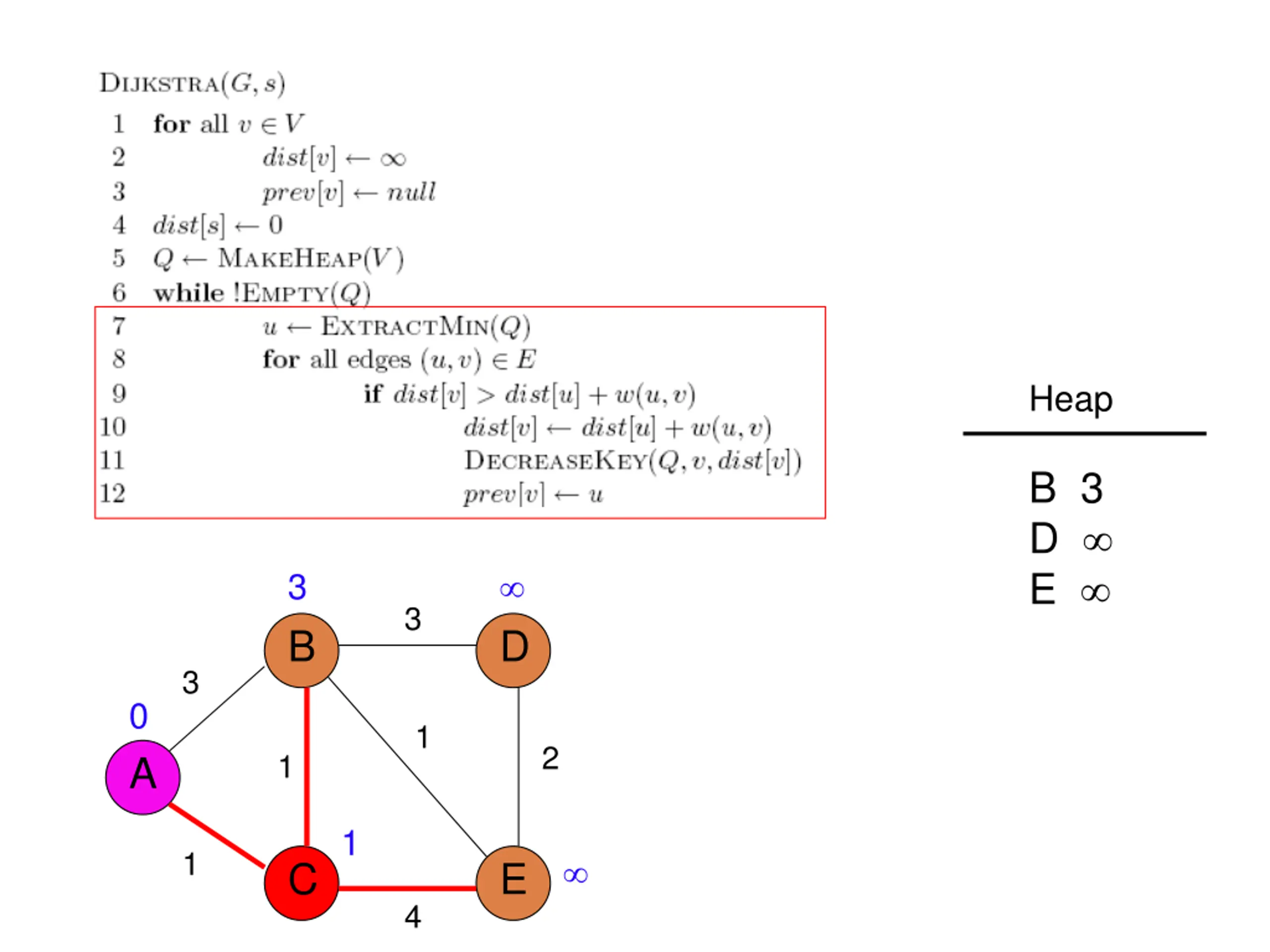

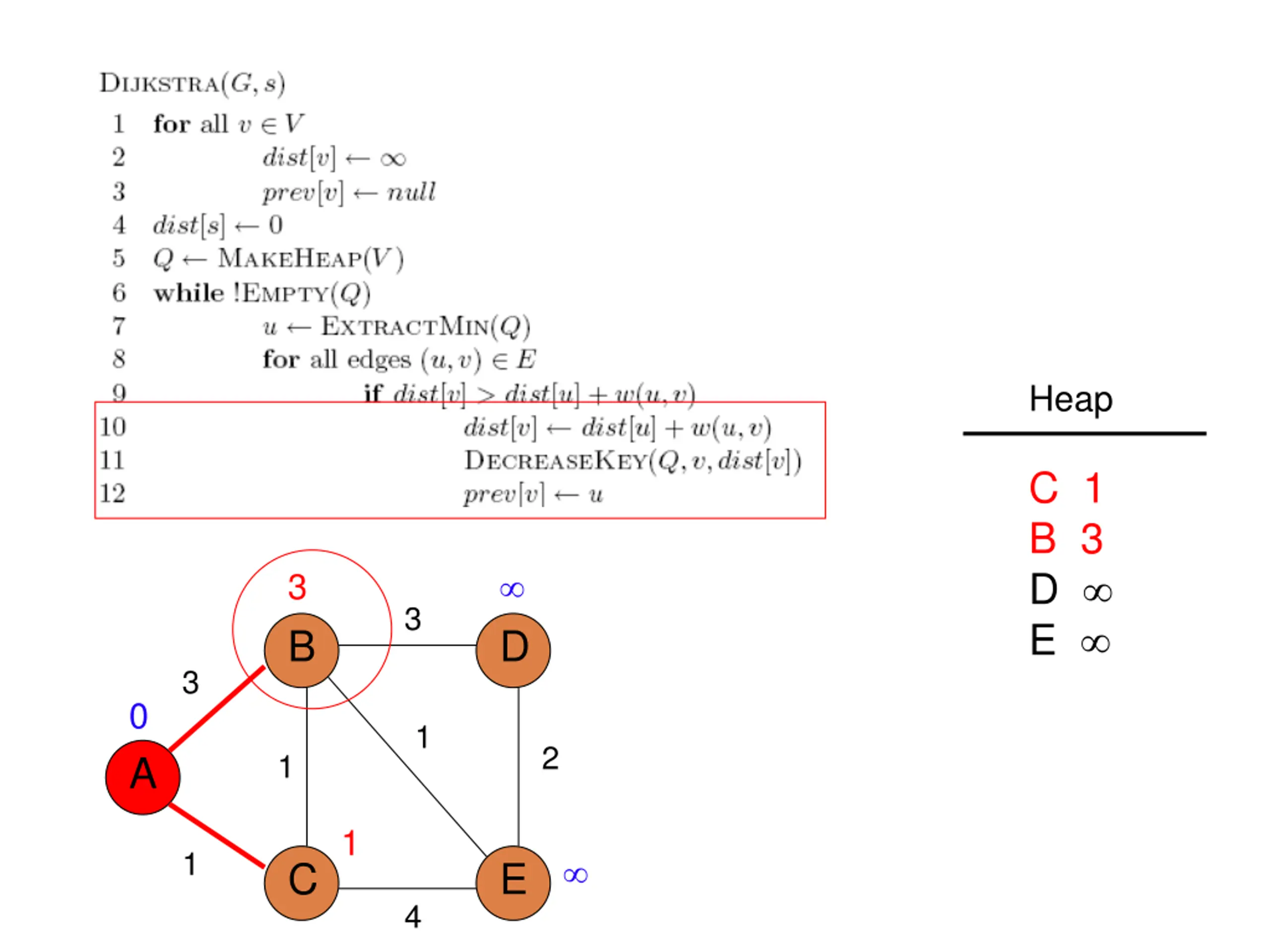

  27. Heap B 3 D E 3 3 B D 3 0 1 2 1 A 1 1 C E 4

  28. Heap B 3 D E 3 3 B D 3 0 1 2 1 A 1 1 C E 4

  29. Heap B 3 D E 3 3 B D 3 0 1 2 1 A 1 1 C E 4

  30. Heap B 2 D E 2 3 B D 3 0 1 2 1 A 1 1 C E 4

  31. Heap B 2 D E 2 3 B D 3 0 1 2 1 A 1 1 C E 4

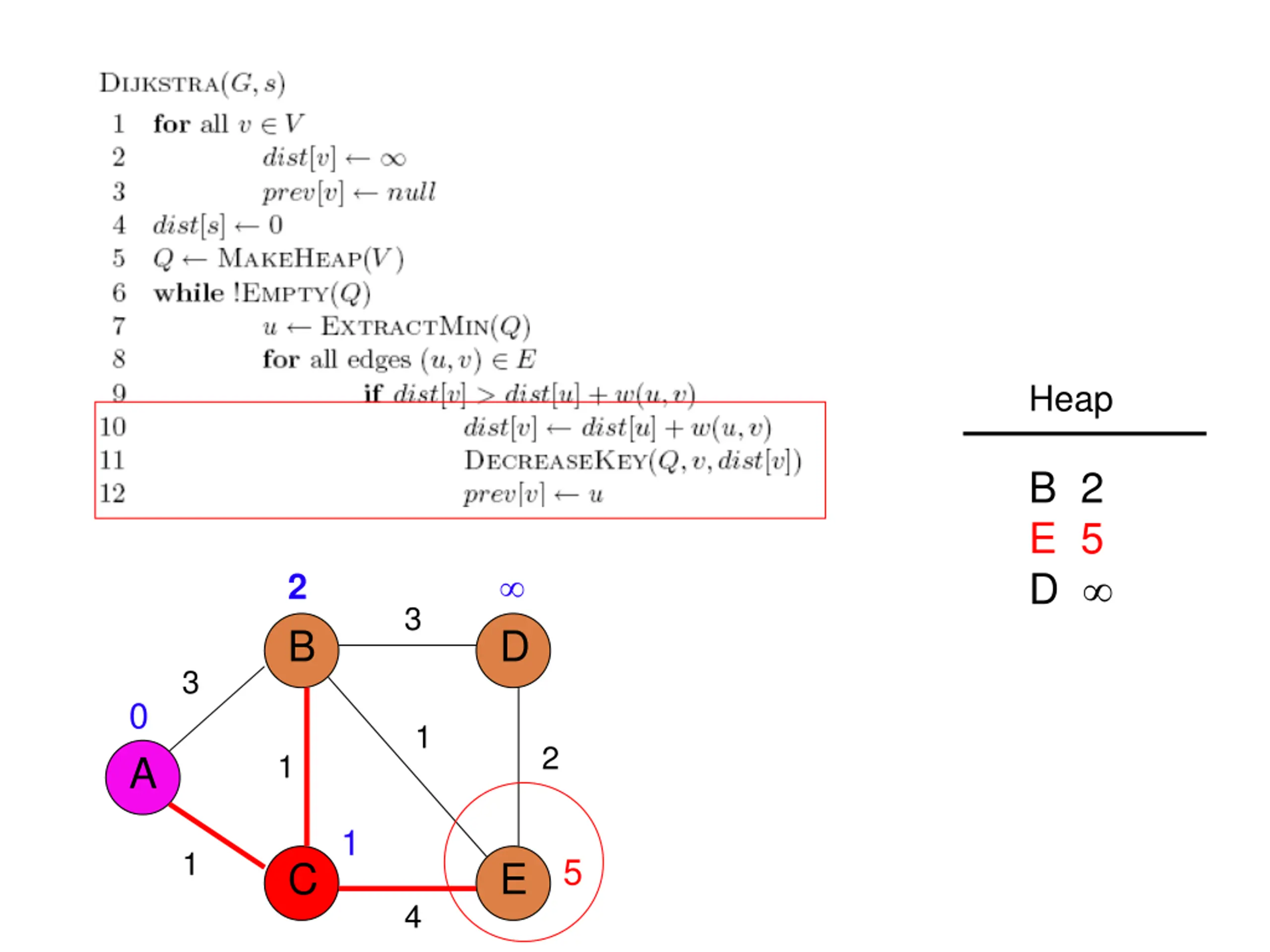

  32. Heap B 2 E 5 D 2 3 B D 3 0 1 2 1 A 1 1 5 C E 4

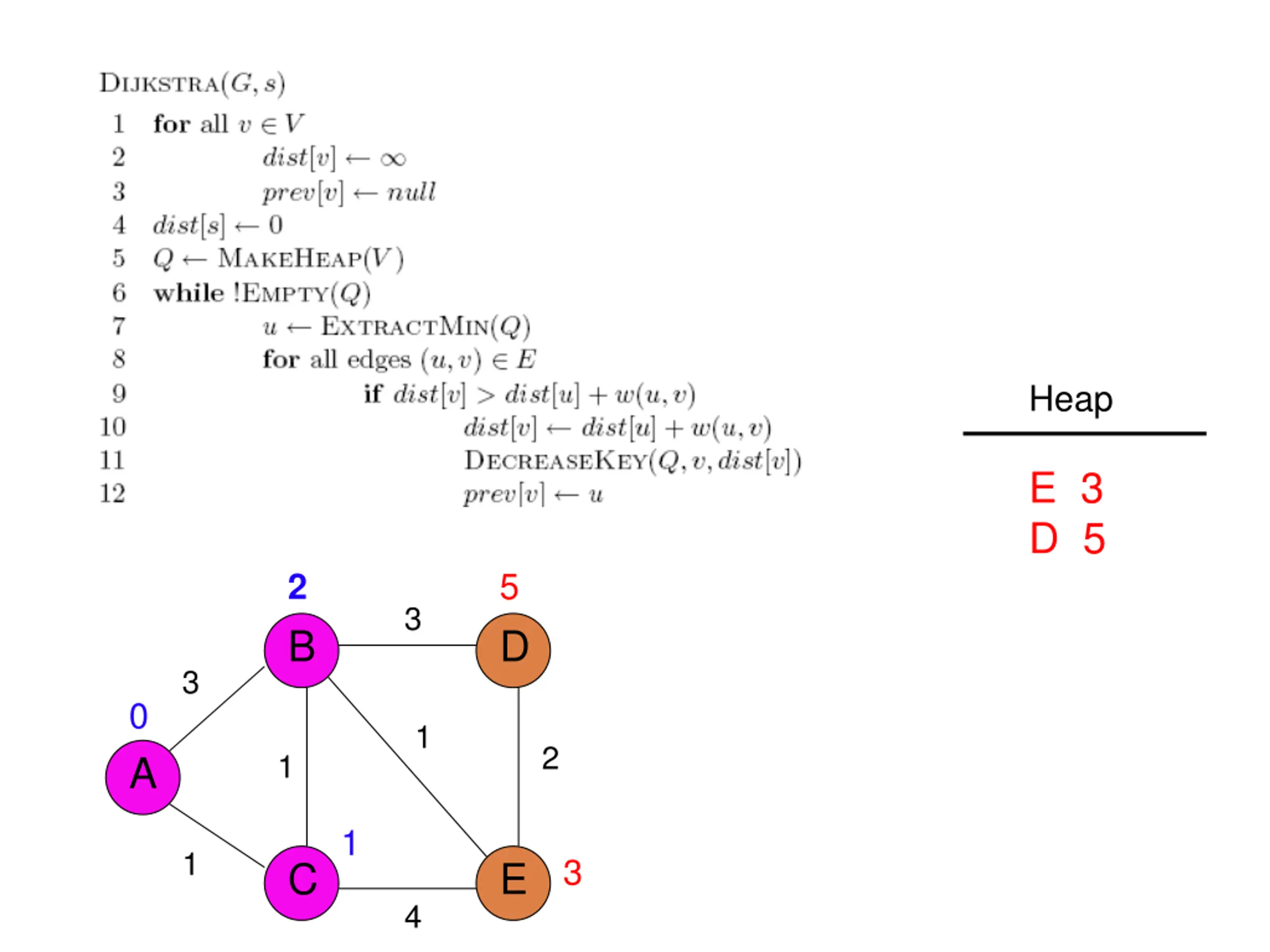

  33. Heap E 3 D 5 5 2 3 B D 3 0 1 2 1 A 1 1 3 C E 4

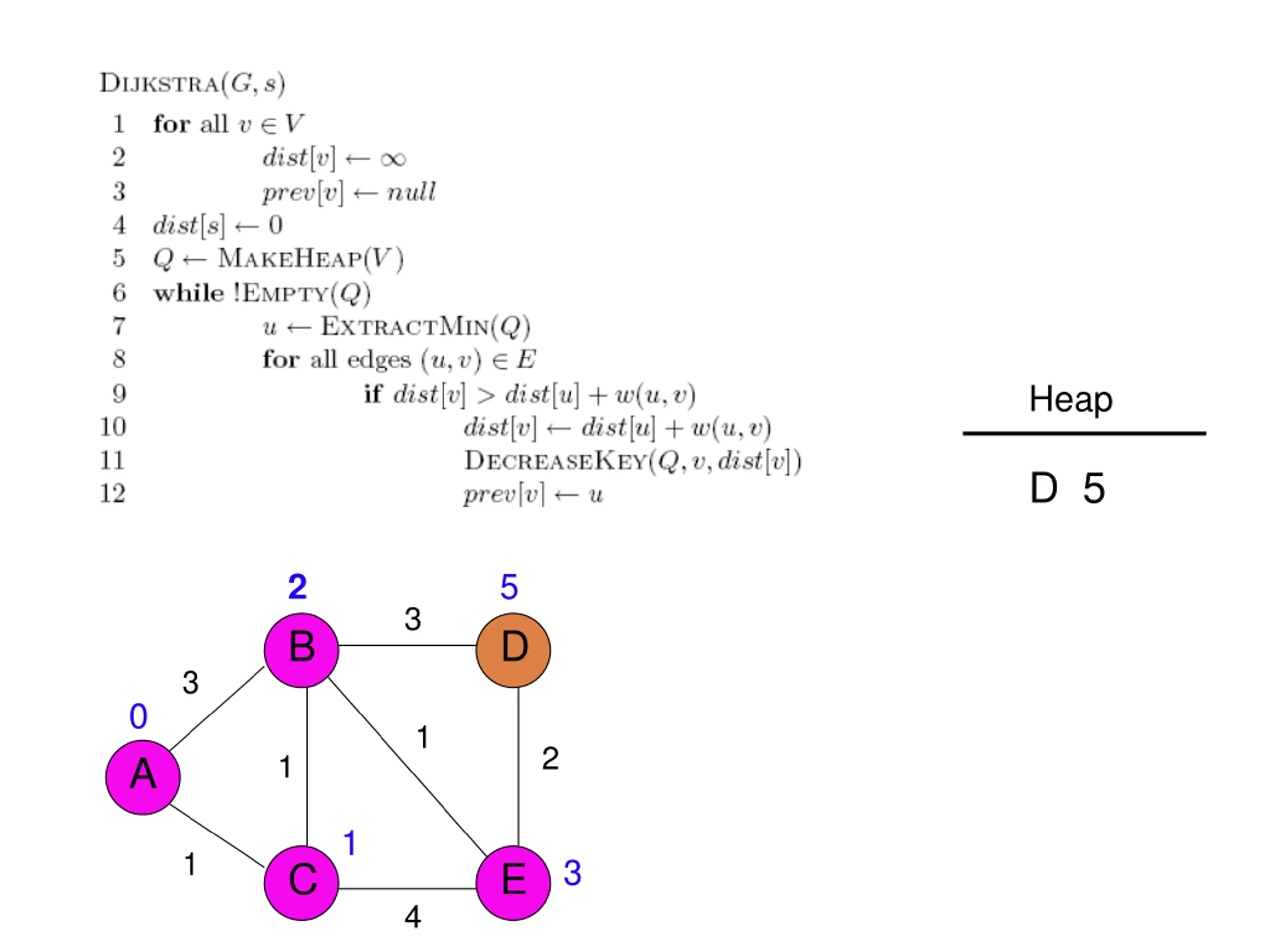

  34. Heap D 5 5 2 3 B D 3 0 1 2 1 A 1 1 3 C E 4

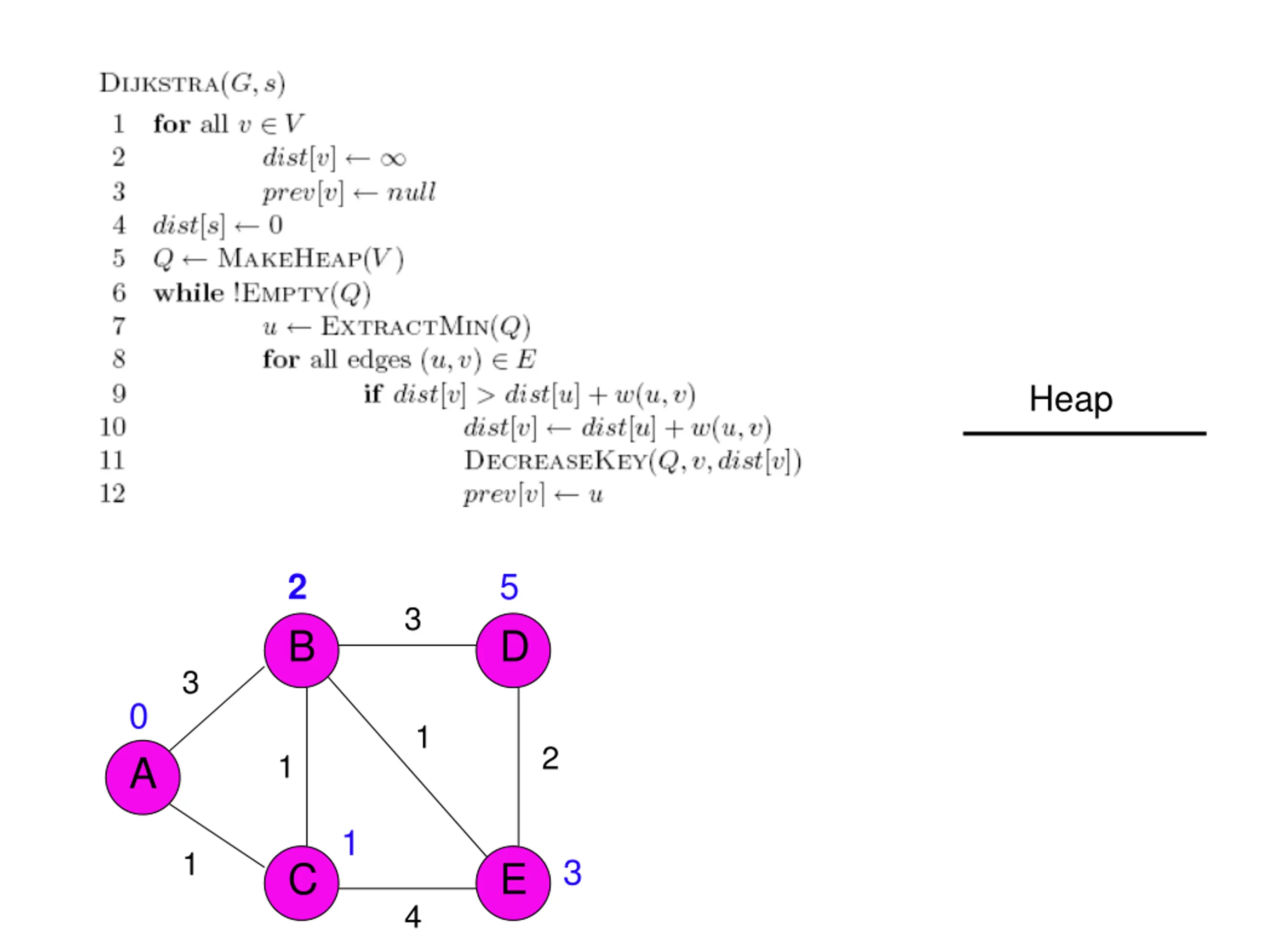

  35. Heap 5 2 3 B D 3 0 1 2 1 A 1 1 3 C E 4

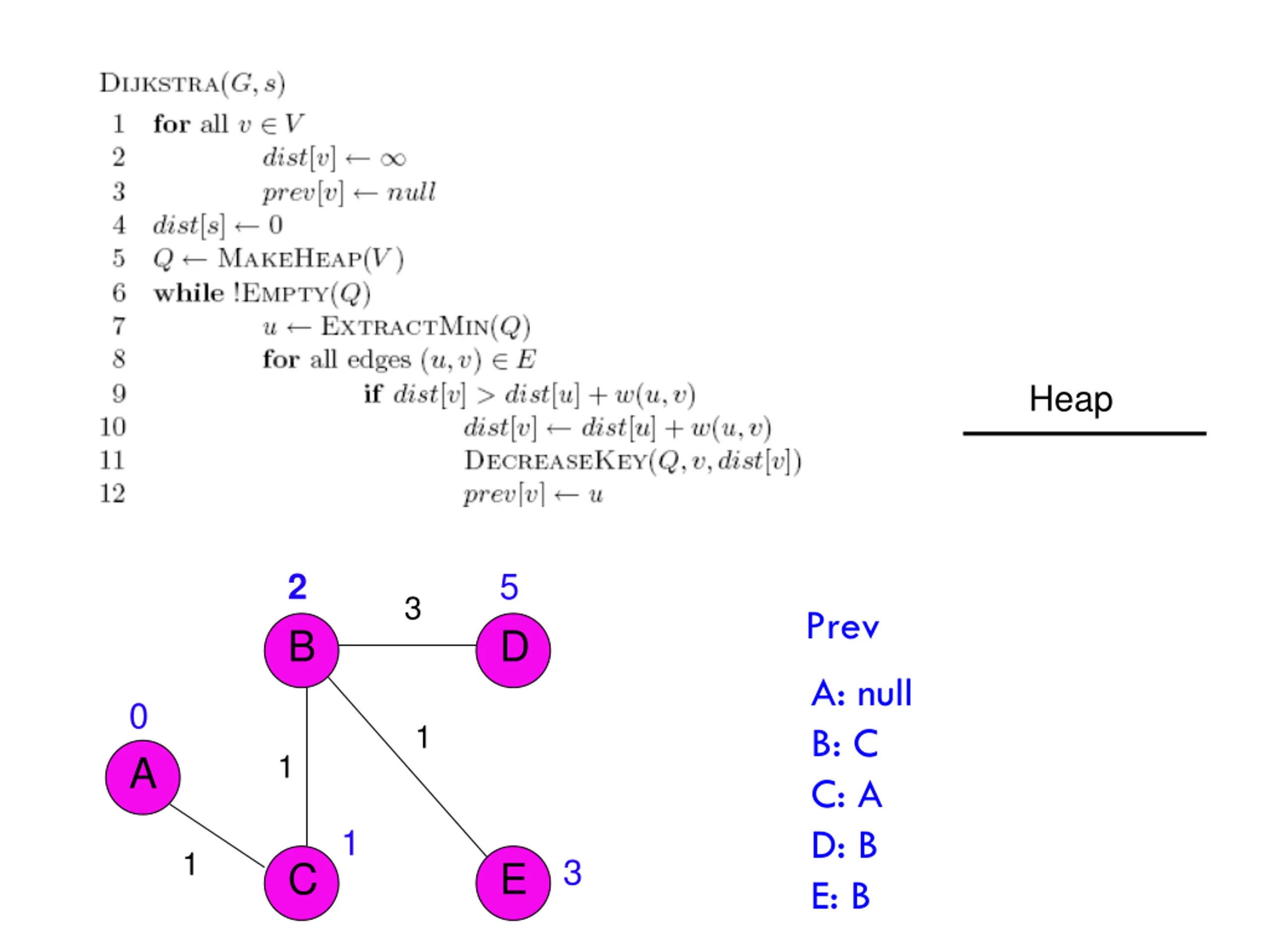

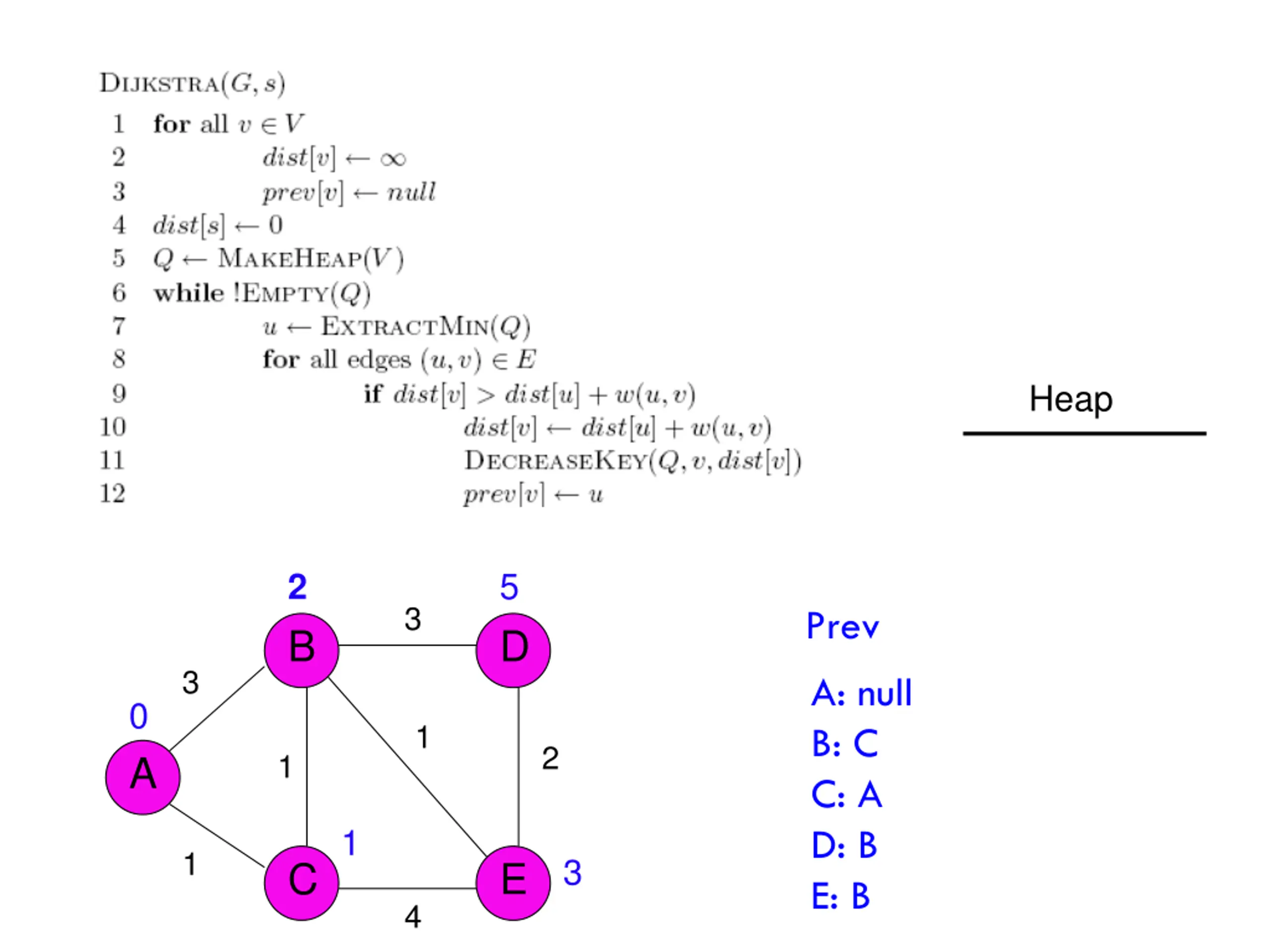

  36. Heap 5 2 3 Prev A: null B: C C: A D: B E: B B D 3 0 1 2 1 A 1 1 3 C E 4

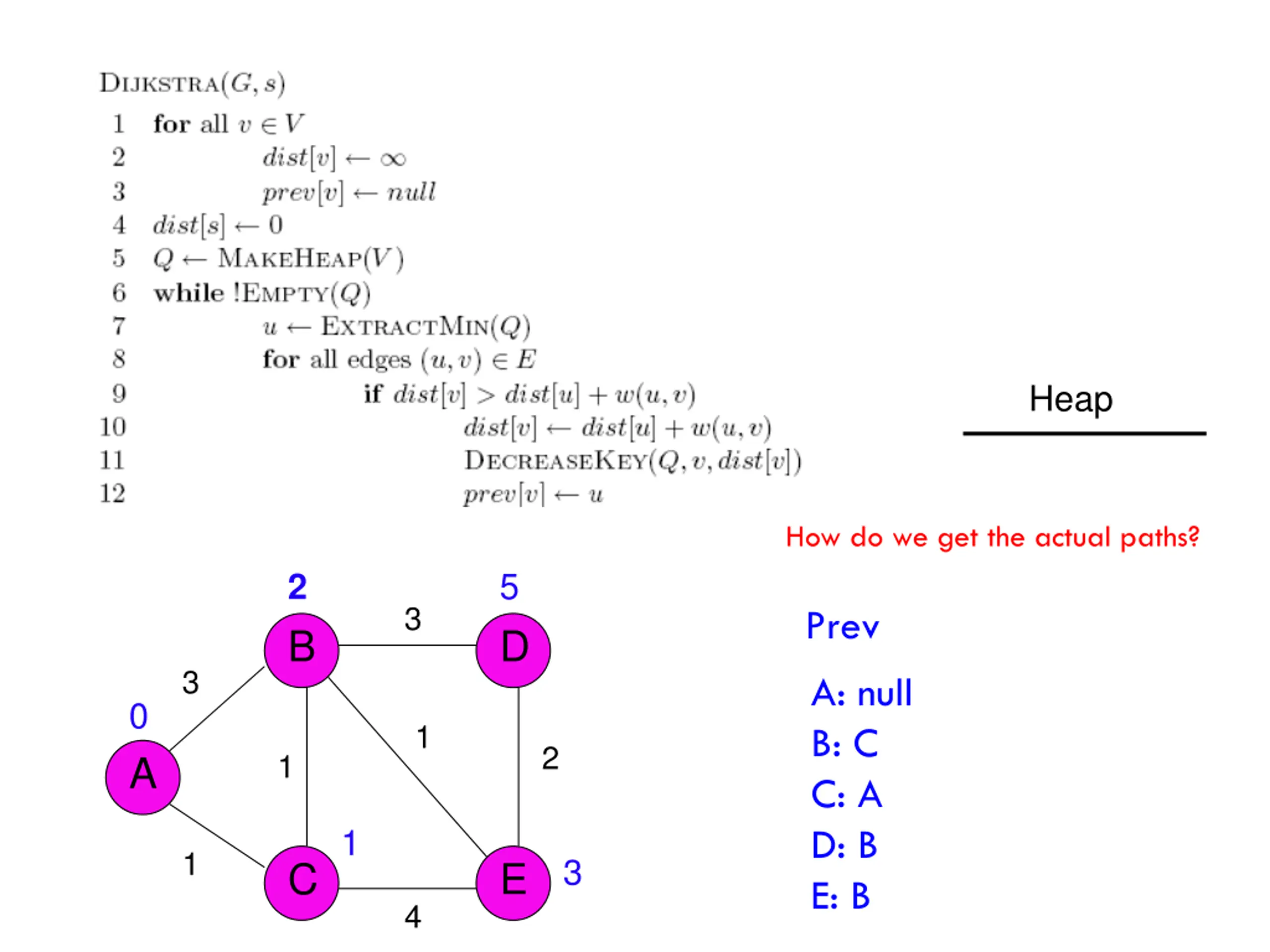

  37. Heap How do we get the actual paths? 5 2 3 Prev A: null B: C C: A D: B E: B B D 3 0 1 2 1 A 1 1 3 C E 4

  38. Heap 5 2 3 Prev A: null B: C C: A D: B E: B B D 0 1 1 A 1 1 3 C E

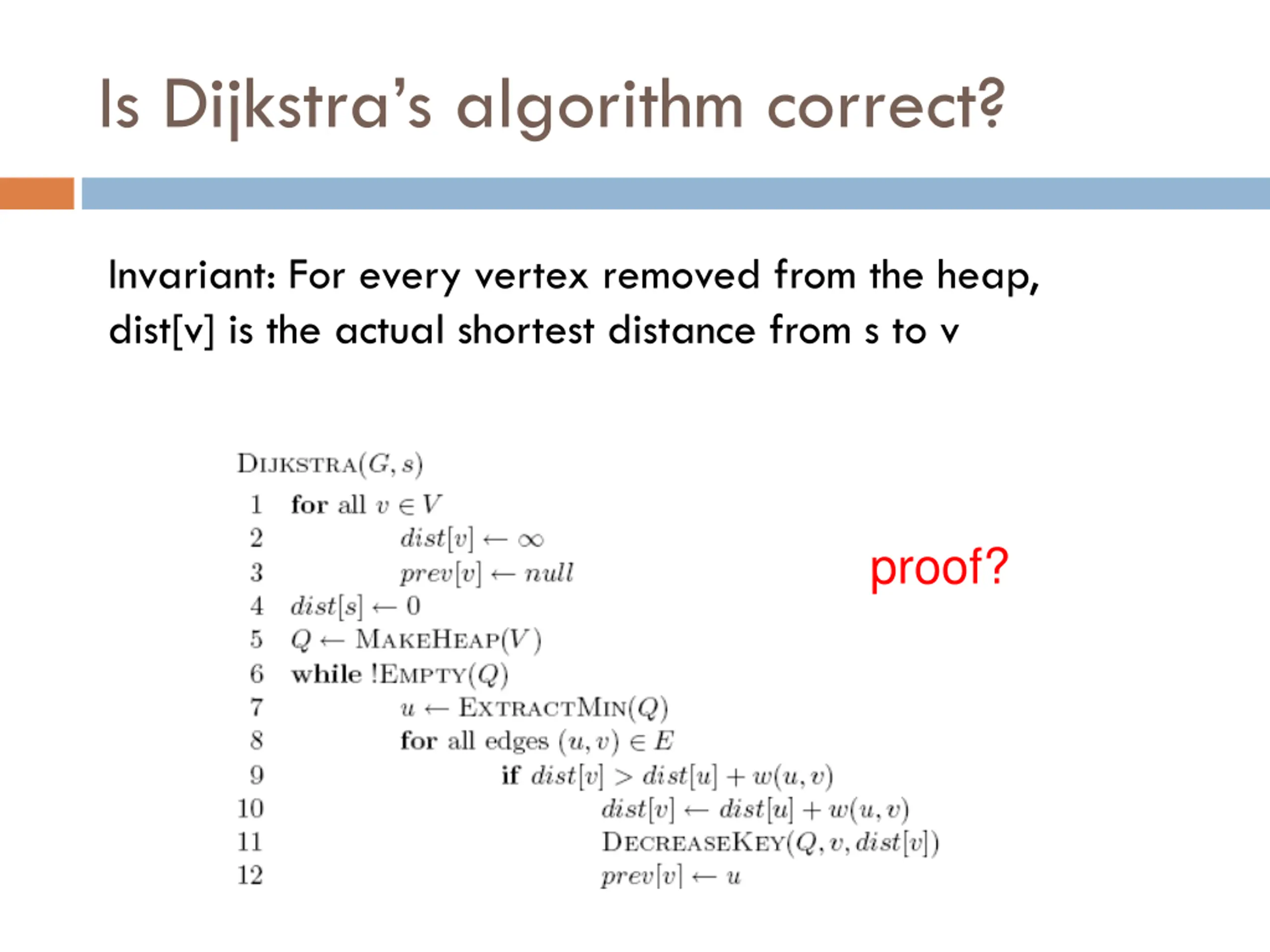

  39. Is Dijkstras algorithm correct? Invariant: For every vertex removed from the heap, dist[v] is the actual shortest distance from s to v proof?

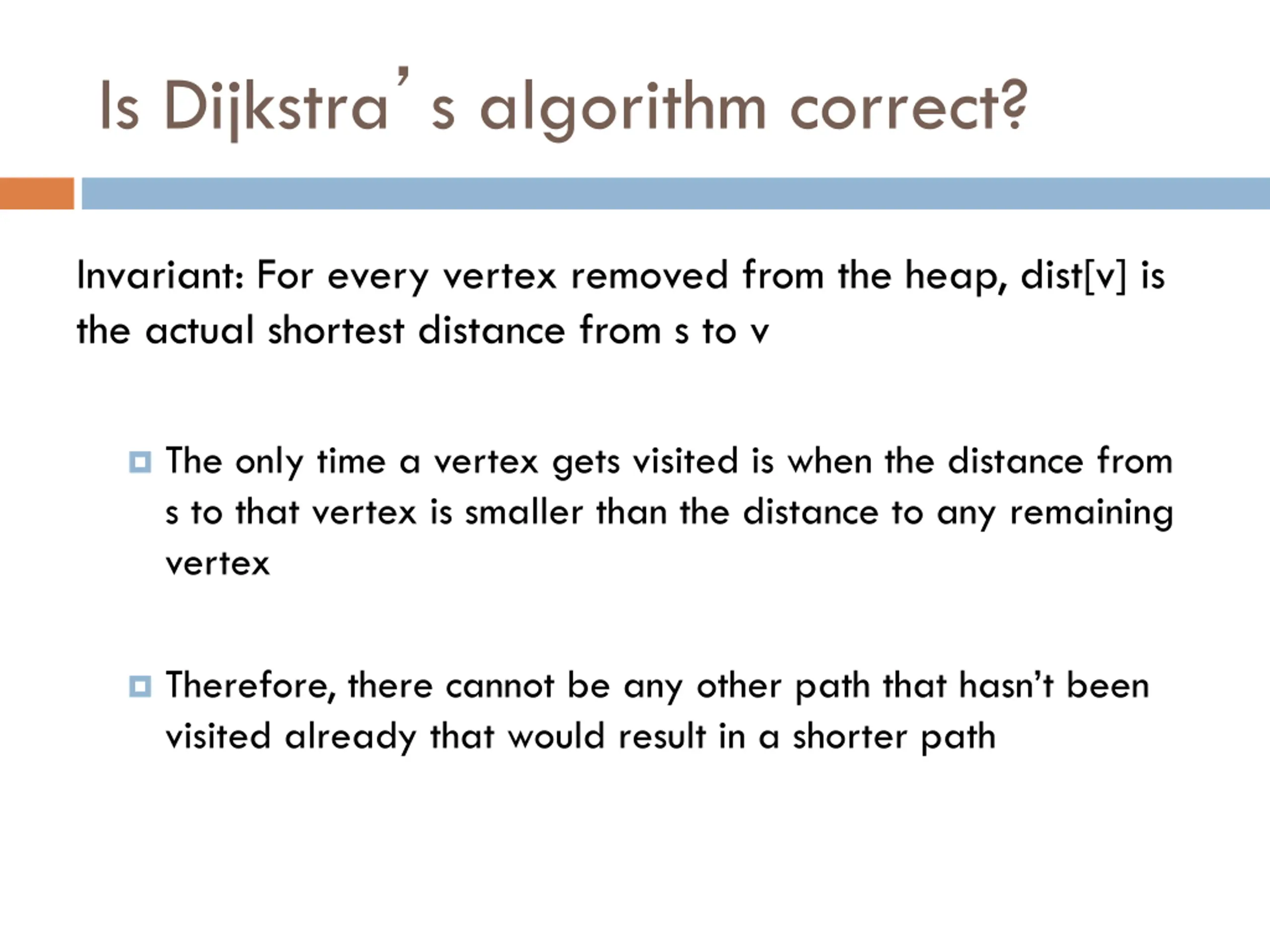

  40. Is Dijkstras algorithm correct? Invariant: For every vertex removed from the heap, dist[v] is the actual shortest distance from s to v The only time a vertex gets visited is when the distance from s to that vertex is smaller than the distance to any remaining vertex Therefore, there cannot be any other path that hasn t been visited already that would result in a shorter path

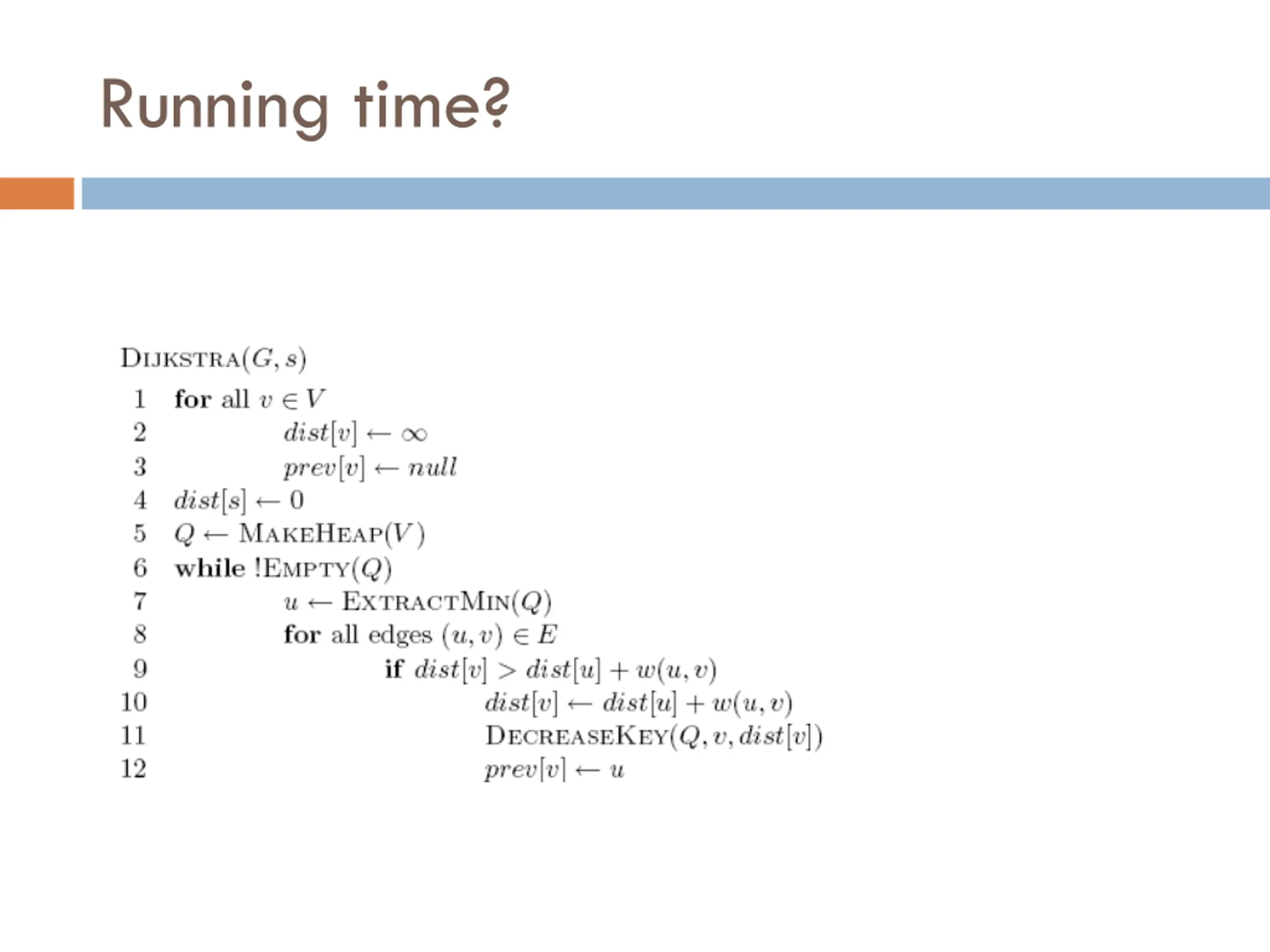

  41. Running time?

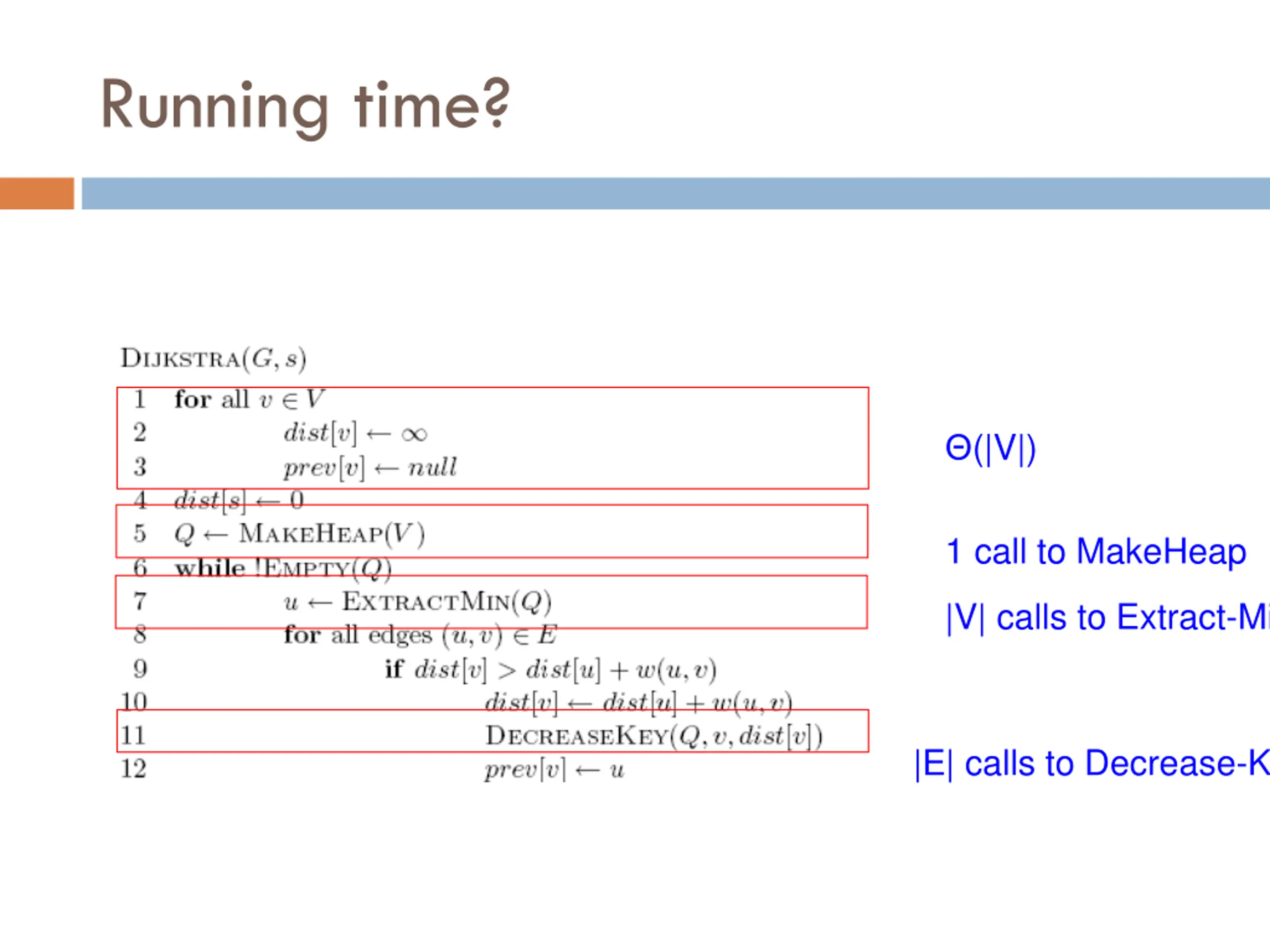

  42. Running time? (|V|) 1 call to MakeHeap |V| calls to Extract-Min |E| calls to Decrease-Key

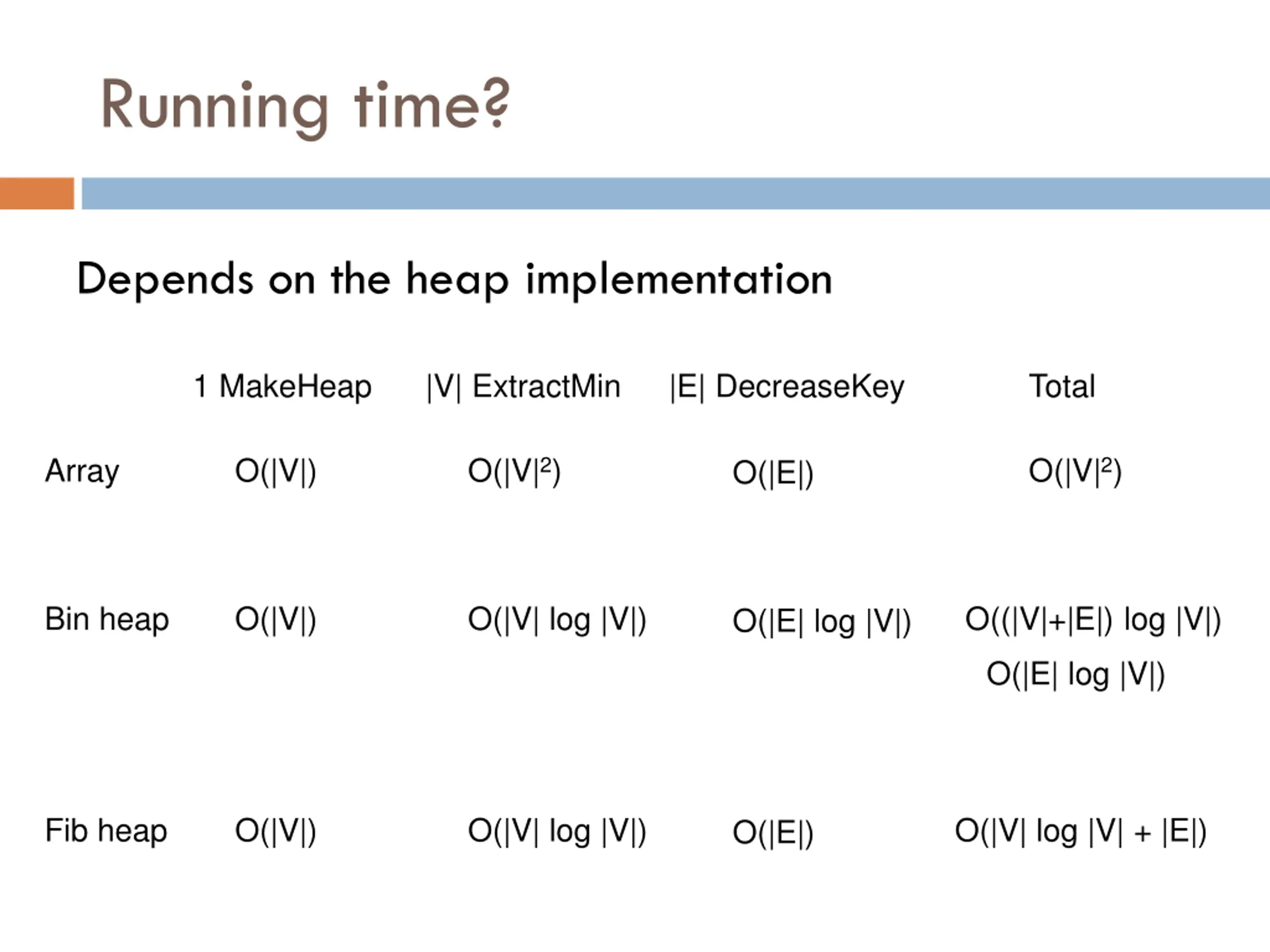

  43. Running time? Depends on the heap implementation 1 MakeHeap |V| ExtractMin |E| DecreaseKey Total Array O(|V|) O(|V|2) O(|V|2) O(|E|) Bin heap O(|V|) O(|V| log |V|) O((|V|+|E|) log |V|) O(|E| log |V|) O(|E| log |V|) Fib heap O(|V|) O(|V| log |V|) O(|V| log |V| + |E|) O(|E|)

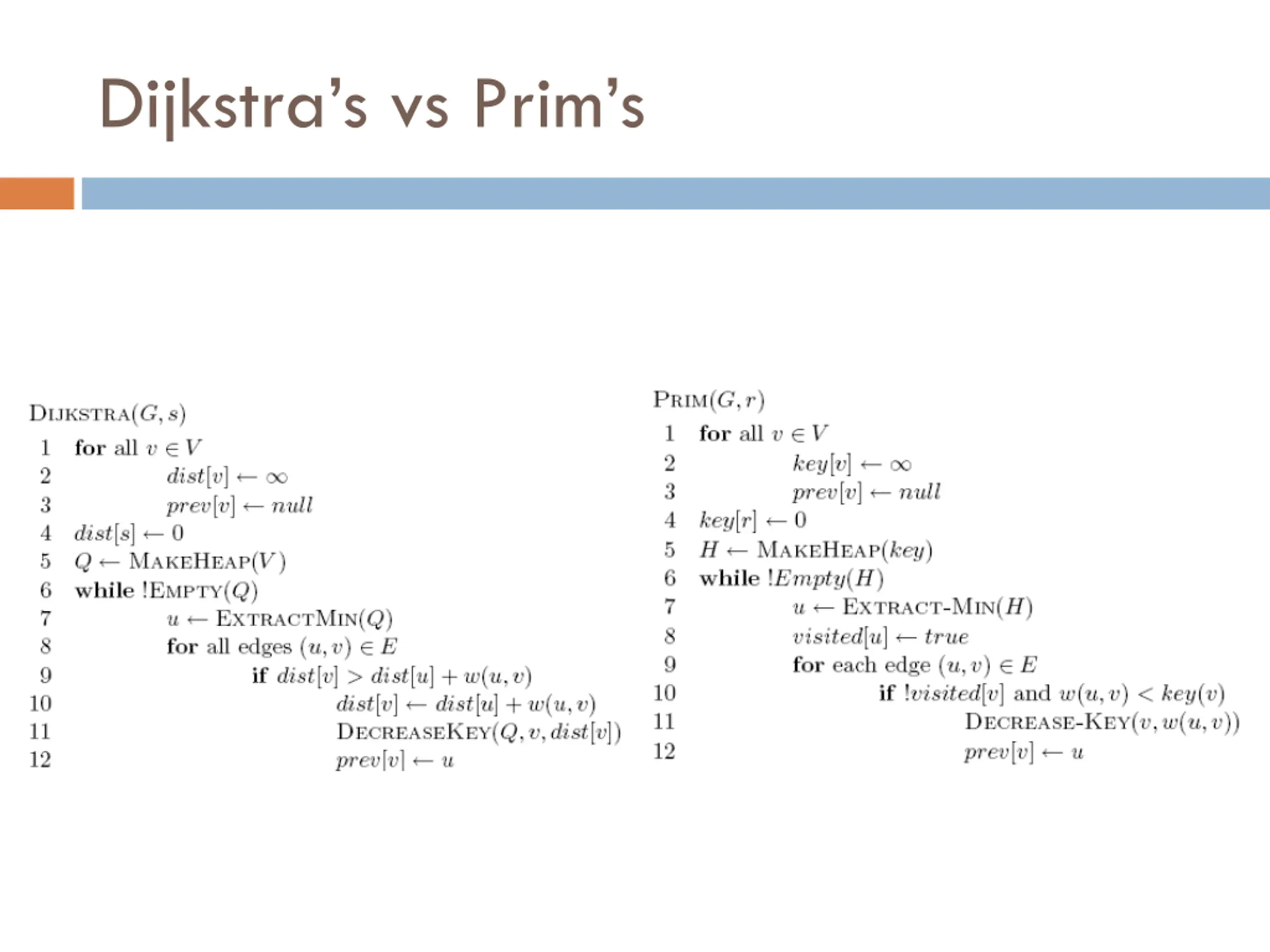

  44. Dijkstras vs Prims

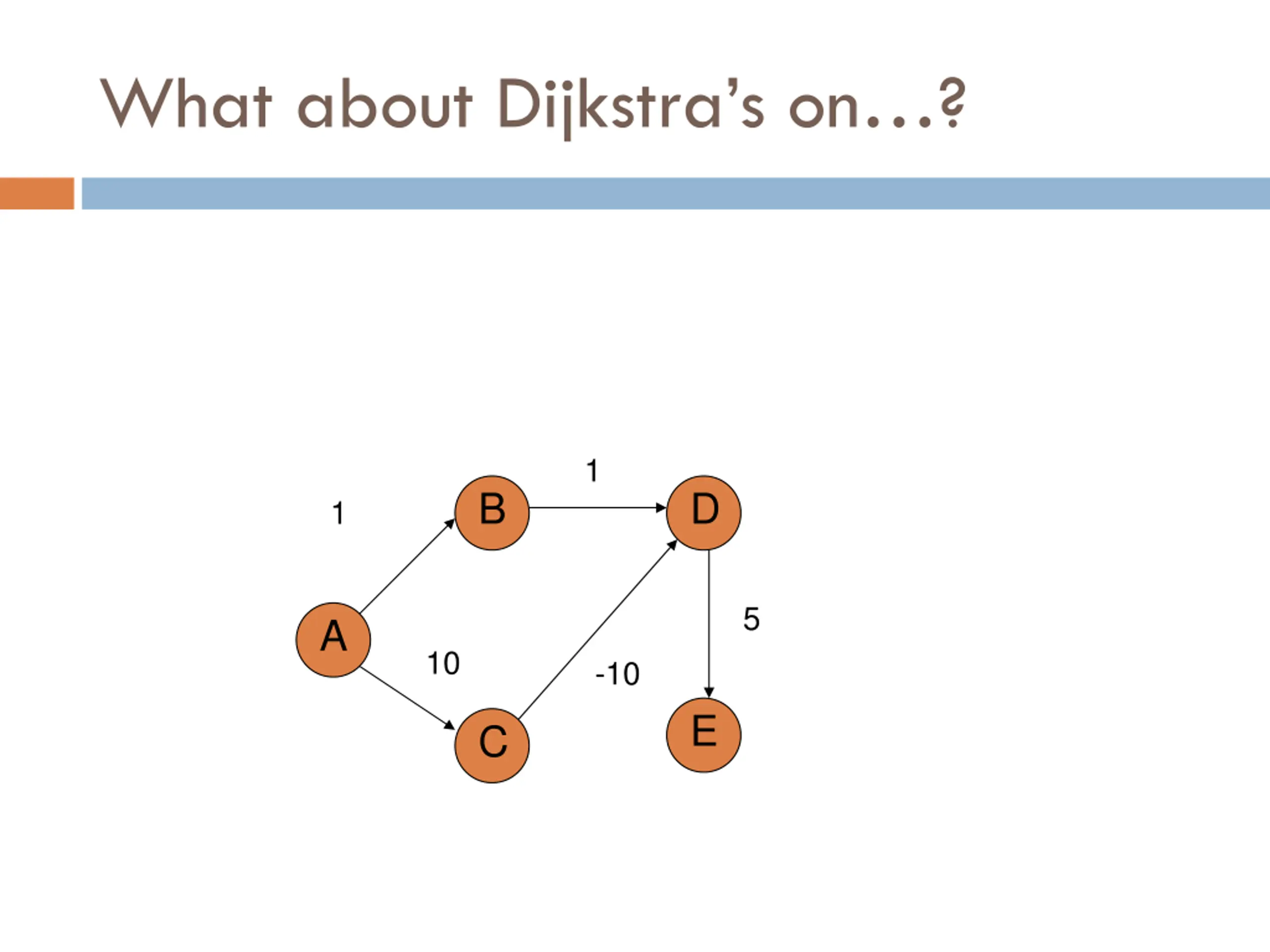

  45. What about Dijkstras on? 1 B D 1 5 A 10 -10 E C

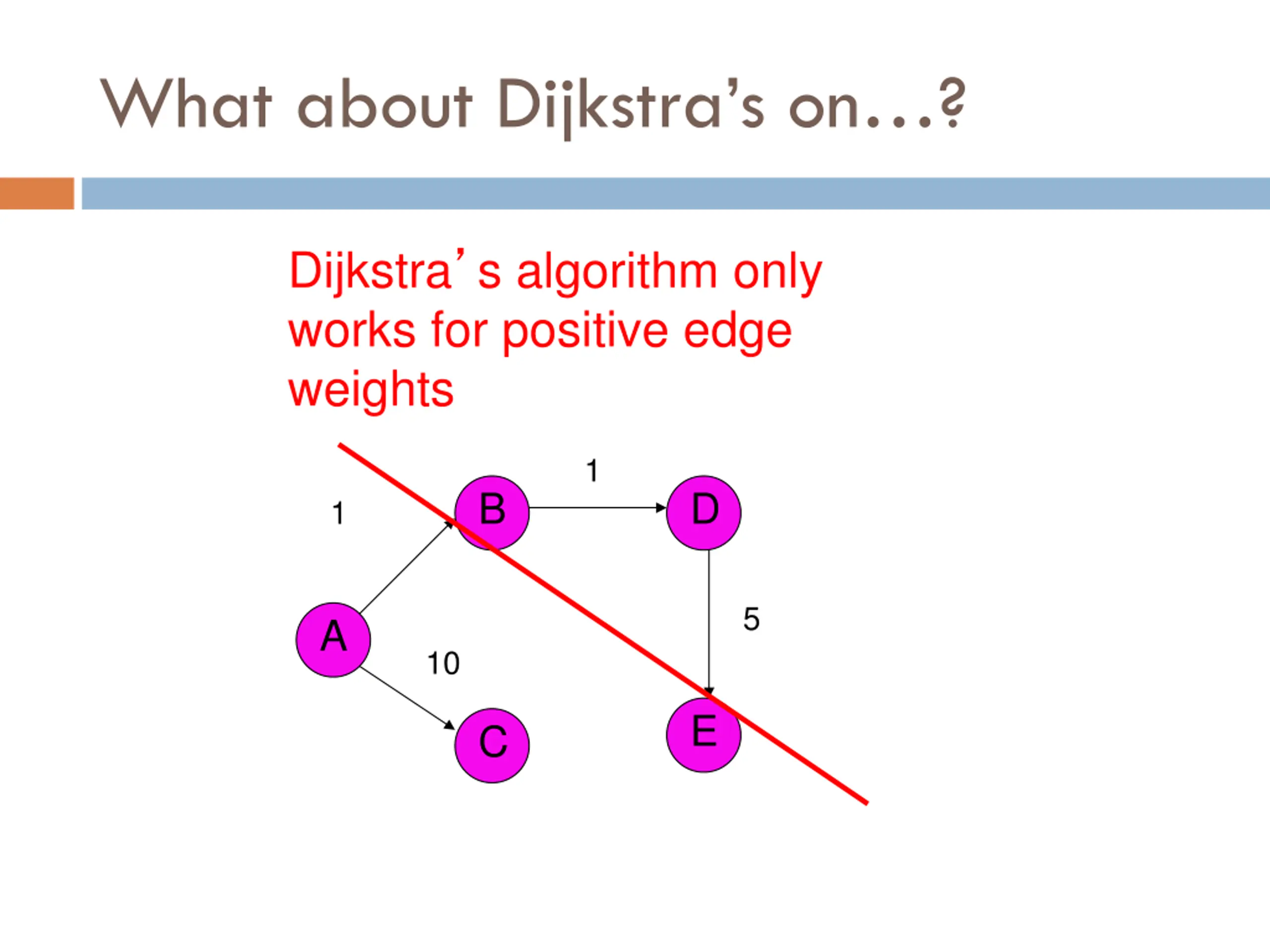

  46. What about Dijkstras on? Dijkstra s algorithm only works for positive edge weights 1 B D 1 5 A 10 E C

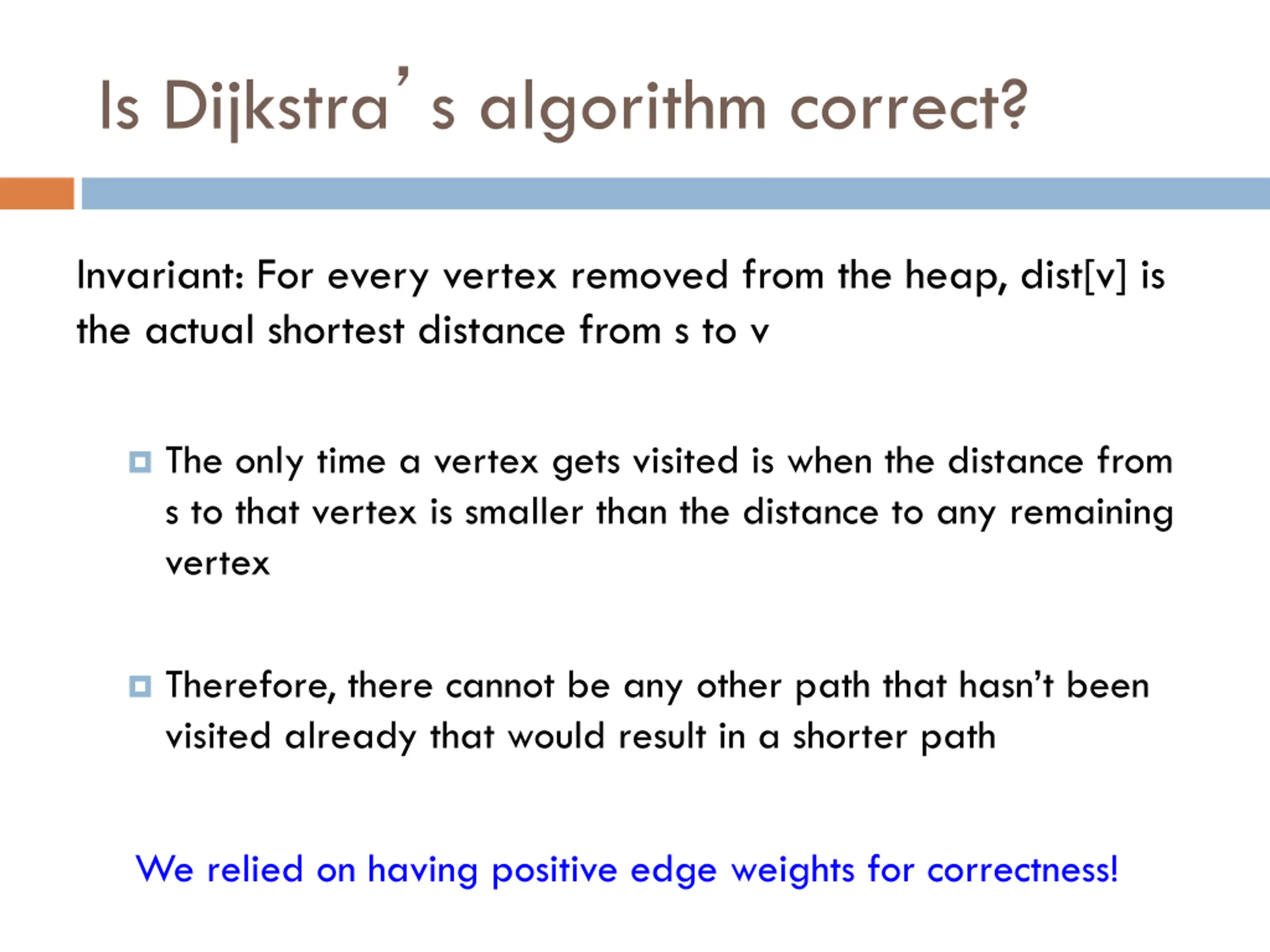

  47. Is Dijkstras algorithm correct? Invariant: For every vertex removed from the heap, dist[v] is the actual shortest distance from s to v The only time a vertex gets visited is when the distance from s to that vertex is smaller than the distance to any remaining vertex Therefore, there cannot be any other path that hasn t been visited already that would result in a shorter path We relied on having positive edge weights for correctness!

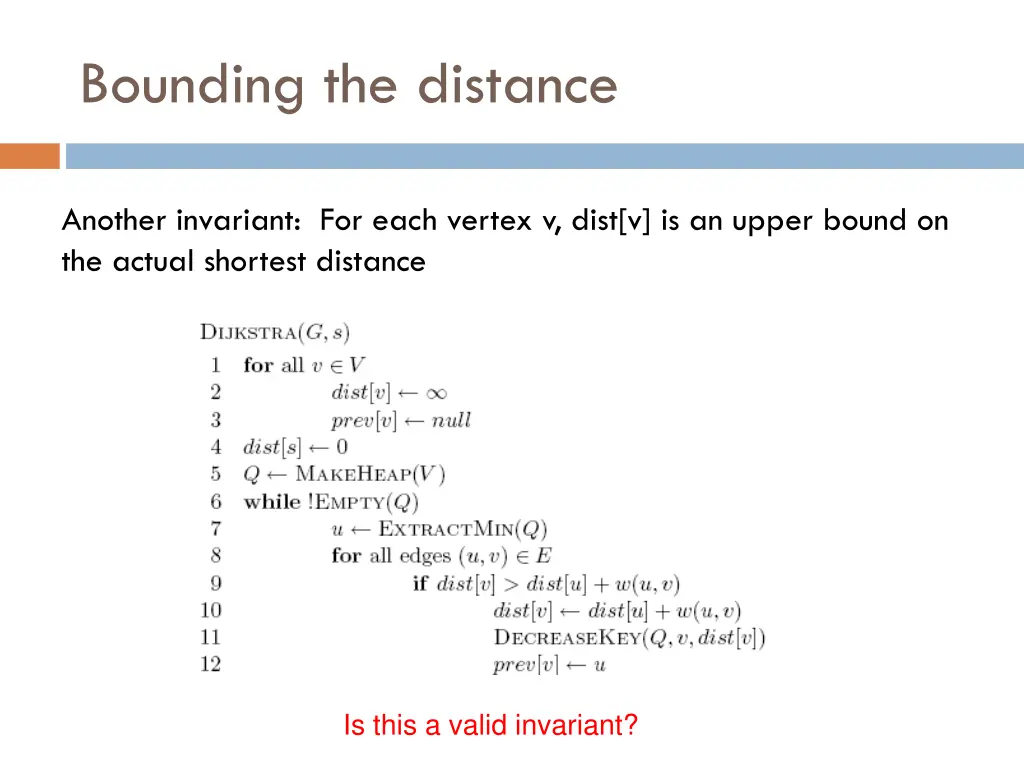

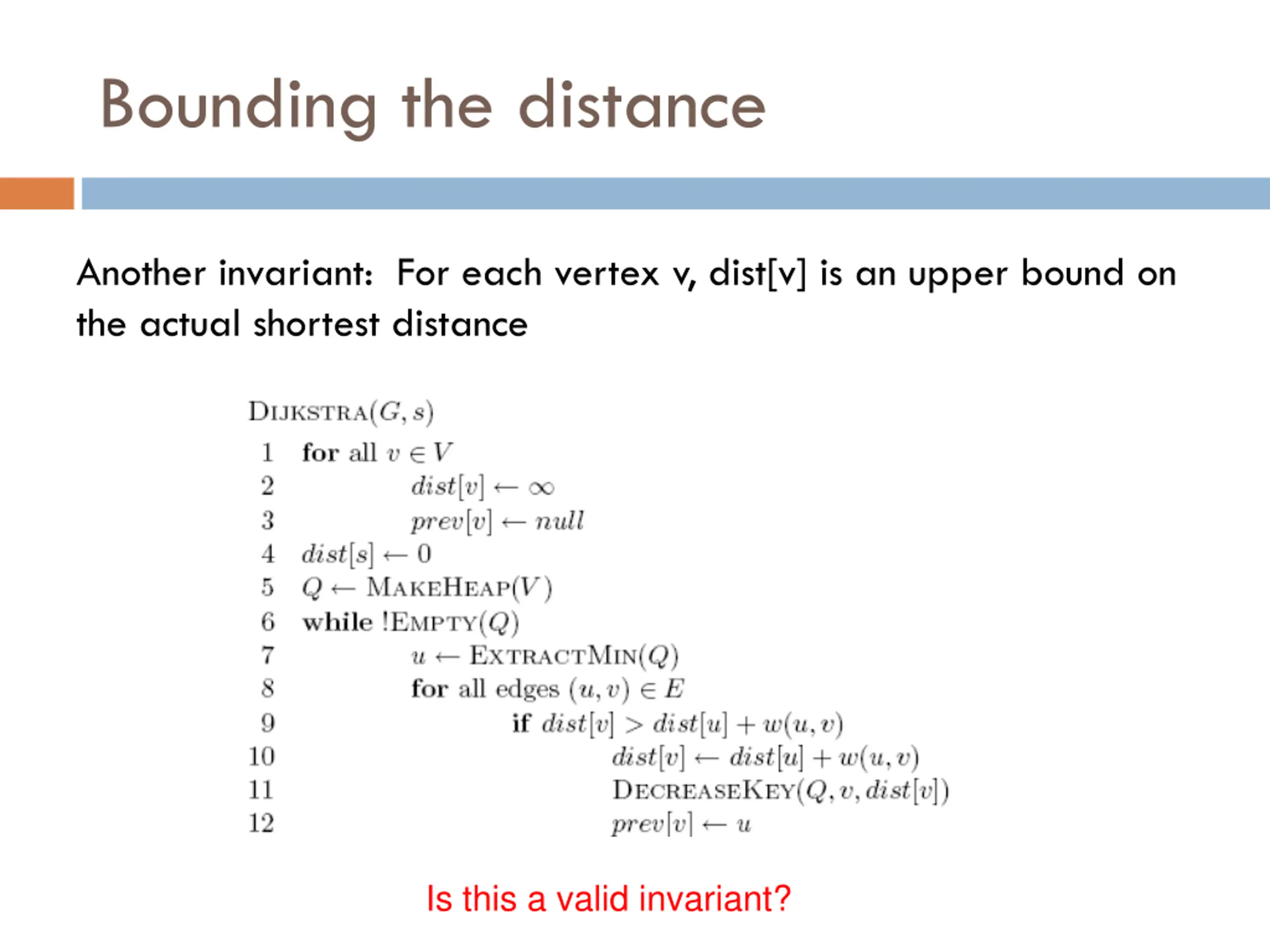

  48. Bounding the distance Another invariant: For each vertex v, dist[v] is an upper bound on the actual shortest distance Is this a valid invariant?
