Development of Reconfigurable Low Cost Multi-Mode Radar System for Vital Signs Detection
IMS2024
Interactive Forum (IF) Poster Guidelines
1
•
Your Interactive Forum (IF) presentation(s) at IMS2024 will consist of an
electronic “poster” on a horizontal monitor, using the provided computer.
•
A single, electronic poster discussing the participant’s research in broad
strokes. This poster should include a penta chart, which covers the primary
motivations, insights, and results of the project.
•
Participants are responsible for preparing and bringing their poster to their
specific IF session on a USB drive.
Instructions on IF Poster Preparation
IMPORTANT NOTE: IF Presenters MUST check in with the Session Chair(s)
at the Check-In Area at least 15 minutes prior to the start of their session.
•
A penta chart provides a concise summary of a paper/project by displaying principle
information needed to understand the project in a clear and easy-to-read manner.
•
A penta chart example is provided on Slide 4. The entire poster should be prepared in
landscape 16 x 9 format in PowerPoint or PDF format.
•
The penta chart is divided into five sections:
•
Status quo – Background and motivation, current state-of-the-art. What problem are you trying to
solve, or what improvement are you trying to make?
•
New insights – Describe what’s new about your approach. Why should people care?
•
Description - Main achievements, concept, how it works, assumptions and weaknesses.
•
Quantitative impacts – What were your results, and how do these compare with existing
technologies/techniques?
•
Proposed concept goal - Final product of your work. Where is this leading, and what are the next
steps?
Penta Chart
Development of a Reconfigurable Low Cost
Multi-Mode Radar System for Contactless Vital Signs Detection
F. Quaiyum, L. Ren, S. Nahar, F. Foroughian, A. E. Fathy
A hybrid approach required: UWB for short
range heart rate detection and imaging, CW for
long range vital signs
Traditional hybrid systems bulky, expensive and
difficult to control
Contactless Vital Signs Monitoring
Multi-Mode Operation with Reconfigurability
UWB Mode
Short-range SAR operation
Center frequency shifting for higher sensitivity
CW Mode Operation
Long range remote triage
Interferometry functionality using dual CW
operation
The transceiver is mainly composed of three parts:
Waveform Generator
Two channel DDS board where each channel
can be independently configured
Capable of providing either a CW signal or
SFCW signal
Microcontroller
Configures the waveform generator to perform in
CW or in SFCW mode
Controls the SPDT switches enabling center
frequency reconfiguration
Microwave Front End
Consisting of the Amplifiers, Mixers, Power
Dividers and Antennas
L
o
w
e
r
B
a
n
d
(
2
-
4
G
H
z
)
S
F
C
W
m
o
d
e
.
L
a
c
k
s
s
e
n
s
i
t
i
v
i
t
y
,
u
s
e
f
u
l
i
n
t
h
r
o
u
g
h
w
a
l
l
a
p
p
l
i
c
a
t
i
o
n
s
H
i
g
h
e
r
B
a
n
d
(
7
-
9
G
H
z
)
S
F
C
W
m
o
d
e
f
o
r
h
i
g
h
e
r
s
e
n
s
i
t
i
v
i
t
y
C
W
m
o
d
e
f
o
r
l
o
n
g
r
a
n
g
e
v
i
t
a
l
s
i
g
n
s
d
e
t
e
c
t
i
o
n
Multi-Mode Radar System featuring:
Minimal Size, Weight, and Power (SWAP)
capable of high-resolution, and high-
quality imaging
Low cost due to the sharing of
components
Totally controlled by a micro-controller
High sensitivity high frequency operation
without the requirement of sophisticated
PLL/DDS board
STATUS QUO
NEW INSIGHTS
DESCRIPTION
QUANTITATIVE
IMPACT
PROPOSED
CONCEPT GOALS
This project focuses on creating a reconfigurable radar system for contactless vital signs monitoring. By utilizing a hybrid approach of UWB and CW modes, the system aims to achieve high sensitivity and resolution with minimal size, weight, and power consumption. The innovative design allows for multi-mode operation, offering diverse applications in healthcare and remote monitoring.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

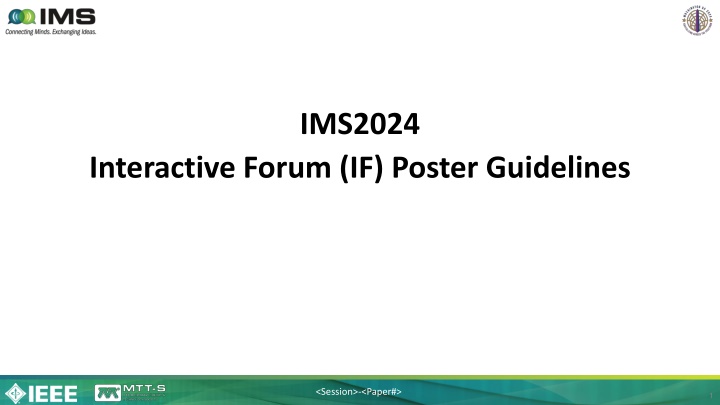

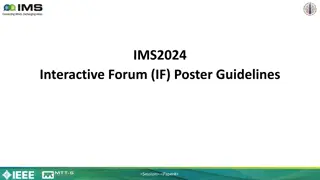

IMS2024 Interactive Forum (IF) Poster Guidelines <Session>-<Paper#> 1
