Control System Overview for ATLAS Superconducting Accelerator

The ATLAS Control System Group manages control systems from ion sources to specified areas, utilizing hardware such as AlphaServer and various controllers. Software tools from Vista Control Systems offer real-time control functionalities for OpenVMS, Linux, and Windows. Data management includes CAMAC controllers and Oracle RDB for accelerator operating data. Paradox workshops and data views provide insights into accelerator operations at Mainz, Germany.

• Accelerator Control
• ATLAS Superconducting
• Control System
• Vista Control Systems
• Data Management

eyue_292 Follow

Uploaded on Oct 08, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

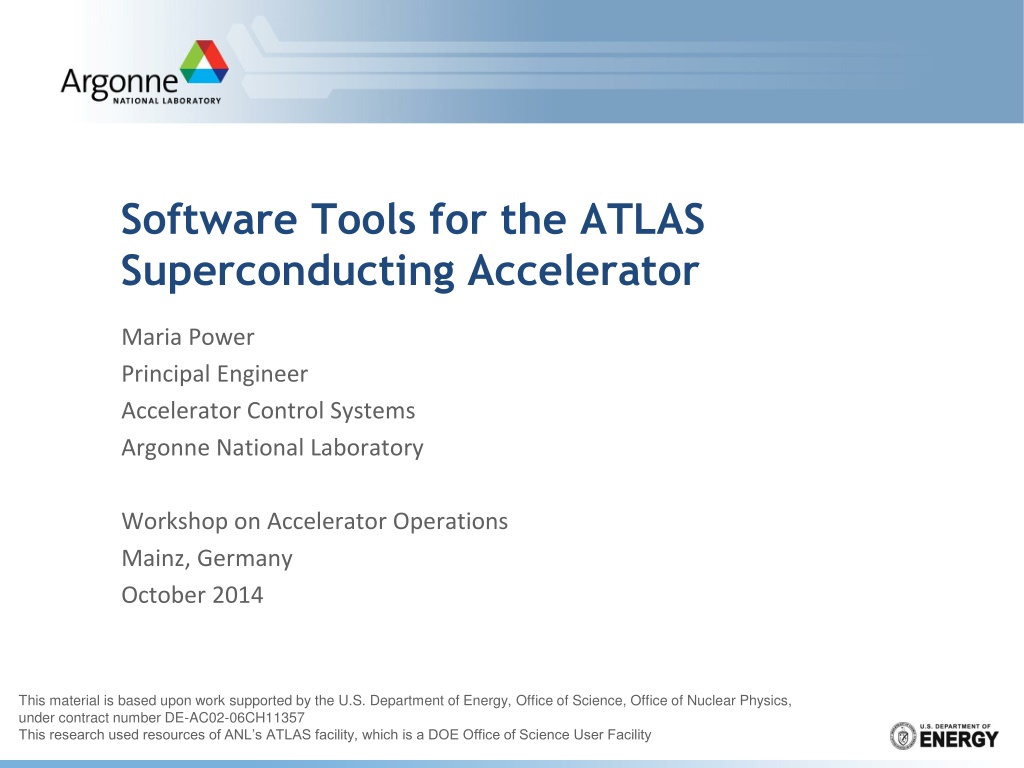

1. Software Tools for the ATLAS Superconducting Accelerator Maria Power Principal Engineer Accelerator Control Systems Argonne National Laboratory Workshop on Accelerator Operations Mainz, Germany October 2014 This material is based upon work supported by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under contract number DE-AC02-06CH11357 This research used resources of ANL s ATLAS facility, which is a DOE Office of Science User Facility

2. ATLAS Control System Overview The ATLAS Control System Group is responsible for Control System covering Ion Sources up to (but not including) the target areas. Paradox System Hercules Document Index Operators Notebook SharePoint BBS Radiation Safety Systems Website(s) Workshop on Accelerator Operations Mainz, Germany, October 2014

3. ATLAS Control System Hardware AlphaServer running OpenVMS CAMAC Serial Highway Distributed Linux based Controllers VME Crates and Hytec 9010 Blade Controllers using Industry packs Networked Devices over TCP/IP, SNMP Workshop on Accelerator Operations Mainz, Germany, October 2014

4. Control System Software Vista Control Systems, Inc. VSystem Distributed, real-time, networked, control software tools Available for OpenVMS, Linux, (and Windows) Tools: VAccess VScan VDraw VAlarm VLogger VTrend VCzar VScript Workshop on Accelerator Operations Mainz, Germany, October 2014

5. ATLAS Data Management CAMAC Serial Highway Distributed Controllers on Network Archive Accelerator Operating Data Update Accelerator Operating Conditions Oracle RDB Relational Database VSystem Paradox Retrieve Past Accelerator Tuned Configuration Set Runtime Database to Past Accelerator Configuration Real-time Database Relational Database Alpha Server Windows PC Workshop on Accelerator Operations Mainz, Germany, October 2014

6. Paradox Data View Workshop on Accelerator Operations Mainz, Germany, October 2014

7. Paradox Workshop on Accelerator Operations Mainz, Germany, October 2014

8. Hercules Legacy software using a database package called Alpha 4 Software tools originally included in Hercules: Document catalog for drawings Shift Log Pin Diode Fuse Log Equipment Database and Maintenance Log Conversion to modern software of this package has been implemented in pieces using Java Swing applications and MySQL Disadvantages: Time of development Advantages: readily available development software and tools Existing data migrated easily Can get exact functionality desired Can update as machine configurations change Workshop on Accelerator Operations Mainz, Germany, October 2014

9. Document Index Workshop on Accelerator Operations Mainz, Germany, October 2014

10. Operators Notebook Workshop on Accelerator Operations Mainz, Germany, October 2014

11. Operators Notebook Staffed hours for 2014 Workshop on Accelerator Operations Mainz, Germany, October 2014

12. Operators Notebook Workshop on Accelerator Operations Mainz, Germany, October 2014

13. Remote Operations Remote control is obtained via a VPN connection into the control system network. Limited personnel: Control Systems Group, Management, System Experts Once inside they can access the control system directly through an X-windows session Remote viewing is also available through standard VPN and web pages tailored to specific subsystems. Workshop on Accelerator Operations Mainz, Germany, October 2014

14. ATLAS Data Management CAMAC Serial Highway Distributed Controllers on Network Archive Accelerator Operating Data Update Accelerator Operating Conditions Oracle RDB Relational Database VSystem Paradox Retrieve Past Accelerator Tuned Configuration Set Runtime Database to Past Accelerator Configuration Real-time Database Relational Database Alpha Server Windows PC Live Data Server External Web Server Windows PC Outside Control System Network Internal Web Server Windows PC Inside Control System Network Workshop on Accelerator Operations Mainz, Germany, October 2014

15. Live Web Page Data Workshop on Accelerator Operations Mainz, Germany, October 2014

16. Summary Primary Control System Software Vsystem Paradox Archival System allows the reloading of the accelerator parameters with previous snapshots or scaled values. Hercules software rewritten to Java based applications using MySQL Remote control via VPN access Live Data (read-only) webpages Controls Group is always looking for ways to improve operations and all requests are considered. Workshop on Accelerator Operations Mainz, Germany, October 2014

17. Thank you! Question & Answer
