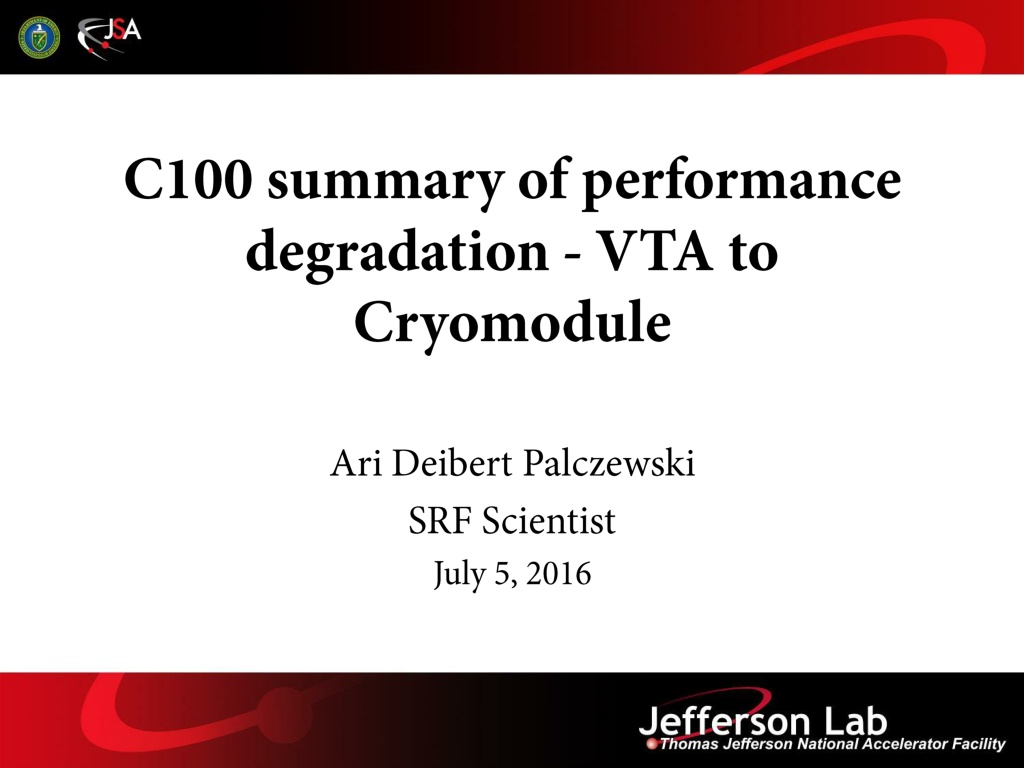

Quality Control and Testing Procedures for Superconducting Radiofrequency Cavities
C100 summary of performance
degradation - VTA to
Cryomodule
Ari Deibert Palczewski
SRF Scientist
July 5, 2016
Acknowledgements
JLab staff
•
Mike Drury – most of the slides
•
Kurt Macha
•
Rongli Geng
•
Andrew B. Burrill – now @ SLAC
•
John Mammosser – now @ SNS
I did not perform any data analysis or create any plots used in this talk
Outline
•
Measurement Hardware
•
FE Onset – Definitions
•
Overall Statistics
•
Known assembly issues VTA (cavity test) to CMTF
(module test)
Cavity
E
a
c
h
c
r
y
o
m
o
d
u
l
e
c
o
n
t
a
i
n
s
a
s
t
r
i
n
g
o
f
e
i
g
h
t
7
-
c
e
l
l
l
o
w
-
l
o
s
s
S
R
F
1
4
9
7
M
H
z
c
a
v
i
t
i
e
s
Each Cavity undergoes an rigorous qualification process
•
160
µ
M BCP
•
600 C Bake 24 hours – Hydrogen removal- Eliminates Q
0
disease
•
30
µ
M Electropolish – Reduce Q
0
Slope
•
Multiple High Pressure Rinses
•
120 C Bake for 24 hours
•
Vertical Test at 2.07 K
•
Cavity String assembled in a “Class 1000-100” Clean room
Cavities must deliver an Average
Maximum Operating gradient of
19.2 MV/m
with average
Q
0
of
7.2E9 at 2.07 K
96% exceeded requirement
Measurement Hardware
•
Vertical Test Area (VTA)
–
Single Ion Chamber installed inside Dewar lid (~ 7 feet above cavity and
~2 feet off axis) CANBERRA AM-IP100
•
Cryomodule Test Facility
–
Octirad – 8 channels of GM tubes
•
In use in CMTF until C100-5 tests
–
Decarad – 10 channels of GM tubes
•
In use during Commissioning tests (tunnel) beginning with C100-1
•
In use in CMTF starting with C100-6
•
Comparisons made between two systems during C100-7 tests – this
was a final verification test.
GM Tube Locations
Top Center
WG2
WG3
WG6
WG4/5
WG7
WG8
WG1
BL
Sup
BL
Ret
BL
Sup
BL
Ret
WG tubes and Top Center = Radial
BL Supply and Return = BL
Top Center
DecaRad
OctiRad
OctiRad / DecaRad Comparison
Cavity C100-7-2 on 06/01/12
•
Similar behavior for other cavities
•
Compared beamline tube positions and top center tube
position
•
Relatively good agreement up to about 100 mR/hr
•
Octirad tubes saturate at much lower dose rates
•
Onset Gradients derived from octirad data tends to be
higher by ~1 MV/m
DecaRad Calibration
Two tubes co-located with ion chamber on Test Cave Wall – ion chamber in VTS
identical to this one.
FE Onset Definition CMTF
Decarad Channels have noise floor at just above or below 1 mR/hr
Onset defined as the gradient at which slope intercepts 1mR/hr line
FE Onset Definition VTA
VTA Noise floor ≤ 1E-2 mR/hr
VTA Onset = 1
st
Gradient ≥ 1E-2 mR/hr
For comparisons in this presentation – using the CMTF definition
VTA Onsets
•
Using the CMTF definition results in higher average onset gradient for VTA data
•
x2 cavities that do not have FE onsets by definition
VTA and CMTF Onsets
•
1 mR/hr definition
•
Average Onset drops by 6 MV/m from VTA to CMTF
•
Number of Cavities with no Field Emission drops by more than half
R.L. Geng, 2016 CEBAF
StayTreat, June 28-30, 2016
Many
leaks
detected in the C100 strings.
o
80 Serpentine seals, 7 leaks
o
56 BL radial wedge seals, 0 leaks
o
20 BL cavity to valve seals, 1 leak
o
204 HOM/ FP seals, 1 repaired with using a higher torque
7 (out of 10) Cryomodules had leaks
.
o
Serpentine seal leak sizes ranged from 3e-9 TL/s to 4e-7 TL/s
o
The one beam line leak at the VAT valve was 4e-6 TL/s
Cavity String Assembly
Slide 13
known possible issues – VTA to module
•
“Slow pumpdown” of string was in general ~ 8X higher
(initial flow rate) than vertical cavity testing and ~20X
higher than ILC R&D rate.
•
Most string assemblies were performed in old
cleanroom which was spec’d to class 1000, unlike VTA
assembly which had secondary class 100/10 tents within
cleanroom for final assembly.
•
Worst module c100-4 was not fully disassembled and
re-hpr’ed when a cavity needed to be swapped mid
string assembly (no nitrogen purge @ JLab during string
assembly)
backup
Questions?
Mini-workshop on beam-line field-emitter particulates in CEBAF SRF linacs
Located in link below has other information about topic as well
https://www.jlab.org/indico/conferenceDisplay.py?confId=139
C100-3 Evolution
Two Cavities in this module have little or no measurable FE after two years after install
Gains from He Processing tend to be small in comparison with early performance
C100-4 Evolution
During String Assembly – original cavity at position 3 was swapped out
First Acceptance Test showed low FE onset gradients – between 6 MV/m and 11 MV/m
Also several cavities with very low quench gradients
Helium Processing used to recover gradient
After processing –Onset gradients between 9 MV/m and 16 MV/m
R.L. Geng, 2016 CEBAF
StayTreat, June 28-30, 2016
•
Ion chamber used in VTA and CMTF:
CANBERRA AM-IP100. Detector Sensitivities 0.4
μ
R/Pulse. Detector Range: 100
μ
R/h - 100 R/h.
Energy Range 50 keV to 3 MeV. (data retrieved
specification sheet published on vendor website)
•
Geiger-Muller (GM) tubes used with OctiRad
DAQ: Thermo Scientific HP-270. Gamma
Sensitivity: ~1200 cpm/mR/h (137Cs). Detector
range: from back ground to 100 mR/h for non
dead time corrected instruments or up to 3 R/h for
those equipped with dead time correction capability.
Energy Range: 20 keV to 1 MeV. (data retrieved
specification sheet published on vendor website)
•
GM tubes used with DecaRad DAQ: LND,
INC 714 Gamma Detector. Gamma Sensitivity: 90
cpm/mR/h (60Co). Detector Range: 2 mR/h -
500 R/h (60Co). Energy Range: 40 keV to 500
keV. (Information provided by Omar Garza of
Engineering Division, JLAB. Range data retrieved
from information provided by Bill Lehnert of LND,
Inc.)
