1. Concentrator and Pre-processing Status Javier Collado Departamentode Ing. Electr nica. Universitatde Val ncia Institutode F sica Corpuscular. CSIC-UV AGATA Week 2018 Strasbourg (France)

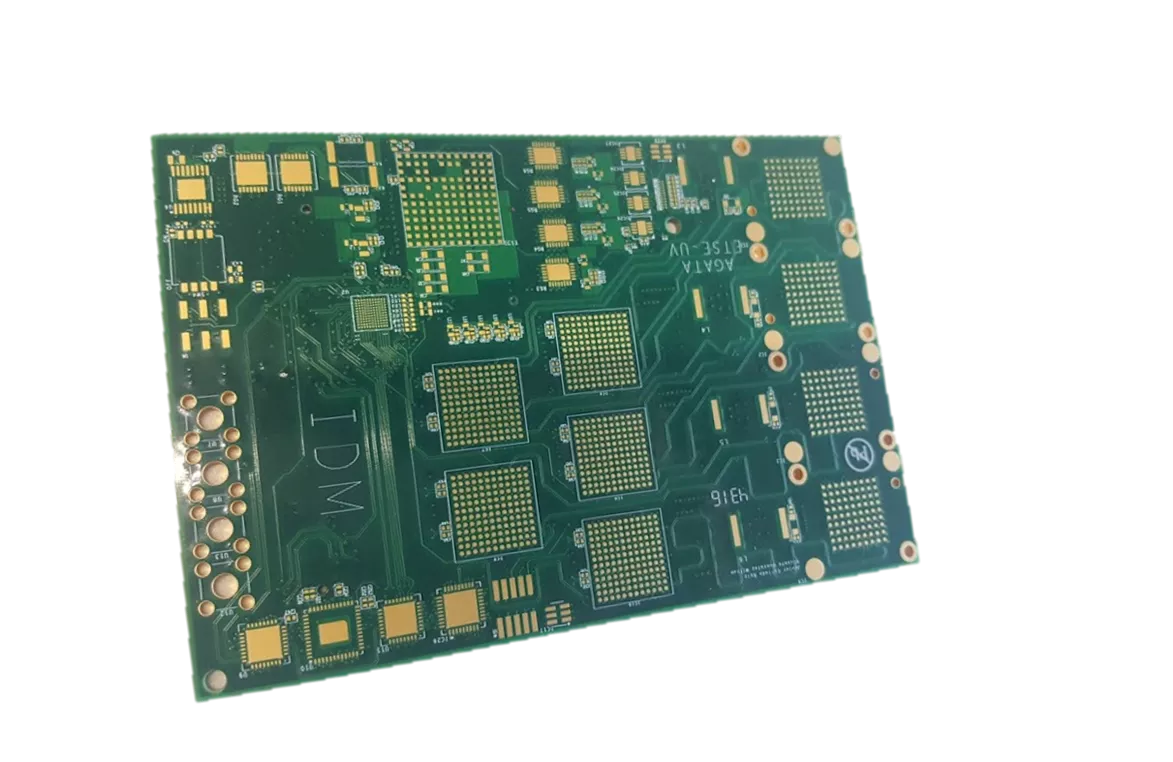

2. IDM Input Data Mezzanine TLK0022 2x(4:1) Link Aggregator TOP FPGA Control ICE40LP8k CM121 Low Power MiniPOD GND TLK0022 2x(4:1) Link Aggregator High Speed Signals GND MiniPOD POWER TLK0022 2x(4:1) Link FMC-A0 Input Data Mezzanine (IDM-A0) Aggregator POWER 8Gbps Power POWER MiniPOD TLK0022 2x(4:1) Link Aggregator Low Speed Signals GND High Speed Signals TLK0022 2x(4:1) Link Aggregator MiniPOD GND BOTTTOM FMC (HPC) SAMTEC SEARAY SEAM 400 pin 28+ Gbps 1/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

3. IDM Input Data Mezzanine Alarm SPI Order Decoder Memory Module Init Alarm Module W Slave I2C IDMbus Master R System Status Memory Updater Optical Input and Clock Module Sensor and Power Module Aggregator Module Controler I2C I/O I/O I2C I2C 2/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

4. IDM Input Data Mezzanine Alarm SPI Order Decoder Memory Module Init Alarm Module W Slave I2C IDMbus Master R System Status Memory Updater Optical Input and Clock Module Sensor and Power Module Aggregator Module Controler I2C I/O I/O I2C I2C 2/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

5. Test and Validation uP 4x20 CH1 CH2 CH3 CH4 80 JESD204 Xilinx Custom PHY JESD204 GTH 8Gbps Reorder JESD204 Xilinx RAM X10 JESD204 Xilinx JESD204 Xilinx PC read 3/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

6. Test and Validation IDM I2C Control uP 4x20 CH1 CH2 CH3 CH4 80 JESD204 Xilinx Custom PHY JESD204 Done Being Tested Reorder GTH 8Gbps Done Not Tested JESD204 Xilinx RAM X10 JESD204 Xilinx JESD204 Xilinx Next Step PC read 3/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

7. PCB Flex-Rigid Connector IDM I2C Control Cost: 200-400 per Unit No required power Easy to connect Compatibility Flex Rigid PCB Cost: 8x200 on transceiver + Fibre Required power: 32W Temperature Specific Fibre 4/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

8. Pre-processing GTS Connection & Clock Distribution ? SOM Slow Control Buffers 2xFMC 5/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next

9. Next Data reception JESD204 IDM Testbench Prototype Flex connector Power IDM Issues PACE Cap Design Fall 2018 Spring 2019 Summer 2019 Winter 2018 6/6 IDM: Hardware, Firmware, Test Flex Pre-proccesing Next
