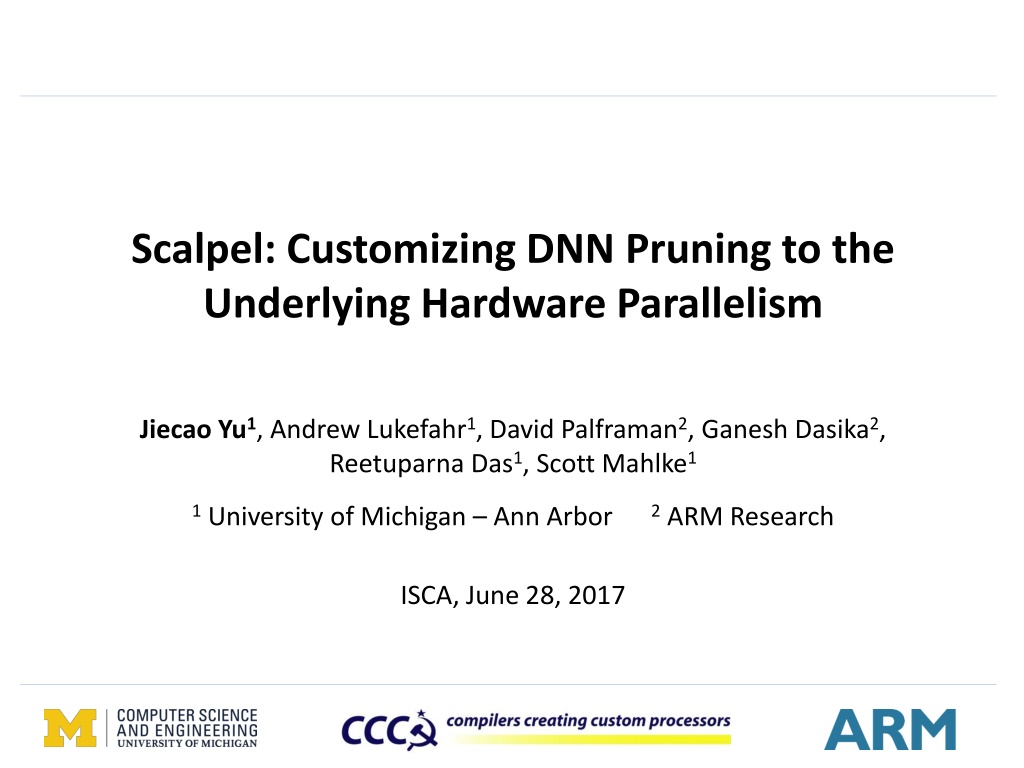

1. Scalpel: Customizing DNN Pruning to the Underlying Hardware Parallelism Jiecao Yu1, Andrew Lukefahr1, David Palframan2, Ganesh Dasika2, Reetuparna Das1, Scott Mahlke1 1 University of Michigan Ann Arbor 2 ARM Research ISCA, June 28, 2017

2. Deep Neural Networks High storage and computation cost AlexNet: 240 MB, 1.5 GFLOP VGG: 550 MB, 30.9 GFLOP DNN compression is necessary Removing unimportant parameters 2

3. DNN Architecture Weight Matrix 0 2 0 8 0 5 0 0 1 0 0 9 6 0 2 4 0 1 4 3 0 3 0 0 0 5 8 0 0 0 1 7 0 0 2 1 Output Vector Input Vector = X X1 W1 Y f High redundancy Wn Xn 3

4. Weight Pruning * Weight Matrix 0 0 2 0 0 1 8 0 0 0 0 2 0 8 0 5 5 5 0 0 1 0 0 9 9 9 6 6 0 2 4 0 6 0 2 4 0 1 1 4 3 0 3 0 0 0 4 3 0 3 0 4 3 0 5 8 0 0 0 5 8 0 0 0 0 1 7 0 0 2 1 7 0 0 2 1 1 5 8 7 8 4 3 |Weights| > Threshold Computation and storage * Han, Song, et al. "Learning both weights and connections for efficient neural network." NIPS. 2015. 4

5. Drawbacks Sparse format needs extra storage 0 1 2 3 4 5 CSR Format 6 4 3 Weights 5 8 7 6 4 3 5 7 8 8 4 3 5 9 A = Column indexes 8 4 3 2 3 3 4 5 4 0 2 3 0 1 JA = 5 9 0 2 5 6 9 9 11 IA = One column index for each weight 5

6. Drawbacks Execution time increase Computation reduction not fully utilized Extra computation for decoding sparse format AlexNet * Relative Model Size, Computation and Exec. Time 4 334% 3 2 125% Unpruned Baseline 1 42% 22% 0 Size Computation Time-CPU Time-GPU * AlexNet not tested on microcontroller 6

7. Scalpel Trained DNN Low parallelism - Micro. No cache Low storage (~100 KB) High Low Hardware Parallelism High parallelism - GPU TLP High bandwidth / long latency memory Moderate FC CONV Layer Type Moderate parallelism - CPU ILP / MLP SIMD-Aware Weight Pruning Node Pruning Pruned DNN 7

8. Matrix-Vector Multiplication with SIMD + x x 0 1 0 2 + 0 = 0 0 0 6 0 5 7 0 0 0 0 0 0 0 0 0 0 4 0 0 0 4 3 0 0 0 0 0 0 0 0 0 0 6 0 5 7 0 0 0 0 0 0 0 0 0 0 4 0 0 0 4 3 0 0 0 0 0 0 0 0 0 0 1 2 0 0 0 0 1 2 0 0 1 2 1 2 1 1 X + x x 6 1 0 2 + 0 = 6 + + 6 = 18 x x 5 1 7 1 Assume SIMD width = 2 Two loads / multiply-accumulate (MAC) in one instruction SIMD benefits dense matrix-vector multiplication 8

9. Sparse Matrix-Vector Multiplication Weights 0 1 2 3 4 5 0 0 6 0 5 7 0 0 0 0 0 0 0 0 0 0 4 0 0 0 4 3 0 0 0 0 0 0 0 0 0 0 1 2 0 0 1 2 6 5 7 4 4 3 1 2 6 5 7 1 2 1 2 1 1 Indexes 2 4 5 4 2 3 2 3 4 X 4 3 + x x 6 1 + 0 = 6 + x x 5 1 + 6 = 11 + x x 7 1 + 11 = 18 SIMD not fully utilized Extra storage for column indexes 9

10. Weights in Groups Weights 0 1 2 3 4 5 6 6 0 5 7 6 0 5 7 4 0 4 3 1 2 5 7 1 2 1 2 1 1 Indexes 2 4 4 2 2 4 4 0 X 4 3 4 3 + x x 6 1 0 2 + 0 = 6 1 2 1 2 + + 6 = 18 x x 5 1 7 1 SIMD units fully utilized Fewer column indexes 10

11. SIMD-Aware Weight Pruning Start with original weight matrix Weights grouping Group size = SIMD width Calculate importance of groups Root mean square a2+b2 2 Remove redundant groups Importance < Threshold 0 2 0 8 0 5 5 5 0 2 0 8 0 0 0 1 0 0 9 9 9 0 0 1 0 0 6 0 2 4 0 6 0 2 4 0 1 1 6 4 4 3 0 3 0 4 3 0 3 0 0 0 0 5 8 0 0 0 0 0 5 8 0 0 1 7 0 0 2 1 7 0 0 2 1 1 5 8 7 0 8 0 4 3 Num of weights Model size Execution time 11

12. Performance Benefit Low Parallelism ARM Cortex-M4 Microcontroller 2.5 48% 68% Relative Exec. Time 2 1.5 Dense Baseline 1 0.5 0 0.3 0.4 0.5 0.6 Pruning Rate 0.7 0.8 0.9 1 Traditional Weight Pruning SIMD-Aware Weight Pruning 12

13. Performance High Parallelism NVIDIA GTX Titan X Traditional weight pruning 96.3% 2.5 Relative Exec. Time 2 1.5 Dense Baseline 1 0.5 0 0.9 0.92 0.94 0.96 0.98 1 Pruning Rate Sparsity hurts performance Pruning without sparsity 13

14. Node Pruning Keep regular DNN structure: no sparsity Remove redundant nodes Nodes: neurons (FC) / feature maps (CONV) Mask layers finds unimportant nodes Add mask layers b <T b T 0, 1, (Blocked) (Kept) a = Mask Layer Train mask layers Remove redundant nodes and mask layers A 14

15. Combined Pruning Moderate Parallelism Intel Core i7-6700 CPU Impact of sparsity on computation performance FC layers CONV layers 84% 3% 2.5 1.2 Dense 1 Relative Exec. Time Relative Exec. Time 2 0.8 1.5 0.6 Dense 1 0.4 0.5 0.2 0 0 0.7 0.8 0.9 1 0 0.2 0.4 Pruning Rate 0.6 0.8 1 Pruning Rate SIMD-Aware Weight Pruning SIMD-Aware Weight Pruning SIMD-aware weight pruning Node pruning 15

16. Evaluation Methodology Networks MNIST: LeNet-300-100, LeNet-5 CIFAR-10: ConvNet, Network-in-Network ImageNet: AlexNet Hardware Low-parallelism: ARM Cortex-M4 microcontroller Moderate-parallelism: Intel Core i7-6700 CPU High-parallelism: NVIDIA GTX Titan X Baseline: Traditional weight pruning * * Han, Song, et al. "Learning both weights and connections for efficient neural network." NIPS. 2015. 16

17. Results: ARM Cortex-M4 microcontroller Relative Exec. Time Relative Model Size 1.0 1.0 1.0 1.0 1.2 0.5 1 0.4 0.8 0.3 0.6 0.2 0.4 0.1 0.2 0 0 Original Traditional Scalpel Original Traditional Scalpel 28% execution time 12% model size 17

18. Results: Intel Core i7-6700 CPU Relative Exec. Time Relative Model Size 2.7 1.2 1.4 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.2 0.2 0 0 Original Traditional Scalpel Original Traditional Scalpel 38% execution time 18% model size 18

19. Results: NVIDIA GTX Titan X Relative Exec. Time Relative Model Size 4 1.4 3.5 1.2 3 1 2.5 0.8 2 0.6 1.5 0.4 1 0.2 0.5 0 0 Original Traditional Scalpel Original Traditional Scalpel 80% execution time 47% model size 19

20. Conclusions Traditional weight pruning has drawbacks Sparse format needs extra storage Execution time increase Scalpel customizes pruning for hardware with different parallelism SIMD-aware weight pruning: utilizing SIMD units Node pruning: avoiding sparsity Microcontroller / CPU / GPU: Traditional: 53%, 94%, and 242% execution time Scalpel: 28%, 38%, and 80% execution time 20
