Centrifugation: Industrial and Laboratory Applications

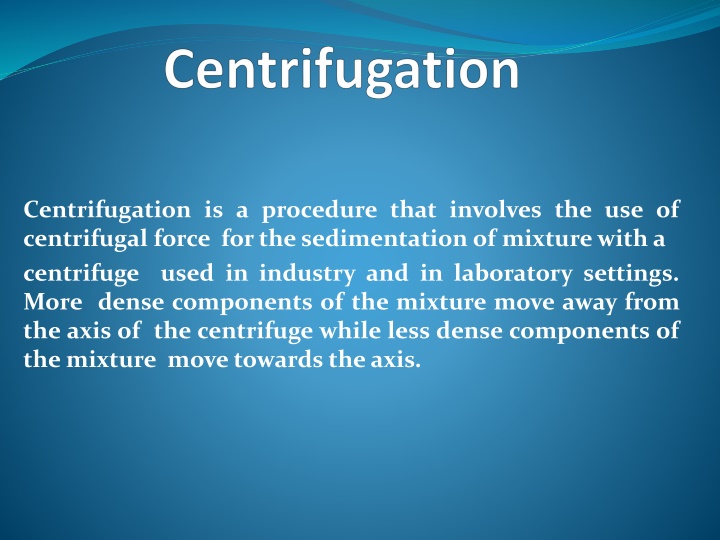

Centrifugation is a procedure that involves the use of
centrifugal force for the sedimentation of mixture with a
centrifuge used in industry and in laboratory settings.
More dense components of the mixture move away from
the axis of the centrifuge while less dense components of
the mixture move towards the axis.
A particle whether it is a precipitate a macromolecule or a cell
organelle is subjected to a centrifugal force when it is rotated at a high
rate of speed. The centrifugal force F is denoted by equation
F=mω
2
r
Where
F=
intensity of the centrifugal force
m=
effective mass of the sedimenting particle
ω=
angular velocity of rotation
r=
distance of the migrating particles from the central axis of
rotation
A more
common measurement of F in terms of the earths gravitation force ,
g, is relative centrifugal force, RCF its defined by
RCF = (1.119 x 10-
5
(rpm)
2
(r)
This equation relates RCF to revolutions per minute of the sample . Equation
dictates that the RCF on a sample will vary with r, the distance of the
sedimenting particles from the axis of rotation . The RCF value is reported as
“ a number times gravity ,g .”
A laboratory tabletop centrifuge. The
rotating unit, called the rotor, has
fixed holes drilled at an angle (to the
vertical). Test tubes are placed in
these slots and the motor is spun. As
the centrifugal force is in the
horizontal plane and the tubes are
fixed at an angle, the particles have
to travel only a little distance before
they hit the wall and drop down to
the bottom. These angle rotors are
very popular in the lab for routine
use.
The basic centrifuge consists of two components one is Electric motor
with drive shaft to spin the sample and a Rotor to hold tubes or other
containers of the sample. A wide variety of centrifuges are available
ranging from a low speed centrifuge used for routine pelleting of
relatively heavy particles. There are three types of centrifuges
1.
Low –speed centrifuges
.
Its also called as clinical centrifuge.
>>
The common centrifuge has a maximum speed in the range of
4000 to 5000 rpm with RCF value approx. up to 3000Xg. These
instruments usually operate at low temperature with no means of
temperature control of the samples.
>>
Two types of rotors fixed angle and swinging bucket may be
used in this instruments.
continue….
>>
Low speed centrifuges are especially useful for the rapid
sedimentation of coarse precipitates or red blood cells.
>>
The sample is centrifuged until the particles are packed into a
pellet at the bottom of the tube. The upper liquid portion, the
supernatant, is then separated by decantation.
2.
High Speed Centrifuges
:
>>
High speed centrifuges for more sophisticated biochemical
applications. Higher speeds and temperature control of the rotor
chambers are essential.
>>
Rotor chambers in most instruments are maintained at or near 4
0
C. Three types of rotors are available for high speed centrifugation.
a.
Fixed Angel rotor.
b.
Swinging –bucket rotors
c.
vertical rotor
>>
High speed centrifuges are used to sediment
>Cell debris after cell homogenization.
>Ammonium sulfate precipitates of proteins and cellular
organelles such as chloroplasts, mitochondria and nuclei.
3.
Ultracentrifuge s:
>>
The most sophisticated of the centrifuges are the
ultracentrifuges because of the high speeds attainable intense
heat is generated in the rotor so the spin chamber must be
refrigerated and placed under high vacuum to reduce friction.
>>
it is a high speed centrifuge that has fixed head rotors.
It is mainly used in separation of lipoproteins. Since the
separation is long process there is generation of heat and thus
are provided with internal cooling system.
>>
Ultracentrifuges can be used both for preparative work
as well as for analytical. Preparative models its primarily used
for separations and purification of samples
for further analysis
and analytical models which are designed for performing
physical measurements on the sample during sedimentation.
Glass centrifuge tubes
can be used with most solvents,
but tend to be more expensive. They can be cleaned like
other laboratory glassware, and can be sterilized by
autoclaving.
Plastic centrifuge tubes
, especially micro-centrifuge
tubes tend to be less expensive. Water is preferred when
plastic centrifuge tubes are used. They are more difficult
to clean thoroughly, and are usually inexpensive enough
to be considered disposable
Centrifuge tubes
Three microcentrifuge tubes: 2
mL, 1.5 mL and 200 μL .
Four screw-top micro-
centrifuge tubes.
Preparative Techniques
Centrifuges in undergraduate biochemistry laboratories
are used most often for preparative – scale separation .
This technique is quite straightforward consisting of
placing the sample in a tube or similar container inserting
the tube in the rotor and spinning the sample for a fixed
period. The sample is removed and the two phases ,pellet
and supernatant may be separated by careful decantation
further characterization or analysis is usually carried out
on the individual phases . This technique called as
velocity sedimentation centrifugation, separates particles
ranging in size from coarse precipitates to cellular
organelles .
In this process a tissue is first
Homogenised to break the cell
membranes and mix up the cell
contents. The homogenate is then
subjected to repeated centrifugations.
Each time removing the pellet and
increasing the centrifugal force.
Finally purification may be done
through equilibrium sedimentation
and the desired layer extracted for
further analysis . Separation is based
on size and density, with larger and
denser particles pelleting at lower
centrifugal force. Although the
technique is similar to preparative
differential centrifugation but the
goal of an experiment is to measure
the sedimentation coefficient of the
particle
A procedure for separating particles such as viruses or
ribosome or molecules such as DNA in which the sample is
placed on a preformed gradient such as sucrose or cesium
chloride.
Upon centrifugation either by rate zonal or equilibrium
procedures, the macromolecules are 'banded' in the gradient
and can be collected as a pure fraction .
Density gradient centrifugation permits the separation of
multicomponent mixtures of macromolecules and the
measurement of sedimentation coefficient .
Two methods are used zonal centrifugation in which the
simple is centrifuged in a preformed gradient and isopycnic
centrifugation in which a self generating gradients forms
during centrifugation.
D
D
e
e
n
n
i
i
s
s
t
t
y
y
g
g
r
r
a
a
d
d
i
i
e
e
n
n
t
t
c
c
e
e
n
n
t
t
r
r
i
i
f
f
u
u
g
g
a
a
t
t
i
i
o
o
n
n
It allows separation of many components in a mixture
by creating density
gradient during centrifugation
There are two forms of density gradient centrifugation:
•
Rate zonal and
•
Isopycnic
R
R
a
a
t
t
e
e
Z
Z
o
o
n
n
a
a
l
l
C
C
e
e
n
n
t
t
r
r
i
i
f
f
u
u
g
g
a
a
t
t
i
i
o
o
n
n
(
(
a
a
l
l
s
s
o
o
t
t
e
e
r
r
m
m
e
e
d
d
s
s
e
e
d
d
i
i
m
m
e
e
n
n
t
t
a
a
t
t
i
i
o
o
n
n
v
v
e
e
l
l
o
o
c
c
i
i
t
t
y
y
,
,
z
z
o
o
n
n
e
e
c
c
e
e
n
n
t
t
r
r
i
i
f
f
u
u
g
g
a
a
t
t
i
i
o
o
n
n
)
)
In rate zonal centrifugation, the sample is applied in a
thin zone at the top of the centrifuge tube on a density
gradient. Under centrifugal force, the particles will
begin sedimenting through the gradient in separate
zones according to their size shape and density. The run
must be terminated before any of the separated
particles reach the bottom of the tube.
Swing bucket rotor
I
I
s
s
o
o
p
p
y
y
c
c
n
n
i
i
c
c
c
c
e
e
n
n
t
t
r
r
i
i
f
f
u
u
g
g
a
a
t
t
i
i
o
o
n
n
(
(
a
a
l
l
s
s
o
o
t
t
e
e
r
r
m
m
e
e
d
d
s
s
e
e
d
d
i
i
m
m
e
e
n
n
t
t
a
a
t
t
i
i
o
o
n
n
equilibrium centrifugation
equilibrium centrifugation
)
)
During the centrifugation, the CsCl generates a gradient
(“self-generating gradient”), and the molecules move to
the position in the gradient where their density is the
same as the gradient material. Isopycnic means “same
density,” so the molecules move to their “isopycnic
position.”
Fixed angle or swing bucket rotor
G
G
r
r
a
a
d
d
i
i
e
e
n
n
t
t
s
s
S
S
u
u
c
c
r
r
o
o
s
s
e
e
C
C
s
s
C
C
l
l
2
2
G
G
l
l
y
y
c
c
e
e
r
r
o
o
l
l
D
D
e
e
x
x
t
t
r
r
a
a
n
n
Centrifugation is a procedure that utilizes centrifugal force to separate components based on density in mixtures for both industrial and laboratory purposes. This process involves the rotation of particles at high speeds to induce sedimentation. Different types of centrifuges, such as low-speed and high-speed centrifuges, are used depending on the application. Low-speed centrifuges are ideal for quick pelleting of heavy particles, while high-speed centrifuges are used for more advanced biochemical tasks, requiring precise control of speed and temperature.
