Autonomous Obstacle Avoidance Robot Using ROS, Lidar, and Raspberry Pi with Matlab Path Planning

Obstacle avoidance in robotics has evolved from basic collision avoidance to autonomous path planning with the use of Lidar and ROS. This project involves mapping the environment using Lidar scans and implementing a path planning algorithm in Matlab to navigate around obstacles. By utilizing a Raspberry Pi and ROS, the robot can choose alternative paths to reach its destination, making obstacle avoidance efficient and intelligent. The system offers a significant upgrade from conventional obstacle sensing methods, enhancing the robot's autonomy and decision-making capabilities.

• Robotics
• Path Planning
• Lidar
• Raspberry Pi
• Matlab

elyse Follow

Uploaded on Aug 03, 2024 | 2 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

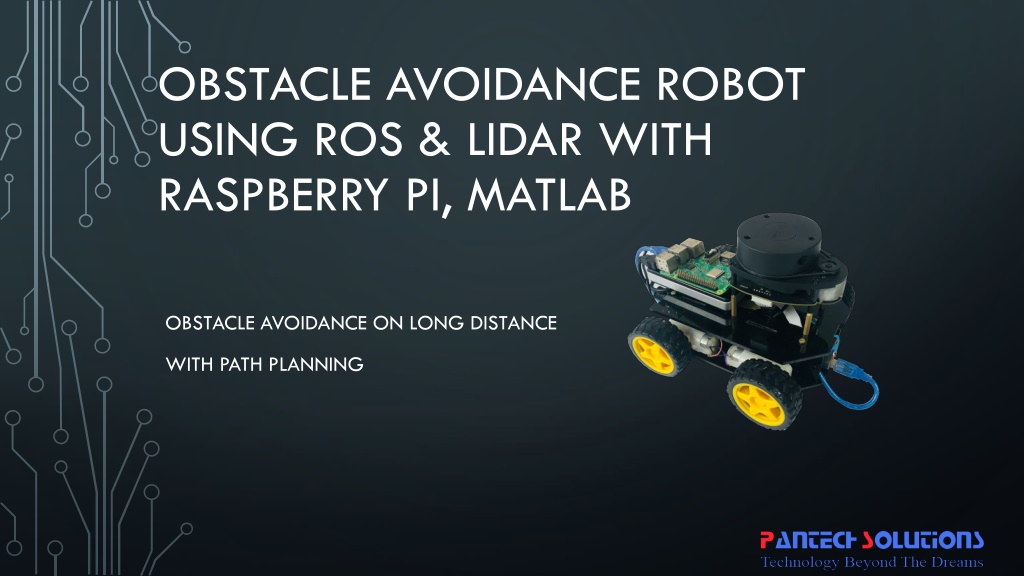

1. OBSTACLE AVOIDANCE ROBOT USING ROS & LIDAR WITH RASPBERRY PI, MATLAB OBSTACLE AVOIDANCE ON LONG DISTANCE WITH PATH PLANNING

2. INTRODUCTION Obstacle avoiding methods are used from least to the ultimate models. It is used to avoid the collision on obstacles. But before in old methods, there is no autonomous option to choose the alternative path when the obstacle is present in the way. But this can be possible now by using LIDAR with ROS, by using LIDAR scans mapping is done. So that the Bot knows the complete map of the environment and by using PRM for Path planning algorithm in Matlab alternative path can be chosen.

3. ABOUT MATLAB ROS In the Latest version of Matlab, it has ROS (Robotic Operating System) software supporting package. By using that its system can able to communicate with the ROS robot using ROS Network configurations.

4. EXISTING SYSTEM In the existing obstacle avoidance robot, simply the sensors like IR and Ultrasonic sensors are used to sense the obstacle. It doesn t have a feature to choose the alternative path and to follow it.

5. PROPOSED SYSTEM In this proposed system, by using 60-degree lidar is used to map the environment with an obstacle. And by using path planning algorithm robot chooses its own path to reach some destination point by avoiding the obstacle.

6. BLOCK DIAGRAM

7. PROJECT DESCRIPTION Raspberry Pi is used with ROS software libraries RPLidar A1 360 degree lidar interfaced with the Raspberry Pi publishes the Laser scan data, which is received by subscribing the same ROS Topic in Matlab ROS Package. Initially, mapping is done throughout the environment using Laser scan from Lidar. If there is obstacle it gets also differentiated in the Laser scan map since before and after the scan is plotted of obstacle presence. Binary occupancy grid can be generated and prompts to choose the destination in the Map By using PRM (Probabilibitic Road Map) algorithm, with the number of nodes and length of connecting node distance path can be generated from the starting point to the destination point with the avoidance of colliding walls. Now the path following is performed to reach the destination.

8. HARDWARE USED Raspberry Pi 3 SD Card 16 GB class 10 RPLidar A1 Robot Setup Power Bank (10000 mAh, 2 A minimum) Arduino UNO HC-05 Bluetooth Module L293D Driver module

9. SOFTWARE USED ROS kinetic OS image for Raspberry Pi Matlab, which has a Robotic Operating System Software Package Arduino IDE SD Card Formatter Etcher/win32Disk Imager/Rufus

10. RESULTS Mapping

11. OCCUPANCY MAP

12. DESTINATION MARKING IN BINARY OCCUPANCY GRID

13. PATH PLANNING USING PRM (PROBABILISTIC ROAD MAP)

14. PATH PLANNING

15. THANK YOU
