Apache Avro CMSC 491 Hadoop-Based Distributed Computing Spring 2016 Adam Shook

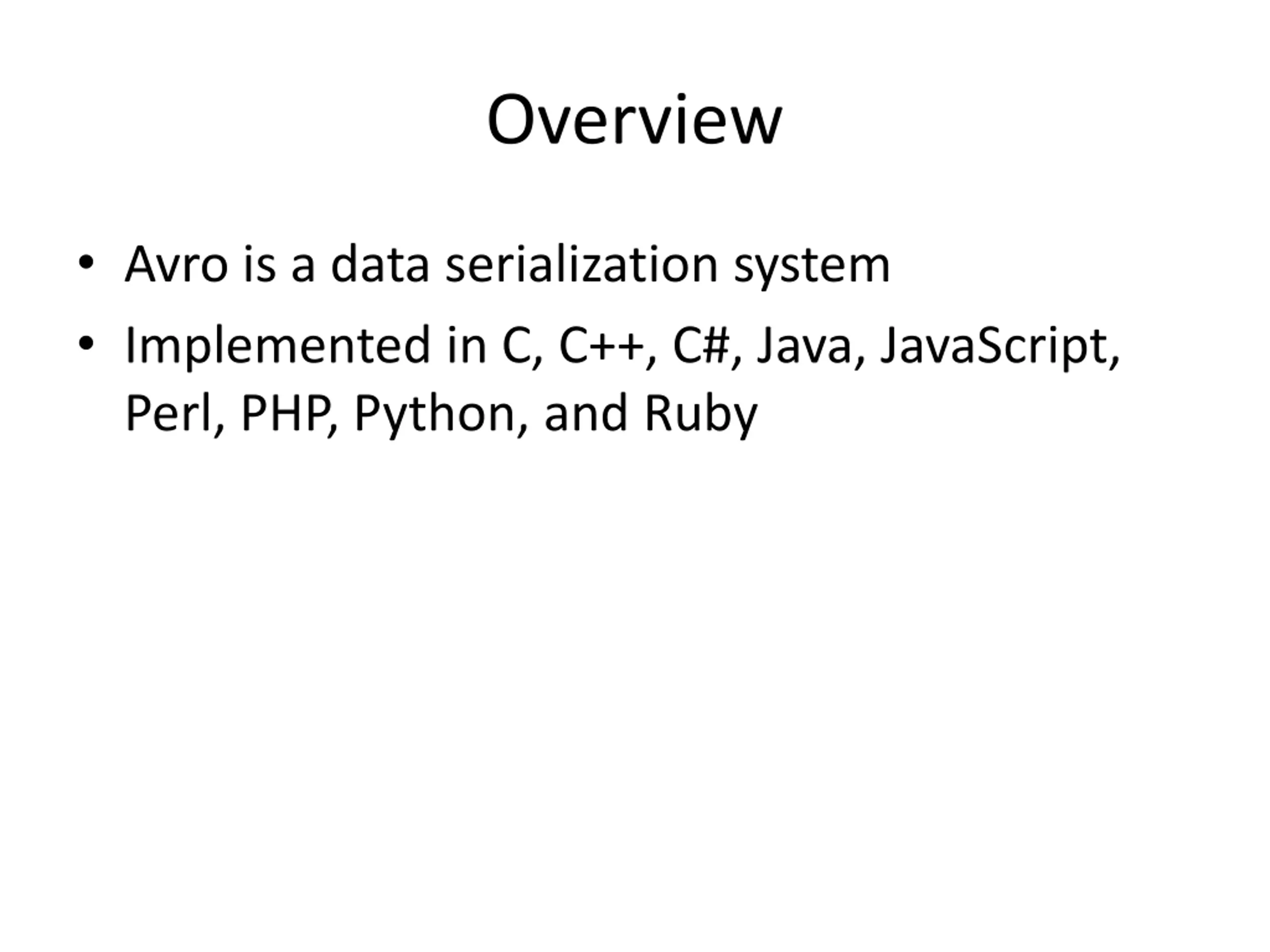

Overview Avro is a data serialization system Implemented in C, C++, C#, Java, JavaScript, Perl, PHP, Python, and Ruby

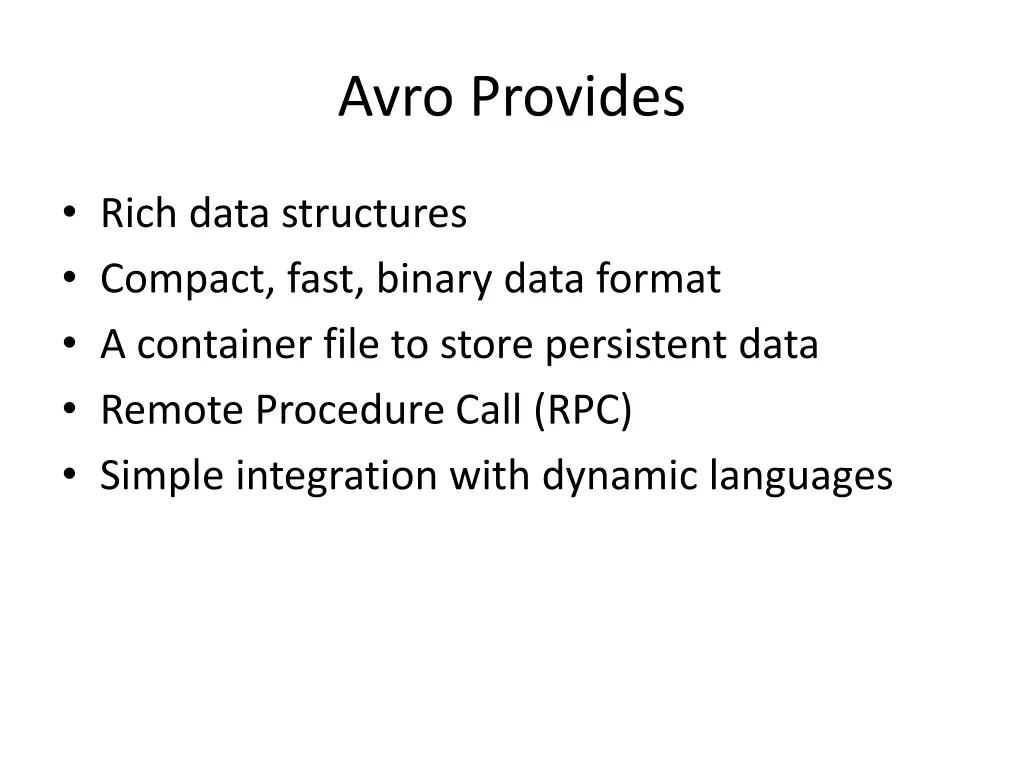

Avro Provides Rich data structures Compact, fast, binary data format A container file to store persistent data Remote Procedure Call (RPC) Simple integration with dynamic languages

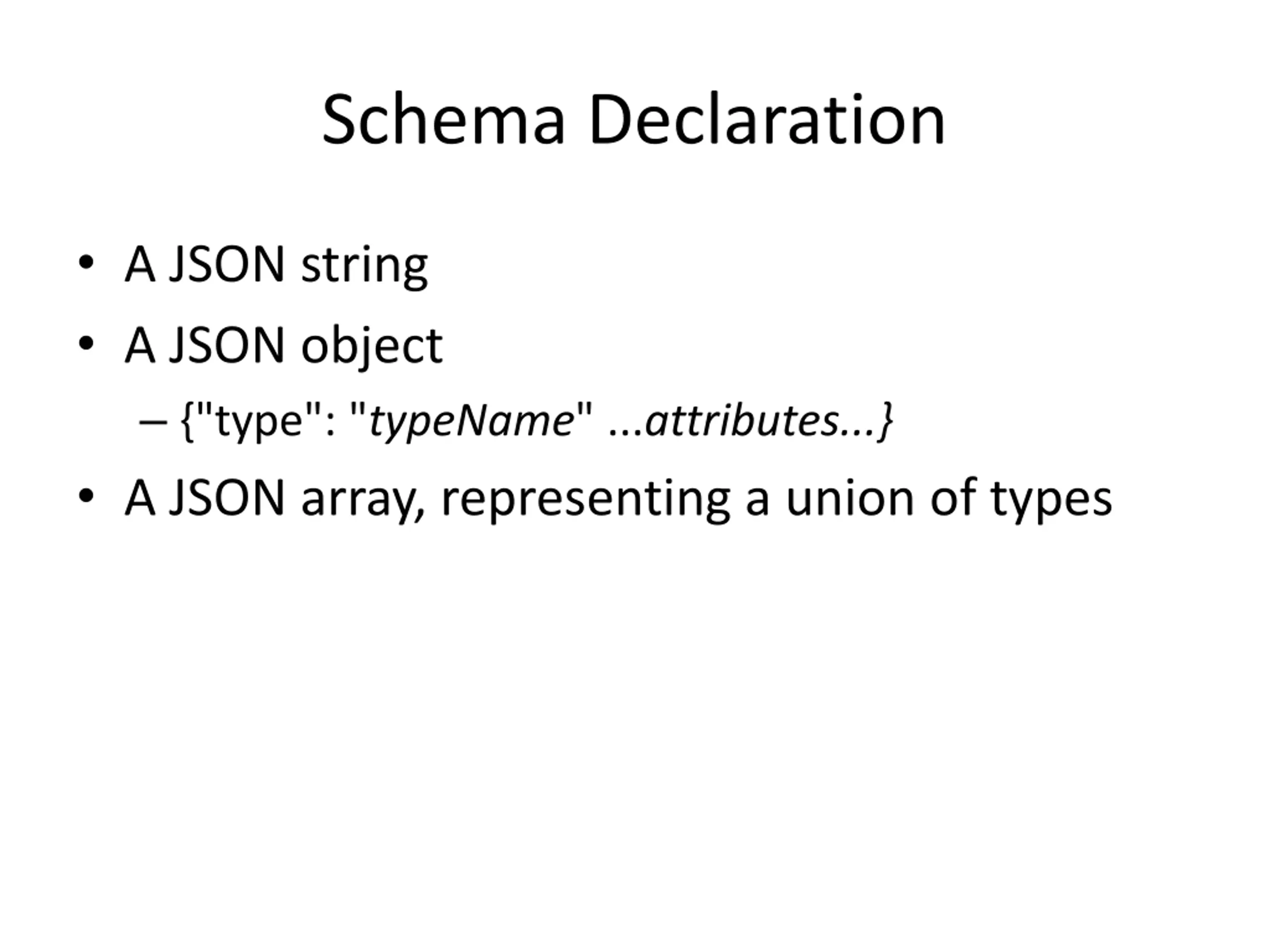

Schema Declaration A JSON string A JSON object {"type": "typeName" ...attributes...} A JSON array, representing a union of types

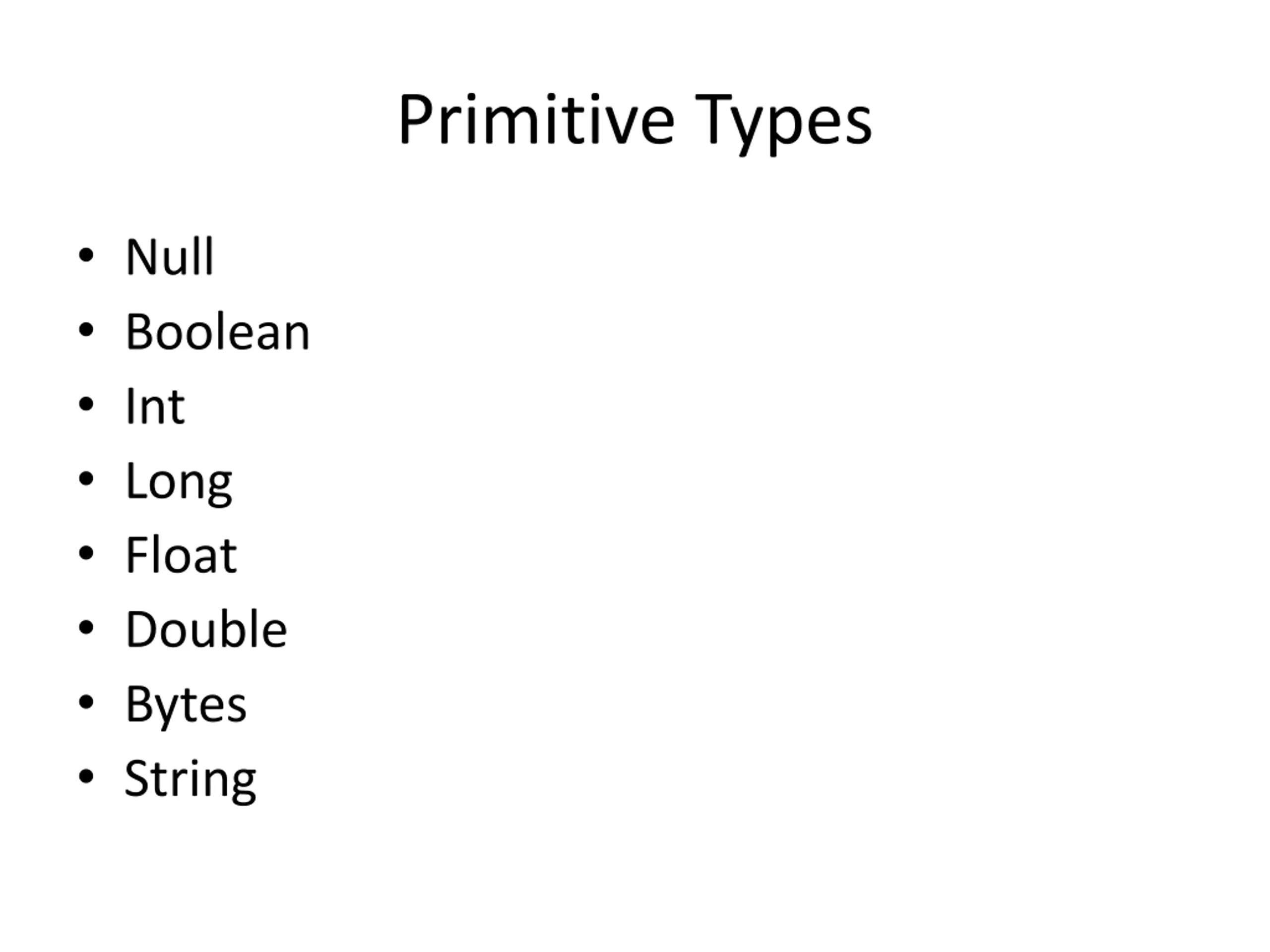

Primitive Types Null Boolean Int Long Float Double Bytes String

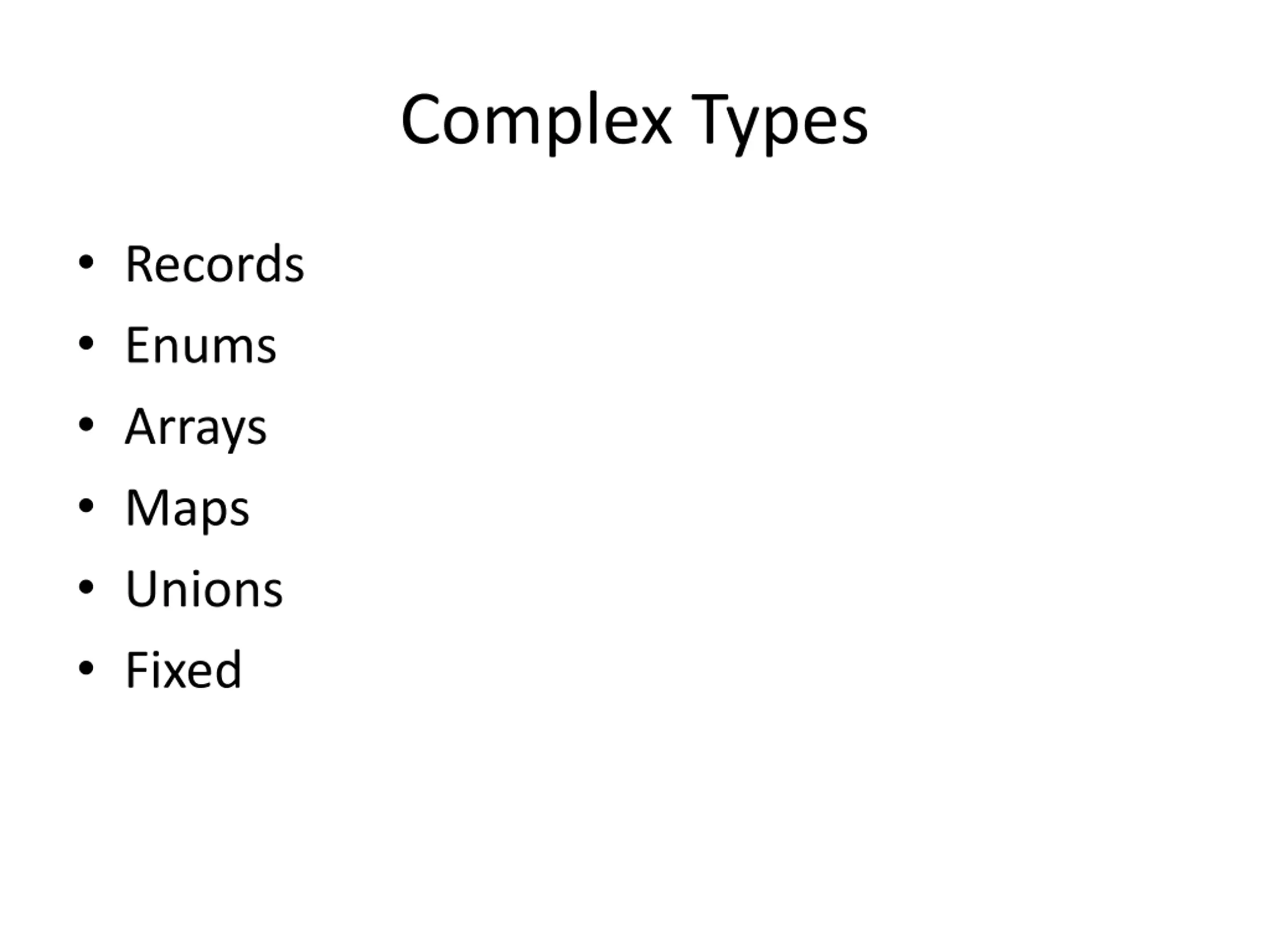

Complex Types Records Enums Arrays Maps Unions Fixed

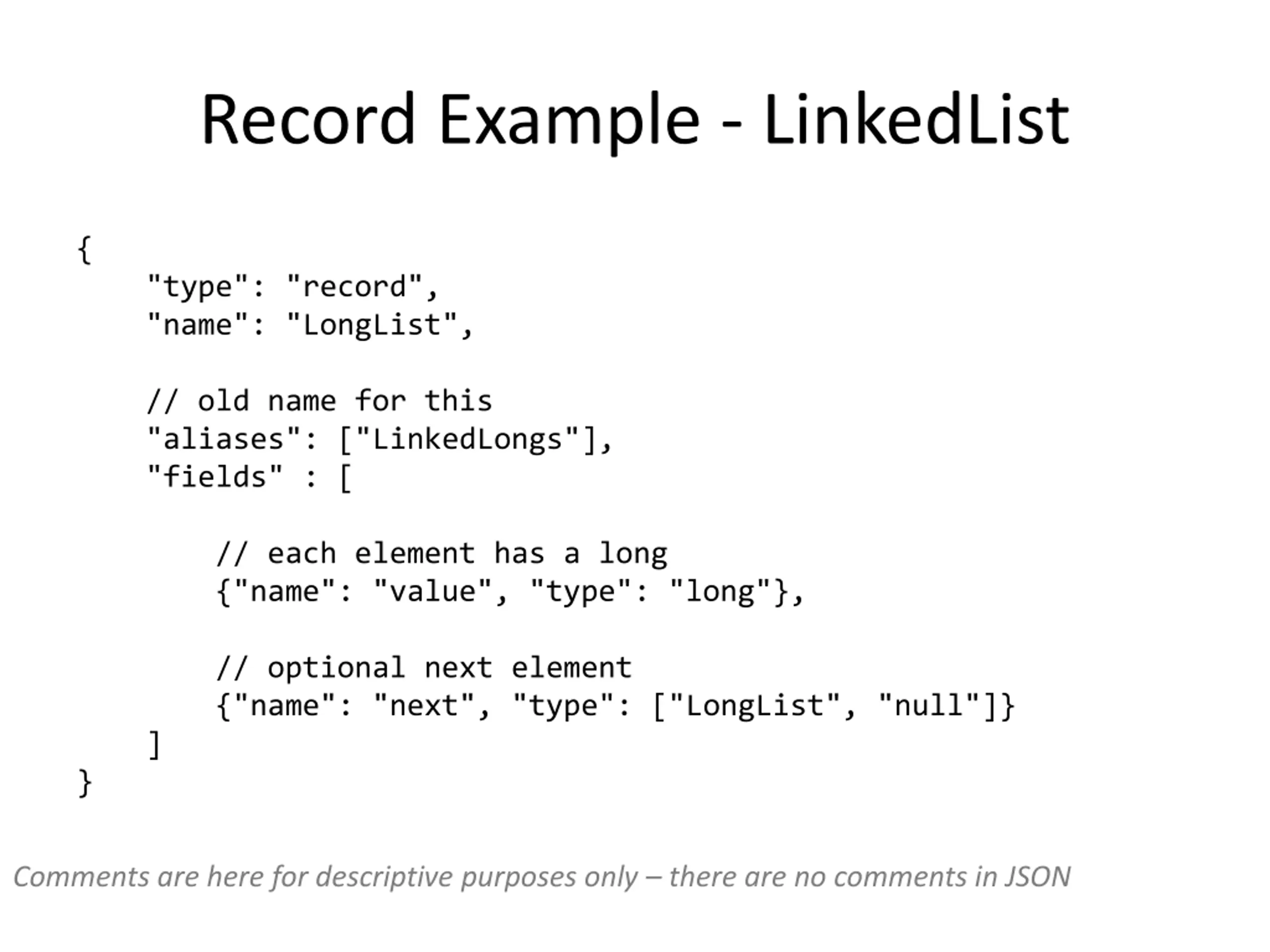

Record Example - LinkedList { "type": "record", "name": "LongList", // old name for this "aliases": ["LinkedLongs"], "fields" : [ // each element has a long {"name": "value", "type": "long"}, // optional next element {"name": "next", "type": ["LongList", "null"]} ] } Comments are here for descriptive purposes only there are no comments in JSON

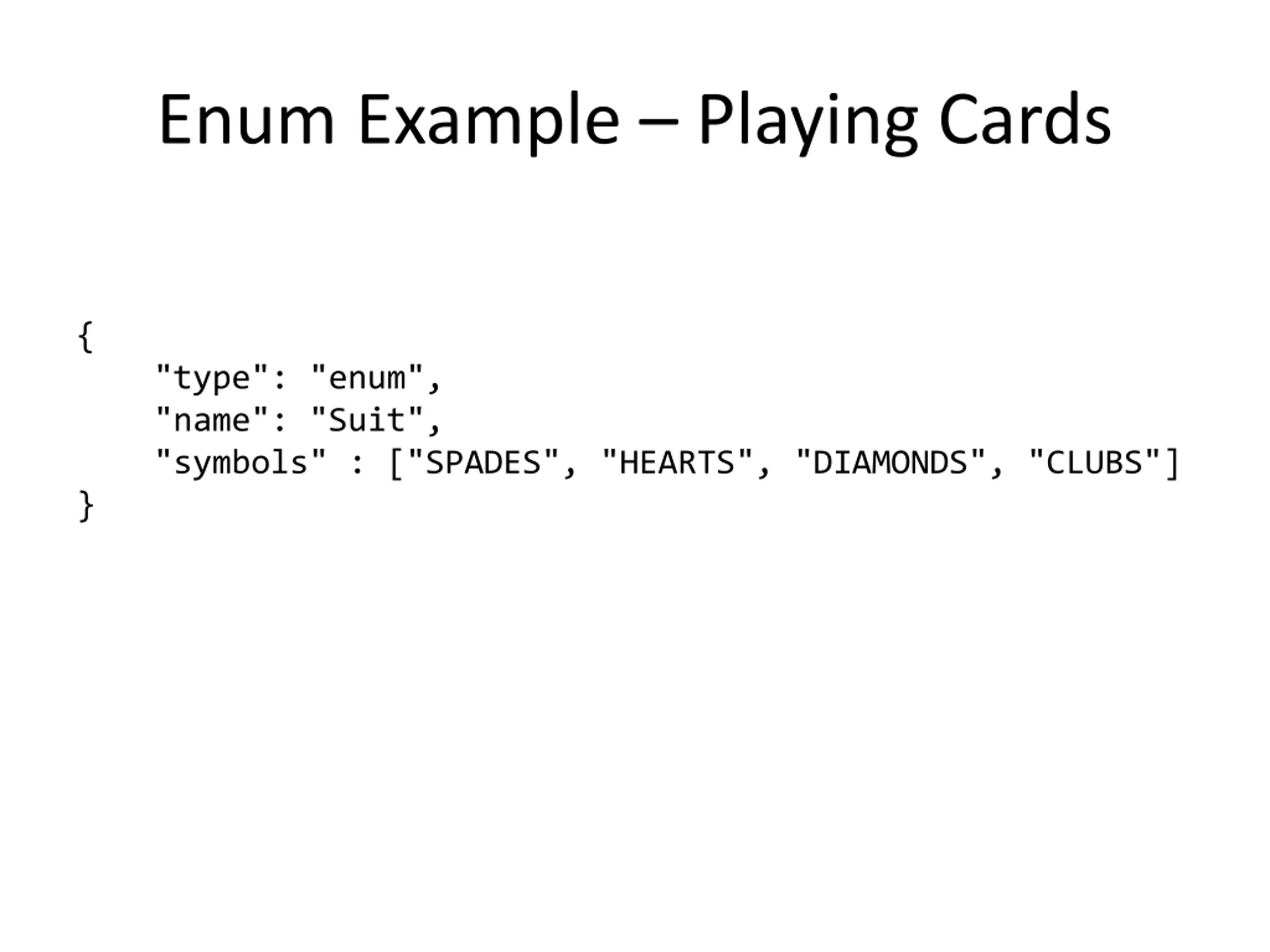

Enum Example Playing Cards { "name": "Suit", "symbols" : ["SPADES", "HEARTS", "DIAMONDS", "CLUBS"] } "type": "enum",

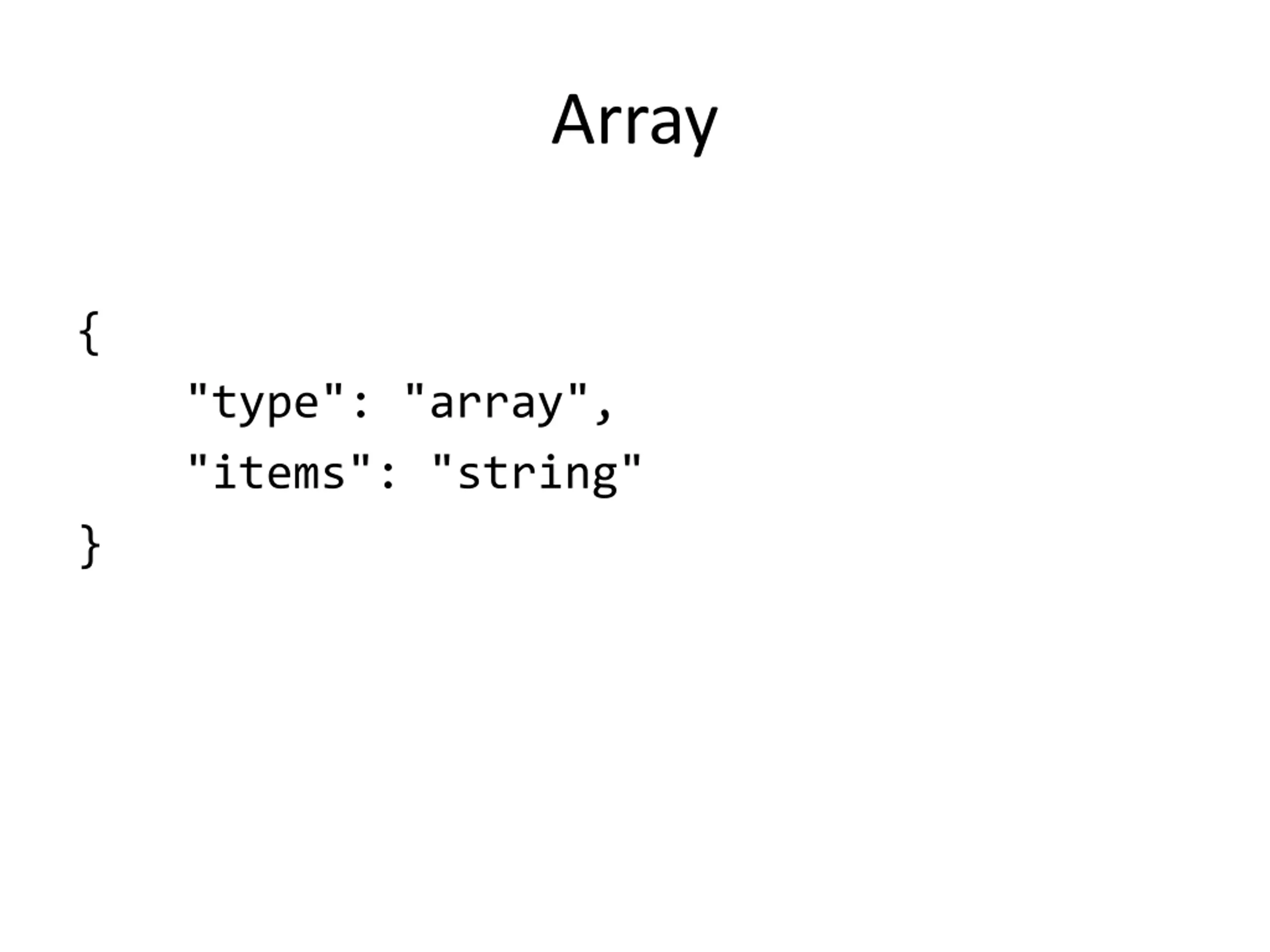

Array { } "type": "array", "items": "string"

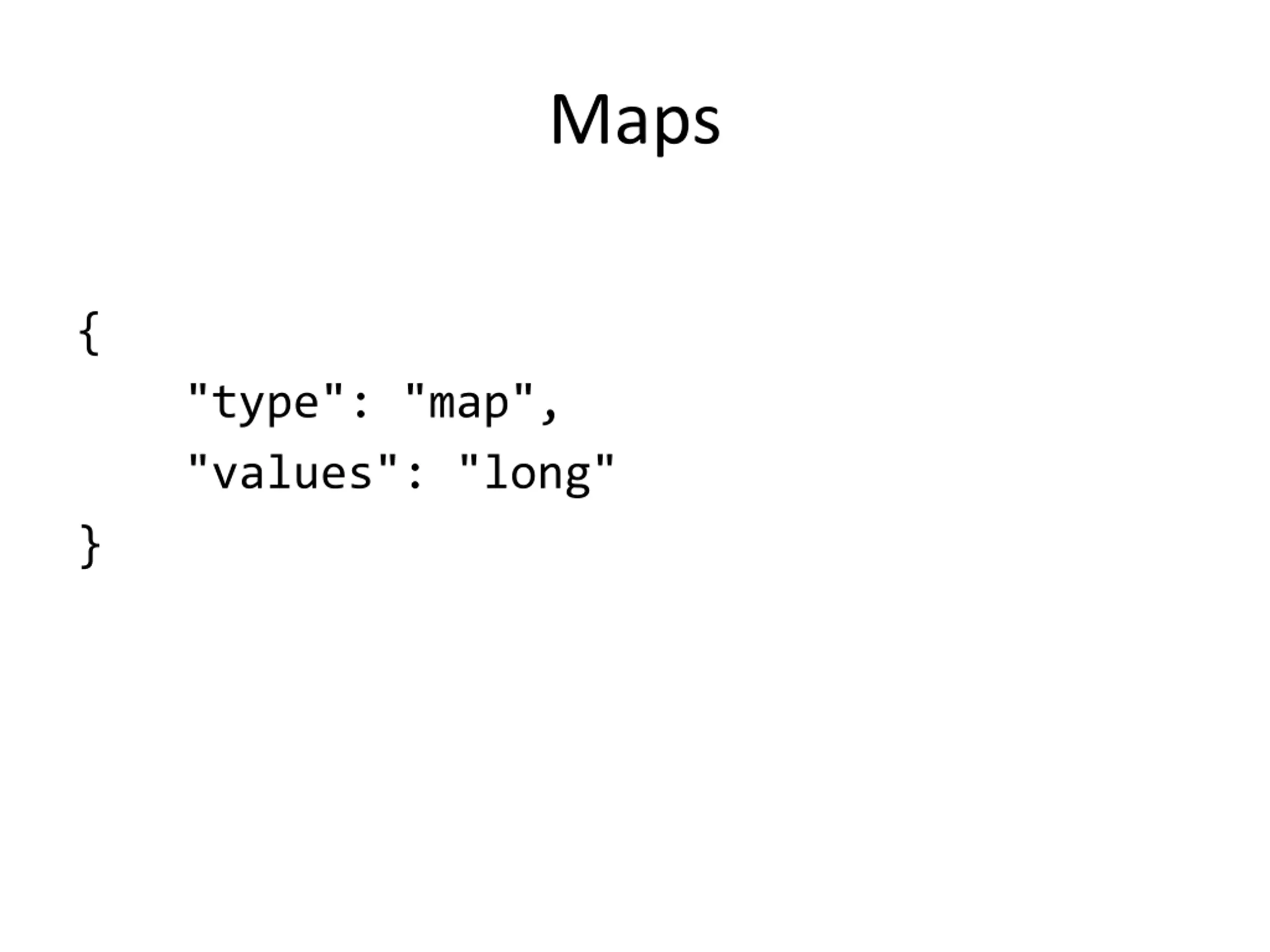

Maps { } "type": "map", "values": "long"

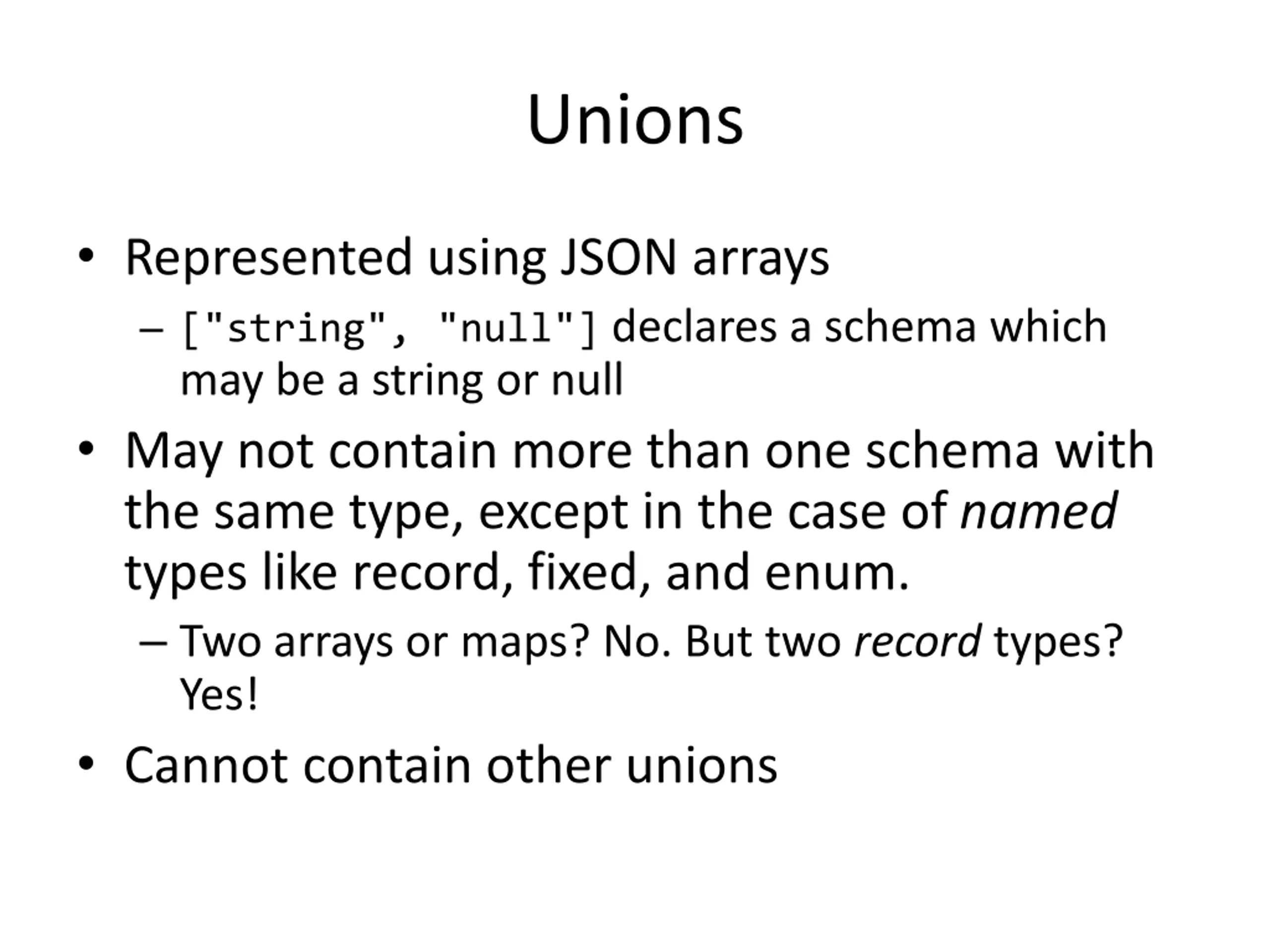

Unions Represented using JSON arrays ["string", "null"] declares a schema which may be a string or null May not contain more than one schema with the same type, except in the case of named types like record, fixed, and enum. Two arrays or maps? No. But two record types? Yes! Cannot contain other unions

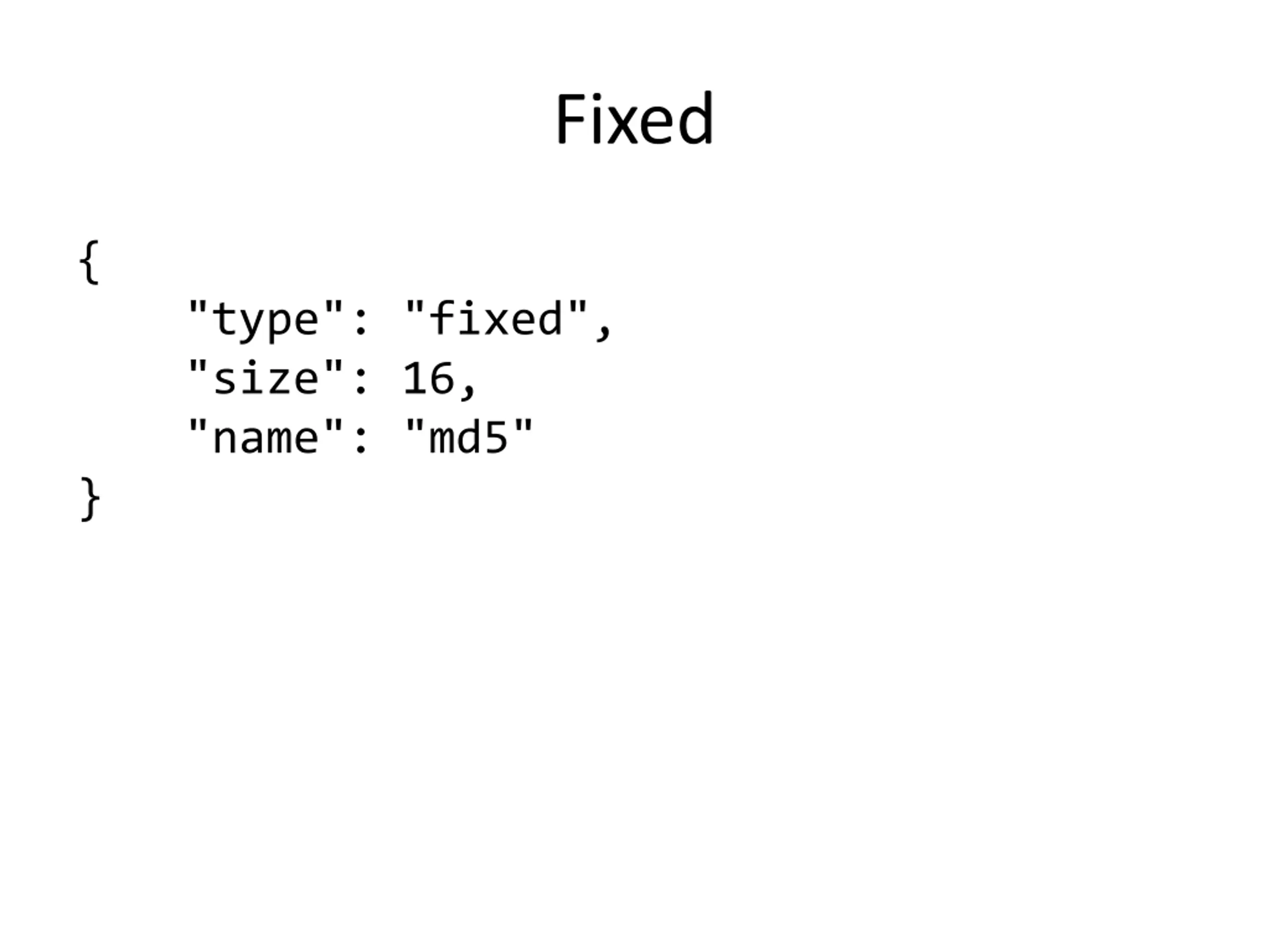

Fixed { "type": "fixed", "size": 16, "name": "md5" }

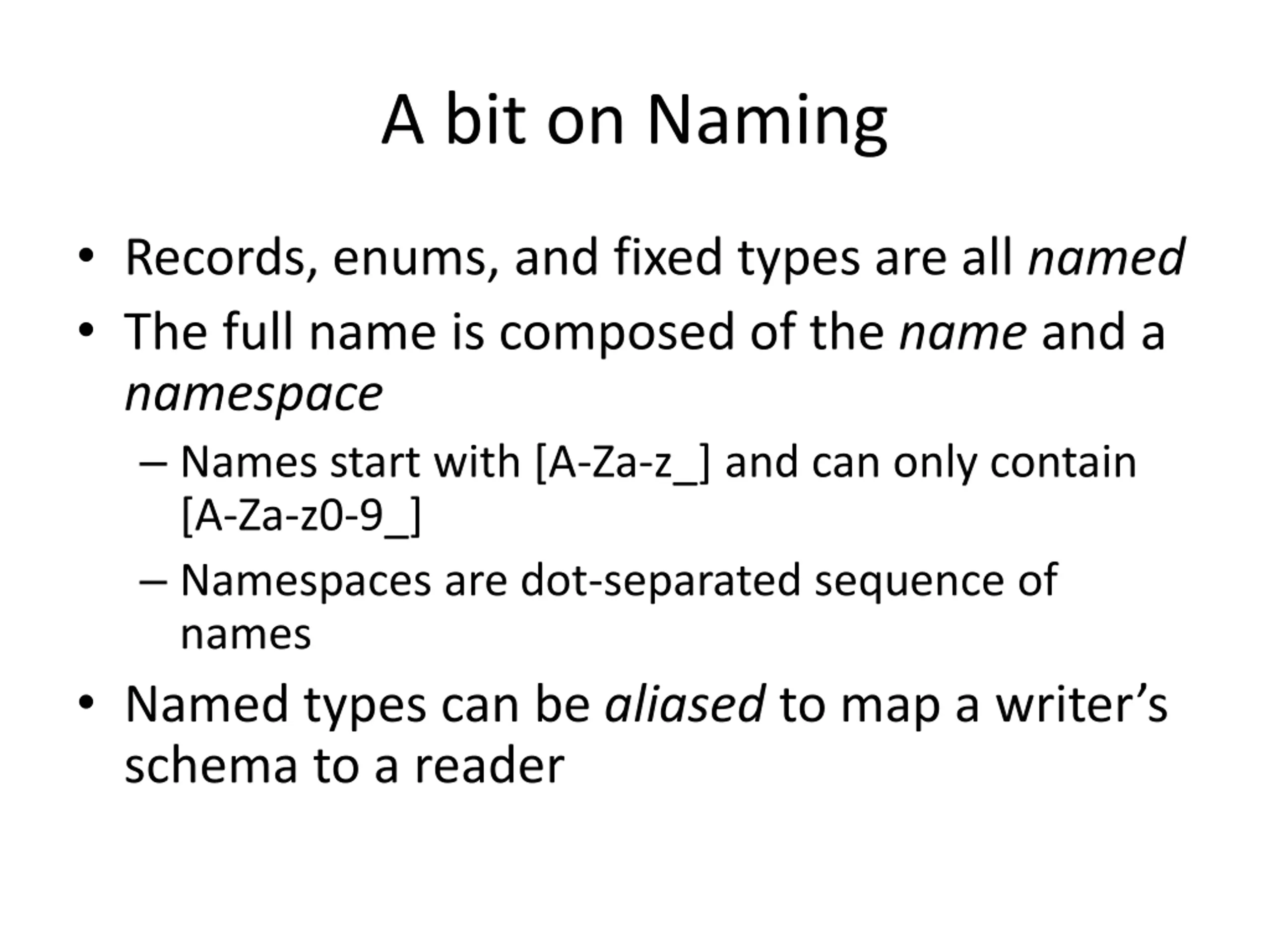

A bit on Naming Records, enums, and fixed types are all named The full name is composed of the name and a namespace Names start with [A-Za-z_] and can only contain [A-Za-z0-9_] Namespaces are dot-separated sequence of names Named types can be aliasedto map a writer s schema to a reader

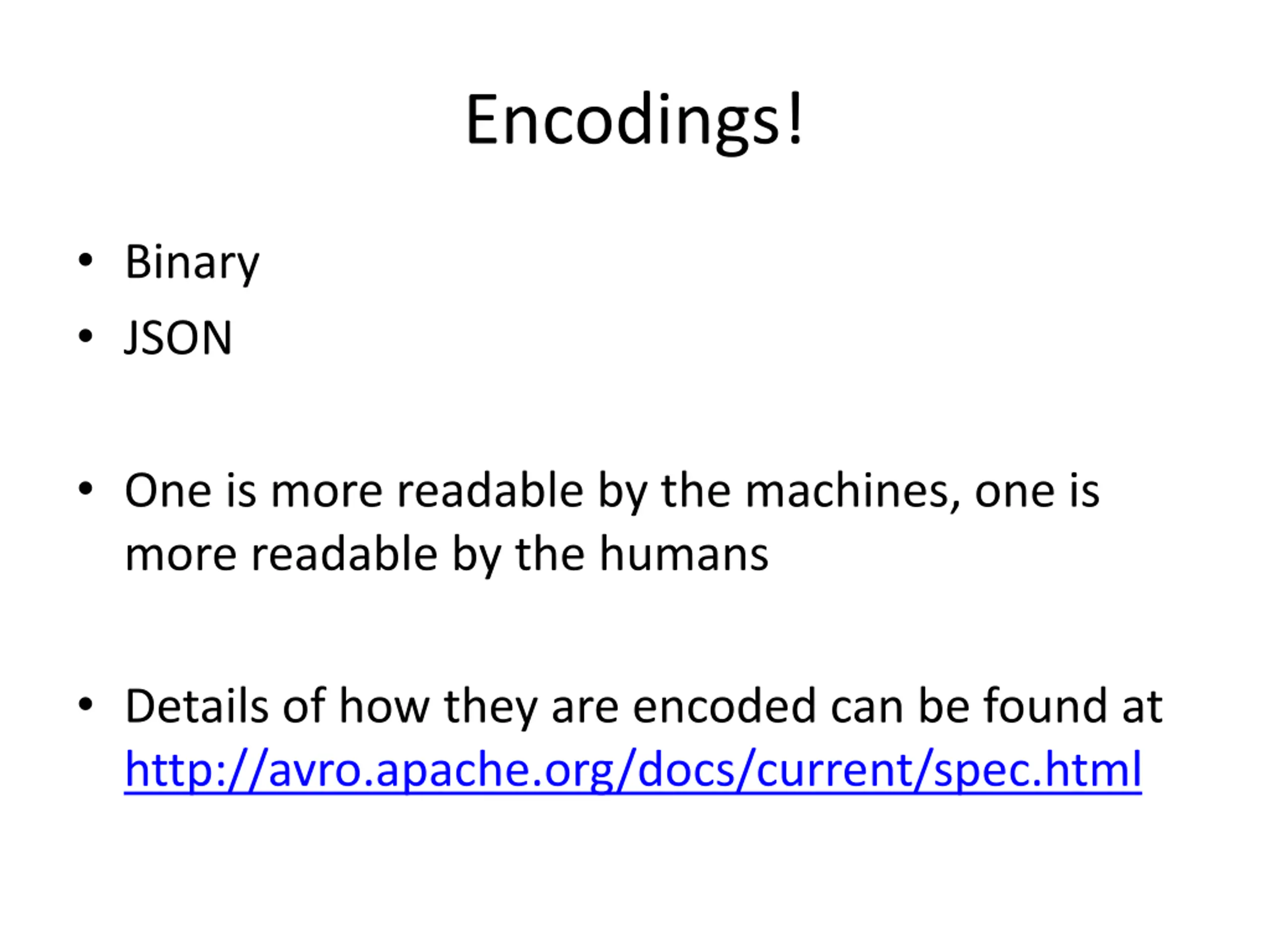

Encodings! Binary JSON One is more readable by the machines, one is more readable by the humans Details of how they are encoded can be found at http://avro.apache.org/docs/current/spec.html

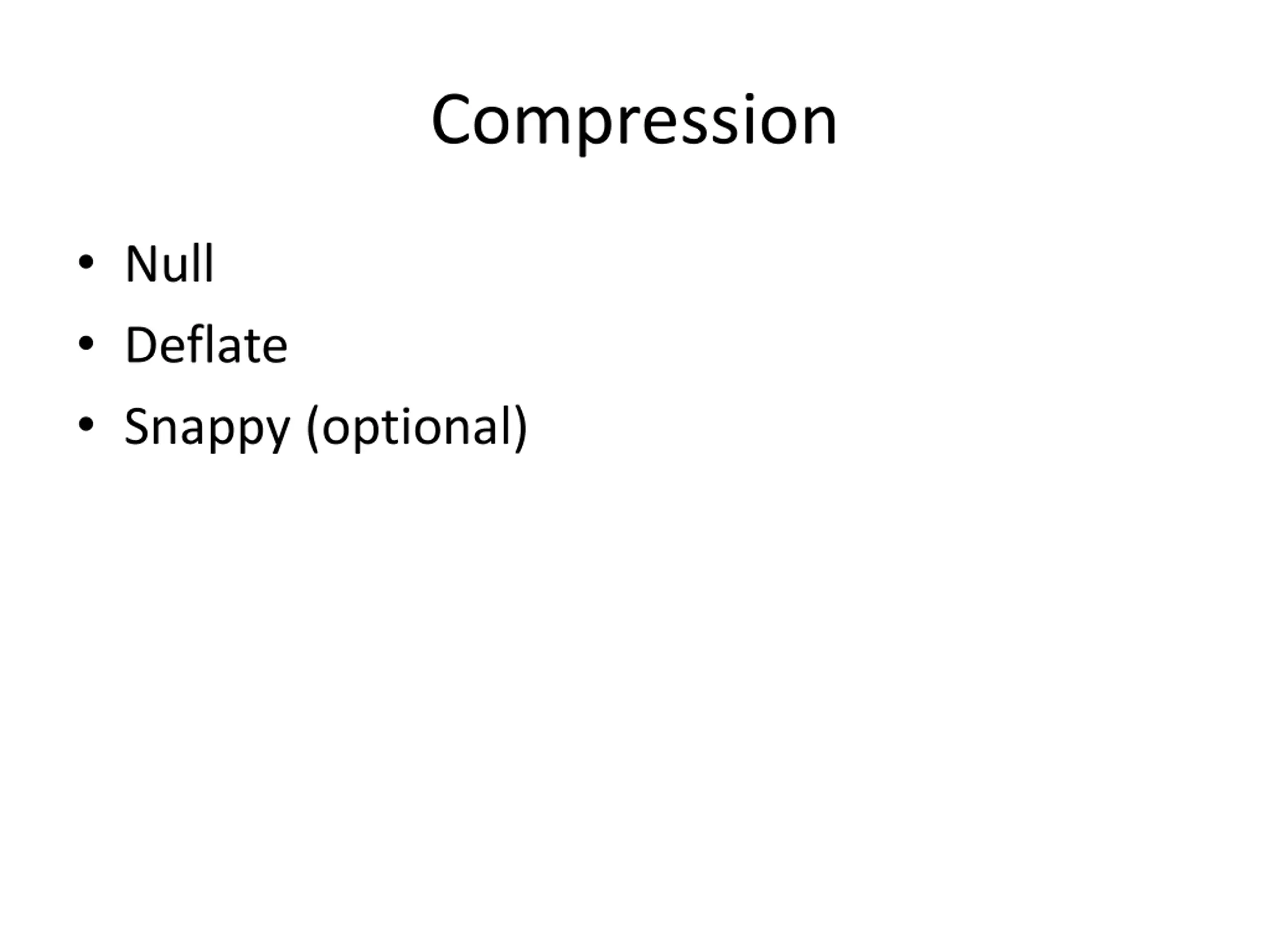

Compression Null Deflate Snappy (optional)

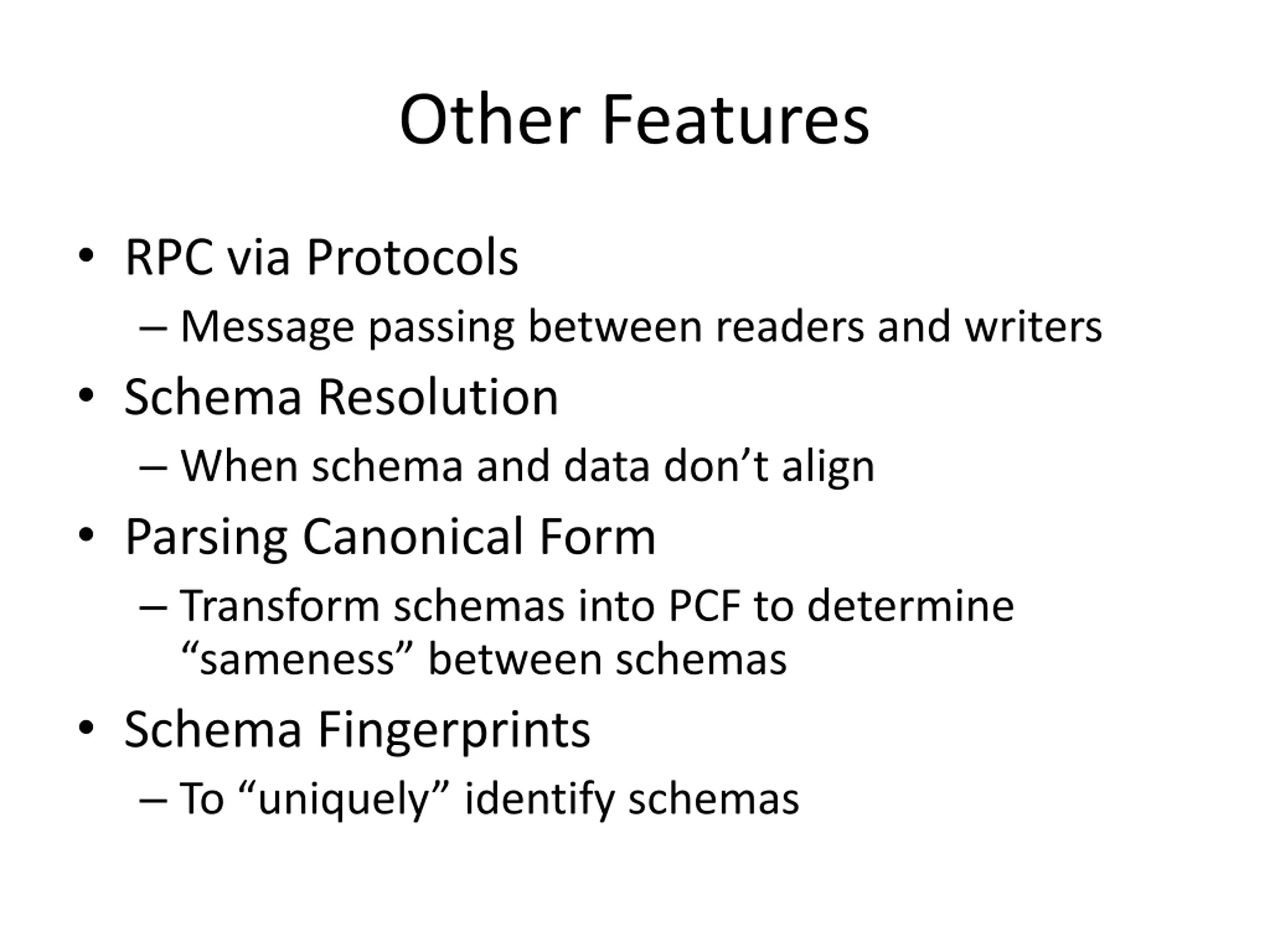

Other Features RPC via Protocols Message passing between readers and writers Schema Resolution When schema and data don t align Parsing Canonical Form Transform schemas into PCF to determine sameness between schemas Schema Fingerprints To uniquely identify schemas

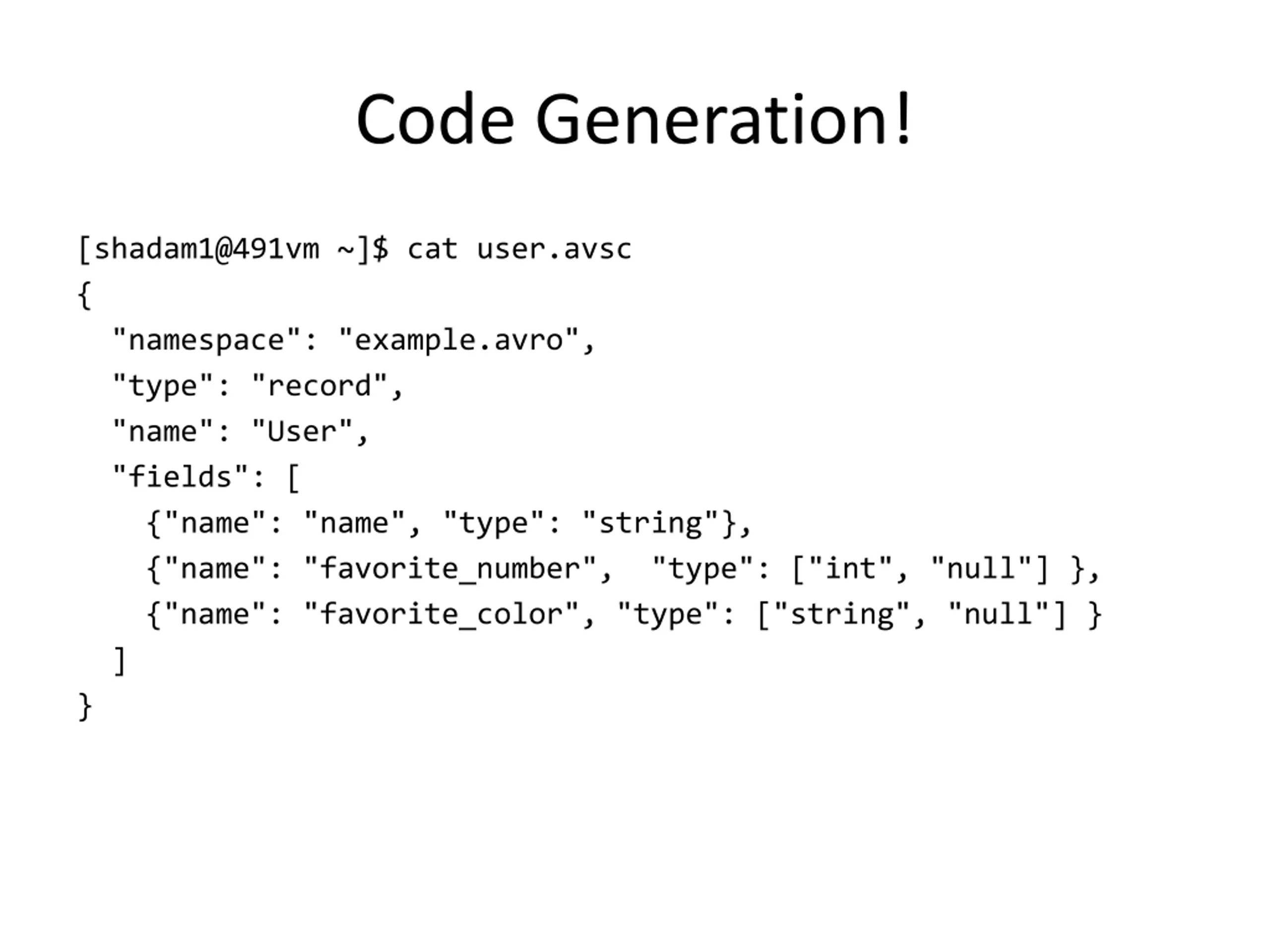

Code Generation! [shadam1@491vm ~]$ cat user.avsc { "namespace": "example.avro", "type": "record", "name": "User", "fields": [ {"name": "name", "type": "string"}, {"name": "favorite_number", "type": ["int", "null"] }, {"name": "favorite_color", "type": ["string", "null"] } ] }

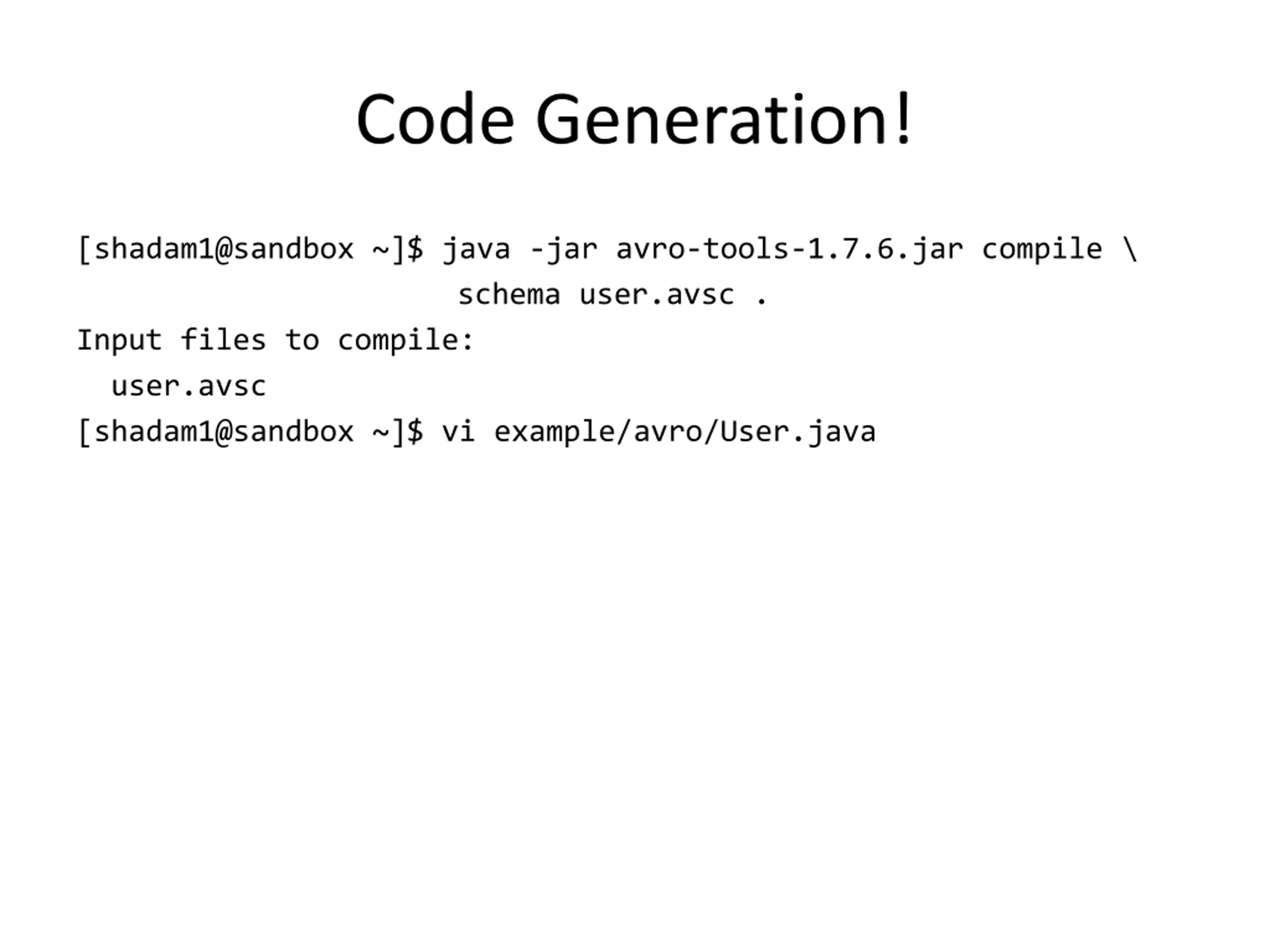

Code Generation! [shadam1@sandbox ~]$ java -jar avro-tools-1.7.6.jar compile \ schema user.avsc . Input files to compile: user.avsc [shadam1@sandbox ~]$ vi example/avro/User.java
