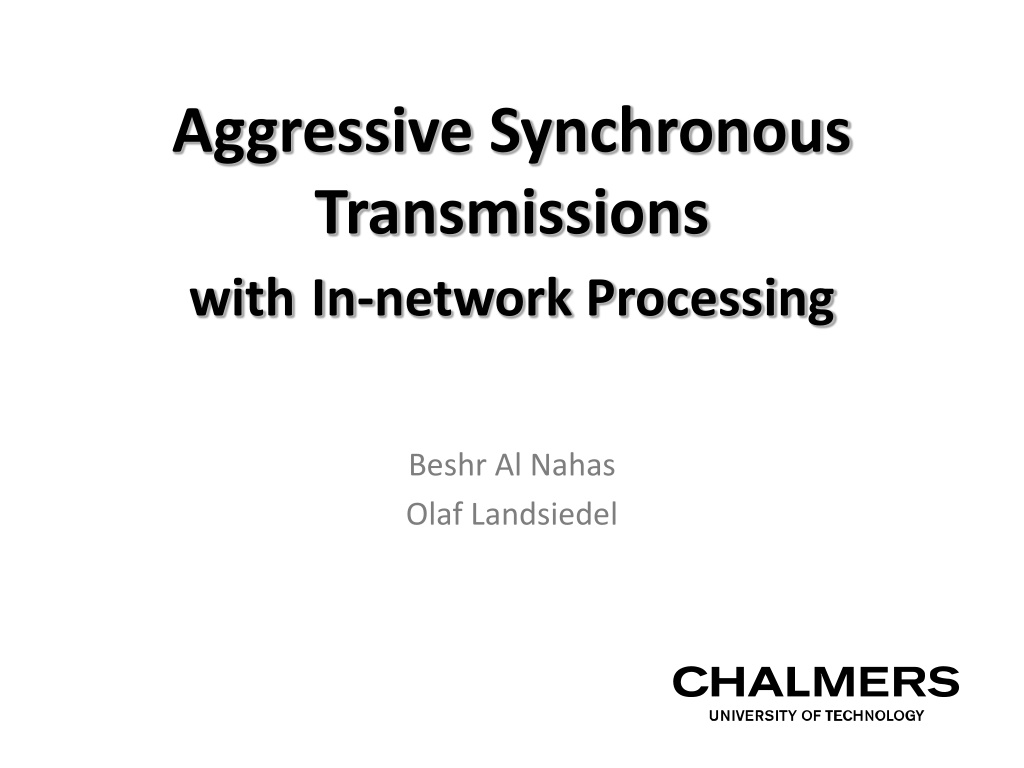

Advanced Strategies for Wireless Communication Networks
Aggressive Synchronous
Aggressive Synchronous
Transmissions
Transmissions
with
with
In-network Processing
In-network Processing
Beshr Al Nahas
Olaf Landsiedel
•
Try
a strategy other than Glossy
–
Capture-based in-network processing
–
Top 3 solutions in 2017, and top 2 this year
•
Low-power
wireless communication
•
Flexible
: self-forming networks without planning
•
Fault Tolerant
: cope with node and link failures
•
Agnostic
to communication patterns:
–
One-to-one, one-to-many,
many-to-one, many-to-many
Goals
Concurrent Wireless
Transmissions
(of different data)
•
Receive stronger signal of concurrent transmissions
–
Preambles overlap: 802.15.4 @2.4GHz: 5 bytes =
160
µs
–
Threshold: roughly
3dB
–
Known as: Capture Effect
✔
✖
Concept
•
Nodes
transmit concurrently
–
Capture effect: rx with high probability
•
On receive
–
Process & merge local & received data
–
Transmit if new
•
Feedback: assists convergence
–
All: progress flags to support flow
–
Sinks: ACK flags to ensure delivery
–
Aggressive: retransmit until all sinks
acknowledge reception
–
All-to-all communication
Synchronous transmissions
+ in-network processing
+ capture-effect
•
Network
: four nodes
–
Two sources S1, S2
–
Forwarder F
–
Destination D
•
Packet
:
–
Four progress bits: one for each node
–
Two ACK bits:
•
A1, A2 one for each source
•
Set by the destination
Example Scenario
Example Scenario
Destination
ack S1
Node
merges flags
Example Scenario
Progress flags only:
Risk missing data
•
Glossy-based
solutions outperform
•
Short slots (0.7 ms)
•
Rx-tx-tx-tx policy
more retransmissions
•
Constructive interference
•
Top 3 solutions in 2017, and top 2 this year
Reflections:
Capture-based vs. Glossy
•
Capture-based
solution penalizes weak links
•
Longer slots to fit flags & processing (2.6 ms)
less retransmissions
•
RX iff RSSI > noise-sum + 3dB
•
High interference
weak / border-line links
•
Multiple senders with different data
add to noise
break weak links
Unlike constructive interference
Reflections:
Capture-based vs. Glossy
Beshr Al Nahas
Olaf Landsiedel
Low level details
[1] A
2
: Network-wide Consensus Utilizing the Capture Effect
in Low-power Wireless Networks
, Beshr Al Nahas, et al, In
SenSys’17.
Combat interference: hop channel
Save power: fine-grain duty-cycling
