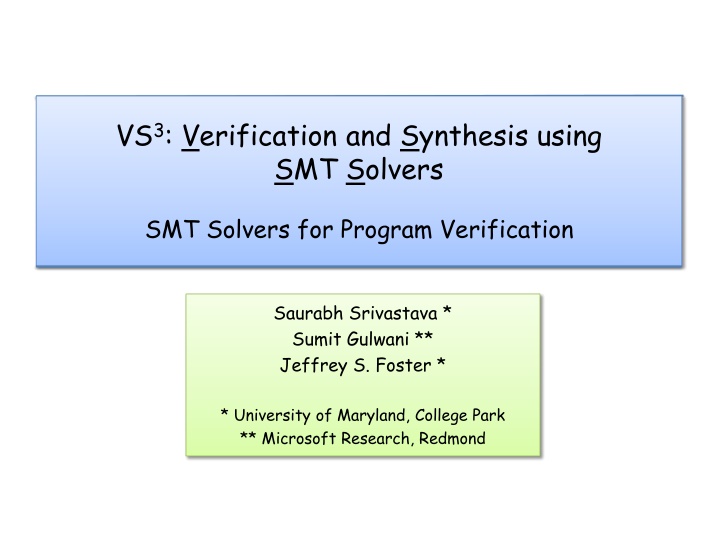

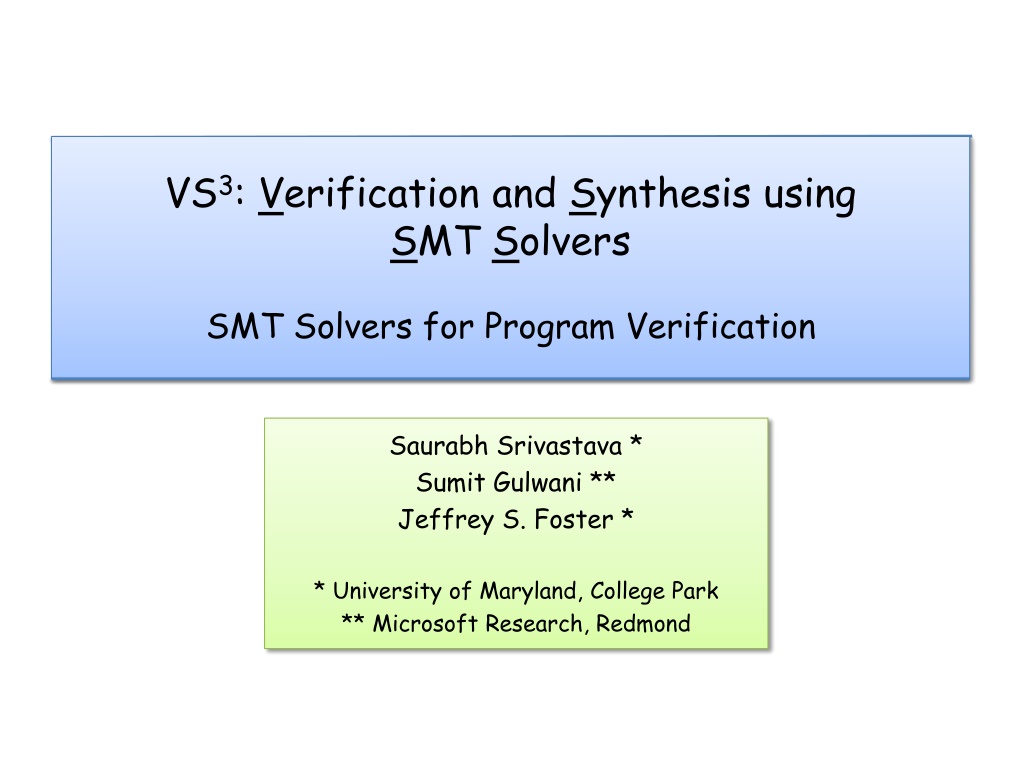

Verification and Synthesis using SMT Solvers
VS
3
:
V
erification and
S
ynthesis using
S
MT
S
olvers
SMT Solvers for Program Verification
Saurabh Srivastava
*
Sumit Gulwani **
Jeffrey S. Foster
*
*
University of Maryland, College Park
** Microsoft Research, Redmond

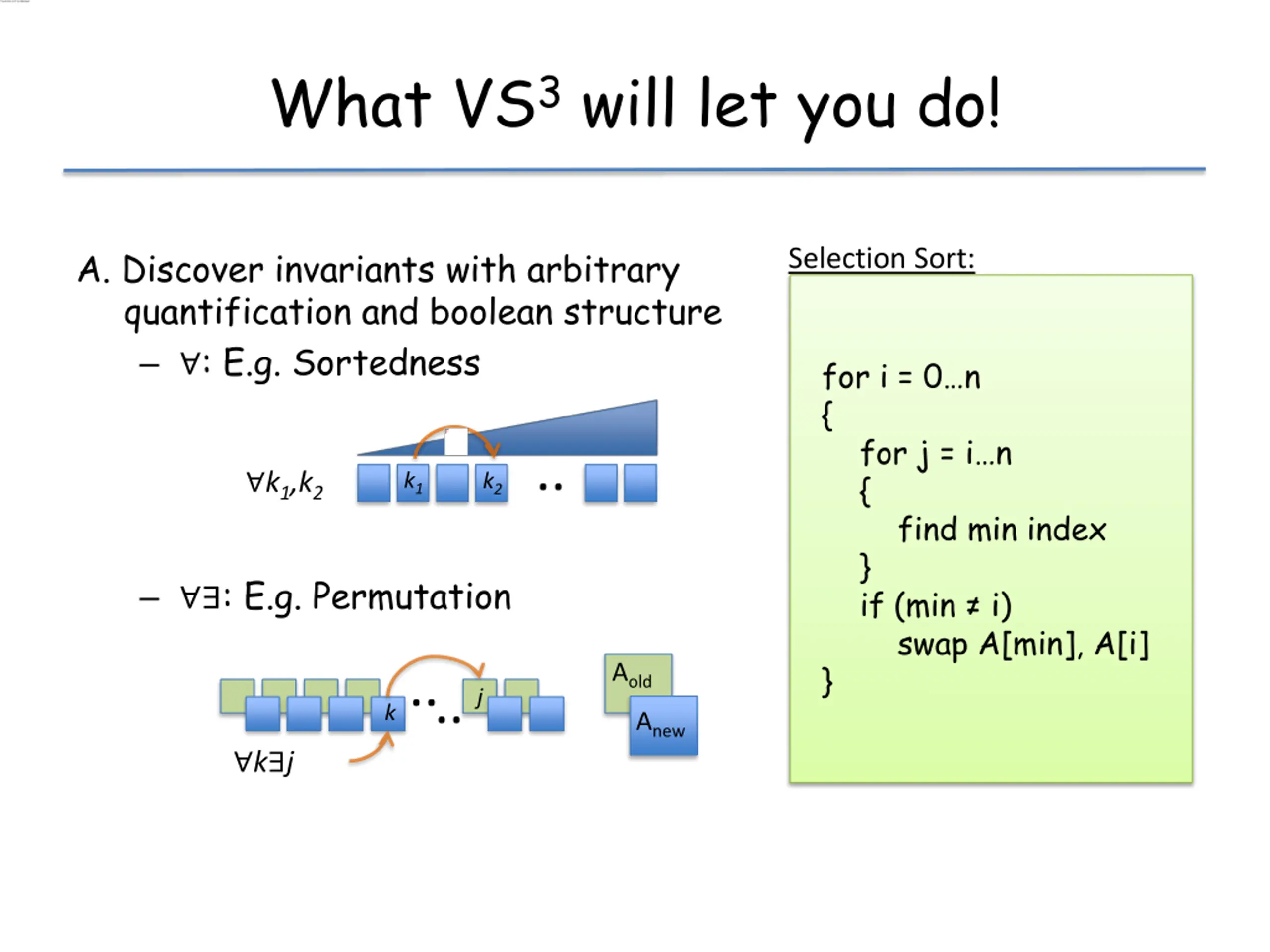

What VS
3
will let you do!
A. Discover invariants with arbitrary
quantification and boolean structure
–
∀
: E.g. Sortedness
–
∀∃
: E.g. Permutation
Selection Sort:
for i = 0…n
{for j = i…n
{find min index
}
if (min ≠ i)
swap A[min], A[i]
}
Selection Sort:
What VS
3
will let you do!
A. Discover invariants with arbitrary
quantification and boolean structure
–
∀
: E.g. Sortedness
–
∀∃
: E.g. Permutation
Selection Sort:
Output
array
i<n
j<n
Find min
index
if (min != i)
swap A[i], A[min]
i:=0
j:=i
Verification: Proving Programs Correct
Selection Sort:
Output
array
i<n
j<n
Find min
index
if (min != i)
swap A[i], A[min]
i:=0
j:=i
Verification: Proving Programs Correct
Selection Sort:
Output
array
i<n
j<n
Find min
index
if (min != i)
swap A[i], A[min]
i:=0
j:=i
Verification: Proving Programs Correct
Selection Sort:
Output
array
i<n
j<n
Find min
index
if (min != i)
swap A[i], A[min]
i:=0
j:=i
Verification: Proving Programs Correct
Bubble Sort:
Output
array
i>0
j<i
if (a[j] > a[j+1])
swap A[j], A[j+1]
i:=n-1
j:=0
Verification: Proving Programs Correct
User Input:Templates and Predicates
•
Templates
–
Intuitive and simple
•
Depending on the property being proved; form straight-forward
•
Limited to the quantification and disjunction
–
E.g., {i<j, i>j, i≤j, i≥j… }–
Enumerate predicates of the form
•
Predicate Abstraction
Tool architecture
C Program
Templates for
invariants
Predicate Sets
CFG
Cut-Set
Preconditions
Postconditions
Invariants
Fixed-point Computation
•
Constraint-based (VMCAI’09)
–
Separately encode each VC as SAT constraint
•
Local constraints
SAT clauses
–
Use SAT solver to do fixed-point computation
–
Compare against trivial approach: 1.6e14 minutes
•
Iterative (PLDI’09)
–
Facts do not form a lattice, but power-set does
–
We ensure that if there exists an invariant we find it
–
Intelligent lattice search: SMT solver for tx-functions
Weakest Preconditions
Weakest conditions
on input?

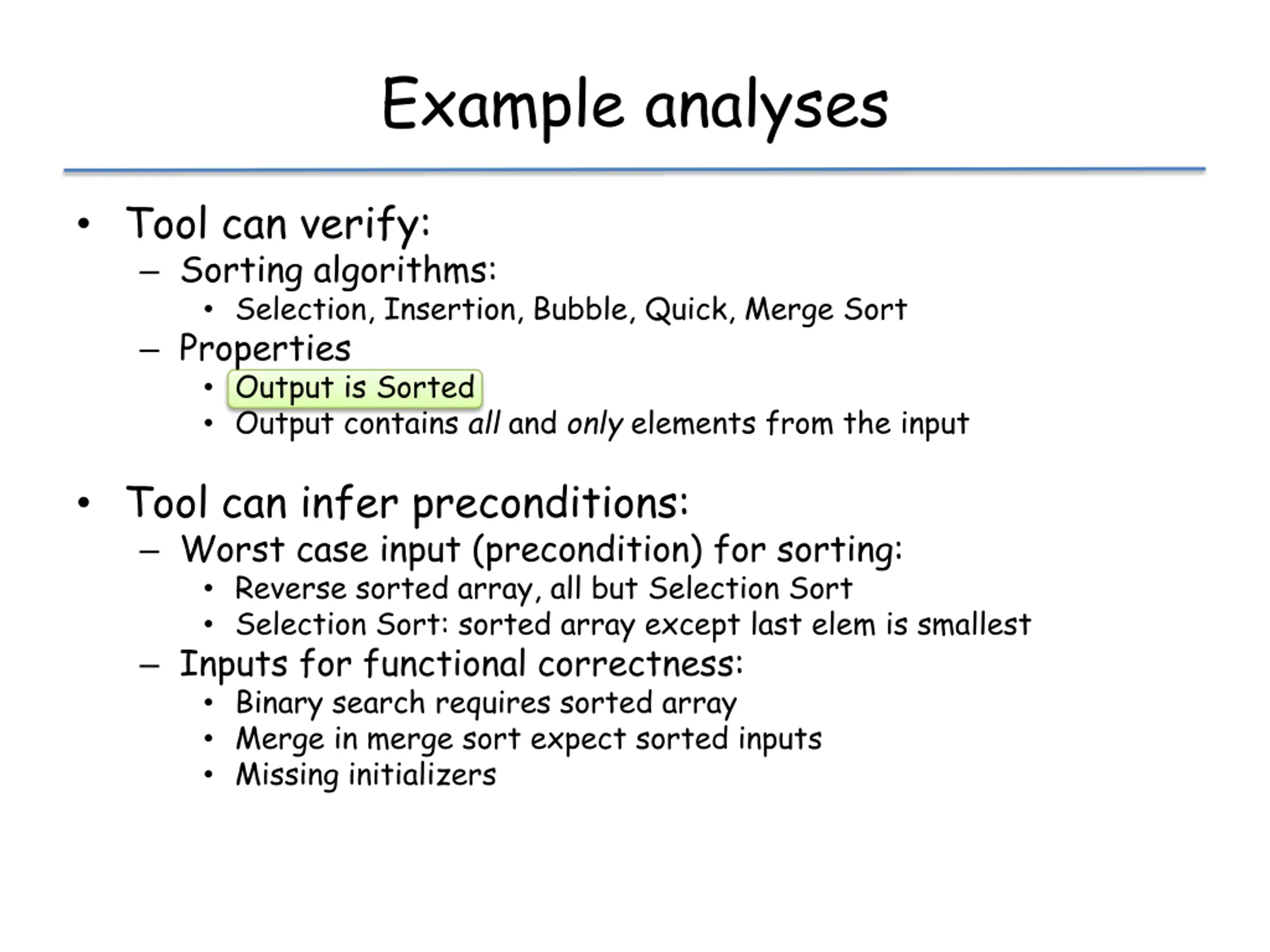

Example analyses
•
Tool can verify:
–
Sorting algorithms:
•
Selection, Insertion, Bubble, Quick, Merge Sort
–
Properties
•
Output is Sorted
•
Output contains
all
and
only
elements from the input
•
Tool can infer preconditions:
–
Worst case input (precondition) for sorting:
•
Reverse sorted array, all but Selection Sort
•
Selection Sort: sorted array except last elem is smallest
–
Inputs for functional correctness:
•
Binary search requires sorted array
•
Merge in merge sort expect sorted inputs
•
Missing initializers
Selection Sort:
Output
array
i<n
j<n
Find min
index
if (min != i)
swap A[i], A[min]
i:=0
j:=i

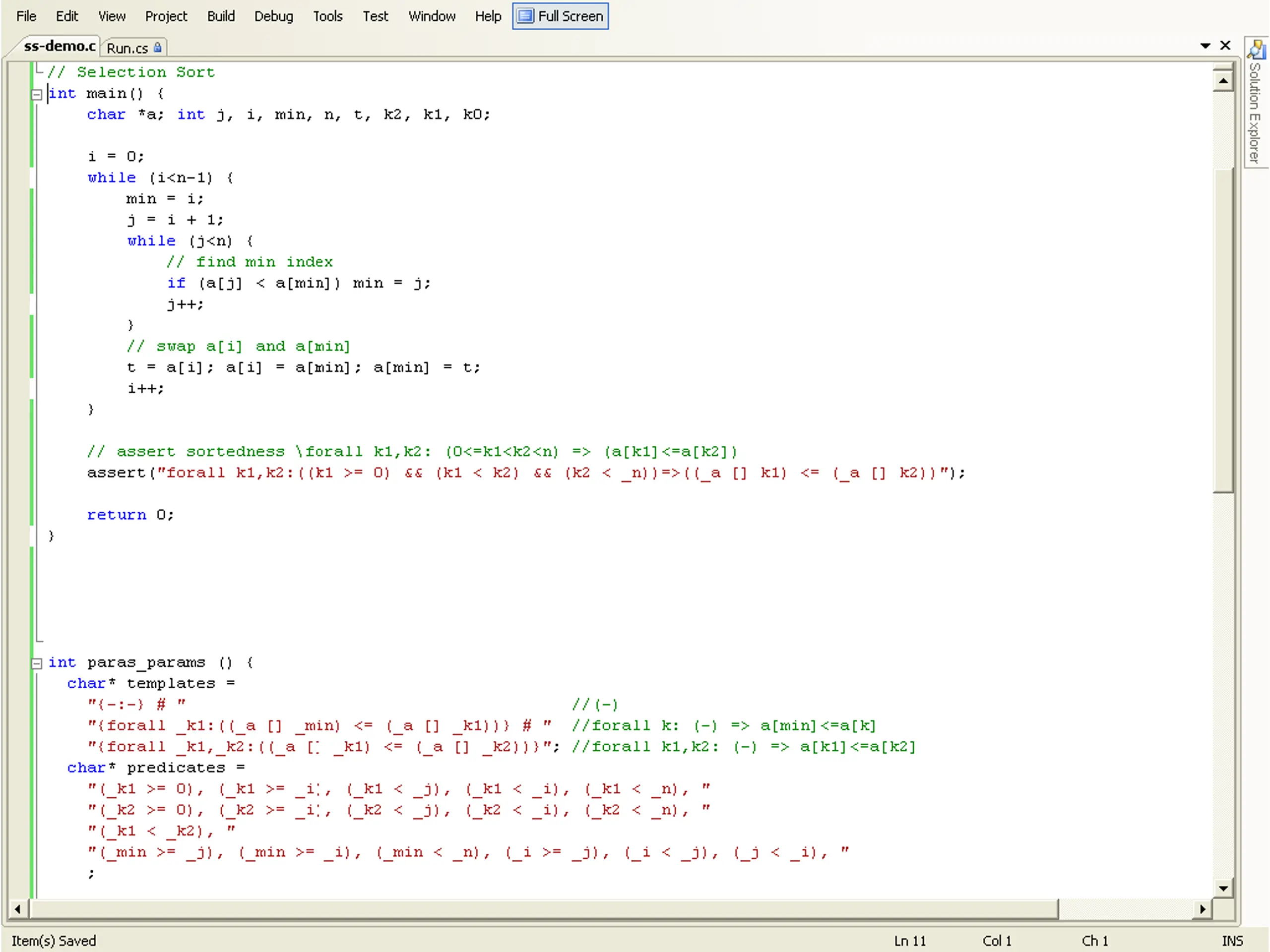

Demo: Selection Sort
Demo: Program
Demo: Output
Conclusions
•
VS
3
: Verification tool over predicate abstraction
•
Verification
–
Can infer quantified invariants
•
Maximally-weak preconditions
•
Builds on SMT Solvers, so exploits their power
•
Project Webpage
http://www.cs.umd.edu/~saurabhs/pacs
Recent extension:
Synthesis
•
Verification tool for quantified invariants
–
Reasoning about full functional specifications possible
•
What if we had missing program fragments?
–
Still possible to verify if we allow the tool to plug-in
equality predicates over program variables
–
Equality predicates translated to statements
•
We can synthesize
–
Strassen’s Matrix Multiplication!
–
Sorting algorithms!
