USTM17 Linux Network Administration Lesson 9: Miscellaneous Topics Peter CHUNG (cspeter@cse.ust.hk) USTM17 Linux Network Administration - Peter Chung (cspeter) 1

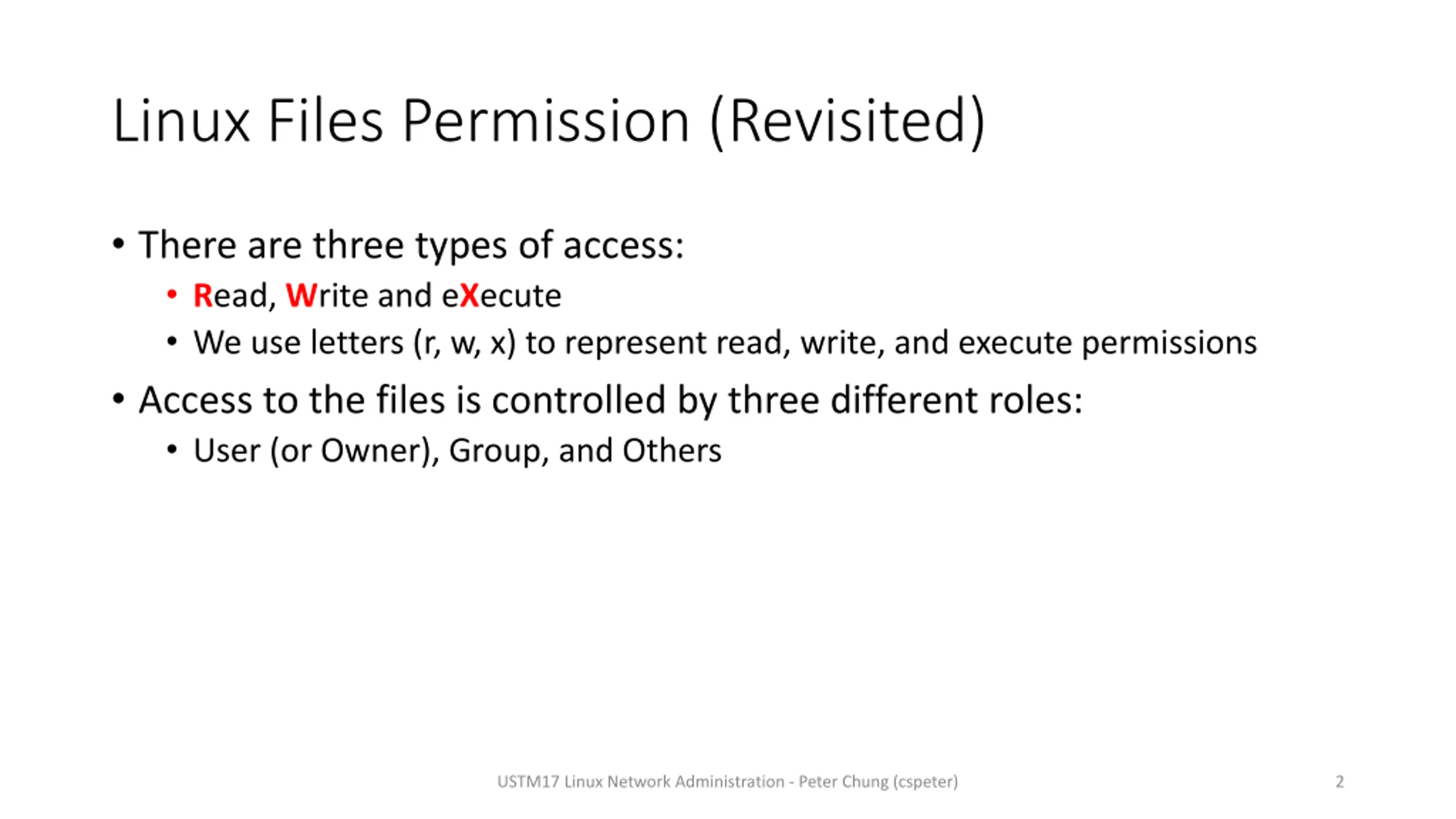

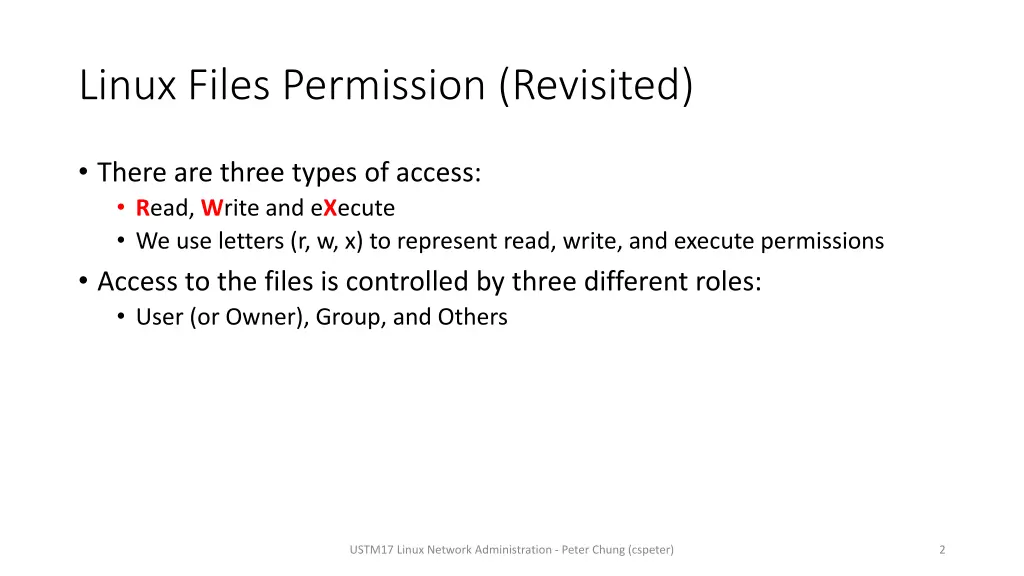

Linux Files Permission (Revisited) There are three types of access: Read, Write and eXecute We use letters (r, w, x) to represent read, write, and execute permissions Access to the files is controlled by three different roles: User (or Owner), Group, and Others USTM17 Linux Network Administration - Peter Chung (cspeter) 2

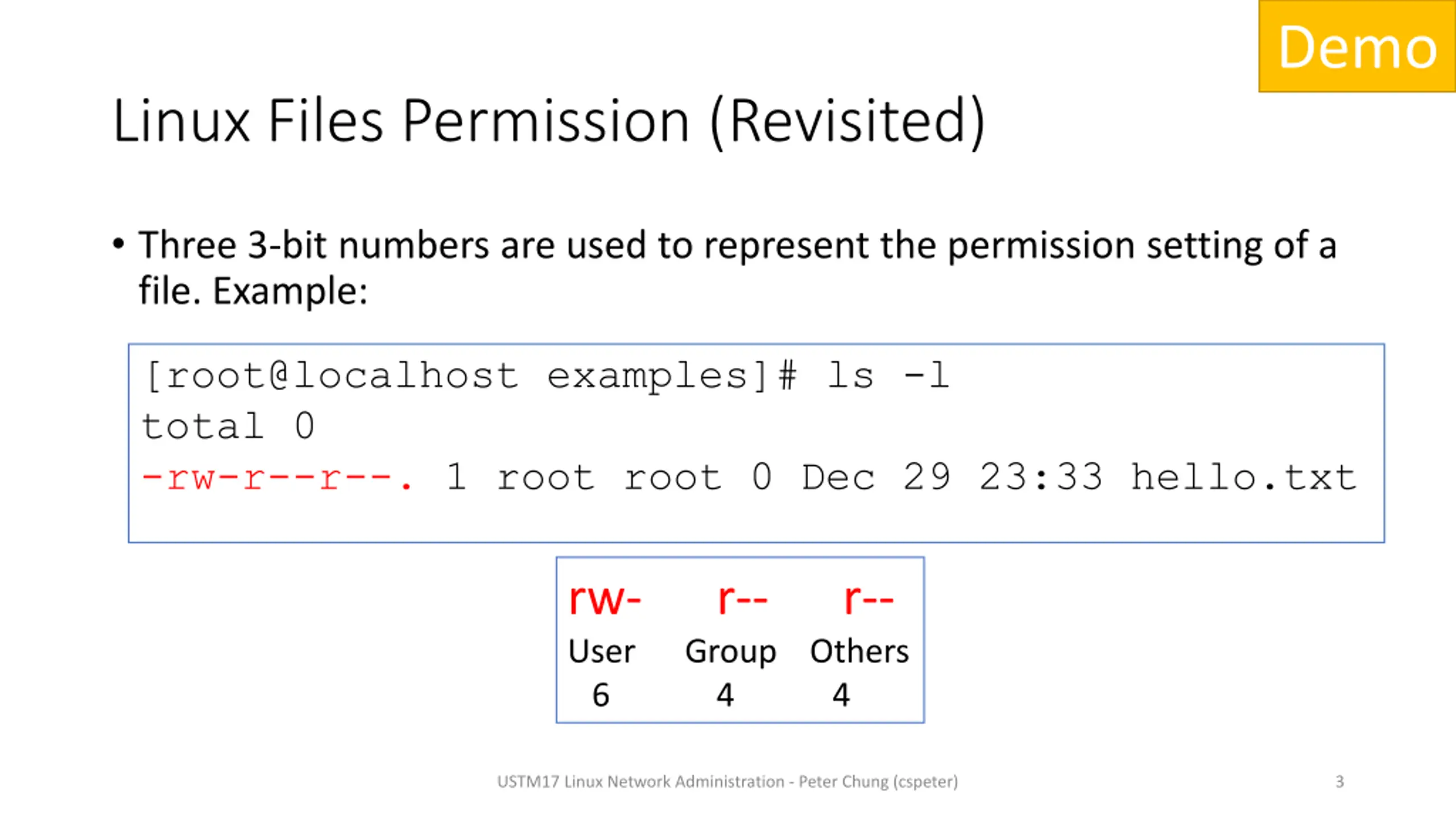

Demo Linux Files Permission (Revisited) Three 3-bit numbers are used to represent the permission setting of a file. Example: [root@localhost examples]# ls -l total 0 -rw-r--r--. 1 root root 0 Dec 29 23:33 hello.txt rw- r-- r-- User Group Others 6 4 4 USTM17 Linux Network Administration - Peter Chung (cspeter) 3

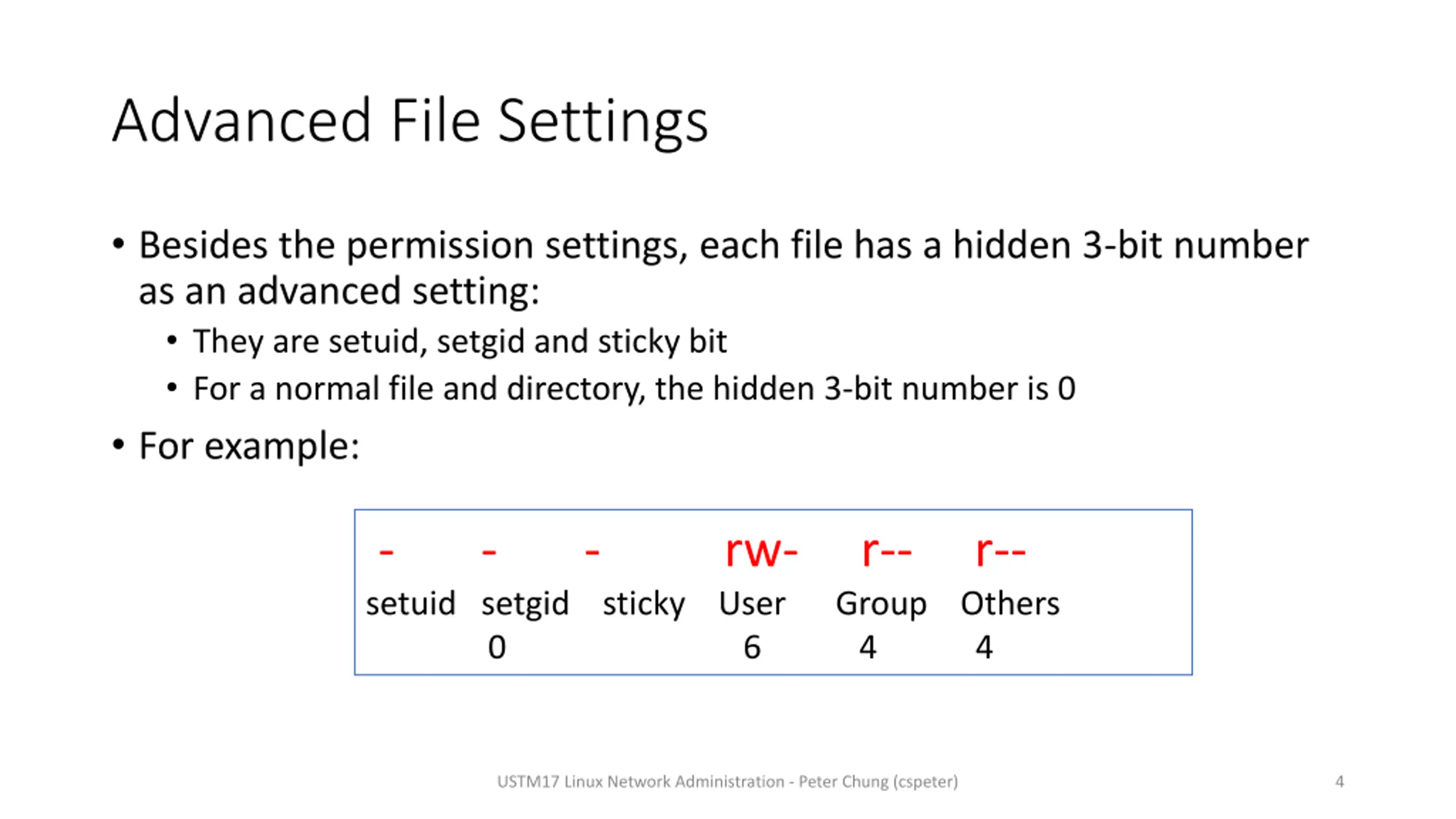

Advanced File Settings Besides the permission settings, each file has a hidden 3-bit number as an advanced setting: They are setuid, setgid and sticky bit For a normal file and directory, the hidden 3-bit number is 0 For example: - - - rw- r-- r-- setuid setgid sticky User Group Others 0 6 4 4 USTM17 Linux Network Administration - Peter Chung (cspeter) 4

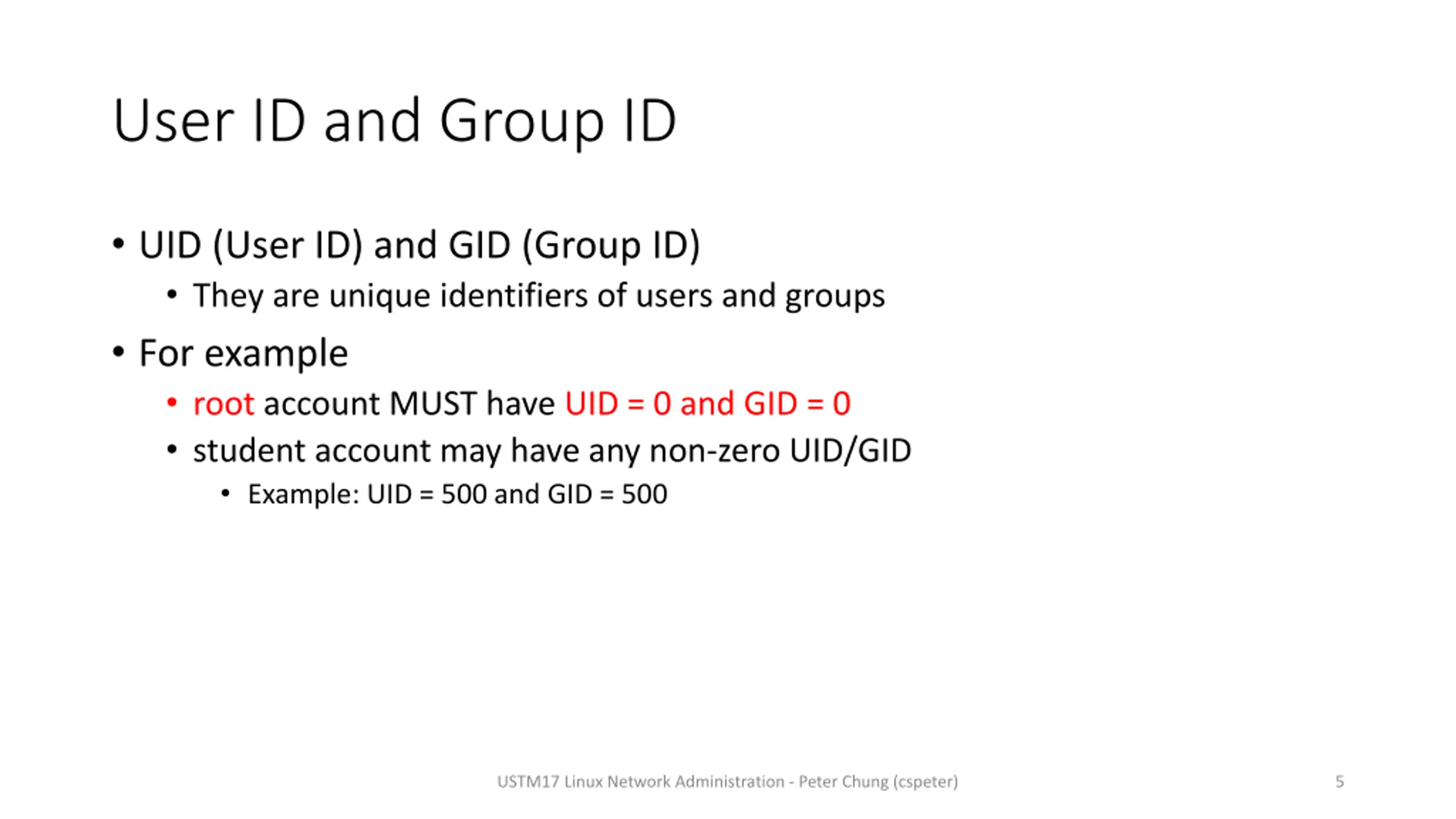

User ID and Group ID UID (User ID) and GID (Group ID) They are unique identifiers of users and groups For example root account MUST have UID = 0 and GID = 0 student account may have any non-zero UID/GID Example: UID = 500 and GID = 500 USTM17 Linux Network Administration - Peter Chung (cspeter) 5

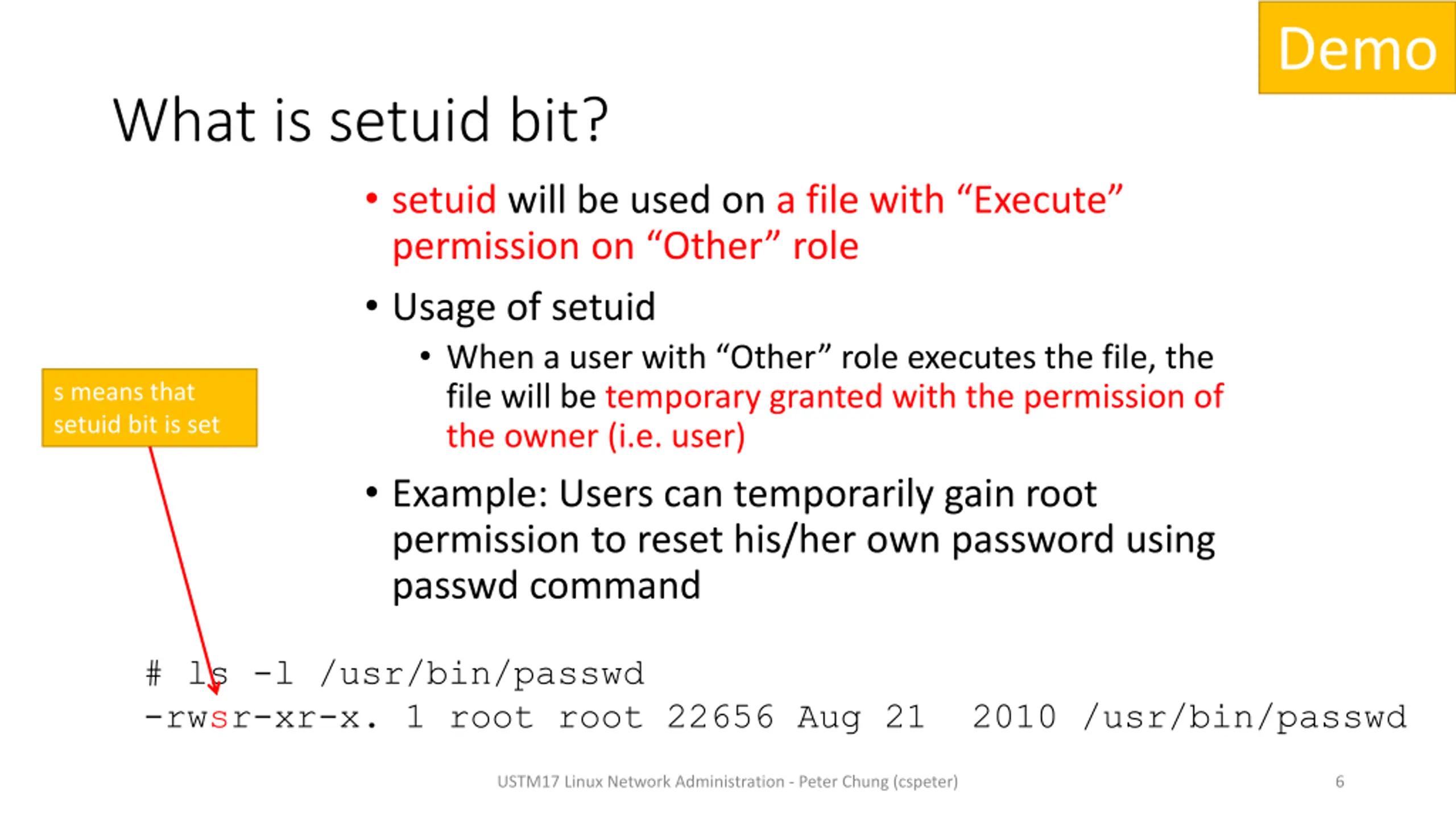

Demo What is setuid bit? setuid will be used on a file with Execute permission on Other role Usage of setuid When a user with Other role executes the file, the file will be temporary granted with the permission of the owner (i.e. user) Example: Users can temporarily gain root permission to reset his/her own password using passwd command s means that setuid bit is set # ls -l /usr/bin/passwd -rwsr-xr-x. 1 root root 22656 Aug 21 2010 /usr/bin/passwd USTM17 Linux Network Administration - Peter Chung (cspeter) 6

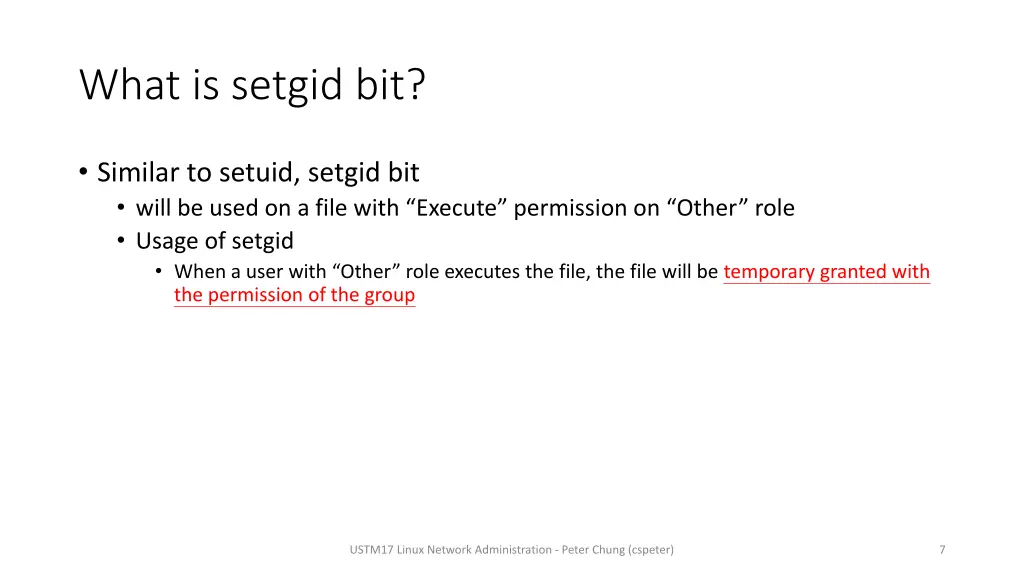

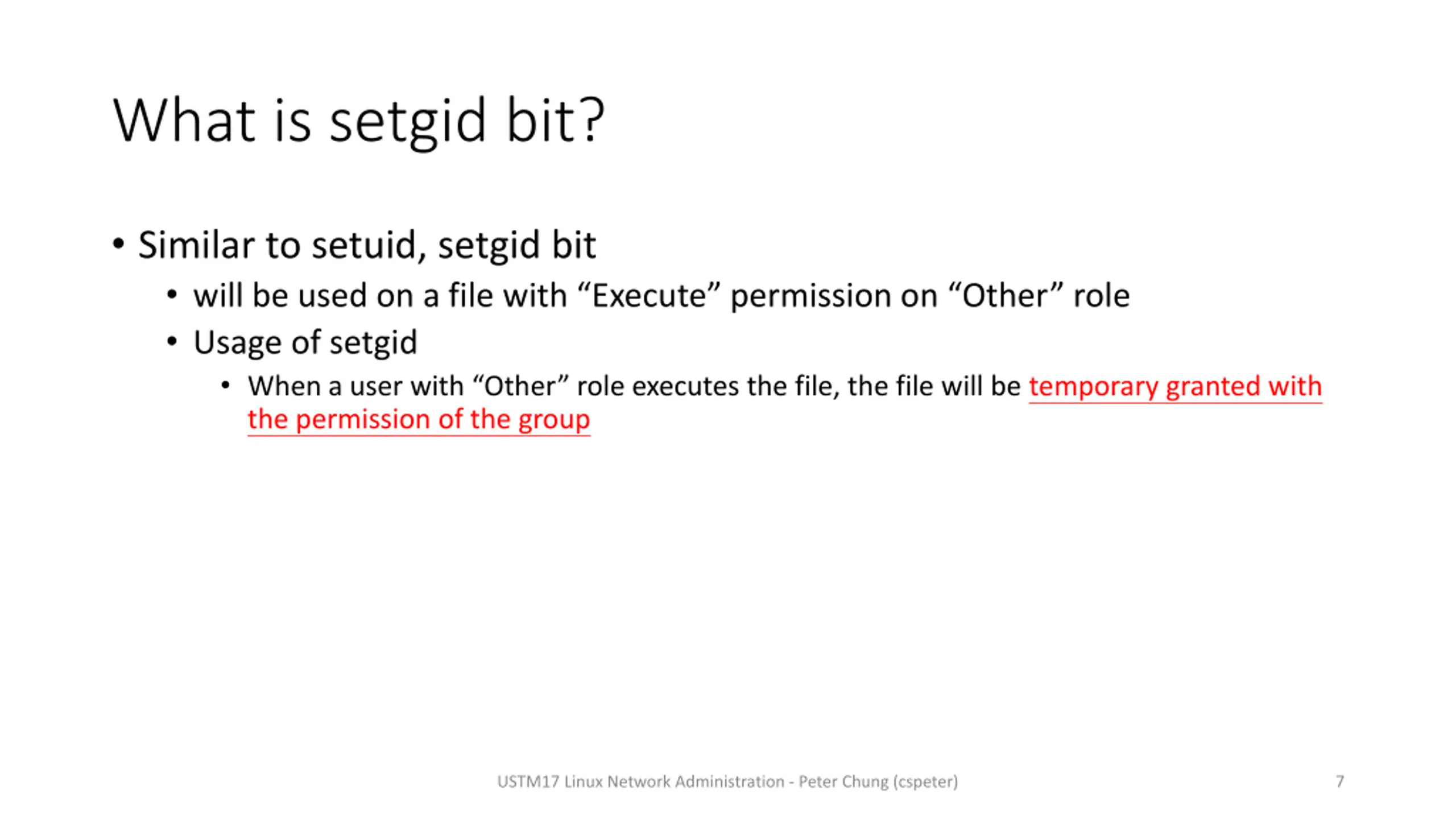

What is setgid bit? Similar to setuid, setgid bit will be used on a file with Execute permission on Other role Usage of setgid When a user with Other role executes the file, the file will be temporary granted with the permission of the group USTM17 Linux Network Administration - Peter Chung (cspeter) 7

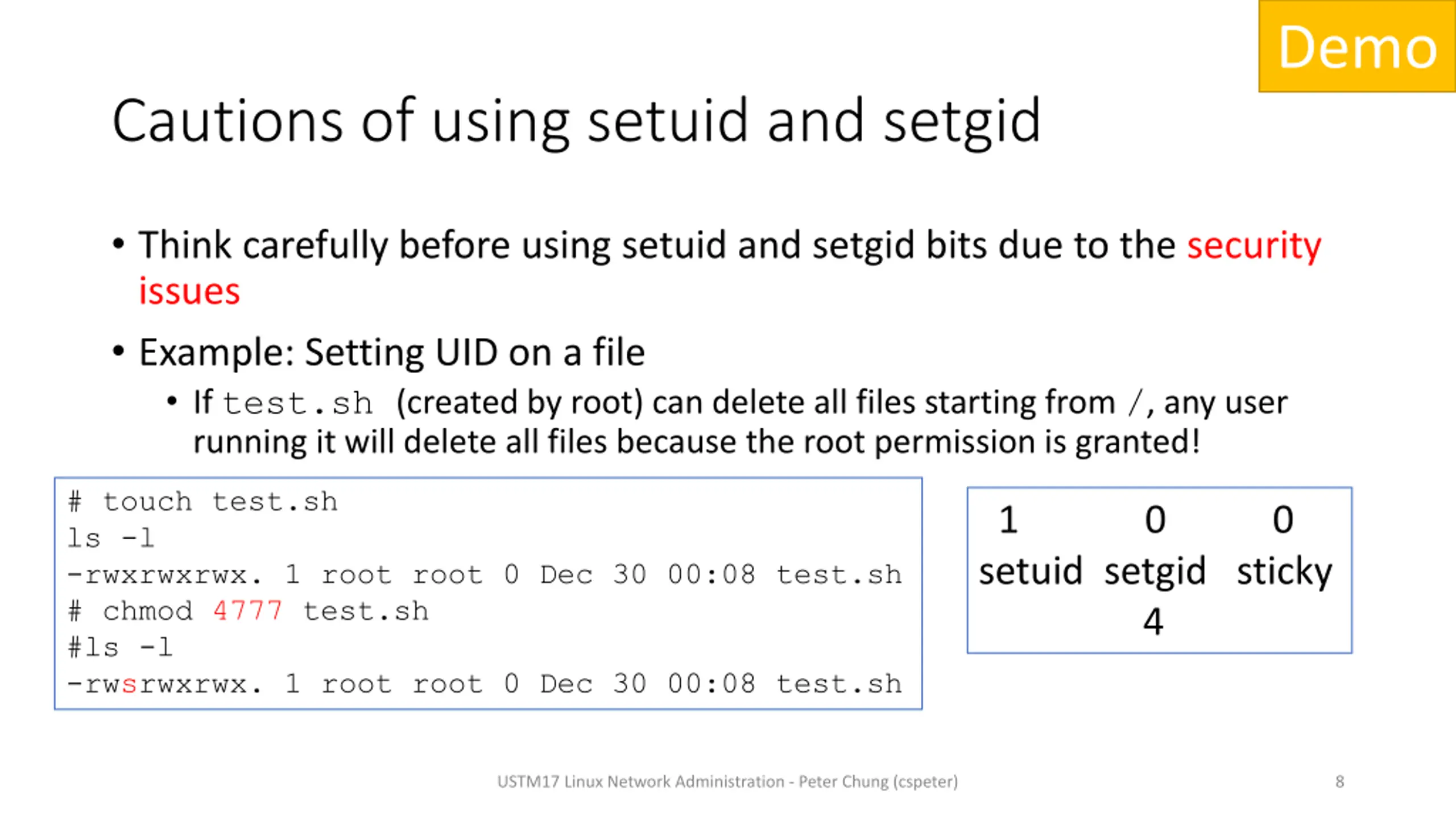

Demo Cautions of using setuid and setgid Think carefully before using setuid and setgid bits due to the security issues Example: Setting UID on a file If test.sh (created by root) can delete all files starting from /, any user running it will delete all files because the root permission is granted! # touch test.sh ls -l -rwxrwxrwx. 1 root root 0 Dec 30 00:08 test.sh # chmod 4777 test.sh #ls -l -rwsrwxrwx. 1 root root 0 Dec 30 00:08 test.sh 1 0 0 setuid setgid sticky 4 USTM17 Linux Network Administration - Peter Chung (cspeter) 8

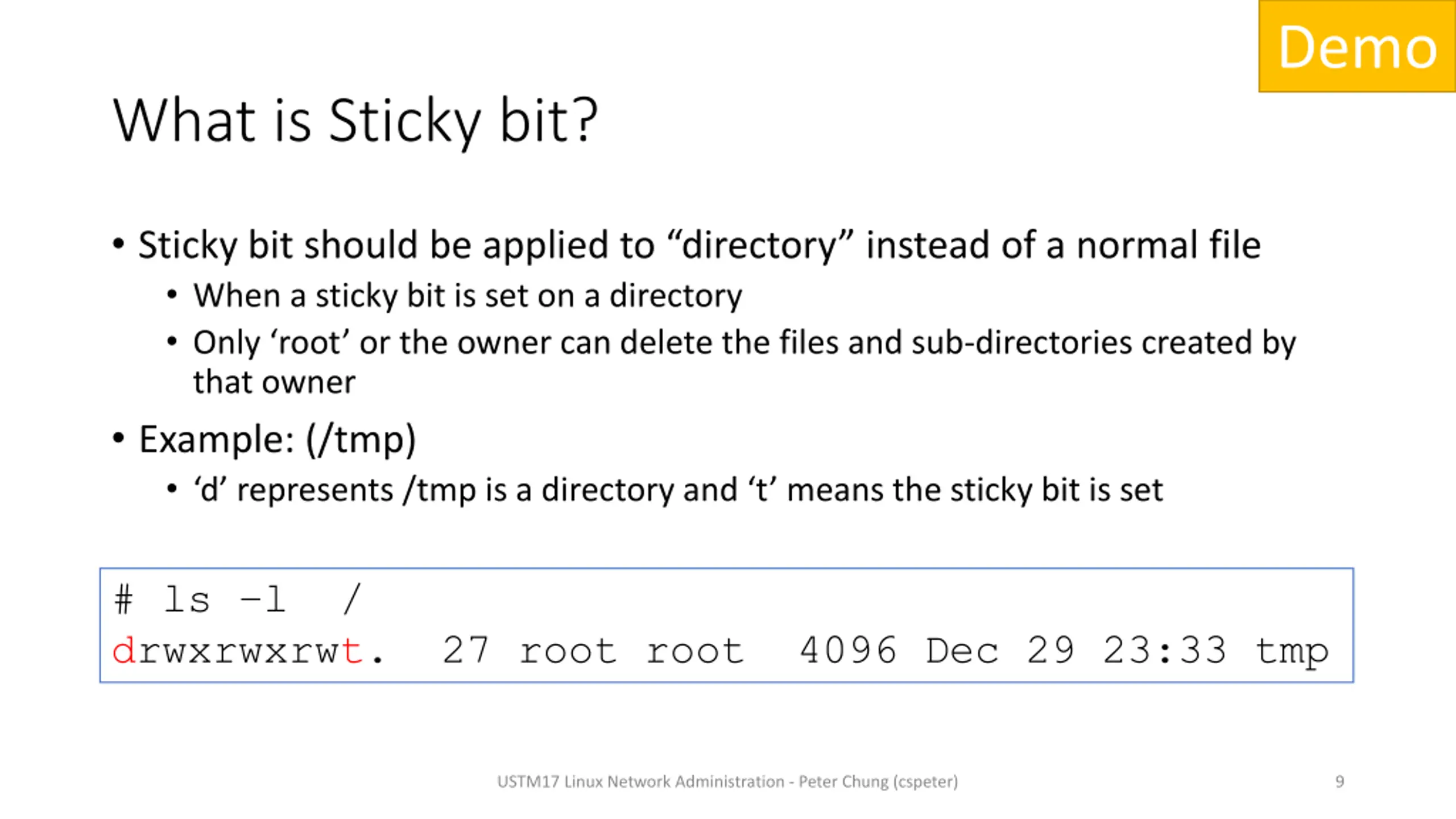

Demo What is Sticky bit? Sticky bit should be applied to directory instead of a normal file When a sticky bit is set on a directory Only root or the owner can delete the files and sub-directories created by that owner Example: (/tmp) d represents /tmp is a directory and t means the sticky bit is set # ls l / drwxrwxrwt. 27 root root 4096 Dec 29 23:33 tmp USTM17 Linux Network Administration - Peter Chung (cspeter) 9

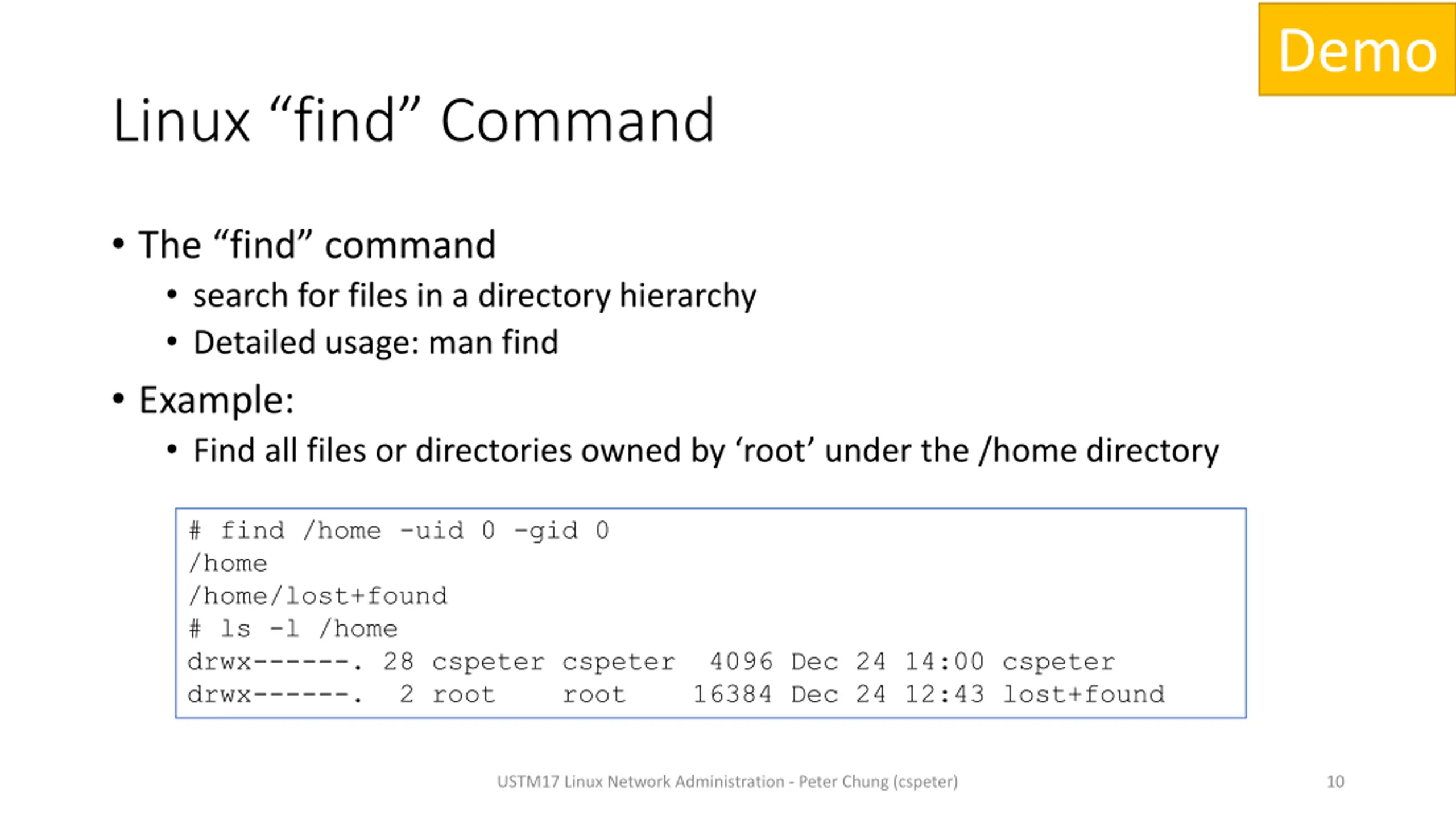

Demo Linux find Command The find command search for files in a directory hierarchy Detailed usage: man find Example: Find all files or directories owned by root under the /home directory # find /home -uid 0 -gid 0 /home /home/lost+found # ls -l /home drwx------. 28 cspeter cspeter 4096 Dec 24 14:00 cspeter drwx------. 2 root root 16384 Dec 24 12:43 lost+found USTM17 Linux Network Administration - Peter Chung (cspeter) 10

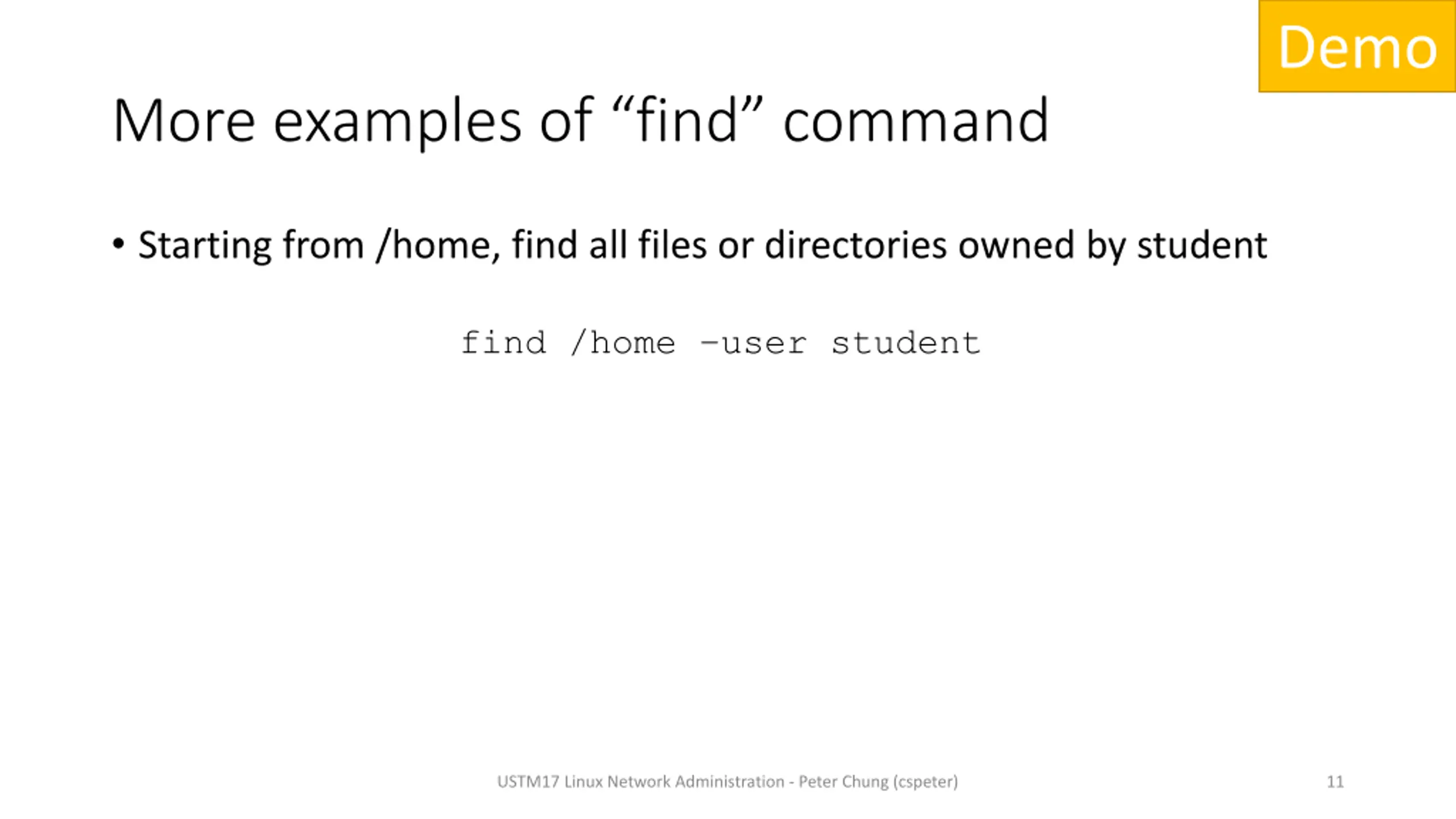

Demo More examples of find command Starting from /home, find all files or directories owned by student find /home user student USTM17 Linux Network Administration - Peter Chung (cspeter) 11

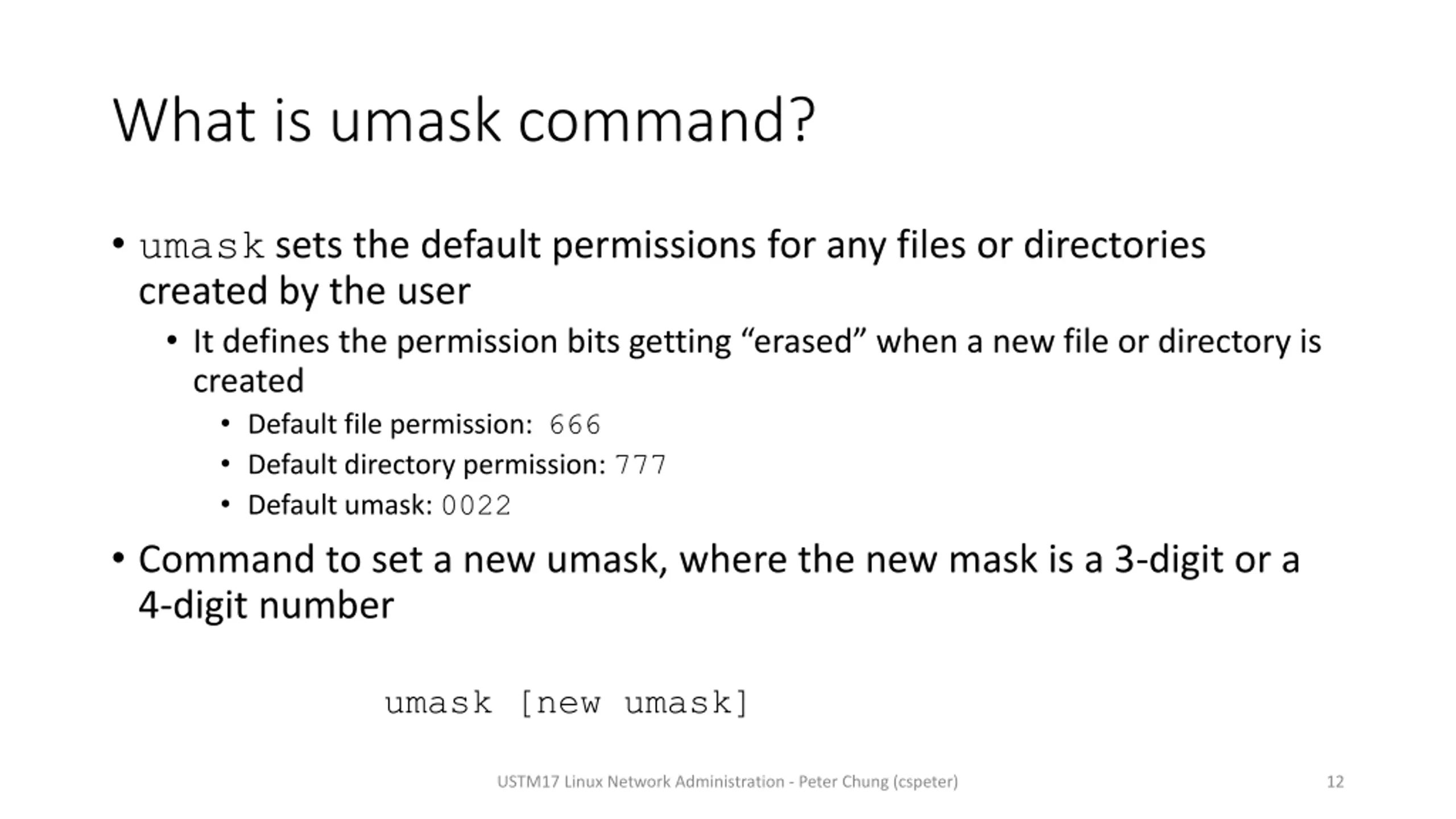

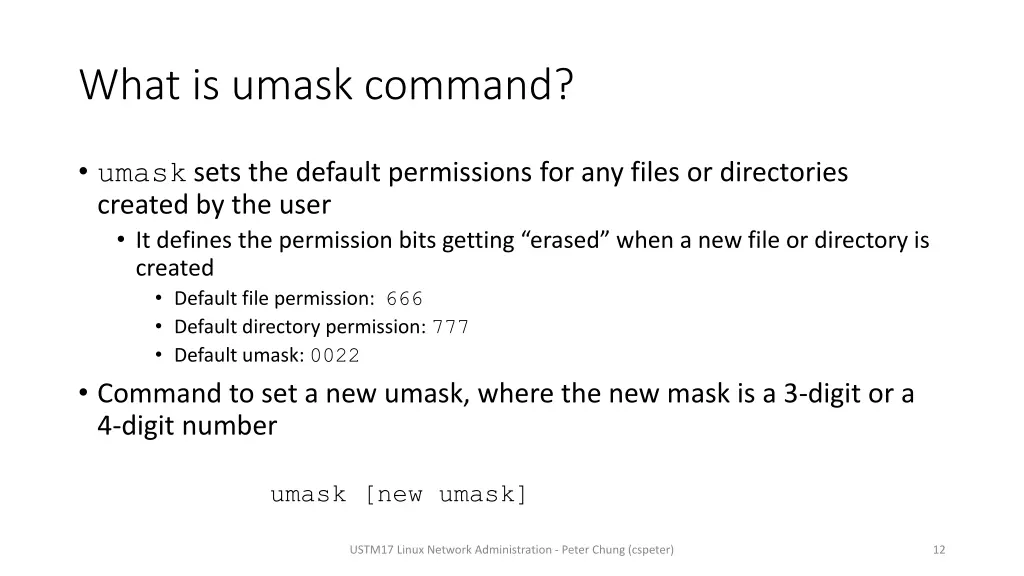

What is umask command? umask sets the default permissions for any files or directories created by the user It defines the permission bits getting erased when a new file or directory is created Default file permission: 666 Default directory permission: 777 Default umask: 0022 Command to set a new umask, where the new mask is a 3-digit or a 4-digit number umask [new umask] USTM17 Linux Network Administration - Peter Chung (cspeter) 12

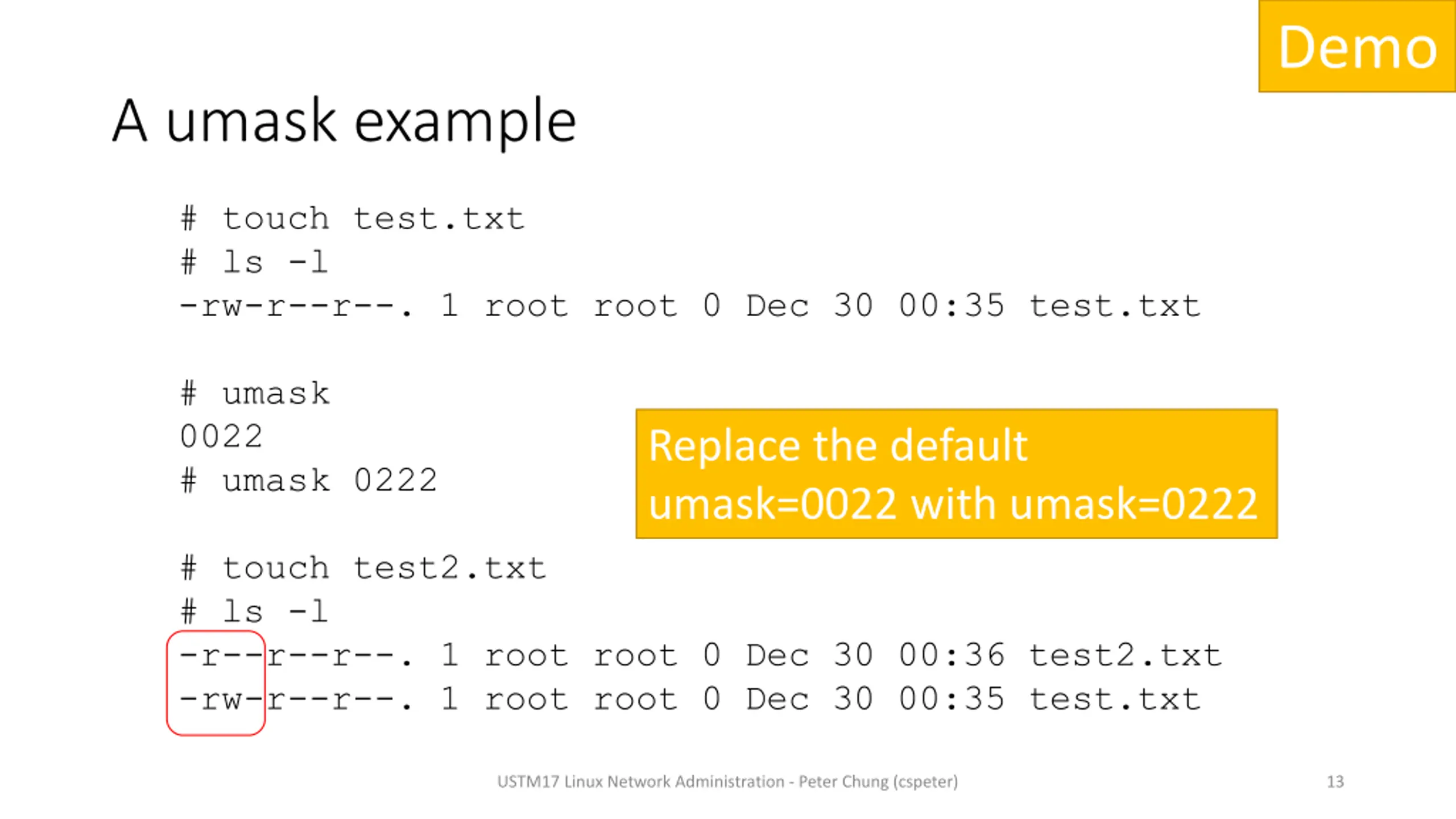

Demo A umask example # touch test.txt # ls -l -rw-r--r--. 1 root root 0 Dec 30 00:35 test.txt # umask 0022 # umask 0222 Replace the default umask=0022 with umask=0222 # touch test2.txt # ls -l -r--r--r--. 1 root root 0 Dec 30 00:36 test2.txt -rw-r--r--. 1 root root 0 Dec 30 00:35 test.txt USTM17 Linux Network Administration - Peter Chung (cspeter) 13
Any questions so far? USTM17 Linux Network Administration - Peter Chung (cspeter) 14
