User-Level Process Towards Exascale Systems
User-Level Process towards
Exascale Systems
Akio Shimada
[
1]
, Atsushi Hori
[
1]
, Yutaka Ishikawa
[
1]
,
Pavan Balaji
[
2]
[
1]
RIKEN AICS,
[
2]
Argonne National Laboratory
Background
•
MPI processes running on a HPC cluster
communicate with each other to e
xchange the
data for parallel computation
–
An MPI process must wait for a completion of a
communication
•
Latency hiding can be considered as an
important issue towards Exascale systems
–
Network system of a HPC cluster will be larger
Methods for Latency Hiding
•
Non-blocking communication
–
Overlapping communication and computation
•
Oversubscription
–
Binding multiple processes to one CPU core
–
Switching process when a process is blocked to
wait for a completion of a communication
Problem
•
Process context switch is slow
–
The overhead of process context spoils the benefit
of the process oversubscription in some cases
[ Lancu et al. IPDPS 2010 ]
•
The overhead of jumping into the kernel context
•
The overhead of the address space switching
Conventional Approach
•
The
o
versubscription using user-level thread
(e.g. FG-MPI)
–
Invoking multiple user-level threads within a process
–
Assigning a role of an MPI process to a user-level thread
•
Pros and cons
–
Pros
•
Fast context switch
–
The context switch between user-level threads can be conducted in the
user-space
–
The context switch between user-level threads does not require address
space switching
–
Cons
•
Modification to the application is required
–
Program code (text) and data (data, bss and heap) are shared among
user-level threads playing a role of an MPI process
Our Solution
•
User-level process (ULP)
–
ULP is a “process”, which can be schedules in the user-
space
•
The ULP has the beneficial features of the user-level thread
•
The ULP has its own program code and data. (Therefore, we
equate the ULP with “process”.)
–
Capability of ULP
•
The ULP enables the low-overhead process oversubscription
•
Modification to the application is not required
Overview of User-level Process
Task Scheduler (Kernel-space)
data
bss
text
data
heap
data
bss
text
heap
data
bss
text
heap
Task
S
cheduler (User-space)
data
bss
text
heap
data
bss
text
heap
data
bss
text
heap
Kernel-level
Process
User
-level
Process
User-level
Process
User-level
Process
Kernel-level
Thread
Kernel-level
Thread
Kernel-level
Thread
User-level
Thread
User-level
Thread
User-level
Thread
Execution Context
CPU Core
(a) Kernel-level Process
Kernel-level Process
Kernel-level Process
Kernel-level Process
(b) User-level Process
(c) Kernel-level Thread
(d) User-level Thread
Kernel-level
Process
Kernel-level
Process
stack
stack
stack
stack
stack
stack
stack
stack
stack
bss
heap
text
data
bss
heap
text
stack
stack
stack
Address Space Boundary
Task
S
cheduler (User-space)
Task Scheduler (Kernel-space)
Task Scheduler (Kernel-space)
Task Scheduler (Kernel-space)
•
The ULP can be scheduled in the user-space
–
The low-overhead oversubscription can be achieved by avoiding
the overhead of the process context switch
•
The ULP has its own program code and data
–
Modification to the application is not required
Address Space Design
TEXT
DATA&BSS
HEAP
STACK
KERNEL
ULP 0
Address
low
high
TEXT
DATA&BSS
HEAP
STACK
・
・
・
KERNEL
ULP 1
ULP 2
TEXT
DATA&BSS
HEAP
KERNEL
STACK 1
STACK 0
STACK N-1
ULP N-1
STACK 2
・
・
・
Process
User-level Thread
User-level Process
Context Switch
text
data & bss
heap
stack
Partition for
ULP 0
Partition for
ULP 1
registers
text
data & bss
heap
stack
registers
CPU
core
① save context of
user-level process 0
② load context of
user-level process 1
・
・
・
Low
High
Address
Contex
t switch from ULP 0 to ULP 1
•
Segment registers must be considered on x86_64 architectures
–
Segment registers are not accessible from user-space
–
The
fs
register is used for implementing Thread Local Storage (TLS)
–
Thread safe functions must be build without using TLS
ULP API
•
int pvas_u
lp_create(int
*pvd
)
–
pvas_ulp_create creates address space for ULPs
•
int pvas_ulp_destroy(int
pvd
)
–
pvas_ulp_destroy destroys a created address space
•
int pvas_ulp_spawn(int
pvd
, int
pvid
, char
*filename
,
char
**argv
, char
**environ
)
–
pvas_ulp_spawn spawns kernel-level process with a ULP
•
int pvas_u
lp_exec
(int
pvid
, char
*filename
, char
**argv
,
char
**environ
)
–
pvas_ulp_exec creats and executes a new ULP
•
int pvas_ulp_switch(int
pvid
)
–
p
vas_ulp_switch conducts context from the current ULP to
the indicated ULP
Preliminary Evaluation (context switch performance)
•
Benchmark
–
Invoking multiple parallel processes on a single CPU core
–
A parallel process may be a kernel-level process or a kernel-level thread or a
user-level thread or a user-level process
–
Measuring a
time elapsed until all
paralle
l process performs context switch
1000 times
•
The performance of the ULP is competitive with
that of the
user-level
thread
Environment
CPU: Inte
l Xeon X5670
2.93 GHz
OS : Linux 2.6.32-el6
for x86_64
L
o
w
e
r
i
s
b
e
t
t
e
r
Summary and Future Work
•
Summary
–
The ULP enables the low-overhead
oversubscription by avoiding the overhead of the
process context switch
–
The oversubscription using ULP does not require
any modification to the application
•
Future work
–
Future work is to embed the capability of the ULP
in the MPI runtimes and evaluate it
User-Level Process towards Exascale Systems discusses methods for latency hiding in MPI processes running on HPC clusters. It explores issues related to communication latency, oversubscription, and process context switching. The solution proposed is the use of User-Level Processes (ULP) as a low-overhead approach for process oversubscription without requiring application modifications.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

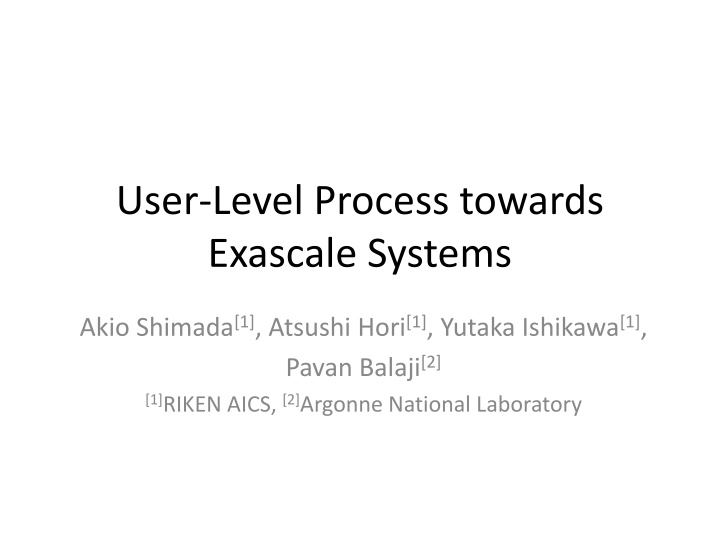

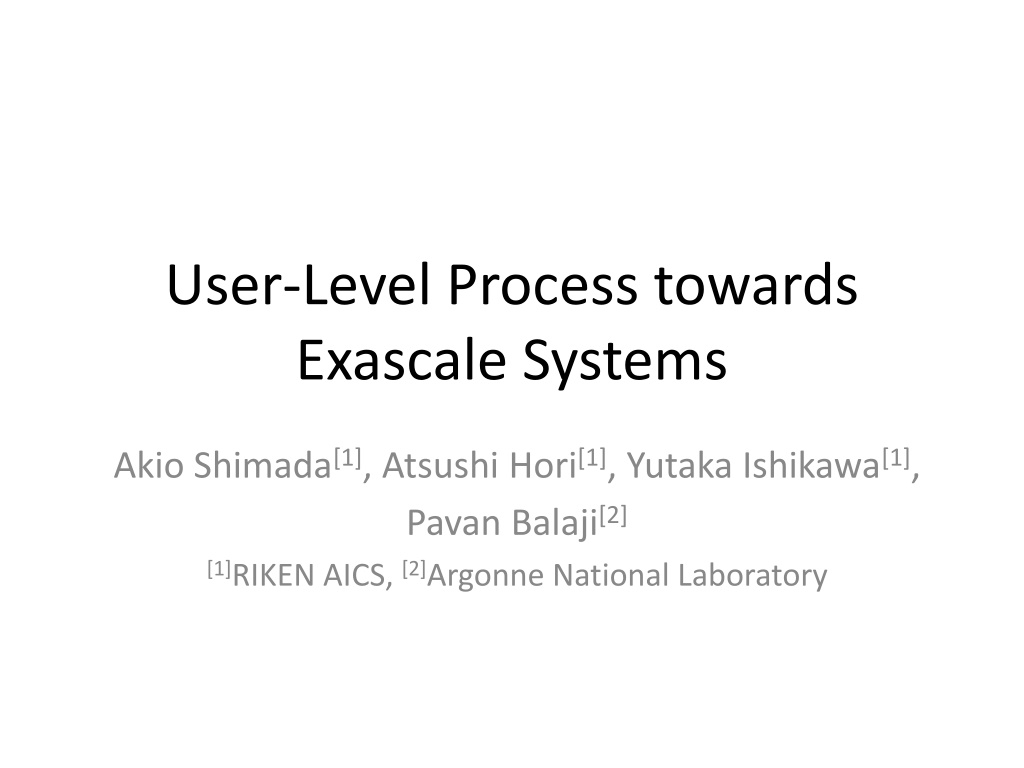

User-Level Process towards Exascale Systems Akio Shimada[1], Atsushi Hori[1], Yutaka Ishikawa[1], Pavan Balaji[2] [1]RIKEN AICS, [2]Argonne National Laboratory
