SW Strategy for CP Duty and Voltage Sampling Simulation
Explore a comprehensive simulation of CP duty cycle and voltage sampling strategies. Learn how software detects amplitude changes and judges voltage levels effectively. Dive into the results based on specific duty cycles and voltage requirements.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

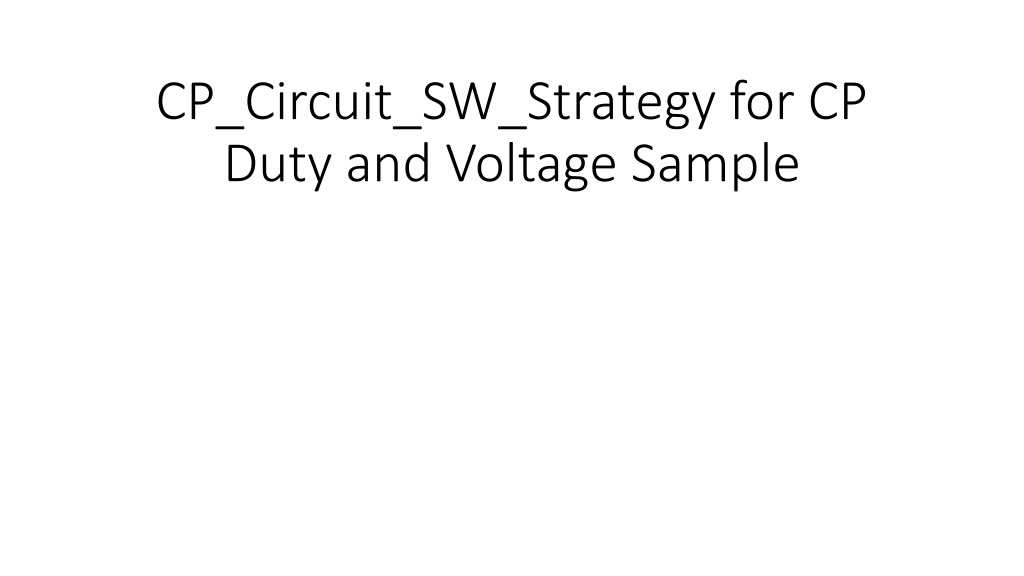

CP_Circuit_SW_Strategy for CP Duty and Voltage Sample

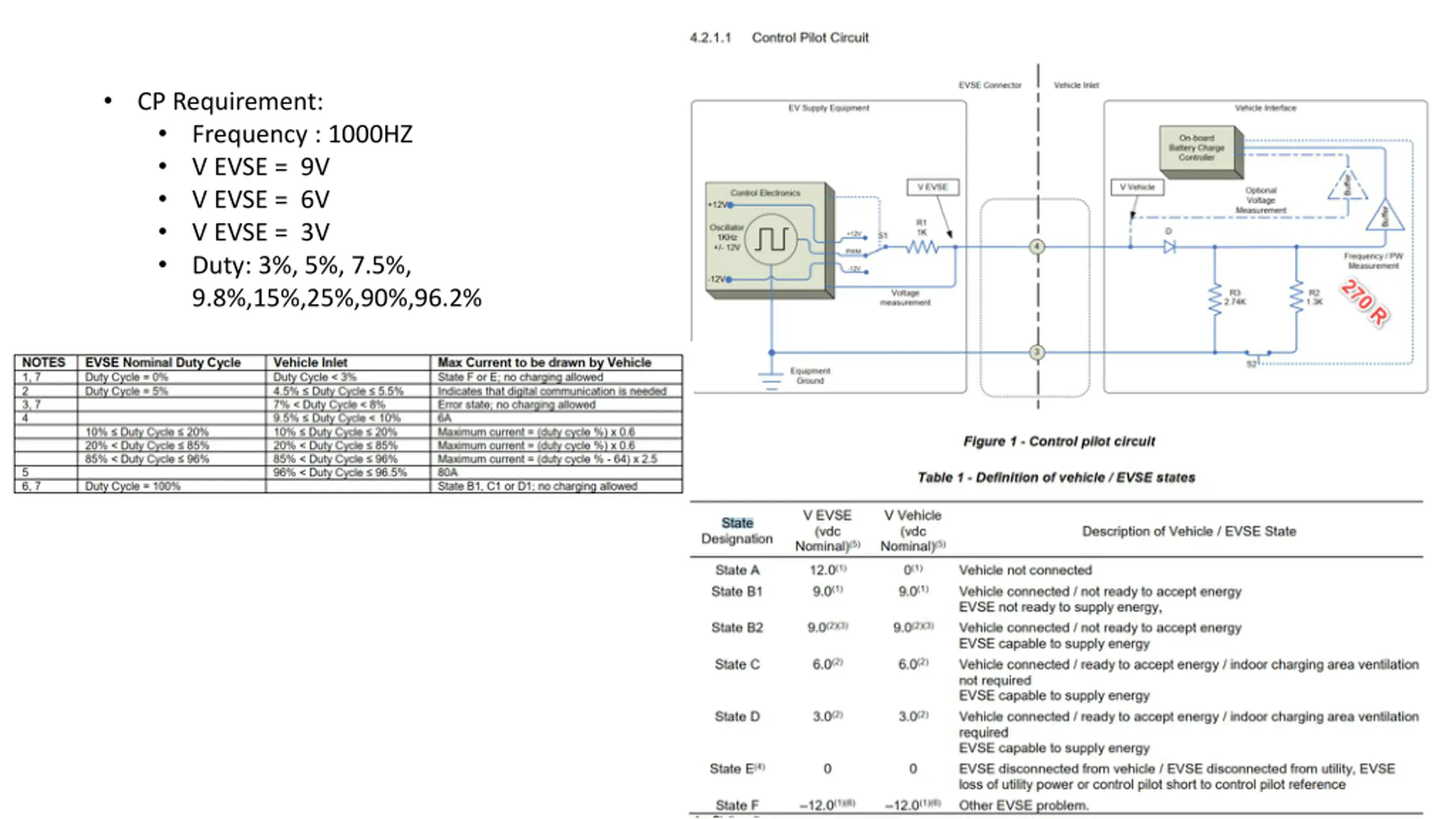

CP Requirement: Frequency : 1000HZ V EVSE = 9V V EVSE = 6V V EVSE = 3V Duty: 3%, 5%, 7.5%, 9.8%,15%,25%,90%,96.2%

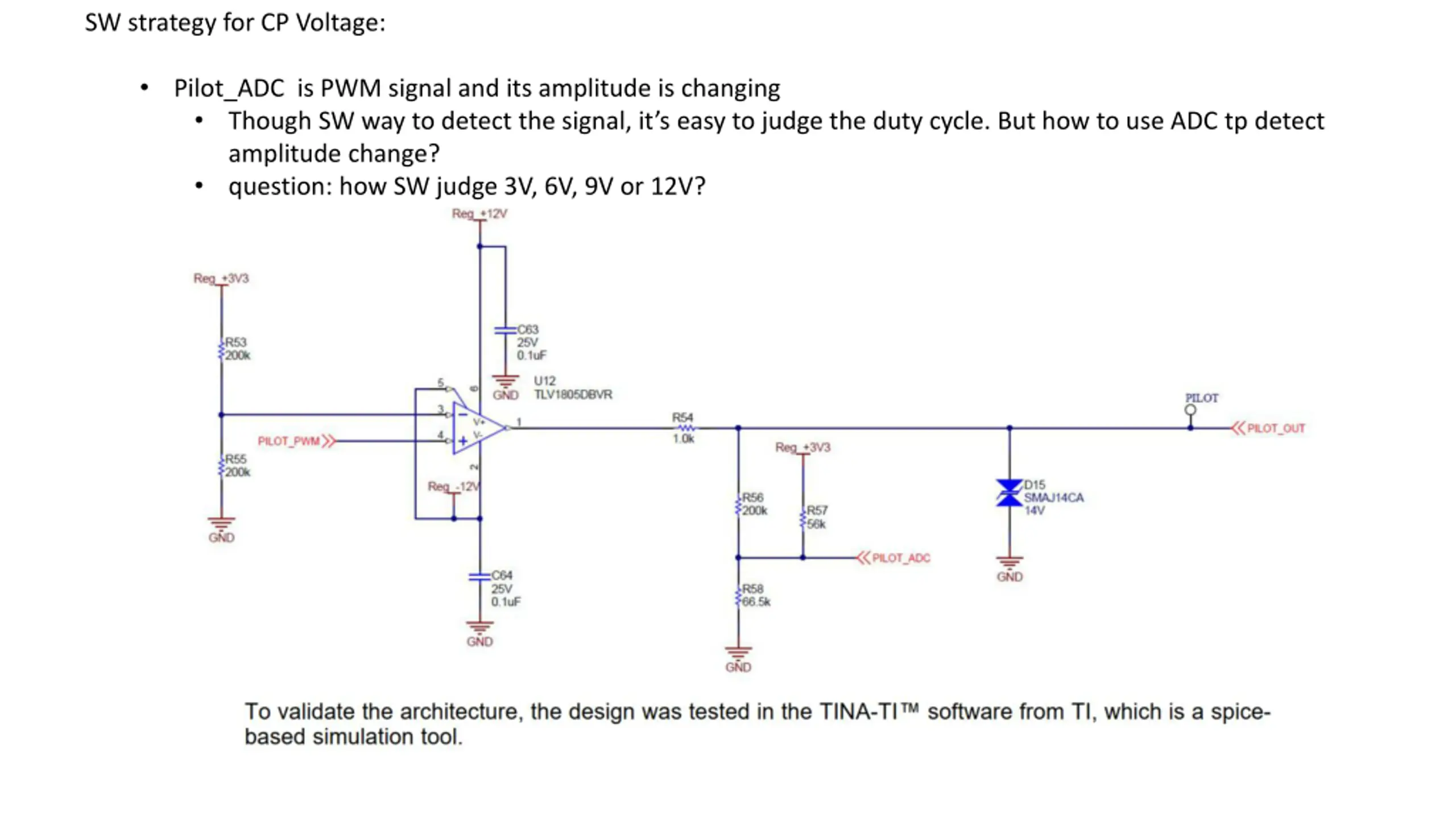

SW strategy for CP Voltage: Pilot_ADC is PWM signal and its amplitude is changing Though SW way to detect the signal, it s easy to judge the duty cycle. But how to use ADC tp detect amplitude change? question: how SW judge 3V, 6V, 9V or 12V?
