Study Committee Introduction
2
Scope
Study Committee A1, dealing with Rotating Electrical Machines,
facilitate and promote the progress of engineering and the
international exchange of information and knowledge in the field of
electrical rotating machines by means of synthesizing state-of-the-
art practices and developing new recommendations;
SC A1 is active in the areas of Turbo-Generators, Hydro-Generators,
Large Motors, High Efficiency Motors and New Technologies
Material presented by Canadian representative or delegate.
Strategic Direction
Create greater awareness of study committee activities in Canada
Generate interest and promote Study Committee work
Involve a broader audience
Objectives of the
study comittee
Strategic Direction
SC A1 has 24 regular members, 13 observer members, 8 technical
advisors, chairman and secretary and around 309 experts from 41
countries contributing to A1 activities and attending A1 meetings
and colloquiums. Members of our Study Committee are from
Utilities, Manufacturers, Consultants, Research Centers and
Universities;
The activities of the Study Committee have been driven by the
following six key main Strategic Directions:
SD 1: Asset Management
SD 2: Machine/System Interaction
SD 3: Renewable Generation
SD 4: Large Motors
SD 5: Machine Monitoring, Diagnosis and Prognosis
SD 6: Efficiency of Electrical Machines
3
Preferential Subjects
4
PS 1: Generation mix of the future
Reactive power by hydro generators
Reactive power by synchronous compensators
Static compensation with battery energy storage system
PS 2: Asset management of electrical of machines
Sparking erosion
SCADA
Partial discharges
Instrumentation
Diagnostic tests
PS 3: Latest developments
Specific turbo and hydro design
Stator winding design improvement
Reactance specifications
Canadian Technical Activities
5
Relevant activities
No scheduled meetings this year
All the work is done by KMS or by emails
Current Working Groups of interest for Canada
WG A1.42-Influence of Key Requirements to Optimize the Value of Hydro-
Generators
WG A1.55-Survey on Split Core Stators
WG A1.56-Survey on Lap and Wave Winding and Their Consequences on
Maintenance and Performance
WG A1.59-Survey on Cutting Out Coils
WG A1.62-Thrust bearings for Hydropower - a Survey of known Problems and
Root Causes
WG A1.70-Dielectric Dissipation Factor Measurements on Stator Windings
WG A1.71-Survey on damper-winding Concepts and its operational experience
on hydro generators and motor-generators
WG A1.72- Survey on multi-turn coils with dedicated turn insulation versus coils
without dedicated turn insulation
Recently Published Reports
Brochures
TB 769 ‘’Dielectric dissipation factor measurements on new stator
bars and coils’’
TB 772 ‘’Turbogenerator stator windings support system
experience’’
TB 774 ‘’State of the art of stator winding supports in slot area and
winding overhang of hydro generators’’
TB 776 ‘’Factory quality assurance testing requirements for turbo-
generator components - stator bars’’
TB 813 ‘‘Magnetic core dimensioning limits in hydro generators’’
WG - Publication in Electra – Month/Year
No specific publications
Brochures of particular interest for the last two years
All described in the first bullet
6
Proposed New Working Groups
Proposed new Working Groups
Customer Requirements for Qualification of HV Stator Winding
Insulation Systems
Proposed new Task Forces
No proposed new Task Forces
7
Canadian Highlights
Open slide for the Canadian Representative to highlight
Recognition of special contributions
Charles Millet – Convener of WG A1.59 ‘’Survey on Industry Practices
and Effects Associated with the Cutting Out of Stator Coils in Hydro
generators’’
Yoon Duk Seol-Convener of WG A1.72 ‘’Survey on multi-turn coils with
dedicated turn insulation versus coils without dedicated turn
insulation’’
8

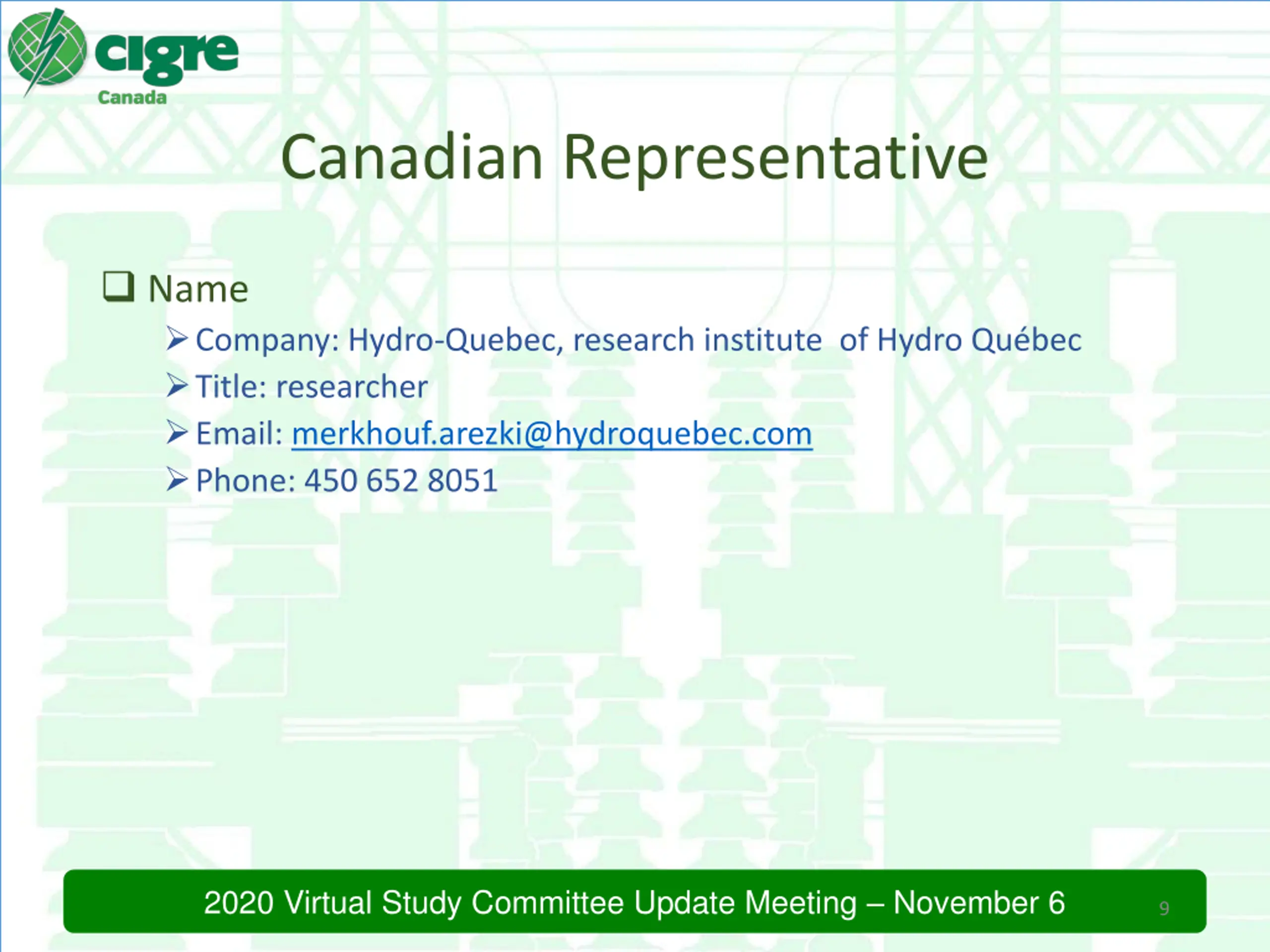

Canadian Representative
Name
Company: Hydro-Quebec, research institute of Hydro Québec
Title: researcher
Email:
merkhouf.arezki@hydroquebec.com
Phone: 450 652 8051
9
Removed presented by if the Canadian Representative is presenting the material
