Solar Thermal Energy Solar Thermal Energy
1 1- - Solar Radiation Solar Radiation

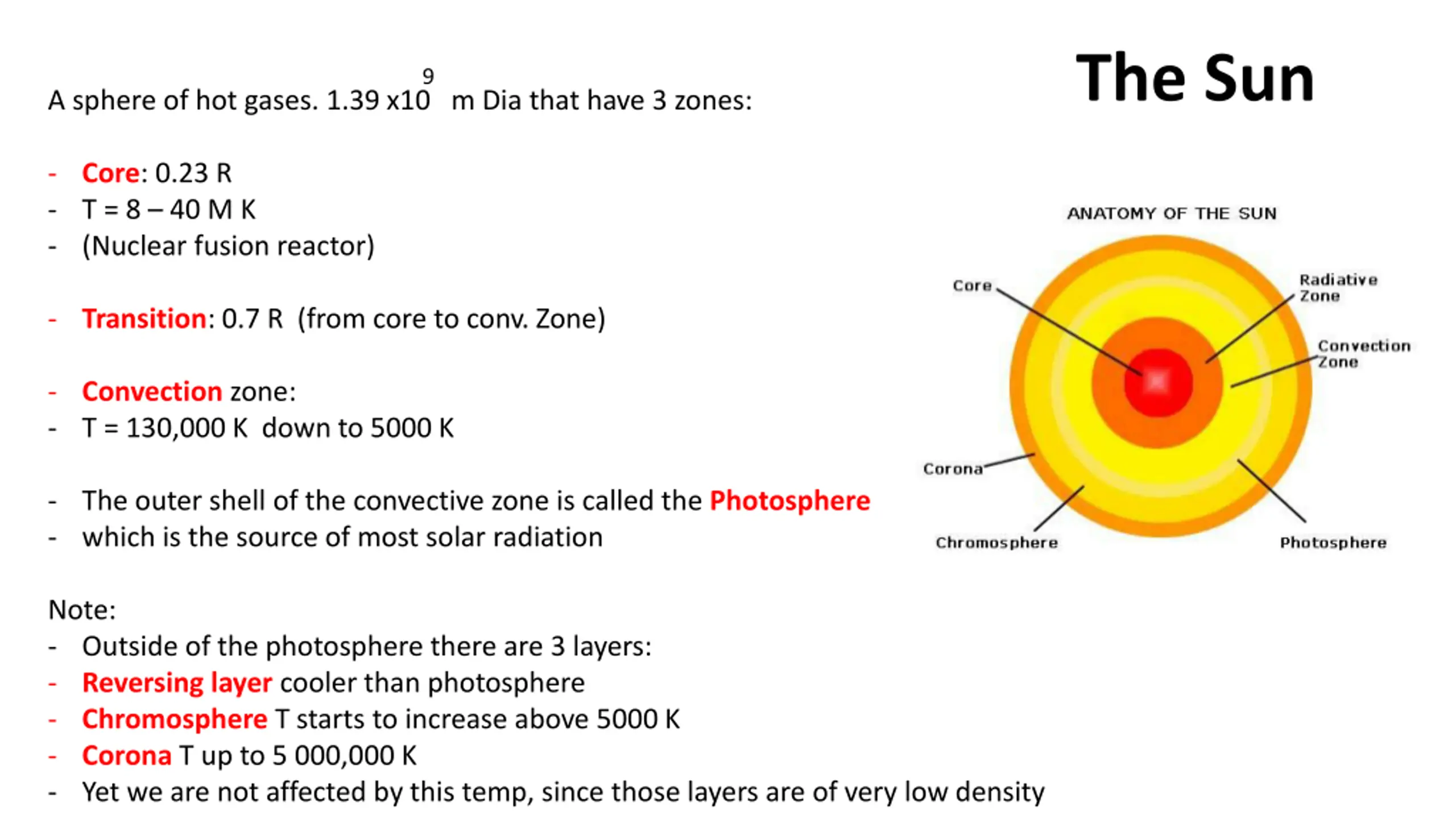

The Sun 9 A sphere of hot gases. 1.39 x10 m Dia that have 3 zones: - Core: 0.23 R - T = 8 40 M K - (Nuclear fusion reactor) - Transition: 0.7 R (from core to conv. Zone) - Convection zone: - T = 130,000 K down to 5000 K - The outer shell of the convective zone is called the Photosphere - which is the source of most solar radiation Note: - Outside of the photosphere there are 3 layers: - Reversing layer cooler than photosphere - Chromosphere T starts to increase above 5000 K - Corona T up to 5 000,000 K - Yet we are not affected by this temp, since those layers are of very low density

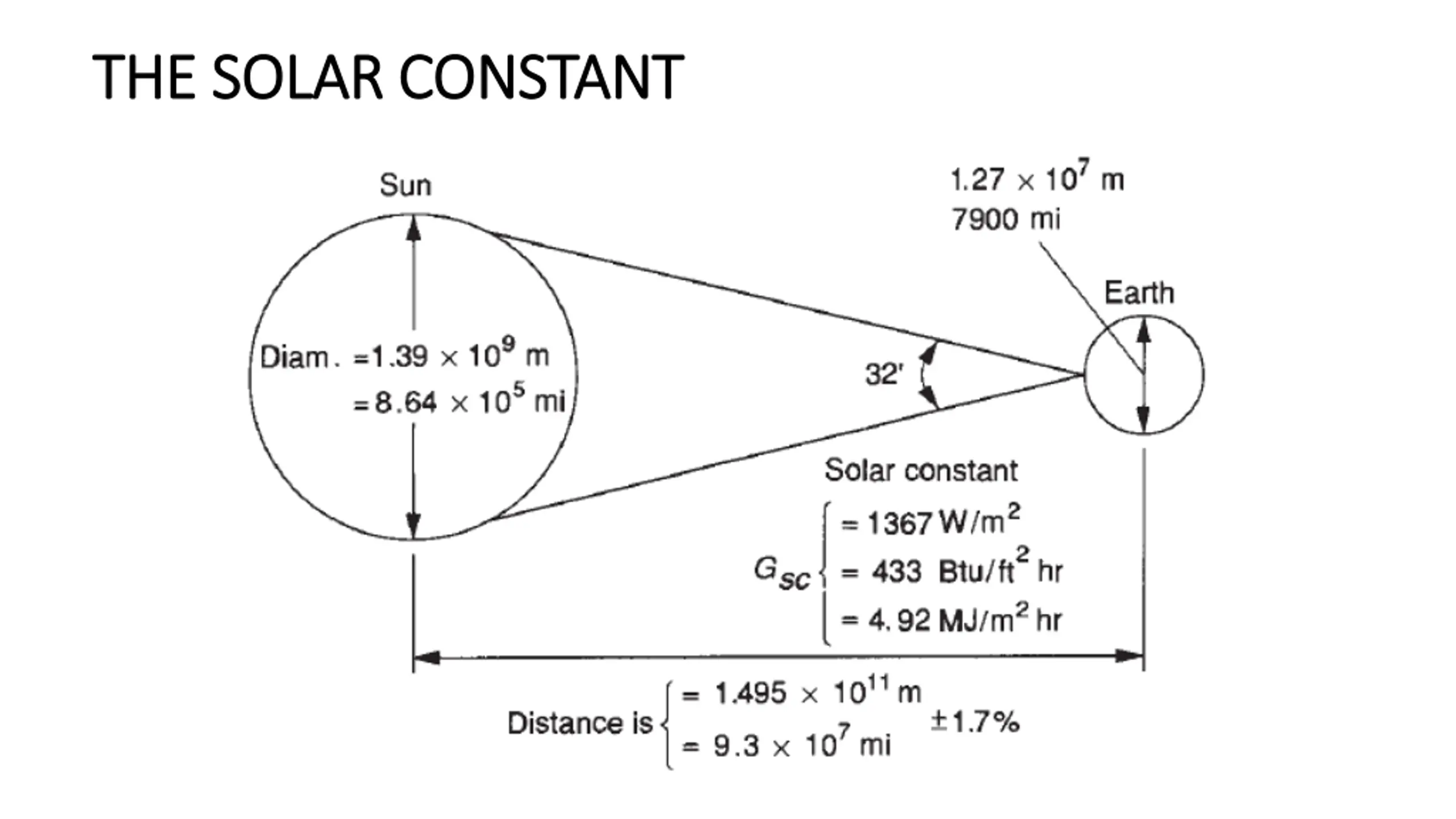

THE SOLAR CONSTANT THE SOLAR CONSTANT

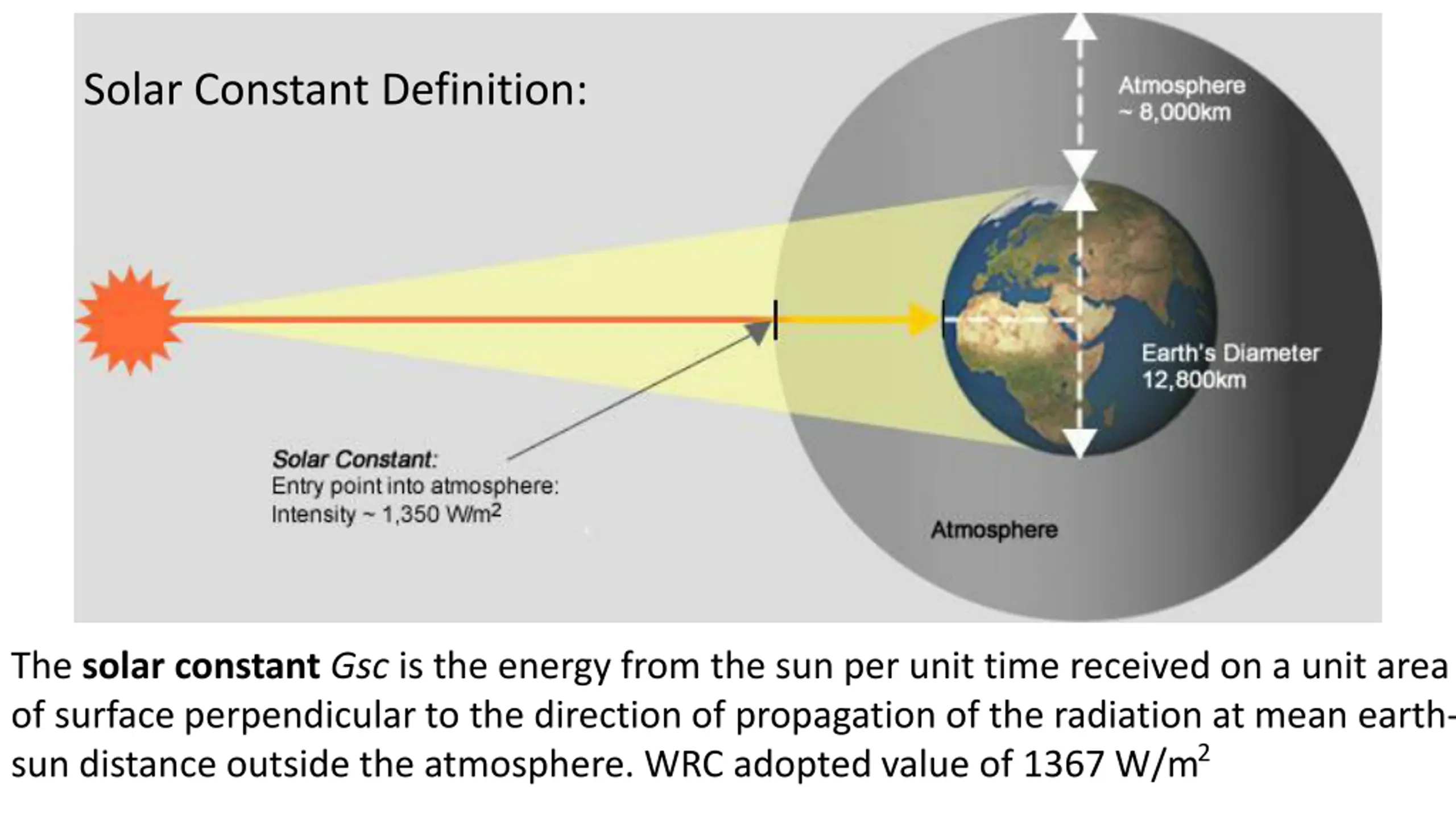

Solar Constant Definition: The solar constant Gsc is the energy from the sun per unit time received on a unit area of surface perpendicular to the direction of propagation of the radiation at mean earth- sun distance outside the atmosphere. WRC adopted value of 1367 W/m 2

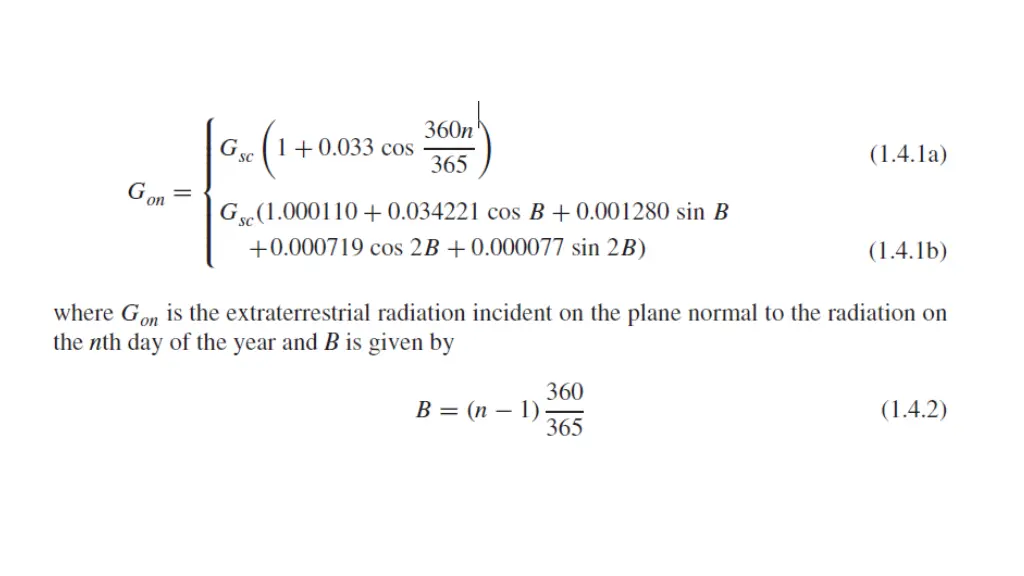

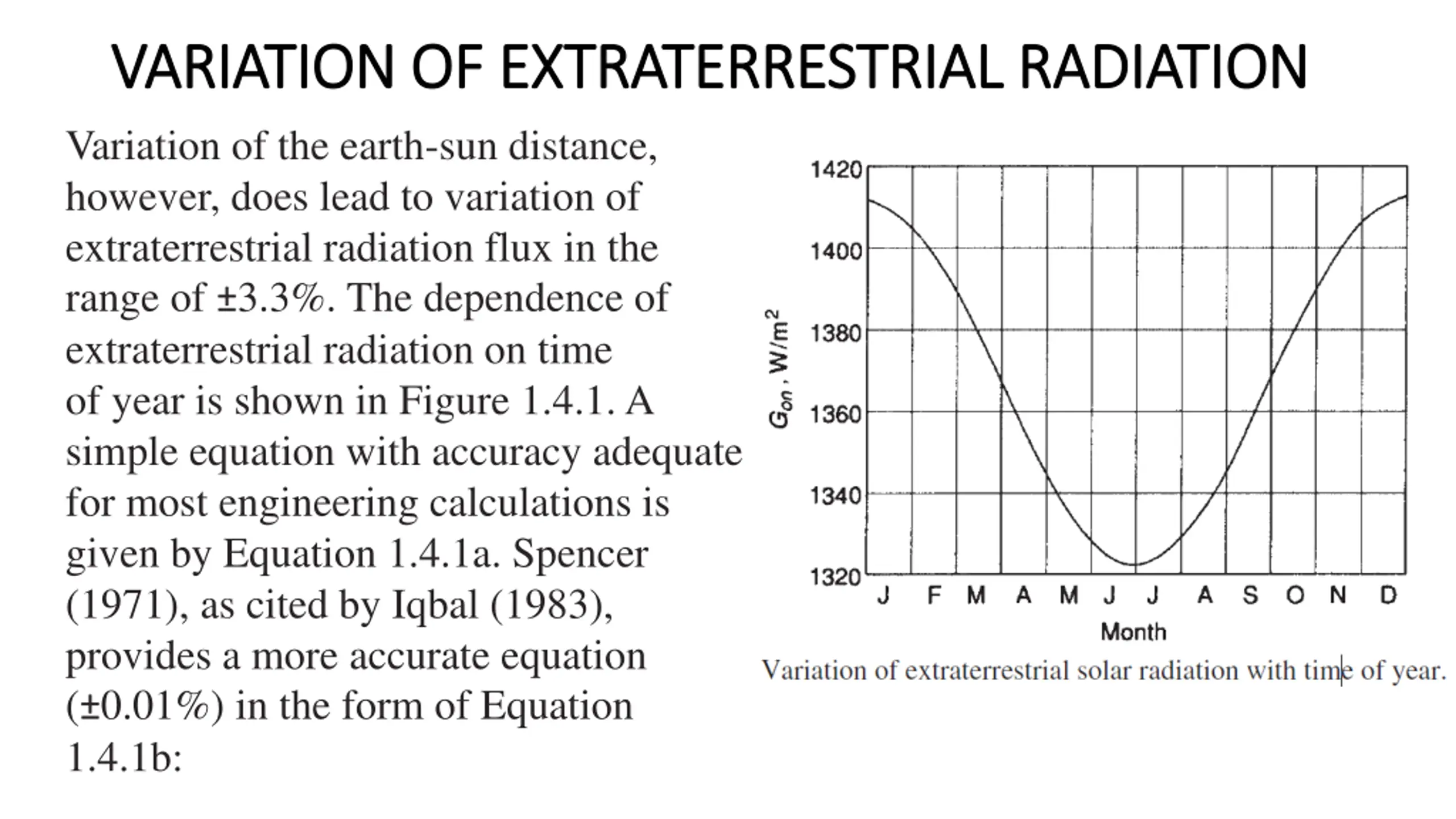

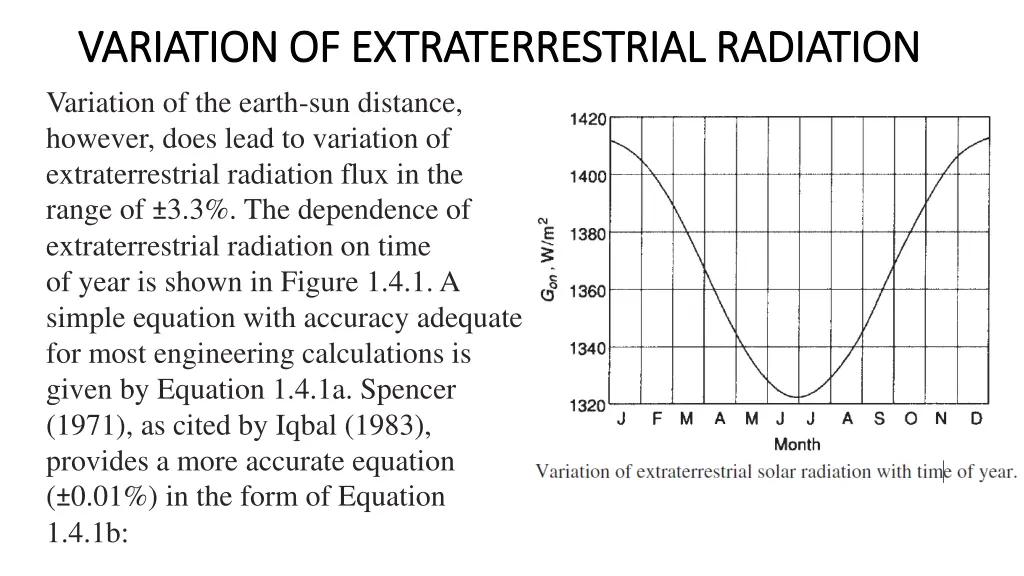

VARIATION OF EXTRATERRESTRIAL RADIATION VARIATION OF EXTRATERRESTRIAL RADIATION Variation of the earth-sun distance, however, does lead to variation of extraterrestrial radiation flux in the range of 3.3%. The dependence of extraterrestrial radiation on time of year is shown in Figure 1.4.1. A simple equation with accuracy adequate for most engineering calculations is given by Equation 1.4.1a. Spencer (1971), as cited by Iqbal (1983), provides a more accurate equation ( 0.01%) in the form of Equation 1.4.1b:
