Setting up CMMObserver with MTConnect and TrakHound

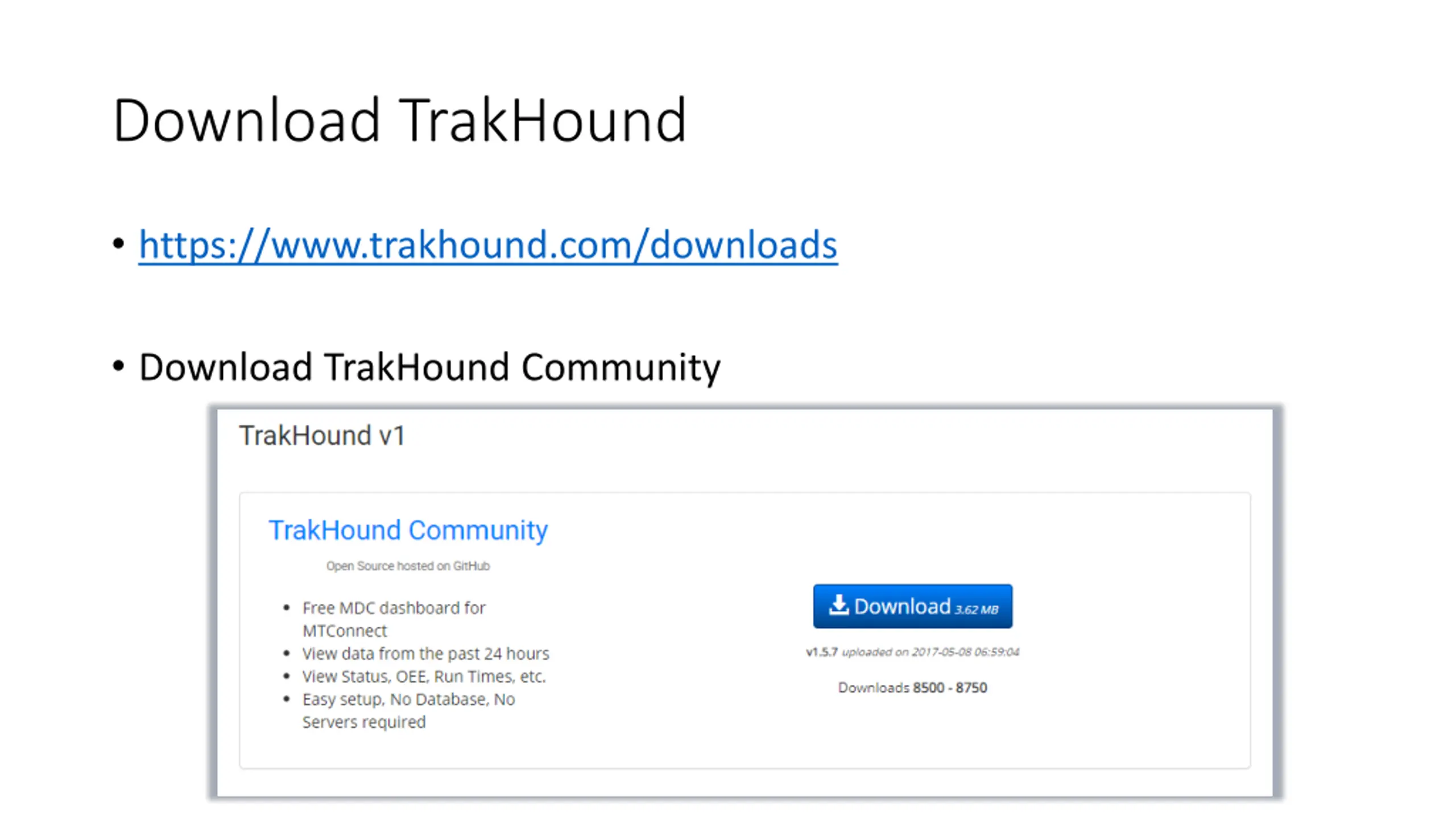

Download TrakHound https://www.trakhound.com/downloads Download TrakHound Community

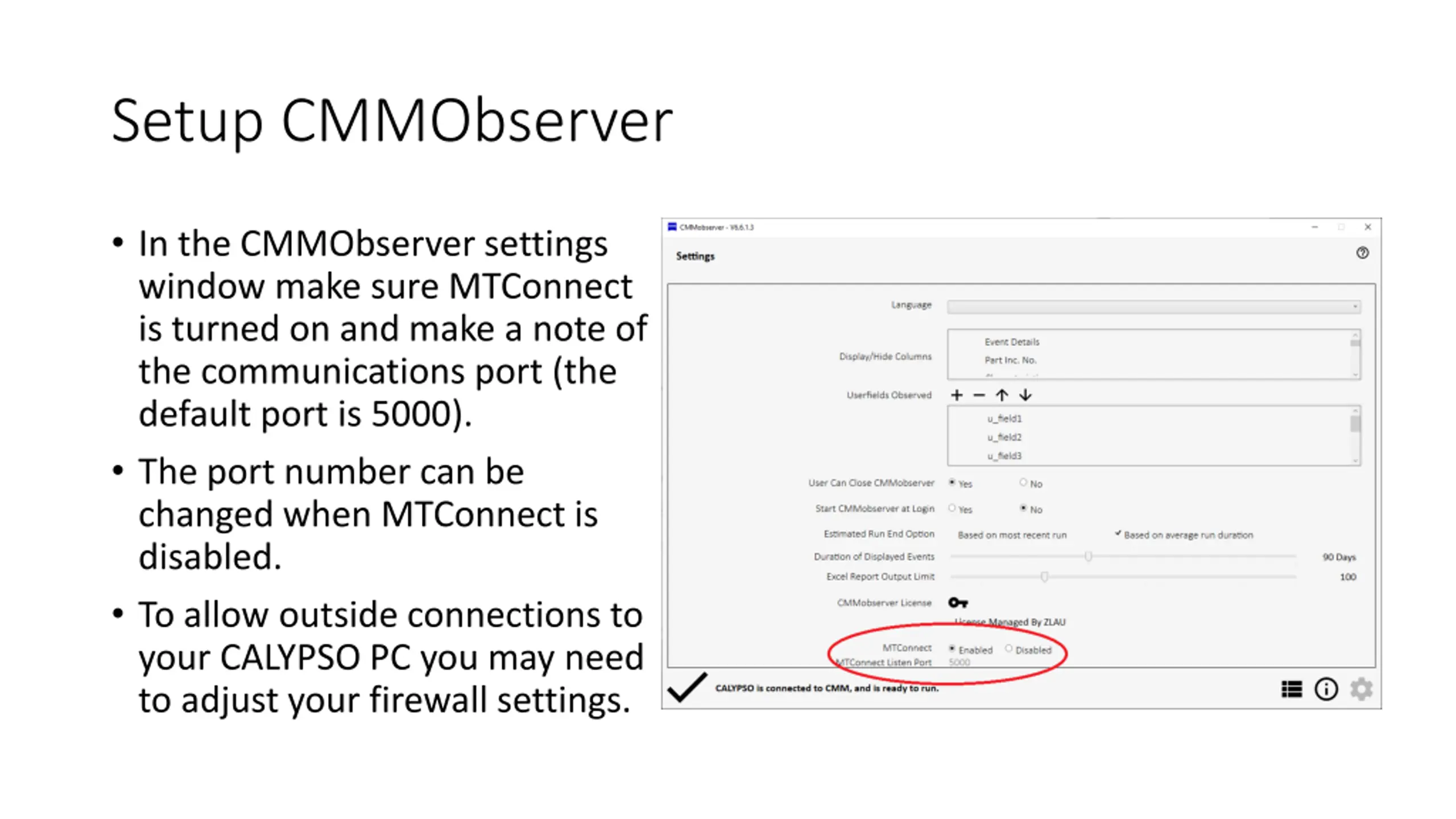

Setup CMMObserver In the CMMObserver settings window make sure MTConnect is turned on and make a note of the communications port (the default port is 5000). The port number can be changed when MTConnect is disabled. To allow outside connections to your CALYPSO PC you may need to adjust your firewall settings.

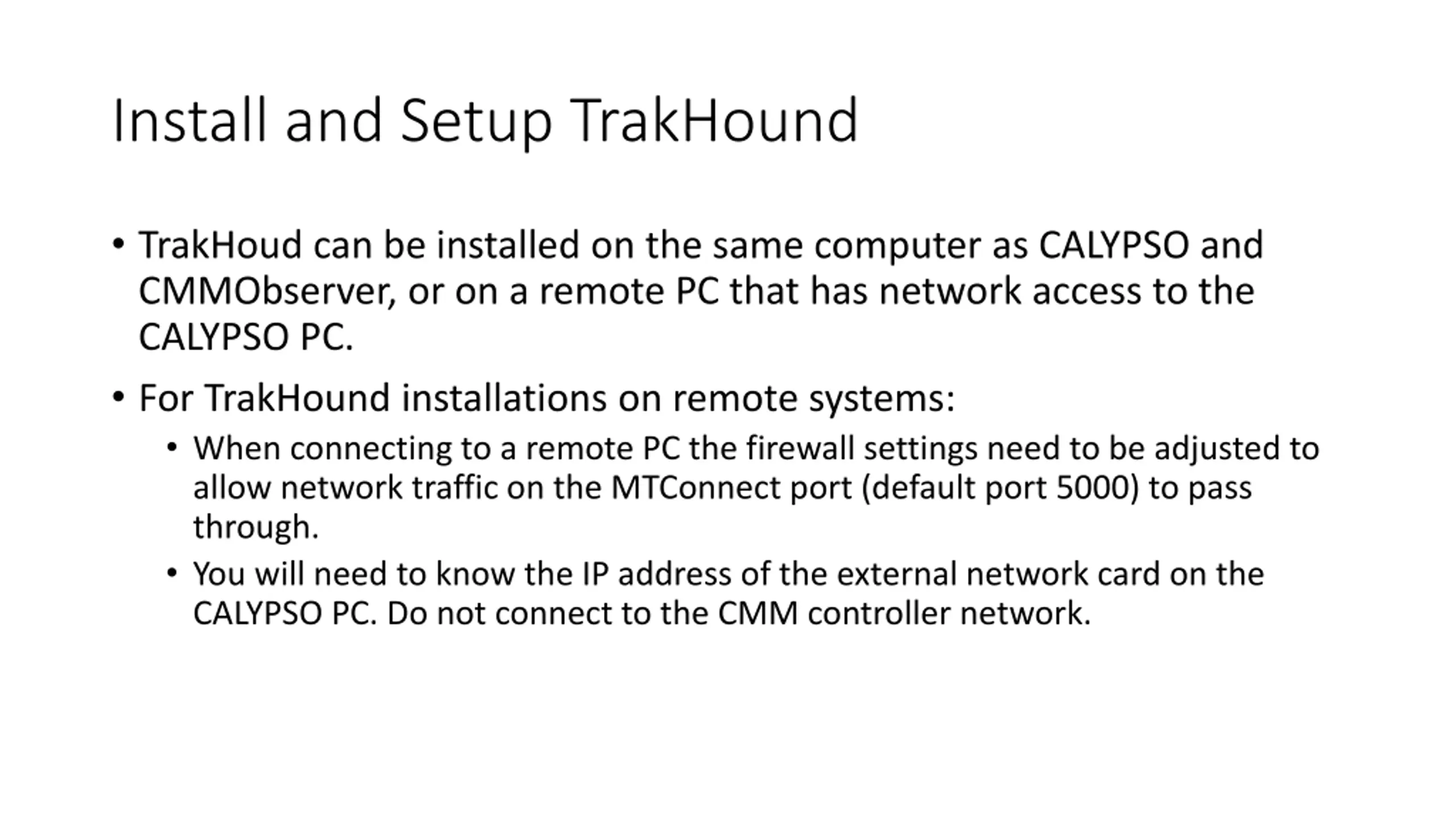

Install and Setup TrakHound TrakHoud can be installed on the same computer as CALYPSO and CMMObserver, or on a remote PC that has network access to the CALYPSO PC. For TrakHound installations on remote systems: When connecting to a remote PC the firewall settings need to be adjusted to allow network traffic on the MTConnect port (default port 5000) to pass through. You will need to know the IP address of the external network card on the CALYPSO PC. Do not connect to the CMM controller network.

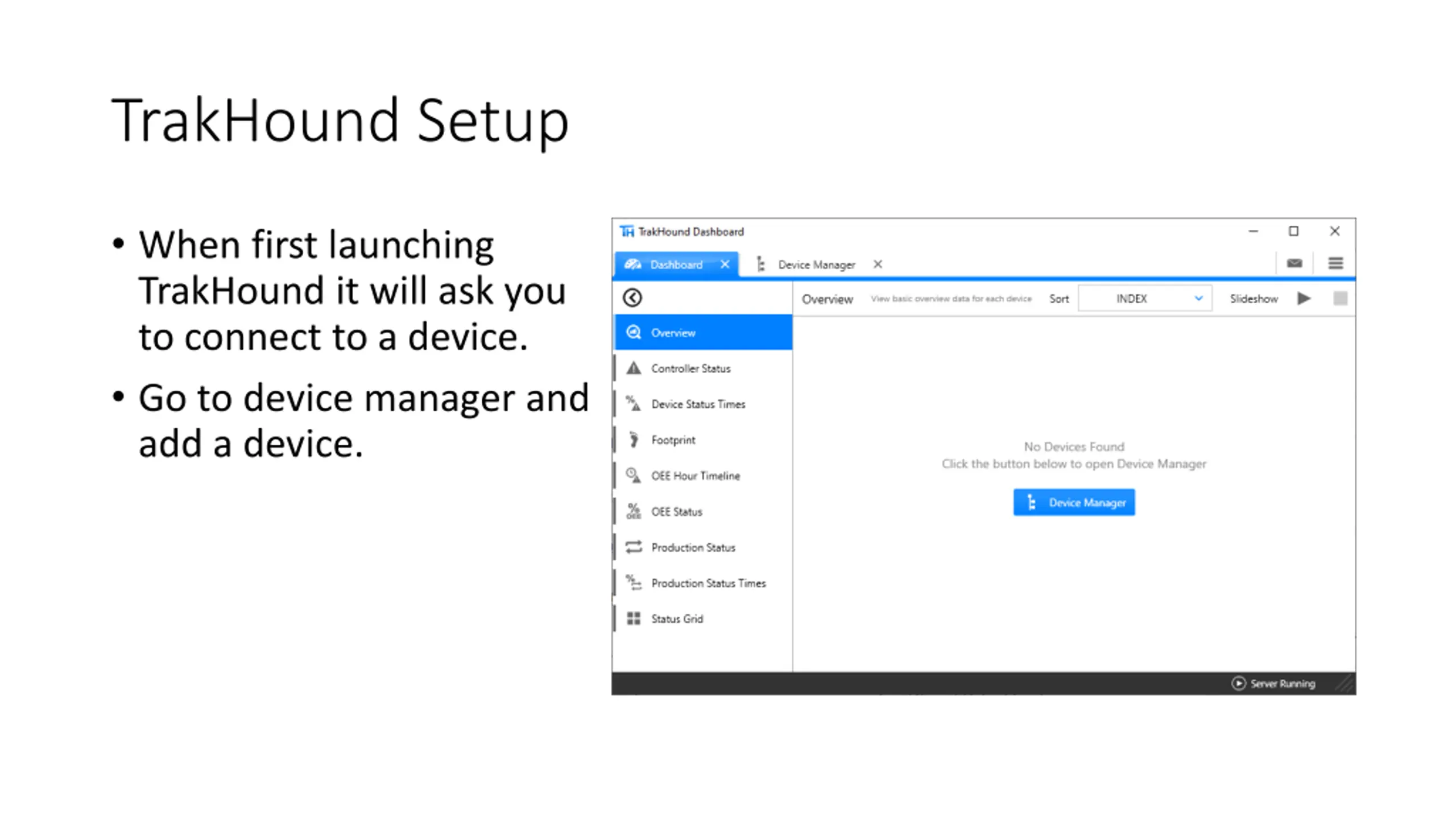

TrakHound Setup When first launching TrakHound it will ask you to connect to a device. Go to device manager and add a device.

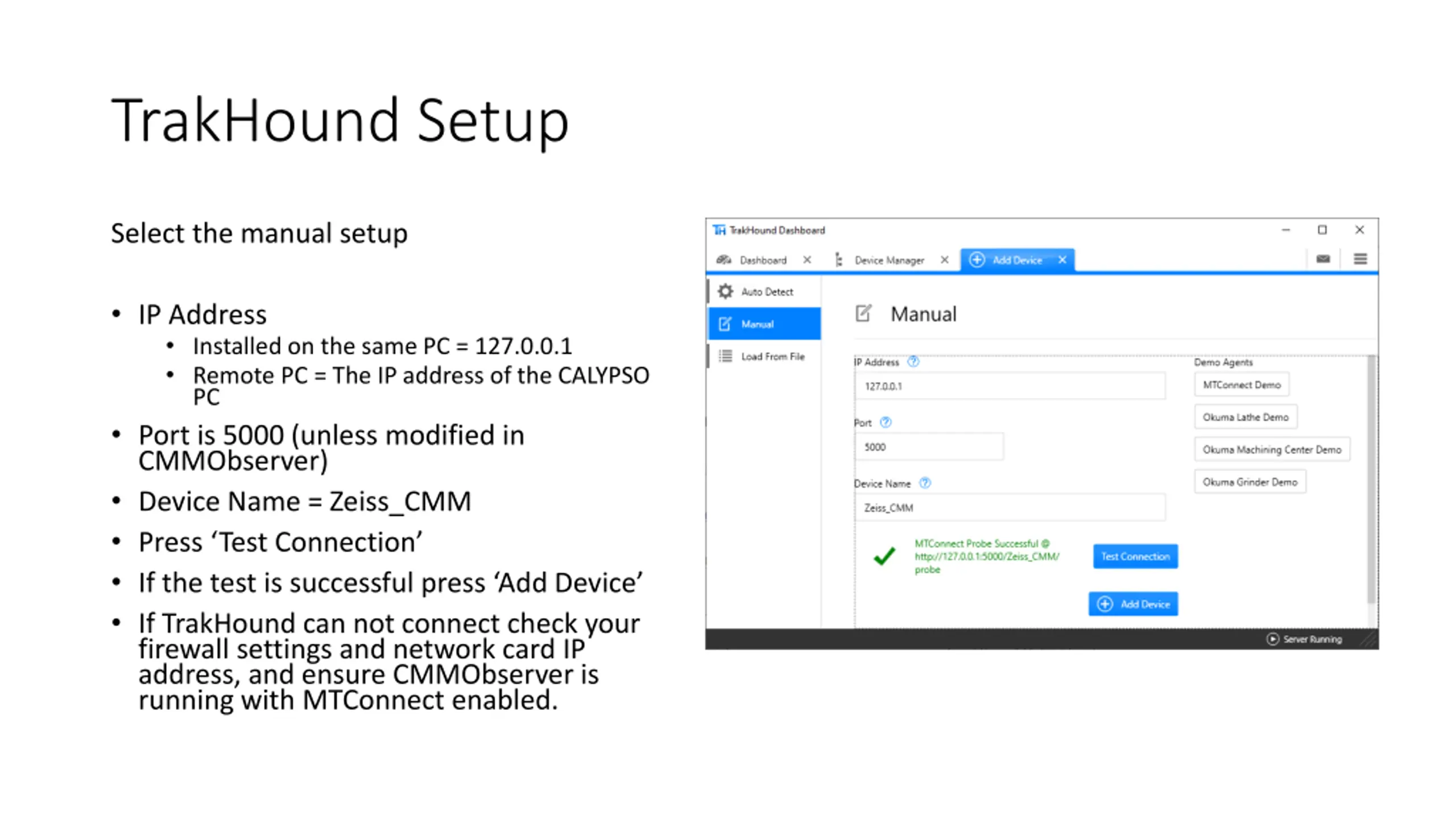

TrakHound Setup Select the manual setup IP Address Installed on the same PC = 127.0.0.1 Remote PC = The IP address of the CALYPSO PC Port is 5000 (unless modified in CMMObserver) Device Name = Zeiss_CMM Press Test Connection If the test is successful press Add Device If TrakHound can not connect check your firewall settings and network card IP address, and ensure CMMObserver is running with MTConnect enabled.

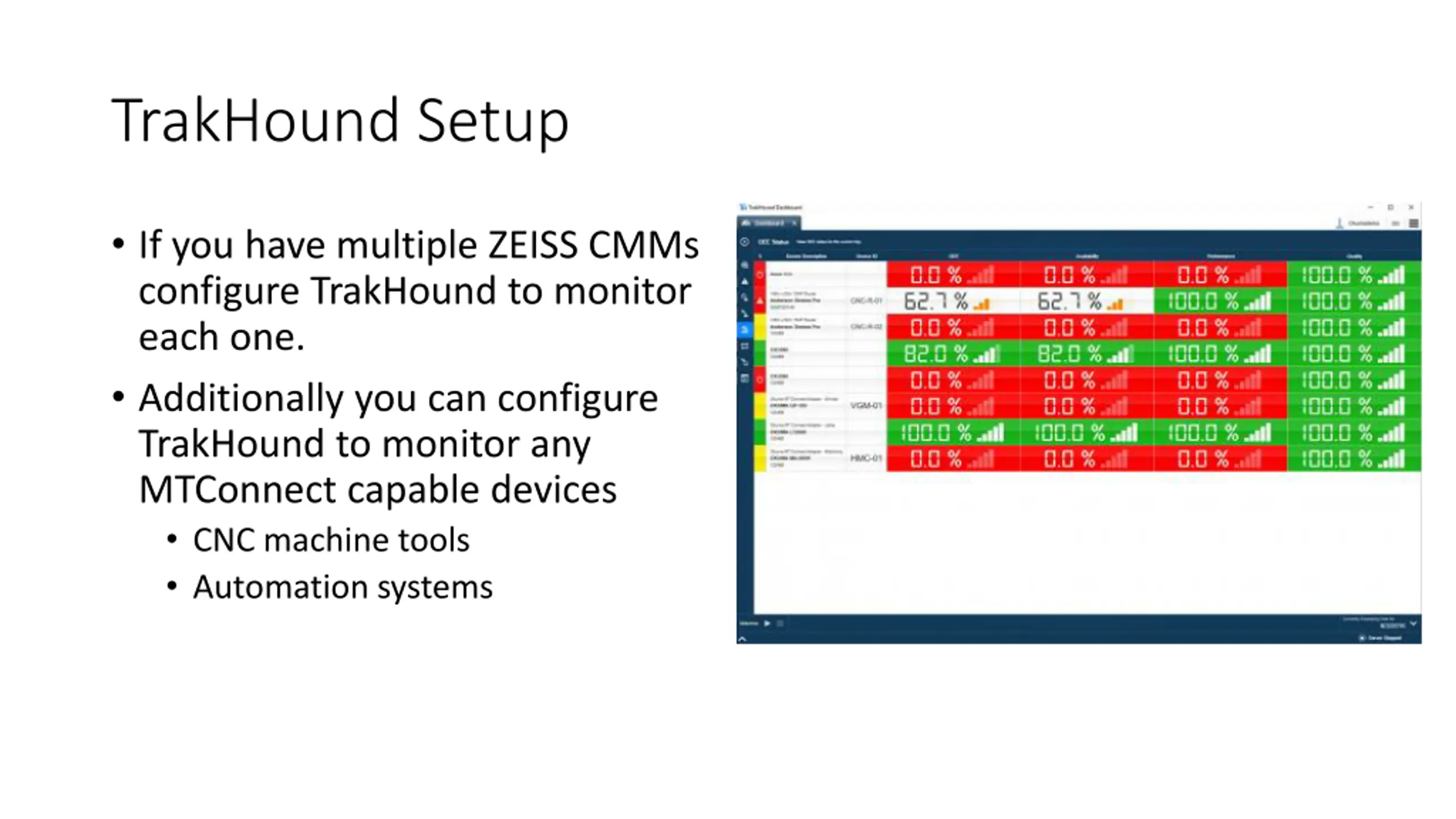

TrakHound Setup If you have multiple ZEISS CMMs configure TrakHound to monitor each one. Additionally you can configure TrakHound to monitor any MTConnect capable devices CNC machine tools Automation systems

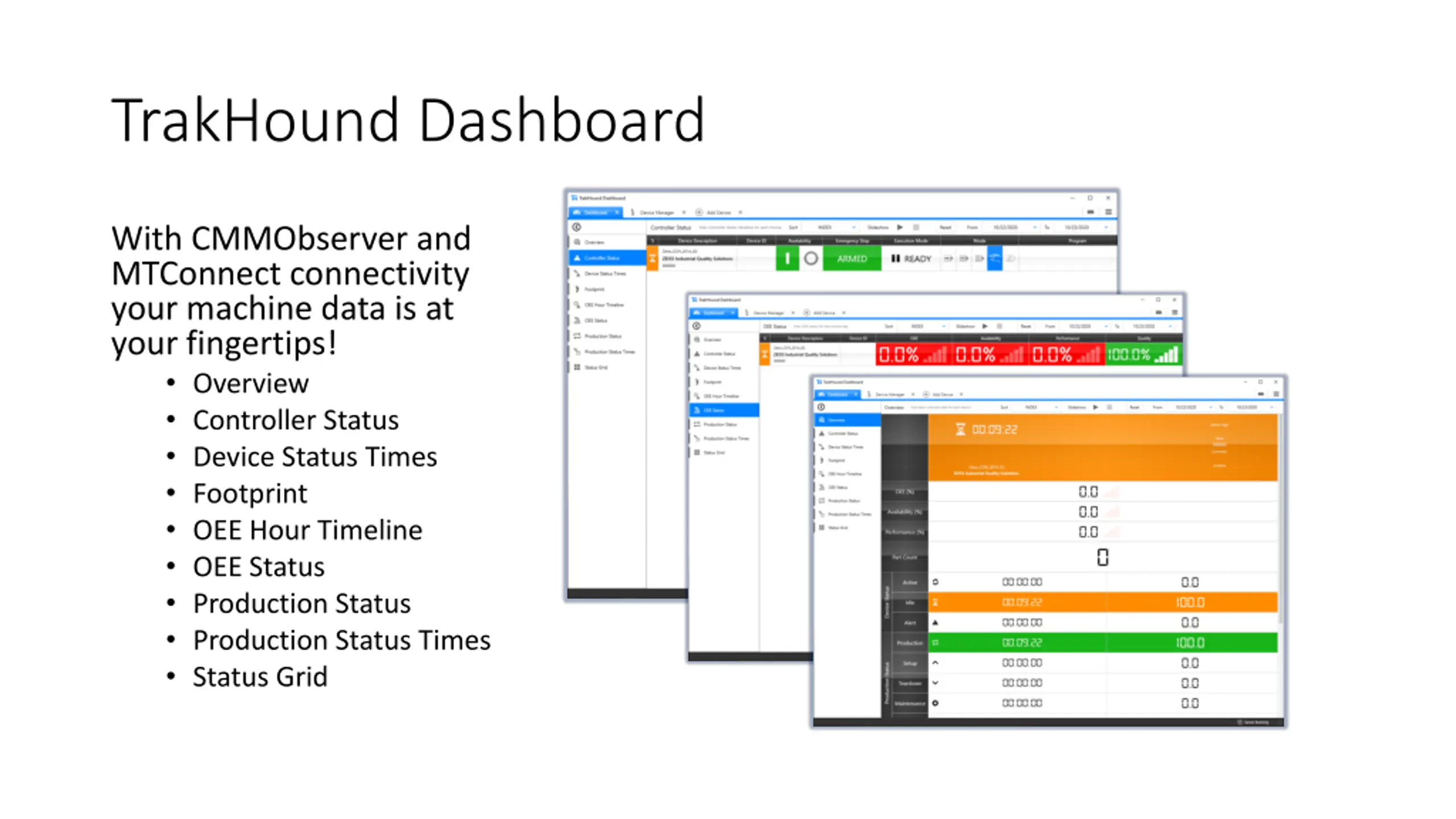

TrakHound Dashboard With CMMObserver and MTConnect connectivity your machine data is at your fingertips! Overview Controller Status Device Status Times Footprint OEE Hour Timeline OEE Status Production Status Production Status Times Status Grid
