Queues in Computer Science: Principles and Implementations
Lecture 13 – Queues
Ordered collection of data
Items are added to the back of the queue
Items are removed from the front of the queue
Remove data in the same order as the data added
First in, first out (FIFO)
Operations
Enqueue
Dequeue
Peek
Is_empty
Size
2
COMPSCI 107 - Computer Science Fundamentals
Implementation using Python
list
What is the big-O of
enqueue()?
What is the big-O of
dequeue()?
3
COMPSCI 107 - Computer Science Fundamentals
class QueueV1:
def __init__(self):
self.items = []
def is_empty(self):
return self.items == []
def enqueue(self, item):
self.items.insert(0,item)
def dequeue(self):
return self.items.pop()
def size(self):
return len(self.items)
Problem:
Can the current printer handle the task load if it were set
to print with a better quality but slower page rate?
Write a simulation which models the printing tasks as random events
of various lengths and arrival times.
The current setting on the printer is 10 pages per minute and gives
lower quality printing. The output will tell us if the wait times are
significantly different if we use the better quality setting on the
printer (5 pages per minute).
On average, a job is sent to the printer every 3 minutes. Each job is
between 1 and 20 pages.
4
COMPSCI 107 - Computer Science Fundamentals
Run ten simulations each for 3600 (simulated) seconds. Each second
there is 1 in 180 chance that a new print job of 1 to 20 pages is sent
to the printer.
5
COMPSCI 107 - Computer Science Fundamentals
simulation(10)
1. Average Wait: 16.90 secs. 0 tasks queued
2. Average Wait: 2.72 secs. 0 tasks queued
3. Average Wait: 26.75 secs. 1 tasks queued
4. Average Wait: 3.45 secs. 0 tasks queued
5. Average Wait: 5.60 secs. 0 tasks queued
6. Average Wait: 22.56 secs. 0 tasks queued
7. Average Wait: 14.71 secs. 0 tasks queued
8. Average Wait: 25.79 secs. 0 tasks queued
9. Average Wait: 4.28 secs. 0 tasks queued
10. Average Wait: 5.79 secs. 0 tasks queued
Run 10 simulations of an hour of printing
simulate_hour function returns a tuple consisting of:
list containing the number of seconds that each print job waited in the queue, and
an integer representing the number of jobs remaining in the queue
6
COMPSCI 107 - Computer Science Fundamentals
def simulation(ppm):
for n in range(1, 11):
wait_times, jobs_queued =
simulate_hour(ppm)
average_wait = sum(wait_times) / len(wait_times)
print('{:2}. Average Wait: {:6.2f} secs. {} tasks queued'.format(n, average_wait, jobs_queued))
7
COMPSCI 107 - Computer Science Fundamentals
import random
def simulate_hour(pages_per_minute):
spooler = queue()
pages_to_print = 0
wait_times = []
for current_time in range(3600):
if random.randint(1, 180) == 1:
#add a new job to the print queue
pages = random.randint(1, 20)
spooler.enqueue((pages, current_time))
if pages_to_print <= 0 and not spooler.is_empty(): #start printing a new job
pages_to_print, start_time = spooler.dequeue()
wait_times += [current_time - start_time]
pages_to_print -= pages_per_minute / 60
#pages printed each second
return (wait_times, spooler.size())
One possible implementation of
the ADT Queue is given here.
Is it possible to make a more
efficient implementation?
Discuss in groups how you might
improve the implementation of
the Queue ADT in Python.
8
COMPSCI 107 - Computer Science Fundamentals
class QueueV1:
def __init__(self):
self.items = []
def is_empty(self):
return self.items == []
def enqueue(self, item):
self.items.insert(0,item)
def dequeue(self):
return self.items.pop()
def size(self):
return len(self.items)
A Python list is used to store the data
Create an initially empty list of a given size
Treat the list as if it were circular
Keep index of the front of the queue
Keep index of the back of the queue
Enqueue and Dequeue
Items are enqueued at the back
Items are dequeued at the front
9
COMPSCI 107 - Computer Science Fundamentals
Write the implementation for the Circular Queue. A circular queue
is created by passing the constructor an initial capacity
10
COMPSCI 107 - Computer Science Fundamentals
q = circular_queue( 1000 )
class circular_queue:
def __init__(self, capacity):
#creates empty list, count, front, back
def is_empty(self):
def enqueue(self, item):
def dequeue(self):
def size():
What is the big-O running time for each of the circular_queue
methods?
11
COMPSCI 107 - Computer Science Fundamentals
class circular_queue:
def __init__(self, capacity):
#creates empty list, count, front, back
def is_empty(self):
def enqueue(self, item):
def dequeue(self):
def size():
How does a user know if the circular_queue is full? What should
happen when the circular_queue is full? Discuss
12
COMPSCI 107 - Computer Science Fundamentals
class circular_queue:
def __init__(self, capacity):
#creates empty list, count, front, back
def is_empty(self):
def enqueue(self, item):
def dequeue(self):
def size():
A Double-Ended Queue or Deque (pronounced ‘Deck’)
An ordered collection of items where items are added and removed from either end,
either front or back
add_front()
add_rear()
remove_front()
remove_rear()
is_empty()
size()
13
COMPSCI 107 - Computer Science Fundamentals
Use a double ended queue to write a function that determines if a
string is a palindrome.
A palindrome is a sentence in which the letters appear in the same
order forwards and reverse. Punctuation is ignored.
14
COMPSCI 107 - Computer Science Fundamentals
>>> is_palindrome(‘bob’)
True
15
COMPSCI 107 - Computer Science Fundamentals
I, man, am regal - a German am I
Never odd or even
If I had a hi-fi
Madam, I'm Adam
Too hot to hoot
No lemons, no melon
Too bad I hid a boot
Lisa Bonet ate no basil
Warsaw was raw
Was it a car or a cat I saw?
Rise to vote, sir
Do geese see god?
"Do nine men interpret?" "Nine men," I nod
Rats live on no evil star
Won't lovers revolt now?
Race fast, safe car
Pa's a sap
Ma is as selfless as I am
May a moody baby doom a yam?
Ah, Satan sees Natasha
No devil lived on
Lonely Tylenol
Not a banana baton
No "x" in "Nixon"
O, stone, be not so
O Geronimo, no minor ego
"Naomi," I moan
"A Toyota's a Toyota"
A dog, a panic in a pagoda
Oh no! Don Ho!
Nurse, I spy gypsies - run!
Senile felines
Now I see bees I won
UFO tofu
We panic in a pew
Oozy rat in a sanitary zoo
God! A red nugget! A fat egg under a dog!
Go hang a salami, I'm a lasagna hog
Explore the concept of queues in computer science, focusing on ordered collections of data following the FIFO principle. Learn about queue ADTs, implementations in Python, and delve into a simulation of a Printer Queue problem. Discover how to model printing tasks as random events and analyze the impact of different settings on printer performance through simulations.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

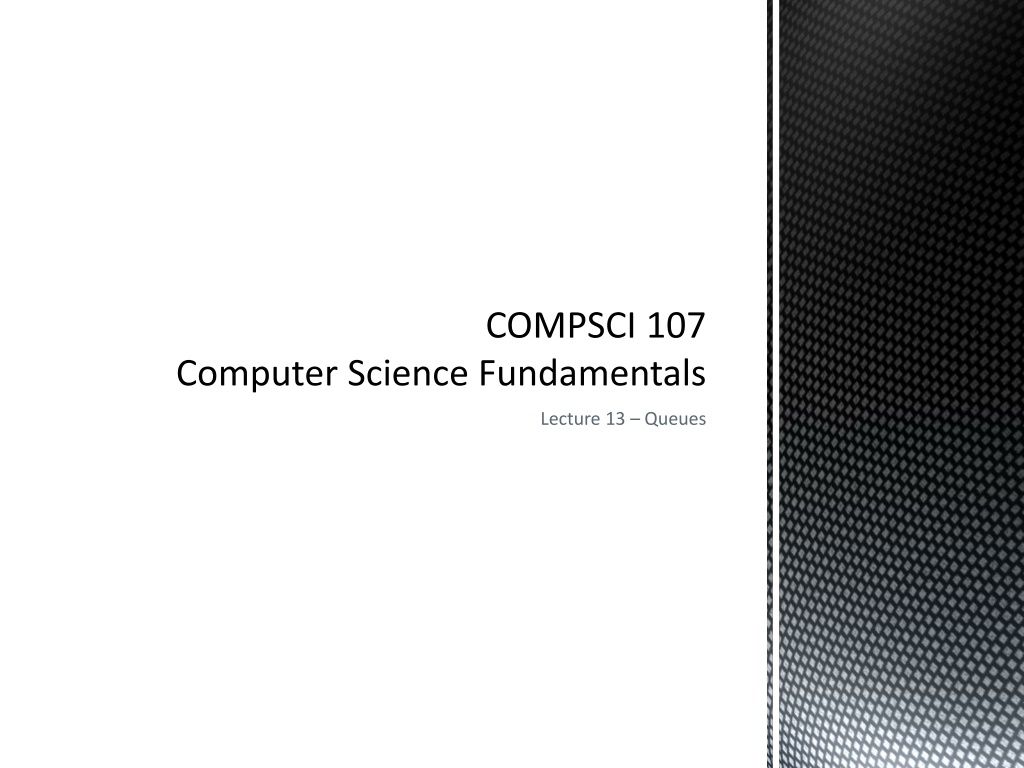

COMPSCI 107 Computer Science Fundamentals Lecture 13 Queues
ADT - Queue Ordered collection of data Items are added to the back of the queue Items are removed from the front of the queue Remove data in the same order as the data added First in, first out (FIFO) Operations Enqueue Dequeue Peek Is_empty Size COMPSCI 107 - Computer Science Fundamentals 2
Queue Implementation Implementation using Python list class QueueV1: def __init__(self): self.items = [] What is the big-O of enqueue()? def is_empty(self): return self.items == [] What is the big-O of dequeue()? def enqueue(self, item): self.items.insert(0,item) def dequeue(self): return self.items.pop() def size(self): return len(self.items) COMPSCI 107 - Computer Science Fundamentals 3
Example: Printer Queue Simulation Problem: Can the current printer handle the task load if it were set to print with a better quality but slower page rate? Write a simulation which models the printing tasks as random events of various lengths and arrival times. The current setting on the printer is 10 pages per minute and gives lower quality printing. The output will tell us if the wait times are significantly different if we use the better quality setting on the printer (5 pages per minute). On average, a job is sent to the printer every 3 minutes. Each job is between 1 and 20 pages. COMPSCI 107 - Computer Science Fundamentals 4
Printer Queue Simulation Run ten simulations each for 3600 (simulated) seconds. Each second there is 1 in 180 chance that a new print job of 1 to 20 pages is sent to the printer. simulation(10) 1. Average Wait: 16.90 secs. 0 tasks queued 2. Average Wait: 2.72 secs. 0 tasks queued 3. Average Wait: 26.75 secs. 1 tasks queued 4. Average Wait: 3.45 secs. 0 tasks queued 5. Average Wait: 5.60 secs. 0 tasks queued 6. Average Wait: 22.56 secs. 0 tasks queued 7. Average Wait: 14.71 secs. 0 tasks queued 8. Average Wait: 25.79 secs. 0 tasks queued 9. Average Wait: 4.28 secs. 0 tasks queued 10. Average Wait: 5.79 secs. 0 tasks queued COMPSCI 107 - Computer Science Fundamentals 5
Printer Queue Simulation Run 10 simulations of an hour of printing simulate_hour function returns a tuple consisting of: list containing the number of seconds that each print job waited in the queue, and an integer representing the number of jobs remaining in the queue def simulation(ppm): for n in range(1, 11): wait_times, jobs_queued = simulate_hour(ppm) average_wait = sum(wait_times) / len(wait_times) print('{:2}. Average Wait: {:6.2f} secs. {} tasks queued'.format( n, average_wait, jobs_queued)) COMPSCI 107 - Computer Science Fundamentals 6
Printer Queue Simulation import random def simulate_hour(pages_per_minute): spooler = queue() pages_to_print = 0 wait_times = [] for current_time in range(3600): if random.randint(1, 180) == 1: pages = random.randint(1, 20) spooler.enqueue((pages, current_time)) if pages_to_print <= 0 and not spooler.is_empty(): #start printing a new job pages_to_print, start_time = spooler.dequeue() wait_times += [current_time - start_time] pages_to_print -= pages_per_minute / 60 #add a new job to the print queue #pages printed each second return (wait_times, spooler.size()) COMPSCI 107 - Computer Science Fundamentals 7
Exercise One possible implementation of the ADT Queue is given here. class QueueV1: def __init__(self): self.items = [] Is it possible to make a more efficient implementation? def is_empty(self): return self.items == [] Discuss in groups how you might improve the implementation of the Queue ADT in Python. def enqueue(self, item): self.items.insert(0,item) def dequeue(self): return self.items.pop() def size(self): return len(self.items) COMPSCI 107 - Computer Science Fundamentals 8
Circular Queue A Python list is used to store the data Create an initially empty list of a given size Treat the list as if it were circular Keep index of the front of the queue Keep index of the back of the queue Enqueue and Dequeue Items are enqueued at the back Items are dequeued at the front COMPSCI 107 - Computer Science Fundamentals 9
Exercise Write the implementation for the Circular Queue. A circular queue is created by passing the constructor an initial capacity q = circular_queue( 1000 ) class circular_queue: def __init__(self, capacity): #creates empty list, count, front, back def is_empty(self): def enqueue(self, item): def dequeue(self): def size(): COMPSCI 107 - Computer Science Fundamentals 10
Exercise What is the big-O running time for each of the circular_queue methods? class circular_queue: def __init__(self, capacity): #creates empty list, count, front, back def is_empty(self): def enqueue(self, item): def dequeue(self): def size(): COMPSCI 107 - Computer Science Fundamentals 11
Exercise How does a user know if the circular_queue is full? What should happen when the circular_queue is full? Discuss class circular_queue: def __init__(self, capacity): #creates empty list, count, front, back def is_empty(self): def enqueue(self, item): def dequeue(self): def size(): COMPSCI 107 - Computer Science Fundamentals 12
ADT Deque A Double-Ended Queue or Deque (pronounced Deck ) An ordered collection of items where items are added and removed from either end, either front or back add_front() add_rear() remove_front() remove_rear() is_empty() size() COMPSCI 107 - Computer Science Fundamentals 13
Exercise Use a double ended queue to write a function that determines if a string is a palindrome. A palindrome is a sentence in which the letters appear in the same order forwards and reverse. Punctuation is ignored. >>> is_palindrome( bob ) True COMPSCI 107 - Computer Science Fundamentals 14
Bob Weird Al Yankovic Ah, Satan sees Natasha No devil lived on Lonely Tylenol Not a banana baton No "x" in "Nixon" O, stone, be not so O Geronimo, no minor ego "Naomi," I moan "A Toyota's a Toyota" A dog, a panic in a pagoda I, man, am regal - a German am I Never odd or even If I had a hi-fi Madam, I'm Adam Too hot to hoot No lemons, no melon Too bad I hid a boot Lisa Bonet ate no basil Warsaw was raw Was it a car or a cat I saw? Oh no! Don Ho! Nurse, I spy gypsies - run! Senile felines Now I see bees I won UFO tofu We panic in a pew Oozy rat in a sanitary zoo God! A red nugget! A fat egg under a dog! Go hang a salami, I'm a lasagna hog Rise to vote, sir Do geese see god? "Do nine men interpret?" "Nine men," I nod Rats live on no evil star Won't lovers revolt now? Race fast, safe car Pa's a sap Ma is as selfless as I am May a moody baby doom a yam? COMPSCI 107 - Computer Science Fundamentals 15
