Quaternaries in Semiconductor Nanodevice Design
next
nano
GmbH, Garching b. München, Germany
www.nextnano.com
stefan.birner@nextnano.com
How to treat Quaternaries in nextnano
2017-Dec-15
Dr. Stefan Birner, Managing Director
Material parameters needed
GaAs/AlGaAs heterostructures (
no strain
)
effective masses
(m
e
, m
hh
, m
lh
, m
so
, ...) or
k
∙
p
parameters
band gap
E
gap
, split-off energy
band offsets
(CBO, VBO)
dielectric constant (Poisson equation)
Ternaries
a.
Linear interpolation
b.
Quadratic interpolation using a
constant
bowing
parameter
c.
Interpolation using a bowing parameter which depends
on
alloy content
x
Ternary
Binaries GaAs, AlAs
Ternary Al
x
Ga
1-x
As =
x
AlAs +
(1-x)
GaAs
Bowing parameter
C
Ternaries
–
C
x
(1-x)
–
C(x)
x
(1-x)
might depend on alloy content x
Quaternary:
Al
x
Ga
1-x
As
y
P
1-y
III-III
-V-V
Quaternaries
III-III-III
-V,
III
-V-V-V
Al
x
Ga
1-x
In
1-x-y
As
III-III-III
-V
III
-V-V-V
Quaternaries
10 parameters!
Al
x
Ga
1-x
As
y
P
1-y
III-III
-V-V
Quaternaries
13 parameters!
GaAs/InGaAs heterostructures (
strain
!)
... +
lattice constant
elastic constants (2-3 parameters)
piezoelectric constant
deformation potentials (3-8 parameters)
Material parameters needed
nextnano++ software
http://www.nextnano.com/nextnanoplus/software_documentation/database/zincblende.htm
http://www.nextnano.com/nextnanoplus/software_documentation/input_file/structure.htm
PhD thesis T. Zibold
(Appendix E)
More information
http://www.nextnano.com/information/publications.php
next
nano
³ software
http://www.nextnano.com/nextnano3/input_parser/database/docu/quaternaries.htm
http://www.nextnano.com/nextnano3/tutorial/1Dtutorial_AlGaInP_onGaAs.htm
Learn about the treatment of quaternary materials in semiconductor nanodevice simulations, including material parameters needed for GaAs/AlGaAs heterostructures and interpolation techniques for ternaries. Explore the complexities of AlxGa1-xAsyP1-y and AlxGa1-xIn1-x-yAs quaternaries, along with the necessary parameters and software resources available for designing semiconductor devices.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

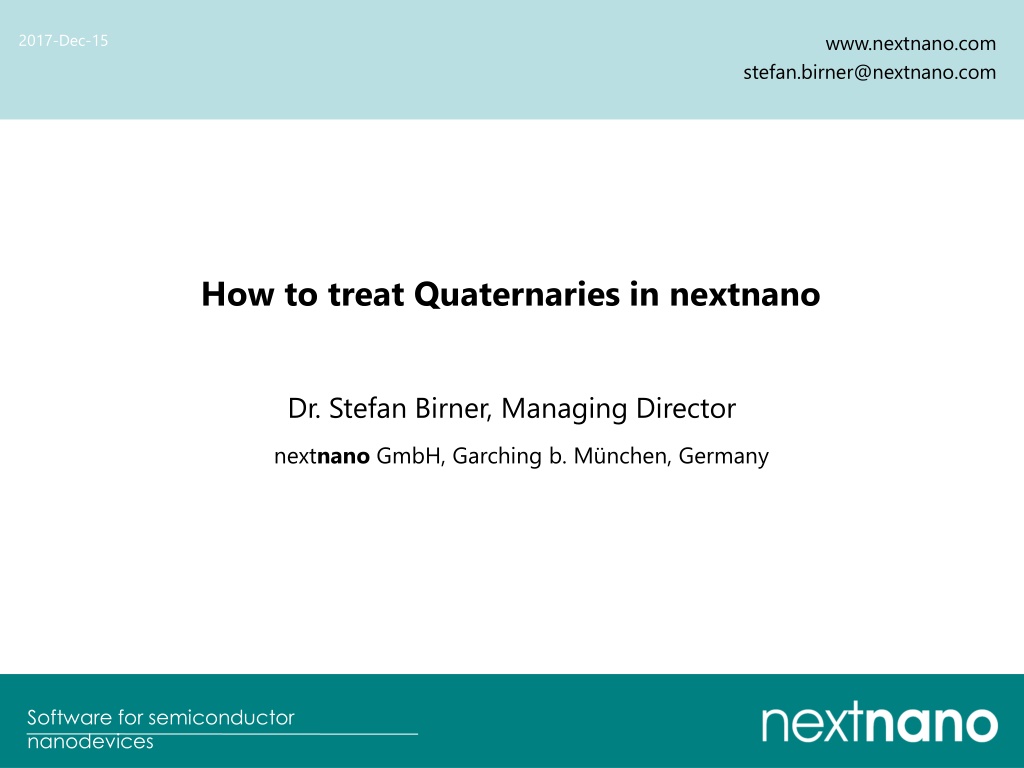

www.nextnano.com stefan.birner@nextnano.com 2017-Dec-15 How to treat Quaternaries in nextnano Dr. Stefan Birner, Managing Director nextnano GmbH, Garching b. M nchen, Germany Software for semiconductor nanodevices
