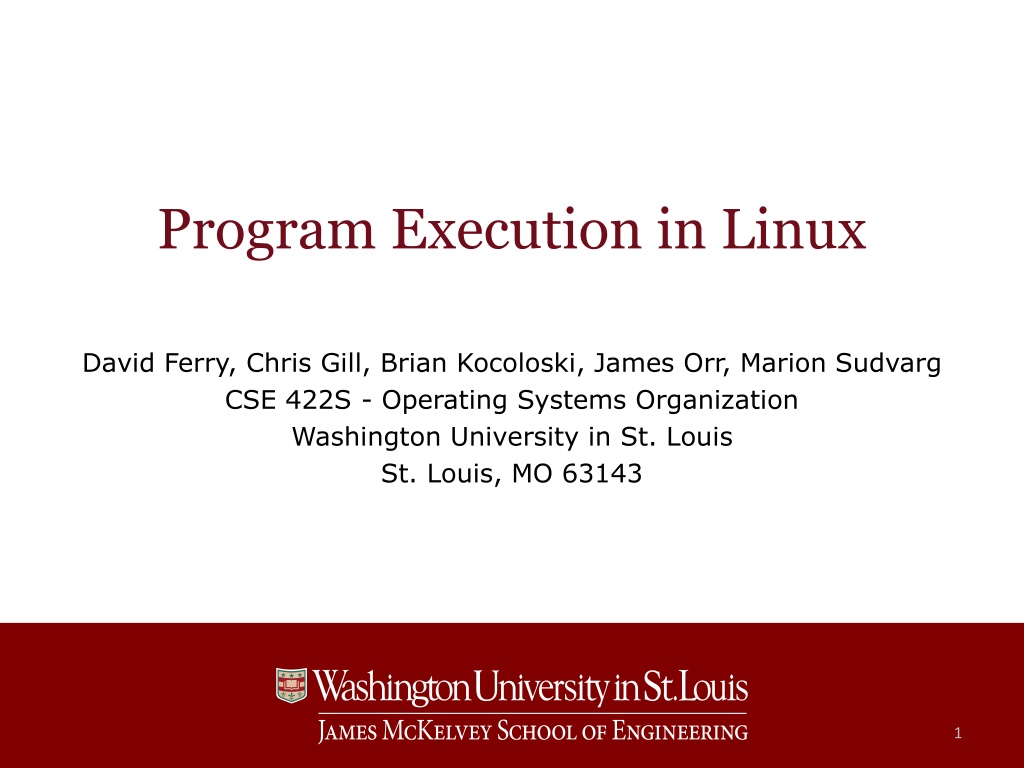

Program Execution in Linux
Program Execution in Linux
David Ferry, Chris Gill, Brian Kocoloski, James Orr, Marion Sudvarg
CSE 422S - Operating Systems Organization
Washington University in St. Louis
St. Louis, MO 63143
1
Executable File Format
The current binary file format is called
ELF -
Executable and Linking Format
•
ELF header
–
Word size, byte ordering, file type (.o,
exec, .so), machine type, etc.
•
.text section
–
Code
•
.rodata section
–
Read only data: jump tables, …
•
.data section
–
Initialized global variables
•
.bss section
–
Uninitialized global variables or ones
initialized with 0
–
“Block Started by Symbol”
–
Has section header but occupies no space
•
Other sections added by gcc…
2
ELF header
.text
.bss
.data
.rodata
.symtab
.rel.txt
.rel.data
.debug
Section header table
CSE 422S – Operating Systems Organization
Creating an Executable File
Two stages:
•
Compilation
•
Linking
The compiler translates
source code to machine
code (via the assembler)
The linker connects
binary files to libraries
to create an executable
3
CSE 422S – Operating Systems Organization
Static vs. Dynamic Linking
Static linking
– required code and data is
copied into executable at compile time
Dynamic linking
– required code and data is
linked to executable at runtime
4
Library
Code/Data
Program Data
Program code
Static:
Library
Code/Data
Program Data
Program code
my_program.o
Dynamic:
libc.so
my_program.o
CSE 422S – Operating Systems Organization
Static Linking
5
•
With multiple programs, what happens to
the size of the executables?
Library Code
Program Data
Program code
CSE 422S – Operating Systems Organization
Static Linking
•
With multiple programs, what happens to
the size of the executables?
6
Library Code
Program Data
Program code
Library Code
Program Data
Program code
Library Code
Program Data
Program code
Library Code
Program Data
Program code
Library Code
Program Data
Program code
Library Code
Program Data
Program code
Library Code
Program Data
Program code
CSE 422S – Operating Systems Organization
Dynamic Linking
•
With multiple programs, what happens to
the size of the executables?
7
Program Data
Program code
Program Data
Program code
Program Data
Program code
Program Data
Program code
Program Data
Program code
Program Data
Program code
Program Data
Program code
Library Code
CSE 422S – Operating Systems Organization
Running a
Statically Linked Program
•
All functions and data
needed by the process
space are linked as the
last step of the compiler
•
Only that code/data from
the library needed by
the program are loaded
into virtual memory
8
Stack
Static library A code/data
Heap
.bss
.data
.text
Static library B code/data
CSE 422S – Operating Systems Organization
Running a Statically Linked Program
A statically linked program is entirely self-contained
1.
An existing process is fork()ed to get a new
process address space
2.
execve()
reads program into memory
3.
The new process starts executing at
_start()
in
the C runtime (added automatically by the
linker), which sets up environment
4.
The C runtime eventually calls the program’s
main()
function
5.
After main() returns, C runtime does some
cleanup
9
CSE 422S – Operating Systems Organization
Running a
Dynamically Linked Program
•
Some functions and data
do not exist in process
space at runtime
•
The dynamic linker
(called
ld
) maps these
into the memory map
segment on-demand
10
Stack
Memory Map Segment (s)
(added at runtime by linker)
Heap
.bss
.data
.text
CSE 422S – Operating Systems Organization
Linking at Runtime
•
Shared libraries are with Position Independent Code
which allows for branch and jump instructions to
addresses
relative
to other code segments
•
Global Offset Table (GOT) (in .data)
–
Used to resolve locations of library objects (functions and
global variables)
–
All references to variables in shared libraries are replaced
with references to the GOT
•
Procedure Linkage Table (PLT) (in .text)
–
All function calls to shared libraries are replaced by stub
functions that query the PLT at runtime for the address of
the function
–
Calls the dynamic linker to resolve locations of library
functions if unknown, points to GOT entry if known
11
CSE 422S – Operating Systems Organization
Linking at Runtime
At compile time:
•
The dynamic linker (ld) is embedded in program
•
Addresses of dynamic functions are replaced in
GOT with calls to the linker
At runtime the linker does
lazy-binding
:
•
The program runs as normal until it encounters
an unresolved function
•
Execution jumps to the linker
•
The linker maps the shared library into the
process’s address space and replaces the call to
the linker in GOT with the resolved address
•
This is called “lazy update of GOT”
12
CSE 422S – Operating Systems Organization
Runtime Linker Implementation
13
//Source code
#include <stdio.h>
int foo = 20;
int main( int argc, char* argv[]){printf(“Hello, world!\n”);
return 0;
}
dynamic linker (ld)
Global Offset Table (GOT)
Stack
Heap
.bss
.data
.text
CSE 422S – Operating Systems Organization
GOT entry for printf()
Procedure Link Table (PLT)
Runtime Linker Implementation
14
//Source code
#include <stdio.h>
int foo = 20;
int main( int argc, char* argv[]){printf(“Hello, world!\n”);
return 0;
}
library printf()
Global Offset Table (GOT)
Stack
Heap
.bss
.data
.text
CSE 422S – Operating Systems Organization
GOT entry for printf()
Procedure Link Table (PLT)
Library with printf() function
Static vs. Dynamic Linking
Tradeoffs
Static:
•
Does not need to look up libraries at runtime
•
Does not need extra PLT indirection
•
Consumes more memory with copies of each
library in every program
Dynamic:
•
Less disk space/memory (7K vs 571K for hello
world)
•
Shared libraries already in memory and
in hot cache
•
Incurs lookup and indirection overheads
15
CSE 422S – Operating Systems Organization
Binary File Utilities
Not covered in CSE 361:
•
nm – prints symbol table
•
objdump – prints all binary data
•
readelf – prints ELF data
•
pmap – prints memory map of a running
process
•
ldd – prints dynamic library dependencies
of a binary
•
strip – strips symbol data from a binary
16
CSE 422S – Operating Systems Organization
GNU Debugger (gdb)
•
Allows you to debug a program while it
executes
•
Parent process (gdb) forks to launch a
program
•
Uses ptrace system call to observe
execution of child program
•
Can set
breakpoints
to pause execution of
child at specific instruction addresses
•
Can set
watchpoints
to monitor changes to
particular memory locations
17
CSE 422S – Operating Systems Organization
