Process Relationships in Unix Systems

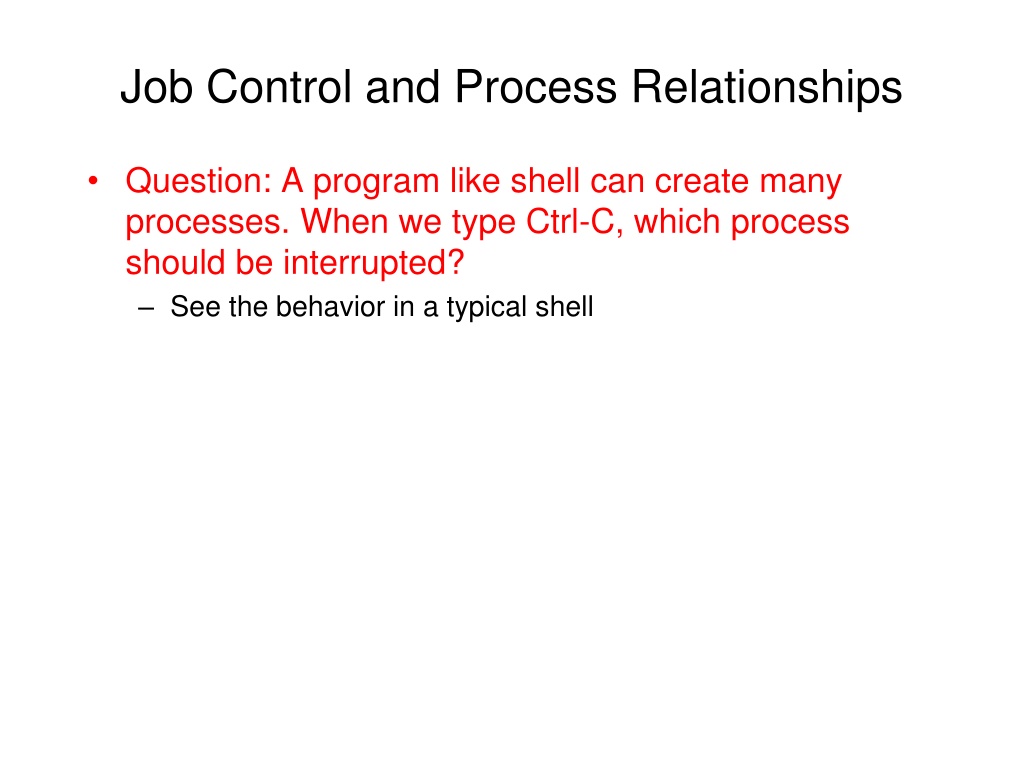

Job Control and Process Relationships
•
Question: A program like shell can create many
processes. When we type Ctrl-C, which process
should be interrupted?
–
See the behavior in a typical shell
Job Control and Process Relationships
•
UNIX process relationship
–
Parent/child
–
Group
–
Session
•
Job control
–
Foreground and background processes
–
Given that many processes can be executed concurrently,
which processes should have accesses to the
keyboard/screen (I/O)?
•
Our discussion will focus on systems (shells)
supporting job control
•
Readings
–
APUE Ch9
Process Groups
•
A process group is a collection of (related) processes.
Each group has a process group ID.
•
Each group has a group leader whose pid = pgid
•
To get the group ID of a process:
pid_t getpgrp(void)
In shell, try ‘ps -f –j –u username’
•
A signal can be sent to the whole group of processes.
Process Groups
•
A process may join an existing group, create a new
group.
int setpgid(pid_t pid, pid_t pgid)
–
A process can set group ID of itself or its children
–
_POSIX_JOB_CONTROL must be defined
–
Most shells with job control create new group for each line of
command (job).
Sessions
•
A session is one or more process groups
proc1 | proc2 &
proc3 | proc4 | proc5
•
results in a session with three groups
•
A login shell is a session in general.
•
See example2.c
Login shell
proc2
proc1
proc5
proc4
proc3
Sessions
•
To establish a new session:
pid setsid(void);
–
Process become the session leader
–
Process become a new group leader of a new group
–
Process has no controlling terminal (break up the old one)
•
Each shell is a session. When a shell is created, a terminal
must be setup.
–
Fails if the caller is a group leader.
Session
•
A session can have a single controlling terminal for
performing I/O
–
Terminal device for a terminal login
–
Pseudo-terminal device for a network login
–
The I/O devices somewhat link to the window and keyboard.
–
/dev/tty is synonym of controlling terminal
•
The session leader that establishes the connection to
the control terminal is called the
controlling process
.
Session
•
Only one I/O device for all processes (and process
groups) in a session. Which process should get the
input from the keyboard?
•
Foreground and background process
•
One foreground group
•
Many background groups
•
Input
–
Only foreground group
–
Terminal’s interrupt signals are only sent to the
processes in the foreground group
•
Output
–
Typically shared
Sessions
•
A process can open file
/dev/tty
to talk to controlling
terminal regardless of how std IO are redirected.
–
A way to by pass I/O redirection, see
example1.c
–
However, this process must be foreground process
–
When background process tries to open /dev/tty, error occur
Foreground and Background
•
How to make a group foreground and background?
–
So that the terminal device driver knows where to send the
terminal input and the terminal-generated signals.
–
See mymore.c (foreground and background execution)
pid_t tcgetpgrp(int filedes);
/* return the foreground process group ID associated
with filedes */
int tcsetpgrp(int filedes, pid_t pgrpid);
/* makes the process group with process group ID
pgrpid the foreground process group on the
terminal associated to fd */
–
pgrpid must be group ID in the same session.
Job Control
•
Allows starting multiple jobs from a single terminal
and control which job can access the terminal.
•
Foreground jobs can access terminal
•
Background jobs may not:
–
When a backgound job try to read, SIGTTIN signal is sent
–
A background job may be able to output to the terminal (options may be set
by the
stty
command)
•
See control.c for an example of switching terminal
among groups.
Orphaned Process Group
•
Parent of every member is either in the orphaned group or
is not a member of the group’s session.
•
Happens when a process forks a child and then dies.
–
The child becomes a member of the orphaned group.
–
Can have problems: the child may transform from a foreground process to a
background process automatically.
•
Remember in the control.c program, foreground group is set in both the parent
and the child.
•
Can be in an inconsistent state.
•
If any IO is involved, strange things may happen.
Terminal I/O and Signals
•
How to make sure that a shell program handles
terminal I/O and signals correctly
–
Create a new group for each job
•
Both parent and child do setpgid
–
For foreground job:
•
After fork, shell set tcsetpgrp to give foreground jobs control
over terminal
•
Shell waits for all foreground processes in the foreground job to
finish. After that, shell set tcsetpgrp to itself and print the
prompt.
–
For background job:
•
Create a separate group so that processes in background jobs
do not have access to terminal.
•
Up to now, we have focused on systems
(shells) supporting job control
How about shells do not support job
control?
Shells with vs. without Job Control
•
Up to now, we have focused on systems (more
precisely, shells) supporting job control
•
How about shells that do not support job control
–
Such as the original Bourne shell (sh)
–
Note that, on Linux, sh is linked to bash (which supports job
control)
–
You can try the behavior of sh on program.cs.fsu.edu
Shells without Job Control
•
No new sessions or process groups are created
–
All processes are in the same session and same group
•
No background process groups vs. foreground
process groups
–
It will not use tcsetpgrp() to set foreground process group
•
We do have background process(es) in shells without
job control, such as sh
–
In the sense that parent process (sh) will not wait for
background process(es) to finish
–
After forking a child process to run a command, the shell
continues to show prompt to accept user input
–
The next line of user input should be the next command line
to shell, not the input to the background process(es)
Shells without Job Control
•
How do we guarantee that the next line is for shell,
not read by the background command?
•
It depends on if the standard input of the command
has been redirected to a file
–
If yes, the shell does nothing special
–
If no, the shell will redirect the standard input of the
command to /dev/null before invoking the command
–
As a consequence, in case the command will read from
standard input, it will get nothing (immediately encounter end
of file)
Shells without Job Control
•
How about accessing file /dev/tty in shells without job
control?
–
Every process can open it
–
Since, from terminal device driver’s viewpoint, they are all in
the same process group (no background process group or
foreground process group)
