Overview of Plasma Arc Welding Process
Plasma arc welding (PAW) is an advanced welding technique that utilizes a constricted arc plasma for high-speed welding with greater penetration and minimal heat input. This process offers benefits such as reduced heat-affected zone, distortion stresses, and filler metal usage, making it ideal for industries like aerospace, cryogenics, and chemical manufacturing. With features like keyhole mode welding and increased electrode life, PAW provides a precise and efficient welding solution.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

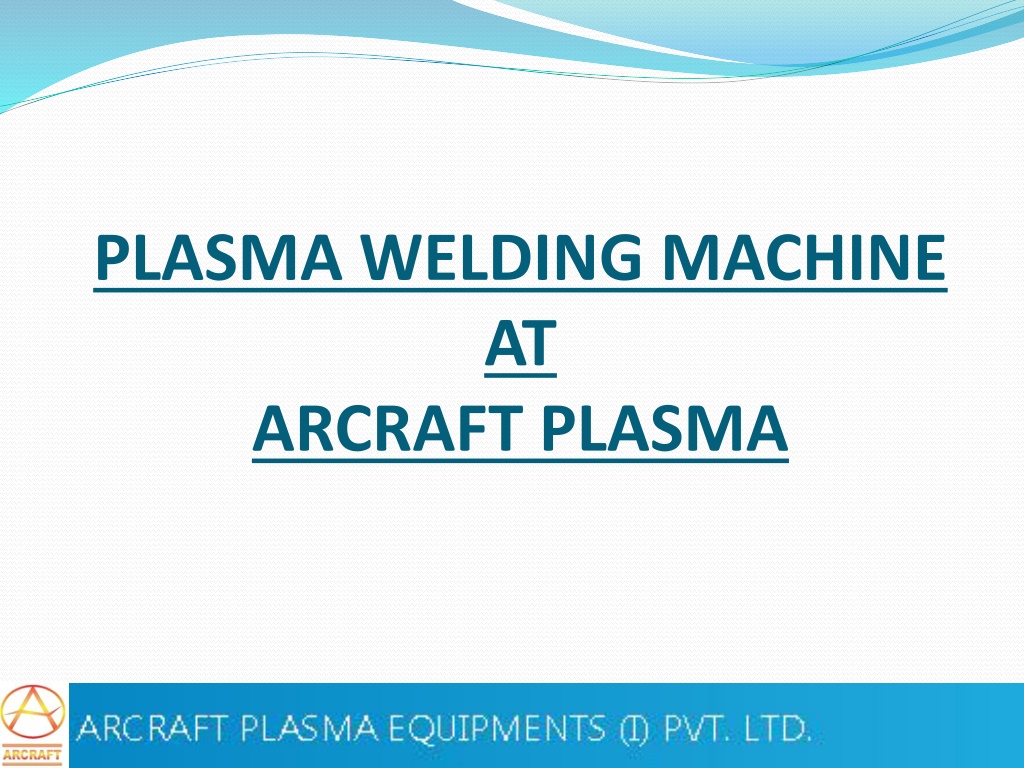

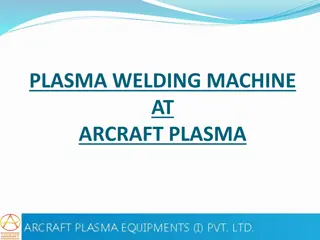

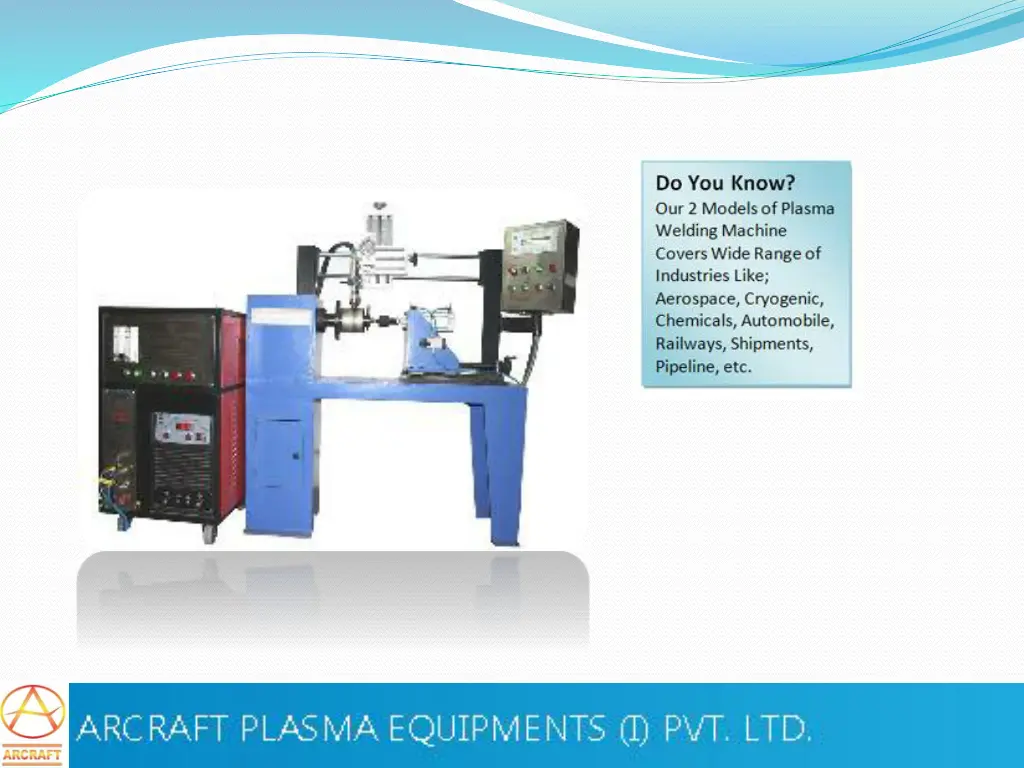

PLASMA WELDING MACHINE AT ARCRAFT PLASMA

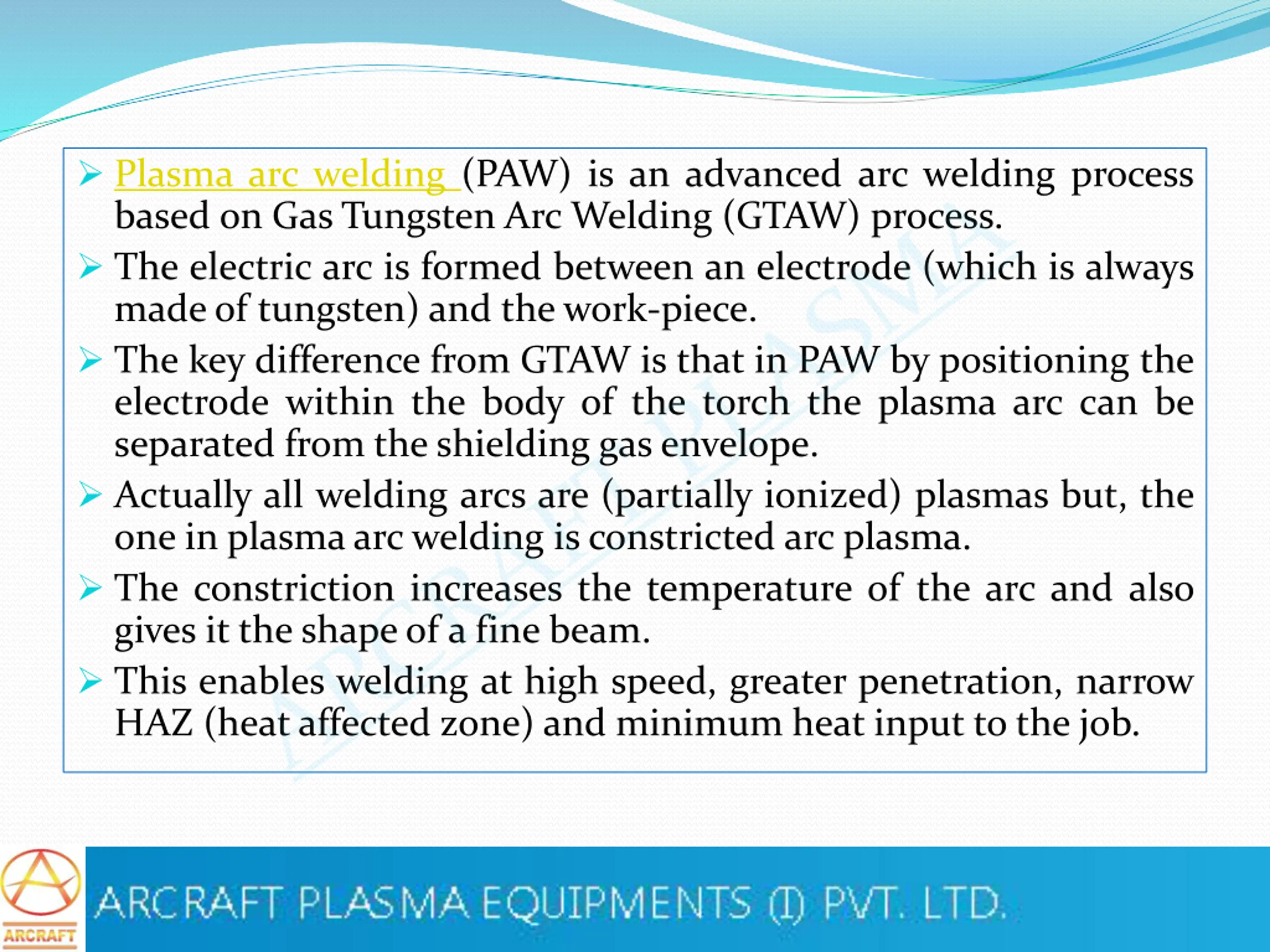

Plasma arc welding (PAW) is an advanced arc welding process based on Gas Tungsten Arc Welding (GTAW) process. The electric arc is formed between an electrode (which is always madeof tungsten) and the work-piece. The key difference from GTAW is that in PAW by positioning the electrode within the body of the torch the plasma arc can be separated from the shielding gas envelope. Actually all welding arcs are (partially ionized) plasmas but, the one in plasmaarcwelding is constricted arc plasma. The constriction increases the temperature of the arc and also gives it the shapeof a fine beam. This enables welding at high speed, greater penetration, narrow HAZ (heataffected zone) and minimum heat input to the job.

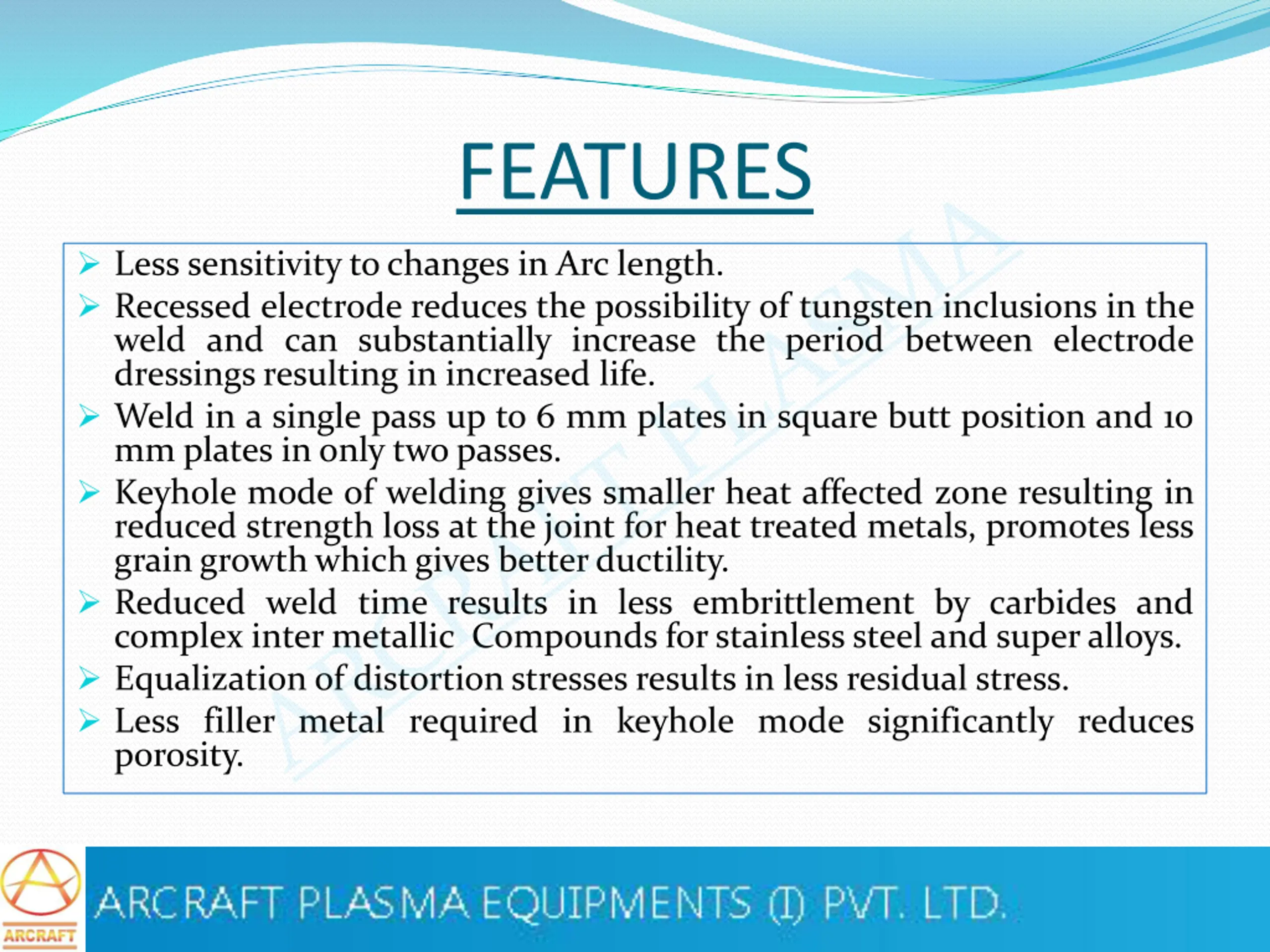

FEATURES Less sensitivity to changes in Arc length. Recessed electrode reduces the possibility of tungsten inclusions in the weld and can substantially increase the period between electrode dressings resulting in increased life. Weld in a single pass up to 6 mm plates in square butt position and 10 mm plates in only two passes. Keyhole mode of welding gives smaller heat affected zone resulting in reduced strength loss at the joint for heat treated metals, promotes less grain growth which gives better ductility. Reduced weld time results in less embrittlement by carbides and complex inter metallic Compounds for stainless steel and super alloys. Equalization of distortion stresses results in less residual stress. Less filler metal required in keyhole mode significantly reduces porosity.

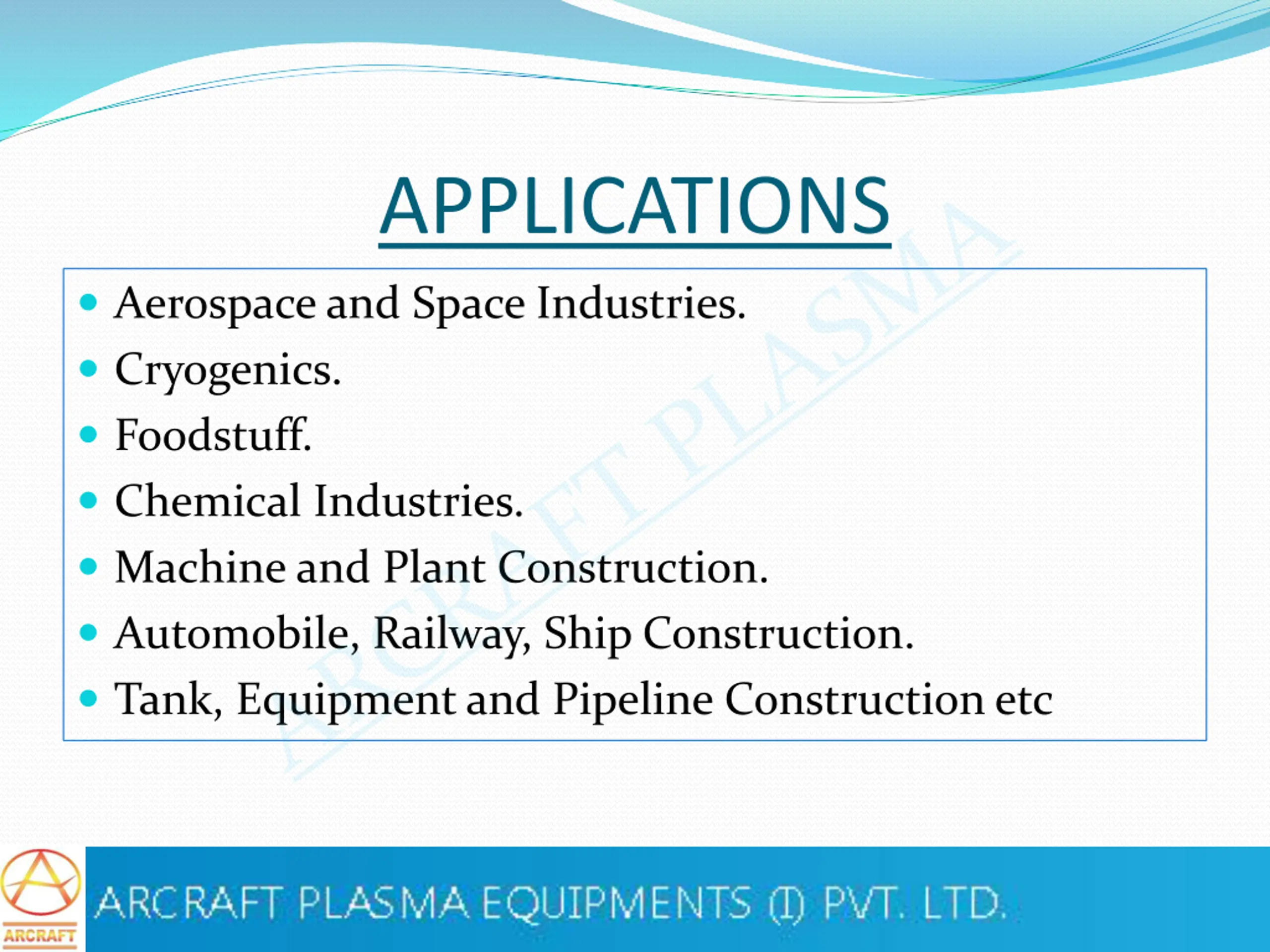

APPLICATIONS Aerospace and Space Industries. Cryogenics. Foodstuff. Chemical Industries. Machine and Plant Construction. Automobile, Railway, Ship Construction. Tank, Equipment and Pipeline Construction etc

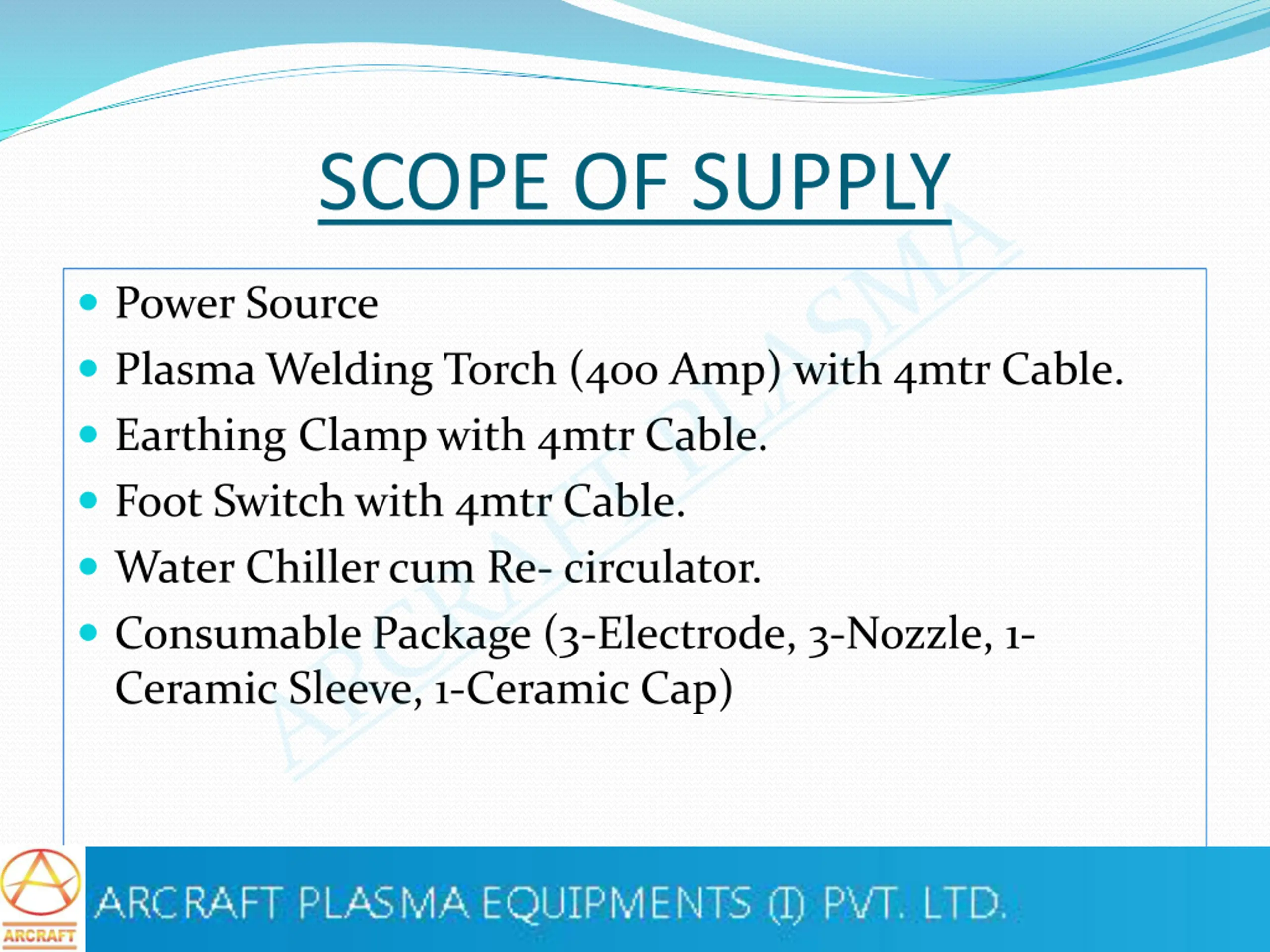

SCOPE OF SUPPLY Power Source Plasma Welding Torch (400 Amp) with 4mtr Cable. Earthing Clamp with 4mtr Cable. Foot Switch with 4mtr Cable. Water Chiller cum Re- circulator. Consumable Package (3-Electrode, 3-Nozzle, 1- Ceramic Sleeve, 1-Ceramic Cap)

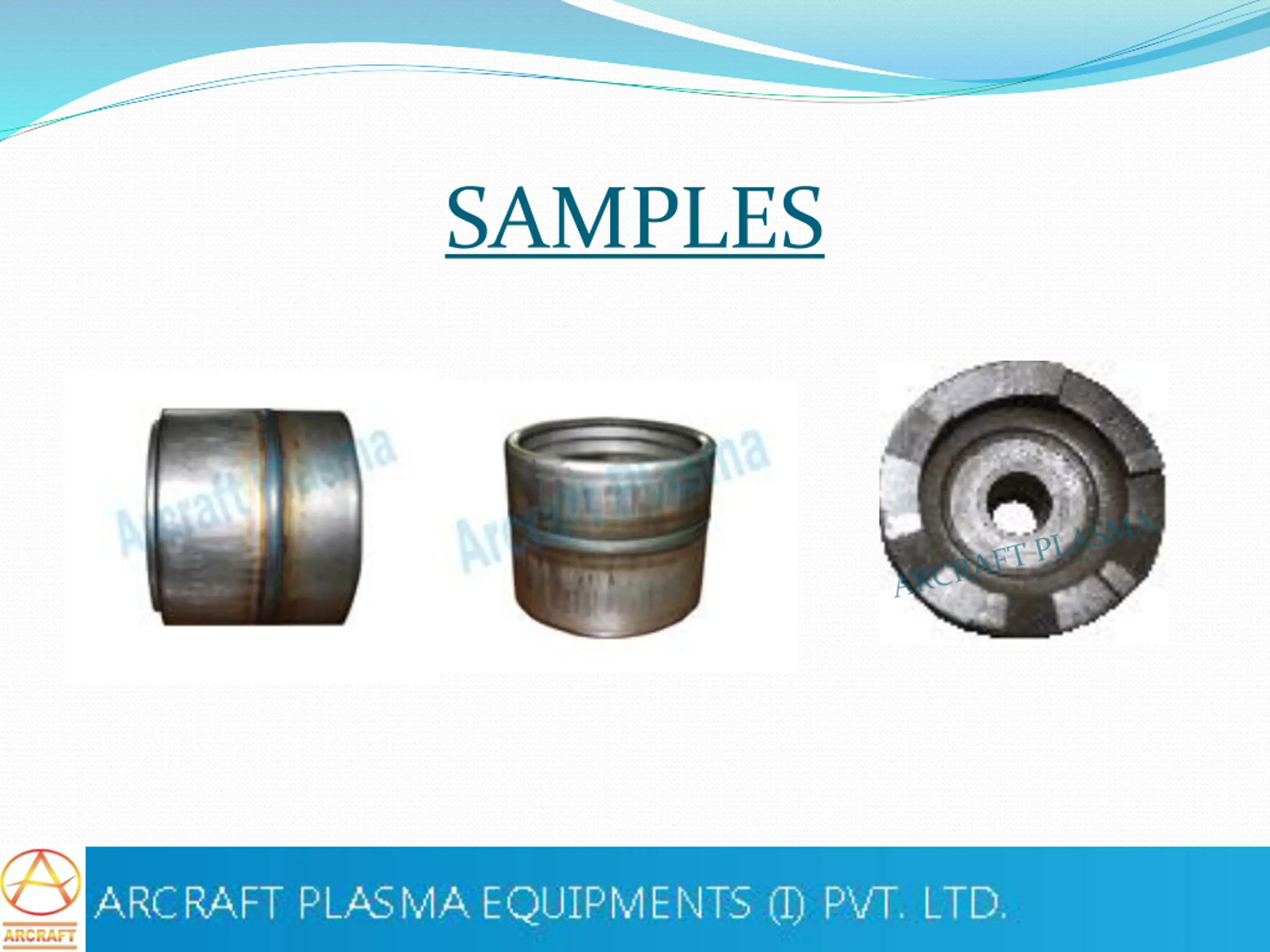

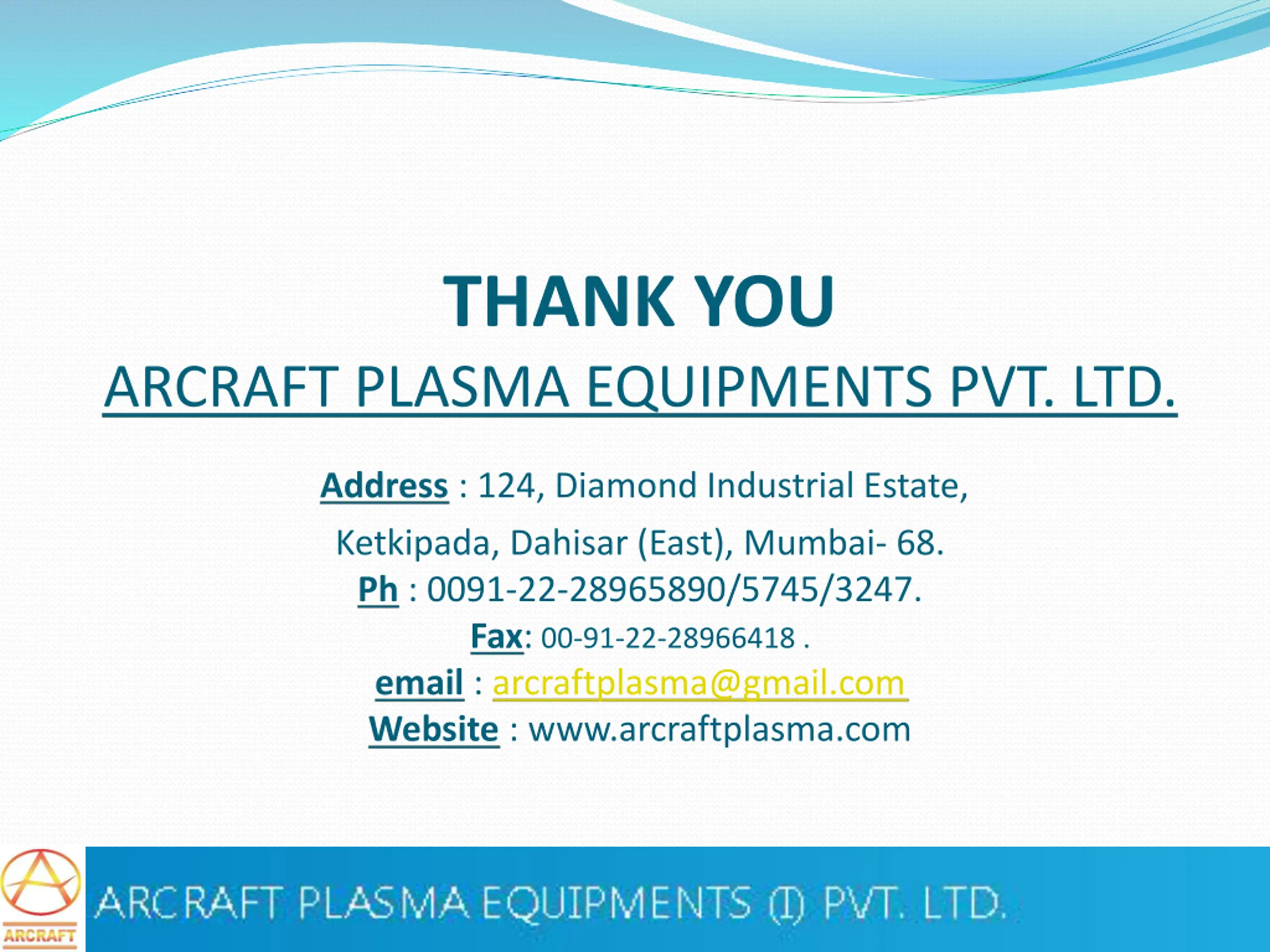

THANK YOU ARCRAFT PLASMA EQUIPMENTS PVT. LTD. Address : 124, Diamond Industrial Estate, Ketkipada, Dahisar (East), Mumbai- 68. Ph : 0091-22-28965890/5745/3247. Fax: 00-91-22-28966418 . email : arcraftplasma@gmail.com Website : www.arcraftplasma.com arcraftplasma@gmail.com
