MAC calibration test 4 simulation results
This submission presents simulation results for MAC calibration test case 4 conducted in March 2015. The tests involve scenarios with different channel modes, traffic distributions, and transmission parameters to evaluate the performance of IEEE 802.11 networks. The results showcase throughput, time allocation in 40MHz and 20MHz modes, and the impact of RTS/CTS settings on data transmission. References to IEEE standards and simulation scenarios are also provided.
Uploaded on Feb 20, 2025 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

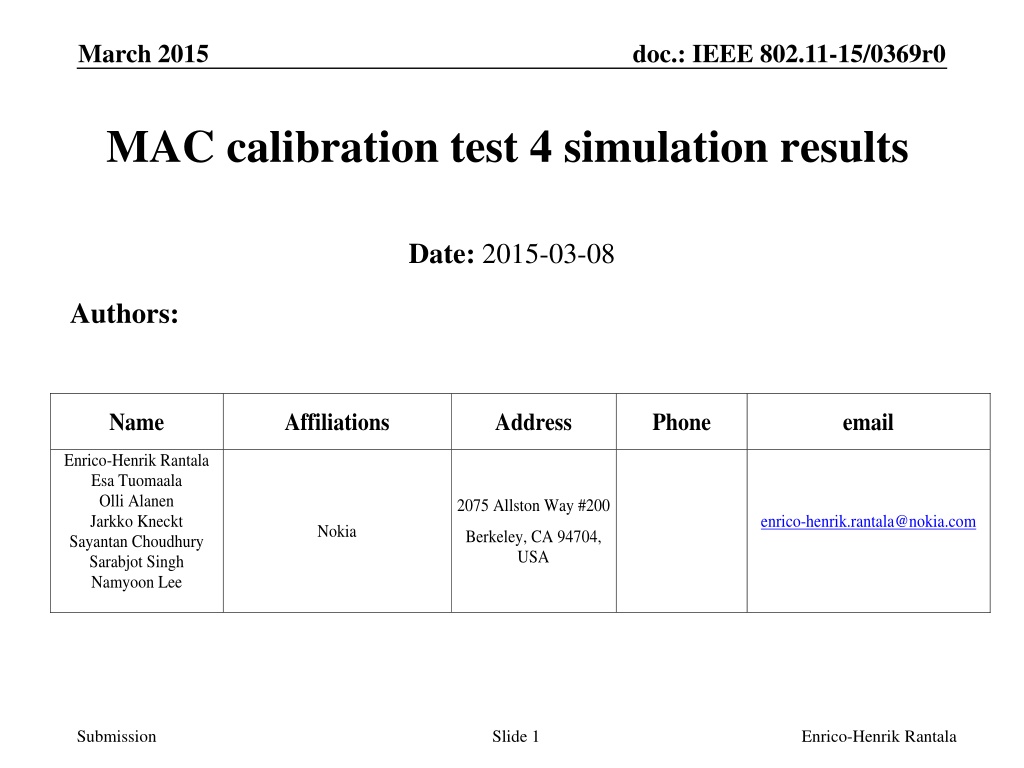

March 2015 doc.: IEEE 802.11-15/0369r0 MAC calibration test 4 simulation results Date: 2015-03-08 Authors: Name Affiliations Address Phone email Enrico-Henrik Rantala Esa Tuomaala Olli Alanen Jarkko Kneckt Sayantan Choudhury Sarabjot Singh Namyoon Lee 2075 Allston Way #200 enrico-henrik.rantala@nokia.com Nokia Berkeley, CA 94704, USA Submission Slide 1 Enrico-Henrik Rantala

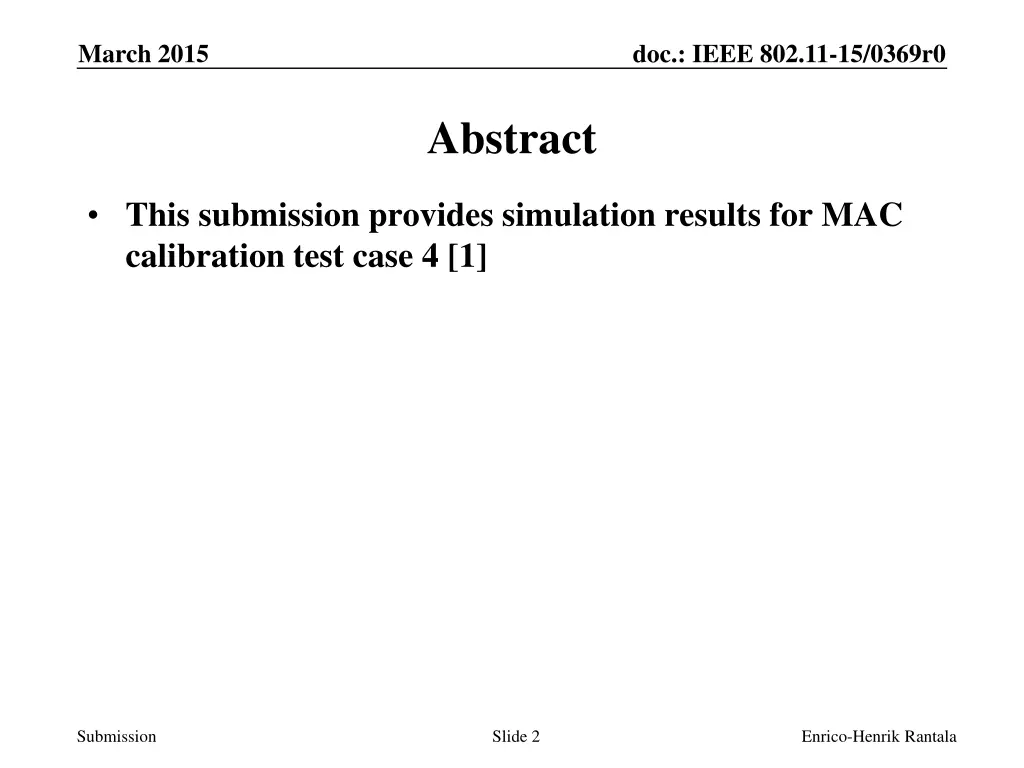

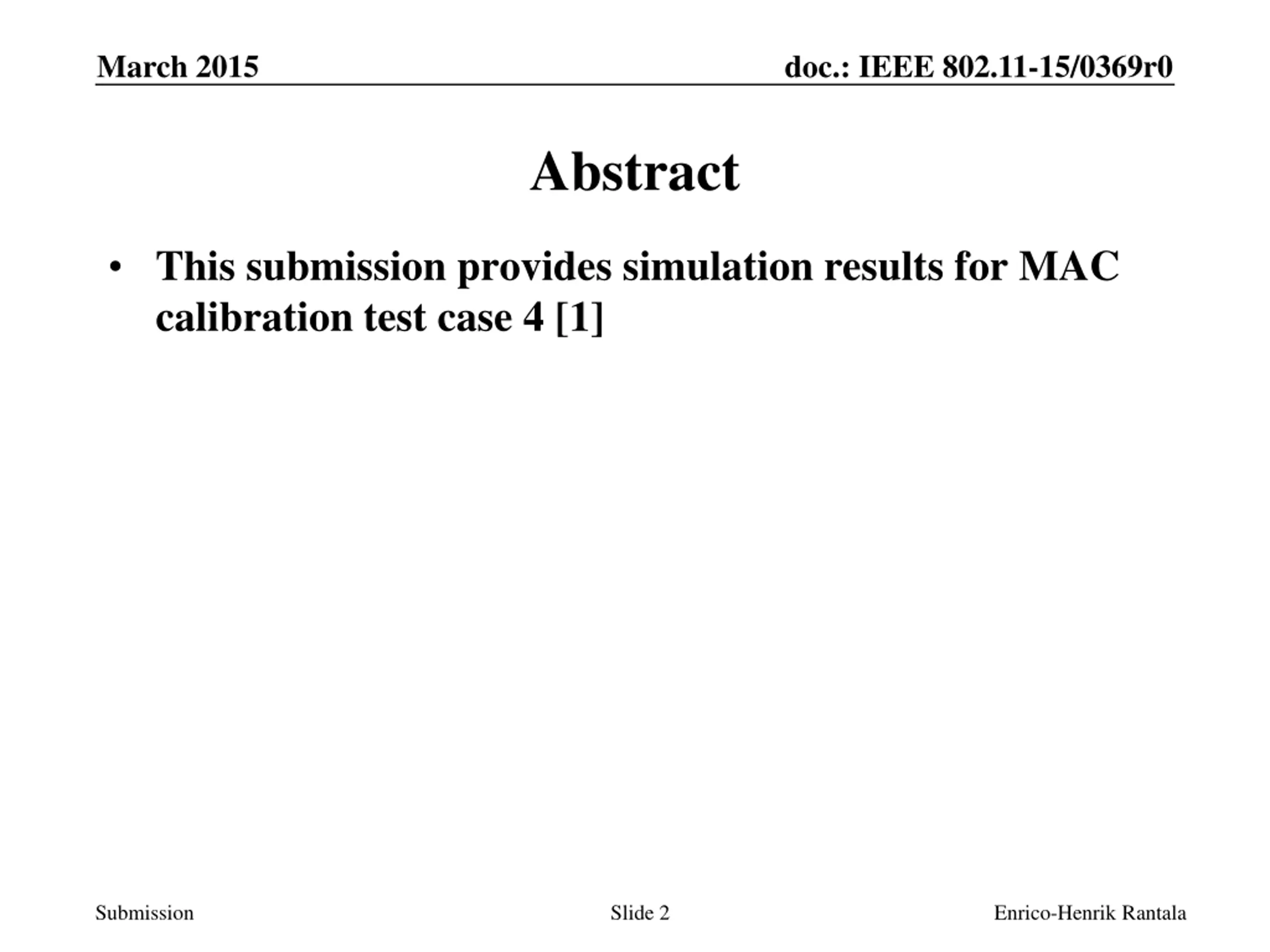

March 2015 doc.: IEEE 802.11-15/0369r0 Abstract This submission provides simulation results for MAC calibration test case 4 [1] Submission Slide 2 Enrico-Henrik Rantala

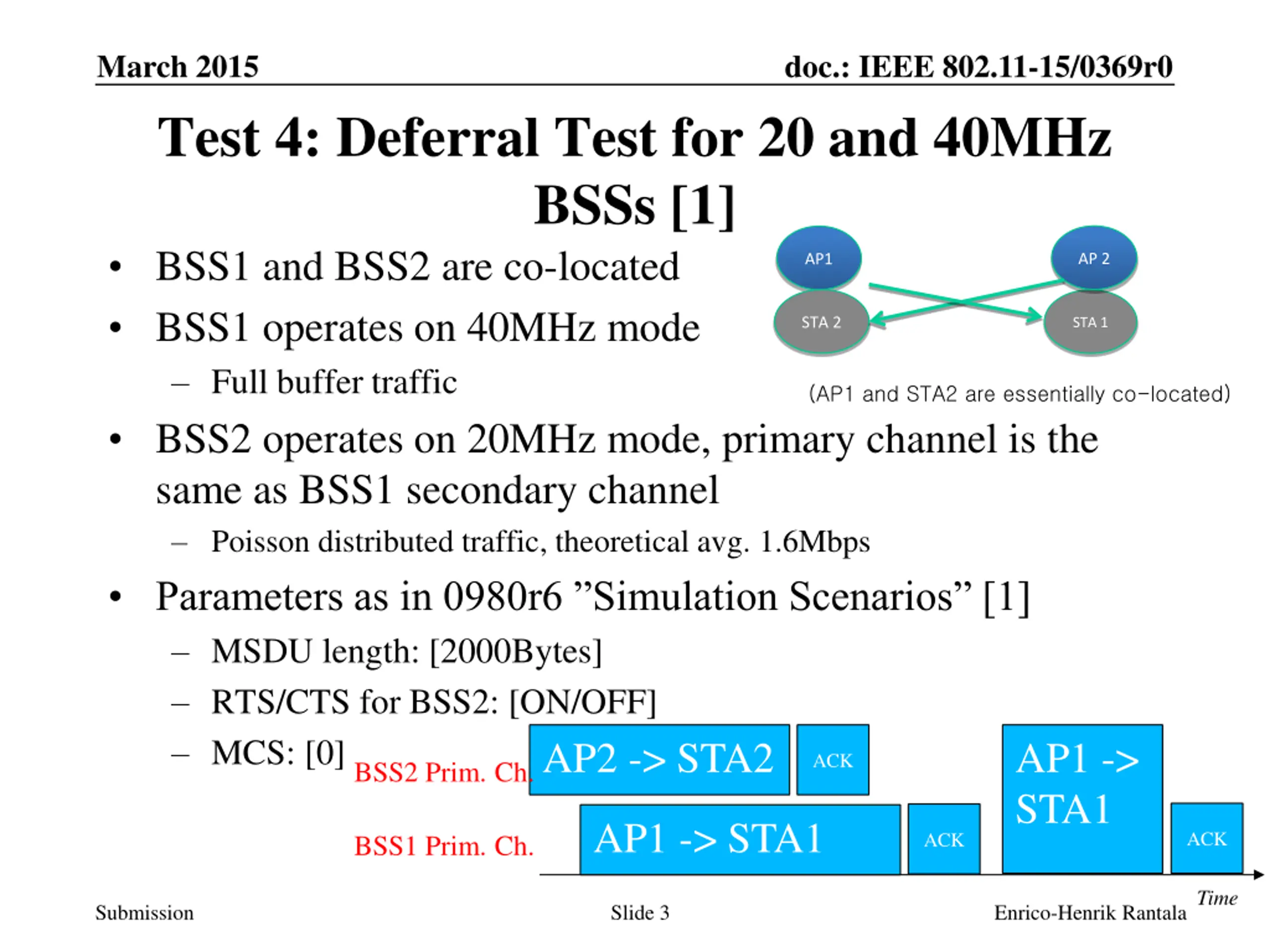

March 2015 doc.: IEEE 802.11-15/0369r0 Test 4: Deferral Test for 20 and 40MHz BSSs [1] BSS1 and BSS2 are co-located BSS1 operates on 40MHz mode Full buffer traffic BSS2 operates on 20MHz mode, primary channel is the same as BSS1 secondary channel Poisson distributed traffic, theoretical avg. 1.6Mbps Parameters as in 0980r6 Simulation Scenarios [1] MSDU length: [2000Bytes] RTS/CTS for BSS2: [ON/OFF] MCS: [0] AP2 -> STA2 BSS2 Prim. Ch. AP 2 AP1 STA 2 STA 1 (AP1 and STA2 are essentially co-located) AP1 -> STA1 ACK AP1 -> STA1 ACK ACK BSS1 Prim. Ch. Time Submission Slide 3 Enrico-Henrik Rantala

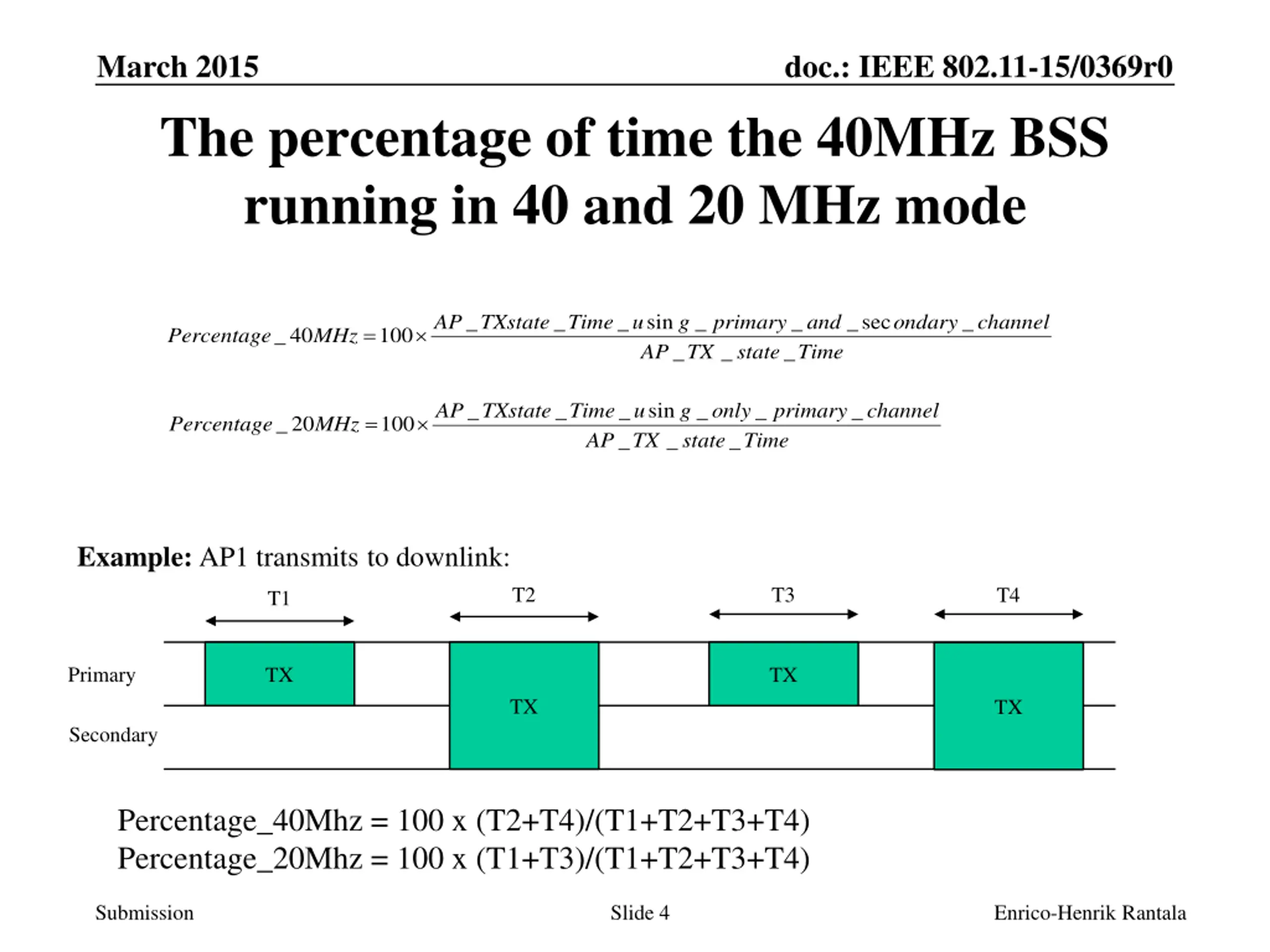

March 2015 doc.: IEEE 802.11-15/0369r0 The percentage of time the 40MHz BSS running in 40 and 20 MHz mode _ _ _ sin _ _ _ sec _ AP TXstate Time u g _ primary _ and ondary channel = _ 40 100 Percentage MHz _ AP TX state Time _ _ _ sin _ _ _ AP TXstate Time u g only _ primary channel = _ 20 100 Percentage MHz _ _ AP TX state Time Example: AP1 transmits to downlink: T2 T3 T4 T1 Primary TX TX TX TX Secondary Percentage_40Mhz = 100 x (T2+T4)/(T1+T2+T3+T4) Percentage_20Mhz = 100 x (T1+T3)/(T1+T2+T3+T4) Submission Slide 4 Enrico-Henrik Rantala

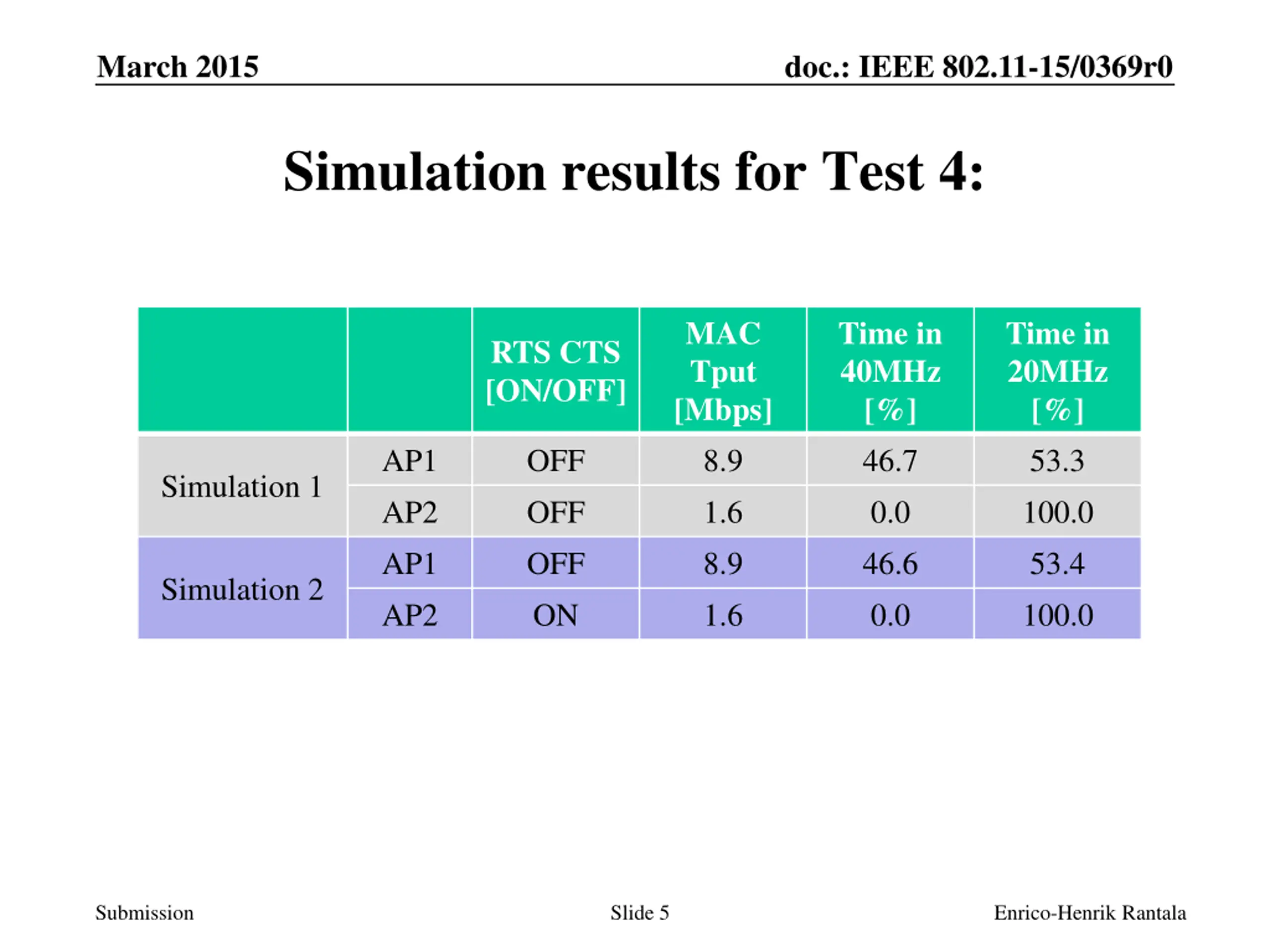

March 2015 doc.: IEEE 802.11-15/0369r0 Simulation results for Test 4: MAC Tput [Mbps] 8.9 1.6 8.9 1.6 Time in 40MHz [%] 46.7 0.0 46.6 0.0 Time in 20MHz [%] 53.3 100.0 53.4 100.0 RTS CTS [ON/OFF] AP1 AP2 AP1 AP2 OFF OFF OFF ON Simulation 1 Simulation 2 Submission Slide 5 Enrico-Henrik Rantala

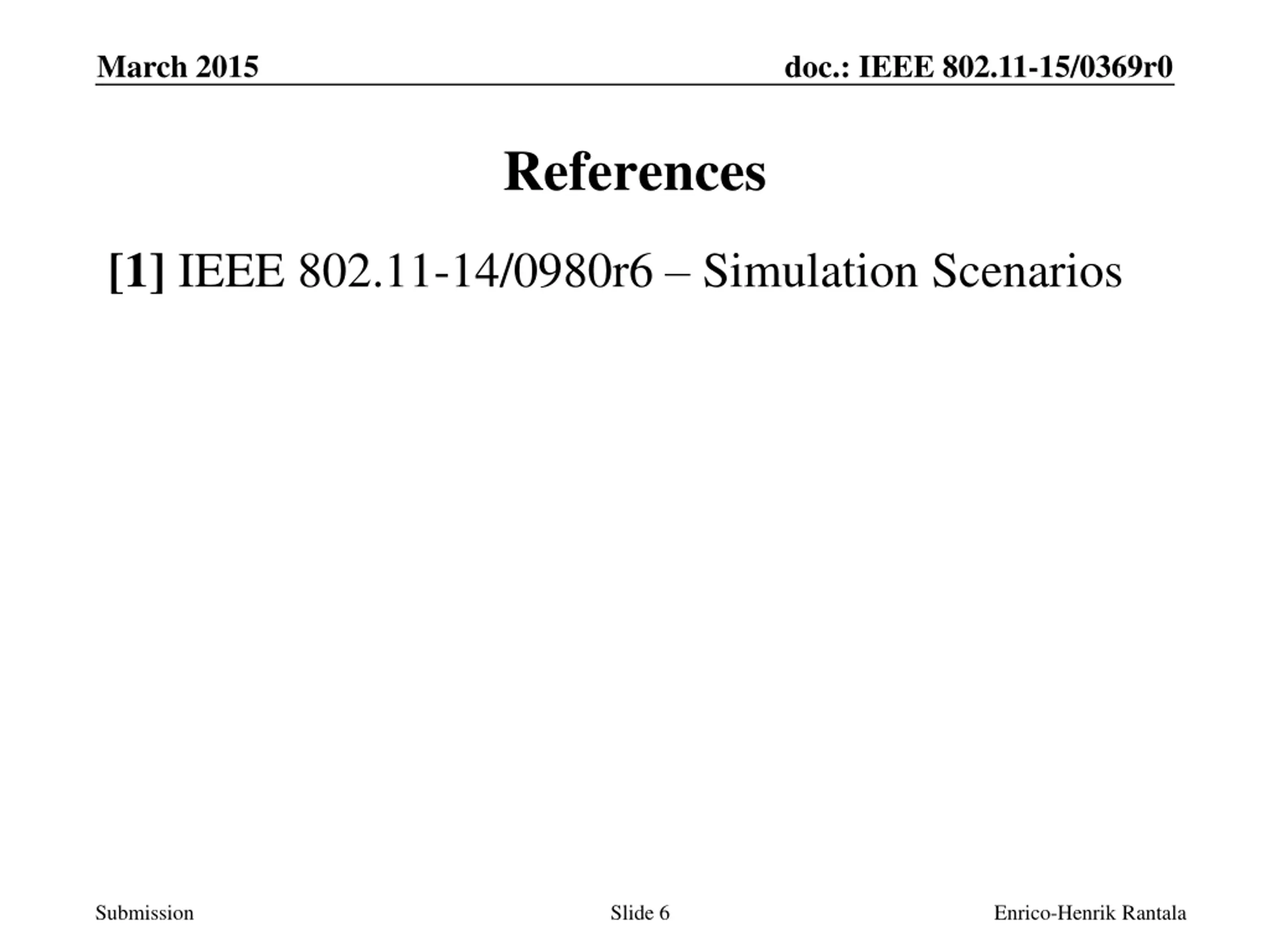

March 2015 doc.: IEEE 802.11-15/0369r0 References [1] IEEE 802.11-14/0980r6 Simulation Scenarios Submission Slide 6 Enrico-Henrik Rantala

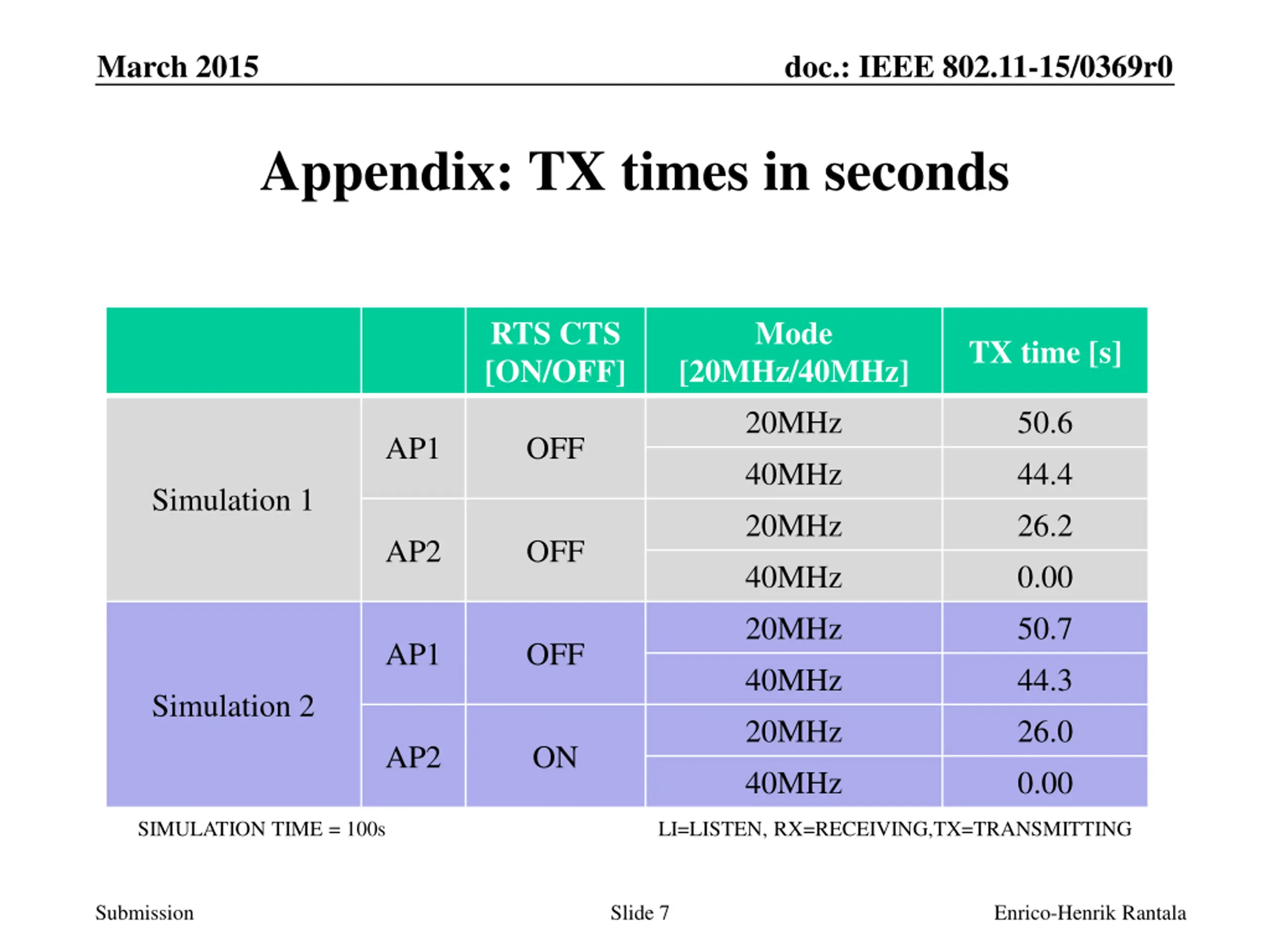

March 2015 doc.: IEEE 802.11-15/0369r0 Appendix: TX times in seconds RTS CTS [ON/OFF] Mode TX time [s] [20MHz/40MHz] 20MHz 40MHz 20MHz 40MHz 20MHz 40MHz 20MHz 40MHz 50.6 44.4 26.2 0.00 50.7 44.3 26.0 0.00 AP1 OFF Simulation 1 AP2 OFF AP1 OFF Simulation 2 AP2 ON SIMULATION TIME = 100s LI=LISTEN, RX=RECEIVING,TX=TRANSMITTING Submission Slide 7 Enrico-Henrik Rantala

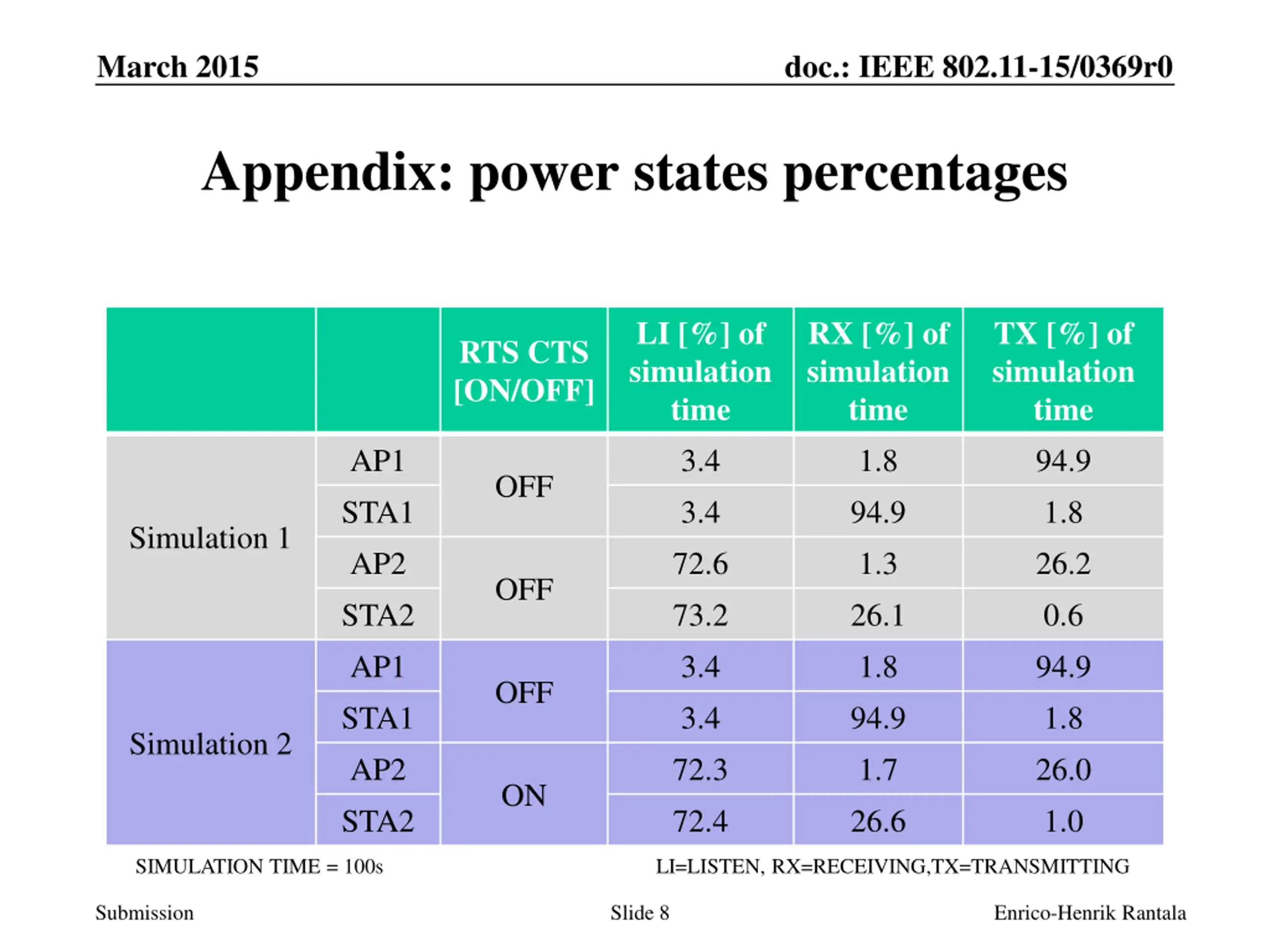

March 2015 doc.: IEEE 802.11-15/0369r0 Appendix: power states percentages LI [%] of simulation time 3.4 3.4 72.6 73.2 3.4 3.4 72.3 72.4 RX [%] of simulation time 1.8 94.9 1.3 26.1 1.8 94.9 1.7 26.6 TX [%] of simulation time 94.9 1.8 26.2 0.6 94.9 1.8 26.0 1.0 RTS CTS [ON/OFF] AP1 STA1 AP2 STA2 AP1 STA1 AP2 STA2 OFF Simulation 1 OFF OFF Simulation 2 ON SIMULATION TIME = 100s LI=LISTEN, RX=RECEIVING,TX=TRANSMITTING Submission Slide 8 Enrico-Henrik Rantala
