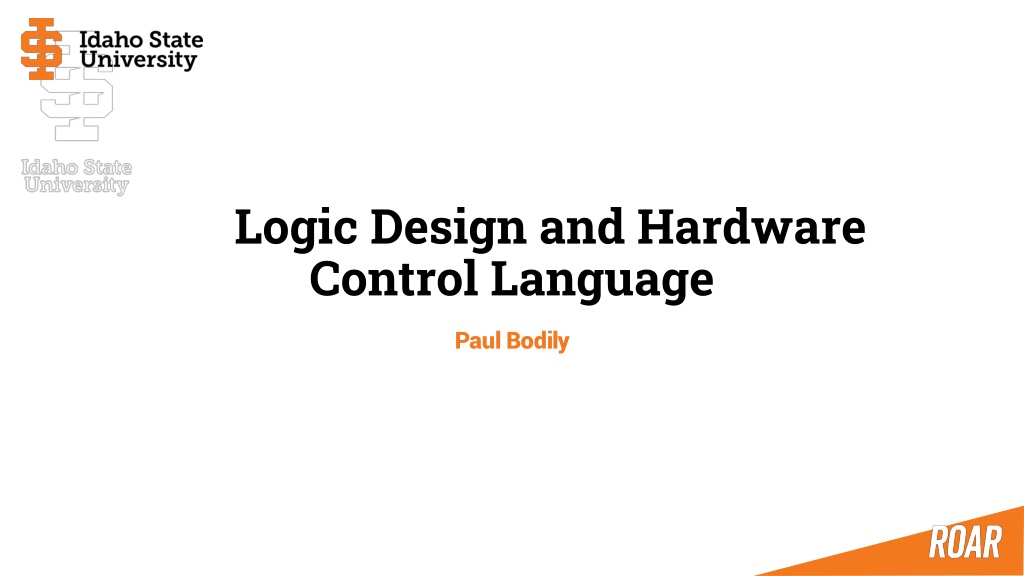

Logic Design and Hardware Control Language
Logic Design and Hardware
Control Language
Paul Bodily
•
the basic computing elements for digital circuits
•
logic gates are always active
•
they are linked together in
combinatorial circuits
to achieve more
complex operations
•
We use
hardware control language (HCL) to describe control logic of
processor designs
Logic gates
H
C
L
Combinatorial circuits restrictions
•
Logic gate inputs can come from
1.
a system or
primary
input
2.
memory
3.
output of a logic gate
•
Outputs of 2 logic gates can't be
connected together
•
Must be acyclic
bool eq = (a && b) || (!a && !b);
H
C
L
TAPPS
In general, the signals
eq
and
xor
will be complements of each other. That is, one
will equal 1 whenever the other is 0.
Multiplexor ("MUX")•
selects a value from among a set of different data signals
•
out will equal
•
a when s is 1
•
b when s is 0
HCL vs C
HCL
•
combinatorial circuits are always on
•
only operates on 0 and 1
•
no evaluation rules
C
•
boolean expressions are evaluated when
encountered in a C program
•
can operate on arbitrary integers (0 = false,
everything else is true)
•
might only be partially evaluated
•
e.g.,
(a && !a) && func(b,c)
•
if first expr is false, doesn't evaluate second
bool eq = (a && b) || (!a && !b);
From bits to words
H
C
L
In HCL, we will declare any word-level signal
as an int, without specifying the word size
•
In HCL, we will declare any word-level signal as an int, without specifying the word size
•
medium-thickness lines = set of wires carrying the individual bits of the word
•
dashed line = single-bit signal
Word-level circuits
TAPPS
•
Suppose you want to implement a word-level equality circuit
using exclusive-or circuits rather than from bit-level equality
circuits. Design such a circuit for a 64-bit word consisting of
64 bit-level exclusive-or circuits and two additional logic
gates.
The outputs of the exclusive-or circuits will be the
complements of the bit equality values. Using DeMorgan’s
laws (Web Aside data:bool on page 88), we can
implement and using or and not, yielding the circuit shown
in Figure 4.71.
Word-level MUX
•
out
will equal input word A when
the control signal s is 1, and it will
equal B otherwise
•
Rather than replicating the bit-
level multiplexor 64 times, the
word-level version reduces the
number of inverters by
generating !s once and reusing it
at each bit position
Signetics S54S157 quad 2:1 mux
H
C
L
MUX in HCL
•
Multiplexing functions are described in HCL using case expressions
•
Like switch statements, but cases in HCL don't have to be mutually exclusive (in
hardware, they do—some conversion required there)
•
selection expressions are evaluated in sequence, and the case for the first one yielding 1
is selected
•
Common that final case is 1 (default)
Four-way MUX
H
C
L
#
c
o
m
m
e
n
t
Other uses for HCL case expressions
TAPPS
?
TAPPS
?
?
?
?
?
Arithmetic/Logic Unit
(ALU)
•
Combinational logic circuits can get complex (beyond our scope)
•
One last important example: ALU
•
depending on the setting of the function input, the circuit will
perform one of four different arithmetic and logical operations
•
Four cases correspond to 4 OPl Y86-64 instructions
•
Consider the scenario in which
•
We are using a MUX to represent an instruction
•
The input signals determine which operation is
actually performed
•
We want to
set
the input signals
s1
and
s0
based off of some function
code
•
In general, when testing whether some code
matches one of several possibilities, could write it
like this:
•
Set membership
notation provides more concise
format:
Set Membership
Memory and Storage
•
Combinatorial circuits don't store info (just react)
•
Sequential circuits:
systems that have
state
and perform
computations
on that state
•
Two classes of memory devices
•
(Clocked) registers
– store individual bits or words
•
Clock signal controls loading register with value
•
(Random access) memories
– store multiple words
•
Use address to select which word to read or write
1.
Virtual memory
2.
Register file
•
Hardware register
≠
program register
•
Hardware:
register
connected to the rest of circuit by input and output wires
•
Program:
registers
represent small collection of addressable words in the CPU,
where the addresses consist of register IDs
Hardware Register
•
most of the time, the register remains in a fixed state, generating an output equal to its current
state
•
Signals propagate through the combinational logic
preceding
the register, creating a new value for
the register input
•
register output remains fixed as long as the clock is low
•
As the clock rises, the input signals are loaded into the register as its next state (y), and this
becomes the new register output until the next rising clock edge
•
Hardware registers serve as
barriers
between the combinational logic in different parts of the
circuit
