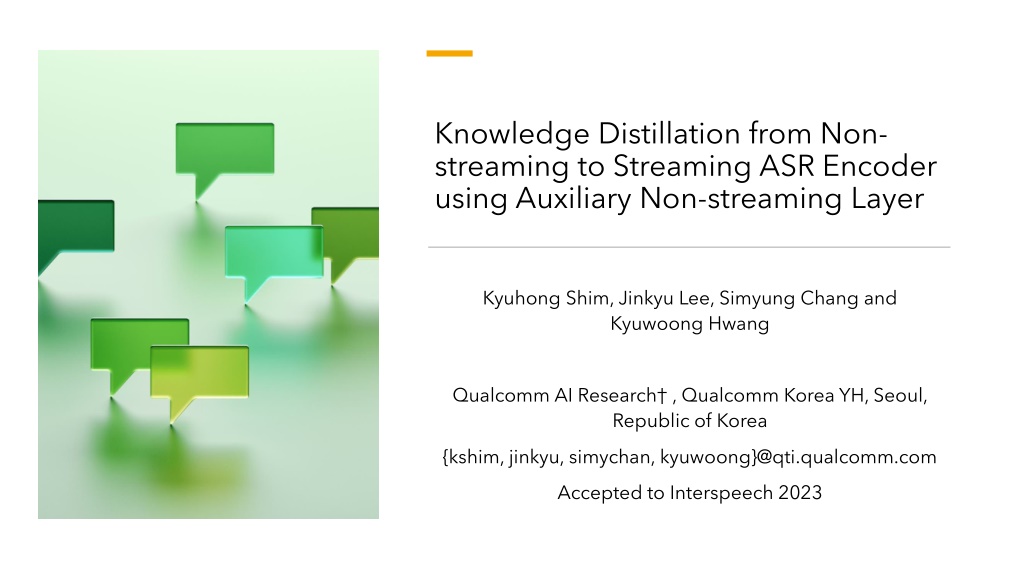

Knowledge Distillation for Streaming ASR Encoder with Non-streaming Layer
Knowledge Distillation from Non-
streaming to Streaming ASR Encoder
using Auxiliary Non-streaming Layer
Kyuhong Shim, Jinkyu Lee, Simyung Chang and
Kyuwoong Hwang
Qualcomm AI Research† , Qualcomm Korea YH, Seoul,
Republic of Korea
{kshim, jinkyu, simychan, kyuwoong}@qti.qualcomm.comAccepted to Interspeech 2023
Outline
1.
Introduction
2.
Related Work
3.
Distillation from Non-streaming Teacher to Streaming Student
4.
Experimental Results
5.
Discussion
6.
Conclusion
1. Introduction
•
Streaming ASR models face significant limitations:
•
On-device
•
Real-time speech recognition
1. Introduction
•
Simple approach:
Minimize Kullback-Leibler divergence
(KLD)
between the output token emission probabilities of
the teacher and student
•
Direct frame-to-frame distillation misguide the streaming model
•
The
audio-text frame alignments
are different between the non-
streaming and streaming models
1. Introduction
•
Dual-mode: a type of
self-KD training
, which shares the
same model for both streaming and non-streaming cases
•
Limitation that the student model size should be the same as the
teacher
1. Introduction
•
This work propose a novel KD method that applies
layer-
wise distillation on the encoder part of the model
•
Advantages over existing methods:
•
Faster training
•
Better robustness to frame misalignment
•
Ability to utilize unlabeled data
1. Introduction
First, insert auxiliary non-
streaming layers into the
streaming model
1. Introduction
Second, design a special KD loss function to enhance the
feature extraction process
1. Introduction
•
Compared to the baseline, our method
achieves 16%
relative WER reduction
on LibriSpeech
test-other
dataset
•
By incorporating the
large unlabeled data as an additional
training resource
, we could additionally
reduce the WER by
3%
2. Related Work
- Distillation for Improving Streaming ASR
•
The most popular approach is to distill the output token
probabilities
•
Manual shifting
•
Multi-stage alignment matching
•
CTC alignments
2. Related Work
- Distillation for Improving Streaming ASR
•
Another line of research called dual-mode, where the non-
streaming teacher and streaming student
share the same
parameter set
•
The teacher and the student should be the same (large)
architecture
•
Has not been tested for chunk-wise streaming setting
2. Related Work
- Distillation for ASR Model Compression
•
Transducer-based end-to-end ASR models have been
actively studied for compression
•
Large self-supervised models have also tried KD to squeeze
their model size
2. Related Work
- Cascaded Non-streaming and Streaming Layers
•
Cascade encoder: Special encoder
design that stack several non-
streaming layers on top of the
streaming layers
•
This work also attaches additional
non-streaming layers, but they are
only used for KD purpose
and then
removed after training is finished
3. Distillation from Non-streaming Teacher to
Streaming Student
3. Distillation from Non-streaming Teacher to
Streaming Student
3. Distillation from Non-streaming Teacher to
Streaming Student
•
Layer-wise KD from the teacher encoder to the student
encoder
•
In order to solve the context mismatch, this paper insert
auxiliary non-streaming layers at selected layers of the
student
3. Distillation from Non-streaming Teacher to
Streaming Student
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
•
Future prediction loss:
•
Inspired by the autoregressive predictive coding (APC)
•
Using previous history to predict the future feature (after several
frames)
•
APC:
•
Unidirectional LSTMs
and train those layers to minimize the difference
•
Originally
proposed for
self-supervised speech pretraining
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
•
To maximize the efficiency of
APC loss, this work modify
the Transformer attention
mask applied for auxiliary
non-streaming layers
3. Distillation from Non-streaming Teacher to
Streaming Student
-Distillation Loss
4. Experimental Results
-Setup
•
Dataset
•
LibriSpeech-960h
•
Exploit 6K hours of unlabeled data from the same domain (i.e.,
audio book reading)
4. Experimental Results
-Setup
•
Model Architecture: Conformer-Transducer ASR models
•
Teacher encoder:
•
A stack of 16 Conformer layers
•
512-dim feature
•
8 attention heads
•
Student encoder:
•
A stack of 16 Conformer layers
•
256-dim feature
•
4 attention heads
4. Experimental Results
-Setup
•
For the streaming student
•
Convolution layer is set to be causal
and the
attention mask
is
restricted to only access chunks within the left context limit
•
For the auxiliary layers
•
Use a single Transformer layer (self-attention + feed-forward)
•
Apply KD from the 4, 8, 12, 16-th layers of the teacher to 4, 8, 12,
16-th layers of the student
4. Experimental Results
-Setup
4. Experimental Results
-ASR Performance
4. Experimental Results
-ASR Performance
4. Experimental Results
-ASR Performance
5. Discussion
•
Teacher-to-Student Layer Connection
•
find the optimal connection between layer
•
identify the layers of similar behaviors and connect them
5. Discussion
•
Relationship to Pseudo Label Generation
•
To utilize unlabeled data, several studies have suggested
generating pseudo labels
for such data
using the out-of-the-shelf
large ASR mode
•
“Improving streaming automatic speech recognition with non-streaming
model distillation on unsupervised data,” in ICASSP 2021
6. Conclusion
•
In this paper:
•
A novel
KD method for improving the small streaming student
using the
large non-streaming teacher
•
key idea is to
insert non-streaming auxiliary layers on the student
•
Matching the context of the target features for knowledge distillation
•
Designed a
special layer-wise KD loss function
, which
includes future
prediction task using APC loss
The research introduces a novel knowledge distillation (KD) method for transitioning from non-streaming to streaming ASR encoders by incorporating auxiliary non-streaming layers and a special KD loss function. This approach enhances feature extraction, improves robustness to frame misalignment, and allows for the use of unlabeled data. Experimental results show a 16% relative Word Error Rate (WER) reduction on the LibriSpeech test-other dataset, with an additional 3% reduction when leveraging large unlabeled data.
