Distillation Column Operations and Equilibrium Conditions

undefined

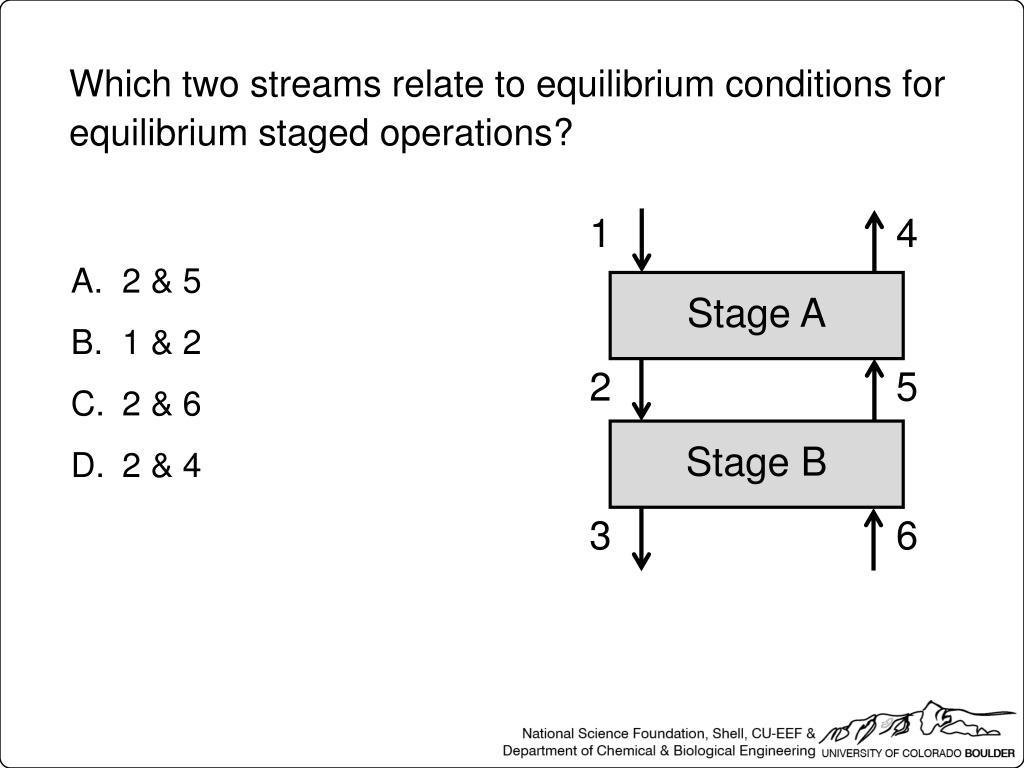

Which two streams relate to equilibrium conditions for
equilibrium staged operations?

A.
2 & 5
B.
1 & 2
C.
2 & 6
D.
2 & 4
undefined

Which two streams relate to operating conditions for
equilibrium staged operations?

A.
2 & 5
B.
1 & 2
C.
2 & 6
D.
2 & 4
undefined

Which of the following
relationships is true using the
distillation setup shown?
K = thermodynamic K-value
undefined

A.
increases
B.
decreases
C.
remains the same

V

L

F, q
undefined

A McCabe-Thiele solution to a distillation column
separating methanol and water is shown. The blue line
is the top operating line and the green line is the
bottom operating line. Which stage is the feed stage?

A.
1
B.
2
C.
3
D.
partial reboiler (B)
undefined

A McCabe-Thiele solution to a distillation column
separating methanol and water is shown. Currently,
the feed stage is number _______, but the optimum
feed stage is number ________.

A.
4, 3
B.
3, 3
C.
3, 1
D.
3, Boiler
E.
4, 4
undefined

In column distillation, the limiting operating conditions
of minimum reflux and total reflux represent a(n)
_________ and a(n) __________ number of stages
for a given separation, respectively.

A.
minimum, maximum
B.
infinite,  minimum
C.
infinite, maximum
D.
maximum, minimum
undefined

Murphree vapor/liquid efficiencies can exceed one
and be less than zero.

A.
true
B.
false
undefined

For a binary distillation column operating at
atmospheric pressure, the temperature __________
from the bottom to the top of the column.

A.
increases
B.
decreases
C.
is constant
D.
depends on the separation
undefined

For a binary distillation column operating at constant
temperature, the pressure  __________ from the
bottom to the top of the column.

A.
increases
B.
decreases
C.
is constant
D.
depends on the separation
undefined

An operator is creating a dial to control the reflux ratio
in a distillation column. What must be the two values
for the limits of the dial?

V

D

L

Dial
undefined

Which of the following plots cannot be used to represent
a rectifying section operating line for a distillation column
separating a binary mixture? Plots are for more volatile
species.

A.
3, 4, 6
B.
4 & 5
C.
4, 5, 6
D.
1 & 2
E.
3, 4, 5, 6

1

6

4

5

3

2
undefined

Which of the following plots cannot be used to
represent a stripping section for a distillation column
separating a binary mixture?

A.
2
B.
1, 2, 3
C.
2, 3, 5
D.
2, 5
E.
All but 4

1

6

4

5

3

2
undefined

Which of the following tray holes prevents weeping at
low vapor flow (or start up of vapor flow)?

A.
tray 1
B.
tray 2
C.
both trays
D.
neither trays

1

2
undefined

A distillation column has 8 stages, a total condenser
and a partial reboiler.  What is the liquid mole fraction
of the more volatile component entering stage 8?

A.
0.04
B.
0.10
C.
0.24
D.
0.80
XY diagram for more
volatile component
undefined

A distillation column has 8 stages, a partial condenser
and a total reboiler.  What is the liquid mole fraction of
the more volatile component entering stage 8?

A.
0.04
B.
0.10
C.
0.24
D.
0.80
XY diagram for more
volatile component
undefined

What is the efficiency of a column that we has a partial
condenser, a partial reboiler, and 6 physical trays in
the column?

A.
67%
B.
50%
C.
33%
D.
16%
XY diagram for more
volatile component
undefined

What is the optimal feed location (tray #) for a column
with a partial condenser, a partial reboiler and 33% tray
efficiency if the feed is saturated liquid at z
F
 = 0.62?

A.
1
B.
2
C.
3
D.
4
E.
5
XY diagram for more
volatile component
undefined

Which feed condition minimizes the difference
between partial reboiler and total condenser duties for
an ideal binary separation in a distillation column?

A.
supercooled liquid
B.
saturated liquid
C.
saturated vapor
D.
superheated vapor
undefined

Which of the following material balance relationships
are true for a binary distillation column operating with a
saturated liquid feed, a total condenser and partial
reboiler?
(R = reflux ratio = L/D)
undefined

A distillation column operates with a saturated liquid
feed, F
1,
and a reflux ratio of 2.  If another saturated
liquid stream is fed at a lower stage (F
2
), how does the
slope of the rectifying operating line change?

A.
decreases
B.
increases
C.
remains the same
D.
depends on quality of F
2

F
1

R = 2

F
2
undefined

A distillation column with a total condenser and partial
reboiler separates a binary mixture. Lowering the
reflux ratio decreases the tray efficiency.  The number
of trays needed to achieve the same separation as
before ________.

A.
increases
B.
decreases
C.
remains the same
D.
depends on reflux ratio
undefined

When performing separation under vacuum in a
column distillation, a _______ column should be used
since the pressure drop across this column is lower.

A.
packed
B.
trayed
C.
negligible difference
undefined

Which is most likely true for a liquid passing along a
tray in a column distillation for short residence times
and uneven mixing? x is the mole fraction of the more
volatile component.

A.
x
out
 > x
1
B.
x
out
 < x
1
C.
x
out
 = x
1
undefined

Which of the following results in only vapor products
(D and B)?

1) Partial condenser

2) Total condenser

3) Partial reboiler

4) Total reboiler

5) Total reflux

6) Total boilup

A.
1 & 3
B.
5 & 6
C.
2 & 4
D.
2 & 6
E.
4 & 5

Note: not drawn
for all setups
undefined

The McCabe-Thiele solution is shown for a distillation
column with a saturated liquid sidestream (S) product.
Keeping reflux constant, what happens to the number
of stages needed in the rectifying section if the flow
rate of S increases?

A.
increases
B.
decreases
C.
no change
undefined

Which of the following ideal binary distillation columns
uses the most energy? Feed conditions, pressure,
reflux ratio, and top and bottoms compositions are
constant.

D. No difference

A

B

C
undefined

For the following distillation system, which of the
following component pairs are designated as the light
key (LK) and heavy key (HK)?
(Note: Components are in order of volatility,
= signifies a double bond)

A.
C
1
 and C
2
=
B.
C
1
 and nC
4
C.
C
2
 and C
3
=
D.
C
2
= and C
2
Distillation

C
1
C
2
=
C
2
C
3
=
C
3
nC
4

500
1,250
1,000
100
50
25

kmol/h

C
3
=    2.5 kmol/h

C
2
    0.5 kmol/h
undefined

Compound R and compound S are separated in a
batch distillation process. Given that P
R
sat
 < P
s
sat
 and
the solution is ideal, the first drop of distillate will be
enriched in ____________.

A.
compound R
B.
compound S
C.
depends on the initial mole
fractions
undefined

Compound R and compound S are separated by batch
distillation. Given P
R
sat
< P
s
sat
 and the solution is ideal,
the mole fraction of S in the distillate _________ as
the process proceeds.

A.
increases
B.
decreases
C.
depends on initial mole fractions
undefined

Compound R and compound S are separated through
batch distillation. Given P
R
sat
< P
s
sat
 and the solution is
ideal, the mole fraction of S in the feed-stock
_________ as time proceeds.

A.
increases
B.
decreases
C.
depends on initial mole fractions
undefined

A 100-mol mixture of benzene and toluene are fed into
a batch distillation still, which is heated to keep the
boil-up rate constant. Which of the following does not
change during the distillation?

A.
distillate composition
B.
bottoms composition
C.
still temperature
D.
distillate flow rate
E.
none of the above
undefined

The amount of vapor product produced in a flash
distillation process is dependent on _________.

A.
the feed composition
B.
the temperature of the flash operation
C.
the temperature of the feed
D.
A & B
E.
All of the above
undefined

A.
0.08
B.
0.40
C.
0.55
D.
0.62

Given a feed of 40 mol% EtOH, what is the maximum
ethanol vapor fraction achievable in a flash drum?
undefined

For a flash distillation at its bubble point, what fraction
(V/F) of a feed stream becomes vapor?

A.
V/F ≈ 0, all liquid
B.
V/F ≈ 1, all vapor
C.
Cannot determine
undefined

If three flash tanks were stacked, how would the
pressures of each tank be set to maximize separation
efficiency?

A.
P
1
 > P
2
 > P
3
B.
P
1
 > P
3
 > P
2
C.
P
1
 < P
2
 < P
3
D.
P
1
 < P
3
 < P
2
P
1
P
2
P
3

V
1

L
1

V
2

V
3

L
2

L
3

liquid feed

liquid

liquid
undefined

A  liquid feed containing 20 mol% MeOH enters a flash
tank at 3 psia. If we compress the exiting vapor to 6
psia then send it to another tank operating at 4 psia,
what is the vapor mole fraction of MeOH
leaving the
2
nd
 tank?

A.
0.1
B.
0.2
C.
0.4
D.
0.6
E.
0.99
undefined

What will happen if we recycle the liquid stream from
tank 2 (L
2
) back to tank 2? (y is the mole fraction
of the more volatile
component in the vapor)

A.
y
2
 decreases
B.
y
2
 increases
C.
Ratio of L/V produced
from tank 2 increases
D.
Ratio of L/V produced
from tank 2 decreases
E.
A & C
P
1
P
2
P
3

V
1

L
1

V
2

V
3

L
2

L
3

liquid feed

liquid

liquid
undefined

How should the temperature for each stage  be set for
stacked flash tanks under
isobaric conditions?

A.
T
1
 > T
2
 > T
3
 > T
4
 > T
5
B.
T
1
 < T
2
 < T
3
 < T
4
 < T
5
C.
T
1
 < T
2
 < T
3
 > T
4
 < T
5
undefined

Which vapor flow rate is larger, V
1
 or V
2
?

A.
V
1
B.
V
2
C.
V
1
 = V
2

Slide Note
Embed
Share

Explore various aspects of distillation column operations, including equilibrium and operating conditions, total condenser setups, feed stage mass/energy balances, McCabe-Thiele solutions, and limiting operating conditions. Learn about vapor/liquid efficiencies and the relationships between different streams in distillation processes.

  • Distillation Column
  • Equilibrium Conditions
  • Operating Conditions
  • Total Condenser
  • McCabe-Thiele
  • Vapor/Liquid Efficiencies

Uploaded on Jul 11, 2024 | 3 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Which two streams relate to equilibrium conditions for equilibrium staged operations? 1 4 A. 2 & 5 Stage A B. 1 & 2 2 5 C. 2 & 6 Stage B D. 2 & 4 3 6

  2. Which two streams relate to operating conditions for equilibrium staged operations? 1 4 A. 2 & 5 Stage A B. 1 & 2 2 5 C. 2 & 6 Stage B D. 2 & 4 3 6

  3. Total condenser Which of the following relationships is true using the distillation setup shown? K = thermodynamic K-value yN xN+1 N xN yN 1 N-1 A. y2= K2x1 B. x2= K1x1 C. y1= K1x2 D. x1= K1y1 2 1 y1 x2 y0 x1 Total reboiler

  4. Consider the mass/energy balance envelope constructed around the feed stage of a distillation column. As the feed quality increases, the molar flow rate of the liquid stream L _________. V L A. increases B. decreases F, q C. remains the same V L

  5. A McCabe-Thiele solution to a distillation column separating methanol and water is shown. The blue line is the top operating line and the green line is the bottom operating line. Which stage is the feed stage? 1 1 2 0.8 3 0.6 A. 1 yMethanol B. 2 0.4 B C. 3 0.2 D. partial reboiler (B) 0 0 0.2 0.4 xMethanol 0.6 0.8 1

  6. A McCabe-Thiele solution to a distillation column separating methanol and water is shown. Currently, the feed stage is number _______, but the optimum feed stage is number ________. 1 1 2 C 0.8 A. 4, 3 3 0.6 B. 3, 3 yMethanol 4 C. 3, 1 0.4 D. 3, Boiler 0.2 B E. 4, 4 0 0 0.2 0.4 0.6 0.8 1 xMethanol

  7. In column distillation, the limiting operating conditions of minimum reflux and total reflux represent a(n) _________ and a(n) __________ number of stages for a given separation, respectively. A. minimum, maximum B. infinite, minimum C. infinite, maximum D. maximum, minimum

  8. Murphree vapor/liquid efficiencies can exceed one and be less than zero. A. true B. false

  9. For a binary distillation column operating at atmospheric pressure, the temperature __________ from the bottom to the top of the column. A. increases B. decreases C. is constant D. depends on the separation

  10. For a binary distillation column operating at constant temperature, the pressure __________ from the bottom to the top of the column. A. increases B. decreases C. is constant D. depends on the separation

  11. An operator is creating a dial to control the reflux ratio in a distillation column. What must be the two values for the limits of the dial? V A. -1 and 1 B. 0 and 1 C. 1 and L D D. 0 and Dial

  12. Which of the following plots cannot be used to represent a rectifying section operating line for a distillation column separating a binary mixture? Plots are for more volatile species. Vapor mol fraction 0 Vapor mol fraction Vapor mol fraction A. 3, 4, 6 1 2 3 B. 4 & 5 0 0 C. 4, 5, 6 Liquid mol fraction Liquid mol fraction Liquid mol fraction D. 1 & 2 Vapor mol fraction Vapor mol fraction Vapor mol fraction E. 3, 4, 5, 6 4 5 6 0 0 0 Liquid mol fraction Liquid mol fraction Liquid mol fraction

  13. Which of the following plots cannot be used to represent a stripping section for a distillation column separating a binary mixture? Vapor mol fraction Vapor mol fraction Vapor mol fraction A. 2 B. 1, 2, 3 1 2 3 C. 2, 3, 5 0 0 0 Liquid mol fraction Liquid mol fraction Liquid mol fraction D. 2, 5 Vapor mol fraction Vapor mol fraction Vapor mol fraction E. All but 4 4 5 6 0 0 0 Liquid mol fraction Liquid mol fraction Liquid mol fraction

  14. Which of the following tray holes prevents weeping at low vapor flow (or start up of vapor flow)? 1 2 A. tray 1 B. tray 2 C. both trays D. neither trays

  15. A distillation column has 8 stages, a total condenser and a partial reboiler. What is the liquid mole fraction of the more volatile component entering stage 8? 1 0.9 0.8 Vapor mole fraction (y) 0.7 A. 0.04 0.6 B. 0.10 0.5 0.4 C. 0.24 0.3 D. 0.80 0.2 XY diagram for more volatile component 0.1 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Liquid mole fraction (X)

  16. A distillation column has 8 stages, a partial condenser and a total reboiler. What is the liquid mole fraction of the more volatile component entering stage 8? 1 0.9 0.8 Vapor mole fraction (y) A. 0.04 0.7 0.6 B. 0.10 0.5 C. 0.24 0.4 D. 0.80 0.3 0.2 XY diagram for more volatile component 0.1 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Liquid mole fraction (X)

  17. What is the efficiency of a column that we has a partial condenser, a partial reboiler, and 6 physical trays in the column? 1 0.9 0.8 Vapor mole fraction (y) A. 67% 0.7 0.6 B. 50% 0.5 C. 33% 0.4 0.3 D. 16% 0.2 XY diagram for more volatile component 0.1 0 0 0.1 0.2 0.3 0.4 Liquid mole fraction (X) 0.5 0.6 0.7 0.8 0.9 1

  18. What is the optimal feed location (tray #) for a column with a partial condenser, a partial reboiler and 33% tray efficiency if the feed is saturated liquid at zF = 0.62? 1 0.9 0.8 A. 1 Vapor mole fraction (y) 0.7 B. 2 0.6 0.5 C. 3 0.4 D. 4 0.3 0.2 XY diagram for more volatile component E. 5 0.1 0 0 0.1 0.2 0.3 0.4 Liquid mole fraction (X) 0.5 0.6 0.7 0.8 0.9 1

  19. Which feed condition minimizes the difference between partial reboiler and total condenser duties for an ideal binary separation in a distillation column? A. supercooled liquid B. saturated liquid C. saturated vapor D. superheated vapor

  20. Which of the following material balance relationships are true for a binary distillation column operating with a saturated liquid feed, a total condenser and partial reboiler? (R = reflux ratio = L/D) V L D A. L = D - F F B. L = R*D C. L = R*D + F V D. L = R*D + F - B B L

  21. A distillation column operates with a saturated liquid feed, F1, and a reflux ratio of 2. If another saturated liquid stream is fed at a lower stage (F2), how does the slope of the rectifying operating line change? R = 2 A. decreases F1 B. increases C. remains the same F2 D. depends on quality of F2

  22. A distillation column with a total condenser and partial reboiler separates a binary mixture. Lowering the reflux ratio decreases the tray efficiency. The number of trays needed to achieve the same separation as before ________. A. increases B. decreases C. remains the same D. depends on reflux ratio

  23. When performing separation under vacuum in a column distillation, a _______ column should be used since the pressure drop across this column is lower. A. packed B. trayed C. negligible difference packed trayed

  24. Which is most likely true for a liquid passing along a tray in a column distillation for short residence times and uneven mixing? x is the mole fraction of the more volatile component. A. xout> x1 B. xout< x1 C. xout= x1

  25. Which of the following results in only vapor products (D and B)? 1) Partial condenser 3) Partial reboiler 5) Total reflux 2) Total condenser 4) Total reboiler 6) Total boilup V A. 1 & 3 L D B. 5 & 6 F Note: not drawn for all setups C. 2 & 4 V D. 2 & 6 E. 4 & 5 B L

  26. The McCabe-Thiele solution is shown for a distillation column with a saturated liquid sidestream (S) product. Keeping reflux constant, what happens to the number of stages needed in the rectifying section if the flow rate of S increases? 1 0.9 A. increases 0.8 0.7 B. decreases 0.6 Y MEOH 0.5 C. no change 0.4 0.3 0.2 0.1 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 X MEOH

  27. Which of the following ideal binary distillation columns uses the most energy? Feed conditions, pressure, reflux ratio, and top and bottoms compositions are constant. A B C D. No difference

  28. For the following distillation system, which of the following component pairs are designated as the light key (LK) and heavy key (HK)? (Note: Components are in order of volatility, = signifies a double bond) C3= 2.5 kmol/h A. C1 and C2= B. C1 and nC4 C. C2 and C3= D. C2= and C2 Distillation kmol/h C1 C2= C2 C3= C3 nC4 500 1,250 1,000 100 50 25 C2 0.5 kmol/h

  29. Compound R and compound S are separated in a batch distillation process. Given that PRsat < Pssat and the solution is ideal, the first drop of distillate will be enriched in ____________. A. compound R B. compound S xR, xS C. depends on the initial mole fractions Q

  30. Compound R and compound S are separated by batch distillation. Given PRsat < Pssat and the solution is ideal, the mole fraction of S in the distillate _________ as the process proceeds. xR, xS A. increases B. decreases C. depends on initial mole fractions Q

  31. Compound R and compound S are separated through batch distillation. Given PRsat < Pssat and the solution is ideal, the mole fraction of S in the feed-stock _________ as time proceeds. xR, xS A. increases B. decreases C. depends on initial mole fractions Q

  32. A 100-mol mixture of benzene and toluene are fed into a batch distillation still, which is heated to keep the boil-up rate constant. Which of the following does not change during the distillation? A. distillate composition B. bottoms composition C. still temperature D. distillate flow rate E. none of the above

  33. The amount of vapor product produced in a flash distillation process is dependent on _________. A. the feed composition B. the temperature of the flash operation C. the temperature of the feed D. A & B E. All of the above

  34. Given a feed of 40 mol% EtOH, what is the maximum ethanol vapor fraction achievable in a flash drum? A. 0.08 B. 0.40 C. 0.55 D. 0.62

  35. For a flash distillation at its bubble point, what fraction (V/F) of a feed stream becomes vapor? A. V/F 0, all liquid B. V/F 1, all vapor C. Cannot determine

  36. If three flash tanks were stacked, how would the pressures of each tank be set to maximize separation efficiency? V1 liquid P1 A. P1 > P2 > P3 B. P1 > P3 > P2 C. P1 < P2 < P3 D. P1 < P3 < P2 V2 L1 liquid P2 L2 V3 liquid feed P3 L3

  37. A liquid feed containing 20 mol% MeOH enters a flash tank at 3 psia. If we compress the exiting vapor to 6 psia then send it to another tank operating at 4 psia, what is the vapor mole fraction of MeOH leaving the 2nd tank? A. 0.1 B. 0.2 C. 0.4 D. 0.6 E. 0.99

  38. What will happen if we recycle the liquid stream from tank 2 (L2) back to tank 2? (y is the mole fraction of the more volatile component in the vapor) V1 liquid P1 A. y2 decreases B. y2 increases C. Ratio of L/V produced from tank 2 increases V2 L1 liquid P2 L2 V3 D. Ratio of L/V produced from tank 2 decreases liquid feed P3 E. A & C L3

  39. How should the temperature for each stage be set for stacked flash tanks under isobaric conditions? A. T1 > T2 > T3 > T4 > T5 B. T1 < T2 < T3 < T4 < T5 C. T1 < T2 < T3 > T4 < T5

  40. Which vapor flow rate is larger, V1 or V2? A. V1 B. V2 C. V1 = V2

More Related Content

giItT1WQy@!-/#
