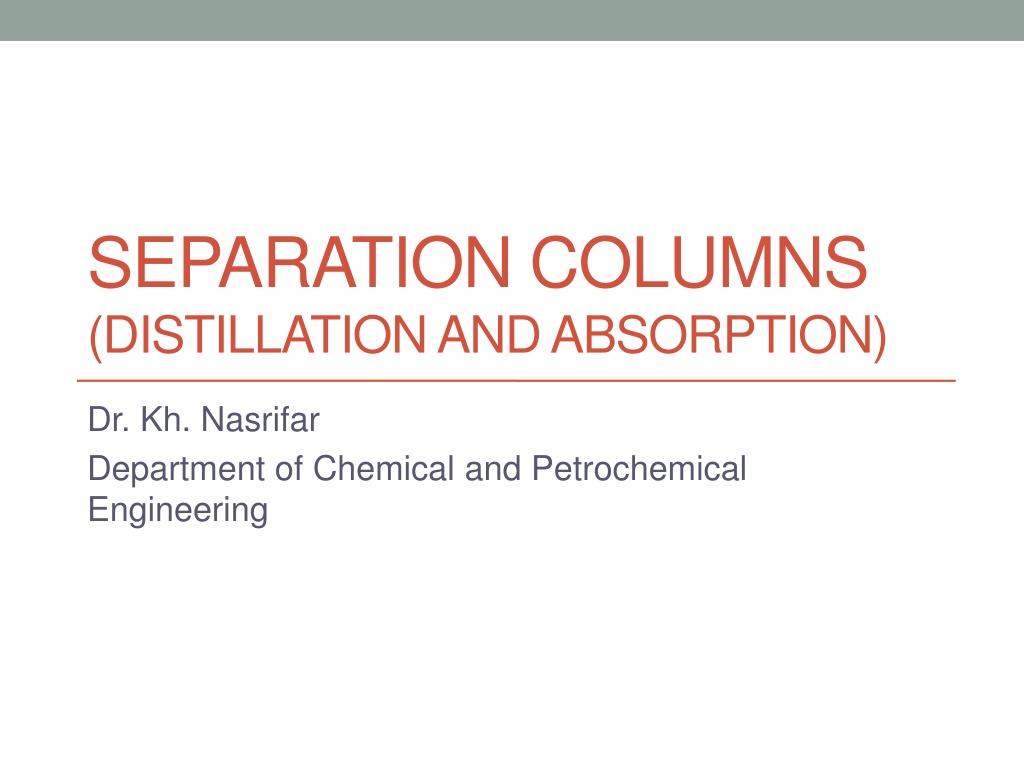

SEPARATION COLUMNS
SEPARATION COLUMNS
(DISTILLATION AND ABSORPTION)
Dr. Kh. Nasrifar
Department of Chemical and Petrochemical
Engineering
I
m
p
o
r
t
a
n
c
e
a
n
d
i
n
d
u
s
t
r
i
a
l
r
e
l
e
v
a
n
c
e
o
f
a
z
e
o
t
r
o
p
i
c
d
i
s
t
i
l
l
a
t
i
o
n
• Need for efficient recovery and recycle of organic solvents in chemical
industry
• Most liquid mixtures of organic solvents form azeotropes that complicate
the synthesis and conceptual design of recovery processes
• Distillation is the most common unit operation in recovery processes
because of
its ability to produce high purity products
• Azeotropes make separation impossible by normal distillation but can be
also
utilised to separate mixtures not ordinarily separable by normal distillation
• Azeotropic mixtures may often be effectively separated by distillation by
adding a
third component, called entrainer
• Thus, knowledge of the limitations and possibilities in azeotropic
distillation
is a topic of great practical and industrial interest
T
e
r
m
i
n
o
l
o
g
y
• The methods and tools presented in this lecture also appply for:
− Azeotropic mixtures
− Close boiling systems
− Low relative volatility systems
• Original components A and B: The components that form the azeotrope and
need to be separated
• Entrainer: A third component (E or C) added to enhance separation
• Binary azeotrope: Azeotrope formed by two components
• Ternary azeotrope: Azeotrope formed by three components
• Homogeneous azeotrope: Azeotrope where the forming components are
miscible
• Heterogeneous azeotrope: Azeotrope where the forming components are
immiscible
O
v
e
r
v
i
e
w
:
A
z
e
o
t
r
o
p
i
c
d
i
s
t
i
l
l
a
t
i
o
n
m
e
t
h
o
d
s
i) Pressure swing distillation
ii) Hybrid methods (membrane + distillation)
iii) Homogeneous azeotropic (homoazeotropic) distillation
iv) Heterogeneous azeotropic (heteroazeotropic) distillation
v) Extractive distillation
Azeotropic distillation plays a crucial role in the efficient recovery and recycle of organic solvents in the chemical industry. It addresses the challenges posed by azeotropes in separation processes, offering methods like pressure swing distillation and extractive distillation. Understanding the terminology and different types of azeotropic mixtures is essential for practical industrial applications.
