issues for AeroMACS

AeroMACS involves addressing institutional issues and network architecture considerations to ensure safety in air traffic management, airline operations, and airport services. The allocation of international frequency spectrum impacts the services provided by AeroMACS, with a focus on safety-critical applications. Various stakeholders such as ANSPs, airlines, and service providers play roles in delivering AeroMACS services at aerodromes, highlighting the need for interconnectivity and collaboration.

• AeroMACS
• Institutional issues
• Network architecture
• Safety services
• Air traffic management

jeppesen_a Follow

Uploaded on Feb 21, 2025 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

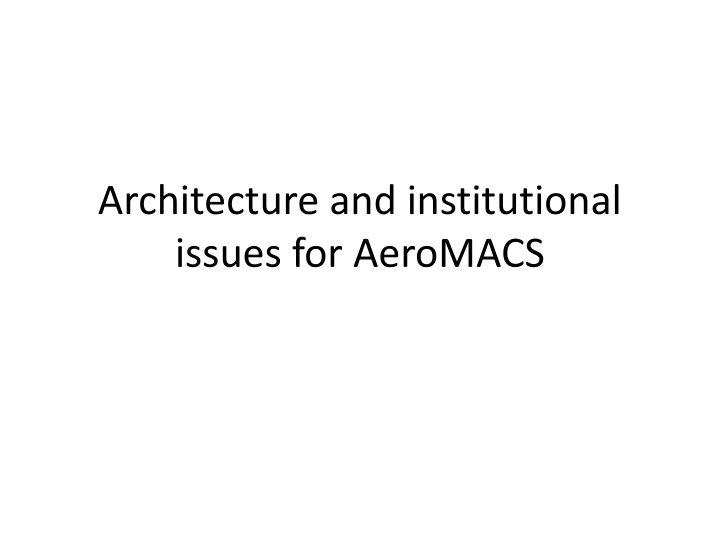

1. Architecture and institutional issues for AeroMACS

2. Institutional issues for AeroMACS Network architecture (basic requirements and operational/technical/physical considerations) However, because of operational constraints on the international frequency spectrum allocated for AeroMACS, only those services that can directly impact the safety and regularity of flight are candidates for provision by AeroMACS. The potential services and applications provided by AeroMACS can be grouped into three major categories: ATC/ATM, Airline operations, Airport and/or port authority operations (as shown in Slide 4). The three main categories can be further broken down into i) safety and advisory and then ii) mobile and fixed communications. Ground-Based, end-user facilities may be located remotely from the aerodrome. This will apply to most airlines. Infrastructure can be owned by various parties, i.e.; ANSPs, Service Providers, Airlines. One or more networks (operated by different entities) can be operational at a given aerodrome HOWEVER Aircraft can only access one network at a time. Therefore safety services, regardless of source, must be available over all networks operating at an aerodrome .

3. Institutional issues for AeroMACS Assumptions and Constraints (commercial/policy considerations) Given the points on the previous page: At an aerodrome, AeroMACS services may be provided by an ANSP, an airline or a (communication) Service Provider. Alternatively, the AeroMACS service may be provided by multiple airlines or Service Providers. In the case where multiple Service Providers or airlines provide service at an aerodrome, individual airlines or even the ANSP may contract with a particular SP but safety-related traffic must be internetworked with the other SPs. This sharing of traffic between SPs is known as internetworking . The issues related to fixed communication are largely spectrum-related and hence, this will be treated the same as mobile traffic in this paper. Where an ANSP provides the AeroMACS service at an aerodrome, SPs may re-sell the service to airlines and others. In this case the terrestrial network connection and any switching/routing will be provided by the SP. Such switching/routing may also include internetworking . If internetworking is not supported, then safety services must be supported via a connection to all providers of AeroMACS service at an aerodrome. These points provide various AeroMACS scenarios for consideration!

4. Figure 1-ANSP owns AeroMACS ANSP-owned AeroMACS Service ATC Service Provider Airport Authority Airline #2 Airline #1

5. Figure 2 CSP or Airline owns AeroMACS AeroMACS Service #1 AeroMACS Service #2 safety traffic Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1 ANSP

6. Potential AeroMACS Service Categories in U.S. Potential AeroMACS Services Air Traffic Airlines Airport Mobile Mobile Mobile AOC Services ATC Port Authority Ops AAC Services Advisory Services Advisory Services Safety Services Fixed Fixed Fixed Port Authority Ops Surface CNS Services TBD Security Services
