In the January 2021 document IEEE 802.11-21/0012r1, discussions were held on open issues related to PHY requirements, including LO requirements for 320 MHz transmission, EVM requirements for 1024 QAM and BPSK-DCM-DUP, minimum sensitivity for 4K QAM and BPSK-DCM-DUP, and channel rejection levels. Suggestions for adjustments and proposals were made to address these issues.


Uploaded on Aug 03, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

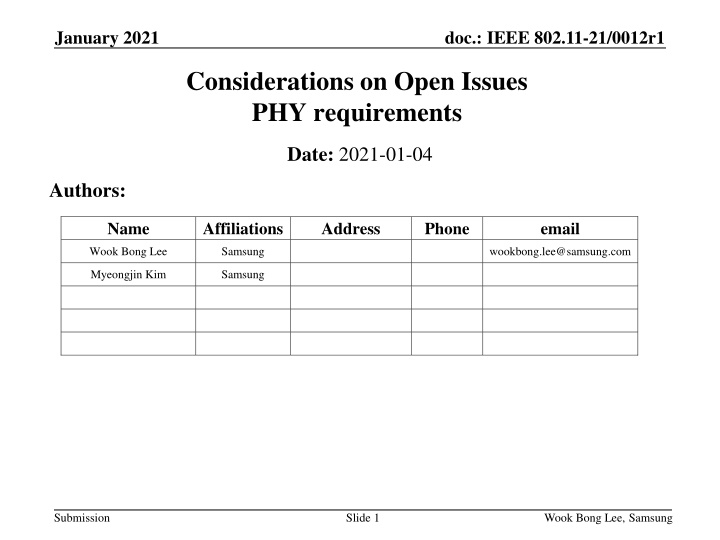

  1. January 2021 doc.: IEEE 802.11-21/0012r1 Considerations on Open Issues PHY requirements Date: 2021-01-04 Authors: Name Affiliations Address Phone email Wook Bong Lee Samsung wookbong.lee@samsung.com Myeongjin Kim Samsung Submission Slide 1 Wook Bong Lee, Samsung

  2. January 2021 doc.: IEEE 802.11-21/0012r1 Introduction In this contribution, we discussed open issues in PHY requirements such as LO requirement for 320 MHz transmission EVM requirement for 1024 QAM and BPSK-DCM-DUP requirement Minimum sensitivity for 4K QAM and BPSK-DCM-DUP Channel rejection level for 4K QAM and BPSK-DCM-DUP Submission Slide 2 Wook Bong Lee, Samsung

  3. January 2021 doc.: IEEE 802.11-21/0012r1 LO requirement for 320 MHz transmission For 20/40/80/160 MHz transmission, the power measured at the location of the RF LO using resolution BW 78.125 kHz shall not exceed the maximum of 32 dB relative to the total transmit power and 20 dBm, or equivalently max(P-32,-20), where P is the transmit power per antenna in dBm. In case of 320 MHz, NST = 3984, and thus each subcarrier may have PSD of (P-36). Proposal: For 320 MHz transmission, the power measured at the location of the RF LO using resolution BW 78.125 kHz shall not exceed the maximum of -36 dB relative to the total transmit power and -20 dBm, or equivalently max(P-36,-20). Submission Slide 3 Wook Bong Lee, Samsung

  4. January 2021 doc.: IEEE 802.11-21/0012r1 EVM requirement (1/2) In 11ax, there are two EVM requirements for 1024 QAM. Device may meet either -35 dB with amplitude drift compensation disabled -35 dB with amplitude drift compensation enabled and -32 dB with amplitude drift compensation disabled In 11be, there is a single EVM requirement for other than 1024 QAM. EVM requirement for 1024 QAM is TBD. For simplicity, we propose to have a single EVM requirement for 1024 QAM as well. We may not need to mention whether amplitude drift compensation is enabled or not. Proposal: Set -35 dB as an EVM requirement for 1024 QAM Submission Slide 4 Wook Bong Lee, Samsung

  5. January 2021 doc.: IEEE 802.11-21/0012r1 EVM requirement (2/2) In 11be (and 11ax), EVM requirements for BPSK and BPSK- DCM are same. Currently EVM requirement for BPSK-DCM-DUP is missing. Note that BPSK-DCM-DUP is only applicable for SU transmission, i.e. EHT MU PPDU. Proposal: Set -5 dB as an EVM requirement for BPSK-DCM-DUP in an EHT MU PPDU. N/A in EHT TB PPDU. Submission Slide 5 Wook Bong Lee, Samsung

  6. January 2021 doc.: IEEE 802.11-21/0012r1 Minimum sensitivity In 11be D0.2, minimum sensitivities for 4K QAM and BPSK- DCM-DUP are not defined. 10% required SNR for 4K QAM is about 2.8 dB from 1024 QAM 5/6 10% required SNR for 4K QAM 5/6 is about 5.3 dB from 1024 QAM 5/6 BPSK-DCM-DUP minimum sensitivity can be set to that of half bandwidth of BPSK-DCM Proposal: Modulation Rate 20 MHz 40 MHz 80 MHz 160 MHz 320 MHz 4096-QAM 3/4 49 46 43 40 37 4096-QAM 5/6 46 43 40 37 34 BPSK-DCM 1/2 82 79 76 73 70 BPSK-DCM- DUP 1/2 N/A N/A 78 75 72 Submission Slide 6 Wook Bong Lee, Samsung

  7. January 2021 doc.: IEEE 802.11-21/0012r1 Channel Rejection Level Similarly, we propose 3 dB and 6 dB lower requirement for 4K QAM and 5/6 from 1K QAM 5/6 requirement for channel rejection level. Also, we propose to use same nonadjacent channel rejection level for BPSK-DCM-DUP and BPSK-DCM as BPSK-DCM uses that of BPSK. Proposal: Modulation Rate Adjacent channel rejection (dB) Nonadjacent channel rejection (dB) 4096-QAM 3/4 17 1 4096-QAM 5/6 20 4 BPSK-DCM 1/2 16 32 BPSK-DCM- DUP 1/2 16 32 Submission Slide 7 Wook Bong Lee, Samsung

  8. January 2021 doc.: IEEE 802.11-21/0012r1 SP #1 Do you support For 320 MHz transmission, the power measured at the location of the RF LO using resolution BW 78.125 kHz shall not exceed the maximum of -32 dB relative to the total transmit power and -20 dBm, or equivalently max(P-32,-20). Y N A Submission Slide 8 Wook Bong Lee, Samsung

  9. January 2021 doc.: IEEE 802.11-21/0012r1 SP #2 Do you support a single EVM requirement for 1024 QAM? An EVM requirement for 1024 QAM: -35 dB Y N A Submission Slide 9 Wook Bong Lee, Samsung

  10. January 2021 doc.: IEEE 802.11-21/0012r1 SP #3 Do you support the same EVM requirement for BPSK, BPSK- DCM and BPSK-DCM-DUP in EHT MU PPDU? An EVM requirement for BPSK-DCM-DUP in EHT MU PPDU: -5 dB An EVM requirement for BPSK-DCM-DUP in EHT TB PPDU: N/A Y N A Submission Slide 10 Wook Bong Lee, Samsung

  11. January 2021 doc.: IEEE 802.11-21/0012r1 SP #4 Do you support following minimum sensitivity levels for 4K QAM and BPSK-DCM-DUP? Modulation Rate 20 MHz 40 MHz 80 MHz 160 MHz 320 MHz 4096-QAM 3/4 49 46 43 40 37 4096-QAM 5/6 46 43 40 37 34 BPSK-DCM 1/2 82 79 76 73 70 BPSK-DCM- DUP 1/2 N/A N/A 78 75 72 Y N A Submission Slide 11 Wook Bong Lee, Samsung

  12. January 2021 doc.: IEEE 802.11-21/0012r1 SP #5 Do you support following channel rejection levels for 4K QAM and BPSK-DCM-DUP? Modulation Rate Adjacent channel rejection (dB) Nonadjacent channel rejection (dB) 4096-QAM 3/4 17 1 4096-QAM 5/6 20 4 BPSK-DCM 1/2 16 32 BPSK-DCM- DUP 1/2 16 32 Y N A Submission Slide 12 Wook Bong Lee, Samsung
