Introduction to Intel Assembly Language for x86 Processors

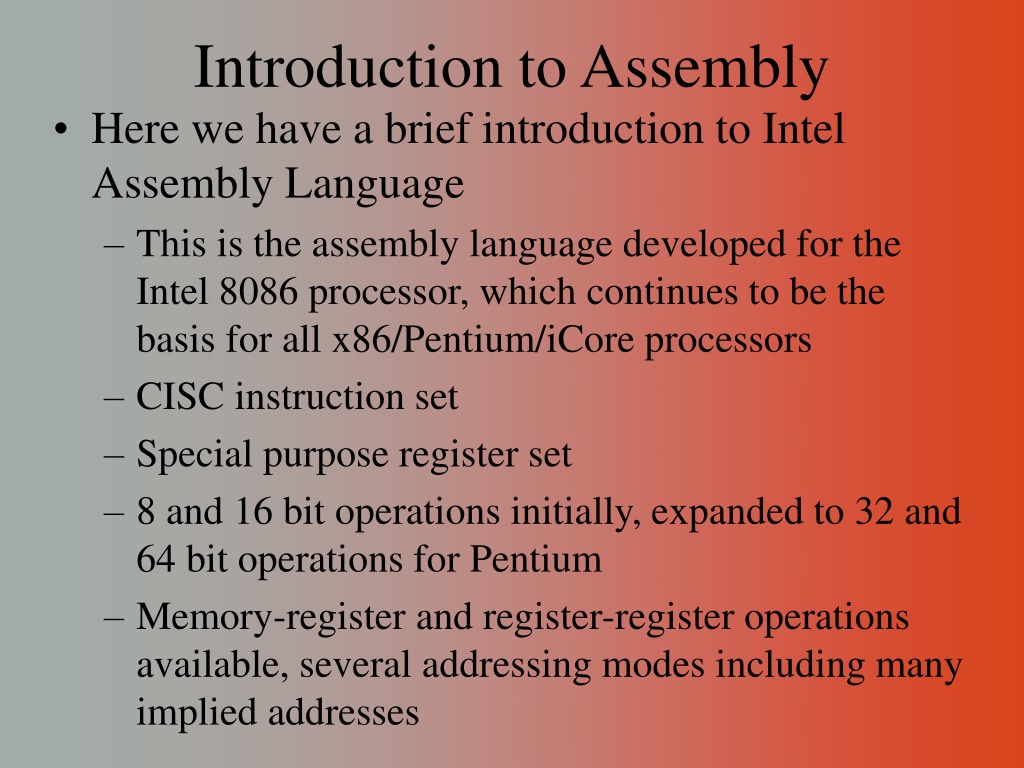

Introduction to Assembly
•
Here we have a brief introduction to Intel
Assembly Language
–
This is the assembly language developed for the
Intel 8086 processor, which continues to be the
basis for all x86/Pentium/iCore processors
–
CISC instruction set
–
Special purpose register set
–
8 and 16 bit operations initially, expanded to 32 and
64 bit operations for Pentium
–
Memory-register and register-register operations
available, several addressing modes including many
implied addresses
Instruction Format
•
[name/label] [mnemonic] [operands] [;comments]
–
Operands are either literals, variables/constants, or registers
•
Number of operands depends on type of instruction,
range from 0 to 2
•
Examples:
–
mov eax, ebx – 2 operands, source and destination
–
mov eax, 5 – one operand is a literal
–
mov y, eax – memory to register movement
–
add eax, 5 – 2 operands for add
–
mul value – 1 operand for mul, other operand is eax
–
nop – no operands for the no-op instruction
–
je location – 1 operand with comparison implied to be a flag
Literals and Variables
•
Literals require that the type of
value be specified by following the
value with one of the following:
–
D, d for decimal (the default)
–
H, h for hexadecimal
–
Q, q for octal
–
b for binary
–
Strings are placed in ‘ ’ or “ ” marks
•
Examples:
–
10101011b
–
0Ah
–
35
–
‘hello’
–
“goodbye”
•
We will define all
assembly code within
C/C++ programs so we
will declare all variables
in C/C++ code
–
int is 32 bit
–
short is 16 bit
–
char is 8 bit
•
We must insure that we
place the datum into the
right sized register (see
next slide)
Registers
•
14 registers, all special purpose
•
4 data registers
–
EAX – accumulator
•
EAX is an implied register in the Mul and Div instructions
–
EBX – base counter
•
used for addressing, particularly when dealing with arrays and strings
•
EBX can be used as a data register when not used for addressing
–
ECX – counter
•
implicitly used in loop instructions
•
in non-looping instructions, can be used as a data register
–
EDX – data register
•
used for In and Out instructions (input, output), also used to store partial
results of Mul and Div operations
•
in other cases, can be used as a data register
•
Register sizes:
–
_X – 16 bits (e.g., AX, BX)
–
_H and _L –8 bits (high and low end of _X registers)
–
E_X – 32 bits (extends the _X registers to 32 bits)
Other Registers
•
Other registers can not be used for data but have
specific uses
–
Segment registers point to different segments in memory
•
SS – stack
•
CS – code
•
DS – data
•
ES – extra (used as a base pointer for variables)
–
Indexing registers as offsets into local function, stack, or
string
•
BP – base pointer used with SS to address subroutine local
variables on the stack
•
SP – stack pointer used with SS for top of stack
•
SI and DI – source and destination for string transfers
–
IP – program counter
–
Status flags
Operations: Data Movement
•
mov and xchg instructions
–
mov allows for register-register, memory-register, register-
memory, register-immediate and memory-immediate
•
first item is destination, second is source
•
memory-memory moves must be done with 2 instructions using a
register as temporary storage
•
memory references can use direct, direct+offset, or register-indirect
modes
•
if datum is 8-bit, register only uses high or low side, 16-bit uses entire
register, 32-bit uses extended register (e.g., EAX, EDX) and 64-bit
combines two registers
–
xchg instruction allows only register-register, memory-
register and register-memory and exchanges two values rather
than moves one value as with mov
Operations: Arithmetic/Conditional
•
inc/dec dest
•
add/sub dest, source
–
dest is register or memory reference,
source for add/sub is register,
memory reference, or literal, sizes
must match
•
mul/div source
–
one datum is source, the other is
implied to be eax (or ax or al)
–
destination is implied as eax/edx
combined (or ax/dx, al/ah
depending on size)
–
source can be a register or memory
reference but not a literal (cannot do
mul 2)
–
div: quotient in ax, al or eax,
remainder in dx, ah or edx
–
mul: result is twice the size, so goes
into edx/eax or dx/ax or ah/al
•
shl, shr, sal, sar, shld, shrd ,
rol, ror, rcl, rcr
–
shift, shift arithmetic, shift
double, rotate, rotate w/ carry
–
two operands: item being
shifted/rotated, bits
shifted/rotated
•
Logic operations: AND, OR,
XOR, NOT
–
form is OP dest, source
•
NEG dest
–
convert two’s complement value
to its opposite
•
CMP first, second
–
compare first and second and set
proper flag(s) (PF, ZF, NF)
–
the result of cmp operations are
then used for branch instructions
Operations: Branches
•
Conditional branches:
–
instruction preceded by an
instruction which sets at least
one status flag, usually a cmp
instruction
–
flag tested based on type of
branch
–
je/jne location – branch if zero
flag set/clear
–
jg/jge/jl/jle location – branch
on positive/positive+zero,
negative/negative+zero flag set
–
jc/jnc/jz/jnz/jp/jnp location –
branch on carry/no carry,
zero/not zero, even parity/odd
parity
•
Unconditional branches:
–
branch automatically to location
–
jmp location
•
jmp instructions are used to
implement goto statements and
procedure calls
•
loop location
–
used for downward counting for
loops
–
initialize ecx (or cx) to starting
value
–
loop location combines
•
dec ecx
•
cmp ecx, 0
•
jg location
Addressing Modes
•
Immediate – place datum in instruction as a literal
–
add eax, 10
•
use this mode when datum is known at program implementation time
•
Direct – place variable in instruction
–
mov eax, x
; moves x into register ax
–
add y, eax
; sets y = [y] + [eax]
•
use this mode to access a variable in memory
•
Direct + Offset
–
mov eax, x+4 ; eax
x[4 bytes] – this is not the same as x[4]
–
mov eax, x[ebx] ; eax
x[ebx] –ebx stores the byte offset
•
Note: mov eax, x[y] is illegal because it has 2 memory references
•
use this mode when dealing with strings, arrays and structs
•
Register Indirect – use index and/or segment registers
–
mov eax, [si + ds]
; base-indexed
–
mov eax, [si – 4]
; base with displacement
–
mov eax, [si + ds – 6]
; base-indexed with displacement
•
we will not use these modes
Addressing Examples
•
Imagine that we have declared in C:
–
int a[ ] = {0, 11, 15, 21, 99};•
Then, the following accesses give us the values of a as
shown:
–
mov eax, a
eax
0
–
mov eax, a+4
eax
11
–
mov eax, a+8
eax
15
–
mov eax, a[ebx] eax
99 if ebx = 16
•
If ebx and ecx both = 0 and size is the number of items in
the array, then we can iterate through the array as follows:
top: mov eax, a[ebx]
… do something with the array value …
add ebx, 4
add ecx, 1
cmp ecx, size
jl top
// use jl since we stop once ecx == size
Writing Assembly in a C Program
•
For simplicity, we will write our code inside of C (or
C++) programs
•
This allows us to
–
declare variables in C/C++ thus avoiding the .data section
–
do I/O in C/C++ thus avoiding difficulties dealing with
assembly input and assembly output
–
compile our programs rather than dealing with assembling
them using MASM or TASM
•
To include assembly code, in your C/C++ program,
add the following compiler directive
_ _
asm {}
•
And place all of your assembly code between the { }Data Types
•
One problem that might arise in using C/C++ to run our
assembly code is that we might mix up data types
–
if you declare a variable to be of type int, then this is a 4-byte
variable
•
moving it into a register means that you must move it into a 4-
byte register (such as eax) and not a 2-byte or 1-byte register!
•
if you try to move a variable into the wrong sized register, or a
register value into the wrong sized variable, you will get a
“operand size conflict” syntax error message when compiling
your program
–
to use ax, bx, cx, dx, declare variables to be of type short
–
to use eax, ebx, ecx, edx, declare variables to be of type int
–
also notice that char are 1 byte, so should use either the upper
or lower half a register (al, ah, dl, dh)
