Presentation Transcript

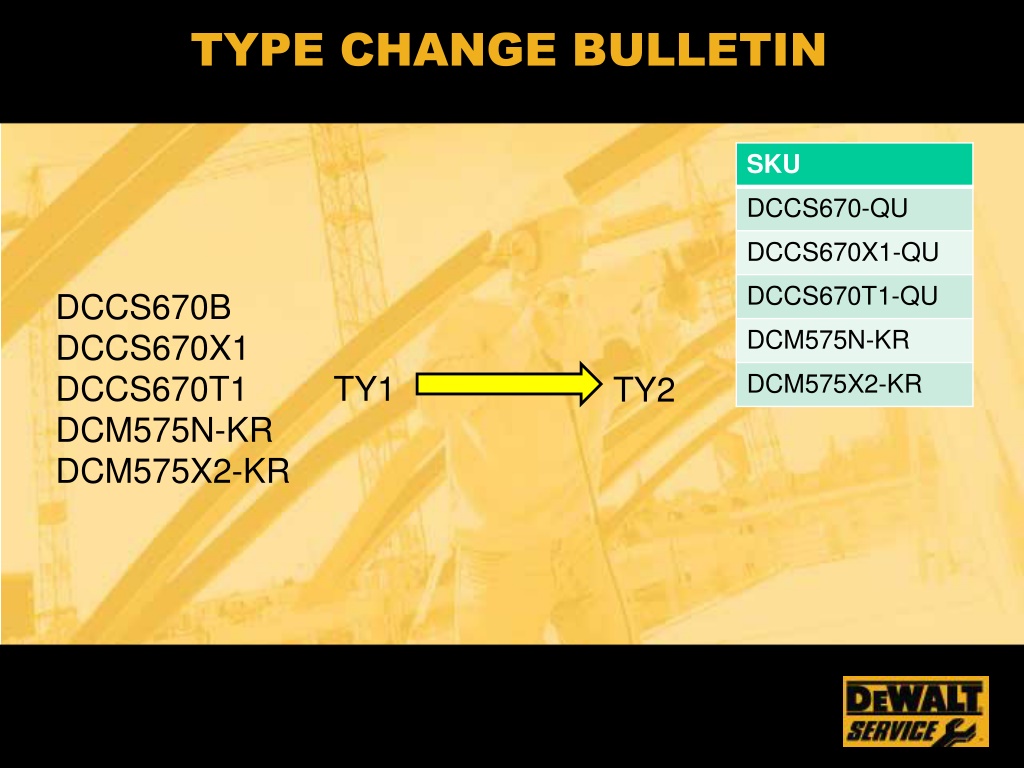

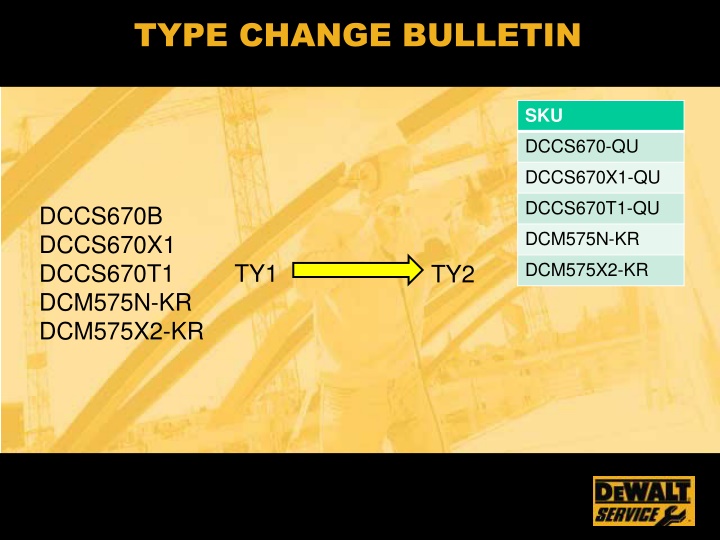

TYPE CHANGE BULLETIN SKU DCCS670-QU DCCS670X1-QU DCCS670T1-QU DCCS670B DCCS670X1 DCCS670T1 TY1 DCM575N-KR DCM575X2-KR DCM575N-KR DCM575X2-KR TY2

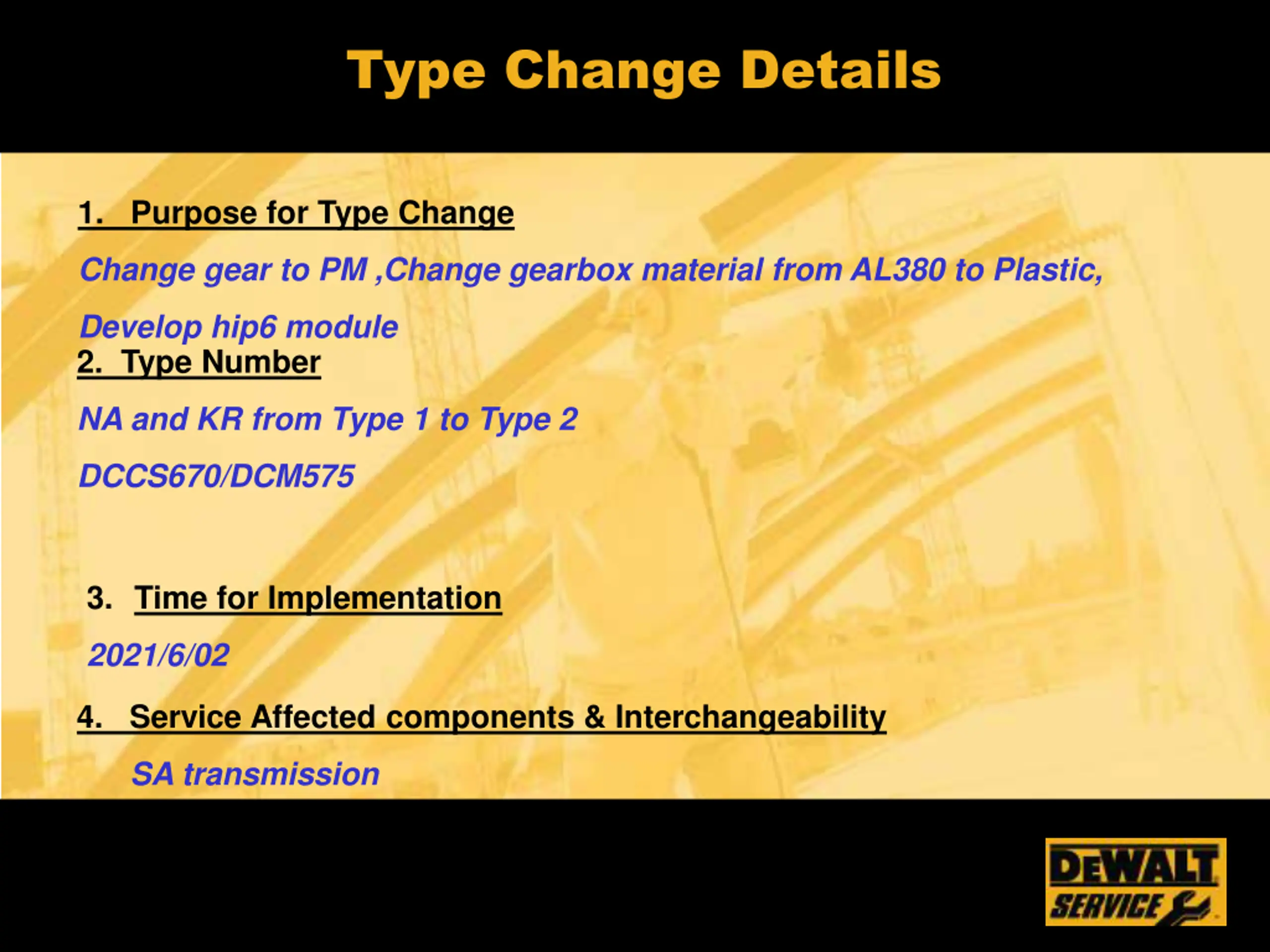

Type Change Details 1. Purpose for Type Change Change gear to PM ,Change gearbox material from AL380 to Plastic, Develop hip6 module 2. Type Number NA and KR from Type 1 to Type 2 DCCS670/DCM575 3. Time for Implementation 2021/6/02 4. Service Affected components & Interchangeability SA transmission

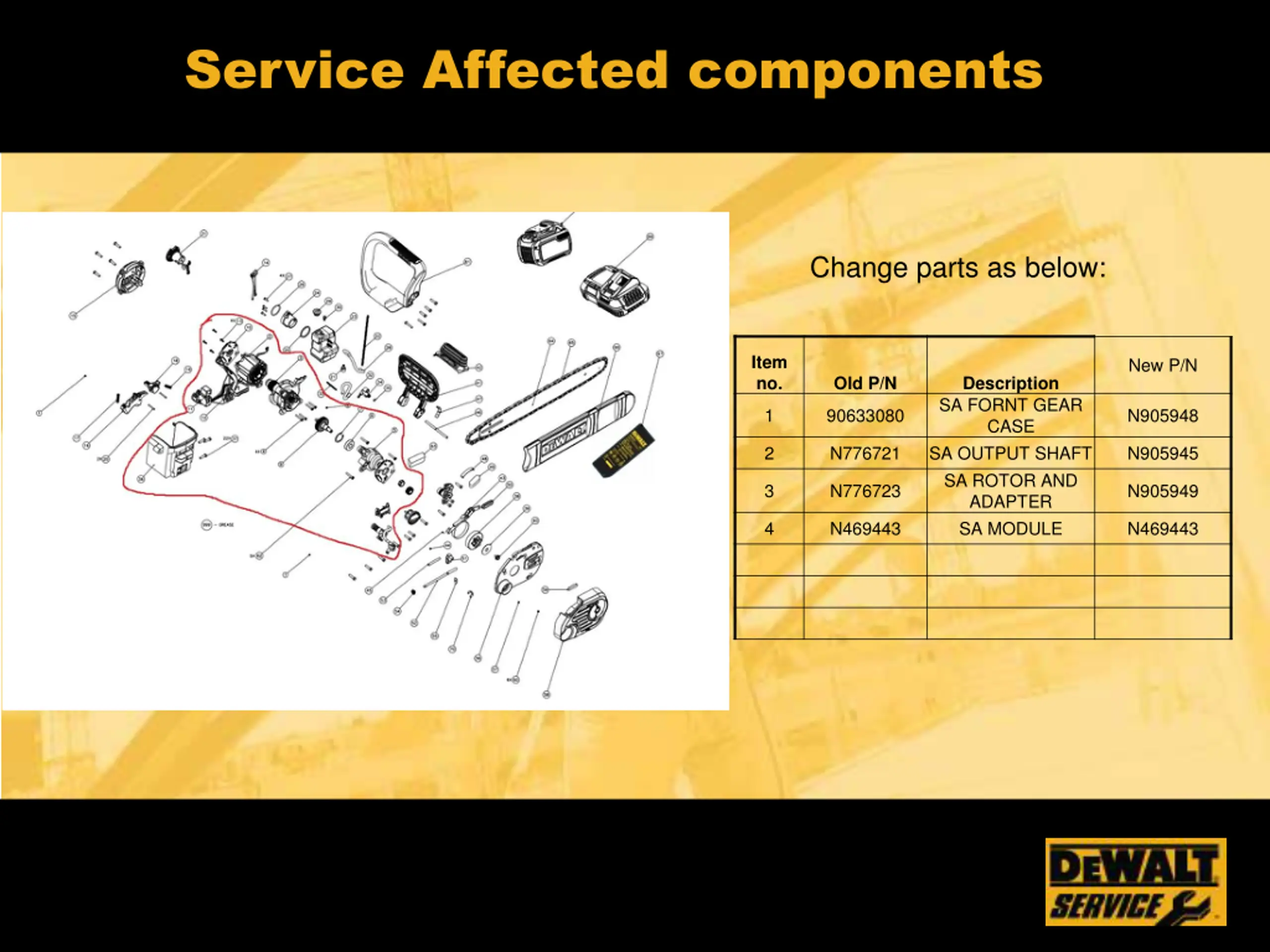

Service Affected components Change parts as below: Item no. New P/N Old P/N Description SA FORNT GEAR CASE SA OUTPUT SHAFT SA ROTOR AND ADAPTER SA MODULE 1 90633080 N905948 2 N776721 N905945 3 N776723 N905949 4 N469443 N469443

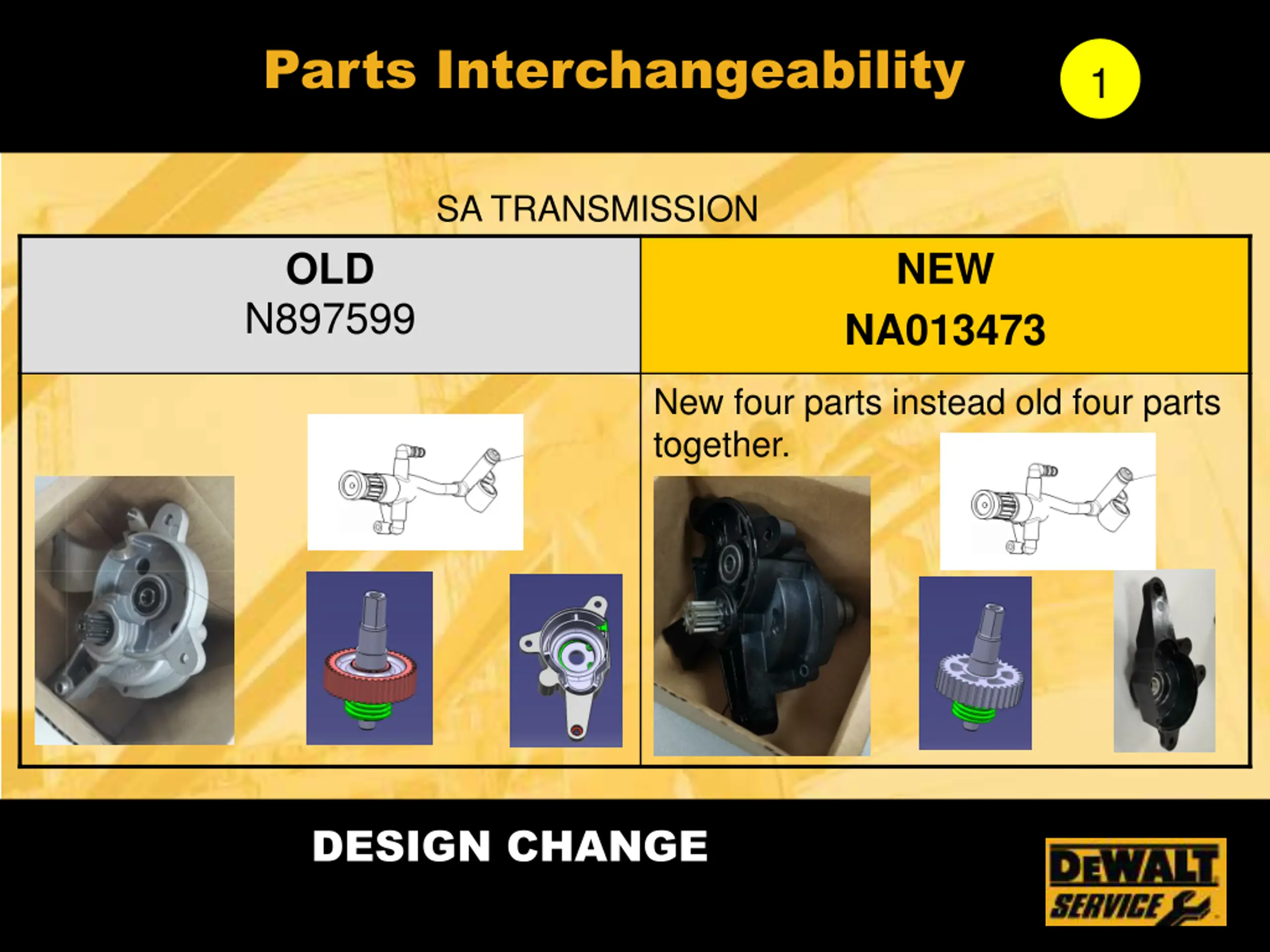

Parts Interchangeability 1 SA TRANSMISSION OLD N897599 NEW NA013473 New four parts instead old four parts together. DESIGN CHANGE

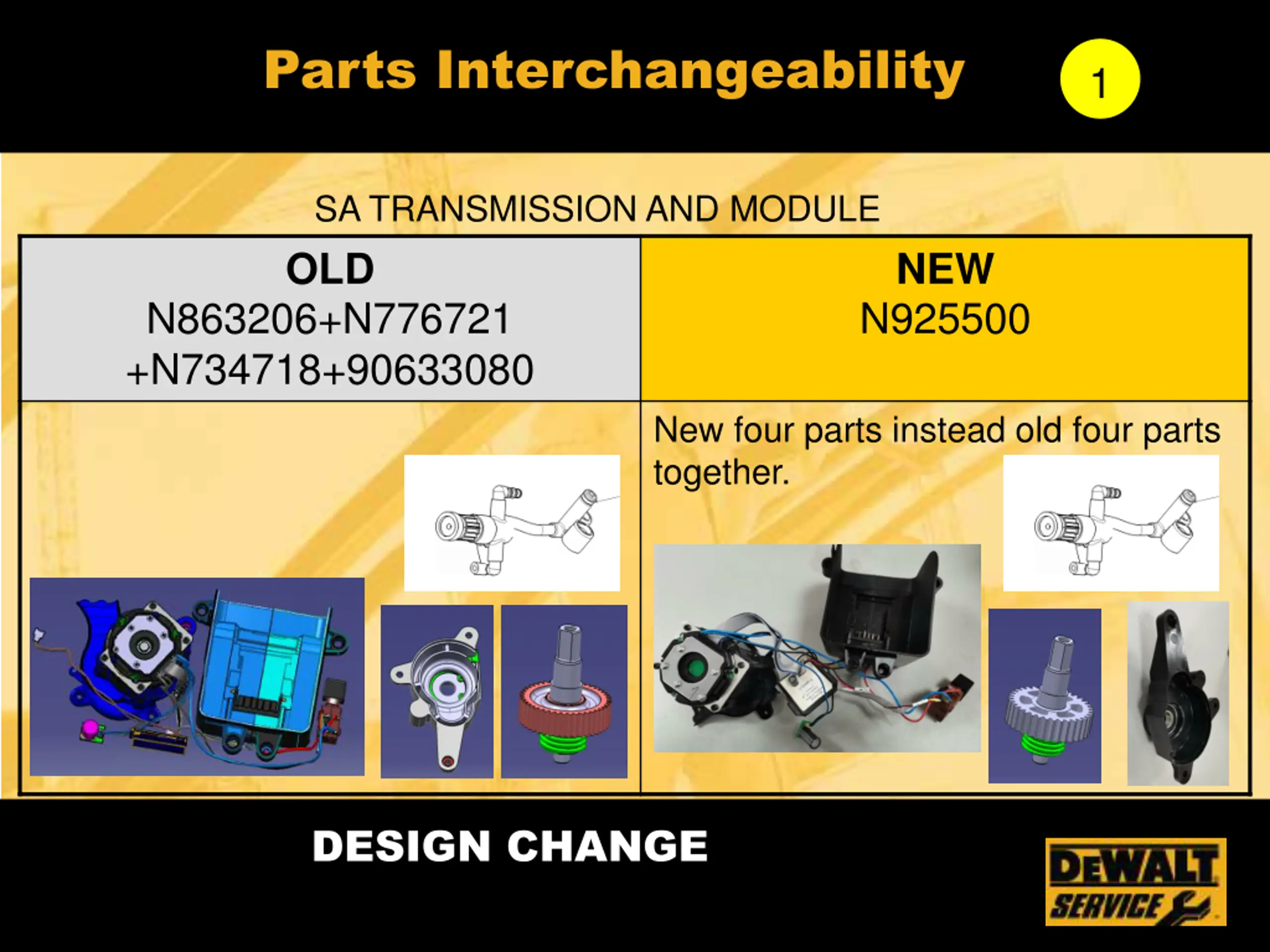

Parts Interchangeability 1 SA TRANSMISSION AND MODULE OLD N863206+N776721 +N734718+90633080 NEW N925500 New four parts instead old four parts together. DESIGN CHANGE

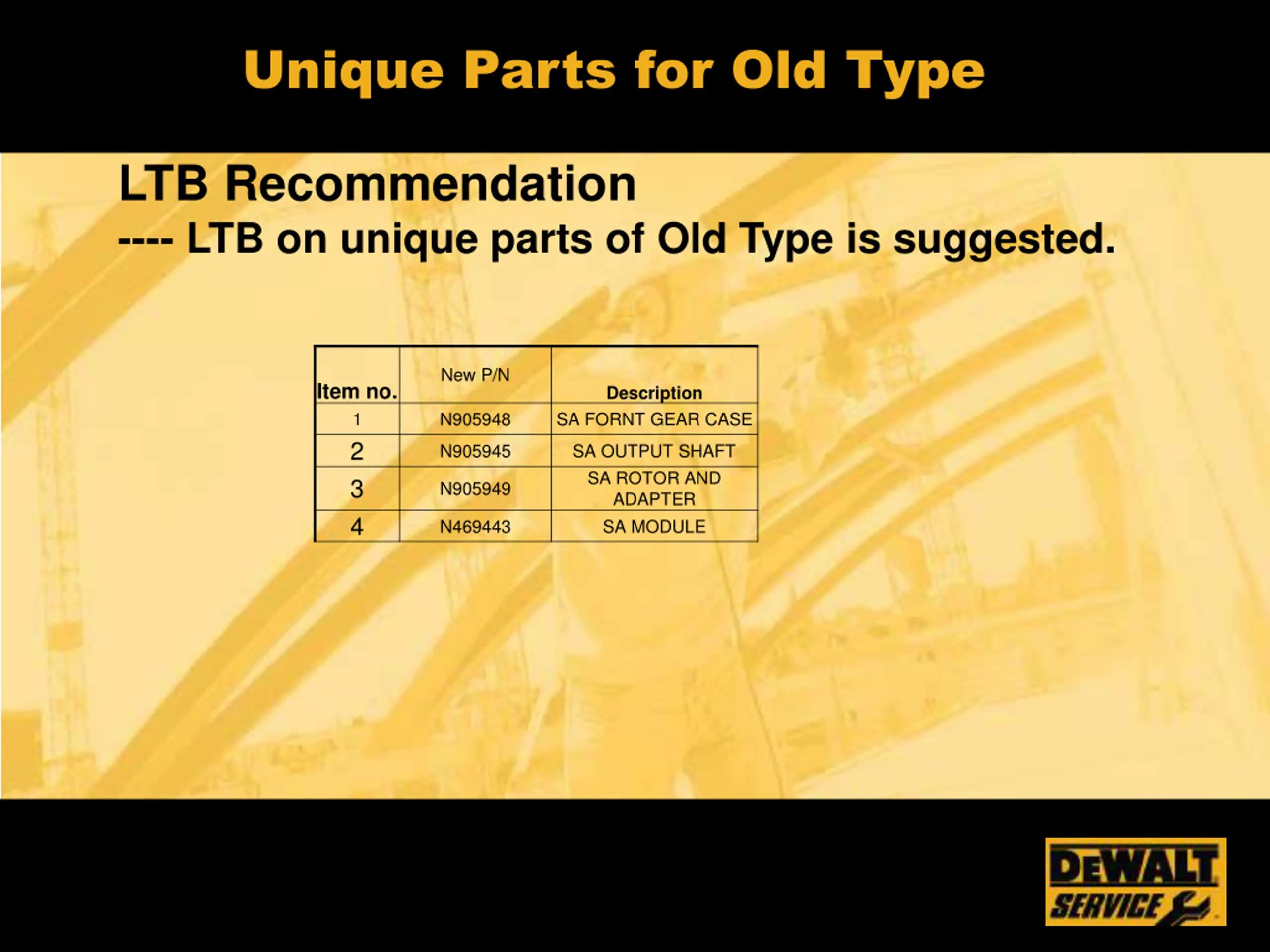

Unique Parts for Old Type LTB Recommendation ---- LTB on unique parts of Old Type is suggested. New P/N Item no. 1 2 3 4 Description SA FORNT GEAR CASE N905948 N905945 SA OUTPUT SHAFT SA ROTOR AND ADAPTER SA MODULE N905949 N469443
