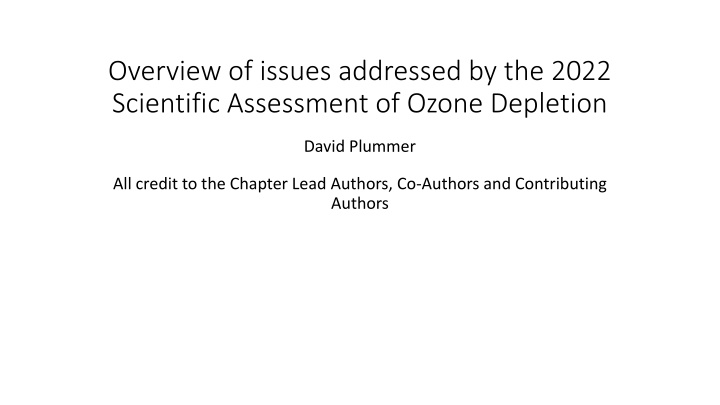

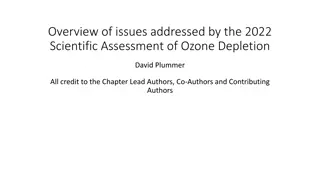

Overview of issues addressed by the 2022
Scientific Assessment of Ozone Depletion

David Plummer
All credit to the Chapter Lead Authors, Co-Authors and Contributing
Authors

Overview of Chapters

familiar chapter structure
1)
Ozone Depleting Substances
2)
HFCs
3)
Global Stratospheric Ozone
4)
Polar Stratospheric Ozone
5)
Stratospheric Ozone and Climate
6)
Stratospheric Aerosol Injection (SAI)
7)
Scenarios and Information for Policymakers

Chapter 1 – ODSs (LAs: J. Laube and S. Tegtmeier)

as discussed in the SPARC report
on CCl4, there continues to be a
discrepancy between bottom-up
(reported) and top-down emission
estimates

updated trends / emissions of Ozone Depleting Substances
tropospheric concentrations of most ODSs continue to decrease
a couple of minor CFCs (ppt-level) showed stable or increasing concentrations

Figure 14 from SPARC Report No. 7, Q. Liang, P. Newman
and S. Reimann (Eds), 2016

Chapter 1 - ODSs

derived CFC-11 emissions for 2019 returned to levels similar to that
over 2008 - 2012

Two estimates of CFC-11 emissions using time varying dynamics from (a) WACCM
and (b) TOMCAT. Figure 4 from Montzka et al. (2021)

Chapter 2 – HFCs (LAs: Q. Liang and M. Rigby)

large projected contribution to climate
mitigation by Kigali Amendment

The estimated change in global average temperature due to
HFCs. Two projections of the effect of HFCs without the
Kigali Amendment, and two estimates including the Kigali
Amendment. Figure 7 from Velders et al. (2022).

Chapter 3 – Global ozone (LAs: B. Hassler and P. Young)

updated observed trends and projected recovery dates for total
column over different latitude bands
continued, clear increase in upper stratospheric ozone that agrees
with models
lower stratosphere is more complex

Observed trends (red and
blue lines) over different
latitude bands compared
with CCMI-1 model
simulations (black line).
Figure 5 of Godin-Beekmann
et al. (2022)

Chapter 3 – Global ozone

emerging issues:
uncertainty estimates on observed total
column ozone trends
straight-forward to include statistical uncertainty
contribution of observational uncertainty to trend
estimates less well established
Antarctic spring (esp. September) has strong
changes, but post-2000 trends in mid-latitude /
tropics are much smaller
role of tropospheric changes in total column
and changes in STE on tropospheric ozone
recognition of Hunga Tonga-Hunga Ha’apai
and wildfire aerosols on stratosphere

Linear trends derived from MLR over 1979–
1995 and 1996–2020 for annual average
total column over 60S – 60N. From Weber
et al. (2022).

Chapter 4 – Polar ozone (LAs: M. Chipperfield, M. Santee)

discussion of behaviour of recent Arctic and Antarctic springs
cold and exceptionally low ozone in Arctic in 2020
large dynamically-driven variability for Antarctic
small hole in 2019, but record long-lasting ozone hole in 2020

Linear trends derived from MLR over 1979–
1999 and 2000–2020 for September
average total column over Antarctica. From
Weber et al. (2022).

WMO (2018) declared ‘early signs of
recovery’ for Antarctic ozone and the 2022
Assessment reports new articles that
strengthen the findings that September
ozone is most sensitive to ODSs and shows
clearest signs of recovery

Chapter 5 – Ozone & Climate (LAs: H. Garny, H. Hendon)

new results strengthen view that cold
point tropopause temperatures are the
dominant control on stratospheric H
2
O
reassessment of observed Age of Air
trends for mid to upper stratosphere
bring them closer to models but
significant disagreement remains

Deseasonalized anomalies in 60°N – 60°S
average water at 83 hPa compared with
cold point tropopause temperature. From
Randel and Park (2019).

update to stratospheric temperature trends
continued cooling in the mid to upper stratosphere
models continue to show excellent agreement with observed trends

Chapter 5 – Ozone & Climate

Southern Hemisphere
circulation metrics for DJF.
From Banerjee et al. (2020).

new research illustrates ways acceleration of
the BDC with climate change affects ozone in
the troposphere – in models
New evidence that the stabilization of the
Antarctic ozone hole has had a detectable
effect on climate trends in the Southern
Hemisphere summer

Relationship between trends in tropical
upwelling and the tropospheric burden
of the O3S tracer from CCMI-1. From
Abalos et al. (2020).

Chapter 6 – Strat. Aerosol Injection (LAs: J. Haywood, S. Tilmes)

increased stratospheric sulphate aerosols expected to:
modify heterogeneous reaction rates resulting in increasing / decreasing
ozone depending on location / season / halogen loading
warm the tropical lower stratosphere
accelerating transport of ozone to mid-latitudes through the BDC
increase water vapour entry values
generally find large decreases in total column ozone over polar
regions, but increases in mid-latitudes
large range of estimates due to differences in injection strategies
studied, aerosol microphysics, model biases, etc. etc.

Chapter 7 – Scenarios (LAs: J. Daniel, S. Reimann)

Effective Radiative Forcing estimate from
CMIP6 models constrained by observed ozone
trend (green line) for 1979 – 2000. From
Morgenstern et al. (2020).

updates on effects of HFC phasedown on radiative forcing under the
Kigali Amendment
reduced lower bound on effective radiative forcing from halocarbons
to reflect new modelling results showing larger negative feedbacks
from ozone decrease
identify increased use of CCl
4
 in feedstock as growing problem
updated baseline ODS scenario
