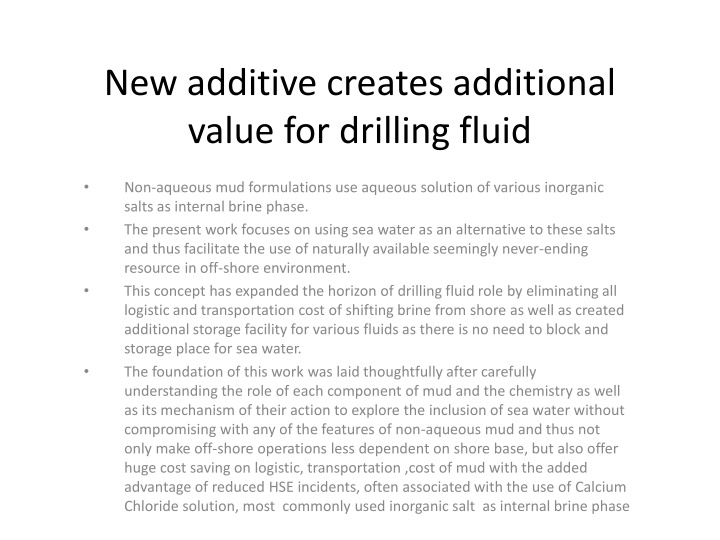

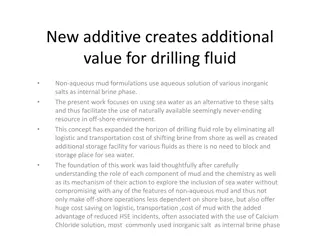

Innovative Use of Sea Water in Drilling Fluid Development
New additive creates additional
value for drilling fluid
•
Non-aqueous mud formulations use aqueous solution of various inorganic
salts as internal brine phase.
•
The present work focuses on using sea water as an alternative to these salts
and thus facilitate the use of naturally available seemingly never-ending
resource in off-shore environment.
•
This concept has expanded the horizon of drilling fluid role by eliminating all
logistic and transportation cost of shifting brine from shore as well as created
additional storage facility for various fluids as there is no need to block and
storage place for sea water.
•
The foundation of this work was laid thoughtfully after carefully
understanding the role of each component of mud and the chemistry as well
as its mechanism of their action to explore the inclusion of sea water without
compromising with any of the features of non-aqueous mud and thus not
only make off-shore operations less dependent on shore base, but also offer
huge cost saving on logistic, transportation ,cost of mud with the added
advantage of reduced HSE incidents, often associated with the use of Calcium
Chloride solution, most commonly used inorganic salt as internal brine phase
New additive creates additional value for
drilling fluid
•
The product development started with the concept of scaling down a part of the newly
short-listed additive to Nano-size and thereby increase its effectiveness many folds.
•
This provides leverage to reduce the dose of new additive and thus create room for blending
other essential compounds to provide a chemical environment conducive to use of sea water.
•
The newly developed product was aimed first to replace Lime from non-aqueous mud
composition, which acts as an activator to emulsifier.
•
The replacement of Lime was finalized after exhaustive testing in lab with all types of
formulation to ensure its complete compatibility as well as ability to function with equal
effectiveness in all ranges of mud formulations.
•
In order to match the alkalinity level of Lime in new product, another high alkalinity additive
was also included in the blend to provide the same level of activation to emulsifier as
provided by Lime.
•
To provide the same type of ionic atmosphere as calcium Chloride solution. This required
enormous testing on various formulations and the target activity level was +/- 0.87
•
The number was chosen on the basis of the activity of rock matrix at shallow depth in off-
shore environment while ensuring that hole-stability was not compromised.
New additive creates additional value for
drilling fluid
•
The focus of using sea water and not compromising with any feature of mud was always in fore-
front during all these experiments to ensure that there is no drift from the objective.
•
It was purposely planned to include only inorganic and water soluble components as various
component of the final product, as the important role of not damaging the rock and help retain its
native permeability as much as possible, was always emphasized.
•
With the advent of product development few pleasant surprises further increased the utility of the
product and ability of providing Fluid loss control to a reasonable extent without adding any fluid
loss control additive is one important factor worth sharing as it directly further reduces the per
barrel cost of formulation!
•
The feature of fluid loss control got imbibed in the product by virtue of increased surface area as a
result of pulverizing one of the component of the product to sub-micron size.
•
In addition to it, the product also offers better emulsion strength when compared to Lime.
•
With the presence of varied sized particles it was natural to expect that the product would further
aid in formulation of effective filter cake around wall of open hole.
•
However, this feature will accrue to the extent that the product is also able to mimic the role of
Non-invasive fluid – was not thought of.
•
Here also the product surpassed expectations by acting as a NIF in its own individual capacity,
thereby minimizing dependence on sized calcium carbonate and / or Graphite to resist down-hole
dynamic losses.
New additive creates additional value for
drilling fluid
•
In terms of chemical composition the product is best described as a blend of alkali and
alkaline earth metal compounds in a specific ratio with sizes ranging widely to provide
adequate filtrate invasion and ratios facilitating complete activation of emulsifier as well as
imparting the feature of increased activity level to allow use of sea water as internal brine
phase.
•
Being inorganic in nature the product does not suffer from the limitation of degradation at
higher temperature and has a long shelf life with no specialized requirement for storage.
•
When compared with Lime and calcium Chloride, the product is intrinsically safer to handle.
•
By virtue of its inorganic origin and miscibility with water, the product does not require and
specialized shearing / mixing and extra time to yield to its optimum capacity.
•
The best feature of the product is its complete compatibility with all the products used in
mud preparation.
•
Whenever strict fluid loss control is required, all we need is addition of fluid loss control
agent in the same circulating mud at a dose reasonably lower than normally added, as part of
the fluid loss control is already provided by the product.
•
Changing over to a mud of different parameters for different phases is just a matter of
treating the same mud to tweak the parameters, a feature much desired when compared to
changing the entire system.
New additive creates additional value for
drilling fluid
•
Initial evidences indicate that the product does not cause any damage to the rock by virtue of
its presence in the formulation as a substitute to Lime.
•
This feature offers excellent advantage to the system formulated with this product as the
same mud can be used as reservoir drill-in fluid also!
•
Due to increased number of particles in mud with addition of new product the gelation
feature of the mud can sometimes cause undesirable trait in mud formulation .
•
In order to not to let that happen to the extent that it can be a bottle-neck to the
performance of the mud, the ratio of various components has been carefully crafted and
strictly adhered to, as a result of which, the product is capable of further increasing its utility
in terms of an even stricter fluid loss control and thus reducing the addition of fluid loss
control agent .
•
The product helps in completely eliminating all contamination related issues arising out of
use of calcium chloride brine, which is transferred from supply boat to rig by various lines
that can accidentally contaminate each other.
•
Contamination of brine with other fluids stored on rig is also eliminated as sea water does
not requires to be separately stored in dedicated rig pits, thus more pit space is freed up on
rig to facilitate sore higher volume of other fluids.
VARIOUS ADVANTAGES OFFERED BY
THE PRODUCT
•
The single biggest advantage is elimination of Calcium Chloride brine from non-aqueous mud
formulation and replacing it with Sea Water. This drastically reduces the dependence on
shore for mixing non-aqueous mud and completely eliminates all transport / logistics related
issue arising out of shifting of Calcium Chloride. The contamination of two different
chemicals/commodities with Calcium Chloride is now non-existent. The mud mixing process
on rig becomes less cumbersome and faster.
•
It makes non-aqueous mud preparation a more safe process and eliminates all hazards
related to use of Calcium Chloride brine.
•
Since the product frees us from use of Calcium Chloride brine and Lime, the per barrel cost
of Non-aqueous mud is reduced by almost 10 % only in the formulation – leave aside the cost
saving of the entire drilling campaign by simplifying transportation and logistics related cost
over-heads.
•
It frees up pit storage space on rig by reducing the need of storing Calcium Chloride brine for
drilling purposes.
•
It speeds up Non-aqueous mud formulation by reducing the total number of additives to be
used and thus saves rig time by facilitating quicker mixing of Non-aqueous mud, which is an
direct saving in drilling campaign as this available time can be constructively utilized for other
concurrent operations.
VARIOUS ADVANTAGES OFFERED BY THE
PRODUCT
•
Everything else remaining equals the new relaxed filtrate formulation can improve ROP.
However this needs to be carefully monitored to ensure that relaxed filtrate does not induce
any well-bore instability related issue.
•
Since major component of the product is a waste bye-product from other industries which
are available at a throw-away price and HTHP F/L as well as Calcium Chloride brine is not
required any more for formulating non-aqueous mud with the new product, the overall per
barrel cost of the Non-aqueous mud is considerably reduced and also it adds value to system
by improving the overall efficiency.
•
It converts the waste of one industry as a useful commodity for oil industry.
•
The cost of bringing the product to a useful commodity is very low, which means there is no
big capital investment. The only cost involved is in air jet milling the Knamp16 to sub-micron
size.
•
The technology is simple and it neither needs highly qualified staff nor any speciality
equipment on board to run the system.
•
It has no adverse effect on any of the other components of mud or the entire drilling process
making it completely compatible to use
VARIOUS ADVANTAGES OFFERED BY THE
PRODUCT
•
The product is safe to handle and easily miscible in mud without requiring any specialized
mixing system/process.
•
The raw material being a bye-product of another industry - is available in abundance
throughout the globe.
•
The product does not require any specialized storage facility.
•
By facilitating use of Sea water, the new product provides flexibility in rescheduling the
sequence of operations to be carried out to focus on other time consuming jobs which can
otherwise become bottle-neck to resume further drilling after installing BOP and running
riser on deep water locations.
•
Being inert to most of the storage conditions as well as chemicals it has a long shelf life.
•
Regular use of the additive can free up the acetylene industry manufacturers from the
burden of disposing /storing the waste and save on their working expenses.
•
Another equally important fact is that use of sea water ensures that the component to mix
Non-aqueous mud will never be in short-supply at any time, which cannot be the case with
Calcium Chloride brine.
•
The use of new product does not put any limitation on any of the products being currently
used and also provides the comfort of adjusting the properties of non-aqueous mud with
same additives, if required during any stage of operation .In short, there is no need to
replace/change the entire mud, should there be a need to drastically change properties of
mud for operational reasons.
•
