DreamScape: A Multi-Effect Guitar Sequencer Team: sddec18-21 Calyn Gimse, Derrick Lawrence, Tyler McAnally, Charles Rigsby, Karla Beas

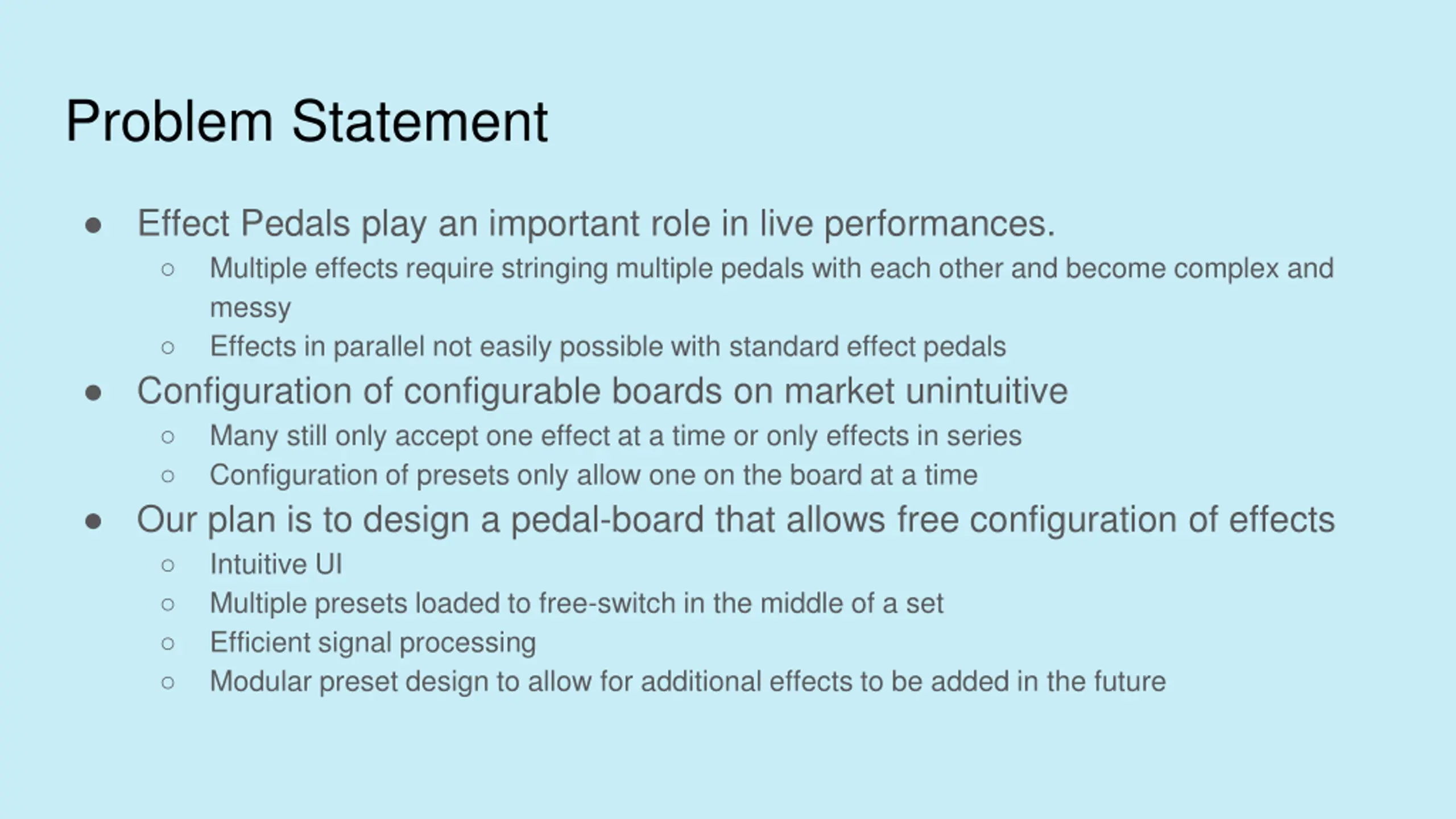

Problem Statement Effect Pedals play an important role in live performances. Multiple effects require stringing multiple pedals with each other and become complex and messy Effects in parallel not easily possible with standard effect pedals Configuration of configurable boards on market unintuitive Many still only accept one effect at a time or only effects in series Configuration of presets only allow one on the board at a time Our plan is to design a pedal-board that allows free configuration of effects Intuitive UI Multiple presets loaded to free-switch in the middle of a set Efficient signal processing Modular preset design to allow for additional effects to be added in the future

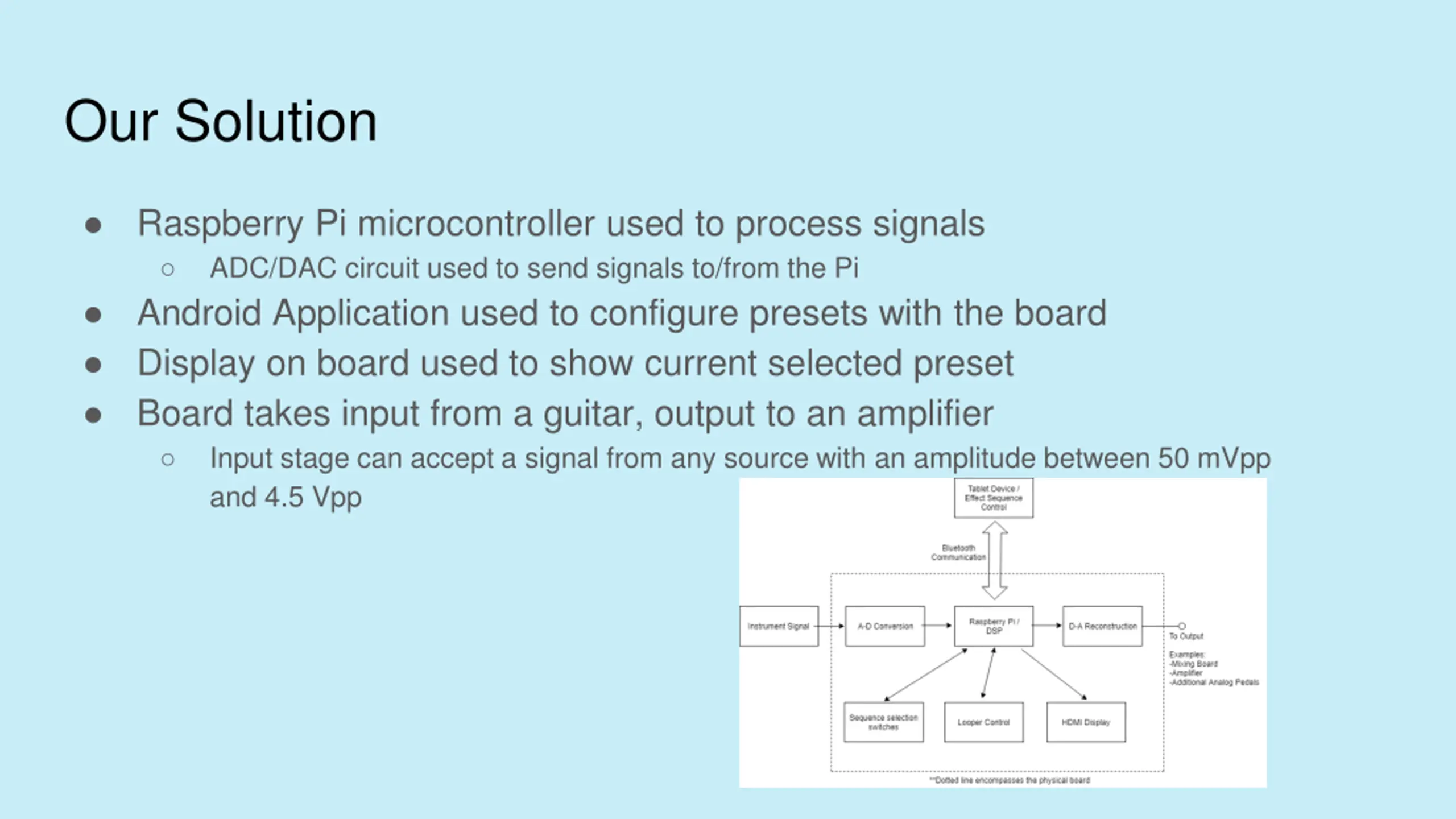

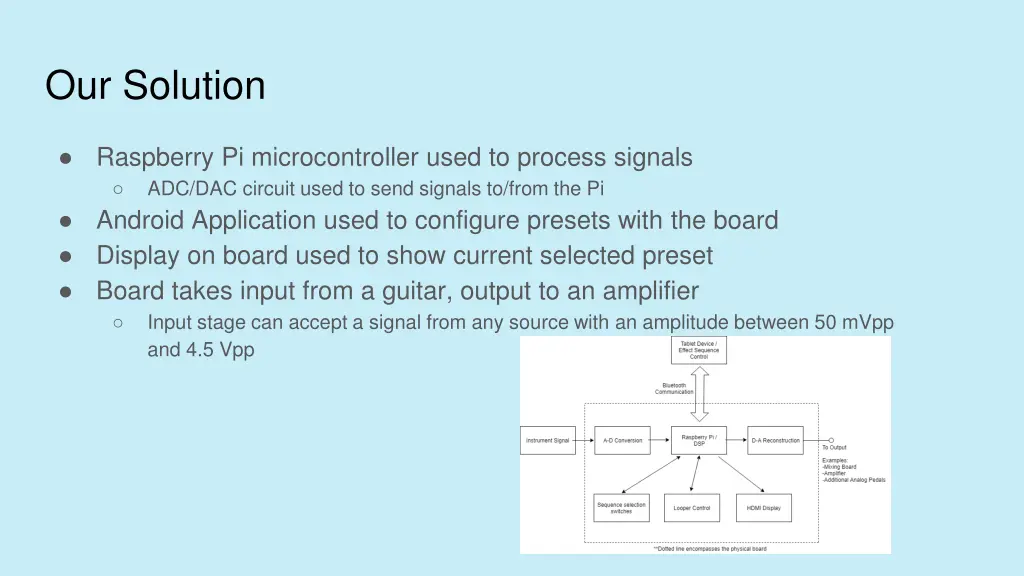

Our Solution Raspberry Pi microcontroller used to process signals ADC/DAC circuit used to send signals to/from the Pi Android Application used to configure presets with the board Display on board used to show current selected preset Board takes input from a guitar, output to an amplifier Input stage can accept a signal from any source with an amplitude between 50 mVpp and 4.5 Vpp

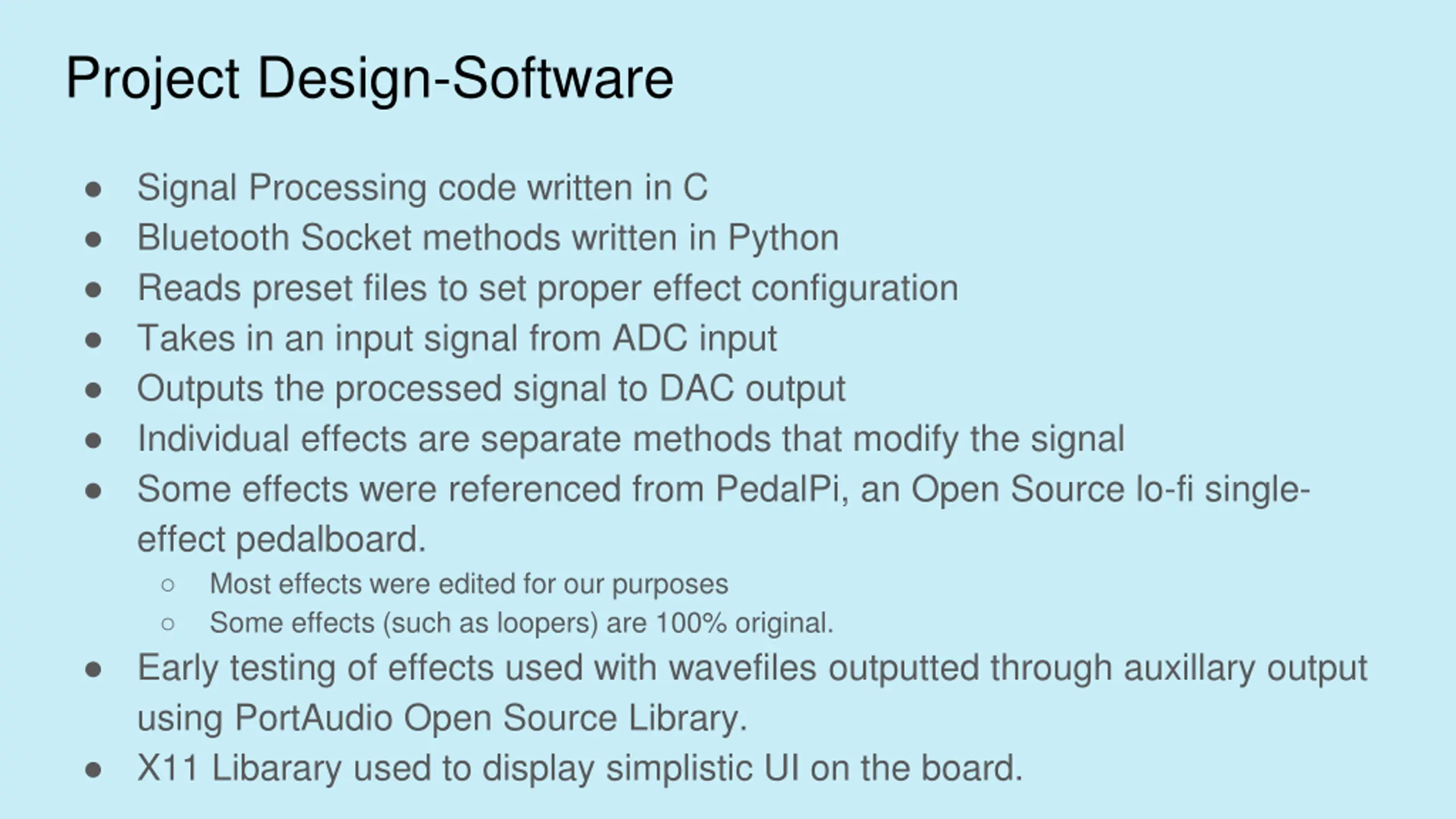

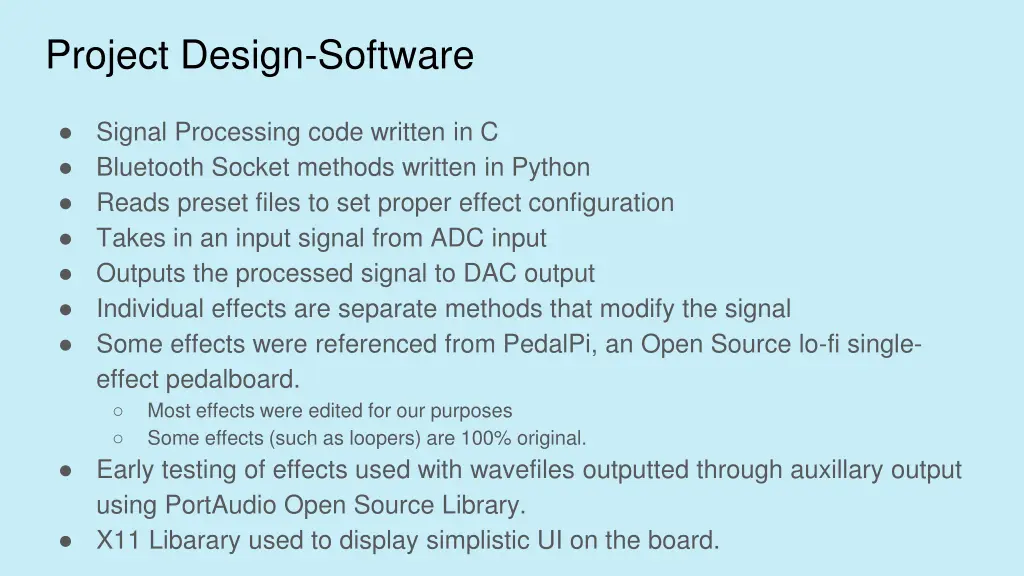

Project Design-Software Signal Processing code written in C Bluetooth Socket methods written in Python Reads preset files to set proper effect configuration Takes in an input signal from ADC input Outputs the processed signal to DAC output Individual effects are separate methods that modify the signal Some effects were referenced from PedalPi, an Open Source lo-fi single- effect pedalboard. Most effects were edited for our purposes Some effects (such as loopers) are 100% original. Early testing of effects used with wavefiles outputted through auxillary output using PortAudio Open Source Library. X11 Libarary used to display simplistic UI on the board.

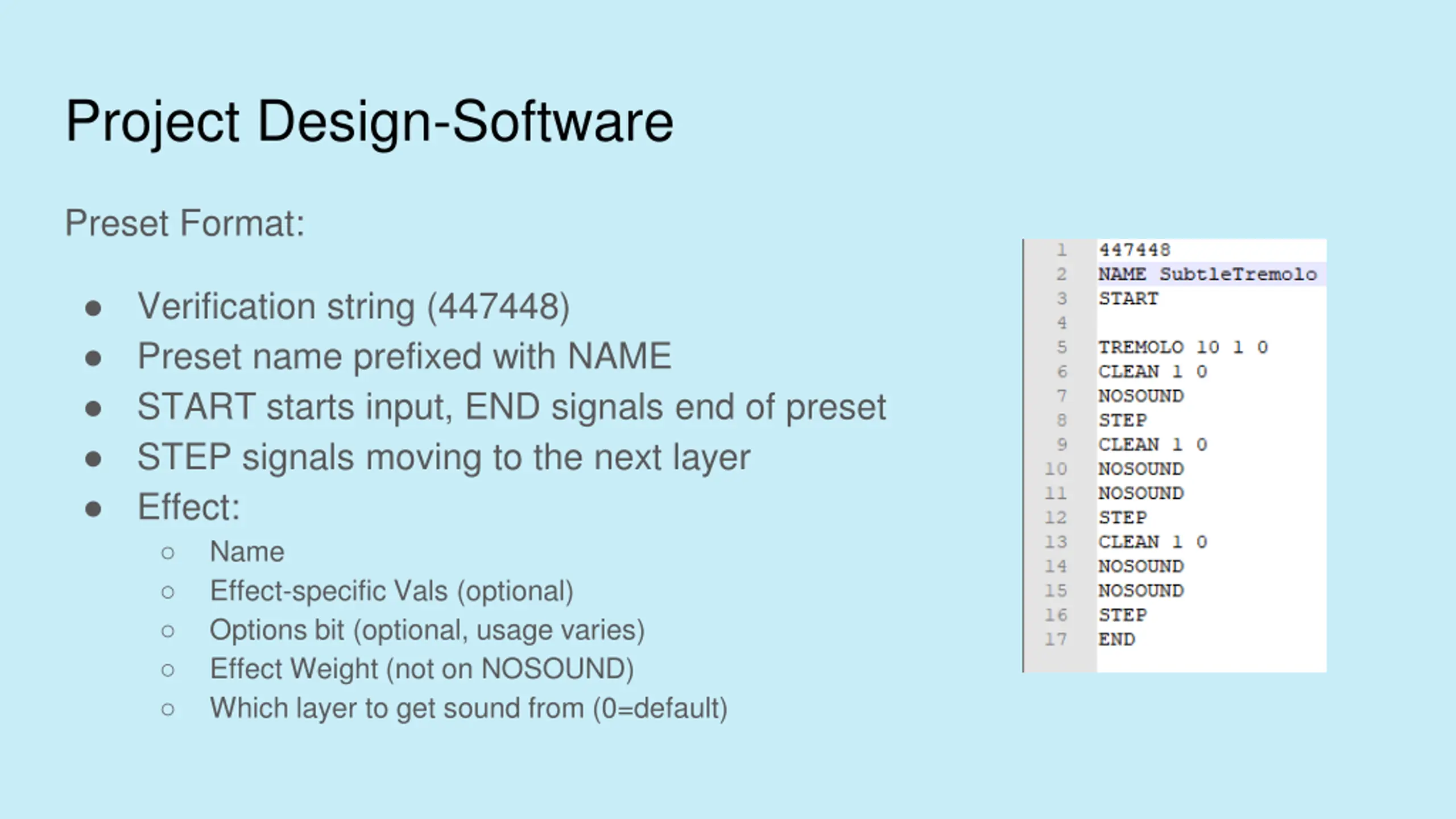

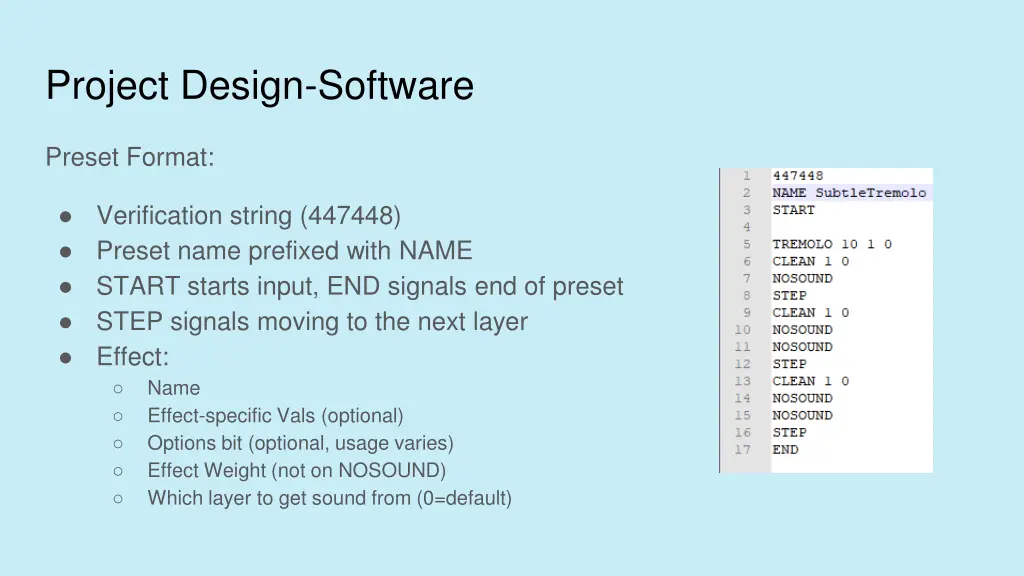

Project Design-Software Preset Format: Verification string (447448) Preset name prefixed with NAME START starts input, END signals end of preset STEP signals moving to the next layer Effect: Name Effect-specific Vals (optional) Options bit (optional, usage varies) Effect Weight (not on NOSOUND) Which layer to get sound from (0=default)

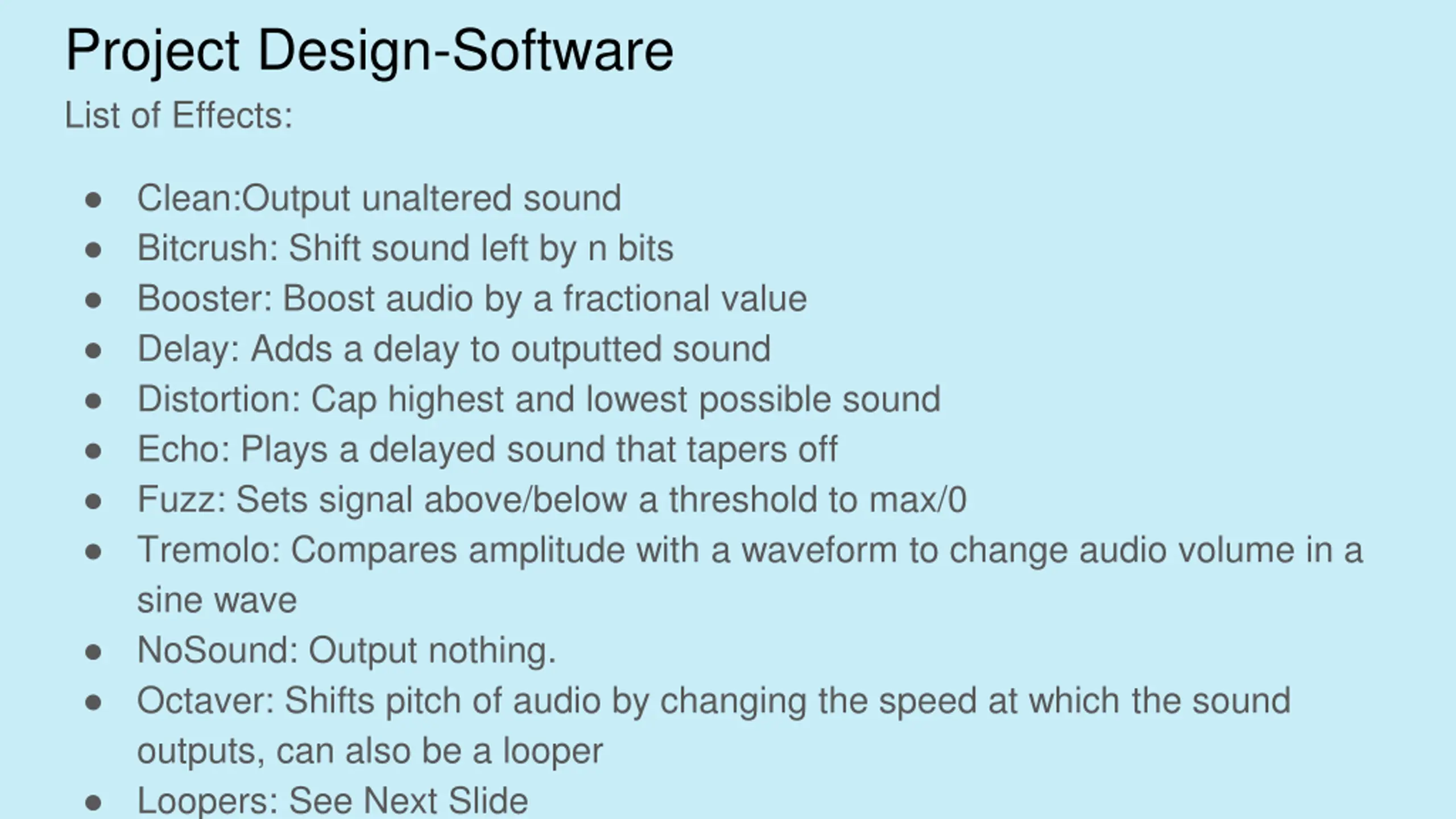

Project Design-Software List of Effects: Clean:Output unaltered sound Bitcrush: Shift sound left by n bits Booster: Boost audio by a fractional value Delay: Adds a delay to outputted sound Distortion: Cap highest and lowest possible sound Echo: Plays a delayed sound that tapers off Fuzz: Sets signal above/below a threshold to max/0 Tremolo: Compares amplitude with a waveform to change audio volume in a sine wave NoSound: Output nothing. Octaver: Shifts pitch of audio by changing the speed at which the sound outputs, can also be a looper Loopers: See Next Slide

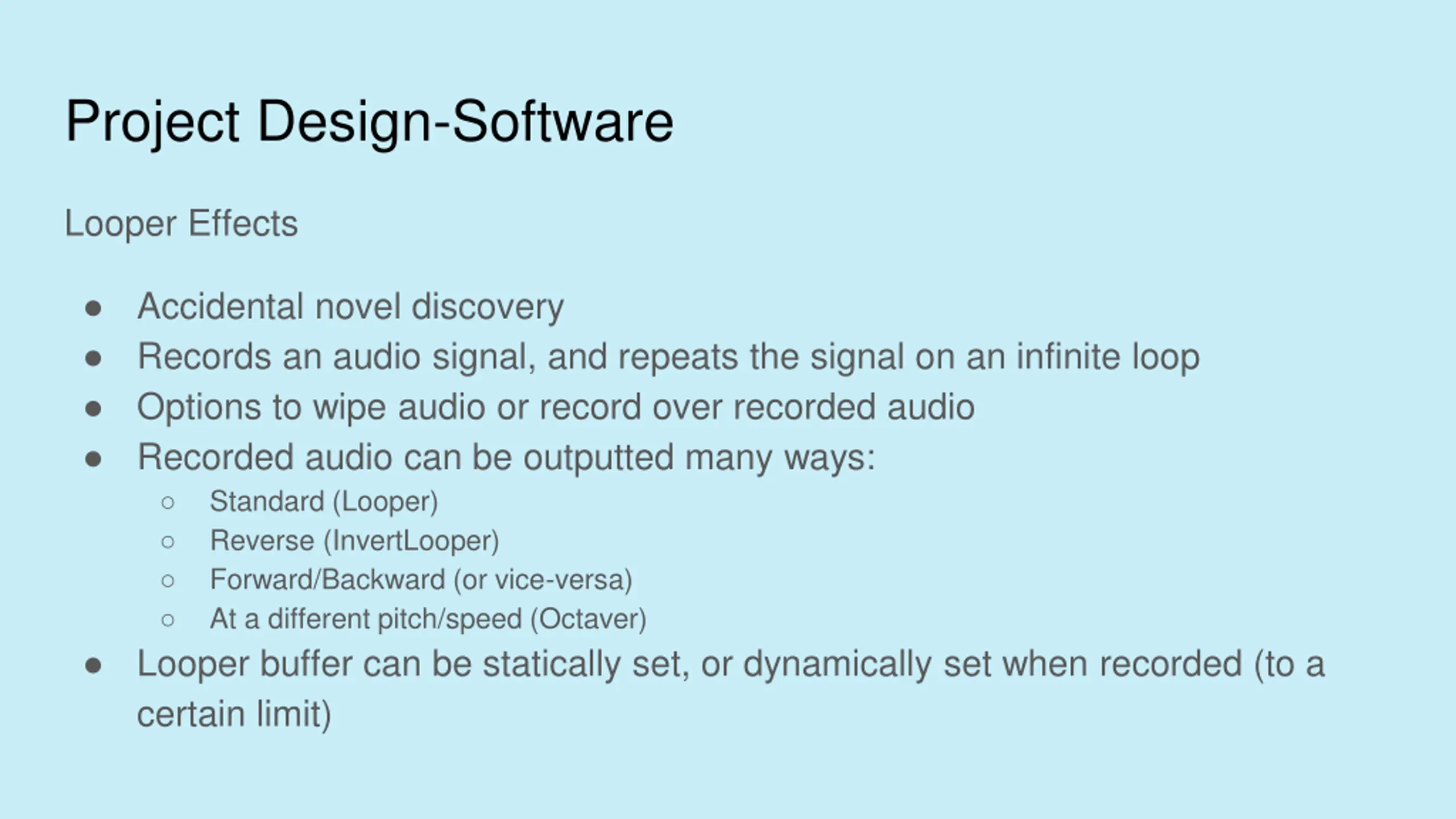

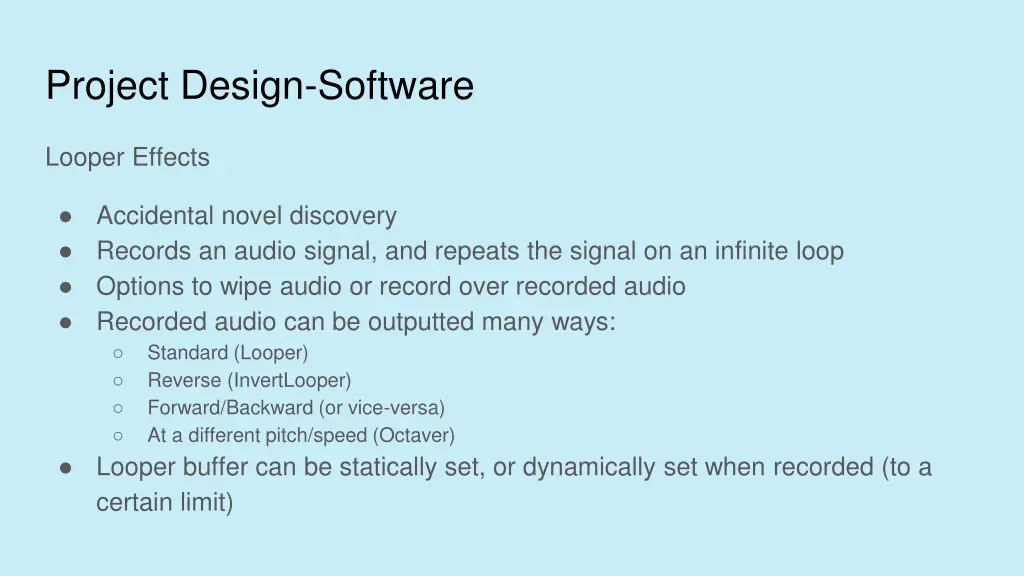

Project Design-Software Looper Effects Accidental novel discovery Records an audio signal, and repeats the signal on an infinite loop Options to wipe audio or record over recorded audio Recorded audio can be outputted many ways: Standard (Looper) Reverse (InvertLooper) Forward/Backward (or vice-versa) At a different pitch/speed (Octaver) Looper buffer can be statically set, or dynamically set when recorded (to a certain limit)

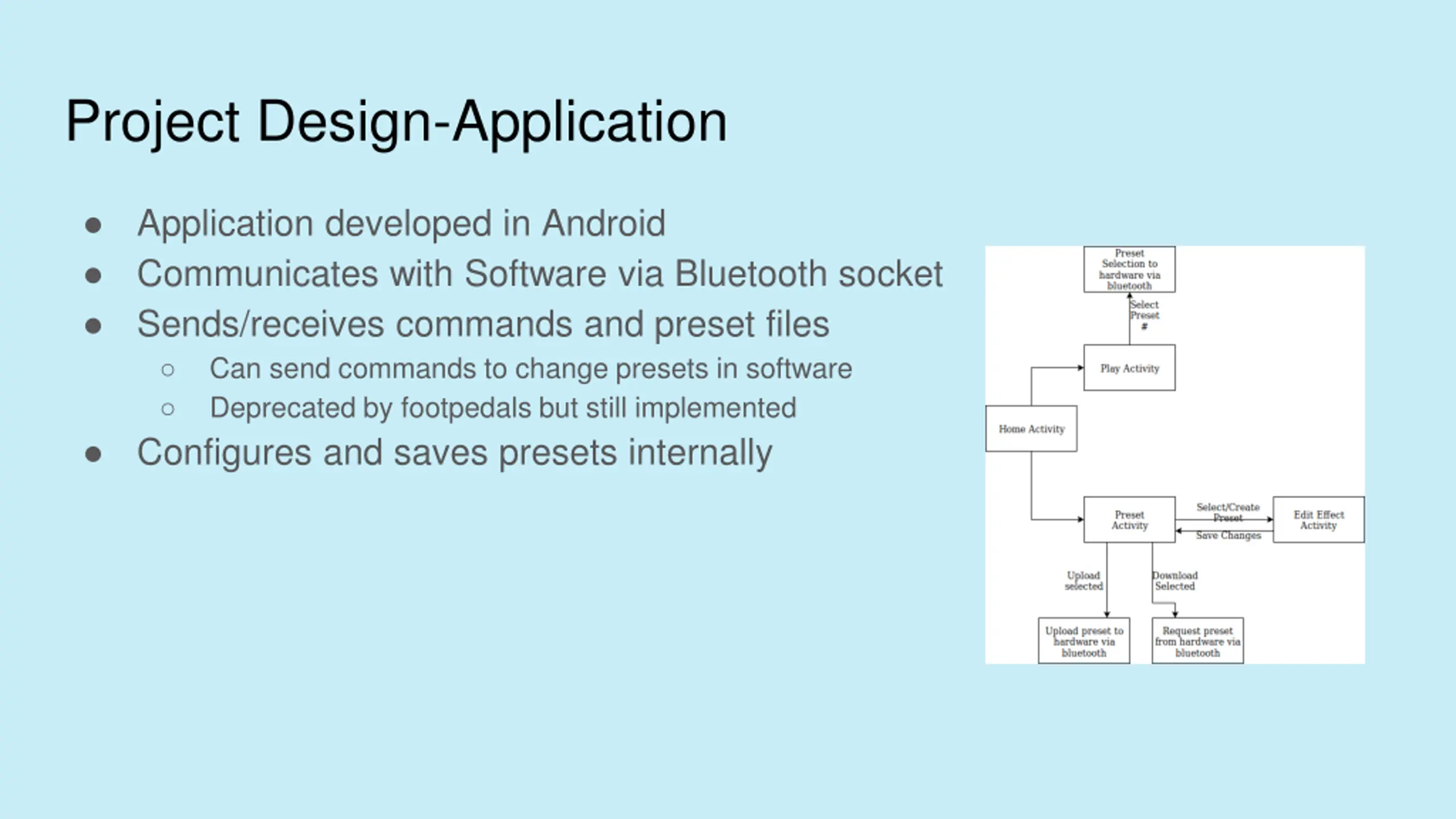

Project Design-Application Application developed in Android Communicates with Software via Bluetooth socket Sends/receives commands and preset files Can send commands to change presets in software Deprecated by footpedals but still implemented Configures and saves presets internally

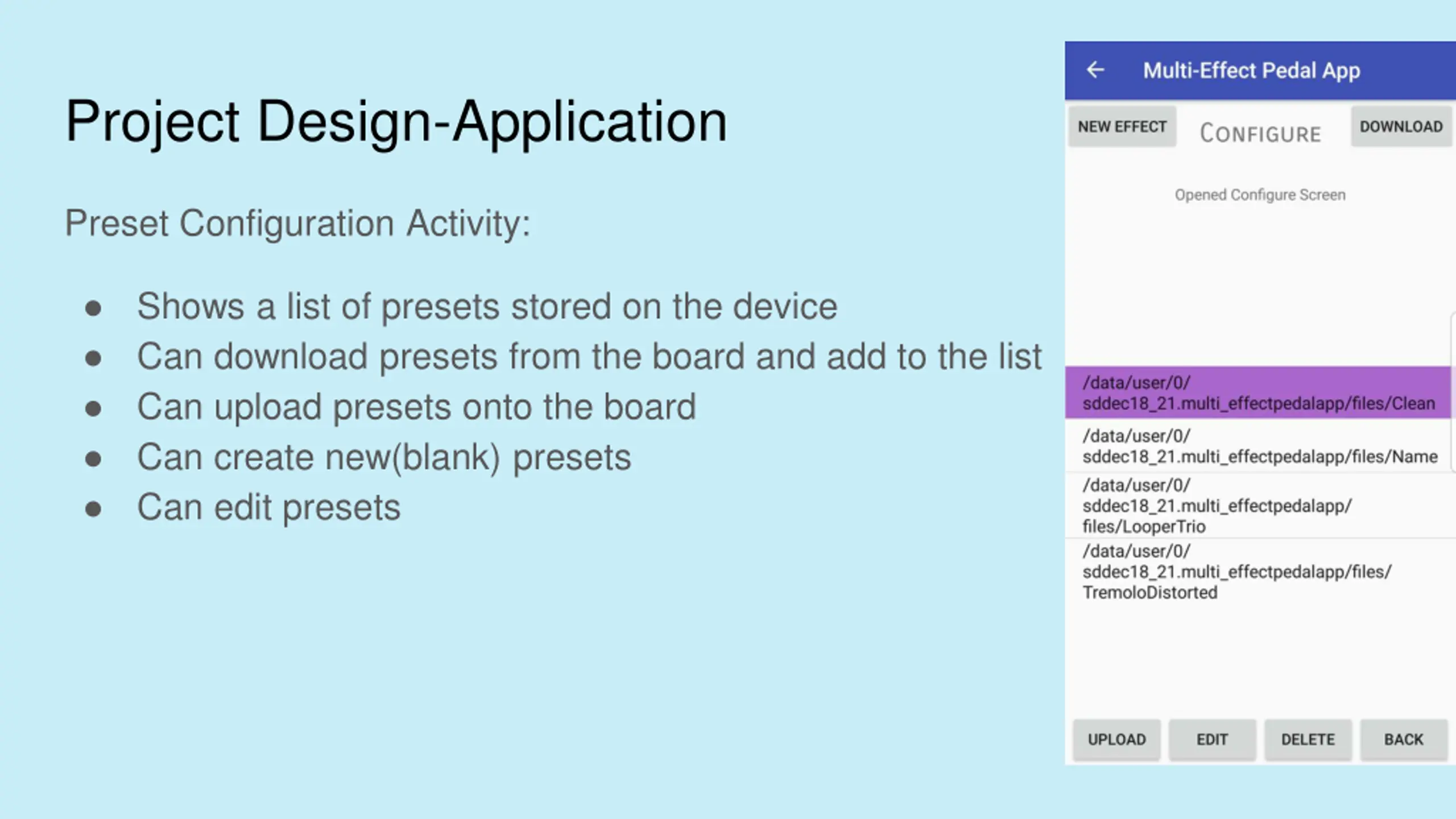

Project Design-Application Preset Configuration Activity: Shows a list of presets stored on the device Can download presets from the board and add to the list Can upload presets onto the board Can create new(blank) presets Can edit presets

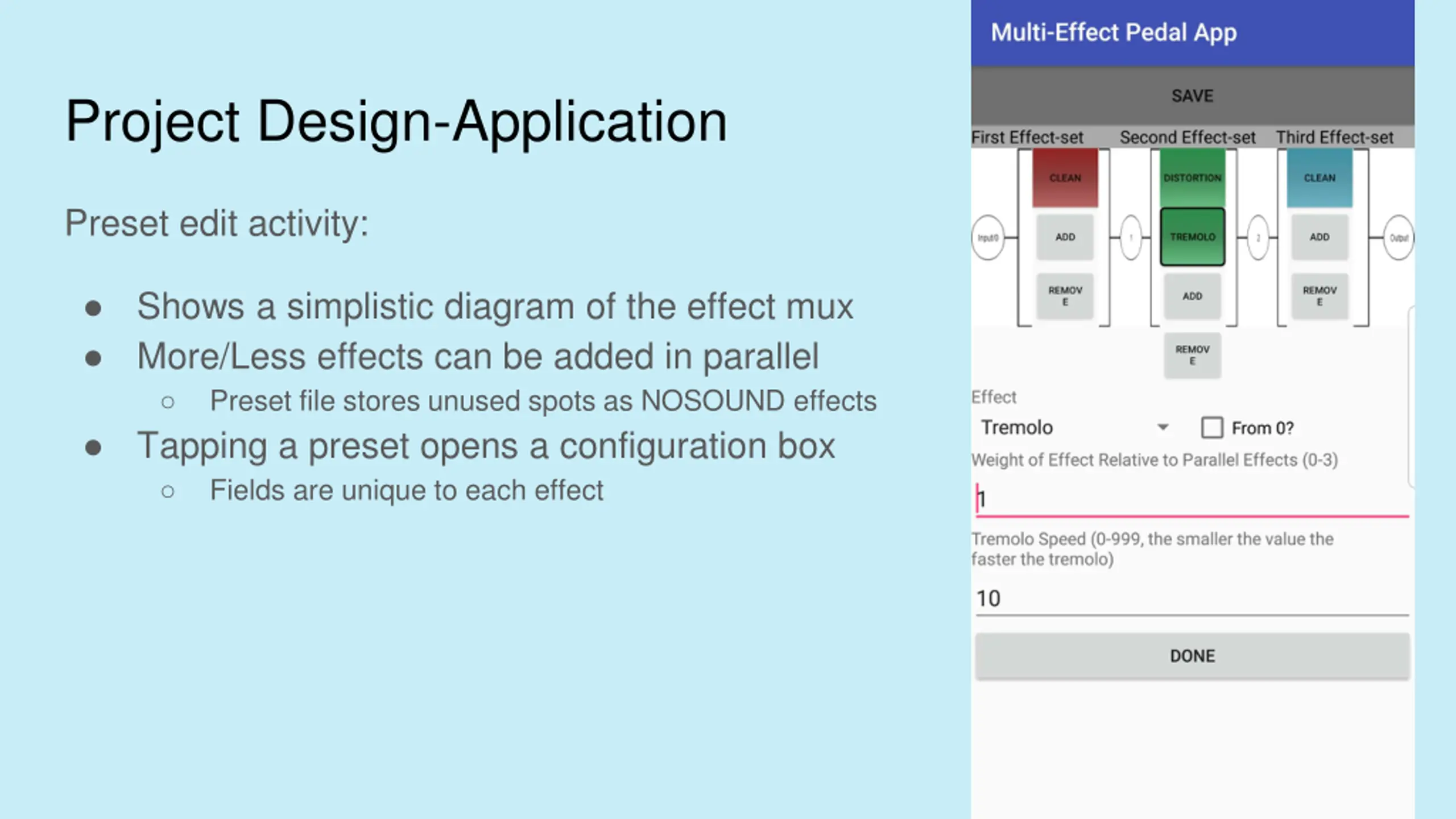

Project Design-Application Preset edit activity: Shows a simplistic diagram of the effect mux More/Less effects can be added in parallel Preset file stores unused spots as NOSOUND effects Tapping a preset opens a configuration box Fields are unique to each effect

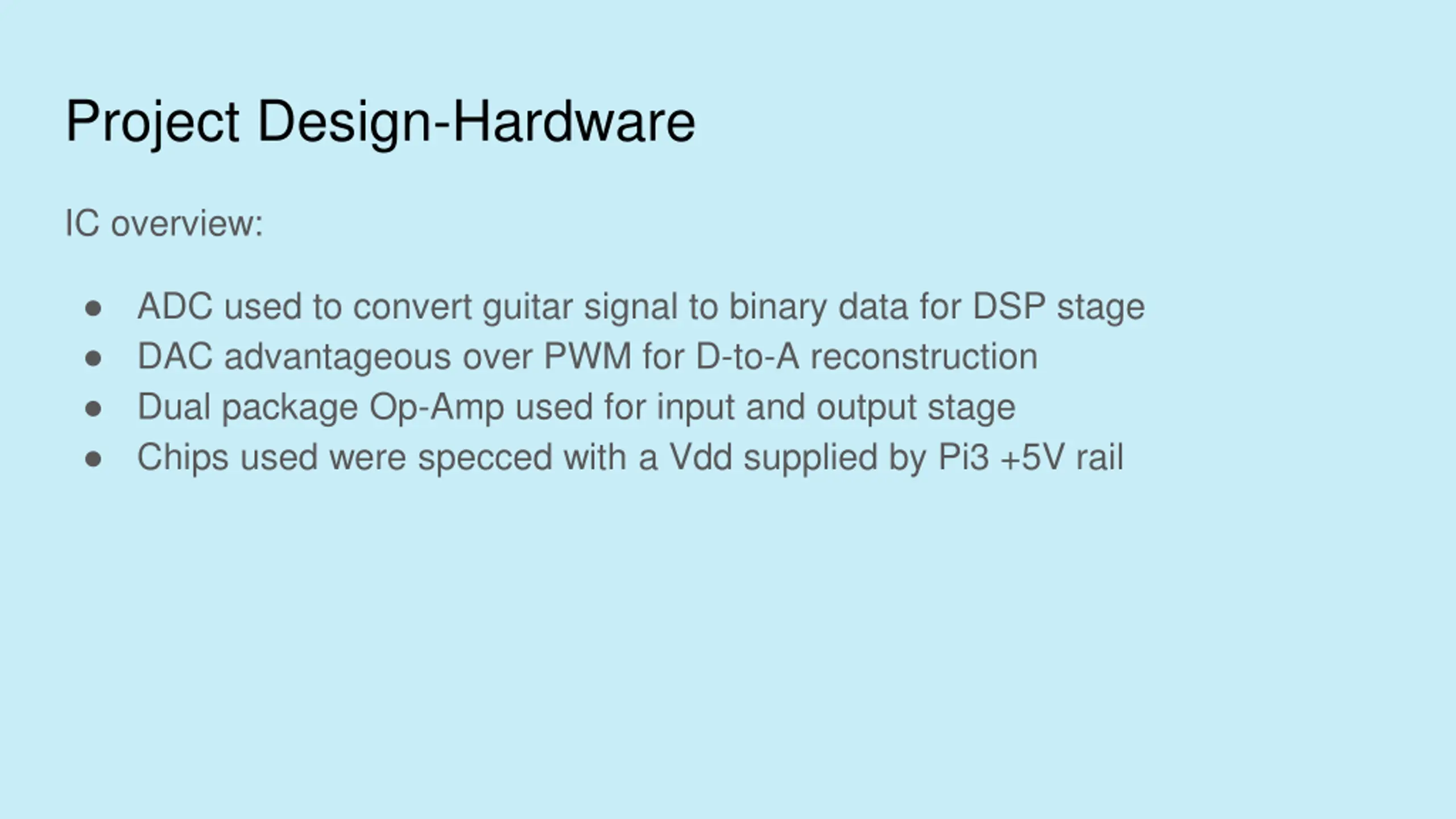

Project Design-Hardware IC overview: ADC used to convert guitar signal to binary data for DSP stage DAC advantageous over PWM for D-to-A reconstruction Dual package Op-Amp used for input and output stage Chips used were specced with a Vdd supplied by Pi3 +5V rail

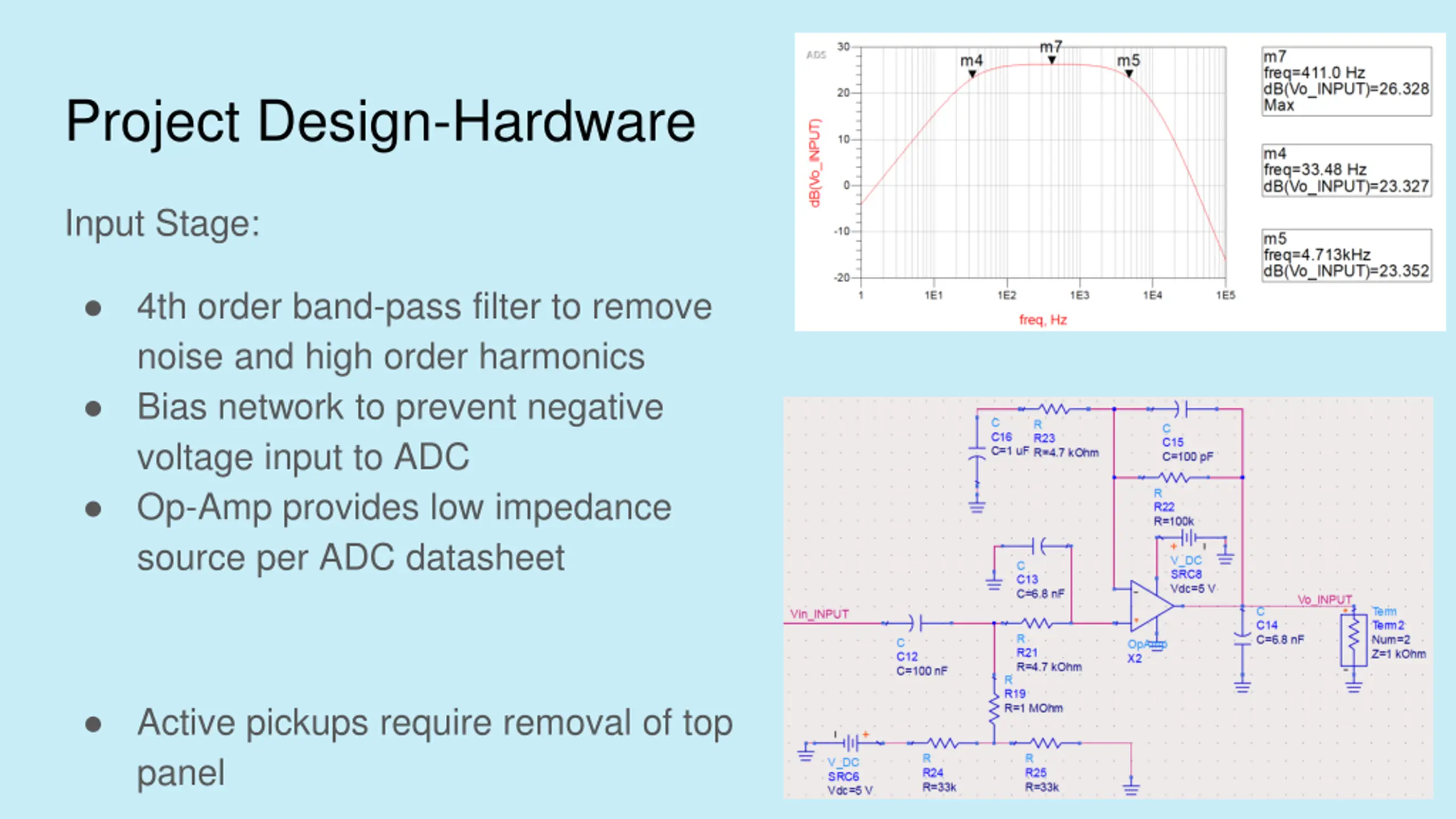

Project Design-Hardware Input Stage: 4th order band-pass filter to remove noise and high order harmonics Bias network to prevent negative voltage input to ADC Op-Amp provides low impedance source per ADC datasheet Active pickups require removal of top panel

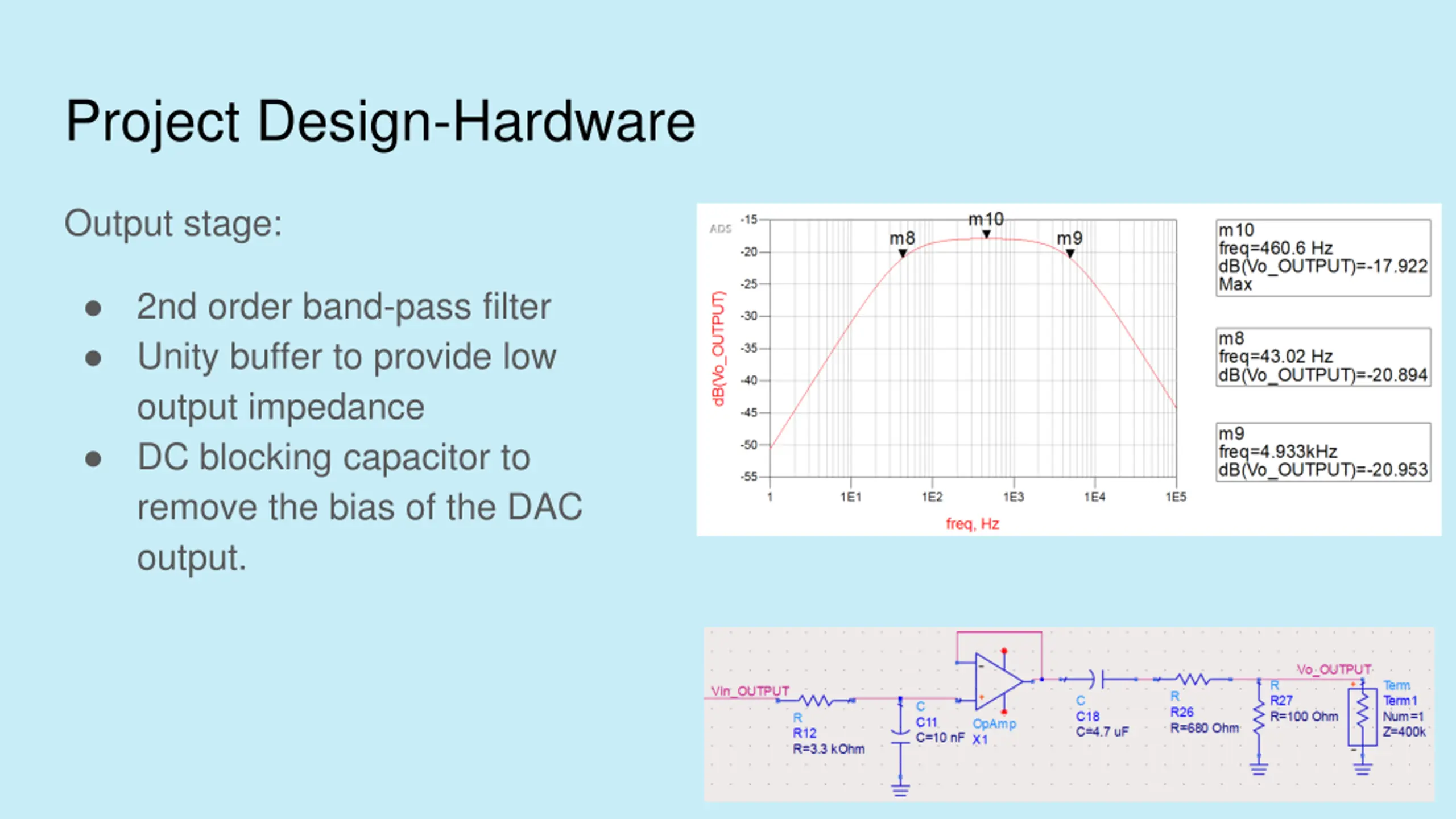

Project Design-Hardware Output stage: 2nd order band-pass filter Unity buffer to provide low output impedance DC blocking capacitor to remove the bias of the DAC output.

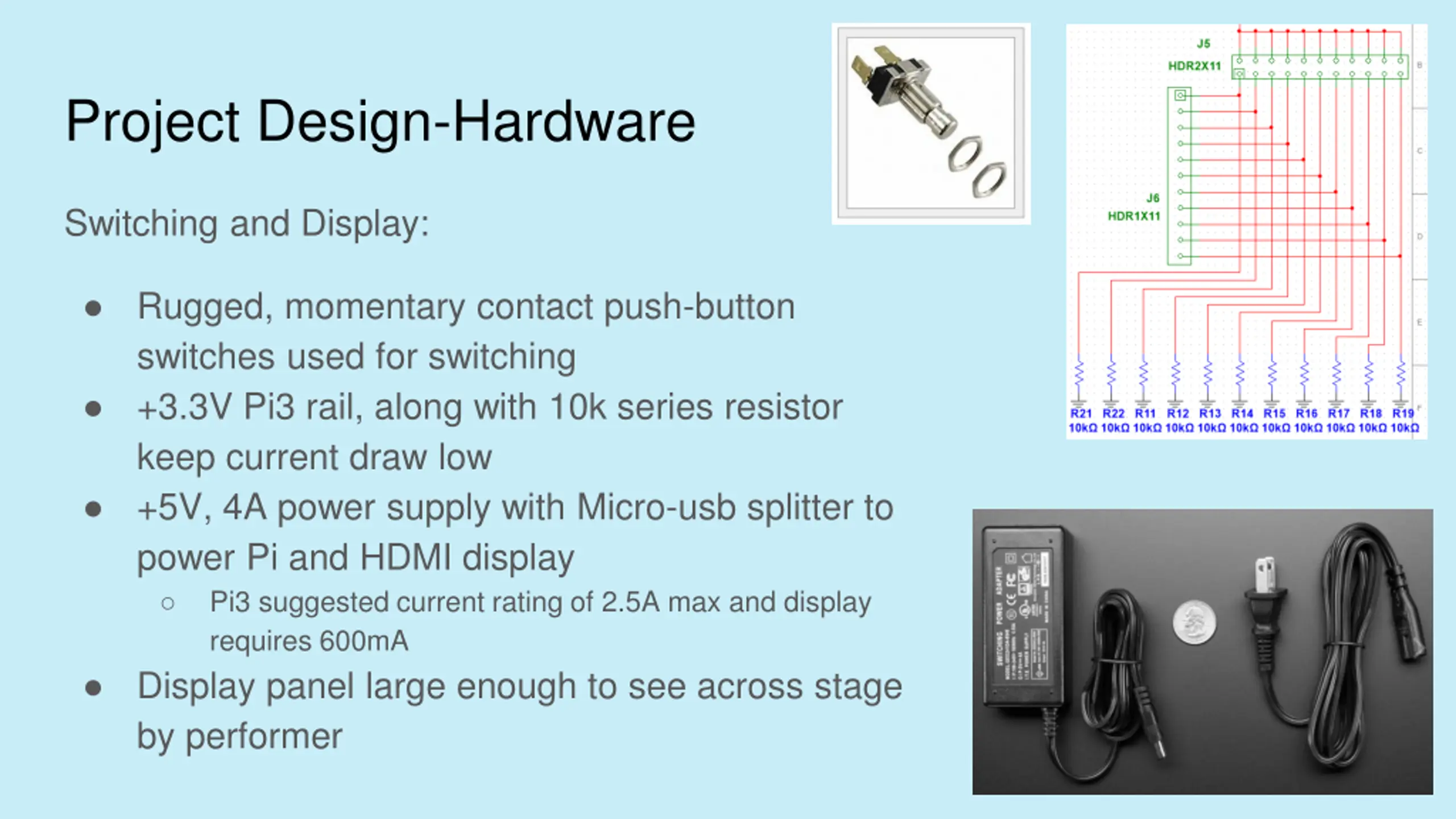

Project Design-Hardware Switching and Display: Rugged, momentary contact push-button switches used for switching +3.3V Pi3 rail, along with 10k series resistor keep current draw low +5V, 4A power supply with Micro-usb splitter to power Pi and HDMI display Pi3 suggested current rating of 2.5A max and display requires 600mA Display panel large enough to see across stage by performer

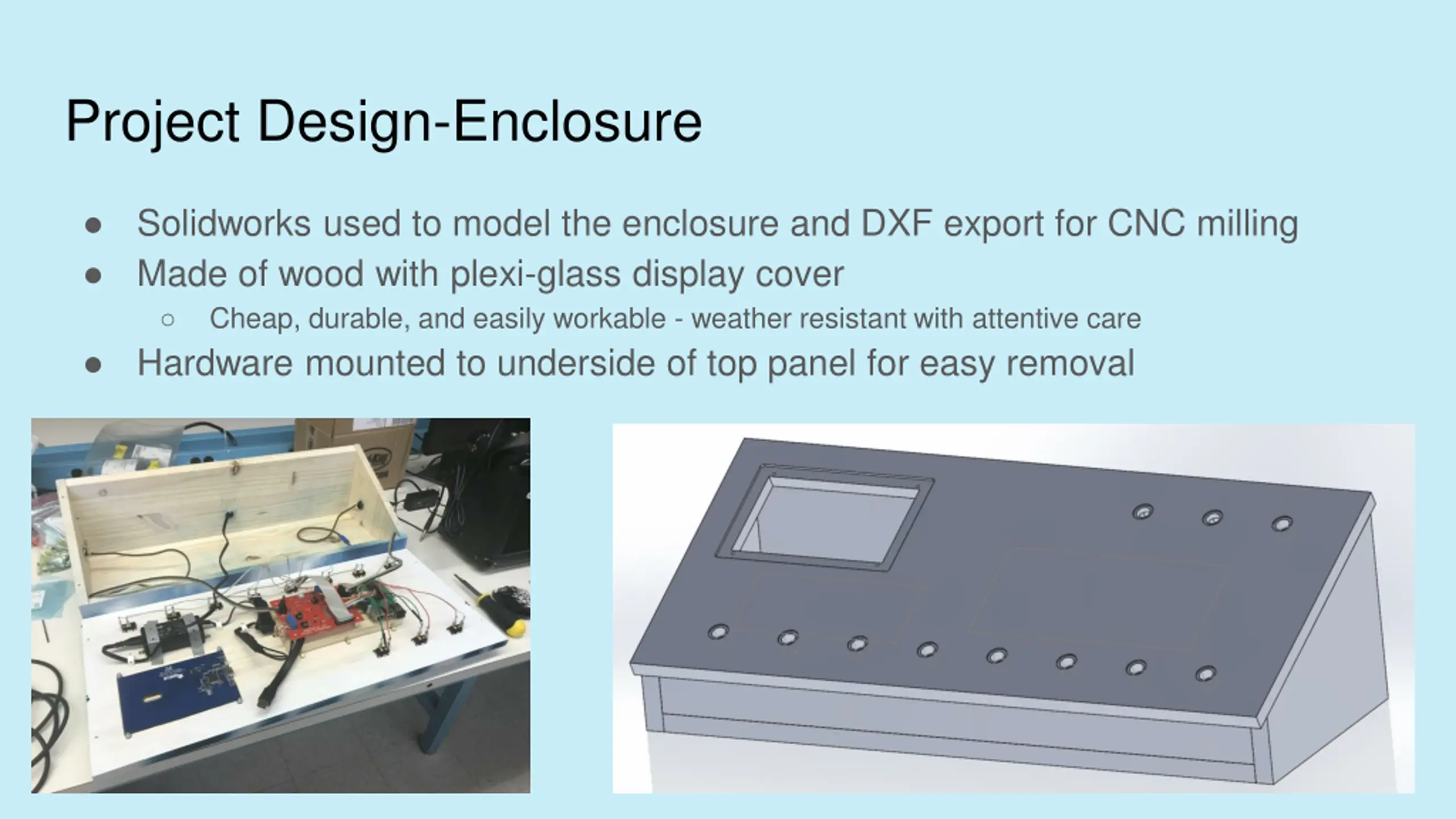

Project Design-Enclosure Solidworks used to model the enclosure and DXF export for CNC milling Made of wood with plexi-glass display cover Cheap, durable, and easily workable - weather resistant with attentive care Hardware mounted to underside of top panel for easy removal

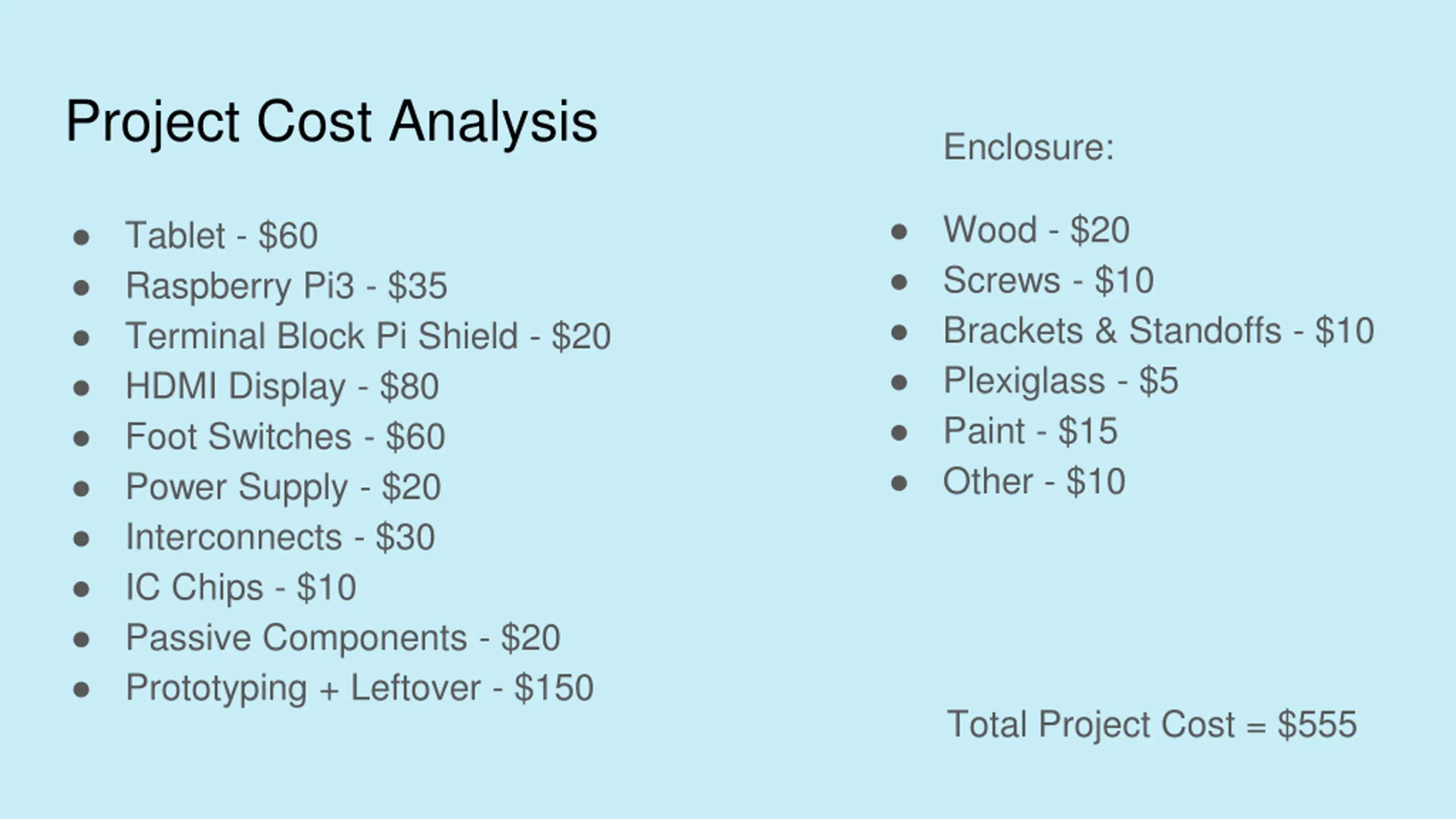

Project Cost Analysis Enclosure: Wood - $20 Screws - $10 Brackets & Standoffs - $10 Plexiglass - $5 Paint - $15 Other - $10 Tablet - $60 Raspberry Pi3 - $35 Terminal Block Pi Shield - $20 HDMI Display - $80 Foot Switches - $60 Power Supply - $20 Interconnects - $30 IC Chips - $10 Passive Components - $20 Prototyping + Leftover - $150 Total Project Cost = $555
Demo Questions?
