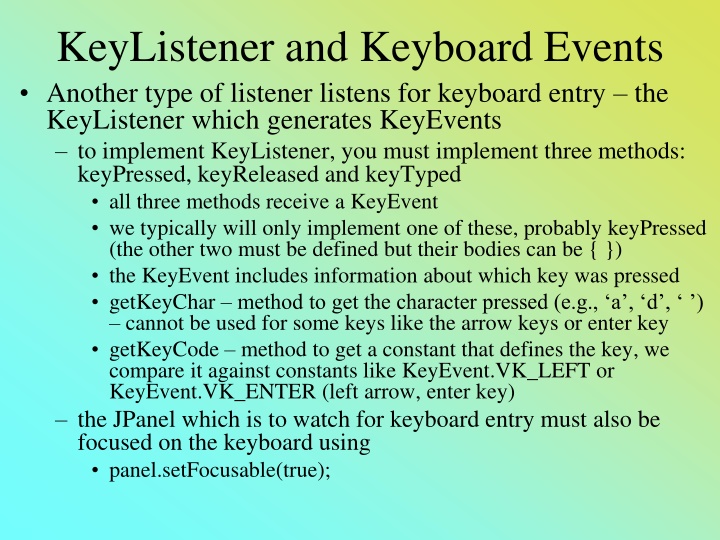

1. KeyListener and Keyboard Events Another type of listener listens for keyboard entry the KeyListener which generates KeyEvents to implement KeyListener, you must implement three methods: keyPressed, keyReleased and keyTyped all three methods receive a KeyEvent we typically will only implement one of these, probably keyPressed (the other two must be defined but their bodies can be { }) the KeyEvent includes information about which key was pressed getKeyChar method to get the character pressed (e.g., a , d , ) cannot be used for some keys like the arrow keys or enter key getKeyCode method to get a constant that defines the key, we compare it against constants like KeyEvent.VK_LEFT or KeyEvent.VK_ENTER (left arrow, enter key) the JPanel which is to watch for keyboard entry must also be focused on the keyboard using panel.setFocusable(true);

2. Using Keyboard Input What will keyboard entry be used for? Select keys will control movement in a game move around a maze move the sights of a gun or a missile launcher move a paddle (for instance in Pong or Breakout) We need to designate certain keys for use We will then place our logic to move the item in one of the keyListener methods such as keyPressed For instance, if a key is typed, in keyPressed we get the key s character and see if it was a to move left or d to move right and then adjust an x coordinate We might then call repaint(); if we do not have a Timer, otherwise, the Timer will call actionPerformed which will call repaint();

3. Moving Objects Let s assume we have an object at coordinates x, y We define a set of keys for data movement for instance, the arrow keys or a, w, d, x for left, up, right, down In keyPressed (or keyReleased or keyTyped), we test for the character and make the proper movement in x or y if(e.getKeyChar( ) = = a ) x--; else if(e.getKeyChar( ) = = w ) y--; else if(e.getKeyChar( ) = = d ) x++; else if(e.getKeyChar( ) = = x ) y++; Notice that we are not using an else statement here because this method is called whenever ANY key is pressed, so the statement else y++; would move the object down whenever any key which is not a , w or d is pressed We follow the above code with repaint( );

4. Borders Imagine our drawing area is 500x500 We start at x=250,y=250 For each of a, w, d, x, we move the object accordingly What happens if the user presses x 250 times? x will be 500, can we draw something there? Yes, but we will not see it When we move the object in the keyPressed method, we want to make sure it does not sound the object beyond a border We need to add code like this: if(x>480) x=480; to force the object to stop moving or if(x>480) x=20; to wrap-around to the other side of the screen

5. Etch a Sketch Program Let s use the keyboard input to control the drawing of short lines like the old etch a sketch game This program requires a Graphics object to draw on and a KeyListener We use a single JPanel (we do not need a second JPanel with GUI components as we do not need them for this program), we will call this JPanel ESPanel ESPanel requires the current x,y coordinate of the line being drawn and the direction we want to extend the line (up, down, left, right) The direction will be controlled by the keyboard by using the up, down, left or right arrows The enter key will be used to erase the image, for this we will set a boolean, setClear, to true upon pressing enter and in paintComponent, if true, we will do super.paintComponent(g) to erase the Graphics image

6. public void keyPressed(KeyEvent e) { if(e.getKeyCode()==KeyEvent.VK_LEFT) direction = 0; else if(e.getKeyCode()==KeyEvent.VK_UP) direction = 1; else if(e.getKeyCode()==KeyEvent.VK_RIGHT) direction = 2; else if(e.getKeyCode()==KeyEvent.VK_DOWN) direction = 3; else if(e.getKeyCode()==KeyEvent.VK_ENTER setClear = true; repaint( ); } Methods public void paintComponent(Graphics g) { if(setClear) { boolean super.paintComponent(g); setClear = false; } else { g.setColor(Color.black); if(direction==0) {g.drawLine(x, y, x-2, y); x-=2; if (x < 10) x = 10;} else if(direction==1) { g.drawLine(x, y, x, y-2); y-=2; if (y < 10) y = 10; } else if(direction== 2) { g.drawLine(x, y, x+2, y); x+=2; if (x > 290) x = 290;} else if(direction==3) { g.drawLine(x, y, x, y+2); y+=2; if (y > 290) y = 290; } } }

7. Typewriter Program Another example is to allow the user to type on the Graphics area while the mouse can be used to reposition the cursor We use x,y for the coordinate of the cursor A KeyListener is used to receive any key entries In paintComponent, g.drawString outputs the latest input character at the x, y coordinate and then the x coordinate is moved to the right If the mouse is clicked, we retrieve its x, y coordinate and reposition the cursor there We do not need a Timer, the only change to the Graphics area is when the user types something or uses the mouse, so both the keyPressed (or keyTyped) and mousePressed (or mouseClicked) methods call repaint The class needs these variables x, y for the coordinates of where the next character should appear c the latest character obtained by a KeyEvent We need to implement MouseListener and KeyListener on one JPanel

8. public void mouseClicked(MouseEvent e) { int tempX = e.getX(); int tempY = e.getY(); if(tempX > 10 && tempX < 290 && tempY > 10 && tempY < 290) { x = tempX; y = tempY; } } public void keyTyped(KeyEvent e) { key = e.getKeyChar(); repaint(); } public void paintComponent(Graphics g) { String temp = "" + key; g.setColor(Color,black); drawString(temp, x, y); x+=7; if(x>290) { x=10; y+=12; } } Methods We can also show the cursor by drawing a small triangle just below x, y g.setColor(Color.red); g.drawLine(x-1,y+1,x,y); g.drawLine(x,y,x+1,y+1); g.drawLine(x-1,y+1,x+1,y+1);

9. Maze Today we have two projects, one is to implement a maze The maze will be drawn via paintComponent We use a 2-D array of int values to indicate the path (0) versus a wall (1) versus the exit (2) For instance: 111111111111111111111111111111111 111100000000011111100000111110002 110001111111000000001010000000111 110100001111111111111000111011001 000111100000000000000011111000011 111111111111111111111111111111111 The user moves around the maze using keyboard input Aside from making sure the user doesn t move off the screen (out of the array), we have to make sure the user doesn t move into a wall

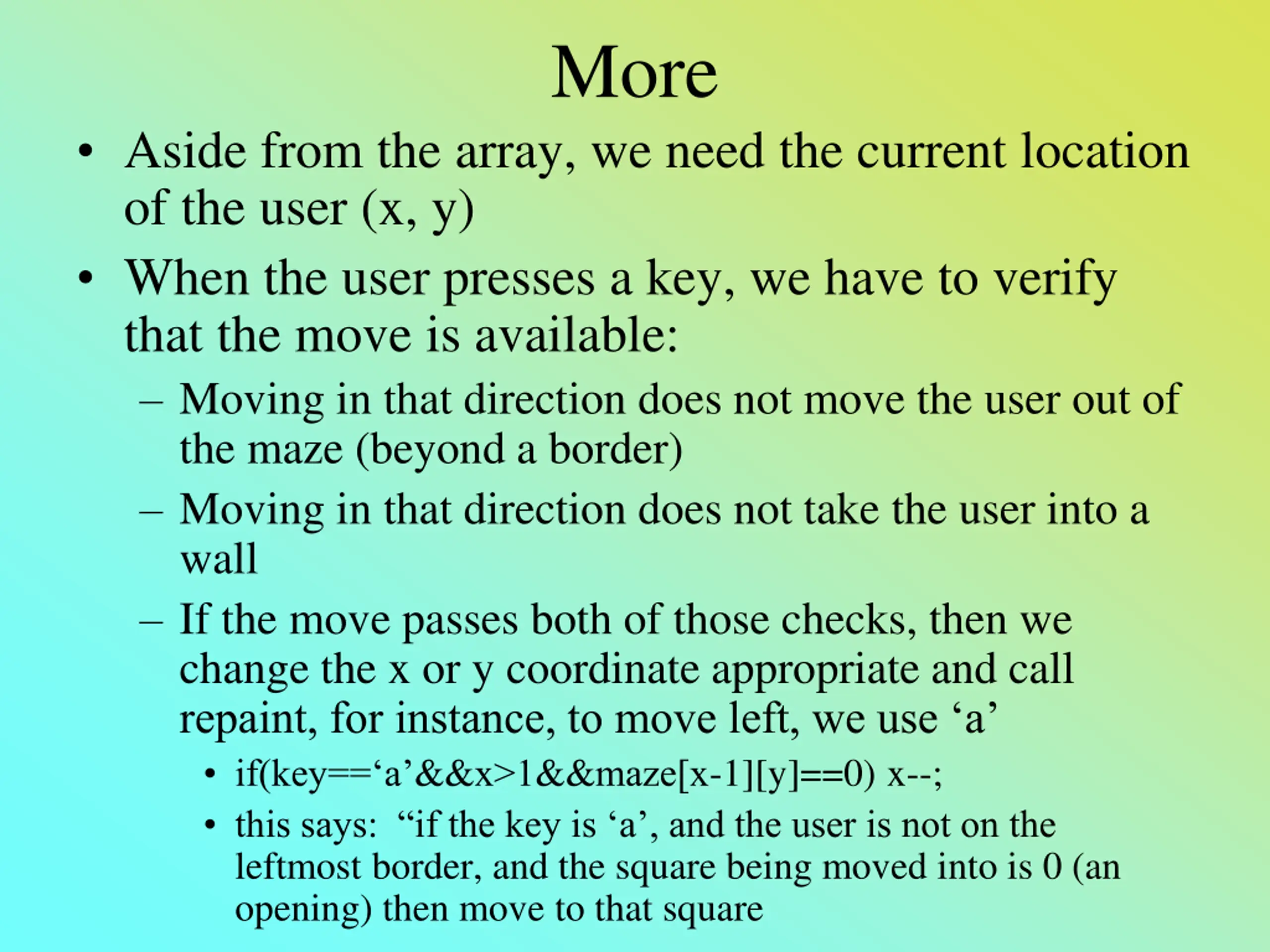

10. More Aside from the array, we need the current location of the user (x, y) When the user presses a key, we have to verify that the move is available: Moving in that direction does not move the user out of the maze (beyond a border) Moving in that direction does not take the user into a wall If the move passes both of those checks, then we change the x or y coordinate appropriate and call repaint, for instance, to move left, we use a if(key== a &&x>1&&maze[x-1][y]==0) x--; this says: if the key is a , and the user is not on the leftmost border, and the square being moved into is 0 (an opening) then move to that square

11. Maze Program This program will need a JPanel for drawing and keyboard interaction the JPanel class will implement KeyListener requiring keyTyped (or keyPressed) be implemented the JPanel class will contain a paintComponent method to draw the maze (use maybe a 10x10 fillRect for each array location where the color is set by the array value, 0 might be white, 1 might be black and 2 might be red) store x, y the current location where x, y starts off as the entry point of the maze We also have to set the JPanel to be focusable we do this in main MazePanel panel = new MazePanel( ); panel.setFocusable(true); frame.add(panel);

12. Missile Launcher Game Another project is to finish the missile launcher We have a missile launcher at the bottom of the screen which can move left/right Press left arrow to start it moving left, right arrow for right, space bar to launch a missile, and enter to stop it moving If we have 1 missile only, then we have to wait for the missile to go off the screen before launching another or we can have an array of missiles (see the next slide) Next, add an object to shoot at which can fly randomly on the screen (use the Spaceship1 or Spaceship2 code) Finally, determine if your missile hits the spaceship and if so, add 1 to your score and reset the spaceship to randomly be somewhere else

13. 1 Missile vs Array of Missiles 1 missile requires its mx, my coordinate it will move up at a constant speed, so at each Timer event, we might do my=my-2; its movement laterally might be 0 (its mx coordinate stays the same once launched) or it might take on the same change in x that the missile launcher has (that is, mdx=dx) we have to keep track of the missile so that once missile hits a border (left, right, top), we reset mx to -1 so that we don t draw it any more and can launch a new missile For any number of missiles, make mx and my int arrays and add a variable called numMissiles which indicates which missile was the last to be launched Use a for loop and an if statement to move and draw the missiles: for(int i=0;i<numMissiles;i++) if(mx[i]!=-1) { }
