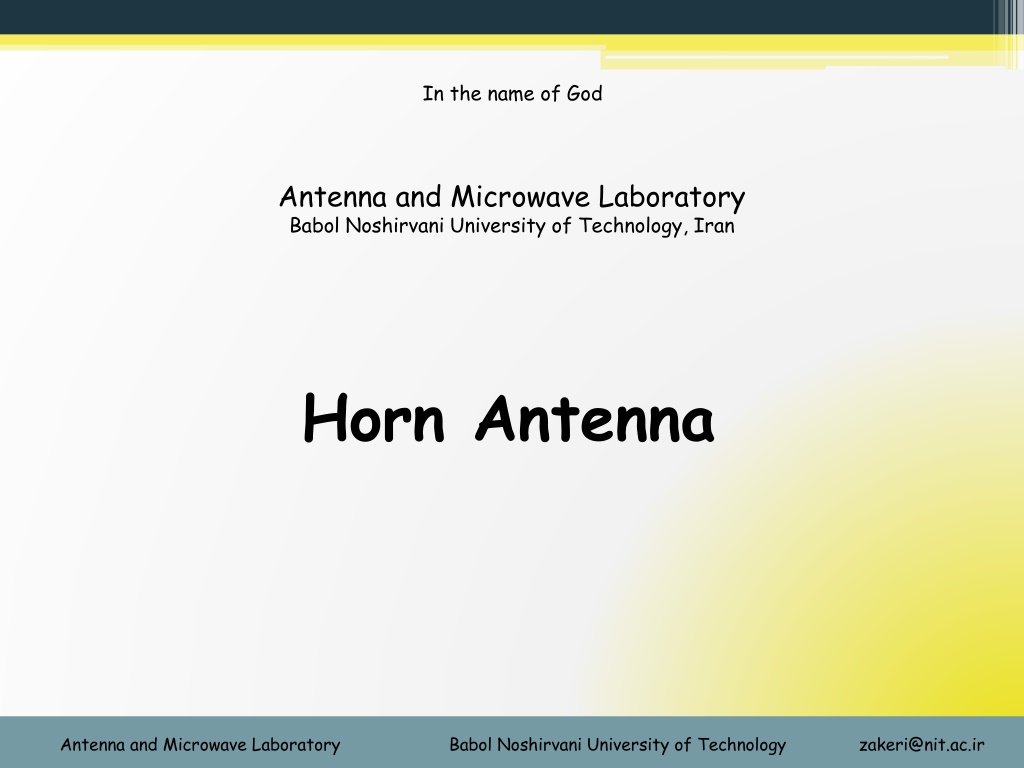

Horn Antennas in Microwave Technology

Antenna and Microwave Laboratory
Babol Noshirvani University of Technology, Iran
In the name of God
Horn Antenna

Horn Antennas

Characteristics:
High gain
Low VSWR
Relatively Wide Bandwidth
Low weight
simplicity in construction
ease of excitation
One of the
simplest
 and probably the most widely used
microwave
 antenna is the horn.
its revival began in the late 1930s from the interest
in
microwaves and waveguide transmission lines
during the period of World War II
The horn is nothing more than a hollow pipe of different cross sections,
which has been
tapered
 (flared) to a larger opening.
The
type
,
direction
, and
amount of taper
(flare) can have a profound effect on the
overall performance of the element as a radiator

Horn Antennas

Horn is widely used as a
feed element
for large radio astronomy, satellite, tracking, and
communication dishes.
It is a common element of phased arrays and serves as a universal standard for calibration and gain
measurements of other high gain antennas.
They take many different forms as:

Horn Antennas
The horn is nothing more than a hollow pipe of different cross sections,
which has been
tapered
 (flared) to a larger opening.
The
type
,
direction
, and
amount of taper
(flare) can have a profound effect on the
overall performance of the element as a radiator


Which is referred to as spherical phase term.
E-Plane Sectoral Horn Antennas

Aperture Fields:
Horn can be treated as an aperture antenna.
To find its radiation characteristics, equivalent principle techniques can be utilized.
Fields within horn can be expressed in terms of cylindrical TE and TM wave functions.






Fields can be found using:






Example:
an horn having
a
=0
.
5
λ
,
b
=0
.
25
λ
,
b
1
=2
.
75
λ
 so that maximum phase deviation at aperture of horn is
56
.
72
o
.  Find Sectoral

angle

E-Plane Sectoral Horn Antennas

E-Plane Sectoral Horn Antennas

E-Plane
Patterns:















H-Plane
Patterns:













H-Plane Sectoral Horn Antennas


Pyramidal Horns:
Most widely used horn is one which is flared
in both
directions
 as:
Its radiation characteristics are a combination of
E
 and
H
plane Sectoral horns.
Aperture fields:




Equivalent currents:






Radiation fields:
Pyramidal Horn Antennas


Radiation fields (cont.):


It can be shown:





Far zone fields:
Pyramidal Horn

Pyramidal Horn

Radiation fields (cont.):

Pyramidal Horn

Radiation fields (cont.):

Pyramidal Horn

Pyramidal Horn

A commercial standard gain
X
-band (8.2–12.4 GHz) horn:
It is a lightweight precision horn antenna for:
Standard for calibrating other antennas.
Feed for reflectors and lenses.
Pickup (probe) horn for sampling power.
Receiving and/or transmitting antenna.

Corrugated Horn

Corrugated Horn:
A large emphasis on horn antenna research in 1960s was:
Reduce spillover efficiency.
Cross-polarization losses.
Increase aperture efficiencies of large reflectors used in radio
astronomy and satellite.
In 1970s, high-efficiency and rotationally symmetric antennas were
needed in microwave radiometry.
Using conventional feeds, aperture efficiencies of 50–60% were
obtained.
However, efficiencies of order of 75–80% can be obtained with
improved feed systems utilizing corrugated horns.
Antenna pattern structure in back lobe region is strongly influenced
by diffractions from edges, especially from those that are
perpendicular

Corrugated Horn

17
Stack of sectoral feed horns for air
search radar antenna
50 ft. Holmdel horn antenna at Bell labs in Holmdel,
New Jersey, USA, with which Arno Penzias and
Robert Wilson discovered cosmic microwave
background radiation in 1964.

18
Feeding of Horn

Now, Let`s get familiar with a
brand new software:
Antenna Magus

Go to CST and simulate a example
And complete the work sheet

Worksheet
Please complete the work sheet to your example:
Frequency band :             ………
The figure of  antenna in CST :              ………
The of size antenna in
λ
 and in cm/mm  :      ………
S
11
:          ………              (set Z0=75 ohm)
Zin (Re and Im) in CST  :   ………
Surface Current (phase=0 deg) :    ………
linear 3D Power Pattern in CST :  ………
2D Power Pattern for theory & CST :    ………
HPBW for theory & CST :   ………
