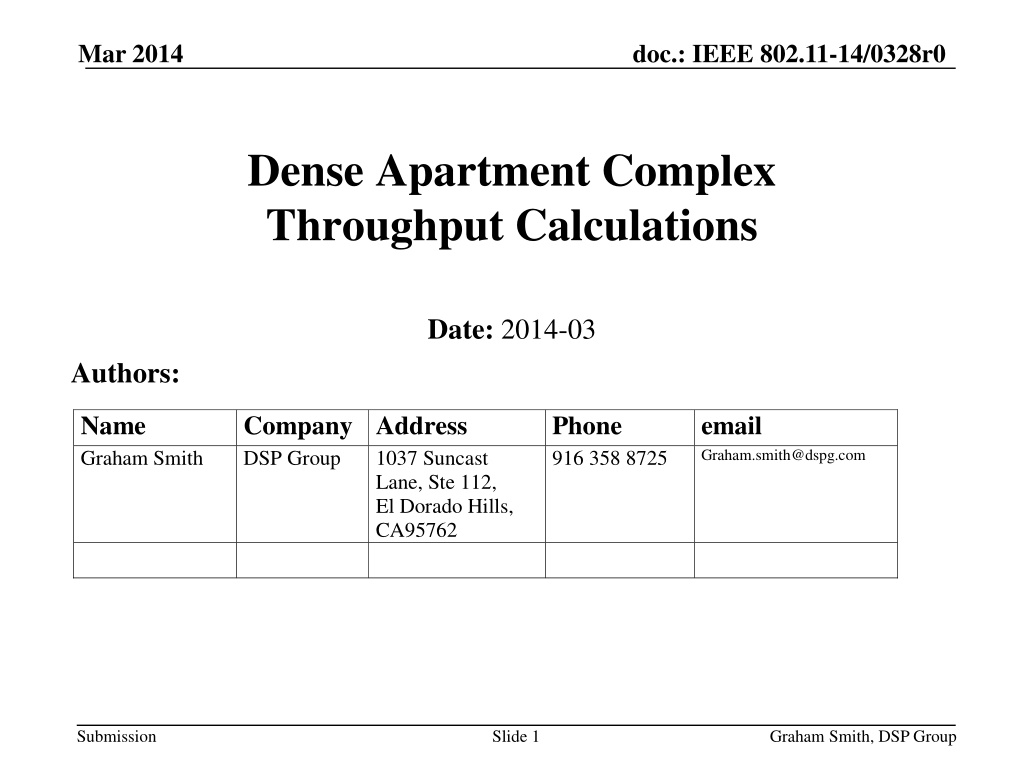

1. Mar 2014 doc.: IEEE 802.11-14/0328r0 Dense Apartment Complex Throughput Calculations Date: 2014-03 Authors: Name Graham Smith Company Address DSP Group Phone 916 358 8725 email Graham.smith@dspg.com 1037 Suncast Lane, Ste 112, El Dorado Hills, CA95762 Submission Slide 1 Graham Smith, DSP Group

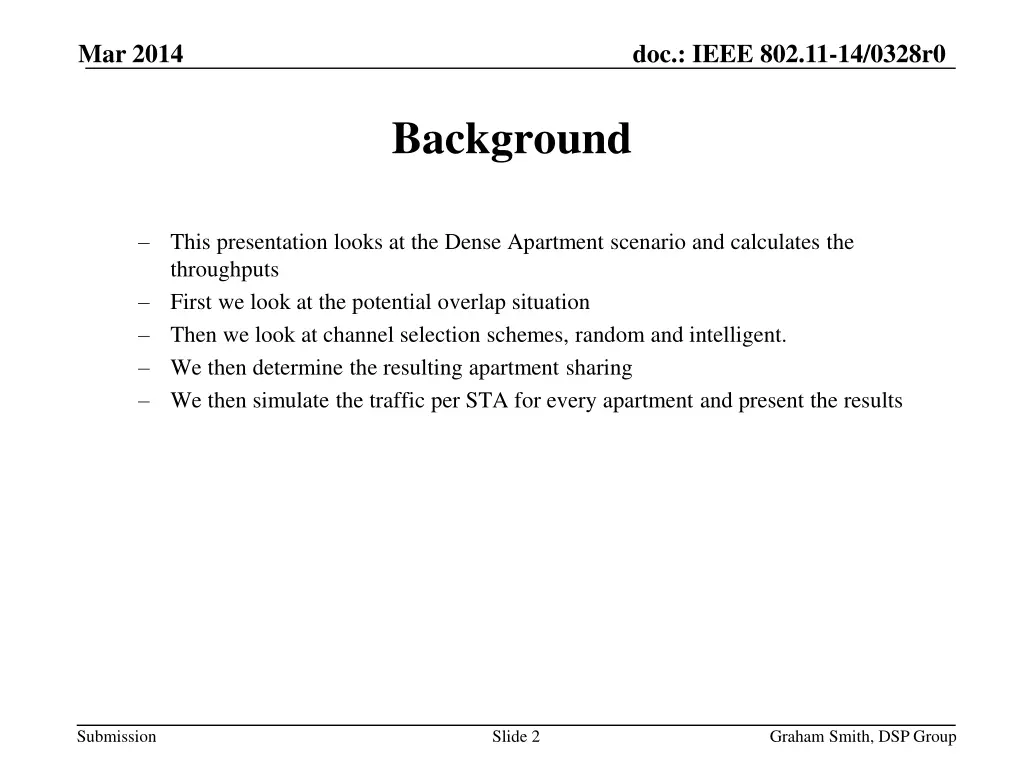

2. Mar 2014 doc.: IEEE 802.11-14/0328r0 Background This presentation looks at the Dense Apartment scenario and calculates the throughputs First we look at the potential overlap situation Then we look at channel selection schemes, random and intelligent. We then determine the resulting apartment sharing We then simulate the traffic per STA for every apartment and present the results Submission Slide 2 Graham Smith, DSP Group

3. Mar 2014 doc.: IEEE 802.11-14/0328r0 3a Dense apartment building private access and cellular offload Web browsing assumptions for Social Networking are: ~20Mbps, PER 1e-3, delay<50ms 150 active video users and 100 active web browsing users in the building. Traffic Conditions Strong interference from unmanaged overlapping networks (neighboring apartments, and outdoor Wi-Fi network). Multiple video display are operational simultaneously. Interference with Zigbee, Bluetooth. Use Case Users watch the high quality video contents coming from the Internet or video contents stored in their PVR with VHD Display. There may be another video streams to be recorded in the Blu-ray deck. People enjoy playing online games or local game machine with two or more people. Other users are just accessing the Internet for email access, web browsing, etc. Pre-Conditions Each apartment has Wi-Fi network deployed to access internet and cloud services. In each apartment up to 3 users stream concurrently video content from the network and up to 50% of the networks are active. At the same time each of the active Wi-Fi networks is used by 2 users for web browsing Environment Building with 100 apartments. One AP in each apartment of 10mx10m randomly positioned. 5 STA per AP randomly positioned in the apartment. Applications Cloud based applications supporting video streaming with 8k resolution. Video throughput assumptions are: ~112Mbps per STA, delay is < 200ms, 1.0E-3 PER. Online game Cloud-based application as big storage Laurent Cariou (Orange) Graham Smith, DSP Group Submission Slide 3

4. Mar 2014 doc.: IEEE 802.11-14/0328r0 Dense apartment complex - Legacy Signal Strengths of surrounding apartments -60dBm -80dBm -48dBm -75dBm -89dBm -50dBm -78dBm -98dBm -66dBm -82dBm -71dBm -93dBm HEW Use Case model: 10 x 10 x 3m apartments Walls 12dB, Floors 17dB -81dBm -87dBm Opposite side Same side 20 Apartments per floor 5 floors 13 Apartments within CCA 11 Apartments within CCA 24 Apartments within CCA Submission Slide 4 Graham Smith, DSP Group

5. Mar 2014 doc.: IEEE 802.11-14/0328r0 Channel Selection (Channel and Overlap) vs Random # Apartments Overlapping Channel Selection Algorithm OVERLAP CHANNELS 0 1 2 3 4 5 6 7 20 19 13 10 9 6 3 100 100 96 68 53 10 1 4 32 44 46 0 3 36 6 8 56 10 12 7 8 # Apartments Overlapping Random selection OVERLAP CHANNELS 0 65 63 43 30 23 8 0 1 22 24 26 28 26 14 0 2 9 9 18 21 24 24 3 3 4 4 8 16 16 20 4 4 0 0 5 5 5 15 10 5 6 7 8 20 19 13 10 9 6 3 6 12 18 7 14 24 27 Submission Slide 5 Graham Smith, DSP Group

6. Mar 2014 doc.: IEEE 802.11-14/0328r0 2 x 20MHz or Share 40MHz? Does EDCA Overhead cancel out extra subcarriers? Submission Slide 6 Graham Smith, DSP Group

7. Mar 2014 doc.: IEEE 802.11-14/0328r0 Dense Apartment Complex DSC Signal Strengths of surrounding apartments -60dBm -80dBm -48dBm -75dBm -89dBm HEW Use Case model: 10 x 10 x 3m apartments Walls 12dB, Floors 17dB -50dBm -78dBm -98dBm -66dBm -82dBm -71dBm -93dBm -81dBm 20 Apartments per floor 5 floors -87dBm Opposite side Same side # Apartments Overlapping OVERLAP Using DSC or TPC (with all devices reducing by 20dB) CHANNELS 0 1 20 19 13 10 9 6 3 100 100 100 100 100 100 83 5 Apartments within CCA 1 Apartments within CCA 6 Apartments within CCA 17 Submission Slide 7 Graham Smith, DSP Group

8. Mar 2014 doc.: IEEE 802.11-14/0328r0 Apartment Sharing # Apartments Channel BW with Channel Selection Channels 20 19 13 10 9 6 3 40MHz 20MHz 100 100 96 32 45 58 1 2 x 20MHz 3 x 20MHz 4 x 20MHz 5 x 20MHz 6 x 20MHz 7x20MHz 8x20MHz 4 68 53 10 0 2 32 0 6 56 10 12 7 8 # Apartments Channel BW with Random Channels selection Channels 20 19 13 10 9 6 3 40MHz 20MHz 65 63 43 35 34 22 0 2 x 20MHz 25 27 32 32 34 42 0 3 x 20MHz 4 x 20MHz 5 x 20MHz 6 x 20MHz 7x20MHz 8x20MHz 9x20MHz 10 10 22 3 3 9 24 4 3 4 10 30 23 8 0 18 14 24 27 Submission Slide 8 Graham Smith, DSP Group

9. Mar 2014 doc.: IEEE 802.11-14/0328r0 Apartment Sharing - DSC Tables show the number of apartments and the BW. # Apartments Channel BW with Channels selection - DSC # Apartments Channel BW with Random Channels selection - DSC Channels 20 19 13 10 9 6 3 40MHz 20MHz 2 x 20MHz 3 x 20MHz 96 4 96 4 93 4 8 3 10 3 20 6 32 21 Channels 20 19 13 10 9 6 3 40MHz 20MHz 100 100 100 3 89 87 74 35 100 100 100 82 18 8 Submission Slide 9 Graham Smith, DSP Group

10. Mar 2014 doc.: IEEE 802.11-14/0328r0 Average Throughput per STA - Sharing 4 STAs per Apartment each STA at full throughput AC_BE TP Mbps PHY 32k agg 270 48.1 130 25.1 130 11.9 130 7.61 130 5.59 130 4.32 130 3.5 130 2.795 130 2.16 130 1.75 Sharing 40MHz 20MHz 2 x 20MHz 3 x 20MHz 4 x 20MHz 5 x 20MHz 6 x 20MHz 7 x 20MHz 8 x 20MHz 9 x 20MHz 3 Networks sharing one 20MHz channel 12 STAs total. Each STA TP is 7.61Mbps Submission Slide 10 Graham Smith, DSP Group

11. Mar 2014 doc.: IEEE 802.11-14/0328r0 Throughputs per STA vs Channels Combining the # apartments sharing and the throughputs Channel Select STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA 100 25.1 100 25.1 96 25.1 68 48.1 53 48.1 10 48.1 1 11.9 20 19 4 13 11.9 32 25.1 45 25.1 58 25.1 0 7.61 10 2 9 11.9 32 11.9 6 5.59 6 56 4.32 10 3.5 12 7 8 3 2.795 2.16 1.75 Submission Slide 11 Graham Smith, DSP Group

12. Mar 2014 doc.: IEEE 802.11-14/0328r0 Throughputs per STA vs Channels Random Channel Select STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA 65 25 10 20 25.1 63 25.1 43 25.1 30 48.1 23 48.1 11.9 27 11.9 32 11.9 35 25.1 34 25.1 22 25.1 7.61 10 7.61 22 7.61 32 11.9 34 11.9 42 11.9 10 4.32 19 13 3 10 7.61 9 9 7.61 24 7.61 18 3.5 8 4 6 48.1 5.59 14 2.795 3 4 24 27 3 7.61 5.59 2.16 1.75 Submission Slide 12 Graham Smith, DSP Group

13. Mar 2014 doc.: IEEE 802.11-14/0328r0 Throughputs per STA vs Channels - DSC DSC and Channel Select DSC and Random Channel Select STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA STAs TP /STA 100 25.1 100 25.1 100 25.1 100 48.1 100 48.1 100 48.1 82 25.1 96 4 20 20 25.1 96 25.1 93 25.1 89 48.1 87 48.1 74 48.1 35 25.1 11.9 4 19 19 11.9 4 3 13 13 11.9 7.61 8 3 10 10 25.1 10 25.1 20 25.1 32 11.9 11.9 3 9 9 11.9 6 6 6 11.9 21 7.61 18 8 3 3 11.9 5.59 We can now calculate the throughput results Submission Slide 13 Graham Smith, DSP Group

14. Mar 2014 doc.: IEEE 802.11-14/0328r0 Results Total Throughput As would be expected, Channel Selection and DSC improve the total throughput Submission Slide 14 Graham Smith, DSP Group

15. Mar 2014 doc.: IEEE 802.11-14/0328r0 Results CDF Submission Slide 15 Graham Smith, DSP Group

16. Mar 2014 doc.: IEEE 802.11-14/0328r0 Results CDF Submission Slide 16 Graham Smith, DSP Group

17. Mar 2014 doc.: IEEE 802.11-14/0328r0 Conclusions When estimating the per STA throughput for the dense apartment complex, it is important to include the channel selection and the resulting apartment sharing scenario. As expected, improvements to the throughput per STA occur with Channel selection rather than random DSC Question is what do we use as the basis? Channel selection is recommended in 11aa. Submission Slide 17 Graham Smith, DSP Group
