Extending SSIS with Custom Tasks
Extending SSIS with Custom Tasks
Darren Green
Konesans Ltd
Agenda
•
Extending SSIS
–
Types
–
Six Steps
–
Tasks
–
Debugging
–
Installation
–
When and Why?
Types
•
Task
•
Pipeline Component
–
Source
–
Destination
–
Transform
•
Log Provider
•
For Each Enumerator
•
C
o
n
n
e
c
t
i
o
n
M
a
n
a
g
e
r

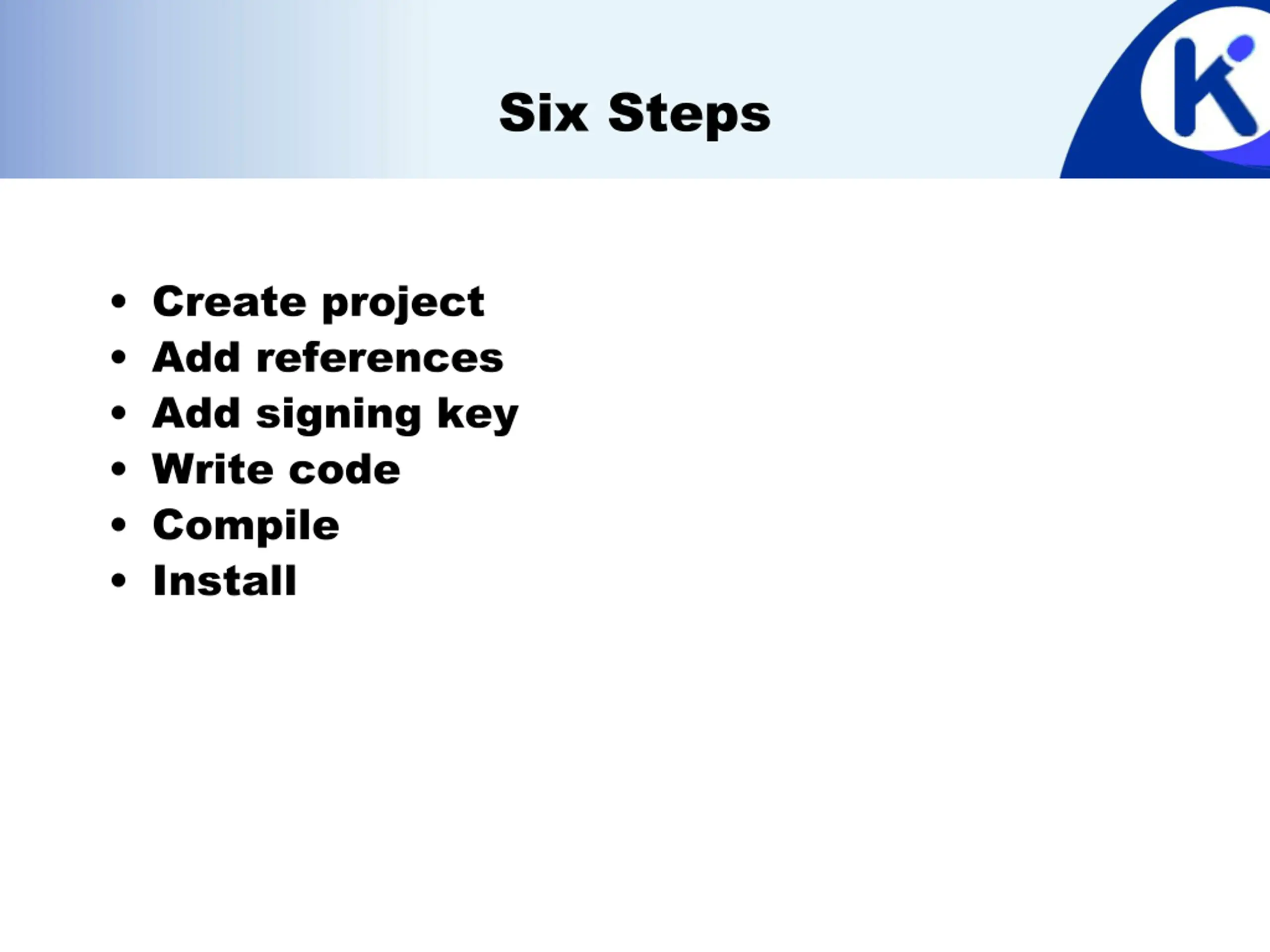

Six Steps
•
Create project
•
Add references
•
Add signing key
•
Write code
•
Compile
•
Install
References
•
Microsoft.SQLServer.ManagedDTS
–
Microsoft.SqlServer.Dts.Runtime
•
Microsoft.SQLServer.DTSRuntimeWrap
–
Microsoft.SqlServer.Dts.Runtime.Wrapper
•
Microsoft.SqlServer.PipelineHost
–
Microsoft.SqlServer.Dts.Pipeline
•
Microsoft.SqlServer.DTSPipelineWrap
–
Microsoft.SqlServer.Dts.Pipeline.Wrapper
•
Microsoft.SqlServer.Dts.Design
–
Microsoft.SqlServer.Dts.Runtime.Design
[ObjectAttribute(
Information
)]
public class MyCustomObject : BaseClass
{public override void BaseMethod()
{// Custom code
}
}
Custom Objects - Template
Classes & Attributes
Demo
Simple Task
Tasks
•
Methods
–
InitializeTask
–
Validate
–
Execute
•
Properties
–
Use attributes, editors and type converters
–
Use connection GUID
–
Write only for security when required
–
Custom persistence for sensitive data or complex
types
More Task Features
•
Custom Events
•
Custom Log Entries
•
Breakpoints (IDTSBreakpointSite)
Create a Task User Interface
•
Create UI class (Implement IDtsTaskUI)
•
Create UI form
•
Set task’s UITypeName attribute
Demo
Simple Task User Interface
Advanced Task User Interfaces
•
Microsoft.DataTransformationServices.Controls
Microsoft.DataTransformationServices.Controls.dll
•
DTSBaseTaskUI Base Form Class
–
DTSTaskUIHost Control, paged control
–
Class per page, implement IDTSTaskUIView
UI Classes & Attributes
Debugging
•
Designer – Design time
–
Attach to devenv.exe
•
Designer – Runtime
–
Attach to DTSDebugHost.exe
•
Component Project – Runtime
–
Start external program
C:\Program...\DTExec.exe
/F "C:\...TestPackage.dtsx”
Debugging Tips
•
Ensure class and strong name is fixed at
start
•
Must restart BIDS between builds, slow!
•
Use DTExec for all runtime
•
Use Post Build Event for install
–
copy "$(TargetPath)“ C:\Program...
–
gacutil.exe" /if "$(TargetPath)“
•
Ensure persistence complete
Installation Locations
•
Designer Enumeration Folder
–
Designer location only (x86 Only)
C:\Program Files\Microsoft SQL Server\90\DTS\<Object>
\Connections
\LogProviders
\ForEachEnumerators
\PipelineComponents
\Tasks
•
Global Assembly Cache
–
Runtime loading by execution host
Install Platform Target 32-bit (x86)
•
Install in Program Files for Designer
•
Install in GAC for run-time
•
Support for x86 specific targeted assemblies
•
Support for Any CPU / MSIL
Install Platform Target 64-bit (x64)
•
Support for x86 only targeted assemblies
•
Support for x64 only targeted assemblies
•
Support for Any CPU / MSIL
•
Designer is x86/MSIL only
•
Can side by side target assemblies

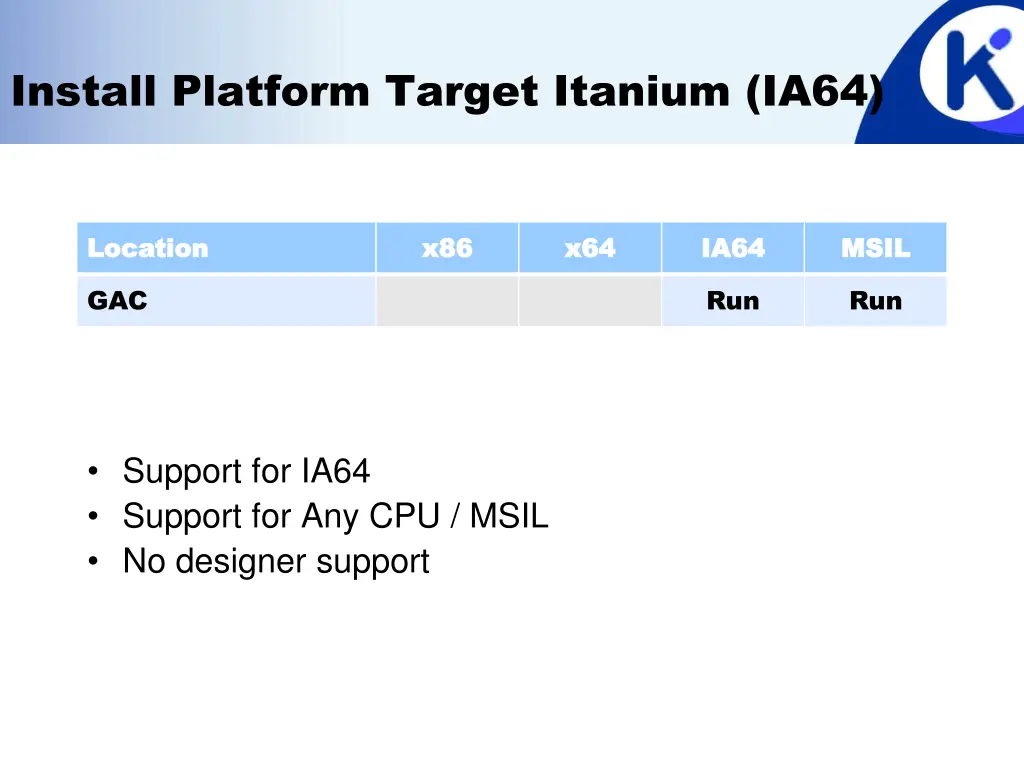

Install Platform Target Itanium (IA64)
•
Support for IA64
•
Support for Any CPU / MSIL
•
No designer support
64-bit Tools Only
•
No x86 file requirement
•
No x86 DTSPath registry key
•
MSI registry search is 32-bit
•
No key, no tools, no designer, no file required!
Install Tips
•
Use MSI builder of choice, e.g. VS, WiX
•
Registry Search for DTS folder location
HKLM\SOFTWARE\Microsoft\MSDTS\Setup\DTSPath
C:\Program Files\Microsoft SQL Server\90\DTS\
•
Allow tools only installs, don’t require 32-bit key
•
User Interfaces & Support Assemblies?
–
GAC Only
•
Support Files?
–
Use special folders, CommonApplicationData
•
Minimal UI, no options required
When to extend
•
Reuse in multiple packages
–
Increased Development
vs
Lower Maintenance
•
Access legacy resources (COM)
•
Complex business logic
•
More advanced code requirements
•
Powerful IDE
•
Language choice
Resources - Samples
•
Microsoft Download Center
http://www.microsoft.com/downloads/
Search for “
SQL Server SSIS Sample Component
”
•
P
r
o
f
e
s
s
i
o
n
a
l
S
Q
L
S
e
r
v
e
r
2
0
0
5
I
n
t
e
g
r
a
t
i
o
n
S
e
r
v
i
c
e
s
–
W
R
O
X
(
C
h
1
4
–
1
5
–
S
a
m
p
l
e
s
)
http://www.wrox.com/WileyCDA/WroxTitle/productCd
-0764584359.html
•
Microsoft SQL Server 2005 Integration
Services – SAMS (Ch 24 – 25 - Samples)
http://www.samspublishing.com/bookstore/product.a
sp?isbn=0672327813
Thank You!
Darren Green
Konesans Ltd
darren.green@konesans.com
http://www.konesans.com
http://www.sqldts.com
http://www.sqlis.com
