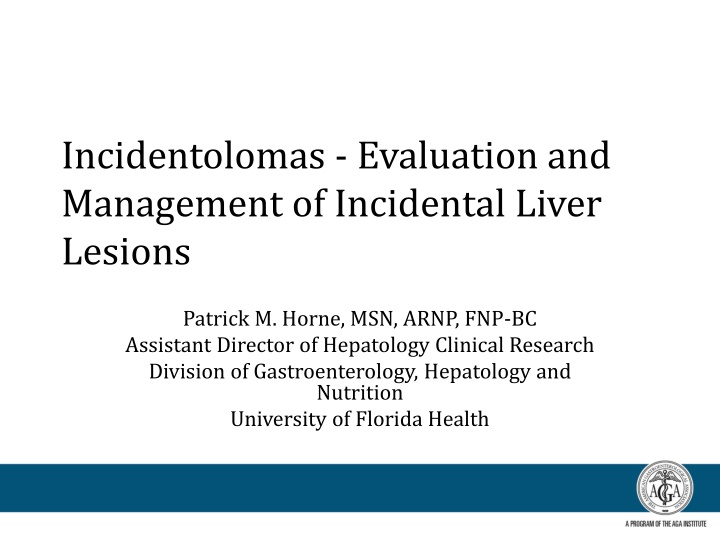

Evaluation and Management of Incidental Liver Lesions

Incidentolomas - Evaluation and
Management of Incidental Liver
Lesions
Patrick M. Horne, MSN, ARNP, FNP-BC
Assistant Director of Hepatology Clinical Research
Division of Gastroenterology, Hepatology and
Nutrition
University of Florida Health
Disclosures
Financial relationships to disclose within
the past 12 months:
Grant support with Bayer/Onyx
Objectives
Discuss natural history of benign liver
lesions.
Discuss Evaluation and management of
FNH, Hemangioma, Liver Cyst, Adenoma
Background
Causes of focal liver lesions are diverse and
can range widely.
Typically are clinically silent and detected
incidentally while undergoing evaluation for
unrelated symptoms.
Understanding the clinical circumstances
surrounding the presence of liver lesions
aids in better diagnosis.
Differential diagnosis

Common benign liver lesions include:
Hepatic hemangioma
Focal nodular hyperplasia (FNH)
Hepatic adenoma
Hepatic cyst
Idiopathic noncirrhotic portal hypertension
Focal nodular hyperplasia
Regenerative nodules
Bonder A & Afdhal N.  Clin. Liver Dis.  2012
Case 1
40 year old Caucasian female presents to
her PCP’s office intermittent nonspecific
abdominal pain and nausea.
Physical exam negative but abdominal
ultrasound ordered which notes a possible
lesion.
Follow up imaging obtained
Case 1
Persistent
enhancement
throughout
imaging phases
Hemangioma
Most common benign hepatic tumor
60-80% diagnosed in people between the
ages of 30-50.
Ratio of occurrence in women to men, 3:1.
More common in young women
Choi BY & Nguyen MH.  J Clin Gastroenterol.
2005
Hemangioma-Diagnosis
On ultrasound appear well-defined,
lobulated, homogeneous hyperechoic mass.
The accuracy of US is reported to be 70% to
80%.
CT and/or MRI was best options
With MRI having sensitivity and specificity
around 85-95%.
Descottes B et al.  Surg. Endosc.  2003.
Unai O et al.  Clin Imaging.  2002.
Hemangioma-Management
Treatment is usually not indicated in the
setting of no symptoms with a firm
diagnosis and confirmed stability on
imaging at least 6 months apart.
Lesions less than 5 cm
Larger lesions may require closer
monitoring and if symptoms develop may
need to treatment.
Blecker E et al.  Z. Gastroenterol.  2003
Hemangioma-Management
Treatment options include
Surgery
Resection
Hepatic irradiation or transarterial catheter
chemoembolization
Case 2
25 year old Hispanic female undergoing
work up for elevated liver function tests
(LFTs).
Noted to have multiple liver lesions on
abdominal ultrasound, the largest
measuring 13 cm in diameter.
Follow up imaging including CT and MRI
completed.
Case 2-Imaging
CT scan

Case 2-Imaging
MRI
Focal Nodular Hyperplasia (FNH)
Second most common liver tumor
Incidence is on the rise due to better
imaging.
Can occur in both men and women
80-95% of cases seen in women, ratio 5:1
Bartolotta TV et al.  La Radiologia Medica.  2013.
FNH-features
Class findings include:
Presence of a “central scar” on contrast
enhanced imaging
Present in about 1/3 of patients
Lesions typically become hyperdense during
arterial phase imaging.
Due to arterial origin of the blood supply
Isodense during portal venous phase
Though central scar may be hyperdense
Bartolotta TV et al.  La Radiologia Medica.  2013.
FNH-Diagnosis

Sulfur colloid scanning
Due to prevalence of Kupffer cells, 80% of FNHs
will show active uptake
FNH-Management
Typically conservative.
Typically stable lesions and do not change
over time
No evidence to suggest malignant
transformation
Enlargement and/or development in the
setting of OCP?
Case 3
30 year old Caucasian female presents with
chronic abdominal pain.
Has been on oral contraception therapy for
5 years
Otherwise healthy, no significant medical
history.
Case 3
MRI
Hepatic adenoma
Uncommon lesions
Mostly in young women (22-40)
Commonly in the right lobe of the liver
Grazioli L.  Radiographics.  2001
Hepatic adenoma
Strong association with:
Oral contraceptives and hormones
Anabolic steroids
Glycogen storage disease
Less common association:
Pregnancy
Diabetes mellitus
Farges O.  Gut.  2011
Hepatic adenoma
Prognosis not well established
There is an association with:
Malignant transformation
Spontaneous hemorrhage
Rupture
Hepatic adenoma-Diagnosis
Typically made clinically with imaging.
Biopsy of the lesion is not indicated or
recommended due to risk of bleeding.
Imaging techniques:
US-limited
CT and/or MRI
Hepatic adenoma-Diagnosis
CT:  Well demarcated and have low
attenuation or are isodense on noncontrast
imaging and show peripheral enhancement
early with centipedal flow during portal
venous.
MRI:  usually well demarcated and typically
hyperintense on T1.  Enhancement on T2
images that enhance further with
gadolinium administration is highly
suggestive.
Grazioli L.  Radiographics.  2001
Chung. KY  AJR.  1995
Hepatic adenoma-Management
Dependent on size of lesion and symptoms
If asymptomatic and lesion is small (less
than 5 cm)
Stop OCP if taking
Can monitor with imaging and possibly AFP
If symptomatic and/or lesion is large
(greater than 5 cm)
Surgical resection is recommended.
Liver transplantation rare
Dokmak S. et al.  Gastroenterology.
2009
Case 4
60 year old female presents to a local ER
with severe abdominal pain with a palpable
mass on physical examination.
No known history of liver disease or GI
symptoms
Case 4
Hepatic cyst-Differential
Hepatic cyst-Prevalence

Dependent on origin
Simple:
More common in right lobe.
More in women, ratio of 1.5:1.
Distinction between simple and other types of cysts
is difficult to make but very important for
management.
Huge cysts found often in women over age 50.
Hepatic cyst-Diagnosis
Ultrasound:
Good at distinguishing between simple and other
cystic lesions
CT scan:
Well demarcated lesion with no enhancement after
administration of IV contrast.
MRI:
No enhancement with contrast. T1-weighted
images the cyst shows a low signal, whereas a very
high intensity signal is shown on T2-weighted
images.
Lantinga MA.  2013.  World
Journal of Gastro.
Hepatic cyst-Management
Symptoms and type of cyst drive the
management
Majority do not require intervention (if simple).
Would consider monitoring large cysts over 4
cm with interval imaging.
Minor and major surgical options available for
large cysts and/or symptoms
Hepatic cyst-Management
Interventions:
Needle aspiration (though associated with high
failure rate and rapid recurrence)
Deroofing
Liver resection
If infectious, treat appropriately.
Yasawry MI.  World J Gastroenterol.
2011
Conclusion
Liver lesions are common and proper
diagnosis is important.
A combination of medical history as well as
appropriate imaging is essential.
Most liver lesions are benign but in certain
situations must be addressed or treated.
Thank you
