Essential Water Variables and User Needs in Water Cycle Monitoring

Essential Water Variables (EWVs) play a crucial role in monitoring the water cycle and addressing user-defined requirements for observational data and modeling predictions. These variables are vital for generating information products across various sectors such as agriculture, climate, energy, ecosystems, and more. The user needs in water cycle variables are closely linked to international organizations and are essential for decision support systems and tools.

• Water Cycle
• Essential Variables
• Monitoring
• User Needs
• Decision Support

maybe Follow

Uploaded on Sep 30, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

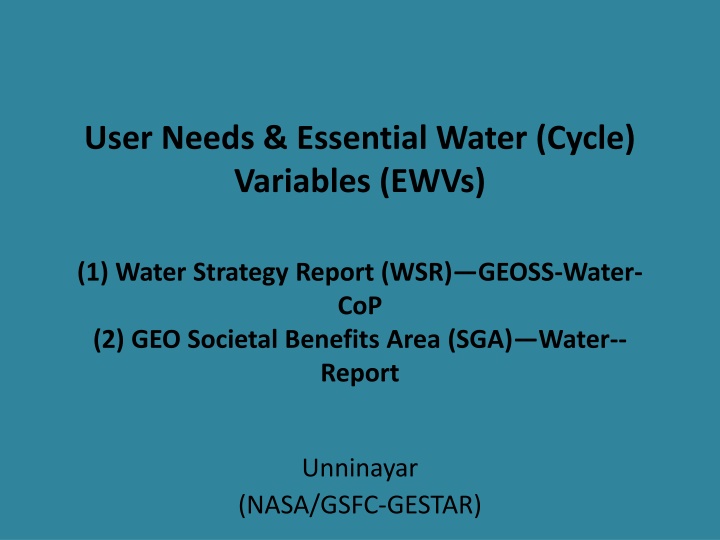

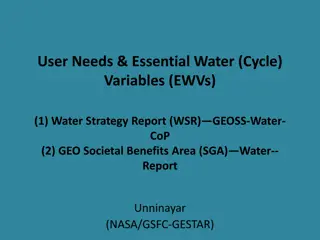

1. User Needs & Essential Water (Cycle) Variables (EWVs) (1) Water Strategy Report (WSR) GEOSS-Water- CoP (2) GEO Societal Benefits Area (SGA) Water-- Report Unninayar (NASA/GSFC-GESTAR)

2. User Needs and Essential Water Cycle Variables (EWVs) Developed by (1) GEO-UIC-SBA-Water (2010) & GEOSS Water Strategy Report CoP (2015) Through review process with wide acceptance by the community EWVs are linked to applications and end-users. They are derived by reviewing/consolidating user- needs/requirements (for observations of water variables) in all GEO user sectors as defined by the GEO SBA s Community agreement reached by review (process) and consensus EWVs are linked to international bodies (GEO and collaborating Member Organizations) Data base with information on EWVs: Various, as maintained by national, regional and international organizations and programs.

3. Broad User Categories Water Cycle Monitoring Water Cycle Modeling/Prediction Decision Support Agriculture Decision Support--Climate Decision Support Energy Decision Support Ecosystems Decision Support Biodiversity Decision Support Health Decision Support--Land Management Decision Support Oceans (Coastal) Decision Support Water/Water Resources (Management) Decision Support Weather

4. Broad User Categories 9 GEO SBA s Agriculture Disasters Health Biodiversity Ecosystems Water Climate Energy Weather [ EWVs include/incorporate ECV s (Essential Climate Variables ECVs- -as per GCOS, UNFCCC, IPCC] [Each User Category was expanded into functional elements before requirements were consolidated. E.g., WRM includes stream flow forecasting , reservoir management, drought monitoring/forecasting etc.]

5. Definitions: Essential Water Variables (EWV) are defined as water variables/parameters that address user -defined critical requirements for one or more of the following: (1) Observational monitoring of key elements of the global and regional/local water cycle, (2) Observations required by diagnostic and/or land surface/hydrological prediction models that are used to generate derived products for the end-user communities, and (3) Observational and model-derived variables and parameters required by users of water data/information products as applied to various inter-disciplinary decision support systems and tools. [Capture Key Elements of the Earth-Climate System Figure-1]

6. Figure 1. The water cycle dominates the Earth-climate system, as shown in this schematic of the water cycle (USGCRP,2003).

7. EWVs PRIMARY Precipitation ET Snow Cover (& Depth, Freeze/Thaw Margins..) Soil Moisture/Temp Ground Water Run0ff/Streamflow/River Discharge Water Quality Water Use/Demand (Agro, Hydro, Energy, Urban, ) Glaciers/Ice Sheets

8. EWVs SUPPLEMENTARY VARIABLES Surface Meteorology Surface & Atmospheric Radiation Budget Cloud & Aerosols Land Cover & Vegetation, Land Use Permafrost Elevation/Topography and Geological Stratification [The above can be expanded into much more detailed sub- parameters/variables. E.g., Water Quality alone could have 10 to 100 or more constituents elements]

9. Essential Water Cycle Variables (EWC-V s) [Structured following the Water-SBA analysis as being of approximately equal high priority when averaged across all user sectors. Some variables/parameters have been combined for simplicity] Cross-Ref.--ECV s (Essential Climate Decision Support Oceans (Coastal) Decision Support--Socio-Economic Water Cycle Modelling/Prediction Variables as per UNFCCC, IPCC) Decision Support-- Ecosystems Decision Support--Biodiversity Decision Support:--Agriculture Decision Support--Geohazards Decision Support--Weather Decision Support--Climate Decision Support--Energy Decision Support--Water Decision Support--Health Decision Support--Land Water Cycle Monitoring Management Management PRIMARY Precipitation Evaporation & Evapotranspiration Snow Cover (& Depth, Freeze Thaw Margins) Soil Moisture/Temp Groundwater Runoff/Streamflow/River Discharge Lakes/ Reservoir Levels and Aquifer Volumetric Change Water Quality Water Use/Demand (Agro, Hydro, Energy, Urban,...) Glaciers/ ice sheets SUPPLEMENTARY VARIABLES Surface Meteorology Surface & Atmospheric Radiation Budget Cloud &Aerosols Land Cover &Vegetation + Land Use Permafrost X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X Elevation/ Topography & Geological Stratification X X X X X X

10. EWVsObs. Requirements Space/time resolution requirements (User Needs) vary substantially between user sectors From hours to days, week, month, season, year, decade, century, Space/time resolutions also vary substantially with observing instrument/platform Data assimilation models are frequently needed to derive variables that are not measured directly, or measured with insufficient spatial/time density Requirements vary with early warning/prediction system and the observable/variable [ Detailed in the Water-SBA Report, and the WSR]
