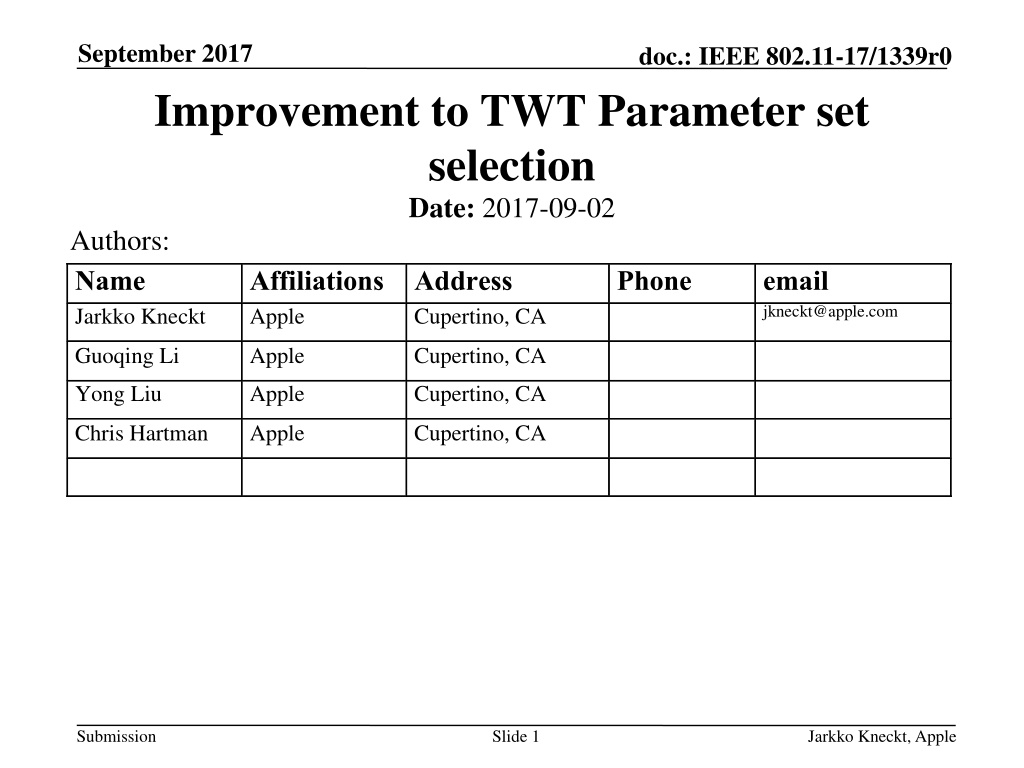

September 2017 Improvement to TWT Parameter set selection Date: 2017-09-02 Authors: Name Affiliations Address Jarkko Kneckt Apple Cupertino, CA doc.: IEEE 802.11-17/1339r0 Phone email jkneckt@apple.com Guoqing Li Apple Cupertino, CA Yong Liu Apple Cupertino, CA Chris Hartman Apple Cupertino, CA Submission Slide 1 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Abstract This submission allows the TWT requesting STA to signal repeating times when it is not able or has limited capability to receive or transmit. Normative text is provided in submission 11-17-1346r0. The signalling simplifies the TWT parameter set selection; the TWT responding STA has means to select more suitable alternate times for TWT SPs and transmission of multiple TWT setup requests and responses can be avoided. The signalling improves transmission reliability, reduces transmission overheads and STA power consumption. Submission Slide 2 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Non-AP STA challenges to be available on a TWT SP A STA may not be available, or has limited transmission/reception capability, during a TWT SP A STA may exchange data in device-to-device network A STA may have multiple radios and it cannot operate simultaneously with the radios Submission Slide 3 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Current TWT setup signaling communicates one TWT parameter set The TWT requesting STA communicates one set of TWT parameters to TWT responding STA: The TWT Interval communicates the interval between TWT start times which affects to transmission delays The TWT Start Time communicates the timing of the TWT SP The Nominal Minimum Wake Duration provides the time in which the AP should transmit the first PPDU in TWT SP Submission Slide 4 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Selecting times for TWT SPs The TWT requesting non-AP STA may set the TWT SP start time, duration and interval to values when it can be available The AP may not be able to schedule TWT SPs on these times AP may be congested on these times and STA performance may be poor The interval or TWT duration may not be supported by the AP The AP may need to propose alternative TWT SP start time, duration or interval Submission Slide 5 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Current TWT agreement setup, suggested and demanded TWT agreements The TWT requesting STA may suggest or demand the use of the TWT parameter set: When TWT agreement is suggested, the setup may be possible, if the provided single set of TWT parameter values cannot be accommodated The AP has no means to know how to select alternative values that are suitable for the STA When TWT agreement is demanded, the setup will be rejected, if the single set of TWT parameter values cannot be accommodated This is ultimate demand, nothing else is acceptable for the requesting STA Submission Slide 6 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Challenges of current TWT setup Currently, the TWT requesting STA cannot indicate the times that are not suitable for it This may lead to multiple transmissions of TWT setup request and TWT setup response frames that takes time and causes overhead The TWT SP times may be poorly selected, because unsuitable times cannot be signaled The link performance may be severely degraded, if TWT SPs are scheduled at times when the non-AP STA performance is poor This may cause frame loss and transmission delays Submission Slide 7 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Proposal: Signaling a schedule when a STA is not able to transmit or receive A TWT requesting STA should list the repeating times, i.e. constrained periods, when it is not able transmit or receive If needed, the TWT receiving STA should use this information to select the TWT SP times, i.e. select the times when the requesting STA is able to transmit and receive Submission Slide 8 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Proposal, TWT Flow setup for power save and for constrained periods One TWT Setup frame requests a single TWT agreement To setup (1) a TWT flow for power save and a (2) TWT Flow to avoid operation at times when STA is not available, the STA should transmit two TWT Setup request frames: One TWT Setup frame requesting a TWT flow for power save One TWT Setup frame requesting a TWT flow for constrained periods, to provide information on the times when STA is not available The two setup frames may be aggregated to the same PPDU and transmitted at the same time Slide 9 Submission Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 TWT setup response The AP may accept or reject the TWT constrained periods agreement, i.e. schedule when the requesting STA is not available: If accepted, the requesting STA shall update the constrained periods agreement if its availability changes When constrained periods and TWT agreement for power save are transmitted in the same PPDU, the AP may accept only TWT Agreement for power save: The STA shall not update its availability information to the AP The AP may propose alternative parameters for TWT agreement for power save The TWT parameter set on constrained periods, i.e. when STA is not available helps to select suitable schedule Submission Slide 10 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Summary This submission describes a mechanism for a non-AP STA to indicate the times when it not able or has limited availability to transmit or receive The TWT Responding STA may propose more suitable alternative TWT SP times More suitable TWT SP times improves transmission reliability Transmission of multiple TWT setup request and TWT setup response frames can be avoided TWT setup signaling is faster and contains relevant information Submission Slide 11 Jarkko Kneckt, Apple
September 2017 doc.: IEEE 802.11-17/1339r0 Straw poll 1 Do you agree that the TWT requesting STA should be able to indicate the times when it is not able to or has limited capability to transmit or receive? Submission Slide 12 Jarkko Kneckt, Apple
