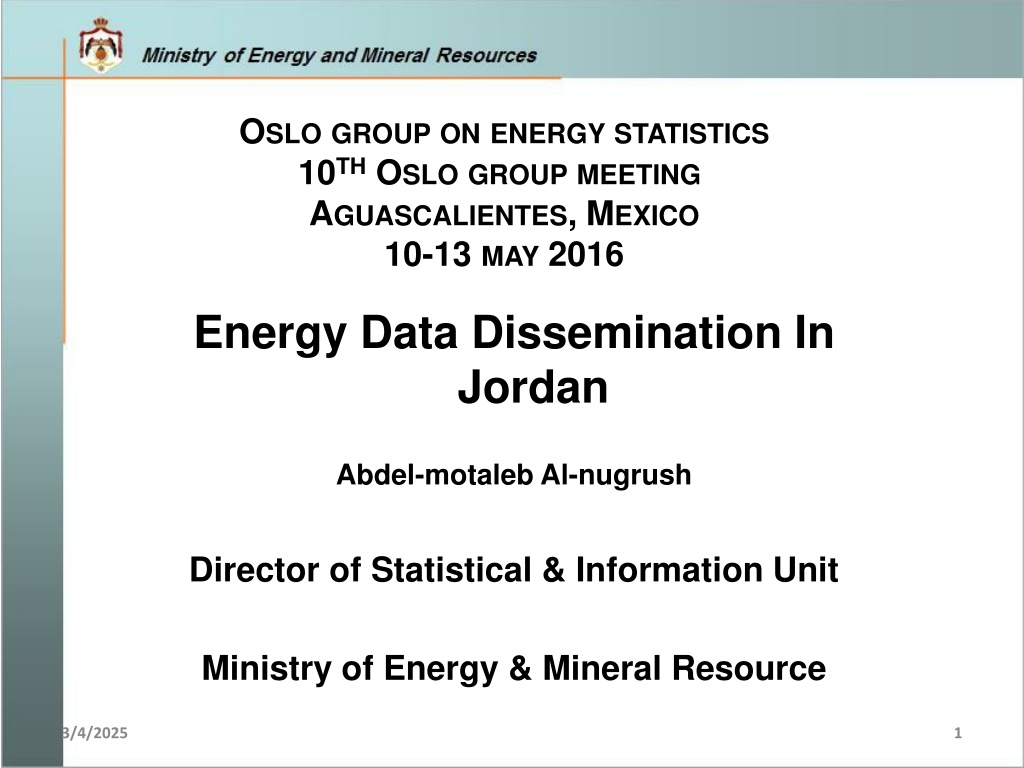

OSLO GROUP ON ENERGY STATISTICS 10THOSLO GROUP MEETING AGUASCALIENTES, MEXICO 10-13 MAY 2016 Energy Data Dissemination In Jordan Abdel-motaleb Al-nugrush Director of Statistical & Information Unit Ministry of Energy & Mineral Resource 3/4/2025 1

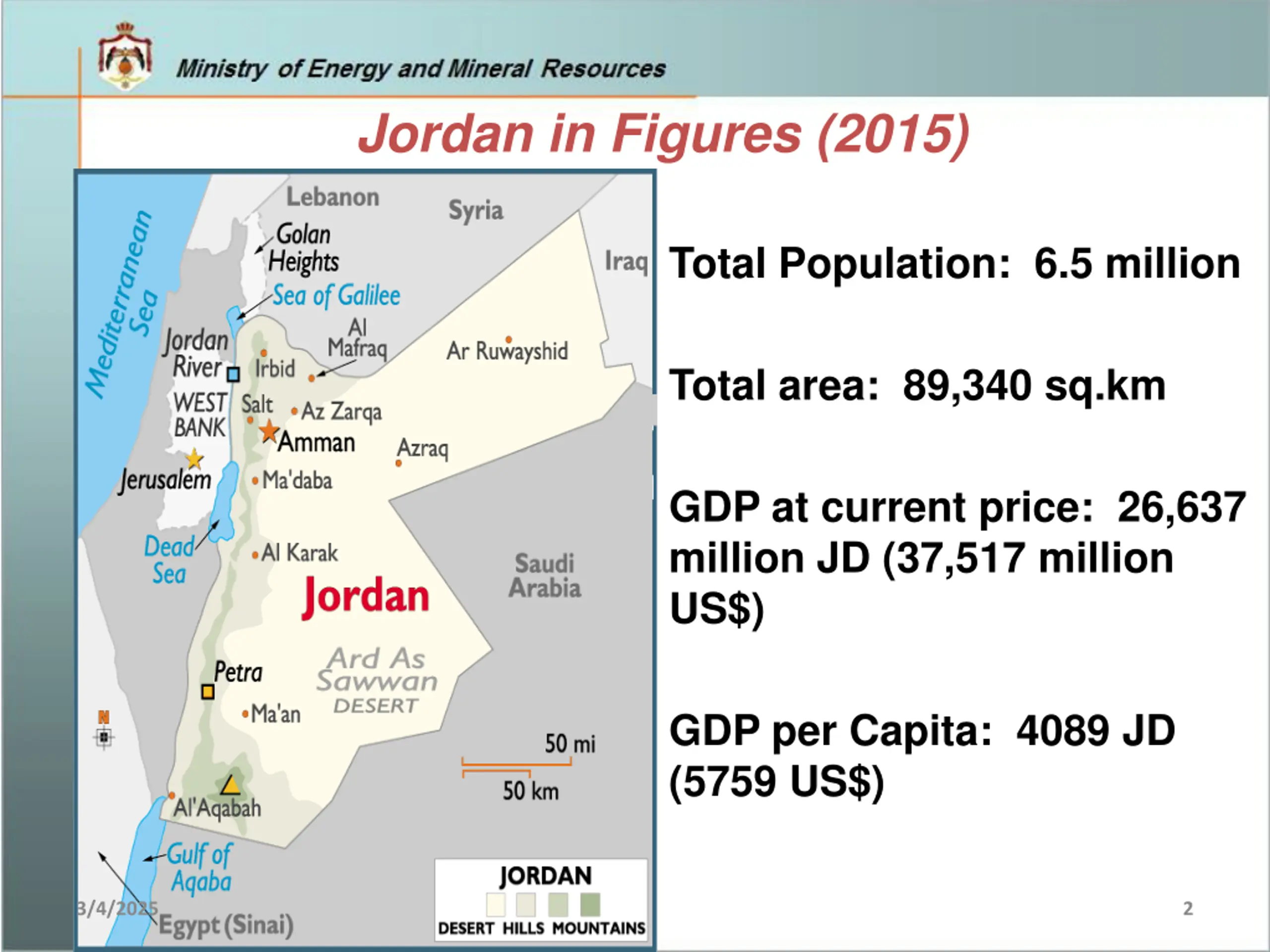

Jordan in Figures (2015) Total Population: 6.5 million Total area: 89,340 sq.km GDP at current price: 26,637 million JD (37,517 million US$) GDP per Capita: 4089 JD (5759 US$) 3/4/2025 2

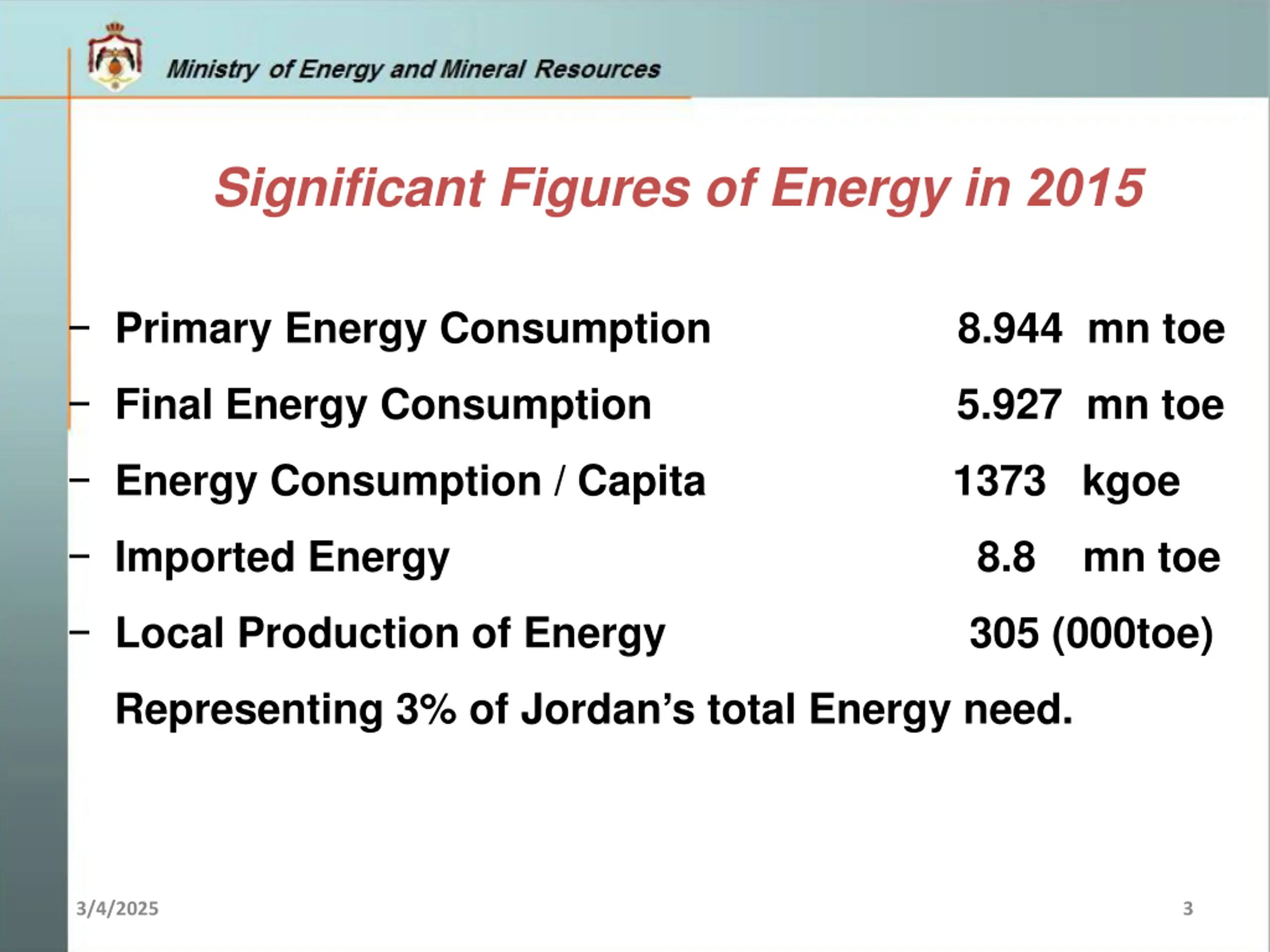

Significant Figures of Energy in 2015 Primary Energy Consumption 8.944 mn toe Final Energy Consumption 5.927 mn toe Energy Consumption / Capita 1373 kgoe Imported Energy 8.8 mn toe Local Production of Energy 305 (000toe) Representing 3% of Jordan s total Energy need. 3/4/2025 3

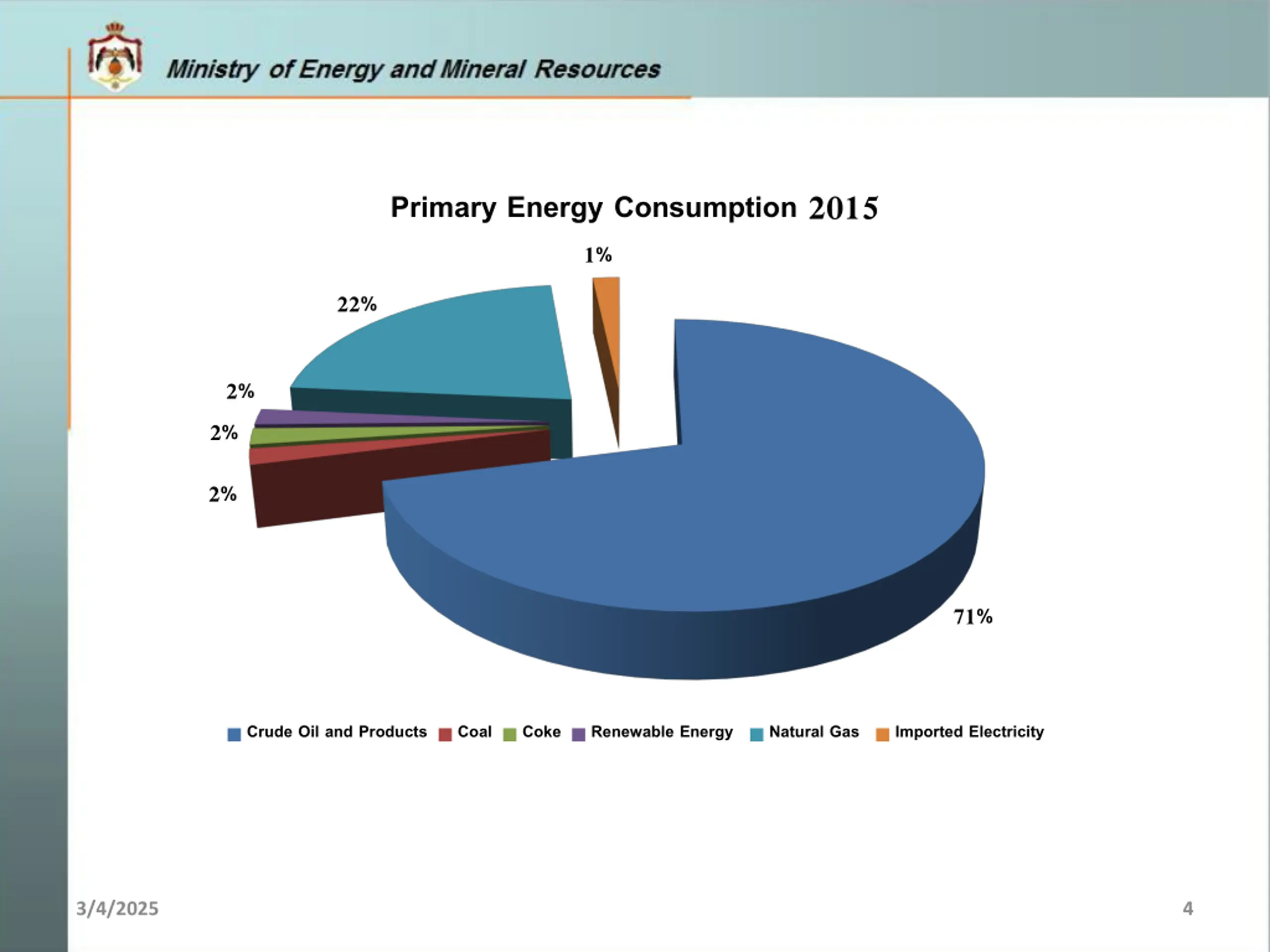

Primary Energy Consumption 2015 1% 22% 2% 2% 2% 71% Crude Oil and Products Coal Coke Renewable Energy Natural Gas Imported Electricity Ministry of Energy & Mineral Resources 3/4/2025 4

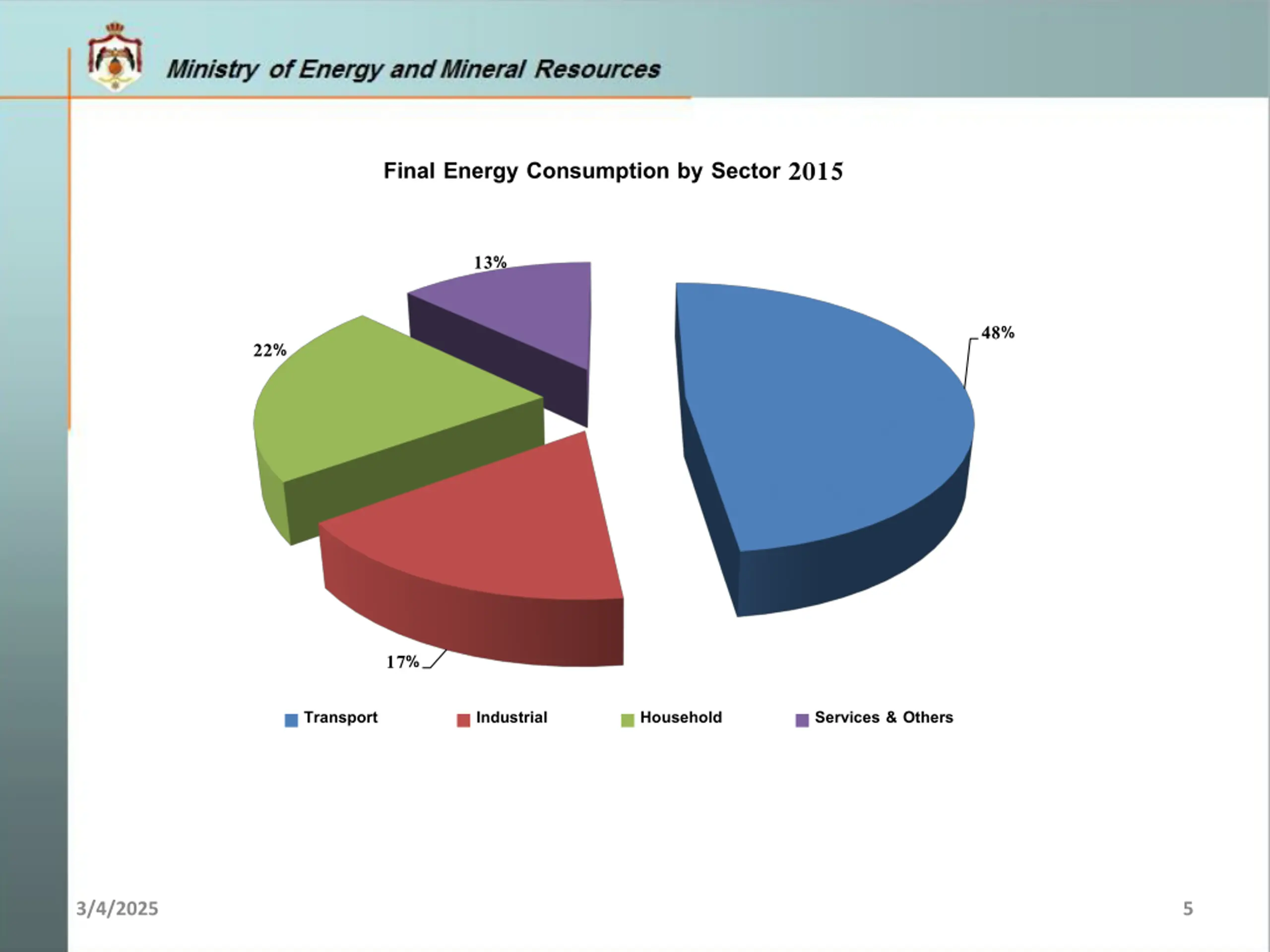

Final Energy Consumption by Sector 2015 13% 48% 22% 17% Transport Industrial Household Services & Others 3/4/2025 5

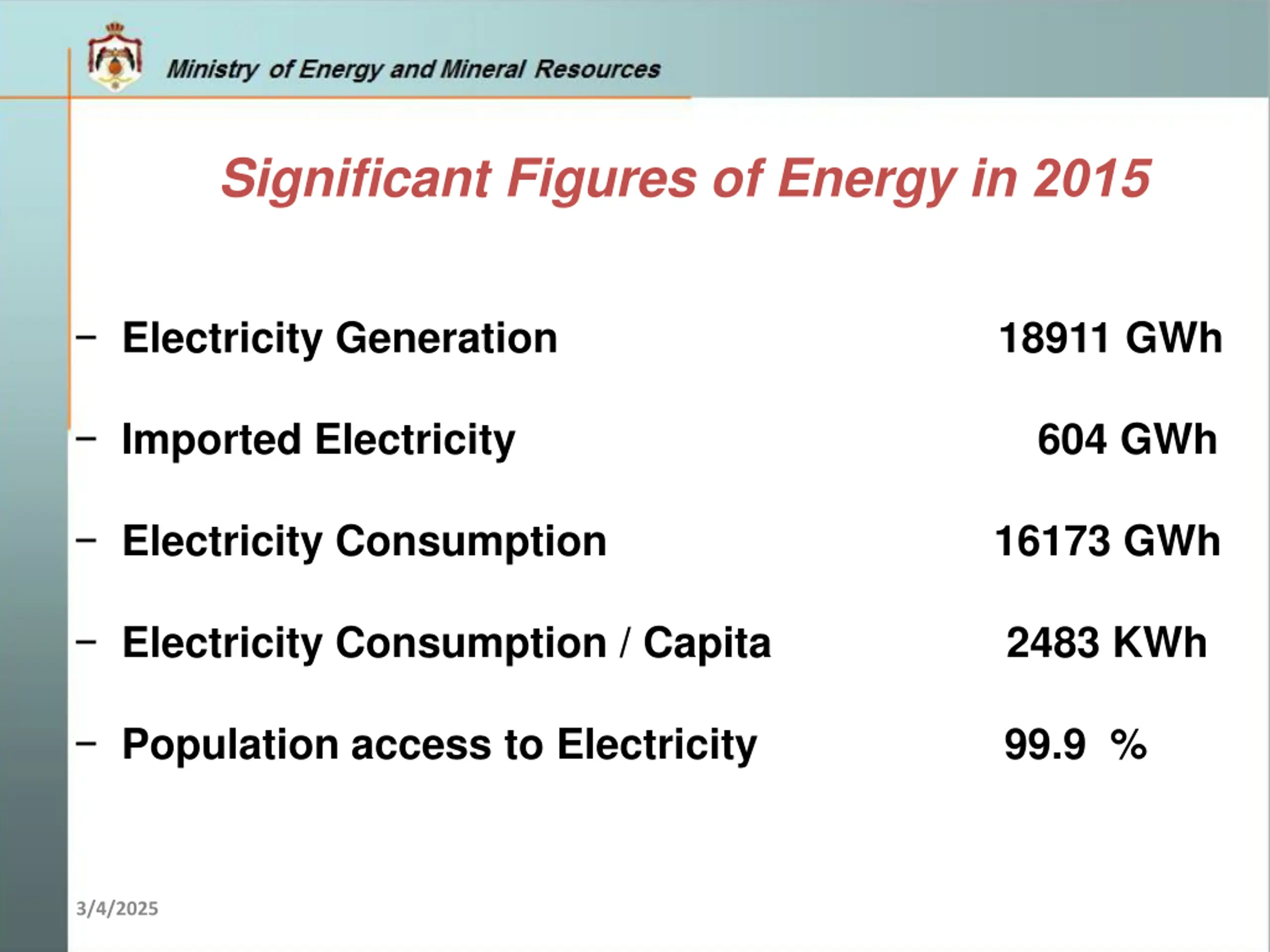

Significant Figures of Energy in 2015 Electricity Generation 18911 GWh Imported Electricity 604 GWh Electricity Consumption 16173 GWh Electricity Consumption / Capita 2483 KWh Population access to Electricity 99.9 % 3/4/2025

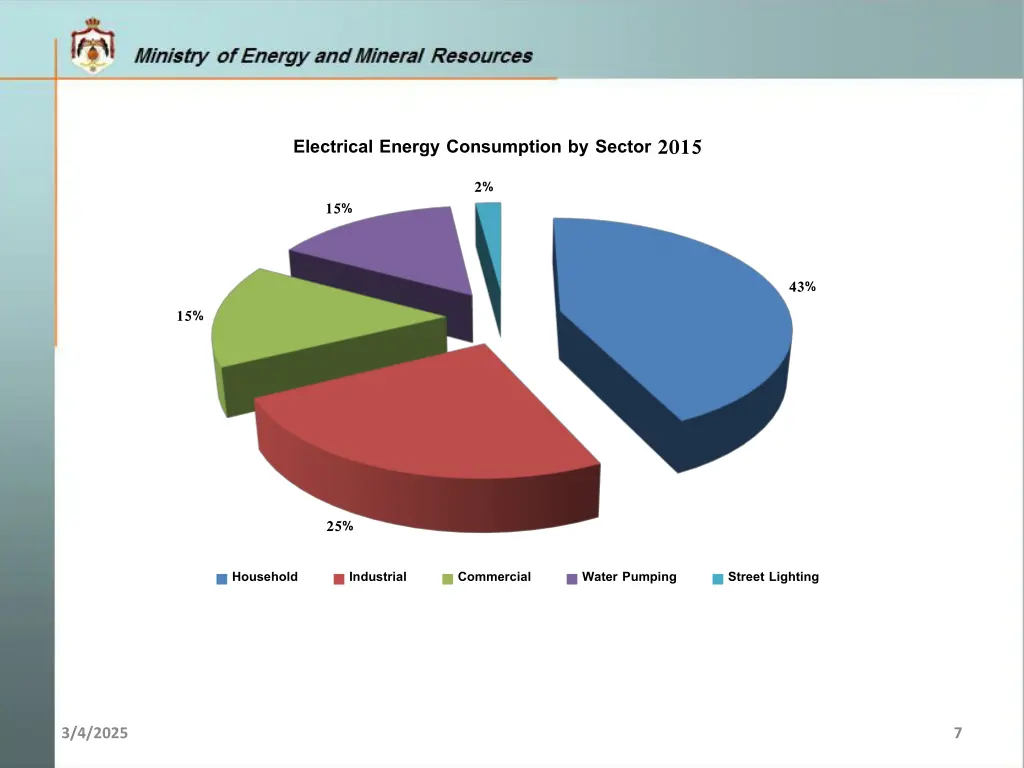

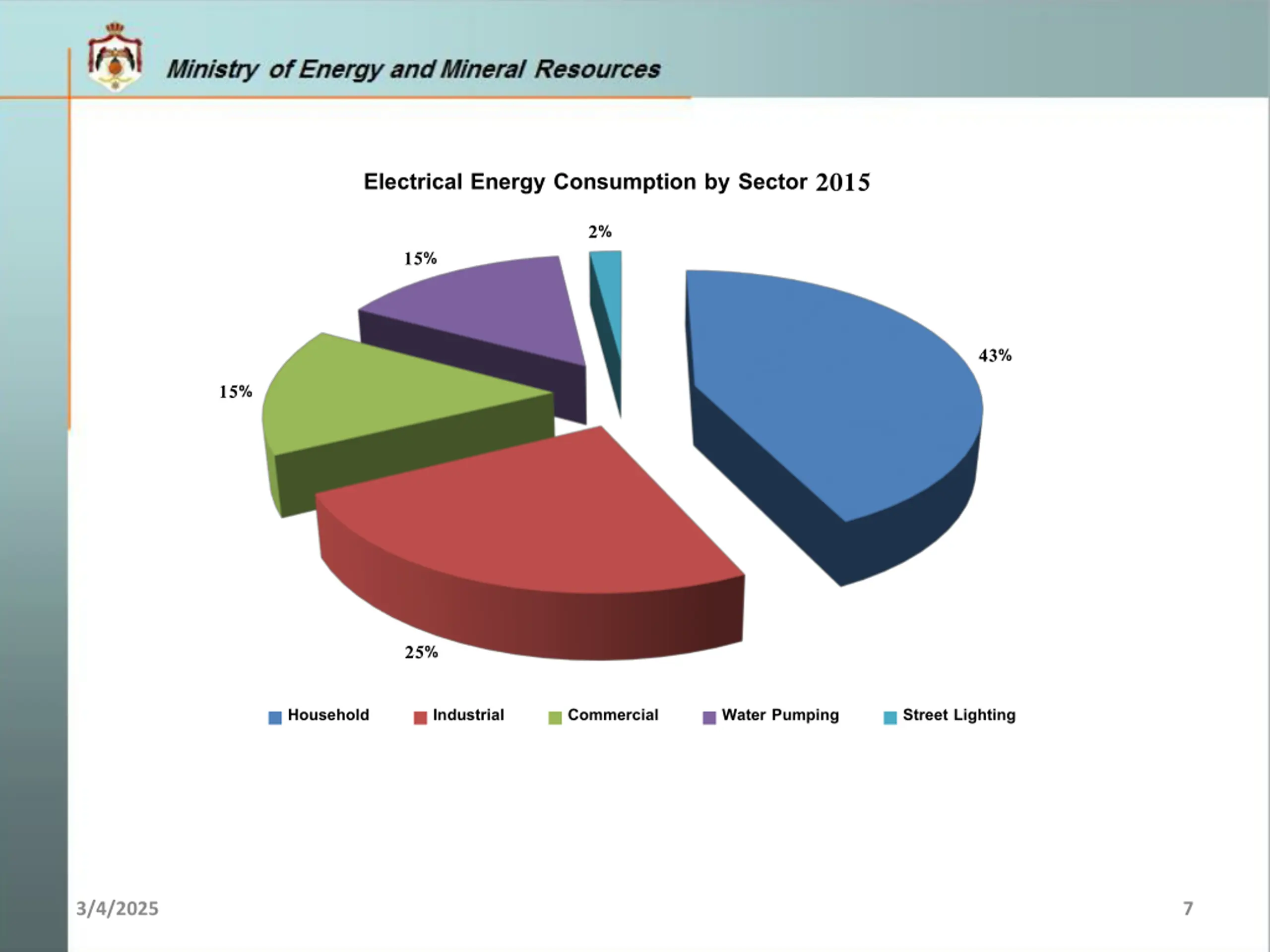

Electrical Energy Consumption by Sector 2015 2% 15% 43% 15% 25% Household Industrial Commercial Water Pumping Street Lighting 3/4/2025 7

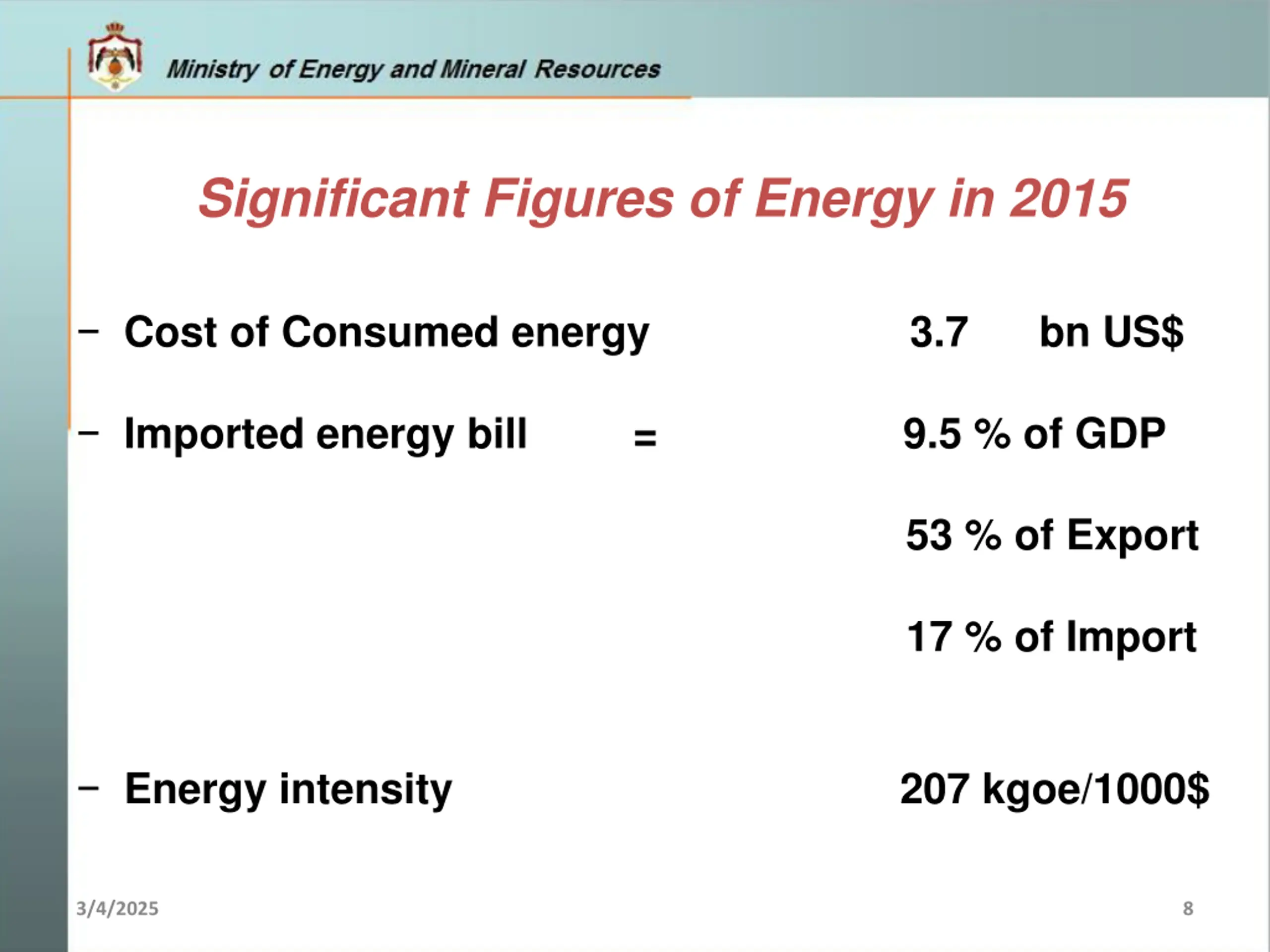

Significant Figures of Energy in 2015 Cost of Consumed energy 3.7 bn US$ Imported energy bill = 9.5 % of GDP 53 % of Export 17 % of Import Energy intensity 207 kgoe/1000$ 3/4/2025 8

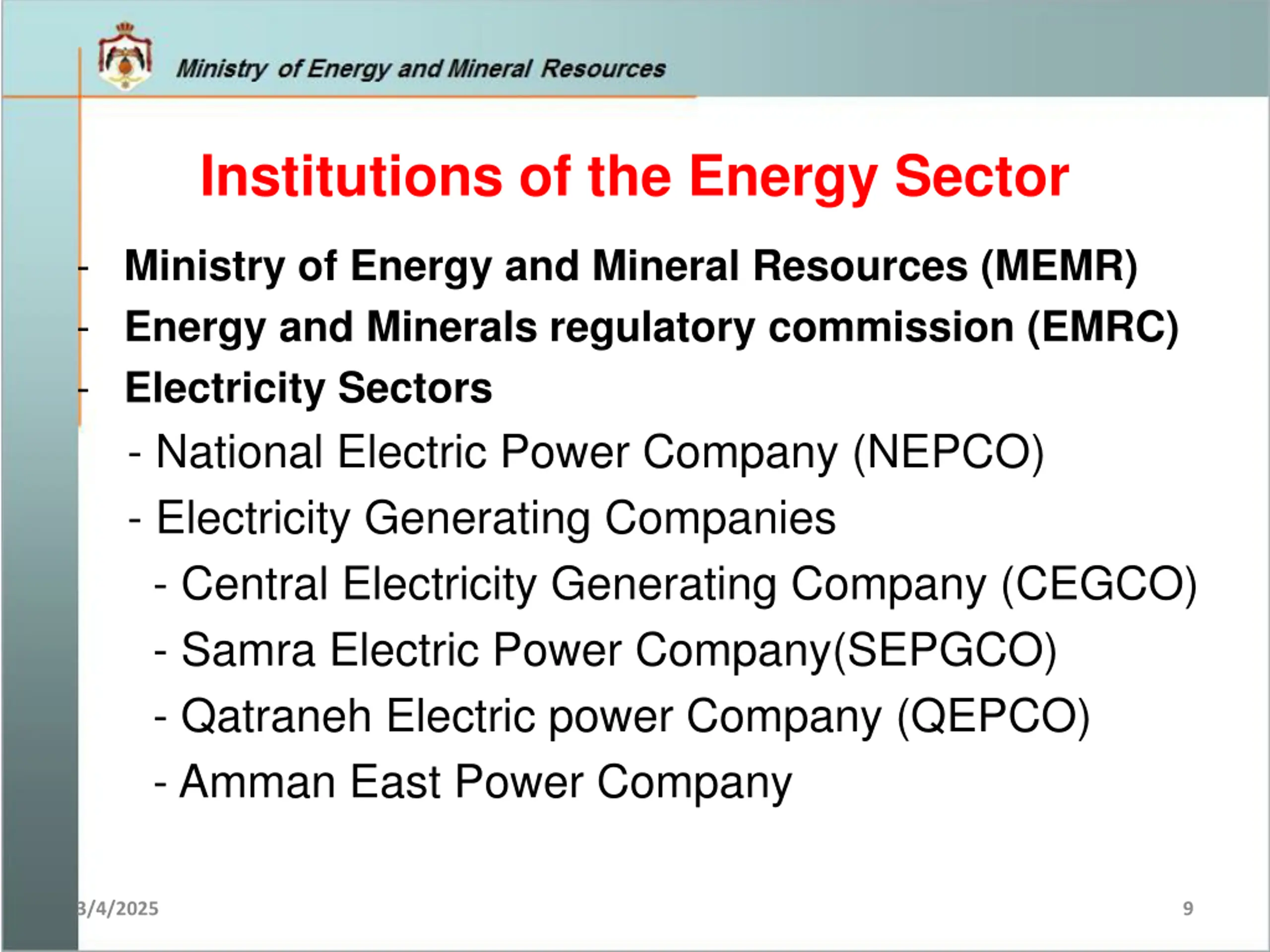

Institutions of the Energy Sector - Ministry of Energy and Mineral Resources (MEMR) - Energy and Minerals regulatory commission (EMRC) - Electricity Sectors - National Electric Power Company (NEPCO) - Electricity Generating Companies - Central Electricity Generating Company (CEGCO) - Samra Electric Power Company(SEPGCO) - Qatraneh Electric power Company (QEPCO) - Amman East Power Company 3/4/2025 9

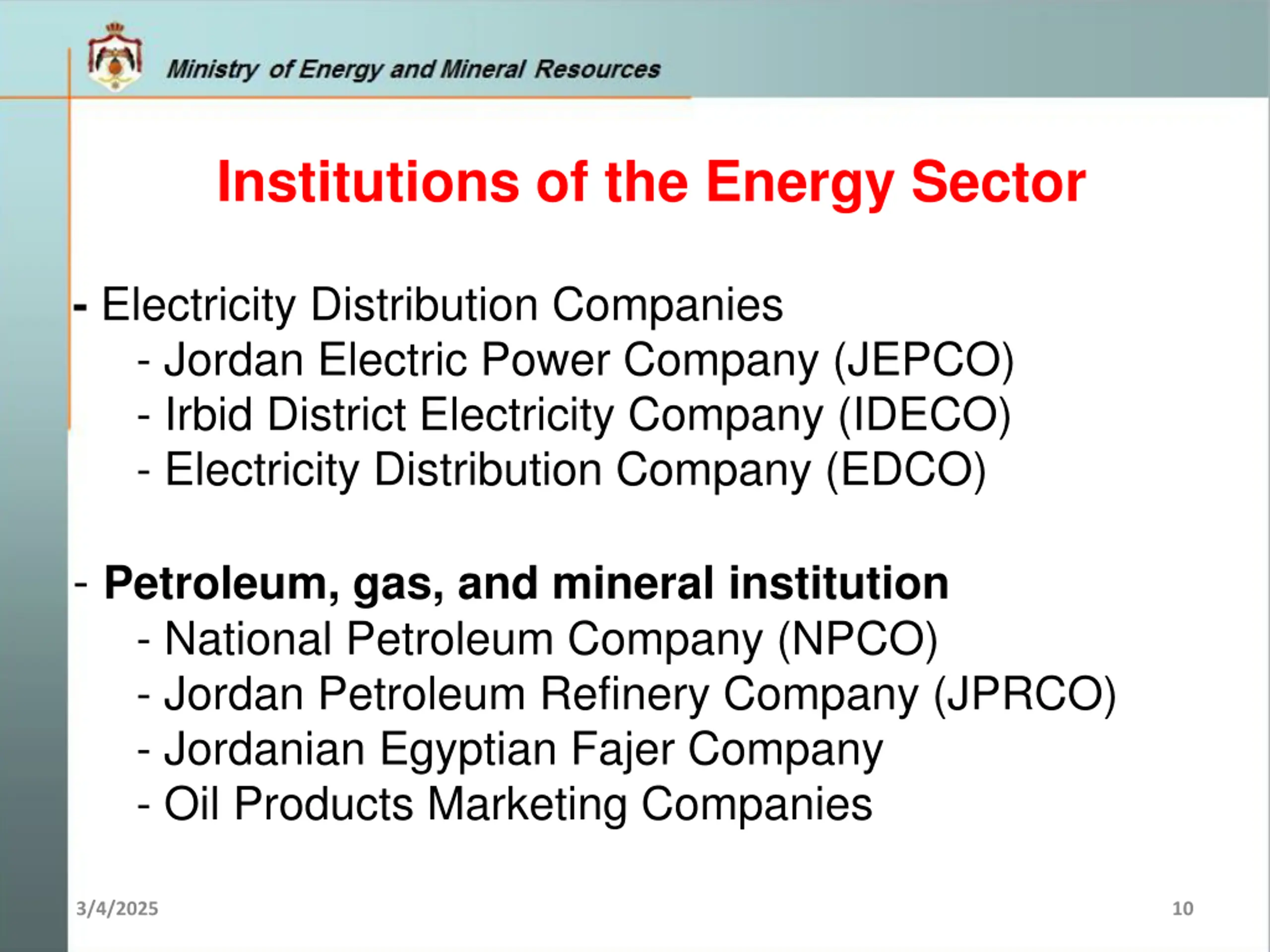

Institutions of the Energy Sector - Electricity Distribution Companies - Jordan Electric Power Company (JEPCO) - Irbid District Electricity Company (IDECO) - Electricity Distribution Company (EDCO) - Petroleum, gas, and mineral institution - National Petroleum Company (NPCO) - Jordan Petroleum Refinery Company (JPRCO) - Jordanian Egyptian Fajer Company - Oil Products Marketing Companies 3/4/2025 10

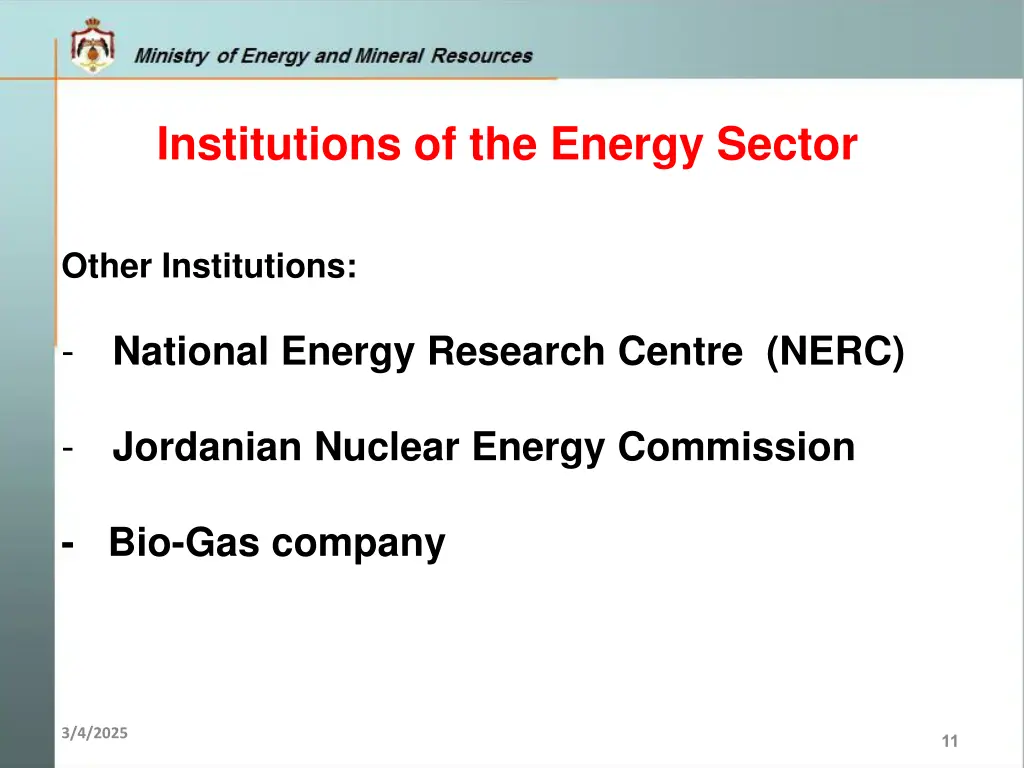

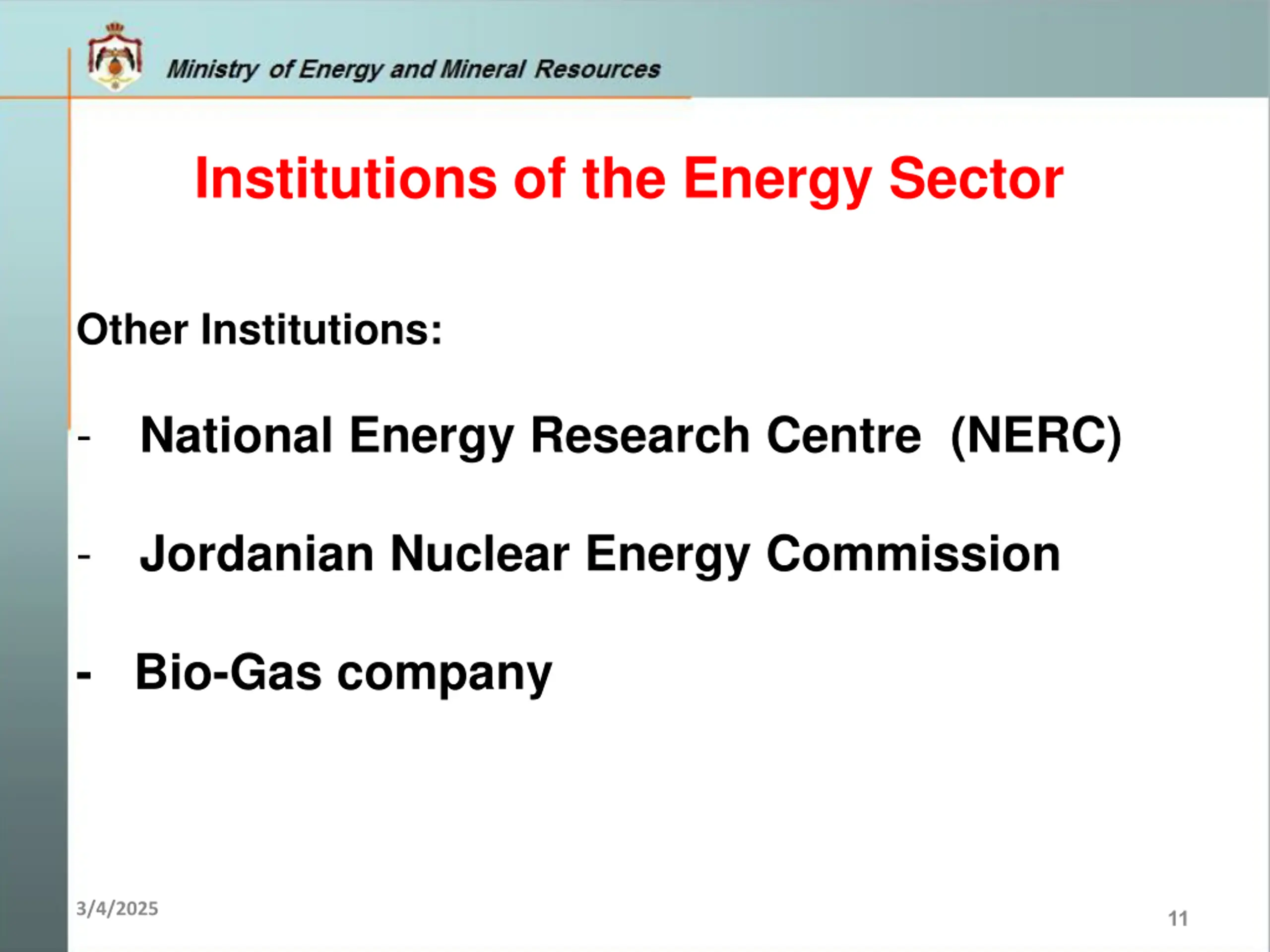

Institutions of the Energy Sector Other Institutions: - National Energy Research Centre (NERC) - Jordanian Nuclear Energy Commission - Bio-Gas company 3/4/2025 11

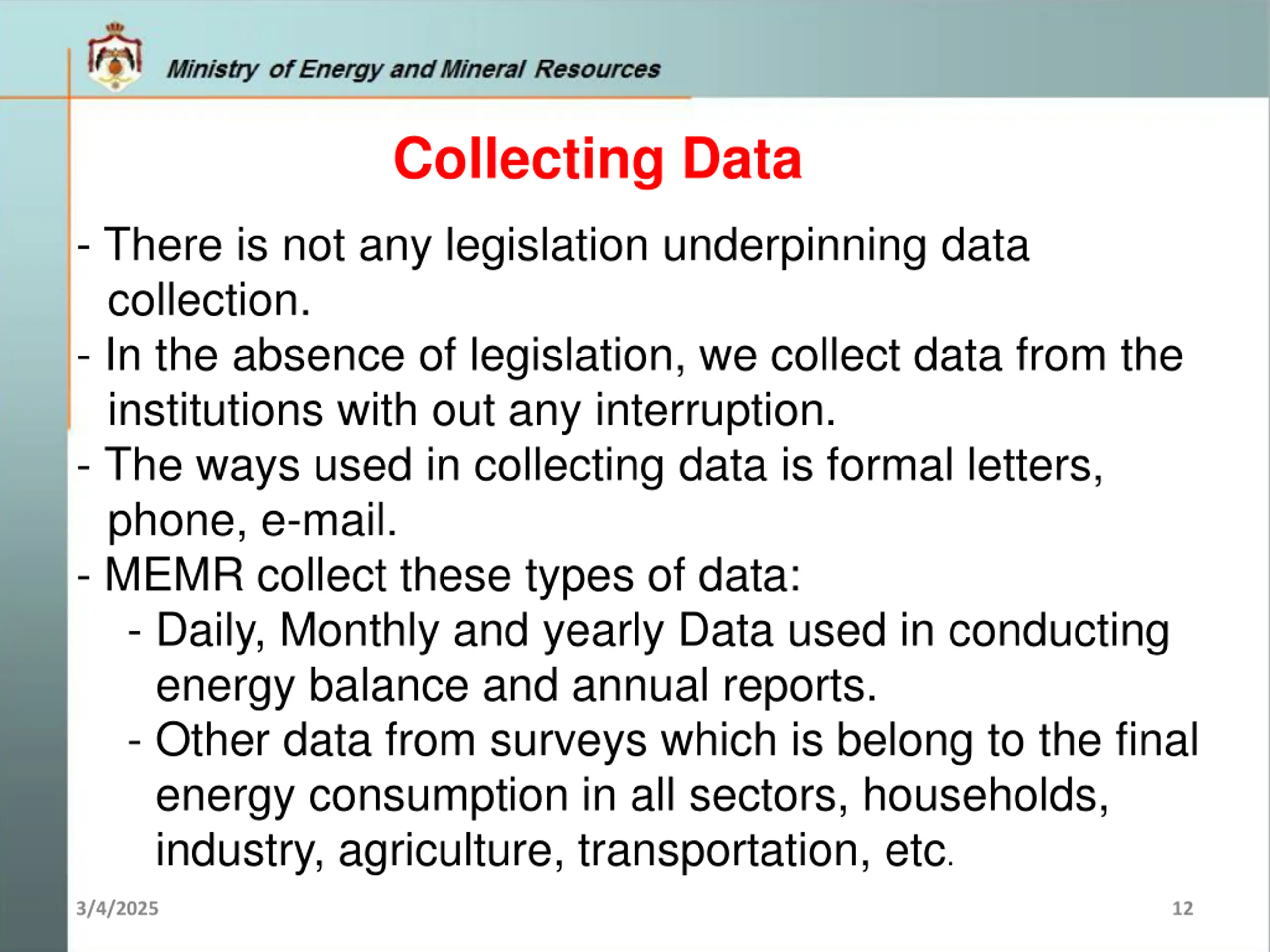

Collecting Data - There is not any legislation underpinning data collection. -In the absence of legislation, we collect data from the institutions with out any interruption. -The ways used in collecting data is formal letters, phone, e-mail. - MEMR collect these types of data: - Daily, Monthly and yearly Data used in conducting energy balance and annual reports. - Other data from surveys which is belong to the final energyconsumption in all sectors, households, industry,agriculture, transportation, etc. 3/4/2025 12

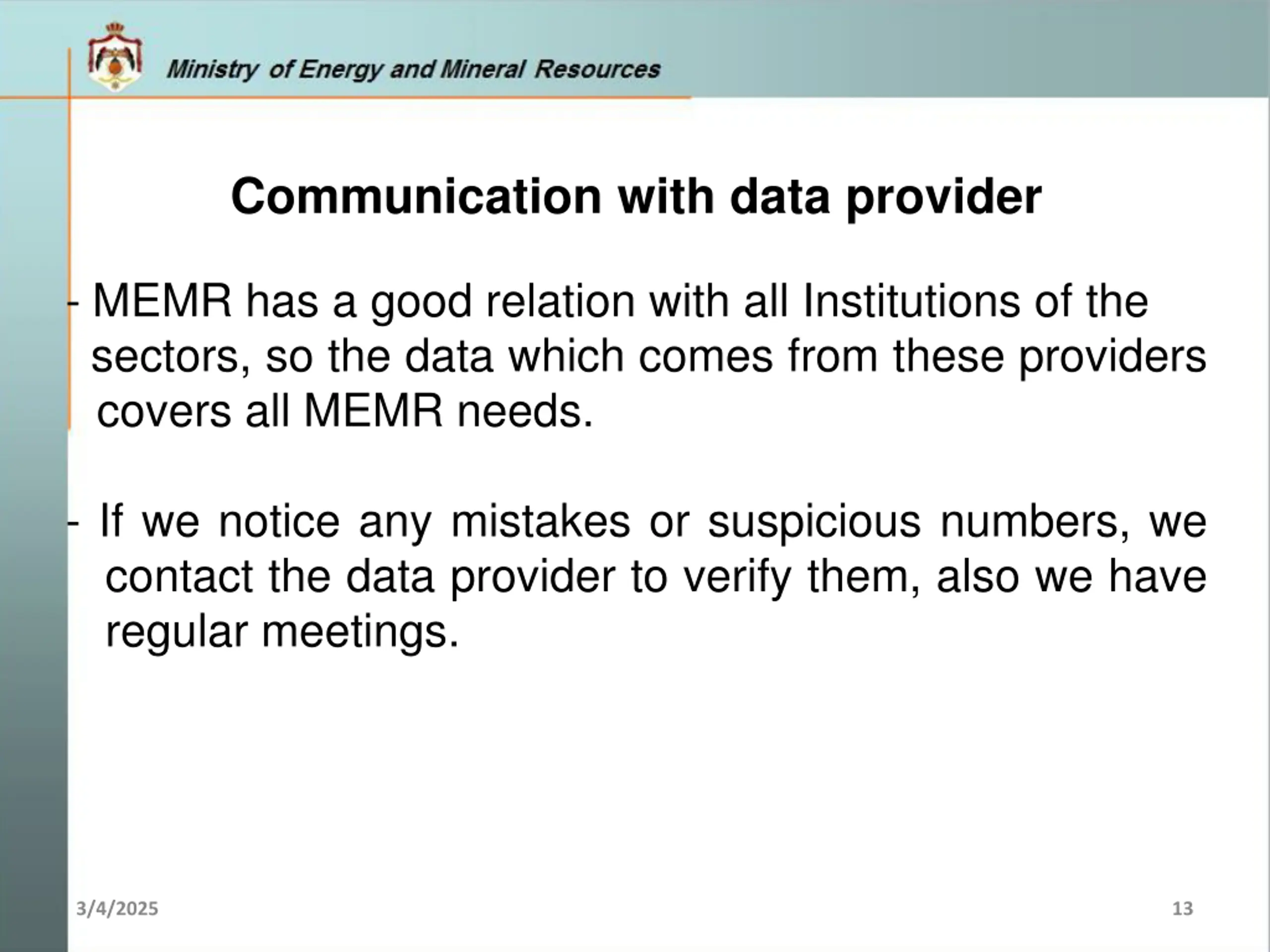

Communication with data provider - MEMR has a good relation with all Institutions of the sectors, so the data which comes from these providers covers all MEMR needs. - If we notice any mistakes or suspicious numbers, we contact the data provider to verify them, also we have regular meetings. 3/4/2025 13

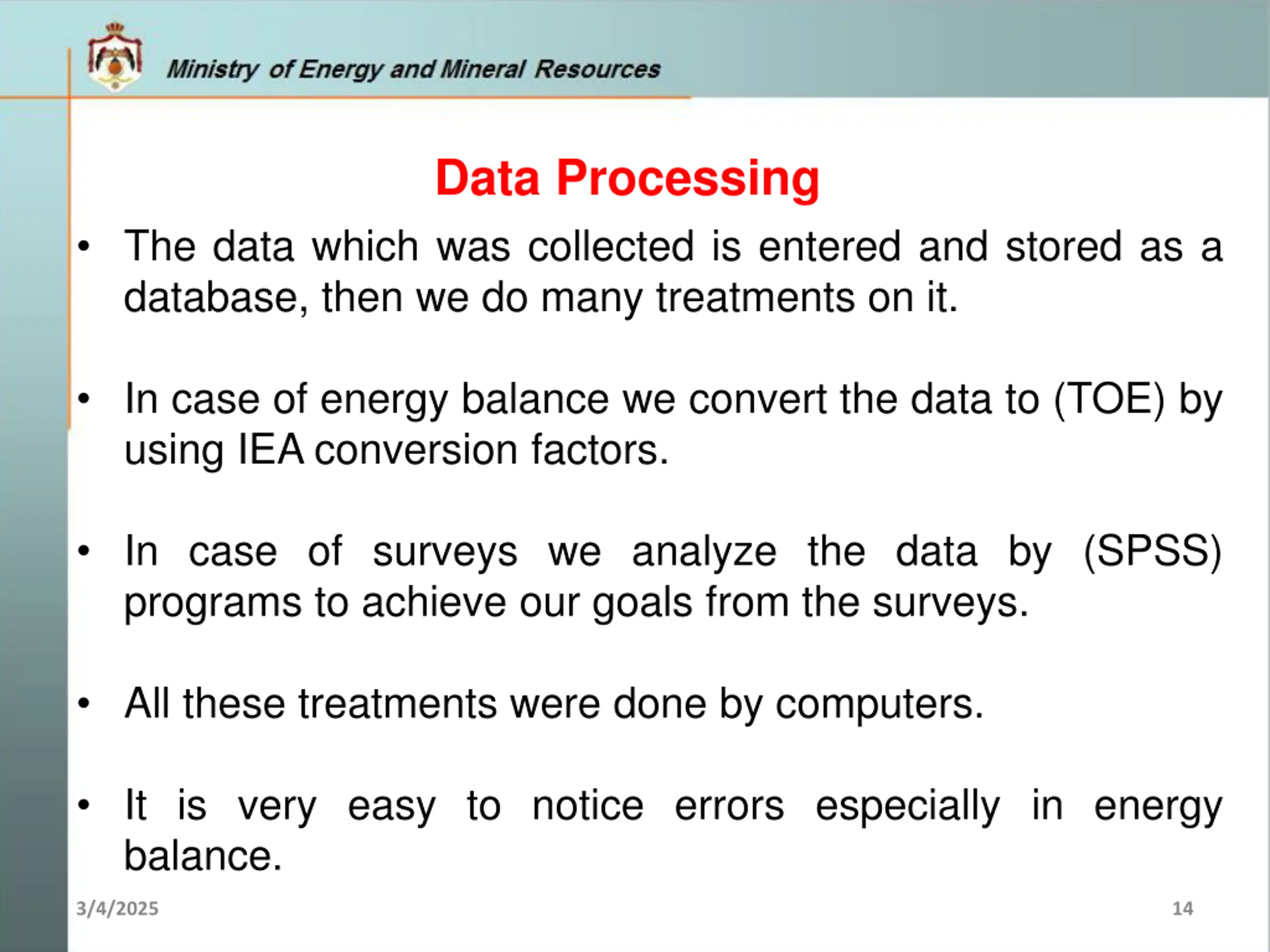

Data Processing The data which was collected is entered and stored as a database, then we do many treatments on it. In case of energy balance we convert the data to (TOE) by using IEA conversion factors. In case of surveys we analyze the data by (SPSS) programs to achieve our goals from the surveys. All these treatments were done by computers. It is very easy to notice errors especially in energy balance. 3/4/2025 14

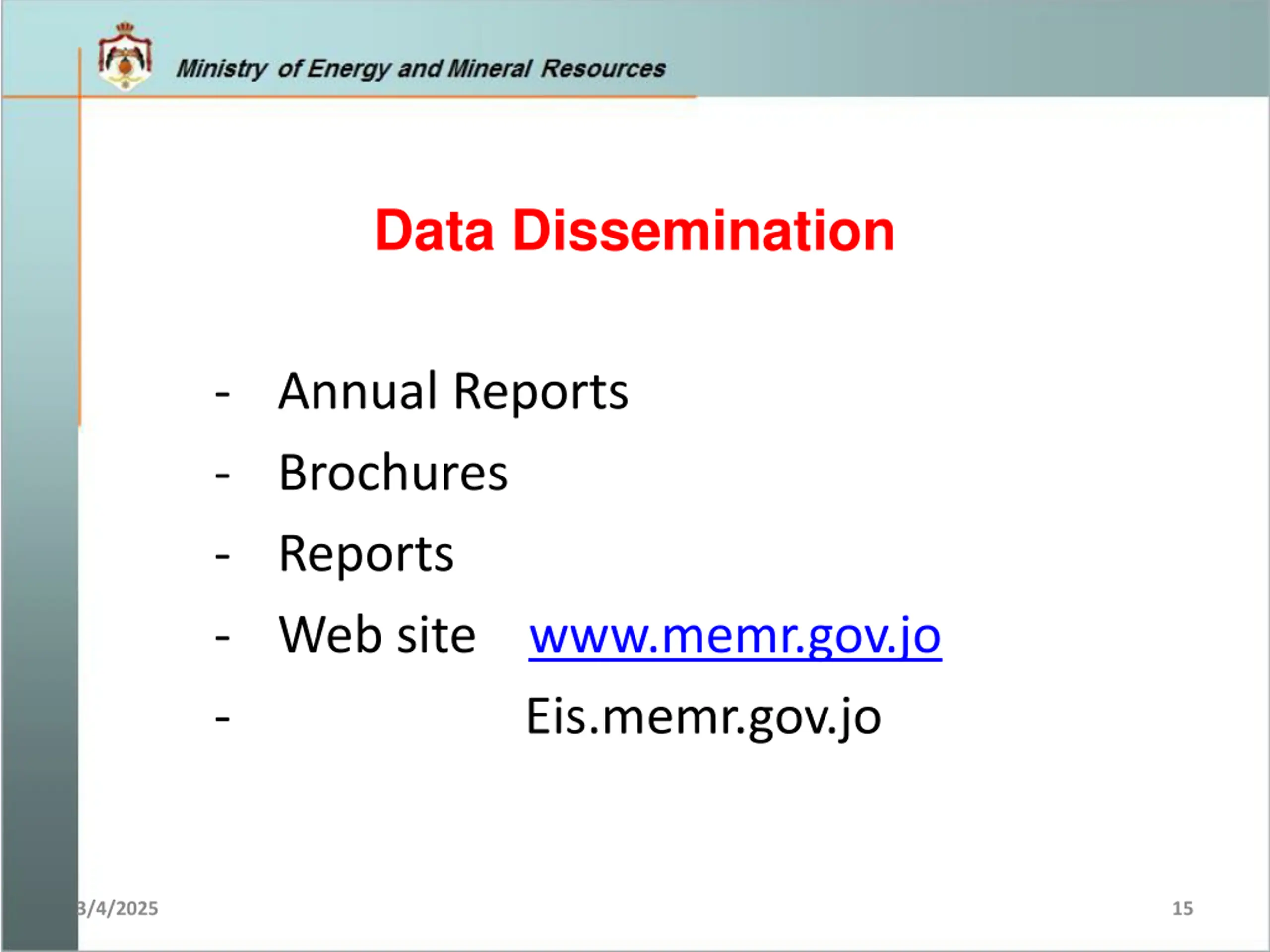

Data Dissemination - Annual Reports - Brochures - Reports - Web site www.memr.gov.jo - Eis.memr.gov.jo 3/4/2025 15

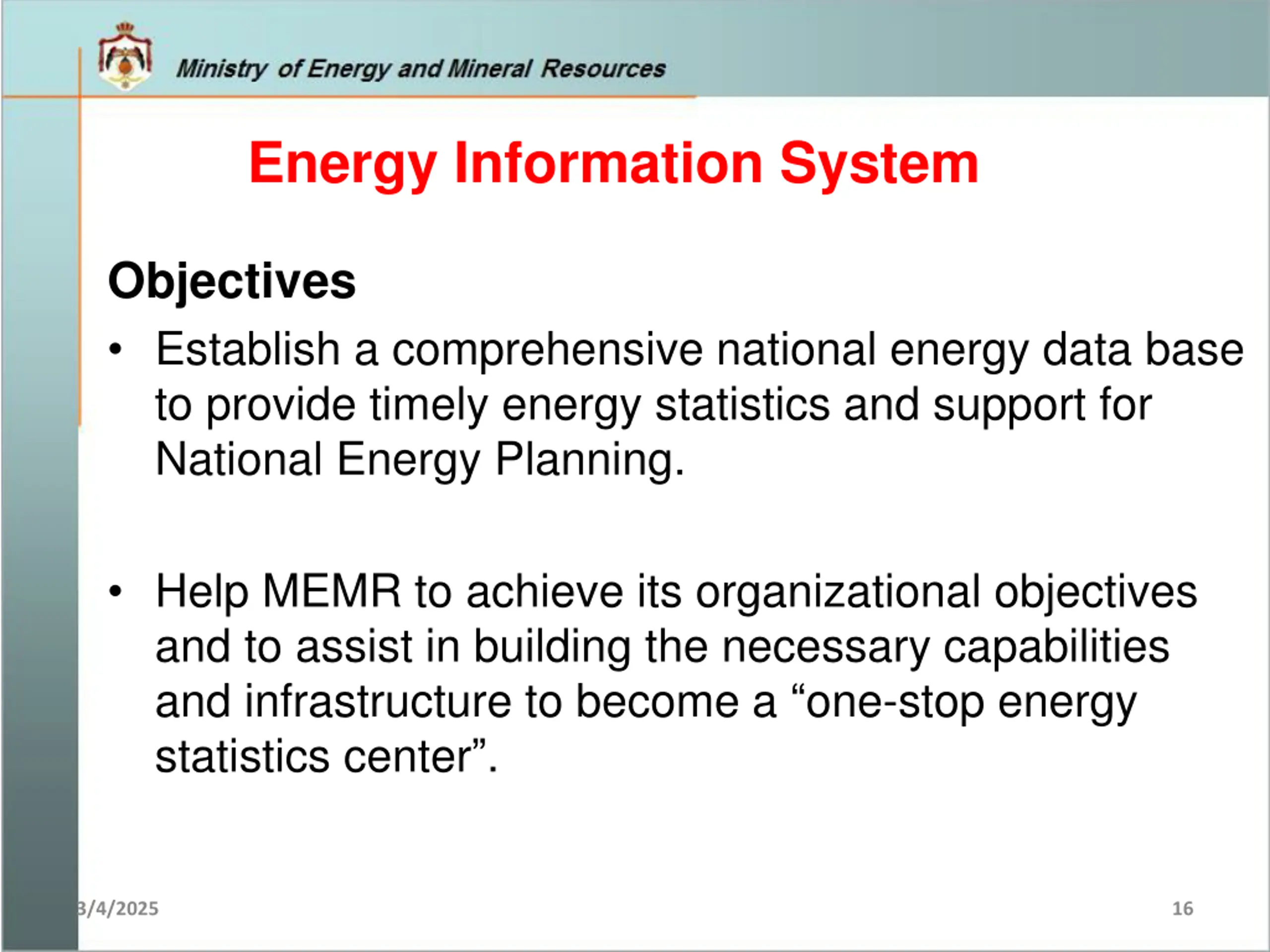

Energy Information System Objectives Establish a comprehensive national energy data base to provide timely energy statistics and support for National Energy Planning. Help MEMR to achieve its organizational objectives and to assist in building the necessary capabilities and infrastructure to become a one-stop energy statistics center . 3/4/2025 16

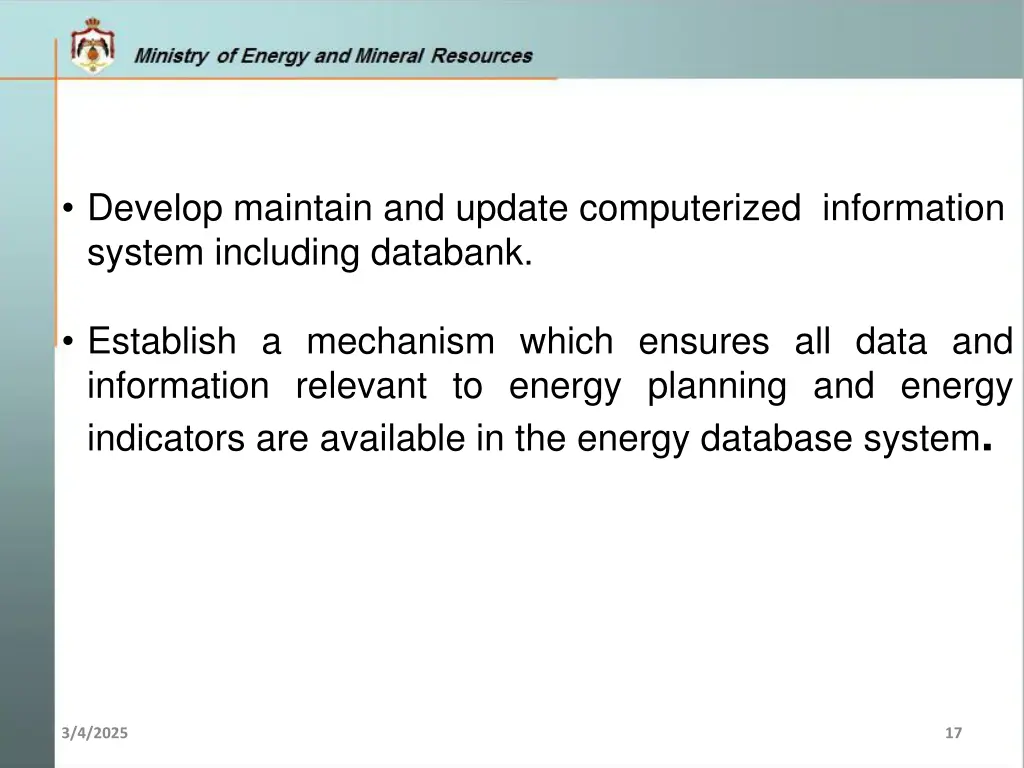

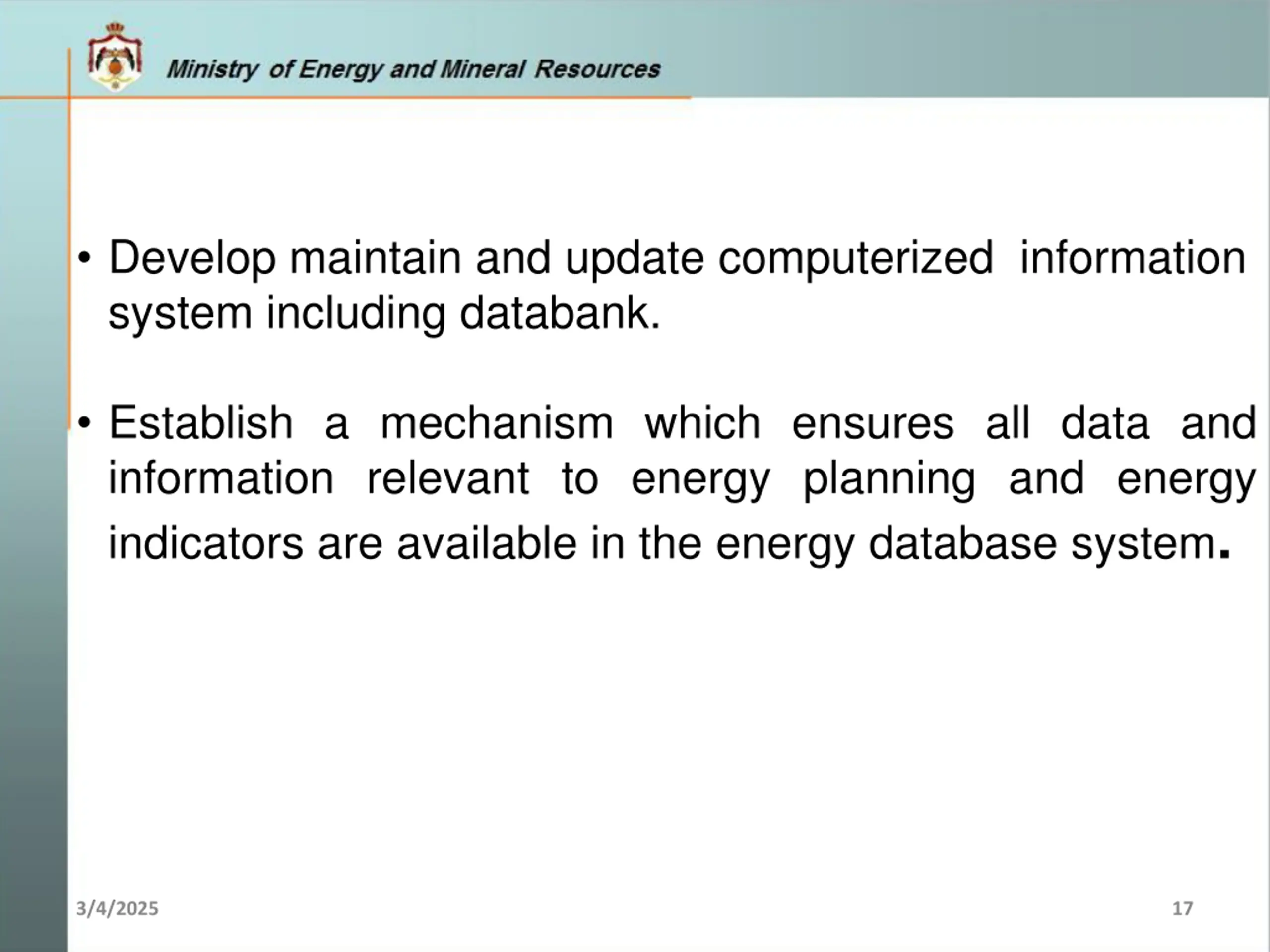

Develop maintain and update computerized information system including databank. Establish a mechanism which ensures all data and information relevant to energy planning and energy indicators are available in the energy database system. 3/4/2025 17

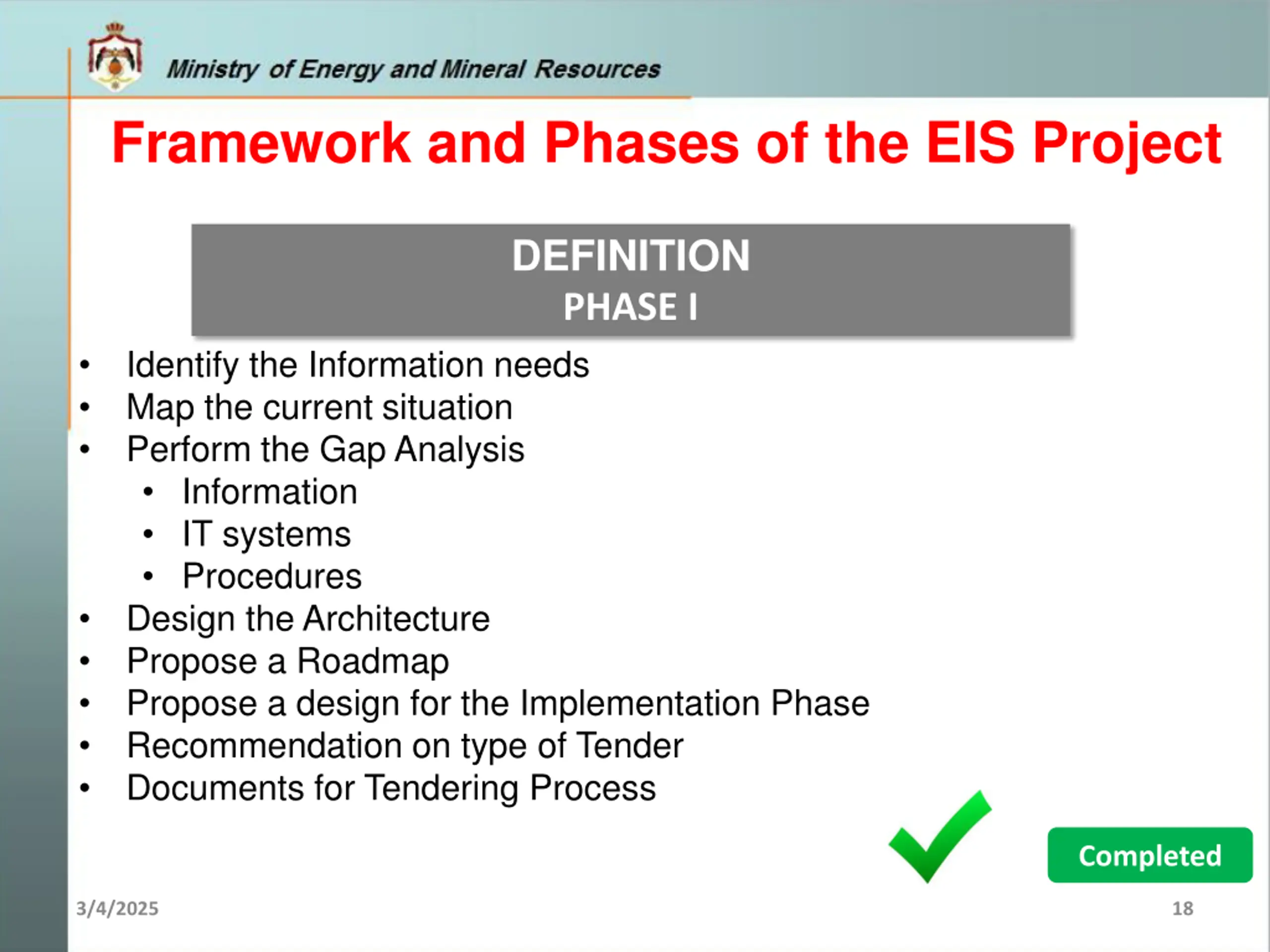

Framework and Phases of the EIS Project DEFINITION PHASE I Identify the Information needs Map the current situation Perform the Gap Analysis Information IT systems Procedures Design the Architecture Propose a Roadmap Propose a design for the Implementation Phase Recommendation on type of Tender Documents for Tendering Process https://encrypted-tbn3.gstatic.com/images?q=tbn:ANd9GcQASU0GfCEKaK2Nk0PwVFeEUSqY_LVfO4iNGRH8C4wyzpvxMN-QMQ Completed 3/4/2025 18

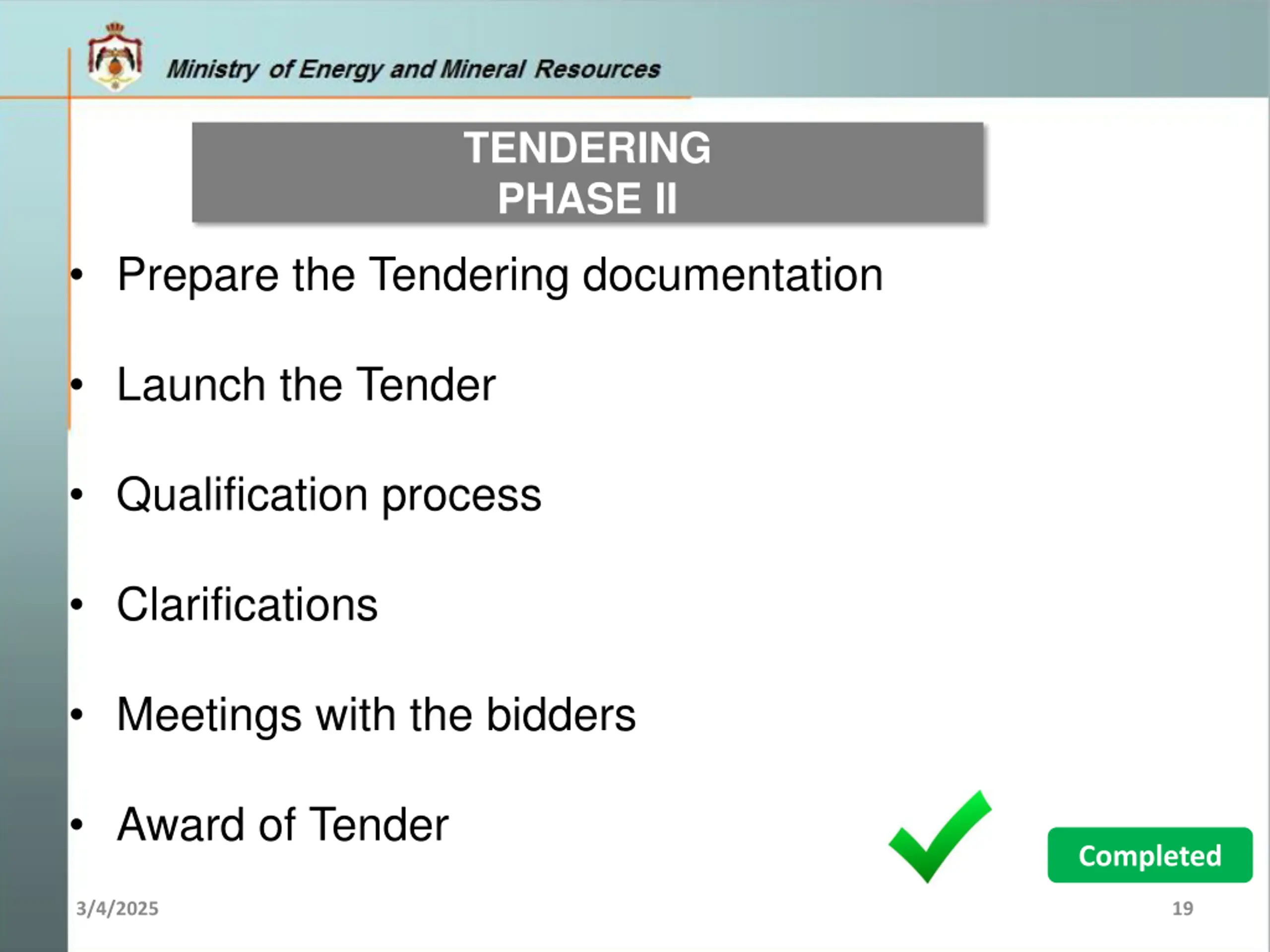

TENDERING PHASE II Prepare the Tendering documentation Launch the Tender Qualification process Clarifications Meetings with the bidders https://encrypted-tbn3.gstatic.com/images?q=tbn:ANd9GcQASU0GfCEKaK2Nk0PwVFeEUSqY_LVfO4iNGRH8C4wyzpvxMN-QMQ Award of Tender Completed 3/4/2025 19

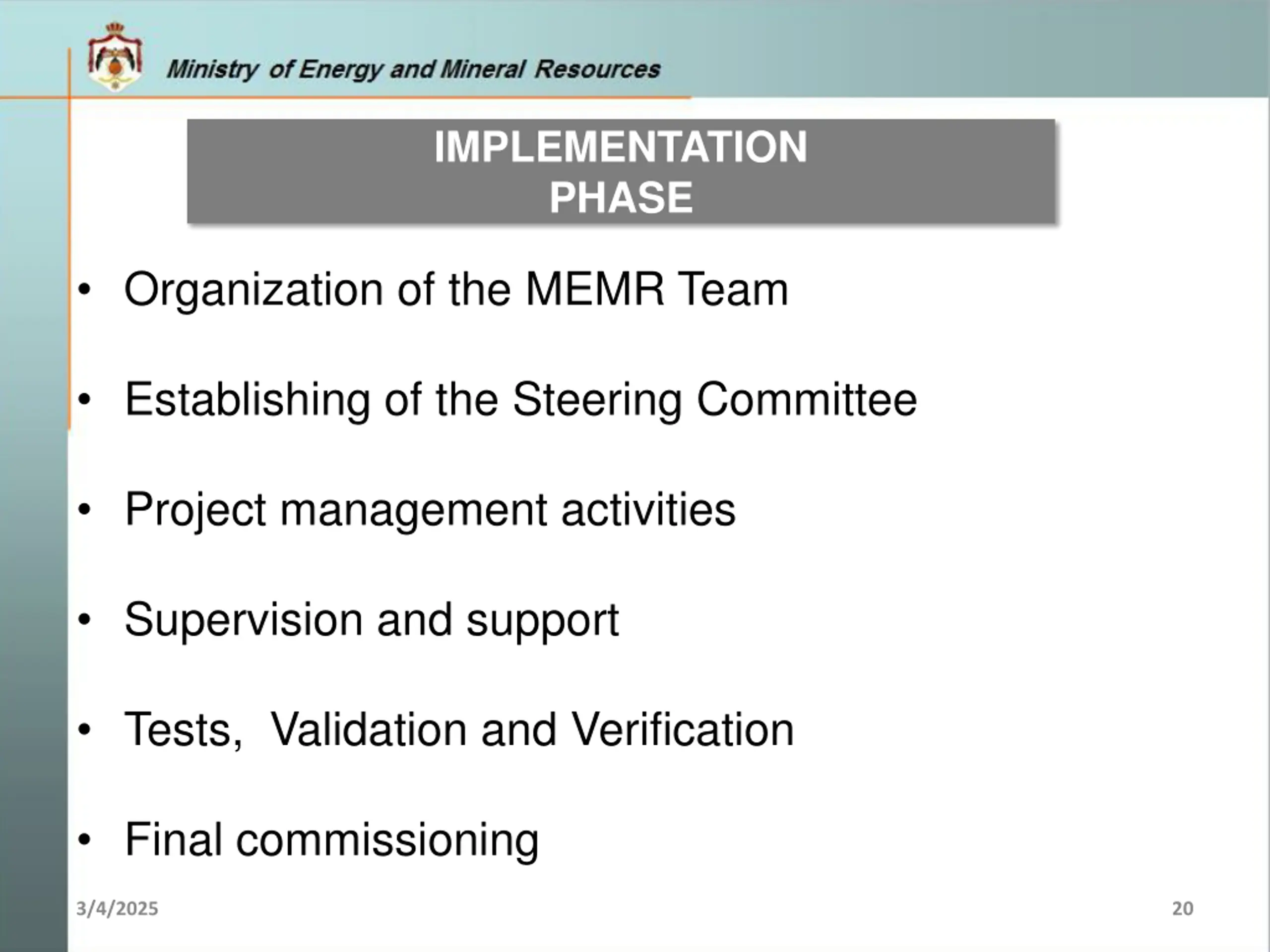

IMPLEMENTATION PHASE Organization of the MEMR Team Establishing of the Steering Committee Project management activities Supervision and support Tests, Validation and Verification Final commissioning 3/4/2025 20

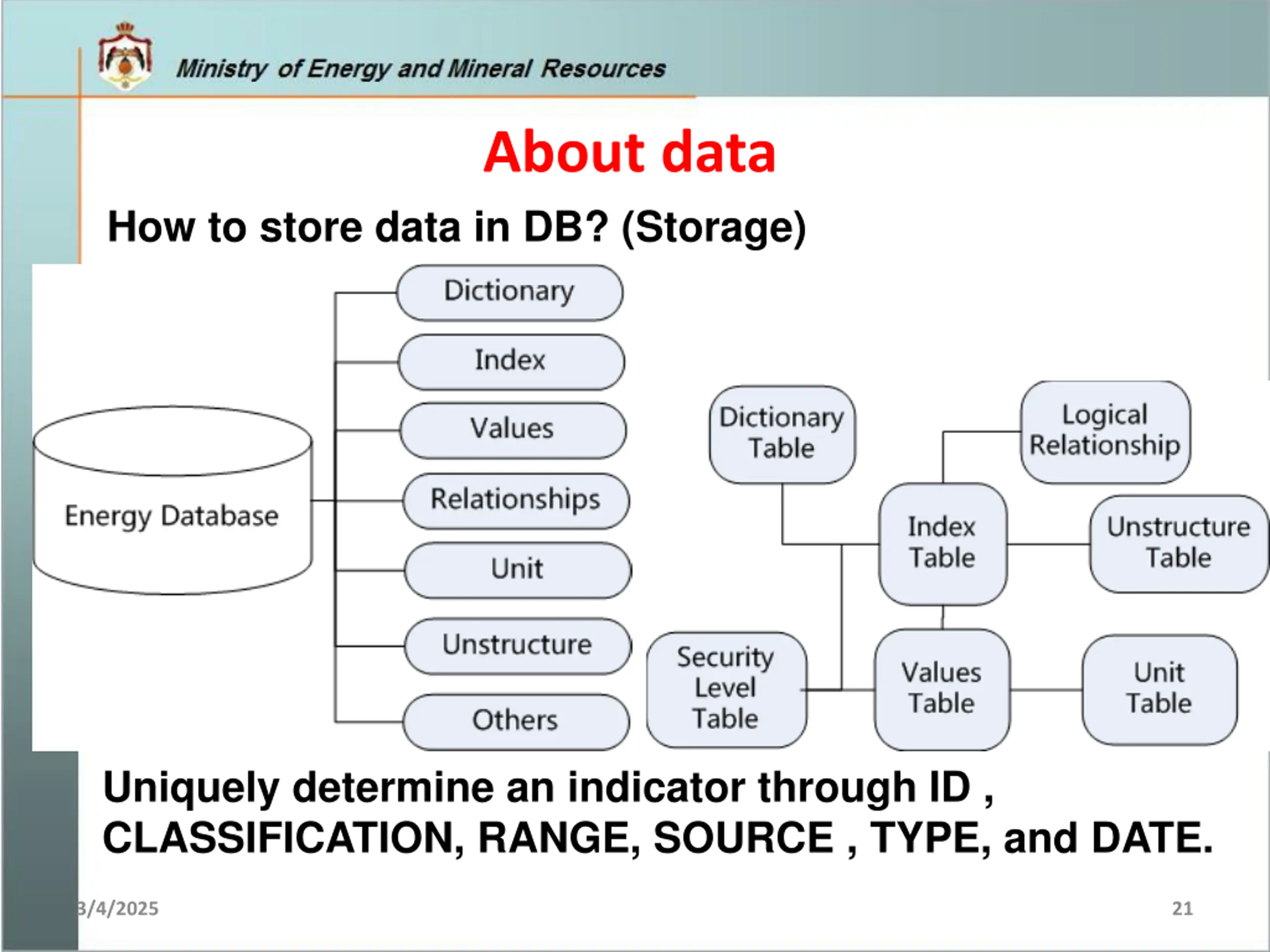

About data How to store data in DB? (Storage) Uniquely determine an indicator through ID , CLASSIFICATION, RANGE, SOURCE , TYPE, and DATE. 3/4/2025 21

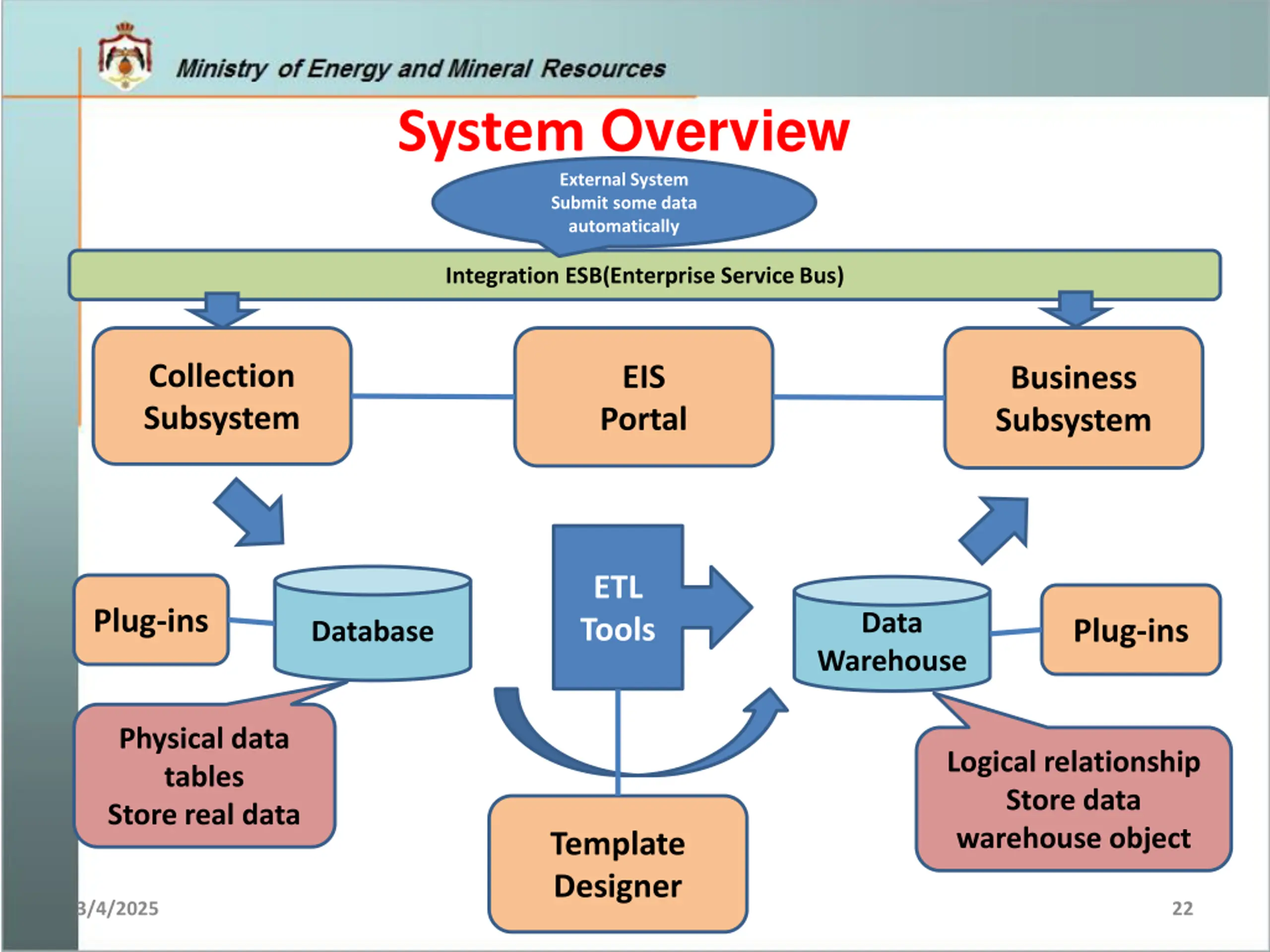

System Overview External System Submit some data automatically Integration ESB(Enterprise Service Bus) Collection Subsystem EIS Business Subsystem Portal ETL Tools Plug-ins Data Plug-ins Database Warehouse Physical data tables Store real data Logical relationship Store data warehouse object Template Designer 3/4/2025 22

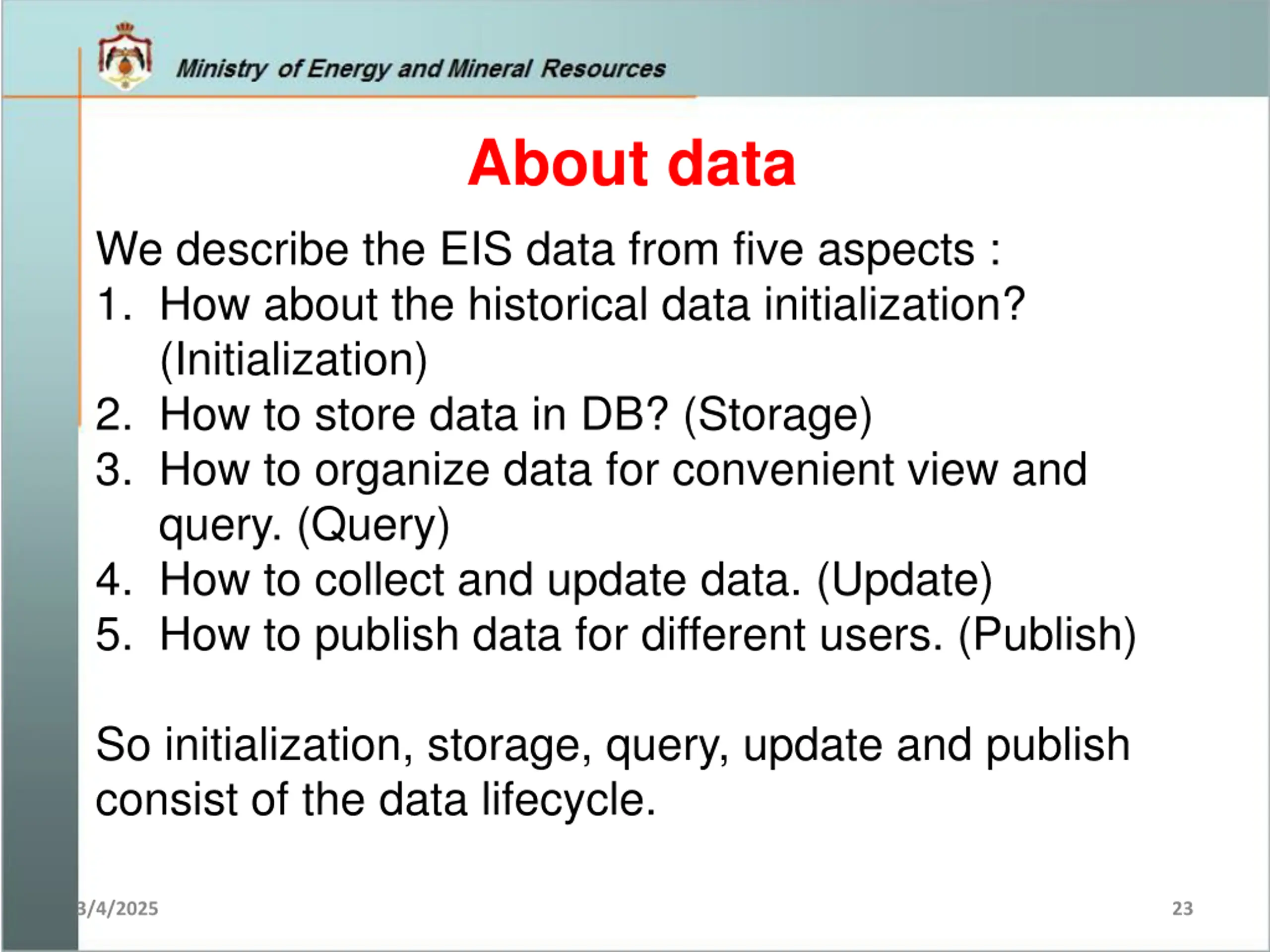

About data We describe the EIS data from five aspects : 1. How about the historical data initialization? (Initialization) 2. How to store data in DB? (Storage) 3. How to organize data for convenient view and query. (Query) 4. How to collect and update data. (Update) 5. How to publish data for different users. (Publish) So initialization, storage, query, update and publish consist of the data lifecycle. 3/4/2025 23

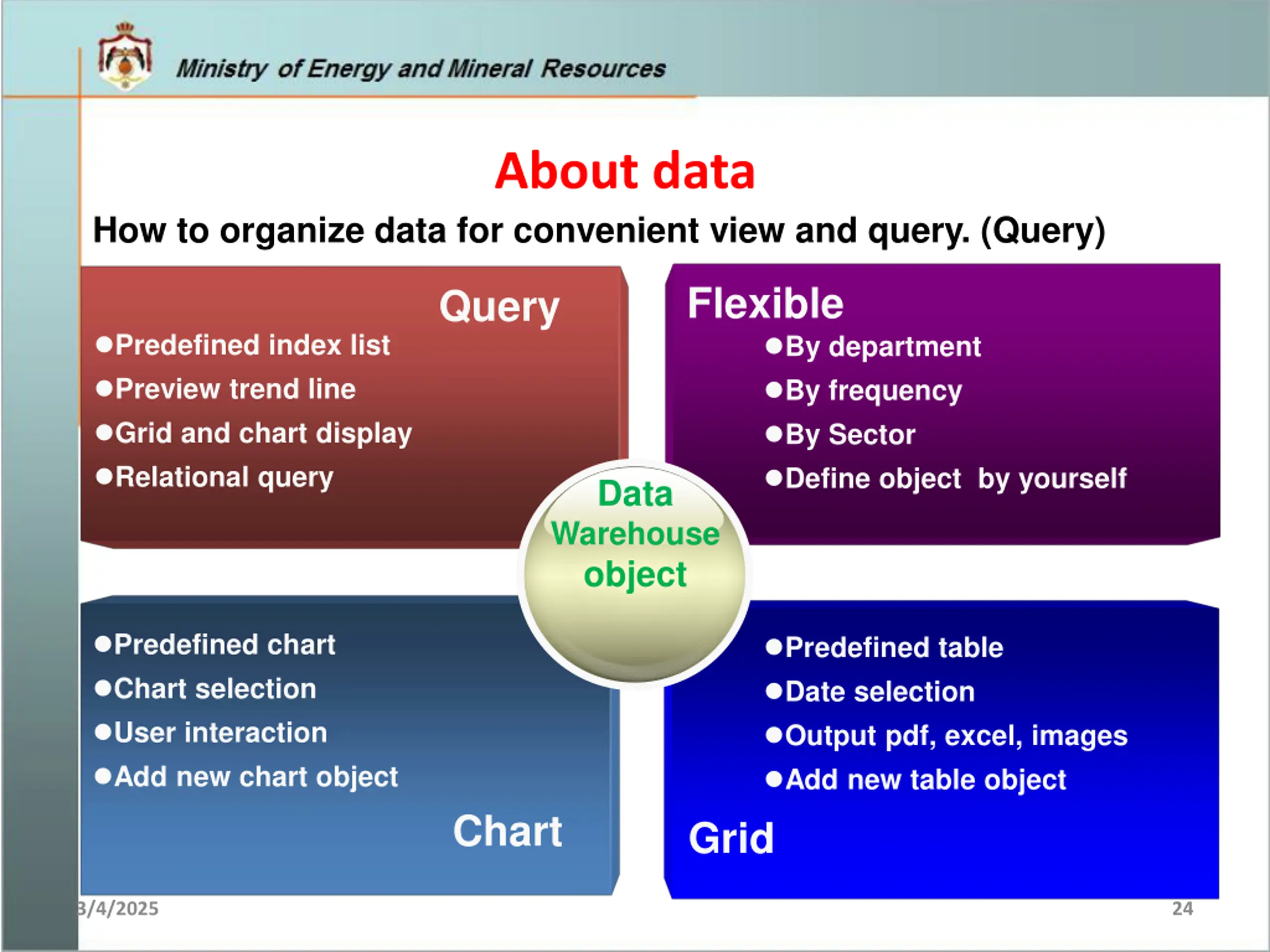

About data How to organize data for convenient view and query. (Query) Flexible By department By frequency By Sector Define object by yourself Query Predefined index list Preview trend line Grid and chart display Relational query Data Warehouse object Predefined chart Chart selection User interaction Add new chart object Predefined table Date selection Output pdf, excel, images Add new table object Chart Grid 3/4/2025 24

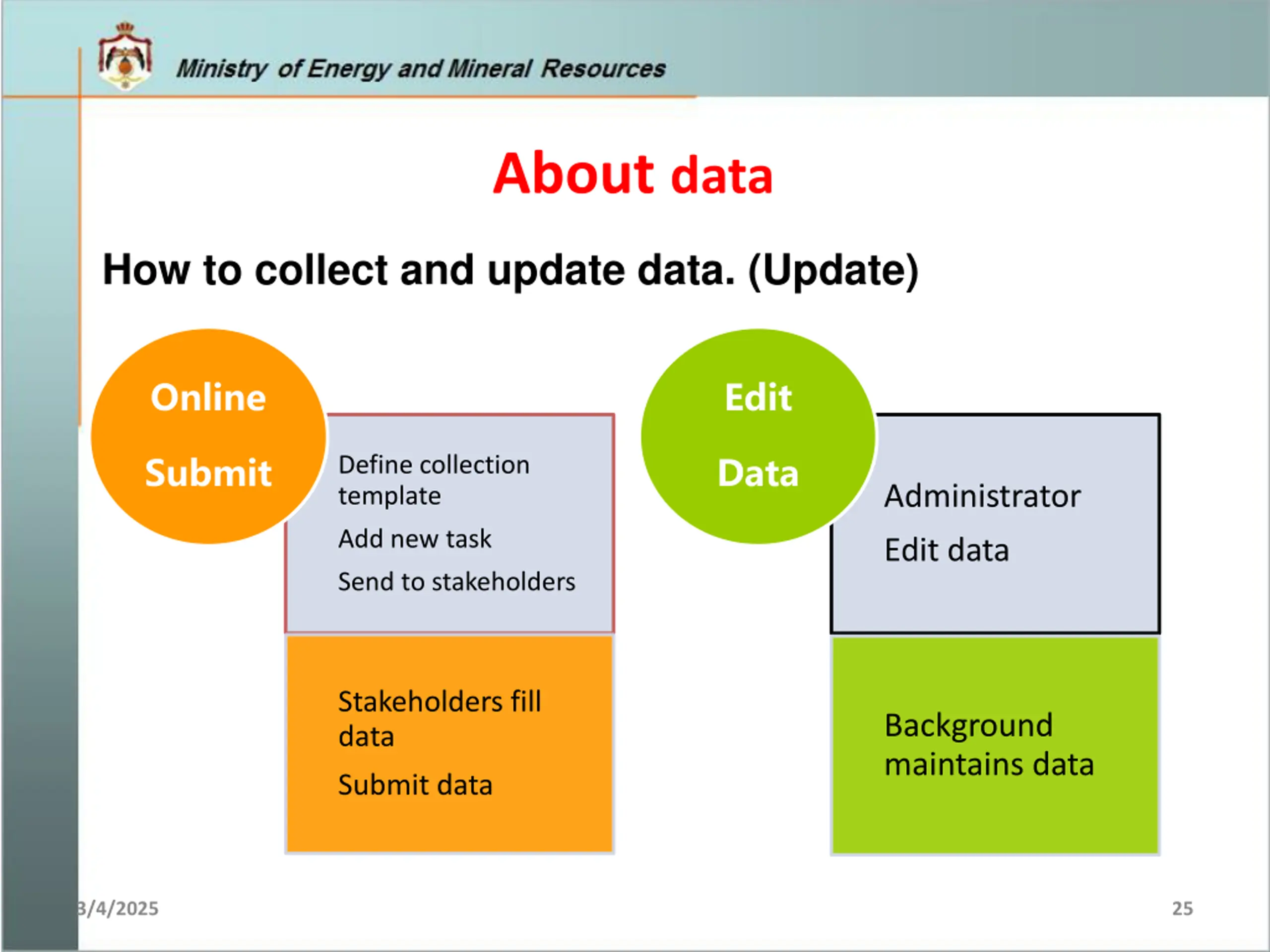

About data How to collect and update data. (Update) Online Edit Submit Data Define collection template Administrator Add new task Edit data Send to stakeholders Stakeholders fill data Background maintains data Submit data 3/4/2025 25

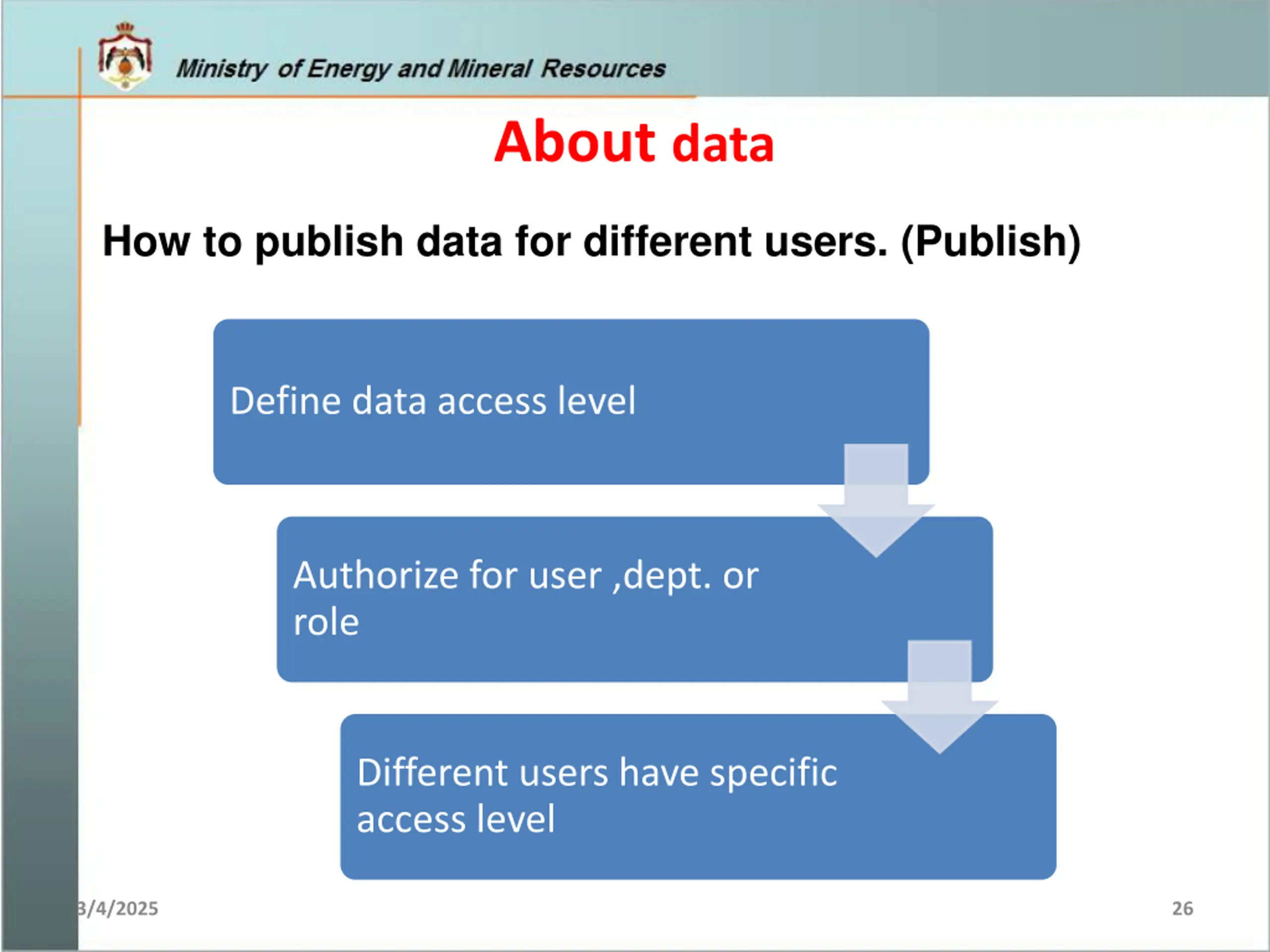

About data How to publish data for different users. (Publish) Define data access level Authorize for user ,dept. or role Different users have specific access level 3/4/2025 26

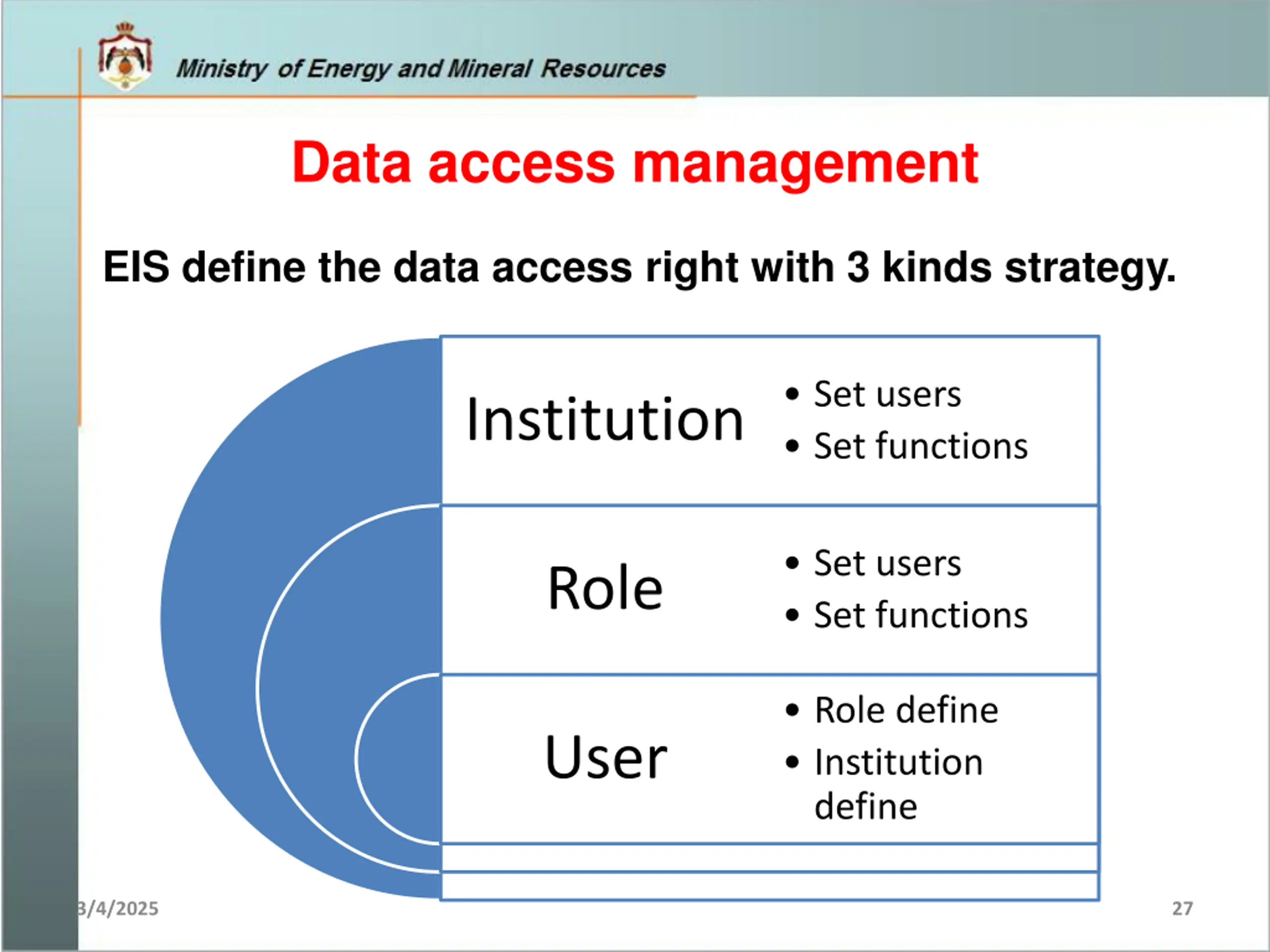

Data access management EIS define the data access right with 3 kinds strategy. Set users Set functions Institution Set users Set functions Role Role define Institution define User 3/4/2025 27

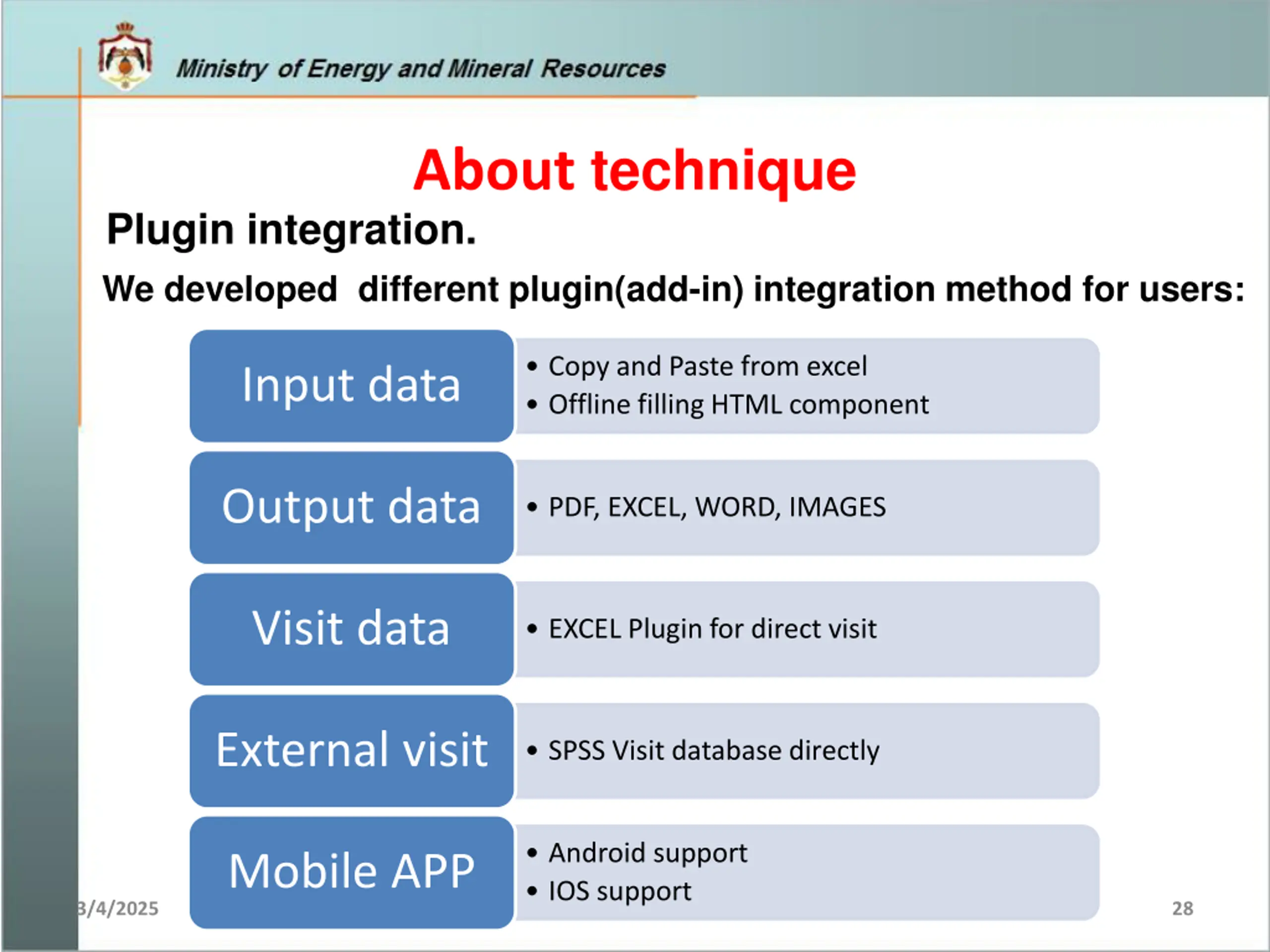

About technique Plugin integration. We developed different plugin(add-in) integration method for users: Copy and Paste from excel Offline filling HTML component Input data Output data PDF, EXCEL, WORD, IMAGES Visit data EXCEL Plugin for direct visit External visit SPSS Visit database directly Android support IOS support Mobile APP 3/4/2025 28

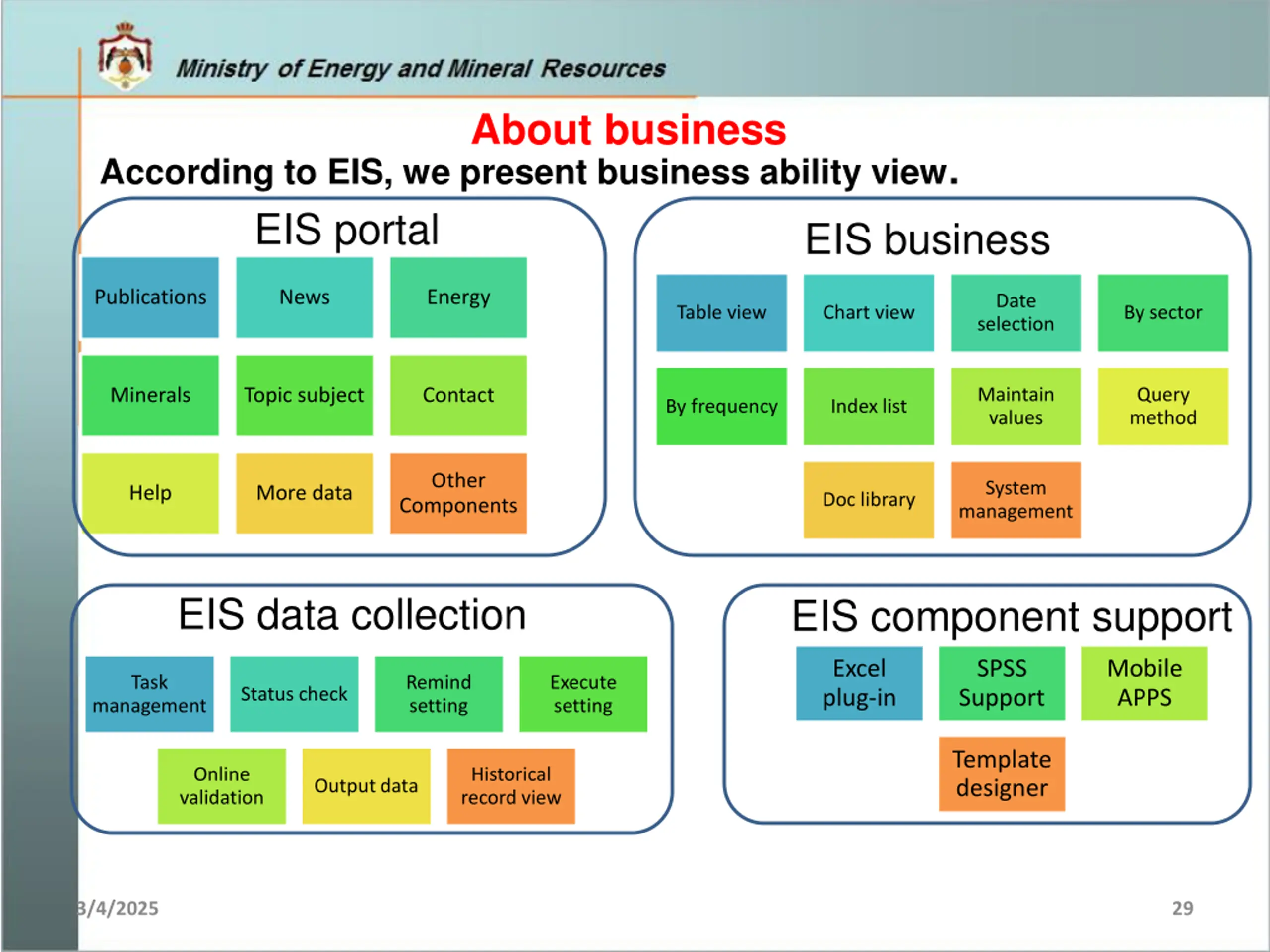

About business According to EIS, we present business ability view. EIS portal EIS business Publications News Energy Date selection Table view Chart view By sector Minerals Topic subject Contact Maintain values Query method By frequency Index list Other System management Help More data Doc library Components EIS data collection EIS component support Excel plug-in SPSS Support Mobile APPS Task Remind setting Execute setting Status check management Template designer Online validation Historical record view Output data 3/4/2025 29
Thank you 3/4/2025 30
